  1. Simulation in Alpine Skiing Peter Kaps Werner Nachbauer University of Innsbruck, Austria Workshop Ibk 05

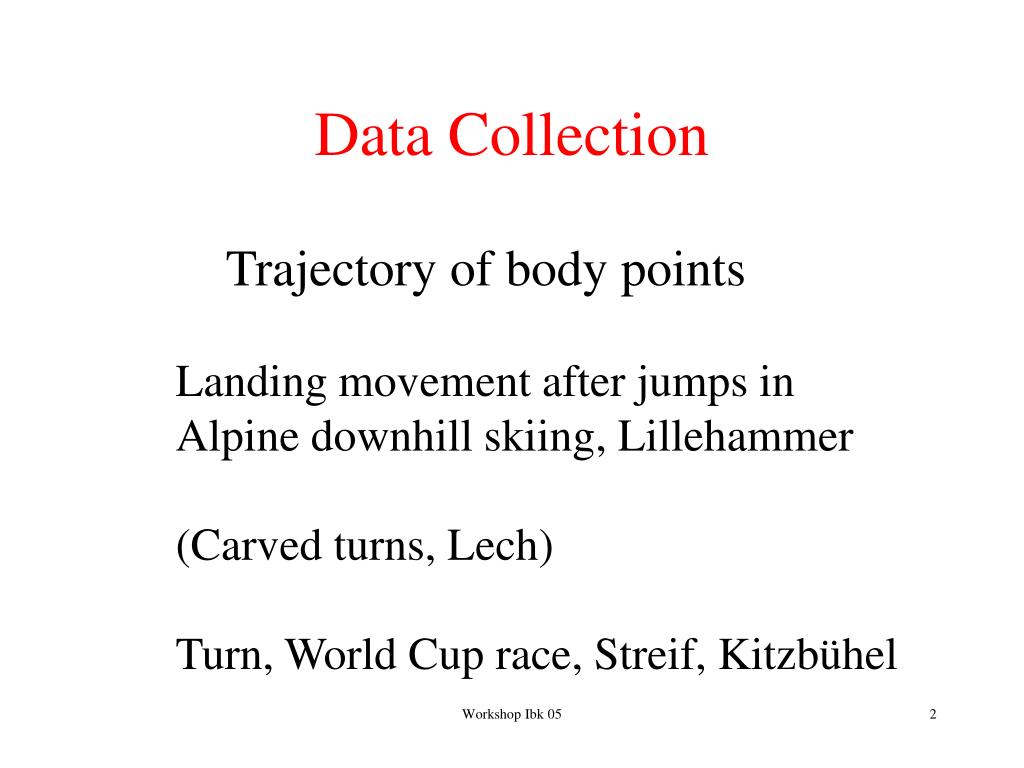

  2. Data Collection • Trajectory of body points • Landing movement after jumps in • Alpine downhill skiing, Lillehammer • (Carved turns, Lech) • Turn, World Cup race, Streif, Kitzbühel Workshop Ibk 05

  3. Optimal landing Workshop Ibk 05

  4. Landing in backward position Workshop Ibk 05

  5. Workshop Ibk 05

  6. Workshop Ibk 05

  7. Direct linear transformation x,yimage coordinates X,Y,Zobject coordinates biDLT-parameters Z y Y X x Workshop Ibk 05

  8. Control points at Russi jump Workshop Ibk 05

  9. Camera position at Russi jump Workshop Ibk 05

  10. Video frame on PC Workshop Ibk 05

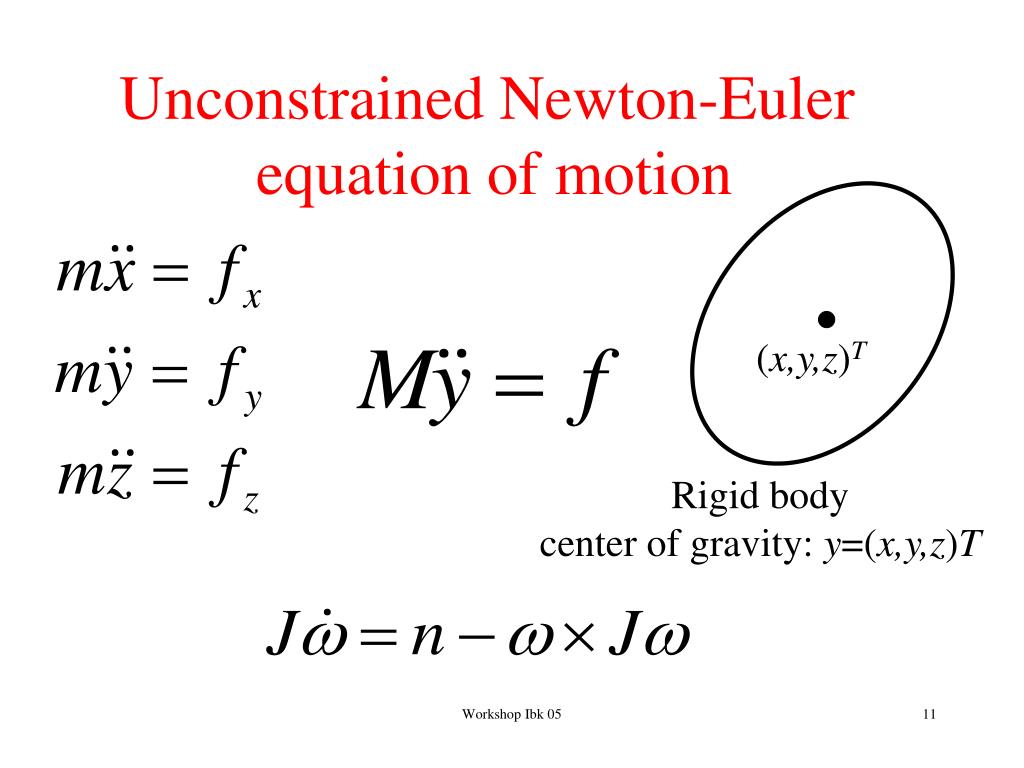

  11. Unconstrained Newton-Euler equation of motion (x,y,z)T Rigid body center of gravity: y=(x,y,z)T Workshop Ibk 05

  12. Constrained equation of motion in 2D unconstrained r=0 Workshop Ibk 05

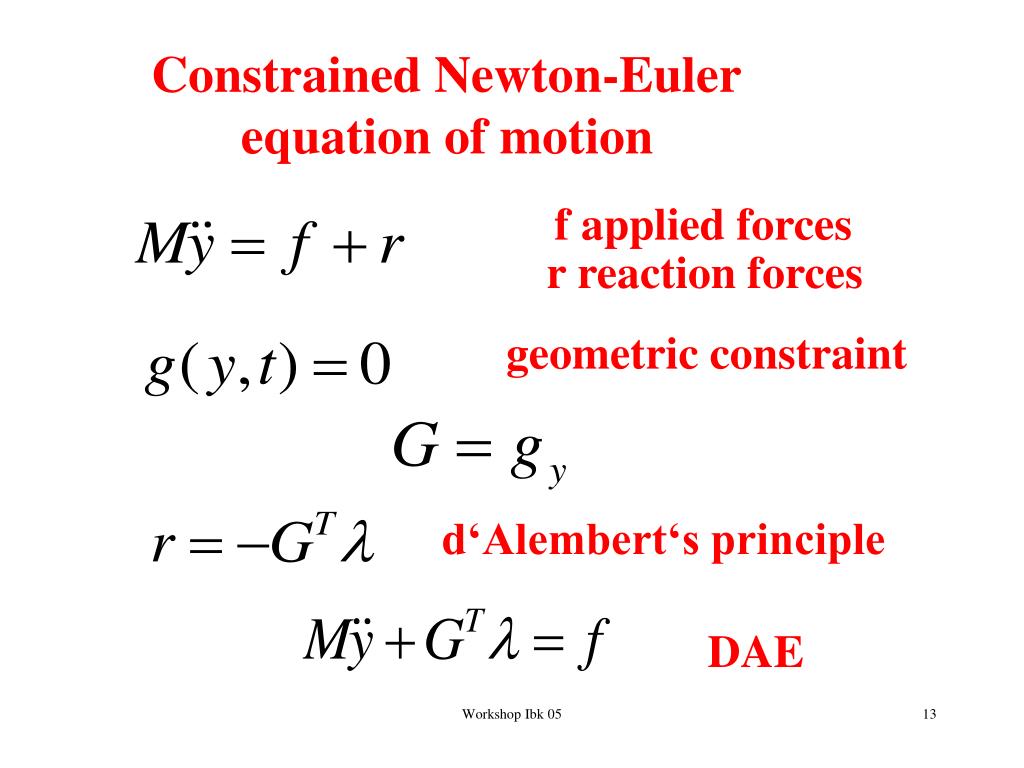

  13. Constrained Newton-Euler equation of motion f applied forces r reaction forces geometric constraint d‘Alembert‘s principle DAE Workshop Ibk 05

  14. Constrained Newton-Euler equation of motion DAE index 3 position level index 2 velocity level index 1 acceler. level Workshop Ibk 05

  15. Equation of motion T(u,t)v Index-2-DAE Solved with RADAU 5 (Hairer-Wanner) MATLAB-version of Ch. Engstler Workshop Ibk 05

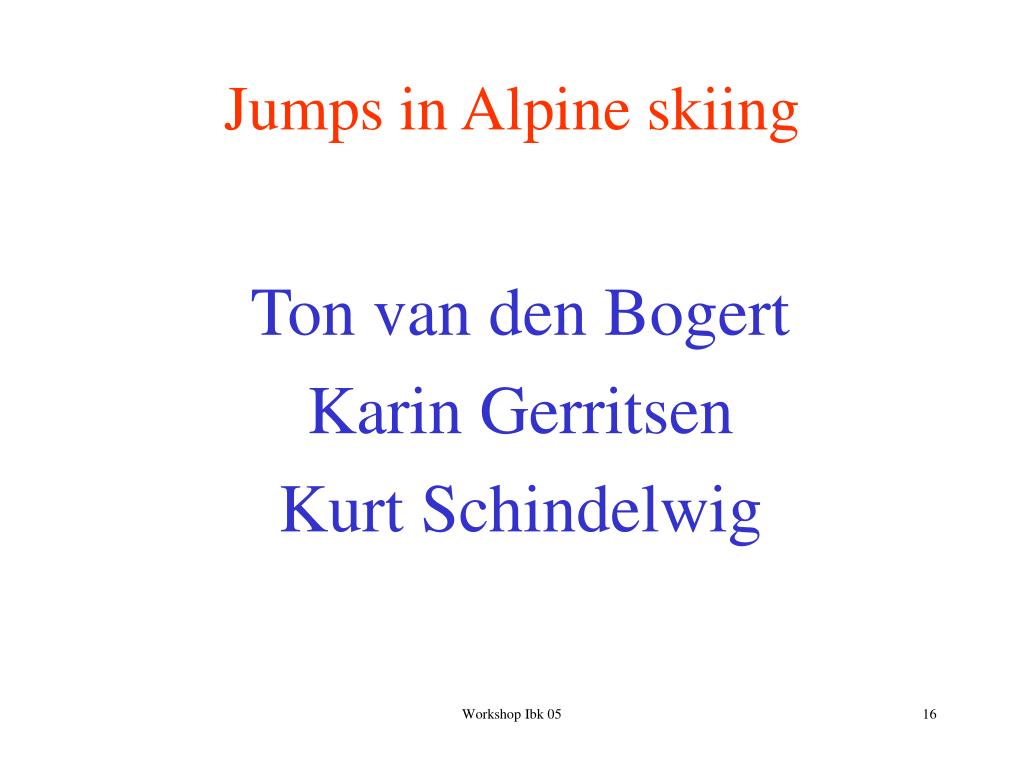

  16. Jumps in Alpine skiing Ton van den Bogert Karin Gerritsen Kurt Schindelwig Workshop Ibk 05

  17. Fz,Ende Fy,Ende Fz,Mitte Fy,Mitte Fz,Vorne Schneeoberfläche Skispitze Force between snow and ski Force between snow and ski normal to snow surface 3 nonlinear viscoelastic contact elements Workshop Ibk 05

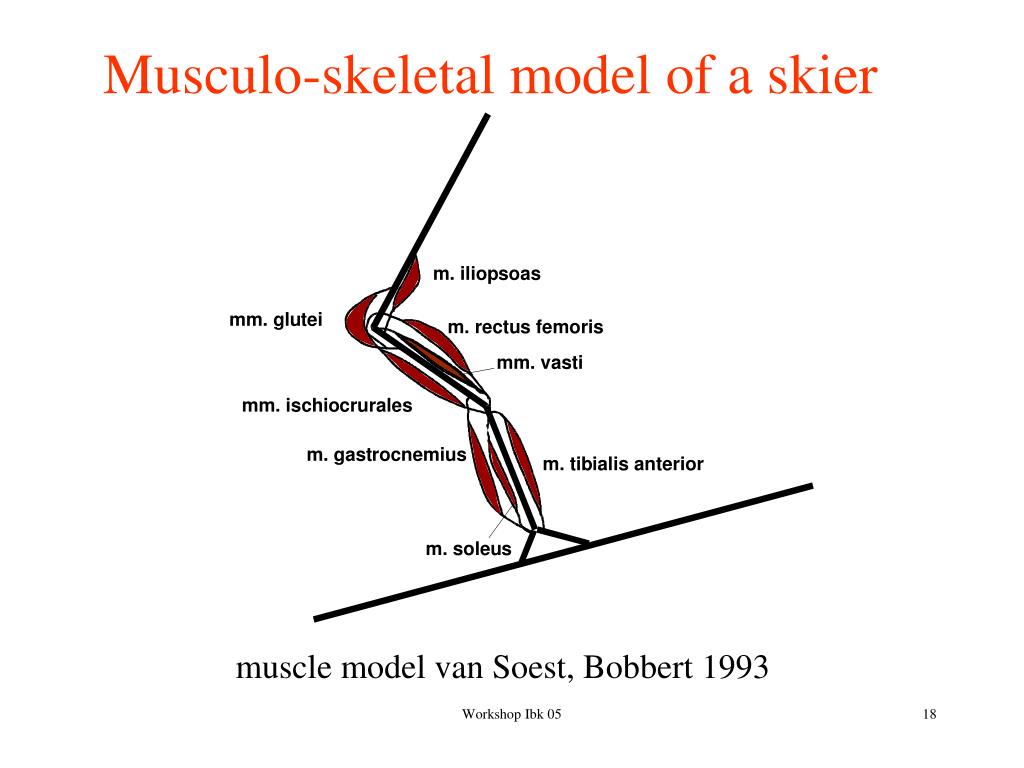

  18. Musculo-skeletal model of a skier muscle model van Soest, Bobbert 1993 Workshop Ibk 05

  19. Muscle force production of force – contractile element ligaments - seriell elastic element connective tissue - parallel elastic element Workshop Ibk 05

  20. LCE LPEE LSEE Muscle model of Hill total length L = LCE + LSEE CE contractile element SEE seriell elastic element PEEparallel elastic element Workshop Ibk 05

  21. Force of seriell-elastic elements Force of parallel-elastic elements Workshop Ibk 05

  22. Force-length-relation Fmax maximal isometric force isometric vCE= 0 maximal activation q = 1 Workshop Ibk 05

  23. Force-velocity relation vCE = d/dt LCE maximal activation q = 1 optimal muscle length LCE = LCEopt Workshop Ibk 05

  24. Hill equation (1938) Force-velocity relation concentric contraction Workshop Ibk 05

  25. Activation model (Hatze 1981)muscle activation LCElength of the contractile elements calcium-ion concentration value of the non activated muscle Workshop Ibk 05

  26. LCEopt optimal length of contractile elements Workshop Ibk 05

  27. Activation model (Hatze 1981) Ordinary differential equation for the calcium-ion concentration  Control parameter: relative stimulation rate f stimulation rate, fmax maximum stimulation rate Workshop Ibk 05

  28. LCE LPEE LSEE Equilibrium FCE(L,vCE,q) = f(L,LCE) Solving forvCE vCE = d/dt LCE = fH(L,LCE,q(,LCE)) Workshop Ibk 05

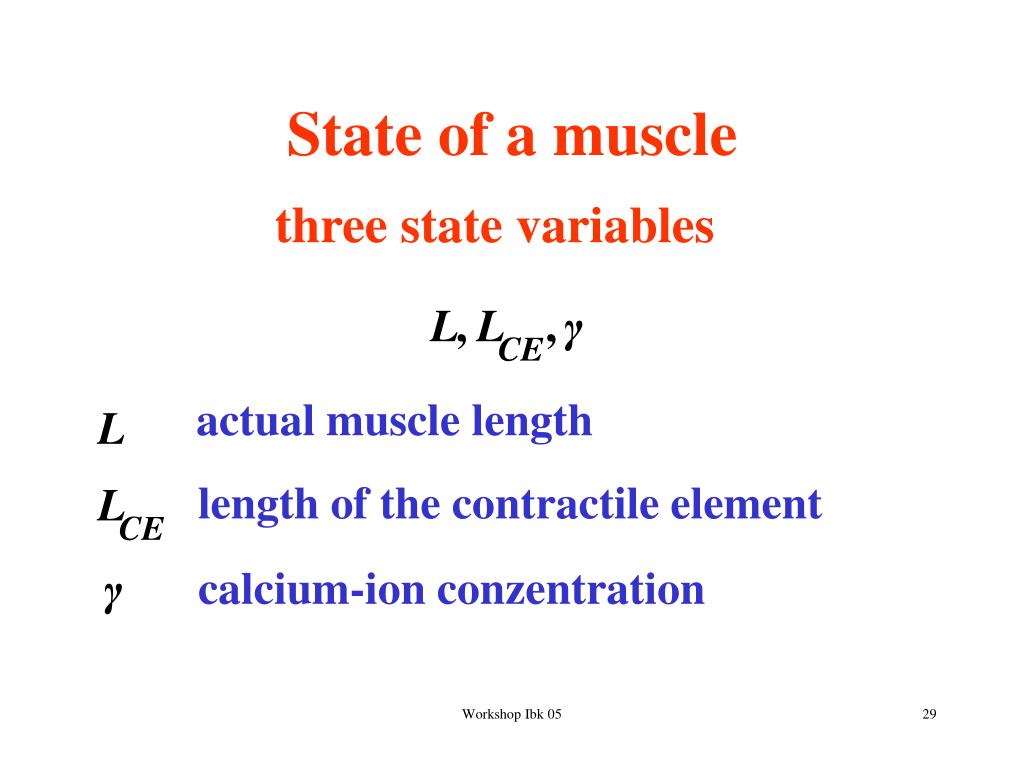

  29. State of a muscle three state variables actual muscle length length of the contractile element calcium-ion conzentration Workshop Ibk 05

  30. Force of muscle-ligament complex according to Hill-Modell Input: L, LCE,  compute equivalent torque muscle force times lever armDkfor jointk Dk constant Workshop Ibk 05

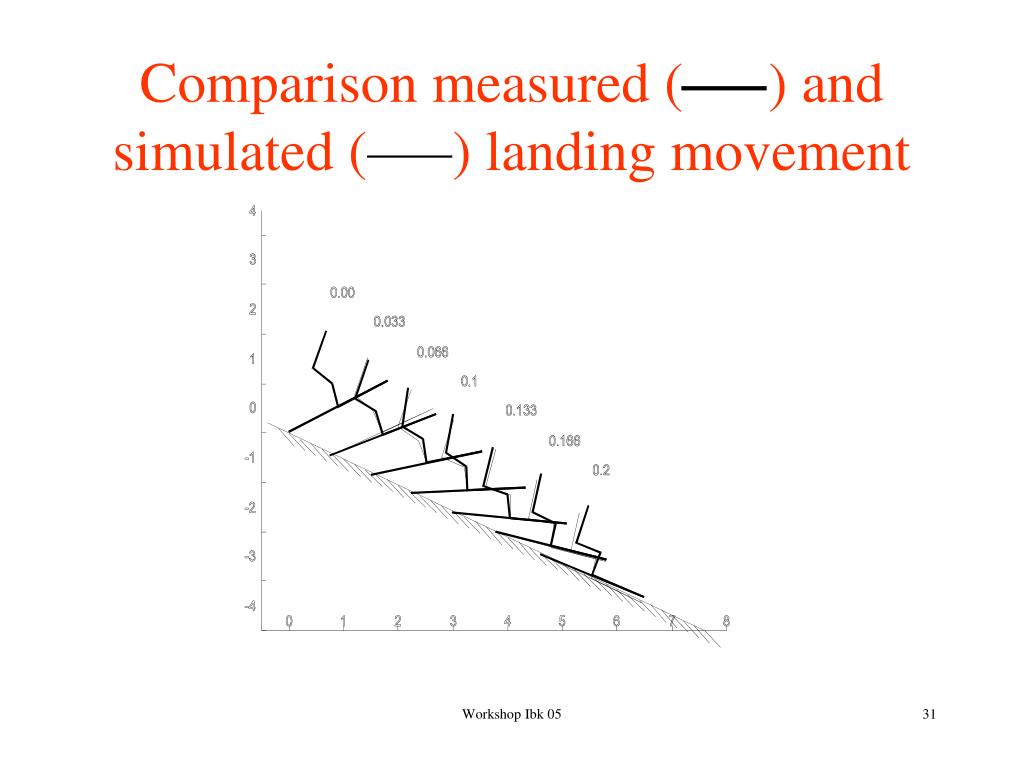

  31. Comparison measured ( ) andsimulated ( ) landing movement Workshop Ibk 05

  32. Turns in Alpine skiing Simulation with DADS Peter Lugner Franz Bruck Techn. University, Vienna Workshop Ibk 05

  33. Trajectory of a ski racer x(t)=(X(t), Y(t), Z(t))T position as a function of time Mean value between the toe pieces of the left and right binding Track Position constraint Z-h(X,Y)=0 Y-s(X)=0 g(x,t)=0 Workshop Ibk 05

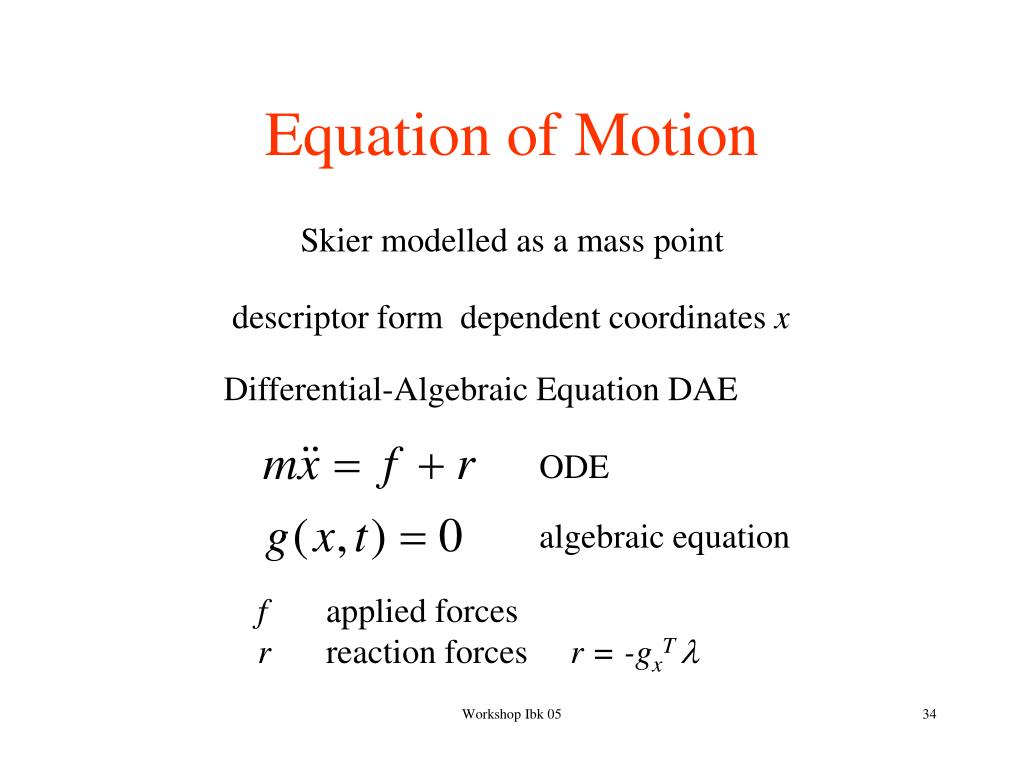

  34. Equation of Motion Skier modelled as a mass point descriptor form dependent coordinates x Differential-Algebraic Equation DAE ODE algebraic equation f applied forces r reaction forces r = -gxT Workshop Ibk 05

  35. Applied forces gravity snow friction drag t unit vector in tangential direction  friction coefficient N normal force N = ||r|| cd A drag area  density v velocity Workshop Ibk 05

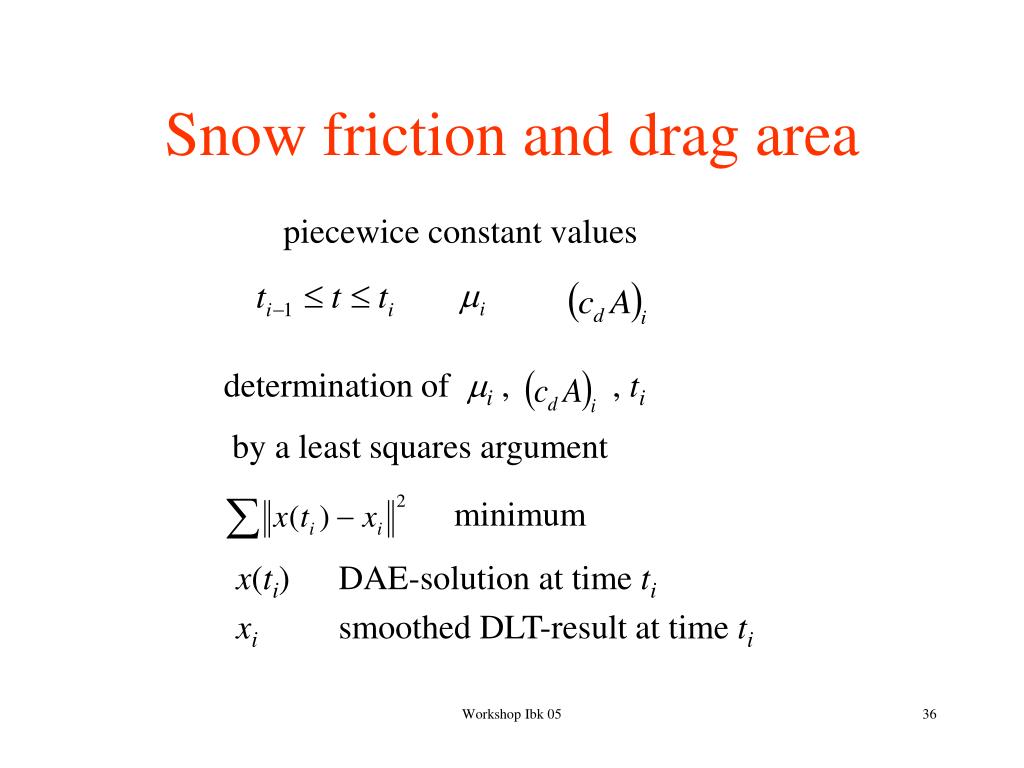

  36. Snow friction and drag area piecewice constant values determination of i , , ti by a least squares argument minimum x(ti) DAE-solution at time ti xi smoothed DLT-result at time ti Workshop Ibk 05

  37. Software for Computation Computations were performed in MATLAB DAE-solver RADAU5 of Hairer-Wanner MATLAB-Version by Ch. Engstler Optimization problem Nelder-Mead simplex algorithmus Workshop Ibk 05

  38. Results truncated values more exact values [0 , 0.1777] 1=0.4064 (cdA)1=0.9094 [0.1777, 0.5834] 2=0.4041 (cdA)2=0.9070 [0.5834, 1.9200] 1=0.1008 (cdA)1=0.5534 Workshop Ibk 05

  39. Comparison more exact values Workshop Ibk 05

  40. Comparison truncated values Workshop Ibk 05

  41. Conclusions In Alpine skiing biomechanical studies under race conditions are possible. The results are reasonable, although circumstances for data collection are not optimal: no markers, position of control points must not disturb the racers, difficulties with commercial rights Results like loading of the anterior cruciate ligament (ACL) as function of velocity or inclination of the slope during landing or the possibility of a rupture of the ACL without falling are interesting applications in medicine. Informations on snow friction and drag in race conditions are interesting results, but a video analysis is expensive (digitizing the data, geodetic surveying). Workshop Ibk 05

  42. Applications Determination of an optimal trajectory Virtual skiing, with vibration devices, in analogy to flight simulators Workshop Ibk 05
