  1. All IP Network Reference Model For Location Based Services 3GPP2 All-IP Ad Hoc Group/Architecture Focus Group Vancouver, Canada August 8 – 10, 2000 Samsung Electronics, Co., Ltd Jimmy H. Dho andHaeng S. Koo Phone: +82-31-779-8012 E-mail: jhdo@telecom.samsung.co.kr hskoo@sta.samsung.com

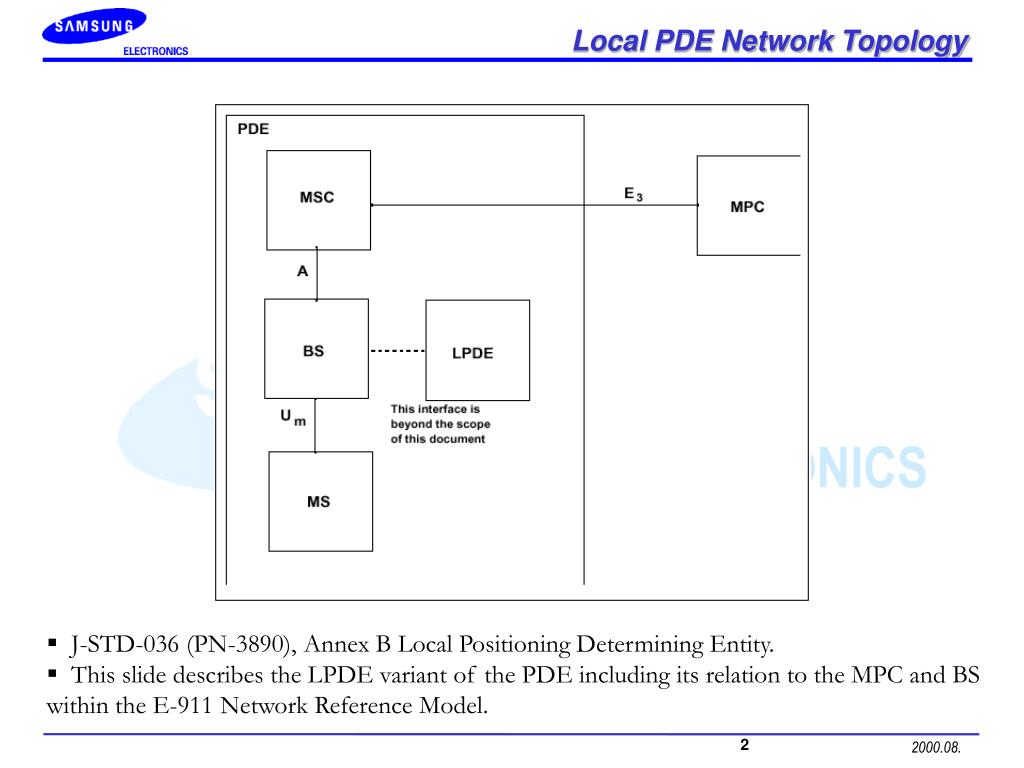

  2. Local PDE Network Topology • J-STD-036 (PN-3890), Annex B Local Positioning Determining Entity. • This slide describes the LPDE variant of the PDE including its relation to the MPC and BS • within the E-911 Network Reference Model.

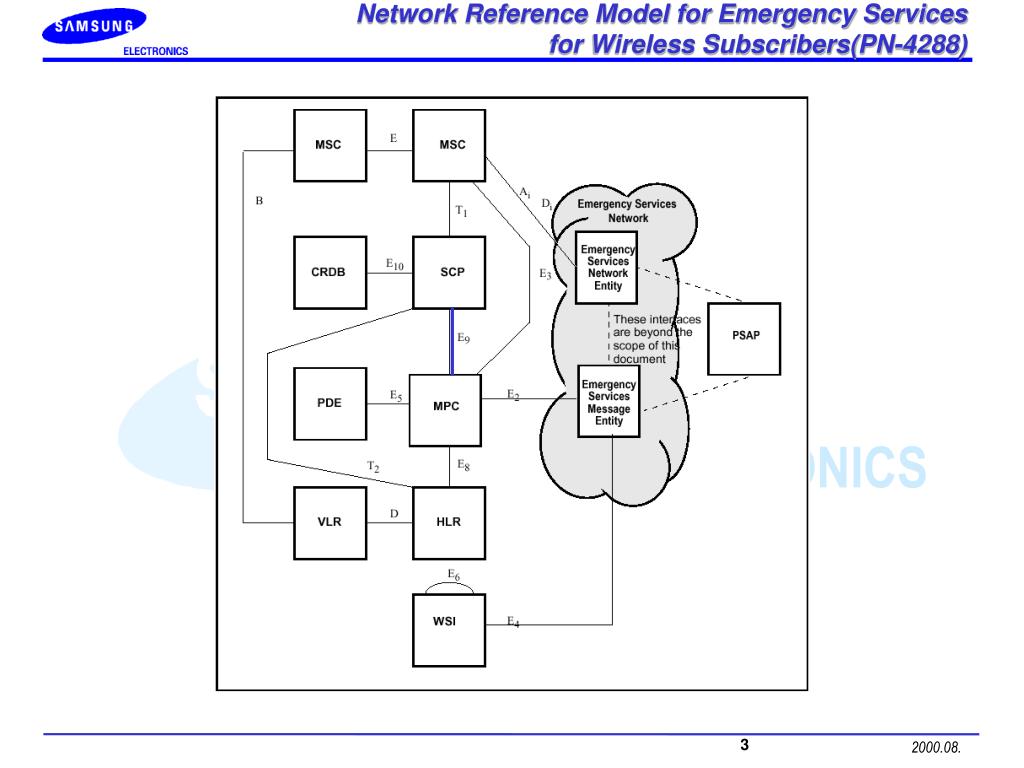

  3. Network Reference Model for Emergency Servicesfor Wireless Subscribers(PN-4288)

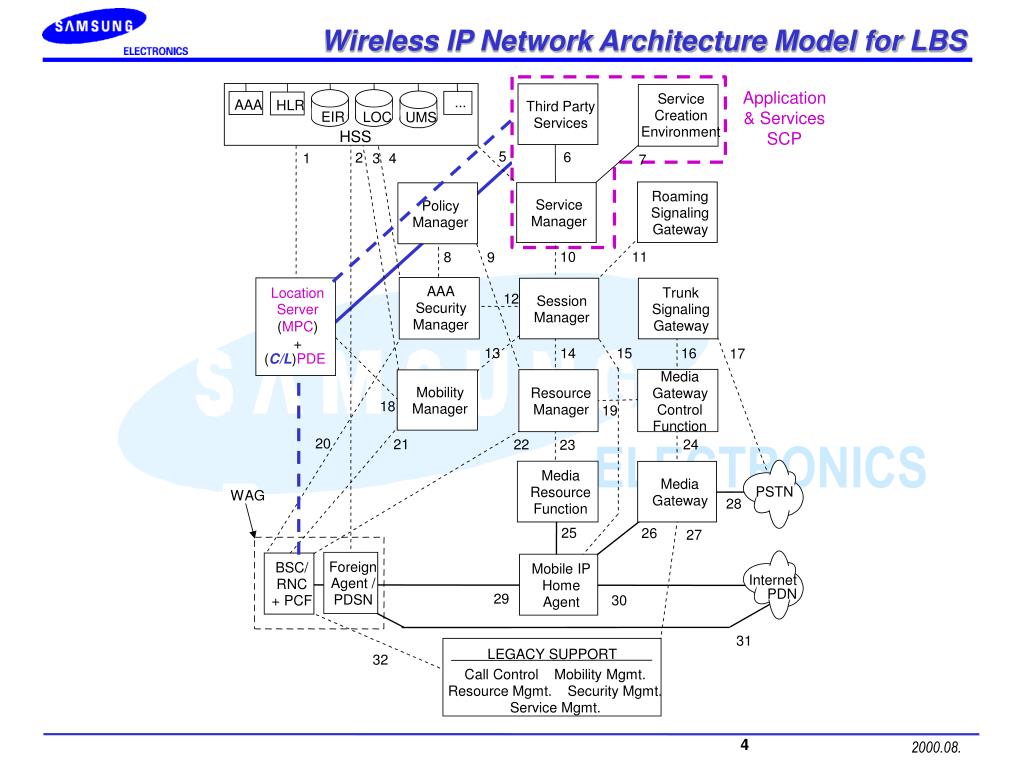

  4. ... AAA HLR Third Party EIR LOC UMS Services HSS 5 6 2 1 3 4 7 Roaming Service Policy Signaling Manager Manager Gateway 10 11 8 9 AAA 12 Session Security Manager Manager 13 14 15 16 17 Resource 18 Manager 19 20 21 22 24 23 28 25 26 27 BSC/ Mobile IP RNC Home 29 30 + PCF Agent 31 32 Wireless IP Network Architecture Model for LBS Application & Services SCP Service Creation Environment Trunk Location Signaling Server (MPC) + Gateway (C/L)PDE Media Mobility Gateway Manager Control Function Media Media PSTN Resource WAG Gateway Function Foreign Internet Agent / PDN PDSN LEGACY SUPPORT Call Control Mobility Mgmt. Resource Mgmt. Security Mgmt. Service Mgmt.
