Chapter 9, Virtual Memory Overheads, Part 1 Sections 9.1-9.5

1. Chapter 9, Virtual MemoryOverheads, Part 1Sections 9.1-9.5

2. 9.1 Background • Remember the sequence of developments of memory management from the last chapter: • 1. The simplest approach: • Define a memory block of fixed size large enough for any process and allocate such a block to each process (see MISC) • This is tremendously rigid and wasteful

3. 2. Allocate memory in contiguous blocks of varying size • This leads to external fragmentation and a waste of 1/3 of memory • There is overhead in maintaining allocation tables down to the byte level

4. 3. Do paging. • Memory is allocated in fixed size blocks • This solves the external fragmentation problem • This also breaks the need for allocation of contiguous memory • The costs as discussed so far consist of the overhead incurred from maintaining and using a page table

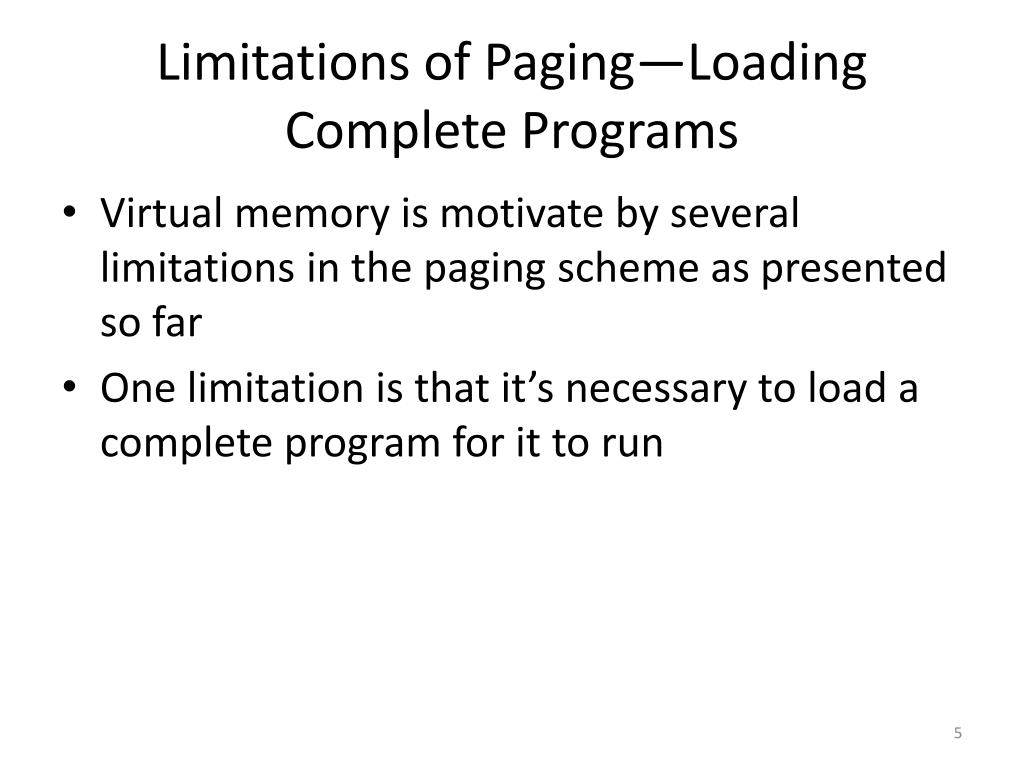

5. Limitations of Paging—Loading Complete Programs • Virtual memory is motivate by several limitations in the paging scheme as presented so far • One limitation is that it’s necessary to load a complete program for it to run

6. These are examples of why it might not be necessary to load a complete program: • 1. Error handling routines may not be called during most program runs • 2. Arrays of predeclared sizes may never be completely filled

7. 3. Other routines besides error handling may also be rarely used • 4. For a large program, even if all parts are used at some time during a run, by definition, they can’t all be used at the same time • This means that at any given time the complete program doesn’t have to be loaded

8. Reasons for wanting to be able to run a program that’s only partially loaded • 1. The size of a program is limited to the physical memory on the machine • Given current memory sizes, this by itself is not a serious limitation, although in some environments it might still be

9. 2. For a large program, significant parts of it may not be used for significant amounts of time. • If so, it’s an absolute waste to have the unused parts loaded into memory • Even with large memory spaces, conserving memory is desirable in order to support multi-tasking

10. 3. Another area of saving is in loading or swapping cost from secondary storage • If parts of a program are never needed, reading and writing from secondary storage can be saved • In general this means leaving more I/O cycles available for useful work

11. Not having to load a complete program also means: • A program will start faster when initially scheduled because there is less I/O for the long term scheduler to do • The program will be faster and less wasteful during the course of its run in a system that does medium term scheduling or swapping

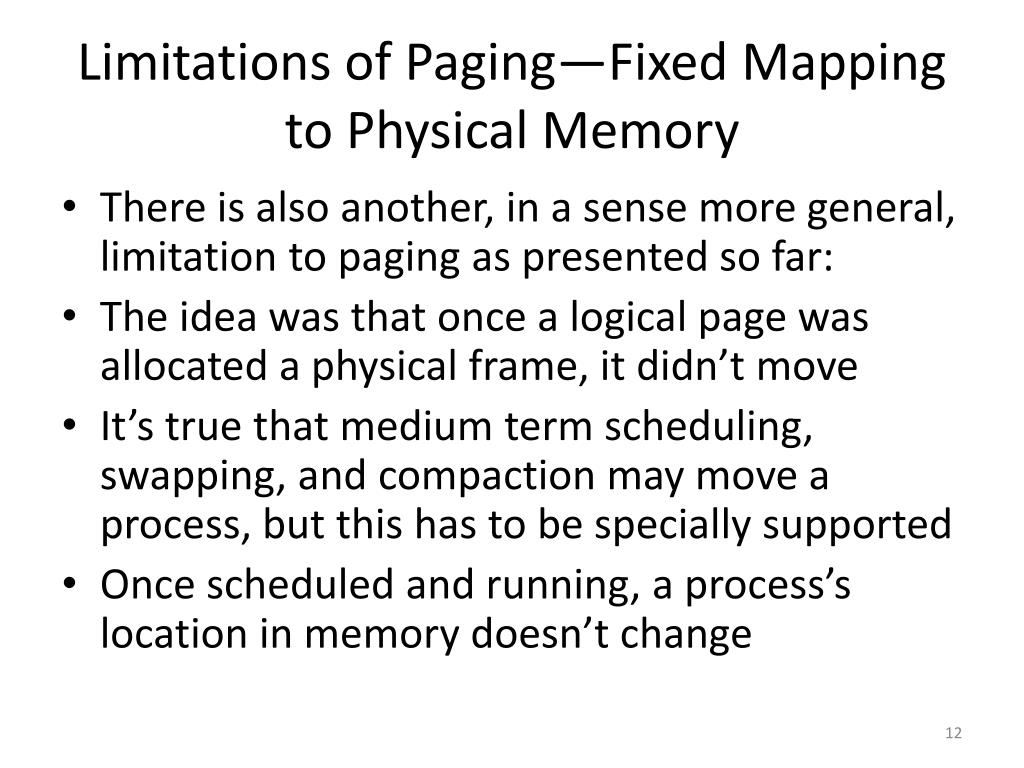

12. Limitations of Paging—Fixed Mapping to Physical Memory • There is also another, in a sense more general, limitation to paging as presented so far: • The idea was that once a logical page was allocated a physical frame, it didn’t move • It’s true that medium term scheduling, swapping, and compaction may move a process, but this has to be specially supported • Once scheduled and running, a process’s location in memory doesn’t change

13. If page locations are fixed in memory, that implies a fixed mapping between the logical and physical address space throughout a program run • More flexibility can be attained if the logical and physical address spaces are delinked • That would mean address resolution at run time would handle finding a logical page in one physical frame at one time and in another physical frame at another time

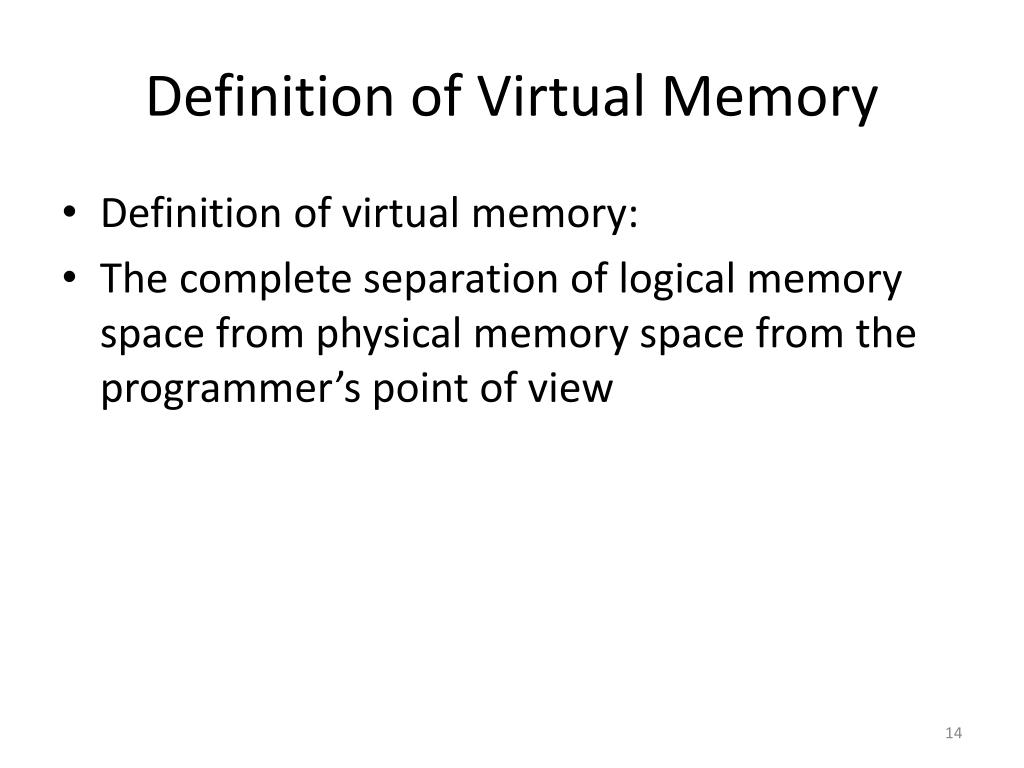

14. Definition of Virtual Memory • Definition of virtual memory: • The complete separation of logical memory space from physical memory space from the programmer’s point of view

15. At any given time during a program run, any page, p, in the logical address space could be at any frame, f, in the physical memory space • Only that part of a program that is running has to have been loaded into main memory from secondary storage • That means that in fact, any page, p, in the logical address space could be in a frame, f, in memory, or still located in secondary storage

16. Side note: • Both segmentation and paging were mentioned in the last chapter • In theory, virtual memory can be implemented with segmentation • However, that’s a mess • The most common implementation is with paging • That is the only approach that will be covered here

17. 9.2 Demand Paging • If it’s necessary to load a complete process in order for it to run, then there is an up-front cost of swapping all of its pages in from secondary storage to main memory • It it’s not necessary to load a complete process in order for it to run, then a page only needs to be swapped into main memory if the process generates an address on that page • This is known as demand paging

18. In general, when a process is scheduled it may be given an initial allocation of frames in memory • From that point on, additional frames may be allocated through demand paging • If a process is not even given an initial footprint and it acquires all of its memory through paging, this is known as pure demand paging

19. Demand paging from secondary storage to main memory is roughly analogous to what happens on a miss between the page table and the TLB • Initially, the TLB can be thought of as empty • The first time the process generates an address on a given page, that causes a TLB miss, and the page entry is put into the TLB

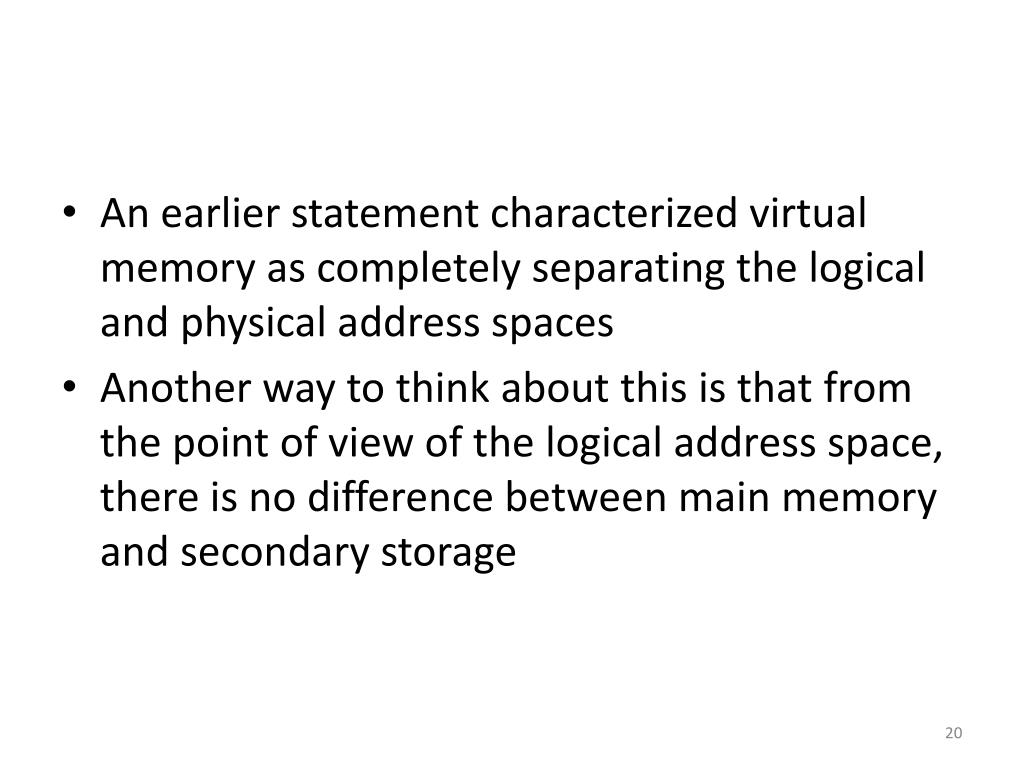

20. An earlier statement characterized virtual memory as completely separating the logical and physical address spaces • Another way to think about this is that from the point of view of the logical address space, there is no difference between main memory and secondary storage

21. In other words, the logical address space may refer to parts of programs which have been loaded into memory and parts of programs which haven’t • Accessing memory that hasn’t been loaded is slower, but the loading is handled by the system

22. From the point of view of the address, the running process doesn’t know or care whether it’s in main memory or secondary storage • The MMU and the disk management system work together to provide transparent access to the logical address space of a program • The IBM AS/400 is an example of a system where addresses literally extended into the secondary storage space

23. This is a side issue, but note the following: • The maximum address space is limited by the architecture—how many bits are available for holding an address • However, even if the amount of attached memory is not the maximum, the maximum address space extends into secondary storage • Virtual memory effectively means that secondary storage functions as a transparent extension of physical main memory

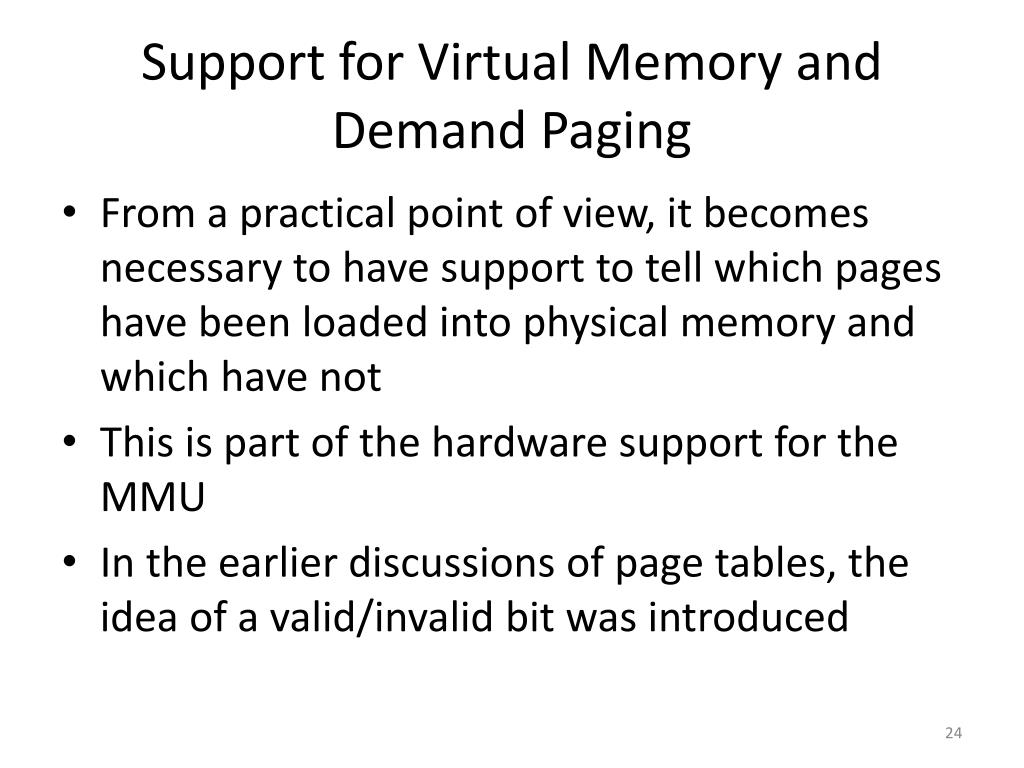

24. Support for Virtual Memory and Demand Paging • From a practical point of view, it becomes necessary to have support to tell which pages have been loaded into physical memory and which have not • This is part of the hardware support for the MMU • In the earlier discussions of page tables, the idea of a valid/invalid bit was introduced

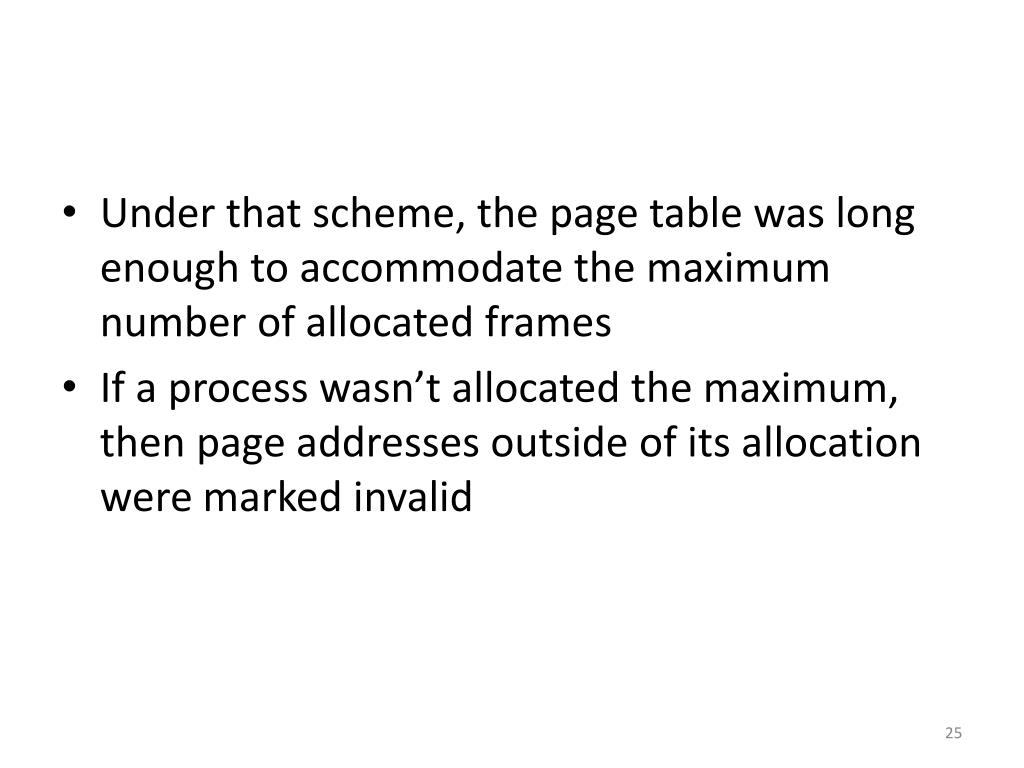

25. Under that scheme, the page table was long enough to accommodate the maximum number of allocated frames • If a process wasn’t allocated the maximum, then page addresses outside of its allocation were marked invalid

26. The scheme can be extended for demand paging: • Valid means valid and in memory. • Invalid means either invalid or not loaded

27. Under the previous scheme, if an invalid page was accessed, a trap was generated, and the running process was halted due to an attempt to access memory outside of its range • Under the new scheme, an attempt to access an invalid page also generates a trap, but this is not necessarily an error • The trap is known as a page fault trap

28. This is an interrupt which halts the user process and triggers system software which does the following: • 1. It checks a table to see whether the address was really invalid or just not loaded • 2. If invalid, it terminates the process

29. 3. If valid, it gets a frame from the list of free frames (the frame table), allocates it to the process, and updates the data structures to show that the frame is allocated to page x of the process • 4. It schedules (i.e., requests) a disk operation to read the page from secondary storage into the allocated frame

30. 5. When the read is complete, it updates the data structures to show that the page is now valid • 6. It allows the user process to restart on exactly the same instruction that triggered the page fault trap in the first place

31. Note two things about the sequence of events outlined above. • First: • Restarting is just an example of context switching • By definition, the user process’s state will have been saved • It will resume at the IP value it was on when it stopped • The difference is that the page will now be in memory and no fault will result

32. Second: • The statement was made, “get a frame from the list of free frames”. • You may be wondering, what if there are no free frames? • At that point, memory is “over-allocated”. • That means that it’s necessary to take a frame from one process and give it to another • What this involves will be covered in more detail later

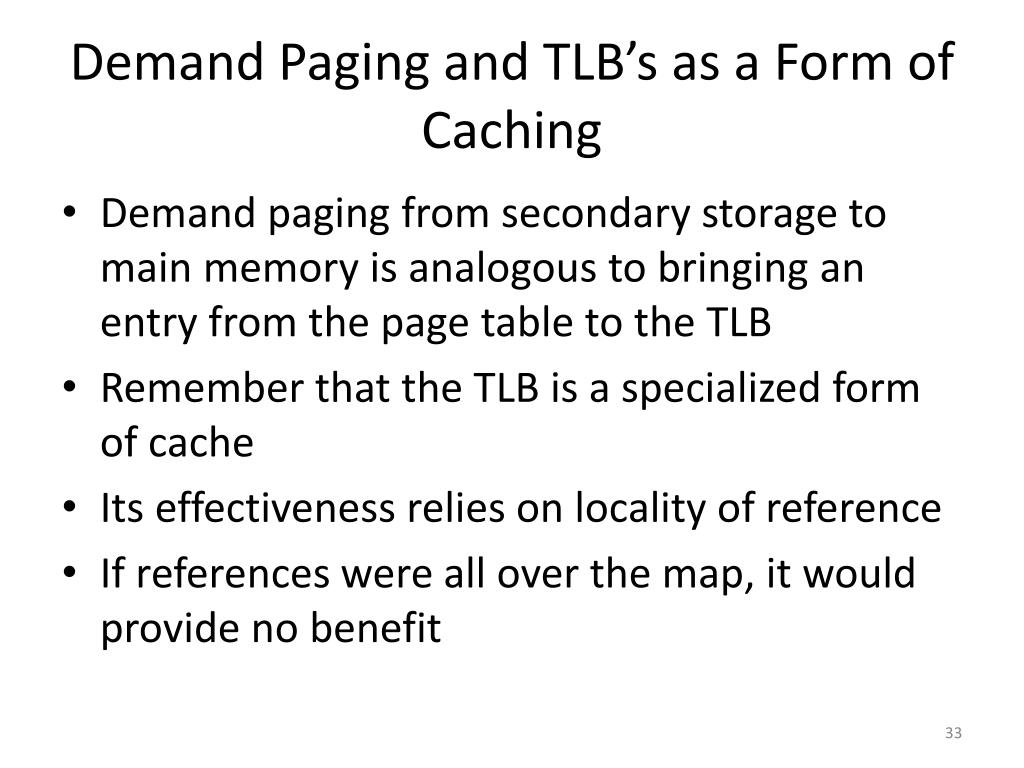

33. Demand Paging and TLB’s as a Form of Caching • Demand paging from secondary storage to main memory is analogous to bringing an entry from the page table to the TLB • Remember that the TLB is a specialized form of cache • Its effectiveness relies on locality of reference • If references were all over the map, it would provide no benefit

34. In practice, memory references tend to cluster in certain areas over certain periods of time, and then move on • This means that entries remain in the TLB and remain useful over a period of time

35. The logic of bringing pages from secondary storage to memory is also like caching • Pages that have been allocated to frames should remain useful over time, and can profitably remain in those frames • Pages should tend not to be used only once and then have to be swapped out immediately because another page is needed and over-allocation of memory has occurred

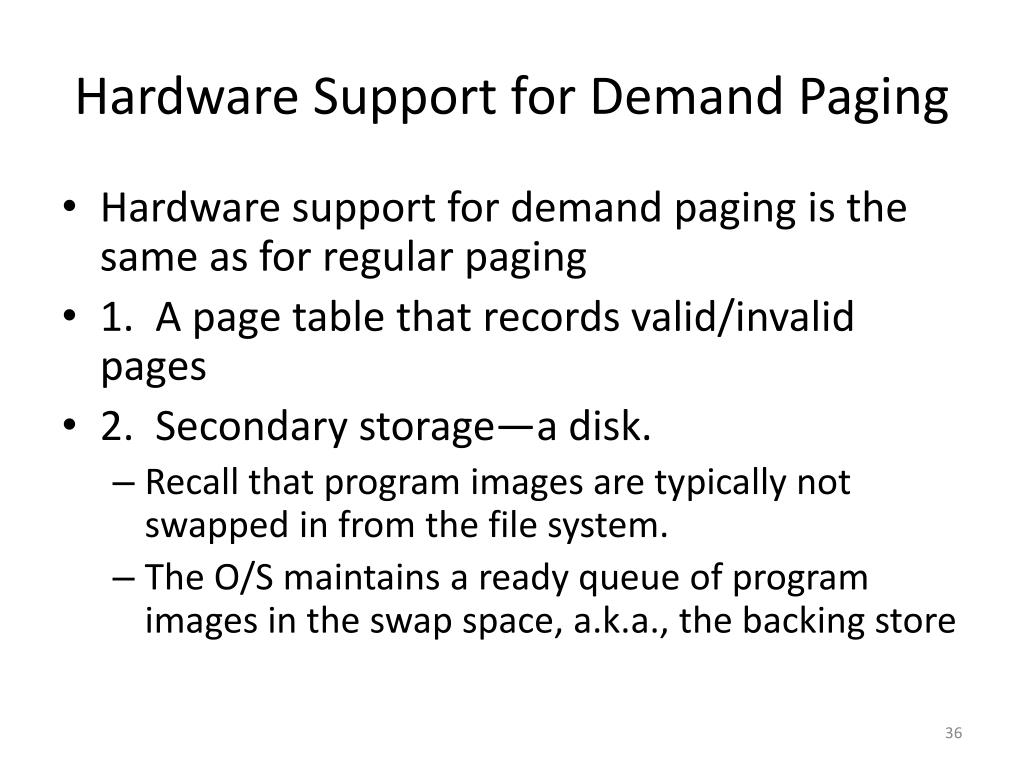

36. Hardware Support for Demand Paging • Hardware support for demand paging is the same as for regular paging • 1. A page table that records valid/invalid pages • 2. Secondary storage—a disk. • Recall that program images are typically not swapped in from the file system. • The O/S maintains a ready queue of program images in the swap space, a.k.a., the backing store

37. Problems with Page Faults • A serious problem can occur when restarting a user process after a page fault • This is not a problem with context switching per se • It is a problem that is reminiscent of the problems of concurrency control

38. An individual machine instruction actually consists of multiple sub-parts • Each of the sub-parts may require memory access • Thus, a page fault may occur on different sub-parts • Memory is like a resource, and when a process is halted mid-instruction, any prior action it’s taken on memory may have to be “rolled back” before it can be restarted

39. Instruction execution can be broken down into these steps: • 1. Fetch the instruction • 2. Decode the instruction • 3. Fetch operands, if any • 4. Do the operation (execute) • 5. Write the results, if any

40. A page fault can occur on the instruction fetch • In other words, during execution, the IP reaches a value that hasn’t been loaded yet • This presents no problem • The page fault causes the page containing the next instruction to be loaded • Then execution continues on that instruction

41. A page fault can also occur on the operand fetches • In other words, the pages containing the addresses referred to by the instruction haven’t been loaded yet • A little work is wasted on a restart, but there are no problems • The page fault causes the operand pages to be loaded (making sure not to replace the instruction page) • Then execution continues on that instruction

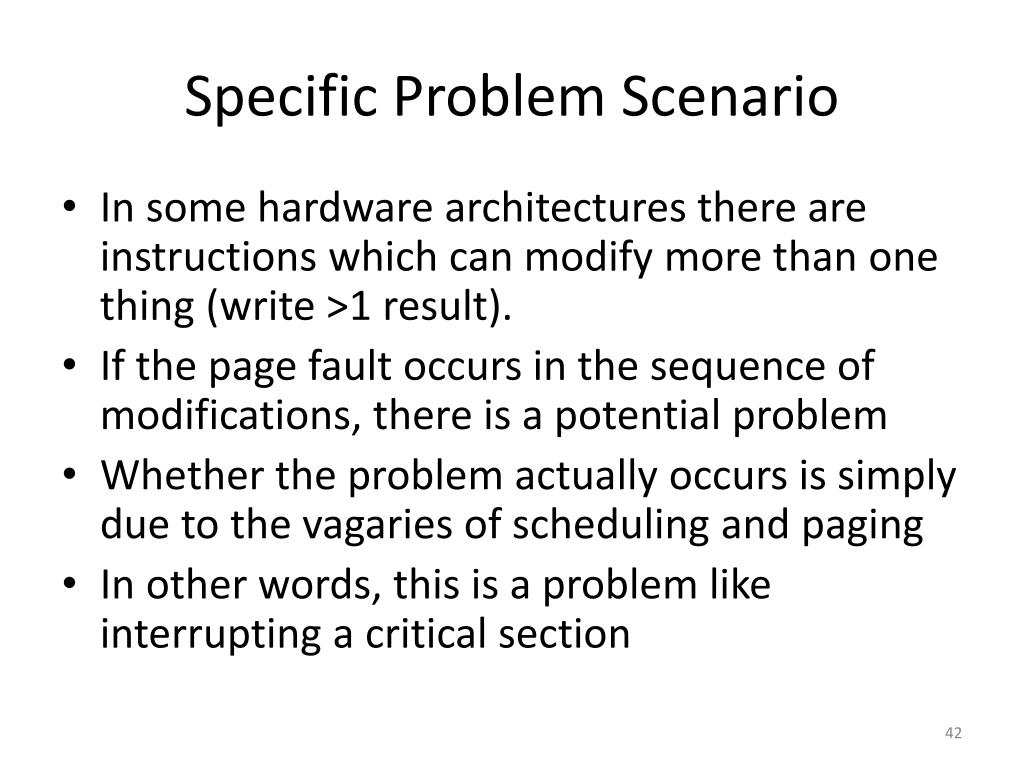

42. Specific Problem Scenario • In some hardware architectures there are instructions which can modify more than one thing (write >1 result). • If the page fault occurs in the sequence of modifications, there is a potential problem • Whether the problem actually occurs is simply due to the vagaries of scheduling and paging • In other words, this is a problem like interrupting a critical section

43. The memory management page fault trap handling mechanism has to be set up to deal with this potential problem • The book gives two concrete examples of machine instructions which are prone to this • One example was from a DEC (rest in peace) machine. • It will not be pursued

44. The other example comes from an IBM instruction set • There was a memory move instruction which would cause a block of 256 bytes to be relocated to a new address • Memory paging is transparent • Application programs simply deal in logical addresses

45. There is not, and there should not be any kind of instruction where an application program does memory operations with reference to the pages that it is using • Put simply, the move could be from a location on one page to a location on another page • This should be legal and it should be of no concern to the application program

46. Also, the move instruction in question allowed the new location to overlap with the old location • In other words, the move instruction could function as a shift • From an application point of view, this is perfectly reasonable • Why not have a machine instruction that supports shifting?

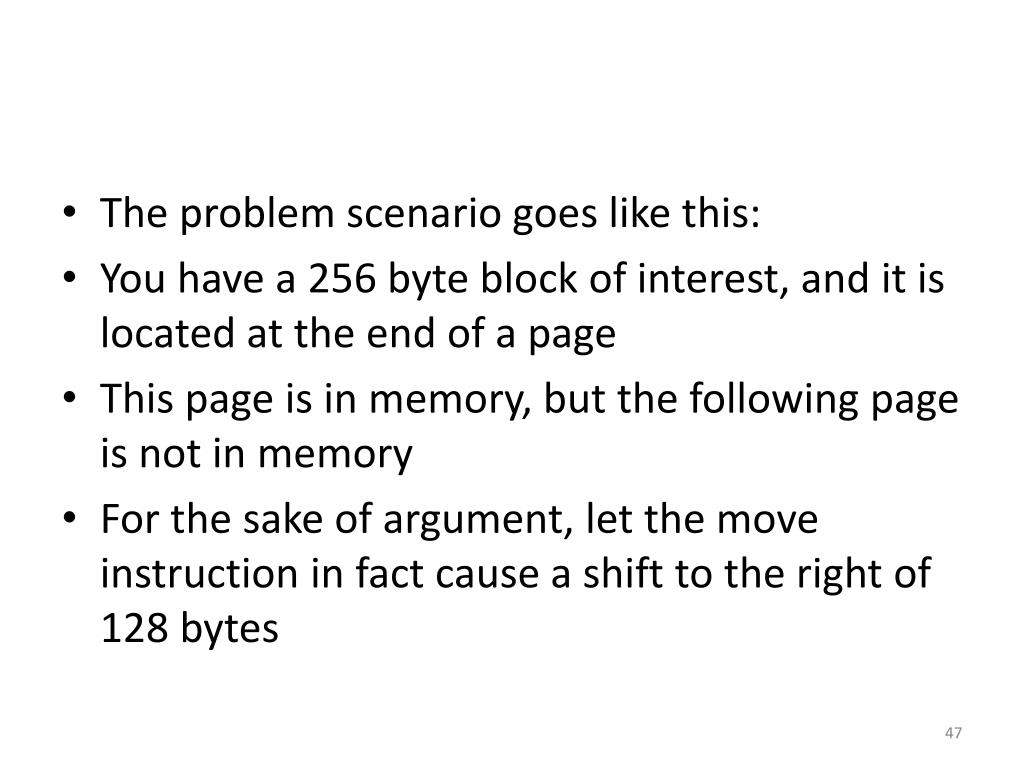

47. The problem scenario goes like this: • You have a 256 byte block of interest, and it is located at the end of a page • This page is in memory, but the following page is not in memory • For the sake of argument, let the move instruction in fact cause a shift to the right of 128 bytes

48. Instruction execution starts by “picking up” the full 256 bytes • It shifts to the right and lays down the first 128 of the 256 bytes • It then page faults because the second page isn’t in memory yet

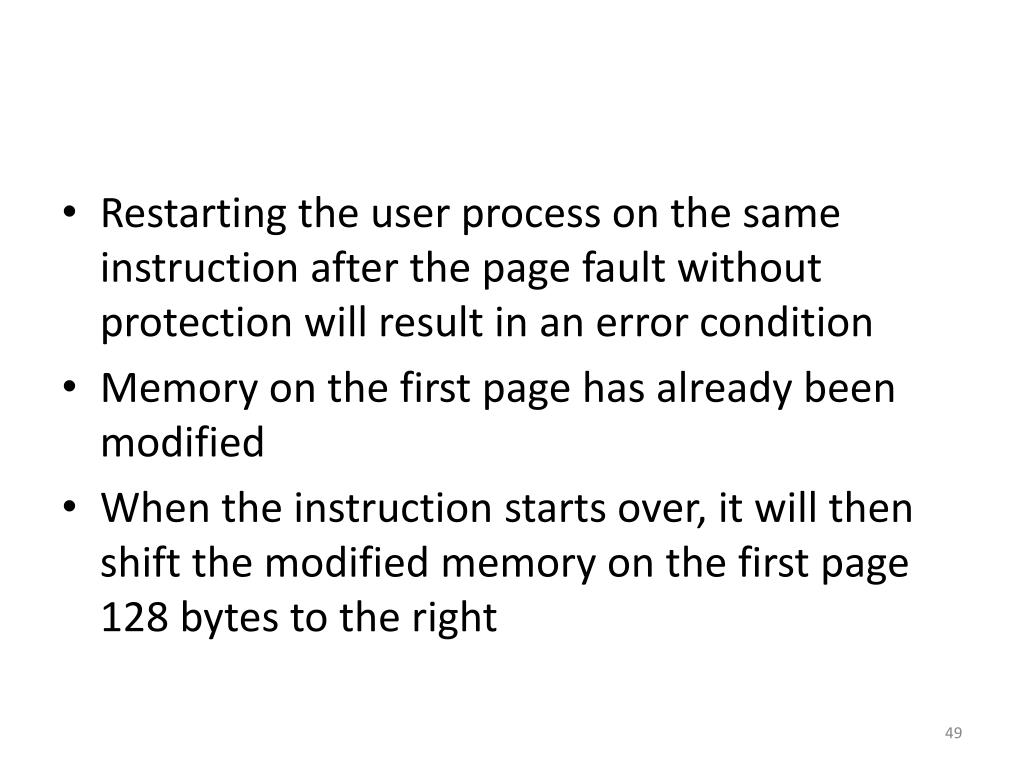

49. Restarting the user process on the same instruction after the page fault without protection will result in an error condition • Memory on the first page has already been modified • When the instruction starts over, it will then shift the modified memory on the first page 128 bytes to the right

50. You do not get the original 256 bytes shifted 128 bytes to the right • At a position 128 bytes to the right you get 128 blank bytes followed by the first 128 bytes of the original 256 • The problem is that the effects of memory access should be all or nothing. • In this case you get half and half
