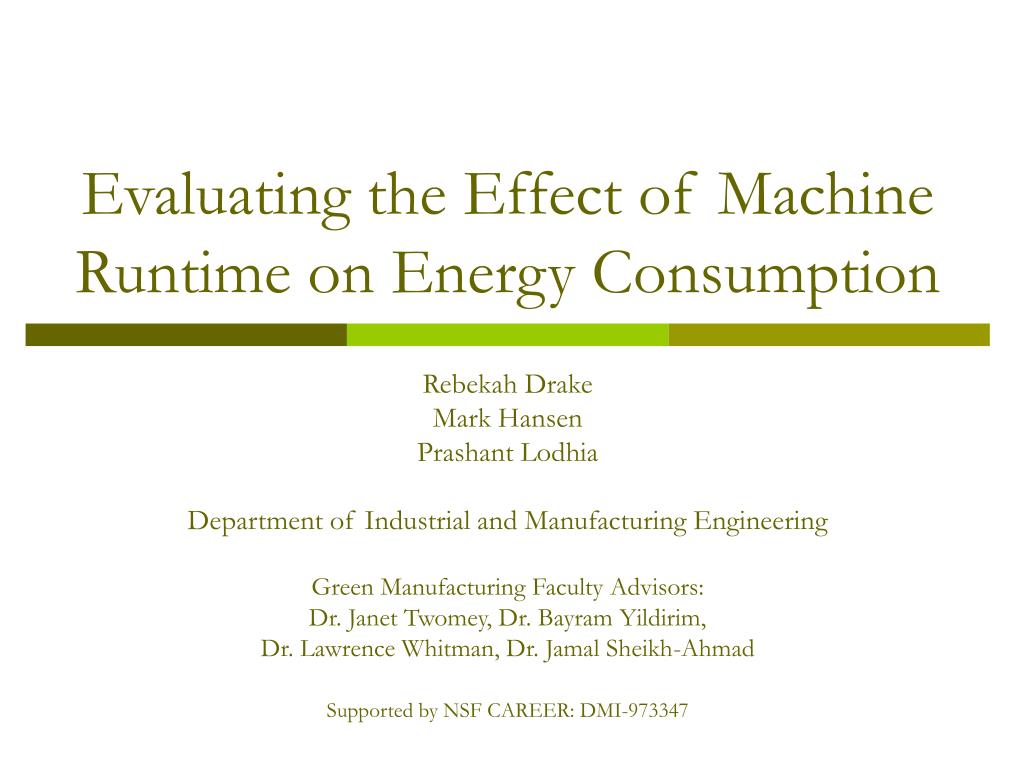

  1. Evaluating the Effect of Machine Runtime on Energy Consumption Rebekah Drake Mark Hansen Prashant Lodhia Department of Industrial and Manufacturing Engineering Green Manufacturing Faculty Advisors: Dr. Janet Twomey, Dr. Bayram Yildirim, Dr. Lawrence Whitman, Dr. Jamal Sheikh-Ahmad Supported by NSF CAREER: DMI-973347

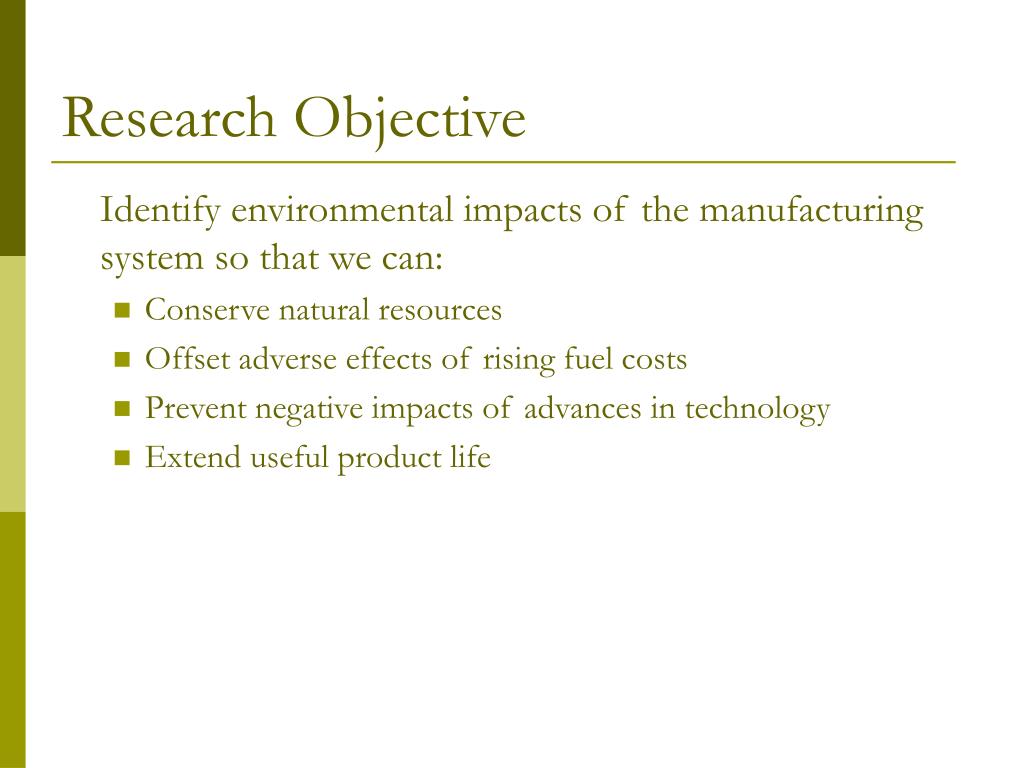

  2. Research Objective Identify environmental impacts of the manufacturing system so that we can: • Conserve natural resources • Offset adverse effects of rising fuel costs • Prevent negative impacts of advances in technology • Extend useful product life

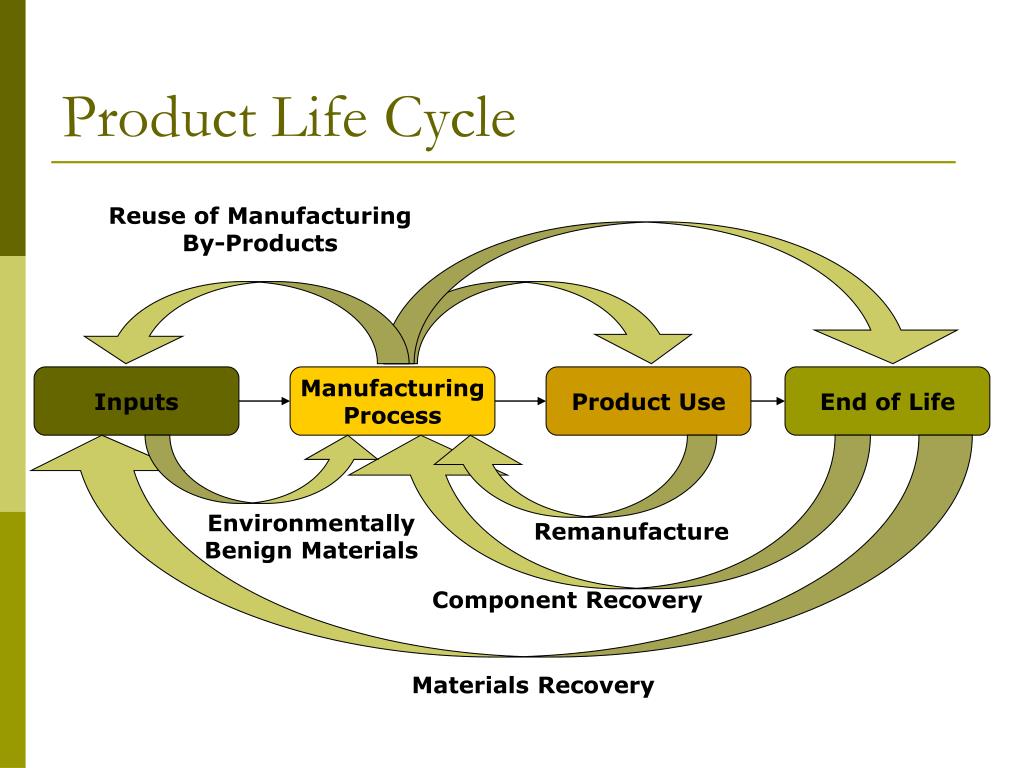

  3. Product Life Cycle Reuse of Manufacturing By-Products Inputs Manufacturing Process Product Use End of Life Environmentally Benign Materials Remanufacture Component Recovery Materials Recovery

  4. Process Diagram Supply Chain Decisions • Energy • Waste • Pollution • Water • Hazardous materials Production Operational Decisions • Energy • Waste • Pollution • Water • Hazardous materials Sub-cellular Machine Level Decisions

  5. Background • Manufacturers’ objective is to decrease production costs • Current agenda focus includes: • Optimization of batch size • Minimizing cycle time • Optimizing production sequence • Quality control • Status quo models do not consider the environment, specifically energy consumption

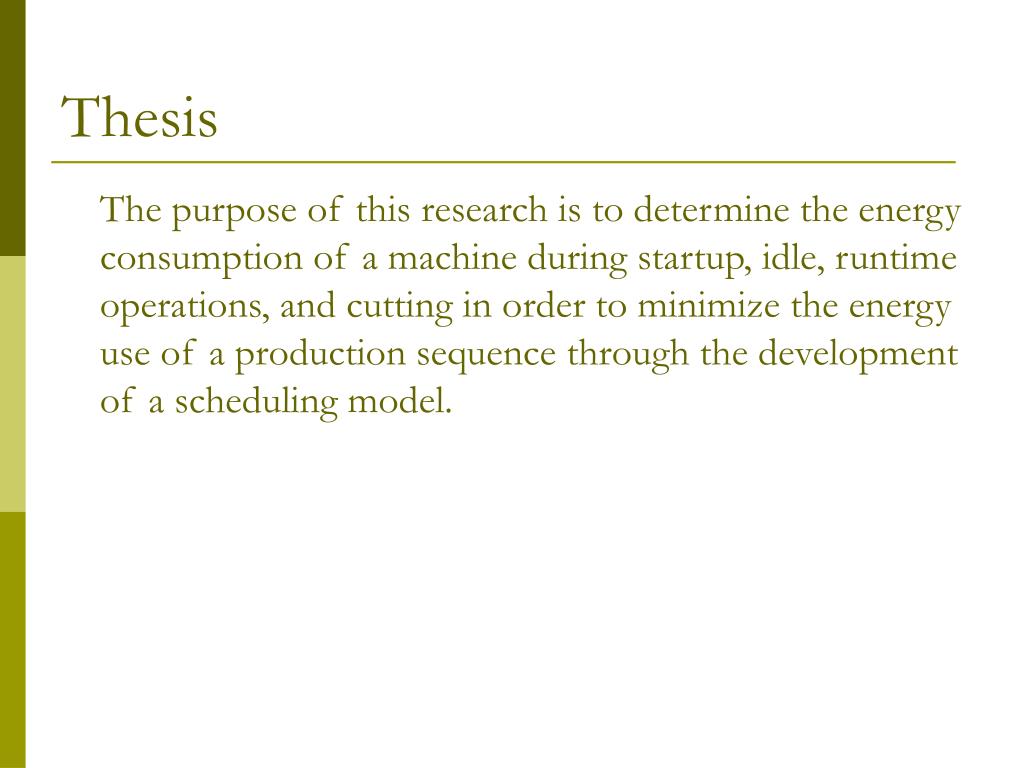

  6. Thesis The purpose of this research is to determine the energy consumption of a machine during startup, idle, runtime operations, and cutting in order to minimize the energy use of a production sequence through the development of a scheduling model.

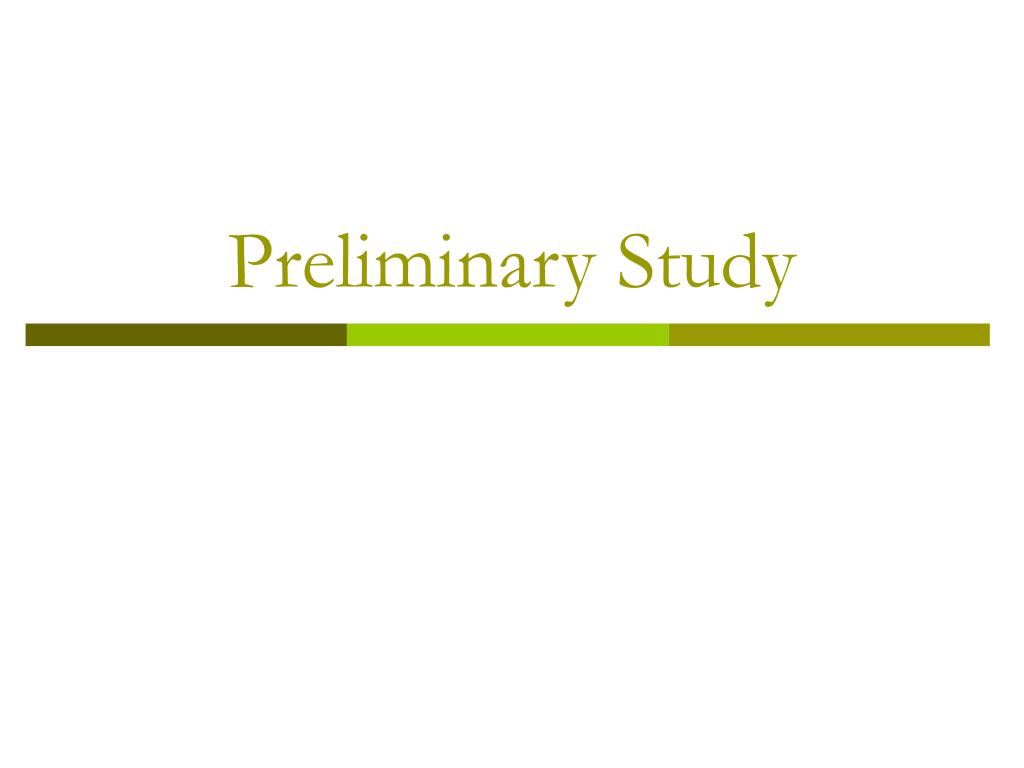

  7. Preliminary Study

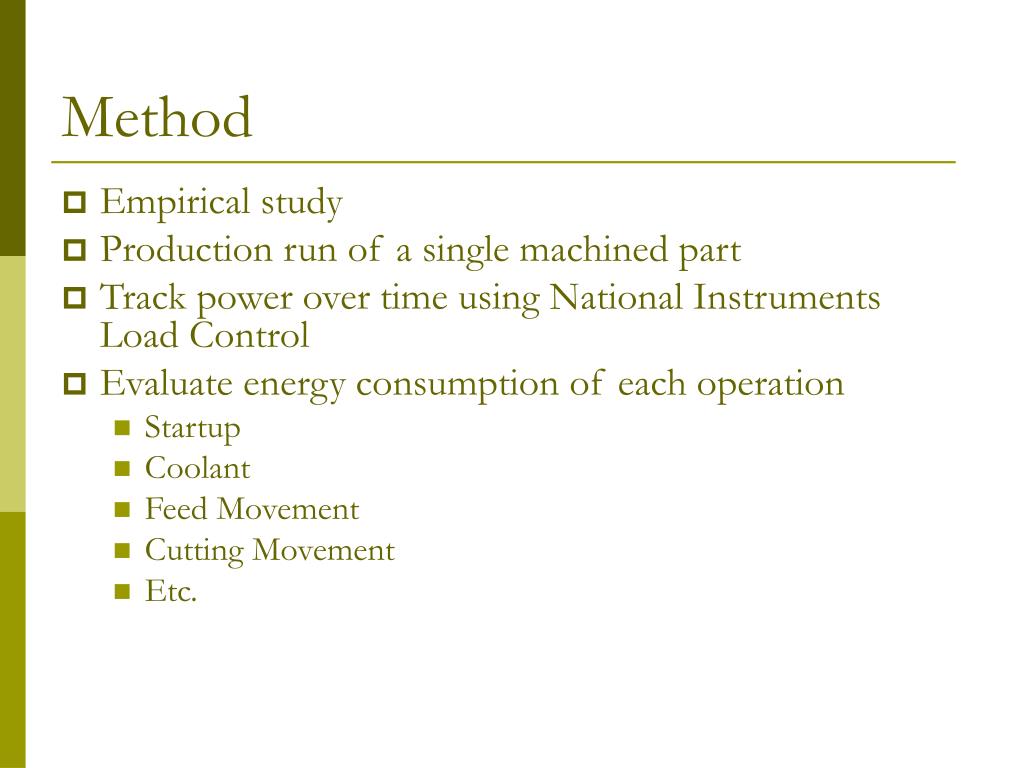

  8. Method • Empirical study • Production run of a single machined part • Track power over time using National Instruments Load Control • Evaluate energy consumption of each operation • Startup • Coolant • Feed Movement • Cutting Movement • Etc.

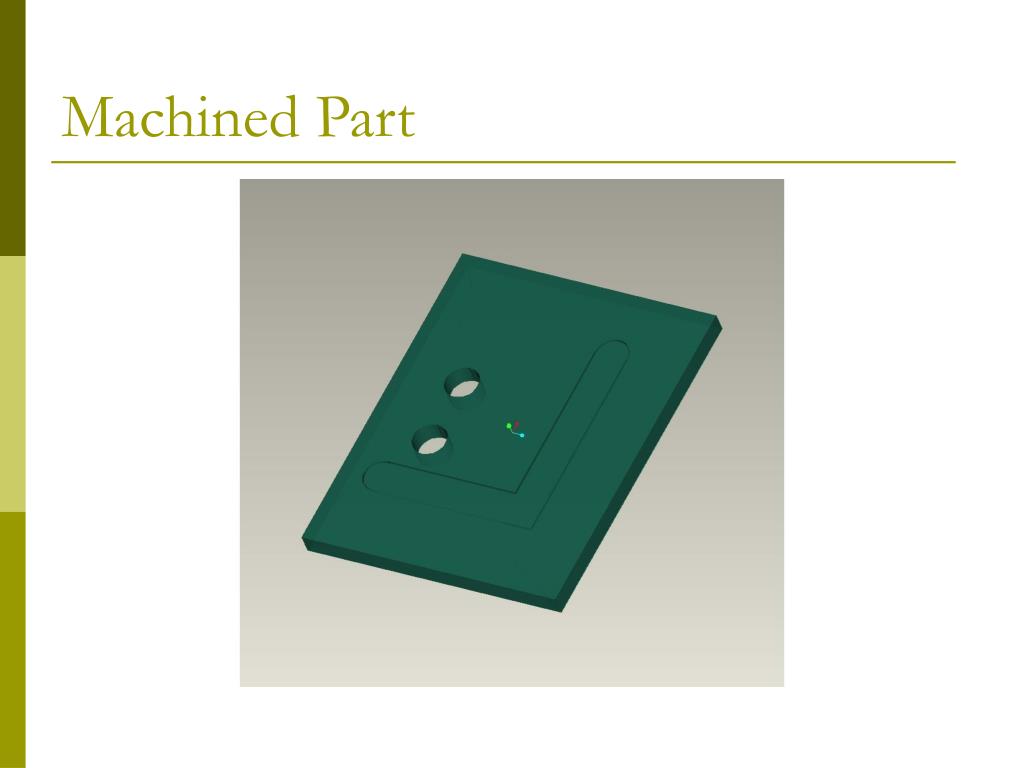

  9. Machined Part

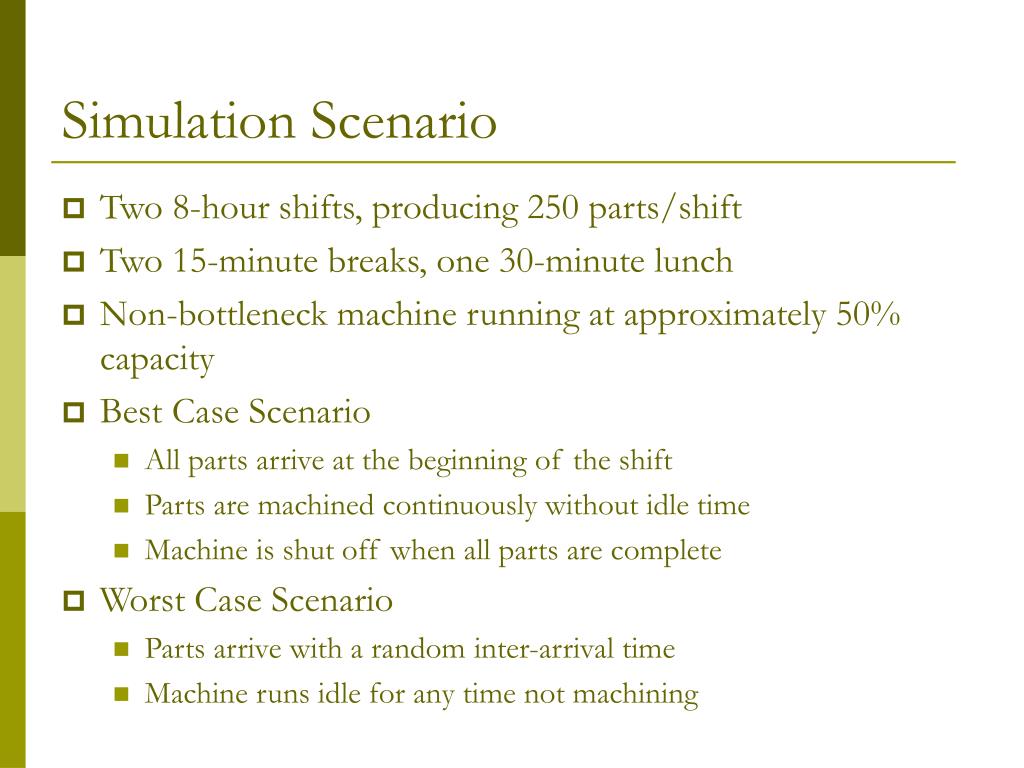

  10. Simulation Scenario • Two 8-hour shifts, producing 250 parts/shift • Two 15-minute breaks, one 30-minute lunch • Non-bottleneck machine running at approximately 50% capacity • Best Case Scenario • All parts arrive at the beginning of the shift • Parts are machined continuously without idle time • Machine is shut off when all parts are complete • Worst Case Scenario • Parts arrive with a random inter-arrival time • Machine runs idle for any time not machining

  11. Best Case Scenario • Machining energy/part = 65,590 J/part • Machining energy for 250 parts (one shift) = 65,590 J/part * 250 parts/shift = 16,397,566 J/shift • Machining energy for 1 day = 16,397,566 J * 2 = 32,795,132 J/day • Total energy/year = 32,795,132 J/day * 250 days/year = 8,198,782,876 J/year

  12. Worst Case Scenario • Machining energy/year = 8,198,782,876 J/year • Idle energy/hour = 1,472,988 J/hour • Idle energy/shift = 1,472,988 J/hour * 4 hours/shift = 5,891,951 J/shift • Idle energy/day = 5,891,951 J/shift * 2 shifts/day =11,783,901 J/day • Idle energy/year = 11,783,901 J/day * 250 days/year = 2,945,975,351 J/year • Total energy/year = 8,198,782,876 J/year + 2,945,975,351 J/year =11,144,758,227 J/year

  13. Simulation Energy Comparison 26% of Total Energy

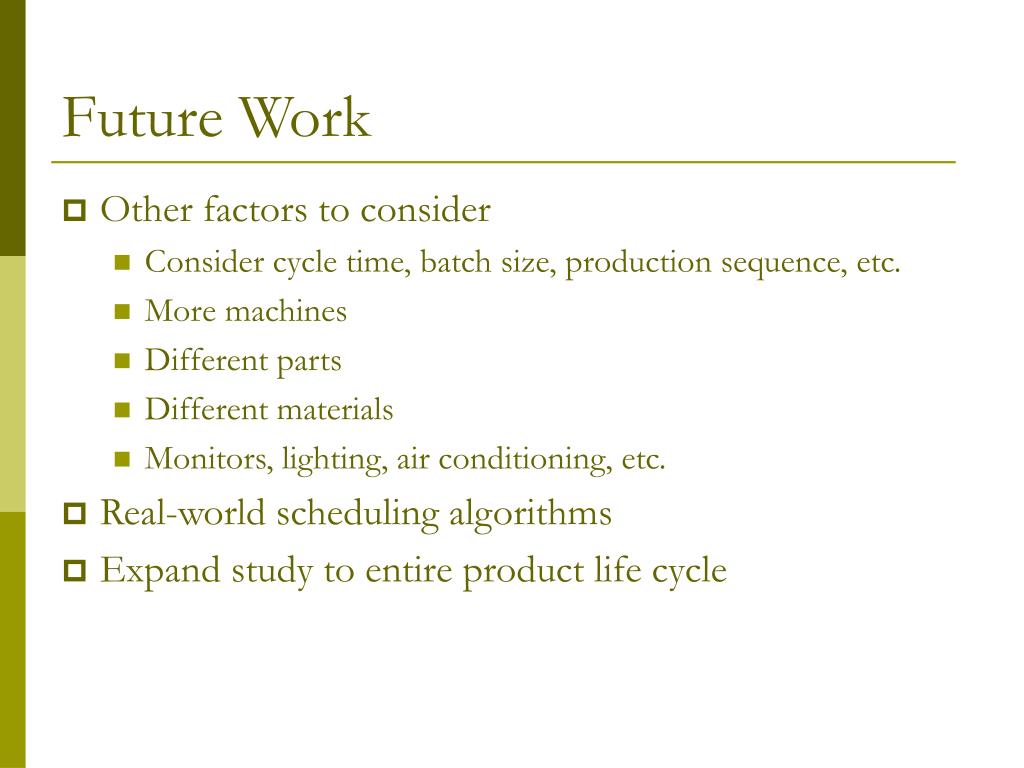

  14. Future Work • Other factors to consider • Consider cycle time, batch size, production sequence, etc. • More machines • Different parts • Different materials • Monitors, lighting, air conditioning, etc. • Real-world scheduling algorithms • Expand study to entire product life cycle

  15. Thank you.
