  1. GOPAS TechEd 2012 Ing. Ondřej Ševeček | GOPAS a.s. | MCM: Directory Services | MVP: Enterprise Security | ondrej@sevecek.com | www.sevecek.com | Windows Authentication

  2. Windows Authentication An Introduction

  3. The topics • The hell of windows authentication mechanisms • Basic, NTLM, Kerberos • Certificates and smart cards or tokens • How they work differently • What is better or worse • Weird and weirder things that you may not know

  4. And the environment • Windows 2000 and newer • Active Directory domains • Maybe some trusts or multidomain forests • Connections to SMB, LDAP, Exchange, SQL, HTTP, WMI, remote administration, RDP and other servers • Ideally SSO

  5. Windows Authentication Network Interactions

  6. Local Logon Client 2000+ TGT: User Kerberos LDAP SMB TGS: LDAP, CIFS GPO List GPO Download DC2000+

  7. CTRL-ALT-DEL Password • Password is stored in memory only • LSASS process • In the form of MD4 hash • never given out

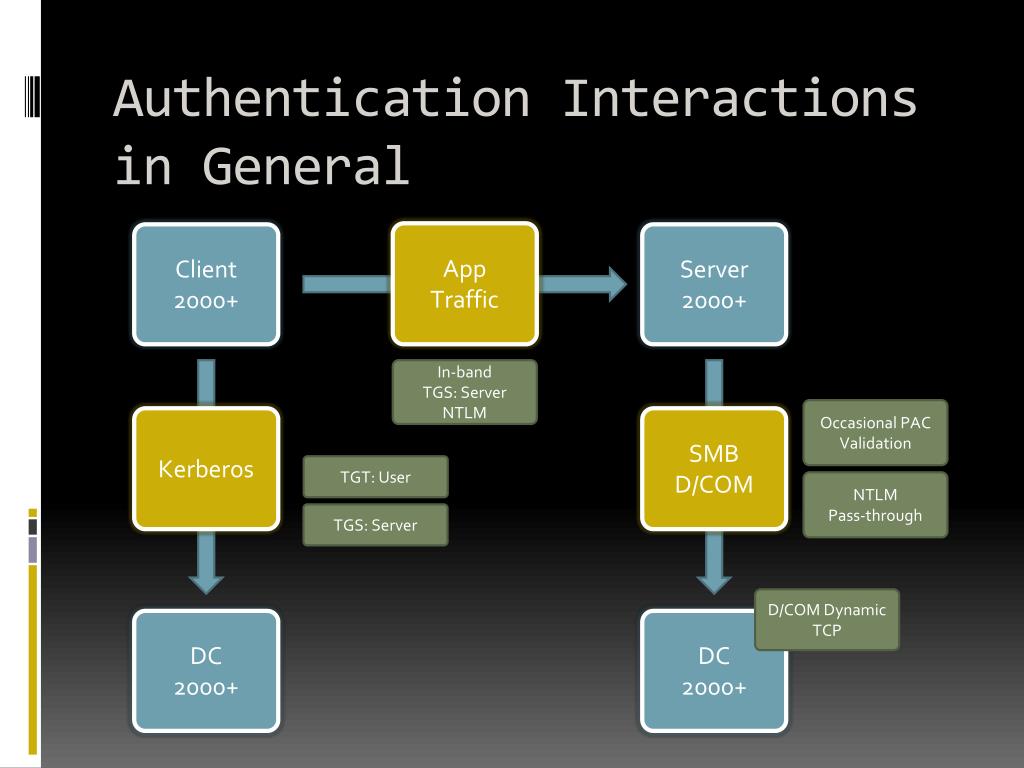

  8. Authentication Interactions in General App Traffic Client 2000+ Server2000+ In-band TGS: Server NTLM Occasional PAC Validation Kerberos SMB D/COM TGT: User NTLMPass-through TGS: Server D/COM Dynamic TCP DC2000+ DC2000+

  9. The three authentication methods • Basic • plain-text password • results in Kerberos authentication • NTLM • hashed password (MD4) method from the past • LM (DES), NTLM (DES), NTLMv2 (MD5) • Kerberos • hashed password (MD4)plus RC4/DES or AES • mutual authentication and delegation • can use certificates instead of passwords

  10. Basic and RDP Network Logon App Traffic Client 2000+ Server2000+ In-band clear text Kerberos TGT: User DC2000+ DC2000+

  11. NTLM Network Logon App Traffic Client 2000+ Server2000+ In-band NTLM hash SMB D/COM Pass-through NTLM hash D/COM Dynamic TCP DC2000+ DC2000+

  12. Kerberos Network Logon (basic principle) App Traffic Client 2000+ Server2000+ In-band TGS: Server Kerberos TGT: User TGS: Server DC2000+

  13. Kerberos Network Logon (complete) App Traffic Client 2000+ Server2000+ In-band TGS: Server Kerberos SMB D/COM Occasional PAC Validation TGT: User TGS: Server D/COM Dynamic TCP DC2000+ DC2000+

  14. Windows Authentication Performance Comparison

  15. NTLM Network Logon Client 2000+ Server2000+ 60 % CPU 55 % CPU DC2000+ DC2000+

  16. Kerberos Network Logon, no PAC Validation Client 2000+ Server2000+ 60 % CPU 0 % CPU DC2000+ DC2000+

  17. Kerberos Network Logon with PAC Validation Client 2000+ Server2000+ 60 % CPU 14 % CPU 0 % CPU DC2000+ DC2000+

  18. Basic Authentication Client 2000+ Server2000+ 5 % CPU 0 % CPU DC2000+ DC2000+

  19. NTLM Performance Issues Client Client Server Client Client Client Client Client 7 concurrent 40 sec. DC

  20. NTLM Trusts D\User A\Server DC A DC D DC C DC B

  21. Kerberos Trusts D\User A\Server DC A DC D DC C DC B

  22. Windows Authentication We Want Kerberos, so what?

  23. Basic Facts • Do not use IP addresses • Configure SPN (service principal name) • Have time in sync • Use trusted identities to run services on Windows 2008 and newer • instead of AD user accounts • no PAC validation • Enable AES with Windows 2008 DFL

  24. Trusted Identities – Network Service

  25. Trusted Identities – Service Accounts

  26. Trusted Identities – AppPoolIdentity

  27. Trusted Identities – Managed Service Account

  28. Windows Authentication Identity Isolation FOR Services

  29. Identity Isolation • Services on a single machine • Services that access other back-end services

  30. Windows Identities

  31. Kerberos Underworld Smart Card Logon

  32. Smart Card Logon App Traffic Client 2000+ Server2000+ Kerberos PKINIT TGT: User TGS: Server DC2000+ DC2000+

  33. Smart Card Logon and NTLM Client 2000+ Server2000+ NTLM Hash TGT: User NTLM Hash TGS: Server DC2000+ DC2000+

  34. Smart Card Logon and NTLM Client 2000+ Server2000+ NTLM Hash TGT: User NTLM Hash TGS: Server NTLM Hash DC2000+ DC2000+

  35. Windows Authentication Delegation

  36. Kerberos Delegation • GeekRoom • Úterý 14:15 • Úterý 15:45

  37. Windows Authentication Group Membership

  38. Group Membership Limits • AD Group in forest with 2000 FFL • 5000 direct members limit • AD Group in forest with 2003+ FFL • unlimited membership • Kerberos Ticket • network transport • limited to 8 kB on 2000 and XP • up to 12 kB on 2003+ • HTTP.SYS header limits • 16 kB of Base-64 encoded tickets • Access Token • local representation of a logon • up to 1025 groups including local and system

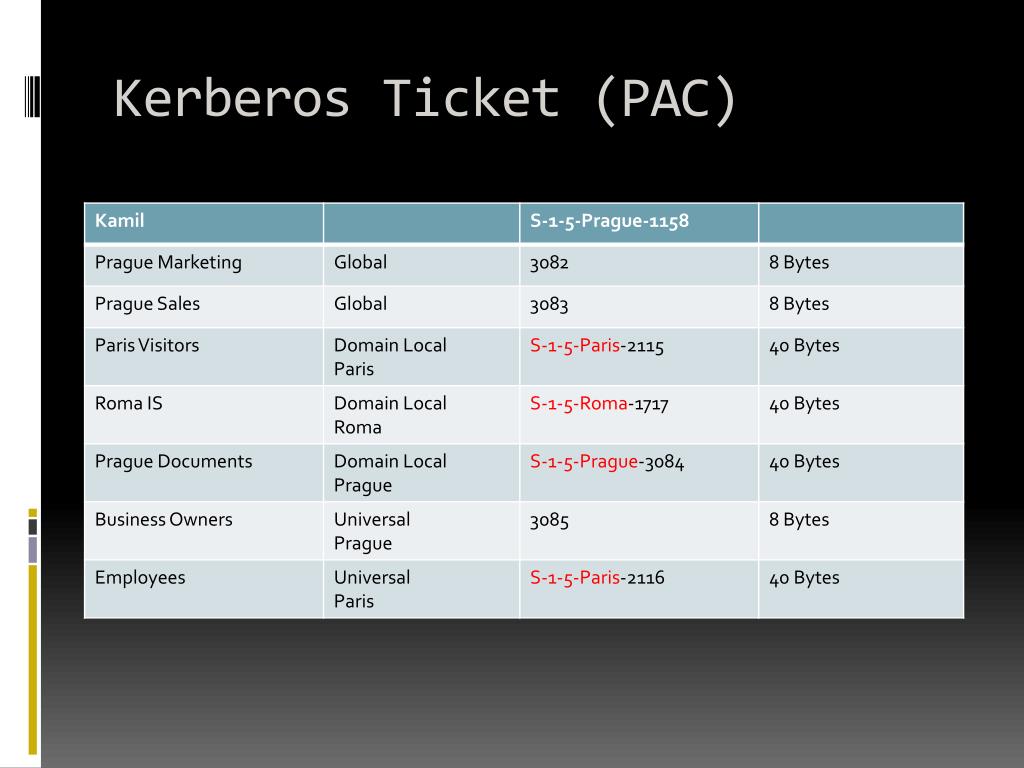

  39. Kerberos Ticket (PAC)

  40. Windows Authentication Takeaway

  41. Takeaway • Kerberos is the most secure, flexible and performance efficient • Don’t be afraid and play with them!

  42. GOPAS TechEd 2012 Ing. Ondřej Ševeček | GOPAS a.s. | MCM: Directory Services | MVP: Enterprise Security | ondrej@sevecek.com | www.sevecek.com | Thank you!
