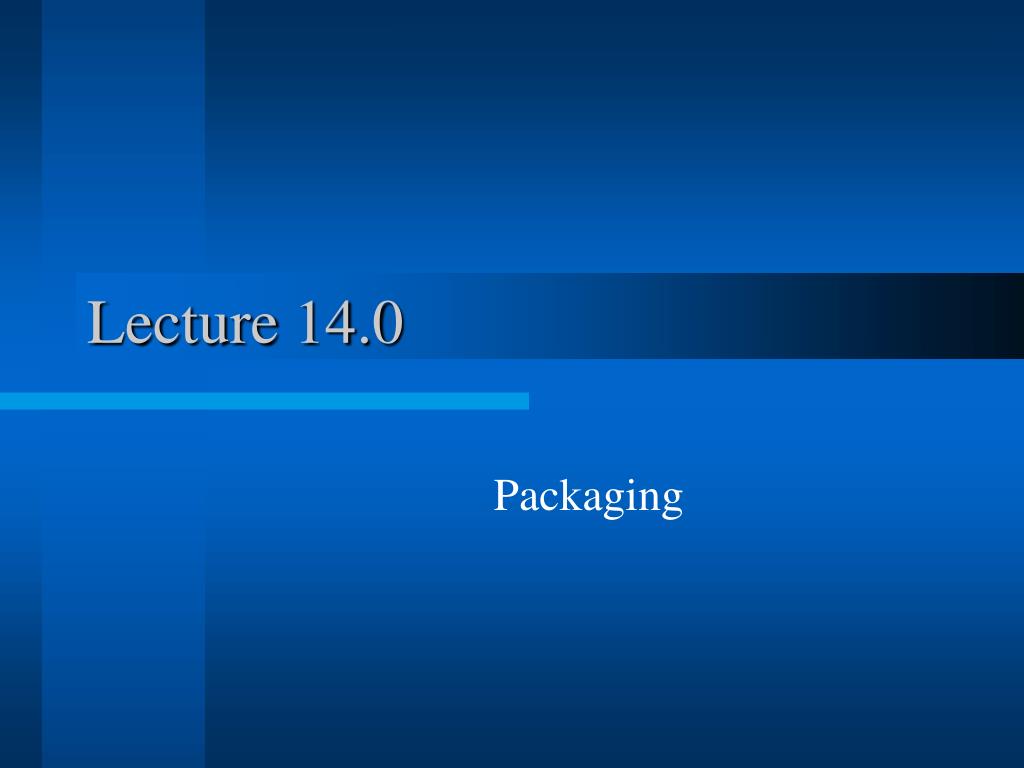

Lecture 14.0 Packaging

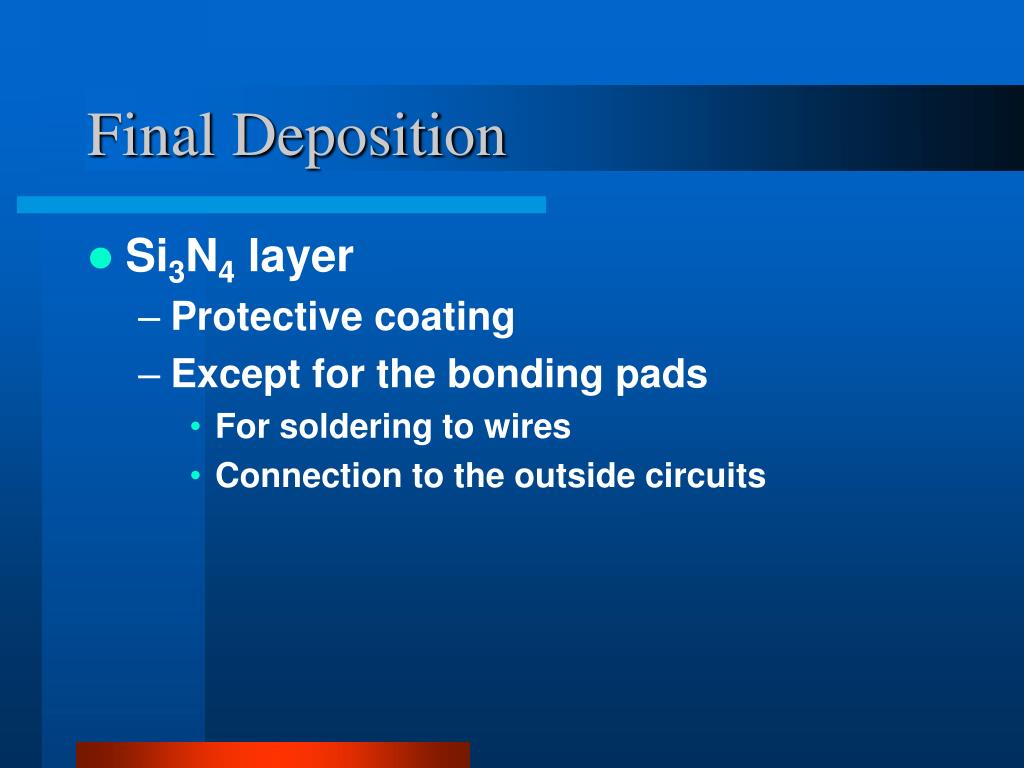

Final Deposition • Si3N4 layer • Protective coating • Except for the bonding pads • For soldering to wires • Connection to the outside circuits
Wafer to Chip
Diamond Saw • Cuts Die from wafer
Die Mounting
Wire Bonding • From Die Bonding Pads • To external circuit mounting carriage
Epoxy Bonding • Embed chip and soldered wiring to mounting carriage in epoxy.
