  1. ALERT2 Source Addressing Message System (SAMS) David Leader, James Logan ALERT2 Protocol Technical Working Group National Hydrologic Warning Council May 2, 2013

  2. What is it? • Source Address is the numeric address of an ALERT2 transmitting site • Range of possible source addresses is 0-65K; much greater than the number of ALERT Site IDs (1-8K, same as ALERT Sensor IDs) • Will be reused throughout country and world

  3. ALERT2 is everywhere • ALERT and ALERT2 data are already being transmitted via • Radio (including repeaters of multi agency sub-nets) • Internet extends the reach of radio • Data exchange between base stations • Identifiers need to be managed, otherwise confusion will create problems

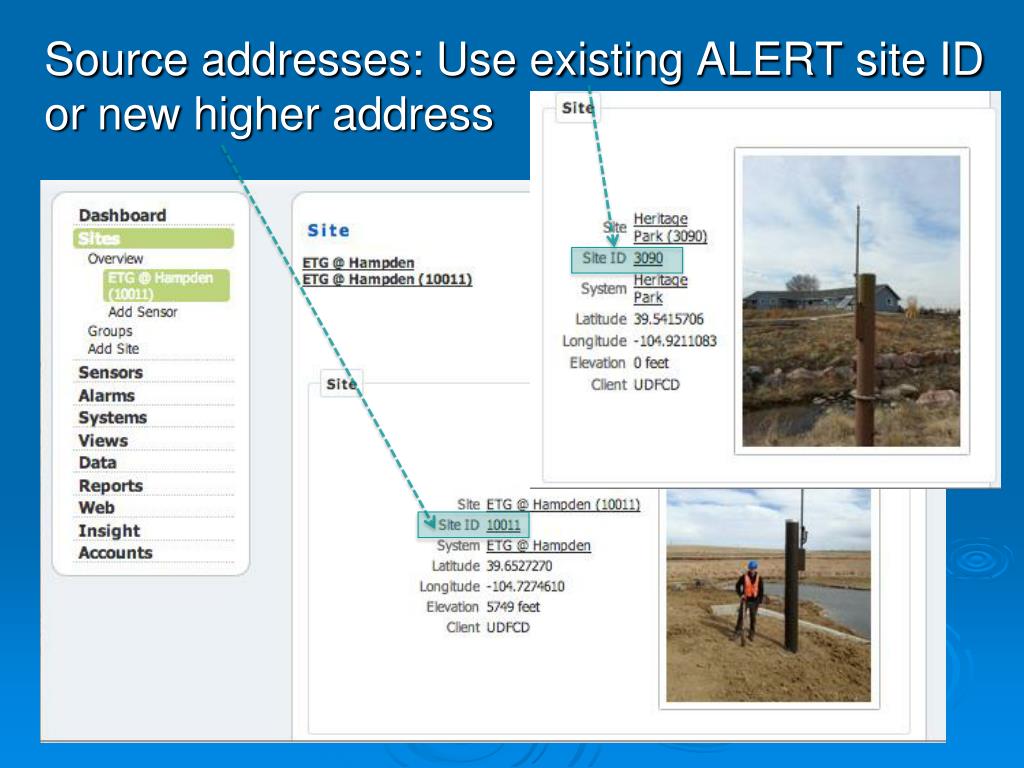

  4. Source addresses: Use existing ALERT site ID or new higher address

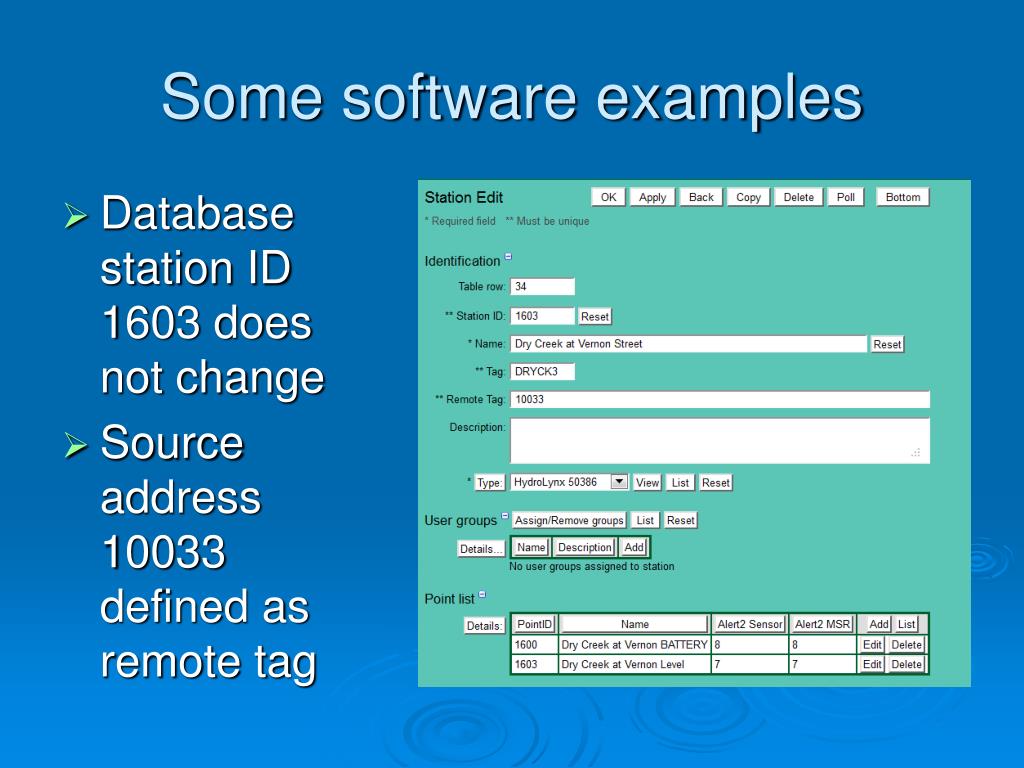

  5. Some software examples • Database station ID 1603 does not change • Source address 10033 defined as remote tag

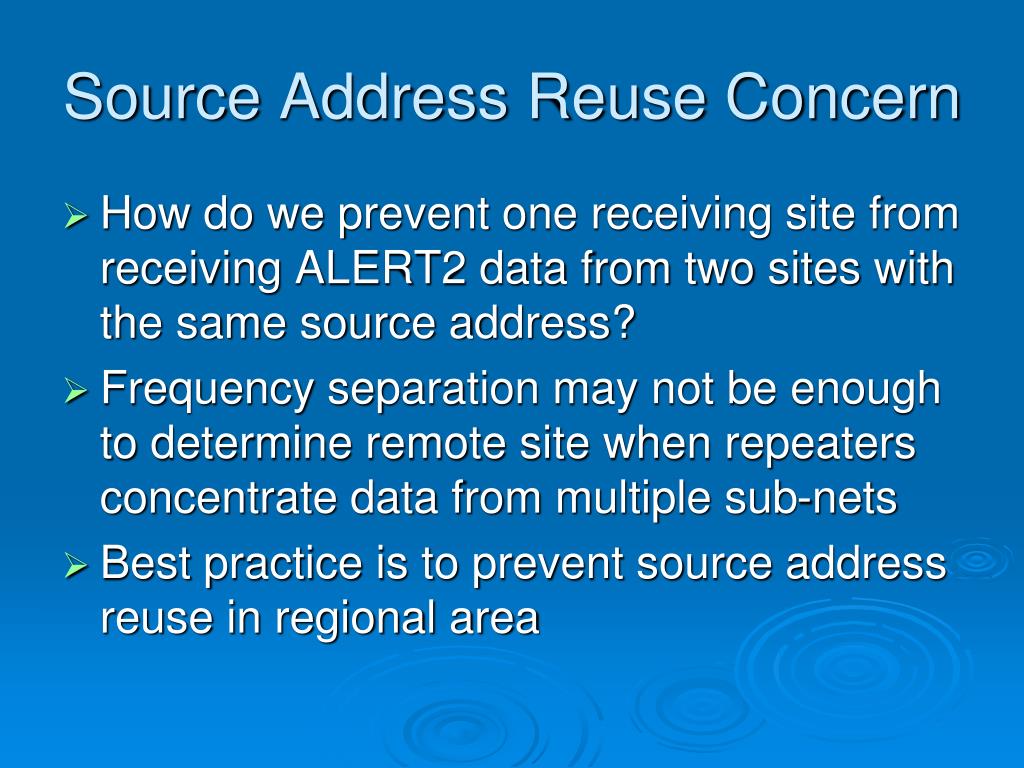

  6. Source Address Reuse Concern • How do we prevent one receiving site from receiving ALERT2 data from two sites with the same source address? • Frequency separation may not be enough to determine remote site when repeaters concentrate data from multiple sub-nets • Best practice is to prevent source address reuse in regional area

  7. Proposed Solution • Create a database of source addresses • Connect to database through the Internet • Let database be self managed • Allow free access to database • Ask for donations to fund database hosting and design web page user access

  8. Source Address Management System • Create a database of ALERT2 site source address, location, and owning agency • Web based access to database • Database is simple and self administered • Provide tools to check if an ALERT2 source address is in use in region

  9. SAMS Home Page

  10. SAMS Database • Owner table • Agency identification • Login/password • Regional lat/long boundaries • Site table • Source address • Lat/long coordinates • Owner agency identifier • Site information

  11. Agency Page

  12. Site Page

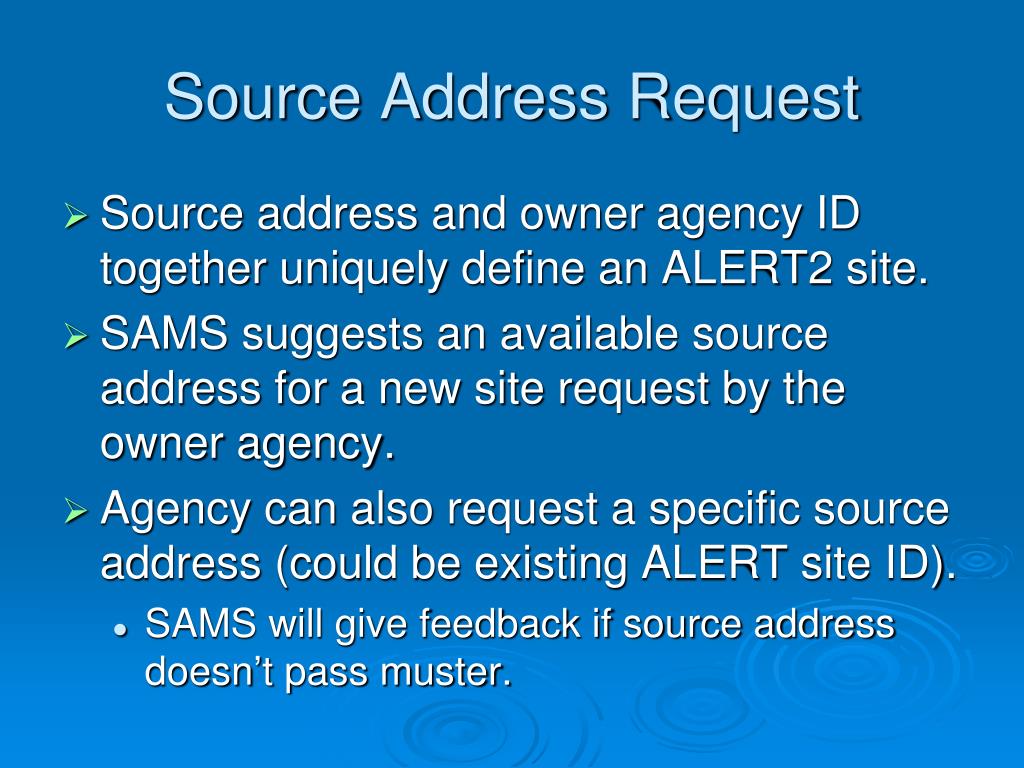

  13. Source Address Request • Source address and owner agency ID together uniquely define an ALERT2 site. • SAMS suggests an available source address for a new site request by the owner agency. • Agency can also request a specific source address (could be existing ALERT site ID). • SAMS will give feedback if source address doesn’t pass muster.

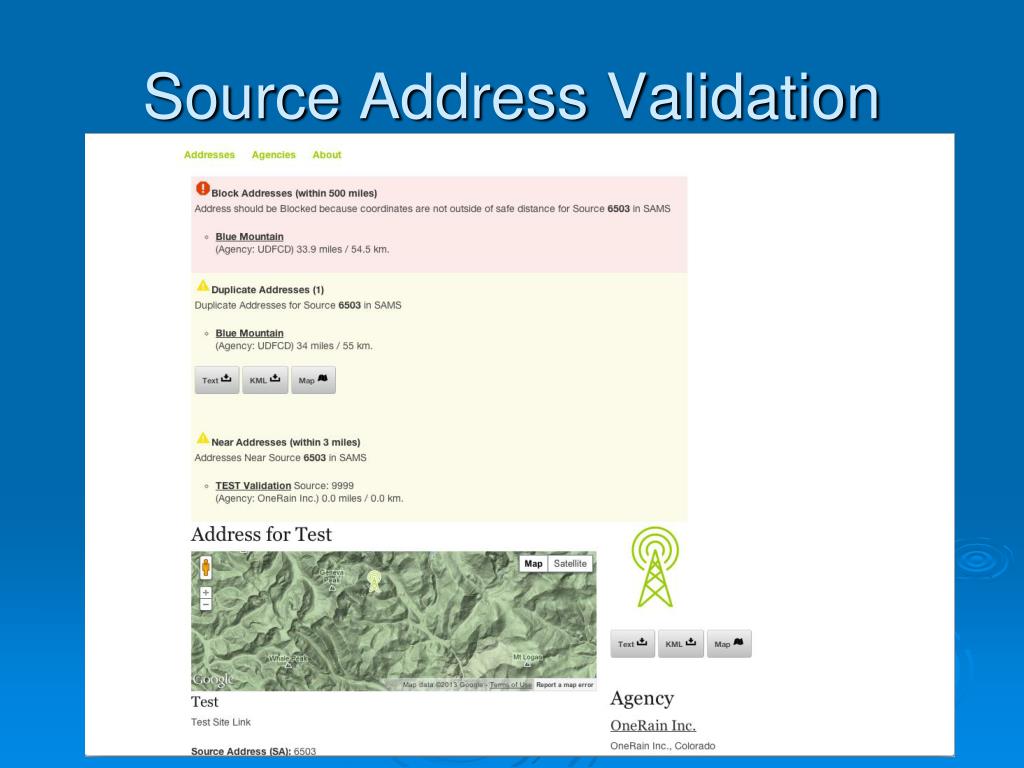

  14. Source Address Validation

  15. Example SAMS Validation • Block Address • Source address not reused within a given distance (1000 miles) • Common Address • Sites with same source address are listed so that you are aware of conflicts • Proximity • Notify if location is within 3 miles of any other existing source address locations

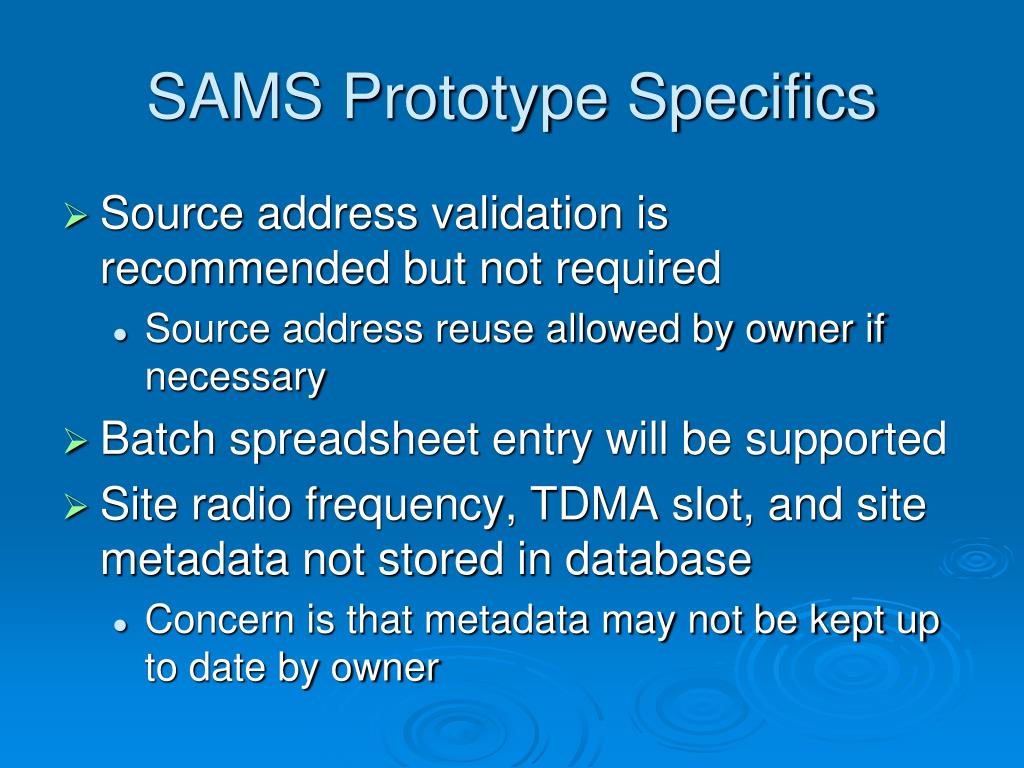

  16. SAMS Prototype Specifics • Source address validation is recommended but not required • Source address reuse allowed by owner if necessary • Batch spreadsheet entry will be supported • Site radio frequency, TDMA slot, and site metadata not stored in database • Concern is that metadata may not be kept up to date by owner

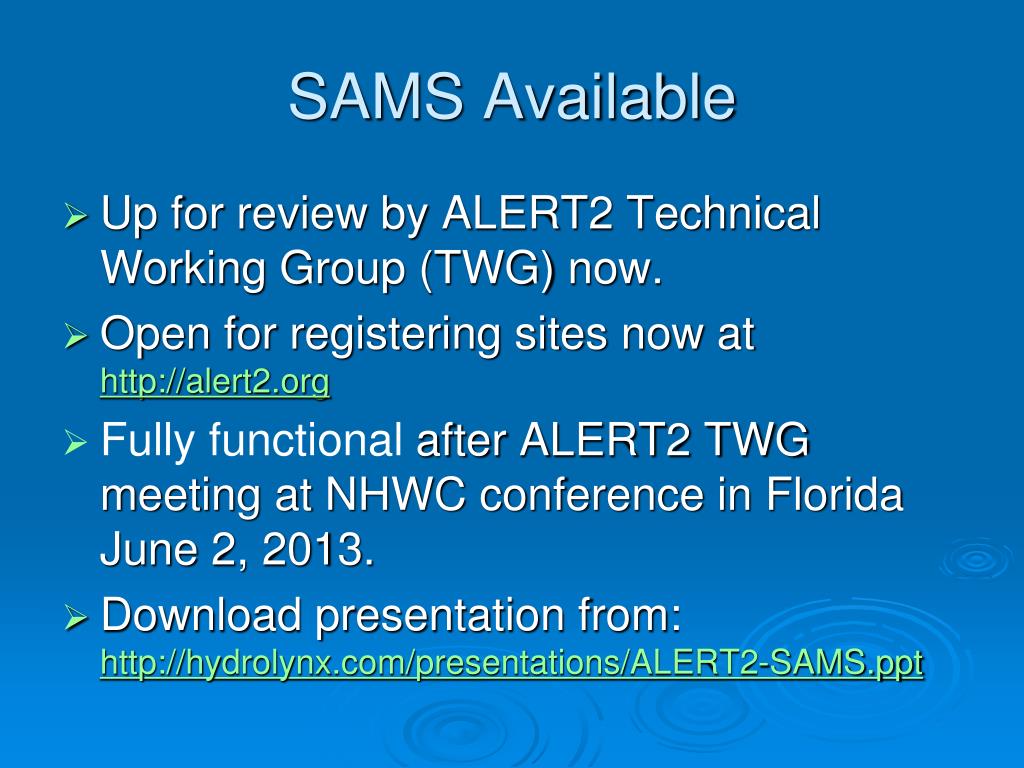

  17. SAMS Available • Up for review by ALERT2 Technical Working Group (TWG) now. • Open for registering sites now at http://alert2.org • Fully functional after ALERT2 TWG meeting at NHWC conference in Florida June 2, 2013. • Download presentation from:http://hydrolynx.com/presentations/ALERT2-SAMS.ppt
