  1. Image Editing II

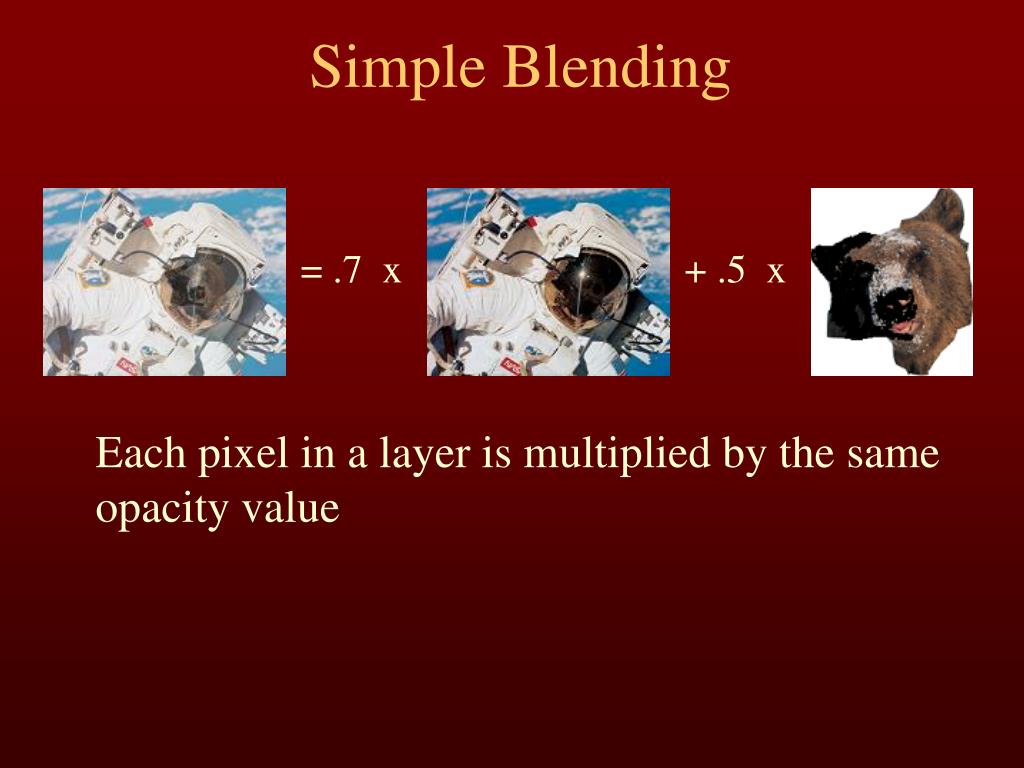

  2. Simple Blending = .7 x + .5 x Each pixel in a layer is multiplied by the same opacity value

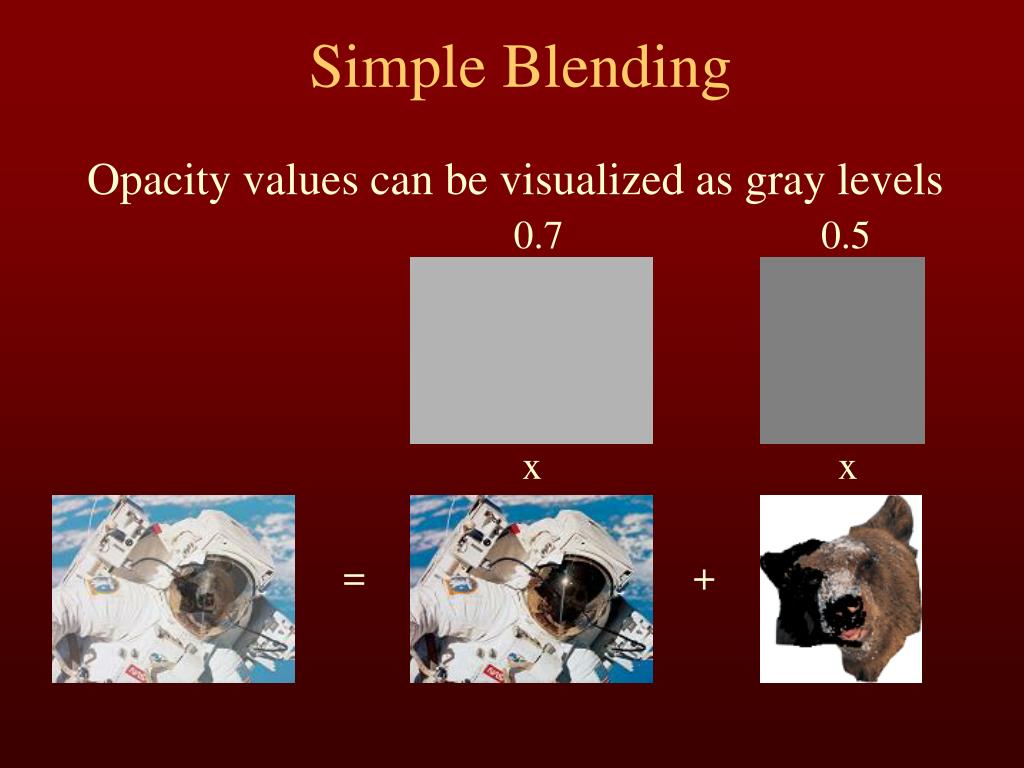

  3. Simple Blending Opacity values can be visualized as gray levels 0.7 0.5 x x = +

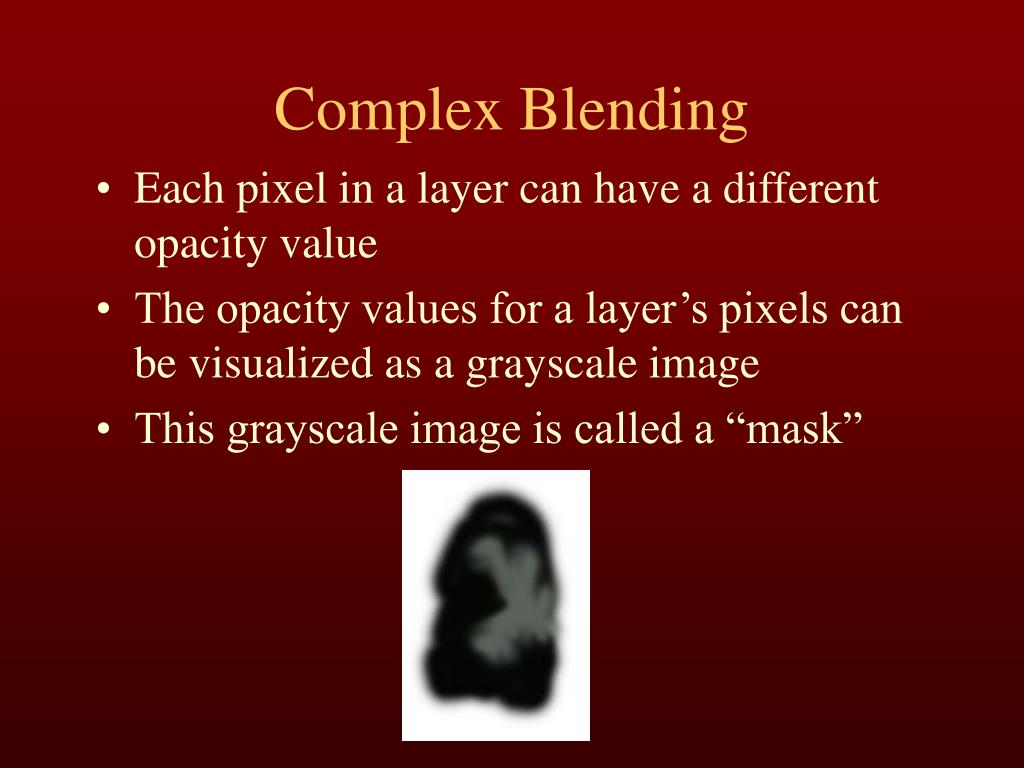

  4. Complex Blending • Each pixel in a layer can have a different opacity value • The opacity values for a layer’s pixels can be visualized as a grayscale image • This grayscale image is called a “mask”

  5. Layer Masks Complex Blending x x = +

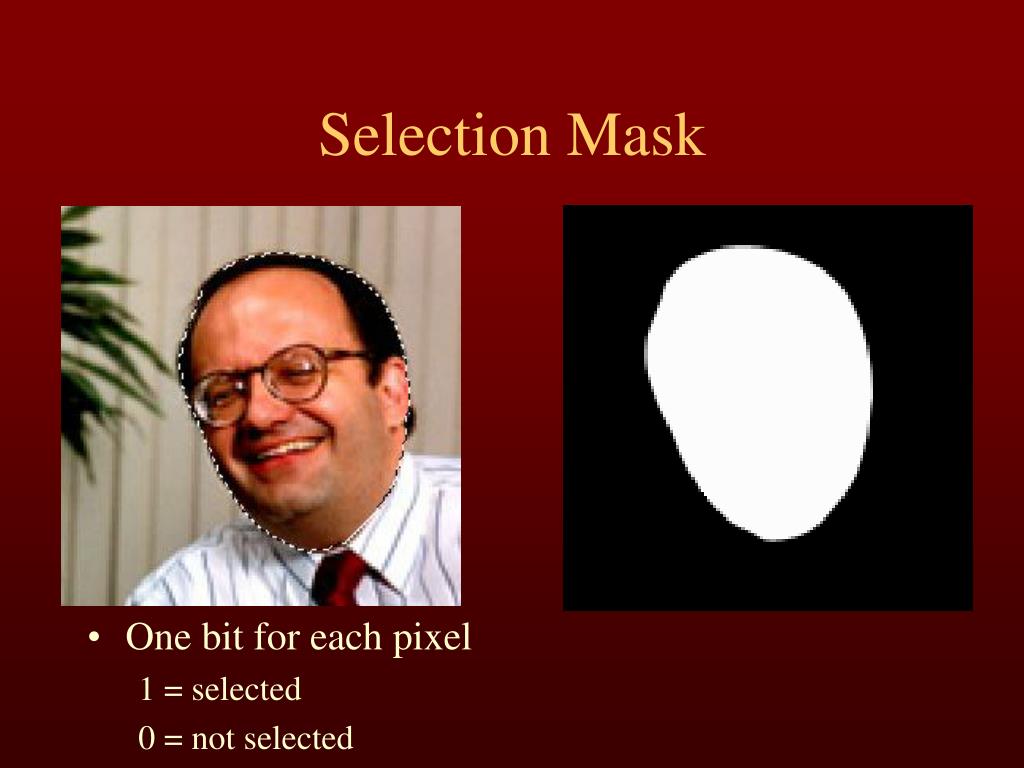

  6. Selection Mask • One bit for each pixel 1 = selected 0 = not selected

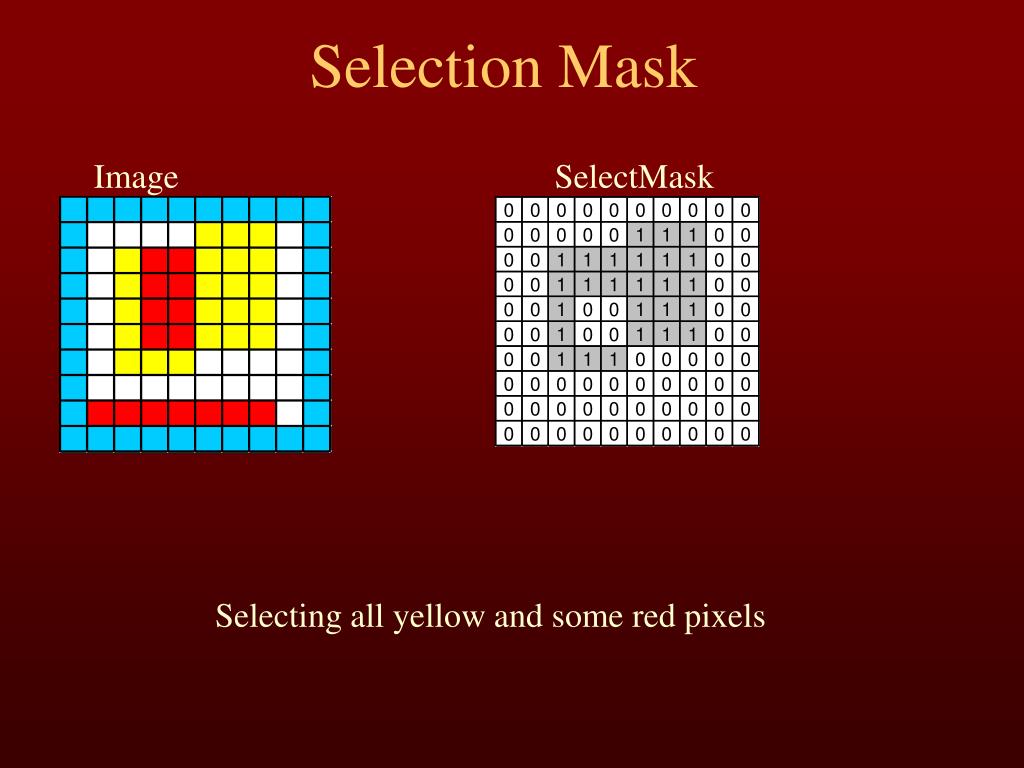

  7. Selection Mask Image SelectMask Selecting all yellow and some red pixels

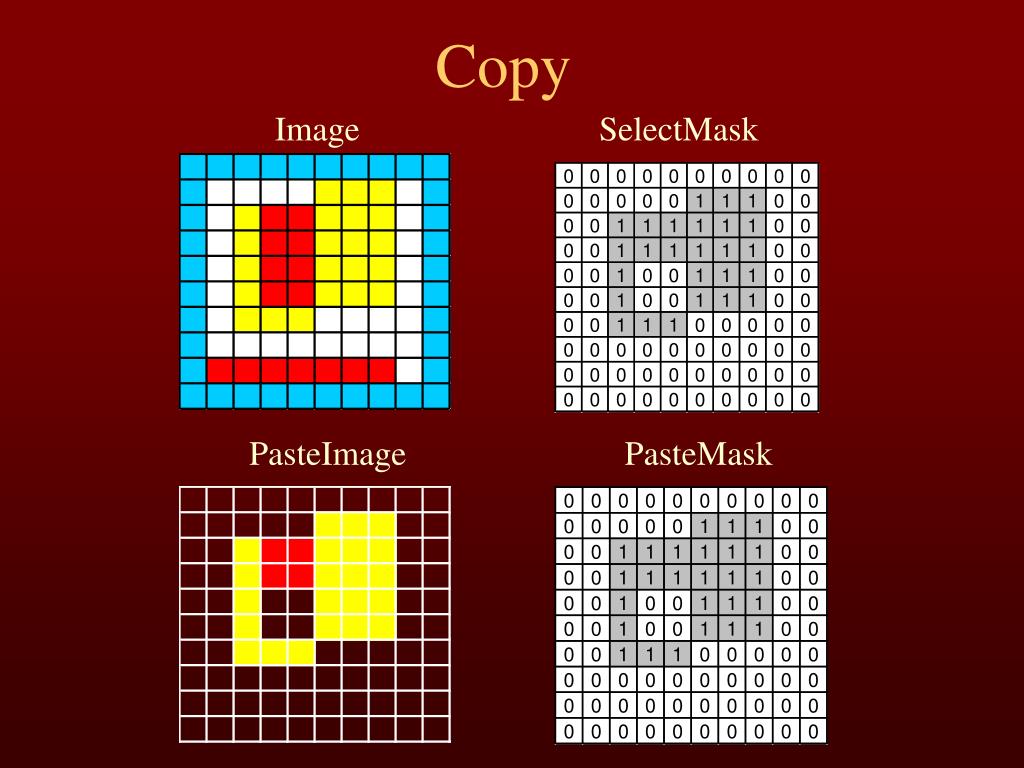

  8. Copy Image SelectMask PasteImage PasteMask

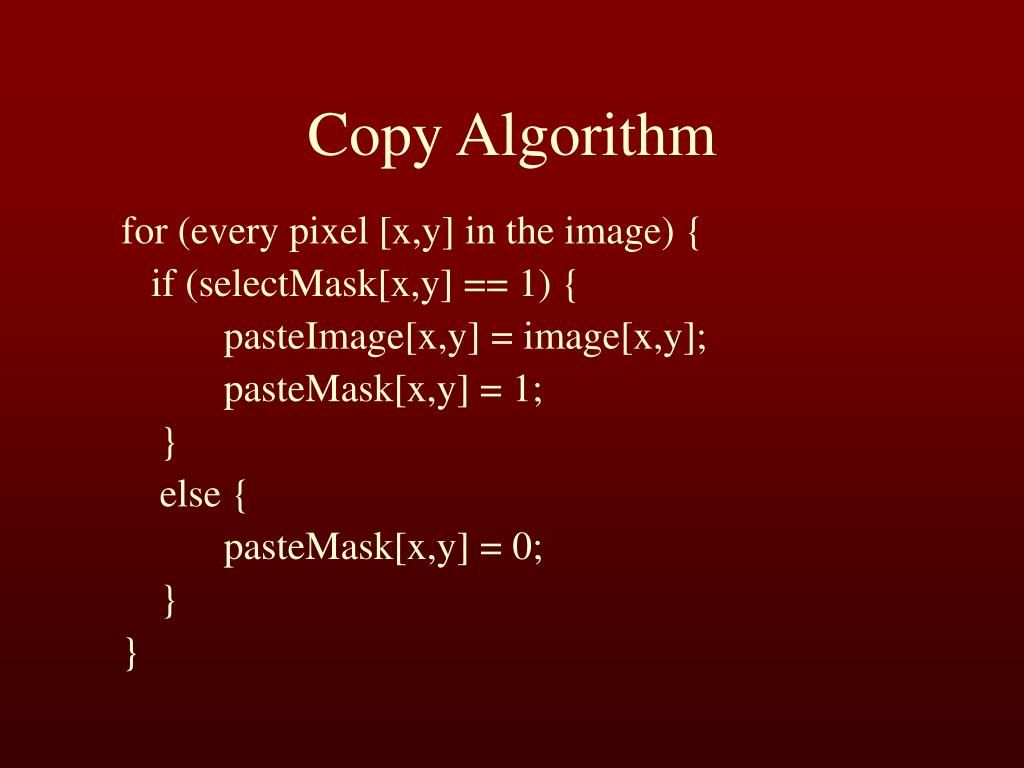

  9. Copy Algorithm for (every pixel [x,y] in the image) { if (selectMask[x,y] == 1) { pasteImage[x,y] = image[x,y]; pasteMask[x,y] = 1; } else { pasteMask[x,y] = 0; } }

  10. New Layer Composition Algorithm Image Layer = mask+image for (every pixel [x,y] in the layer) { if (mask[x,y] == 1) { new[x,y] = layer[x,y]; } else { new[x,y] = image[x,y]; } }

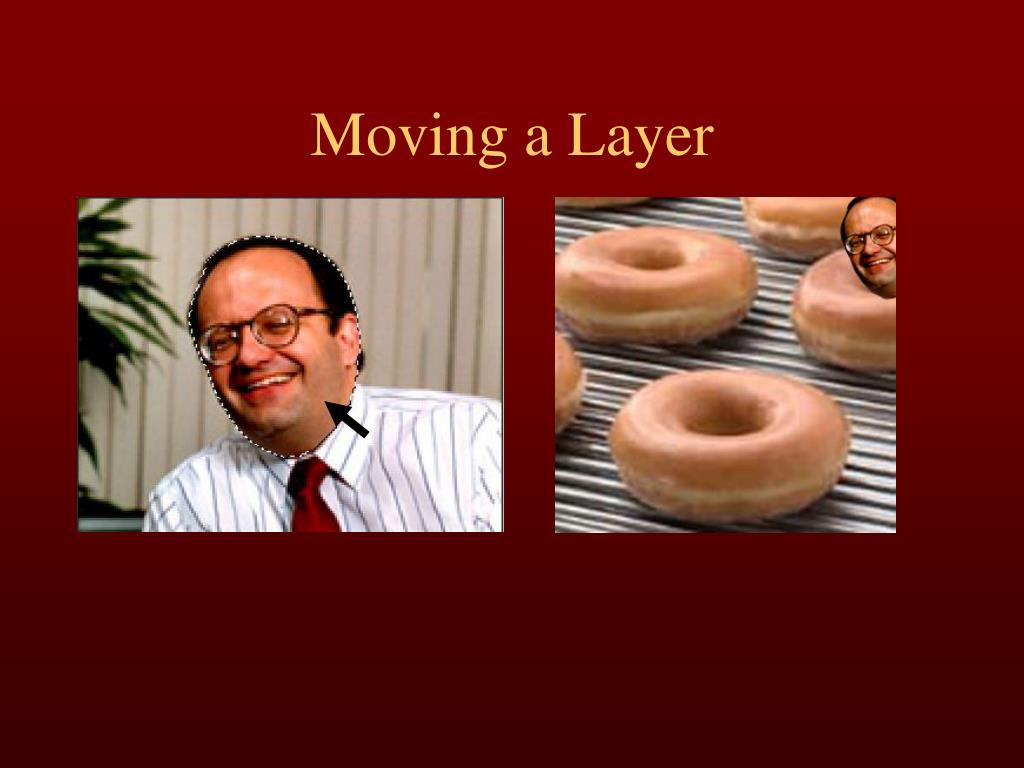

  11. Moving a Layer

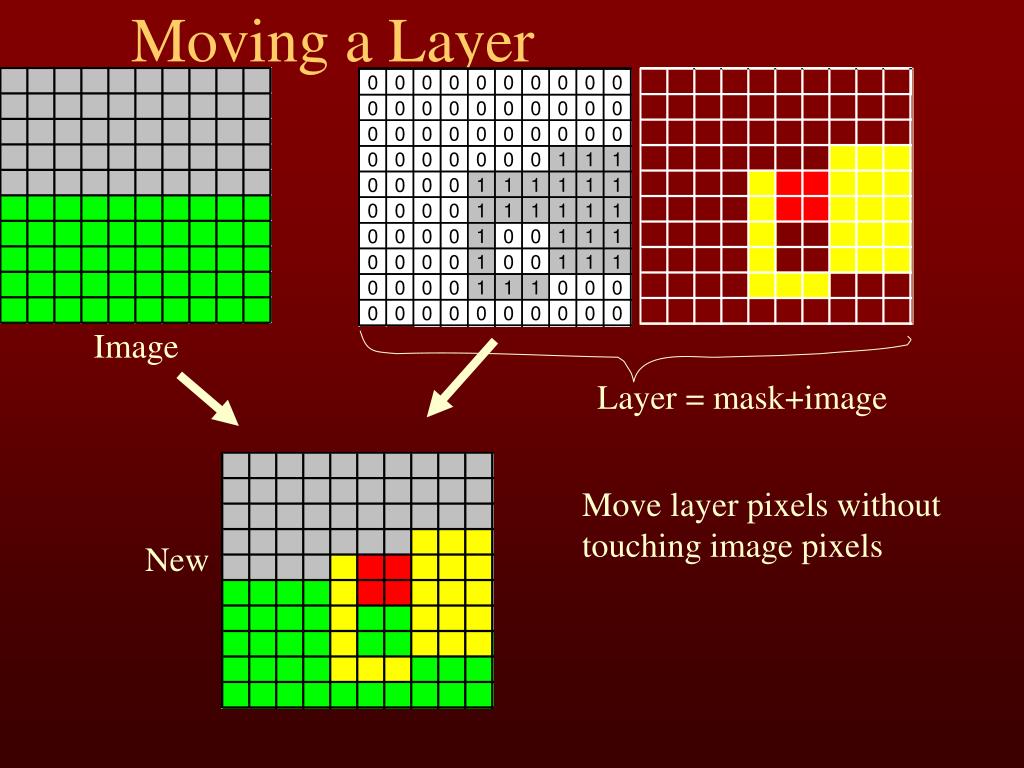

  12. New Moving a Layer Image Layer = mask+image Move layer pixels without touching image pixels

  13. Replace with background color Cut What happens to the deleted pixels?

  14. Picture Editing

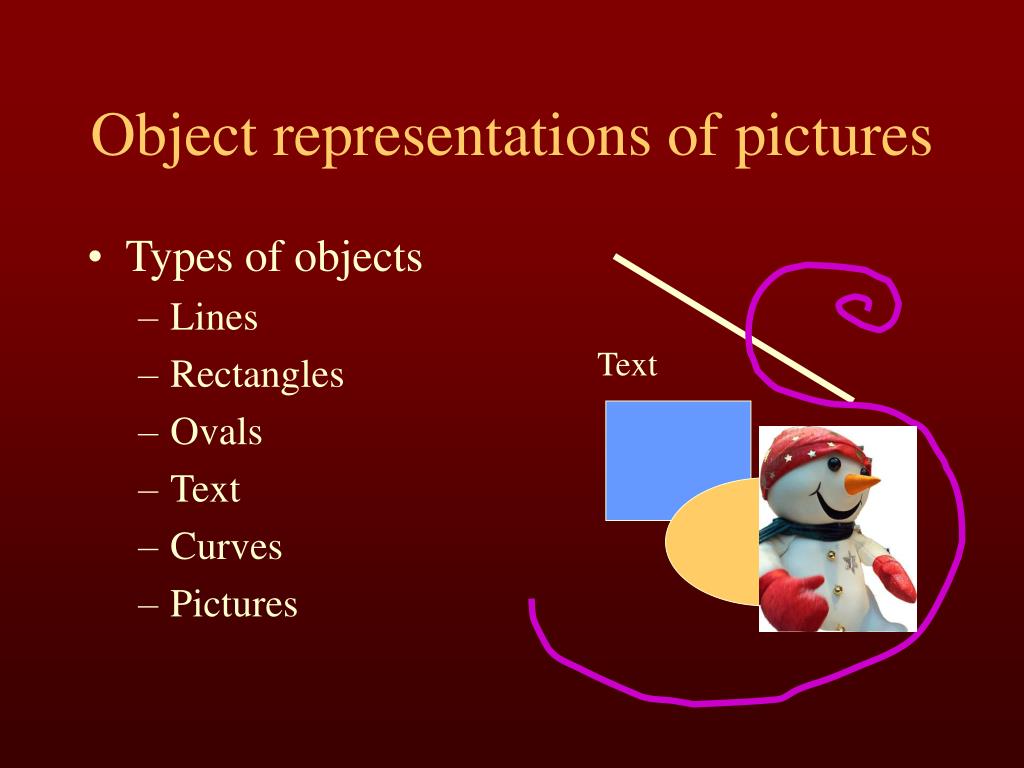

  15. Object representations of pictures • Types of objects • Lines • Rectangles • Ovals • Text • Curves • Pictures Text

  16. Picture = array of drawing objects 0) Rect(10,10,50,40,tan,yellow) 1) Oval(0,30,40,20,blue,purple) 2) Line(20,0,20,80,gray)

  17. Adding an object 0) Rect(10,10,50,40,tan,yellow) 1) Oval(0,30,40,20,blue,purple) 2) Line(20,0,20,80,gray) 3) Text(25,25,”Hello”, black,”Times” ) Hello

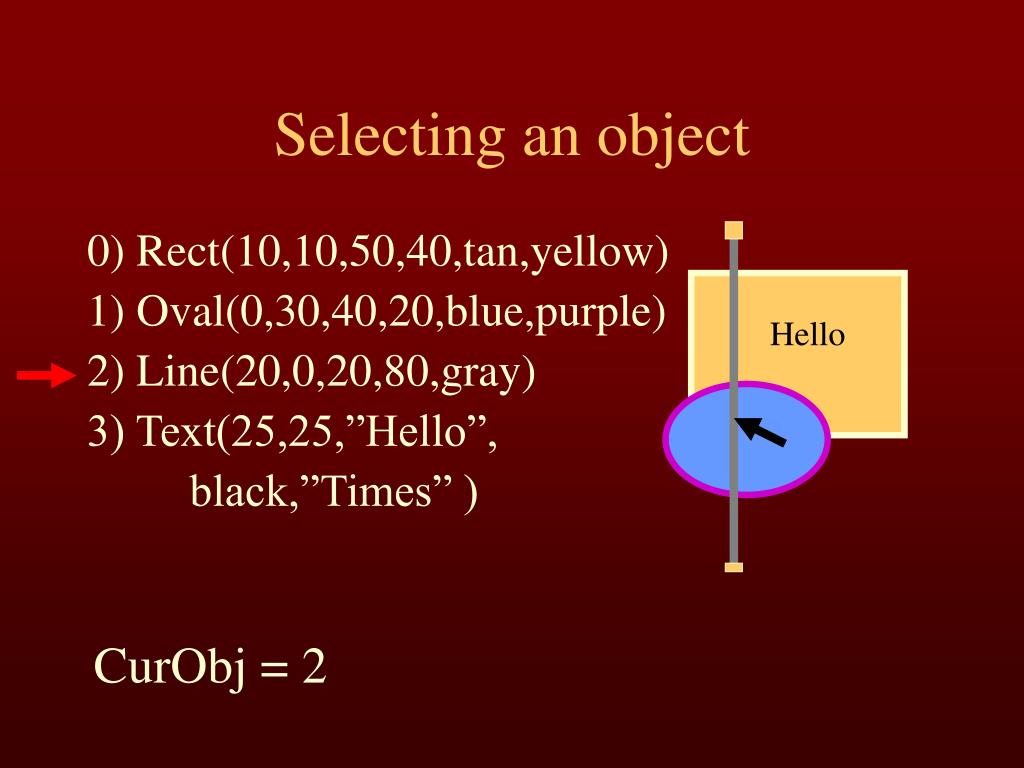

  18. Selecting an object 0) Rect(10,10,50,40,tan,yellow) 1) Oval(0,30,40,20,blue,purple) 2) Line(20,0,20,80,gray) 3) Text(25,25,”Hello”, black,”Times” ) Hello CurObj = 2

  19. Deleting an object 0) Rect(10,10,50,40,tan,yellow) 1) Oval(0,30,40,20,blue,purple) 2) Line(20,0,20,80,gray) 3) Text(25,25,”Hello”, black,”Times” ) Hello CurObj = 2

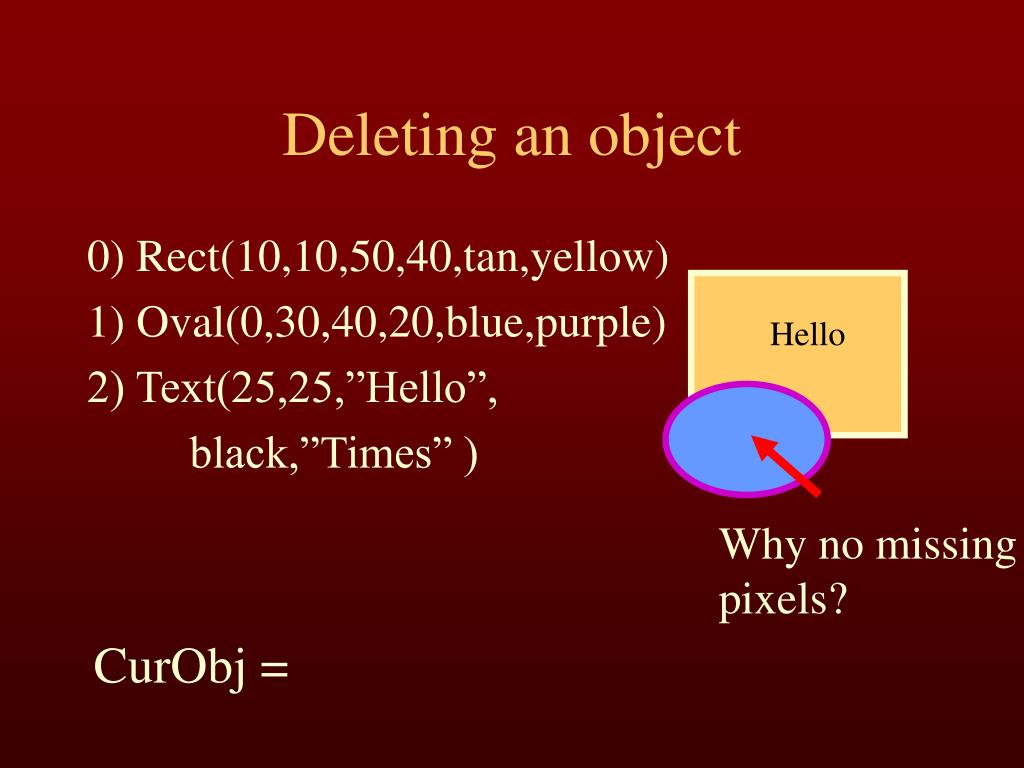

  20. Why no missing pixels? Deleting an object 0) Rect(10,10,50,40,tan,yellow) 1) Oval(0,30,40,20,blue,purple) 2) Text(25,25,”Hello”, black,”Times” ) Hello CurObj =

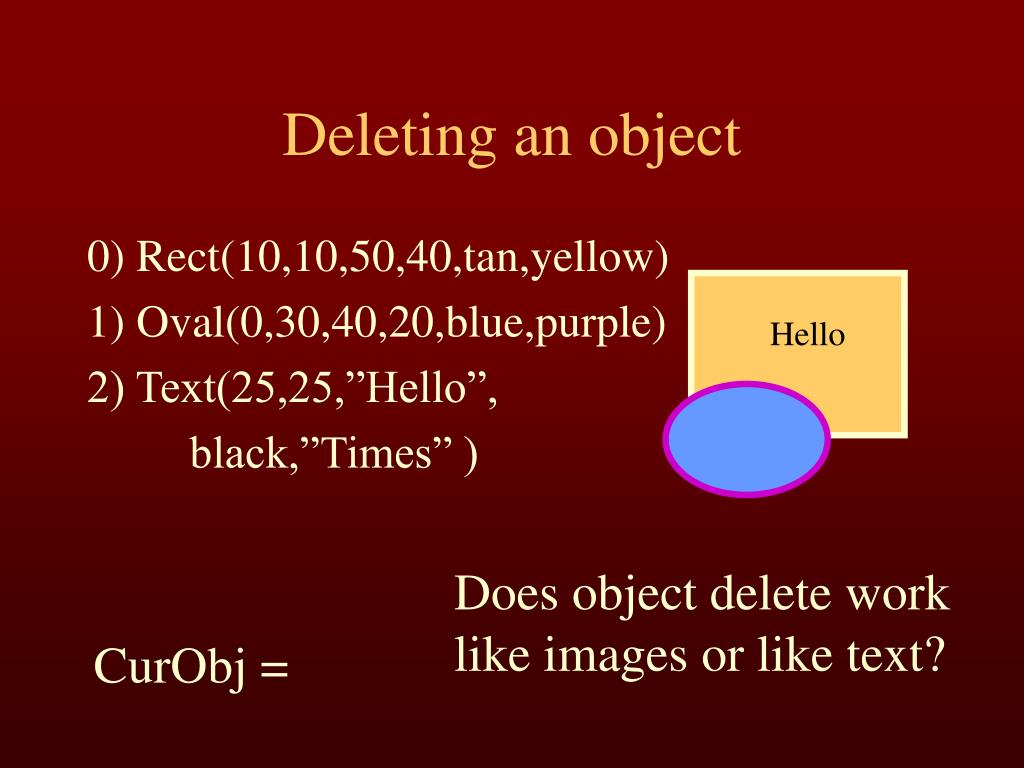

  21. Deleting an object 0) Rect(10,10,50,40,tan,yellow) 1) Oval(0,30,40,20,blue,purple) 2) Text(25,25,”Hello”, black,”Times” ) Hello Does object delete work like images or like text? CurObj =

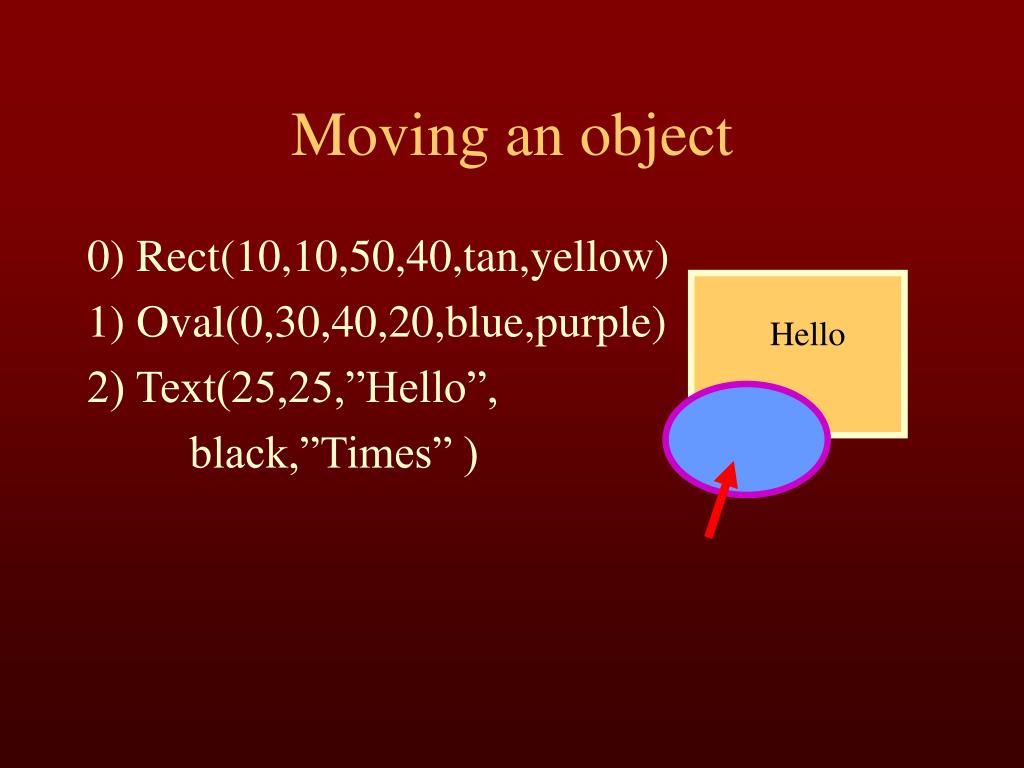

  22. Moving an object 0) Rect(10,10,50,40,tan,yellow) 1) Oval(0,30,40,20,blue,purple) 2) Text(25,25,”Hello”, black,”Times” ) Hello

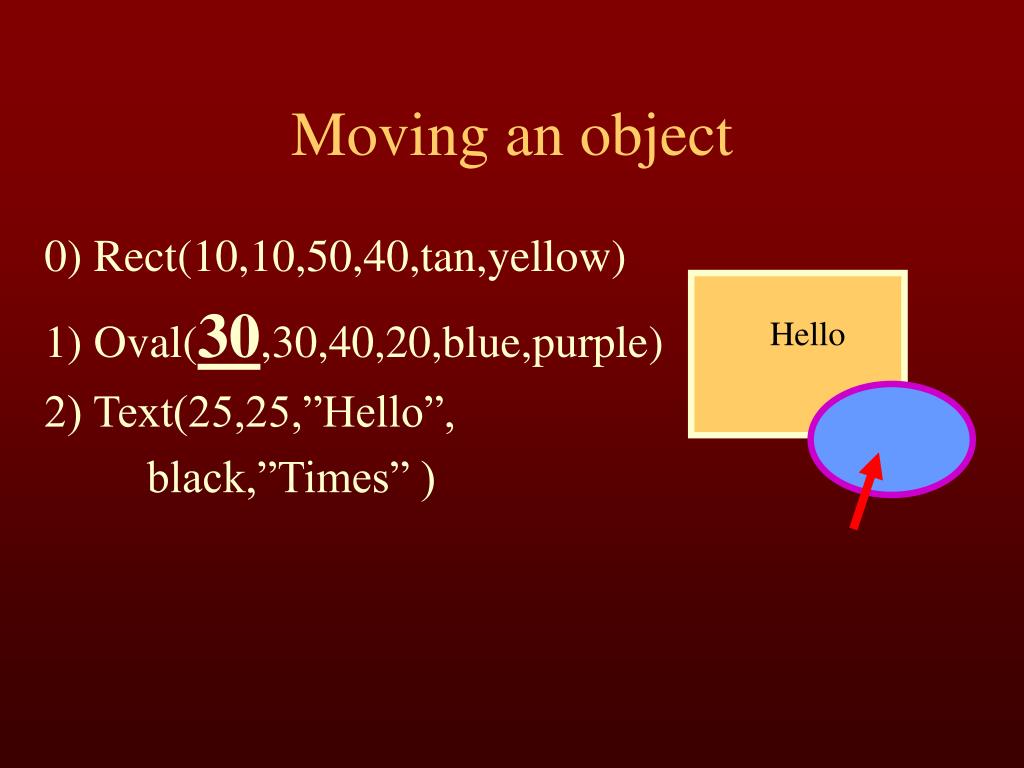

  23. Moving an object 0) Rect(10,10,50,40,tan,yellow) 1) Oval(30,30,40,20,blue,purple) 2) Text(25,25,”Hello”, black,”Times” ) Hello

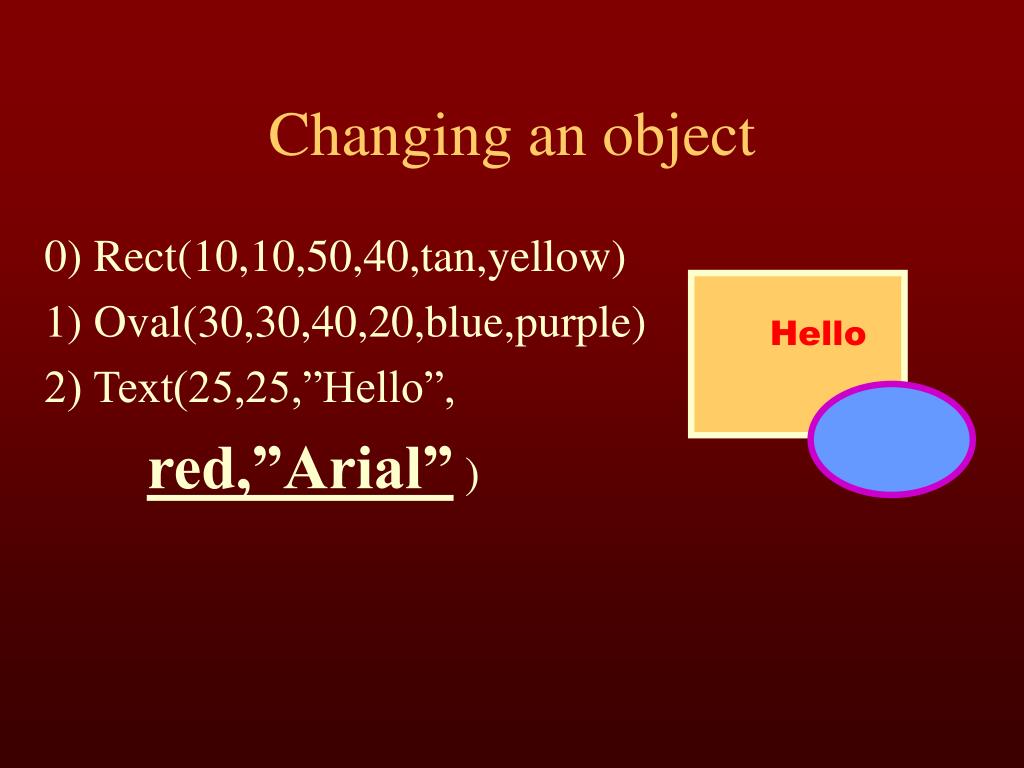

  24. Changing an object 0) Rect(10,10,50,40,tan,yellow) 1) Oval(30,30,40,20,blue,purple) 2) Text(25,25,”Hello”, red,”Arial” ) Hello

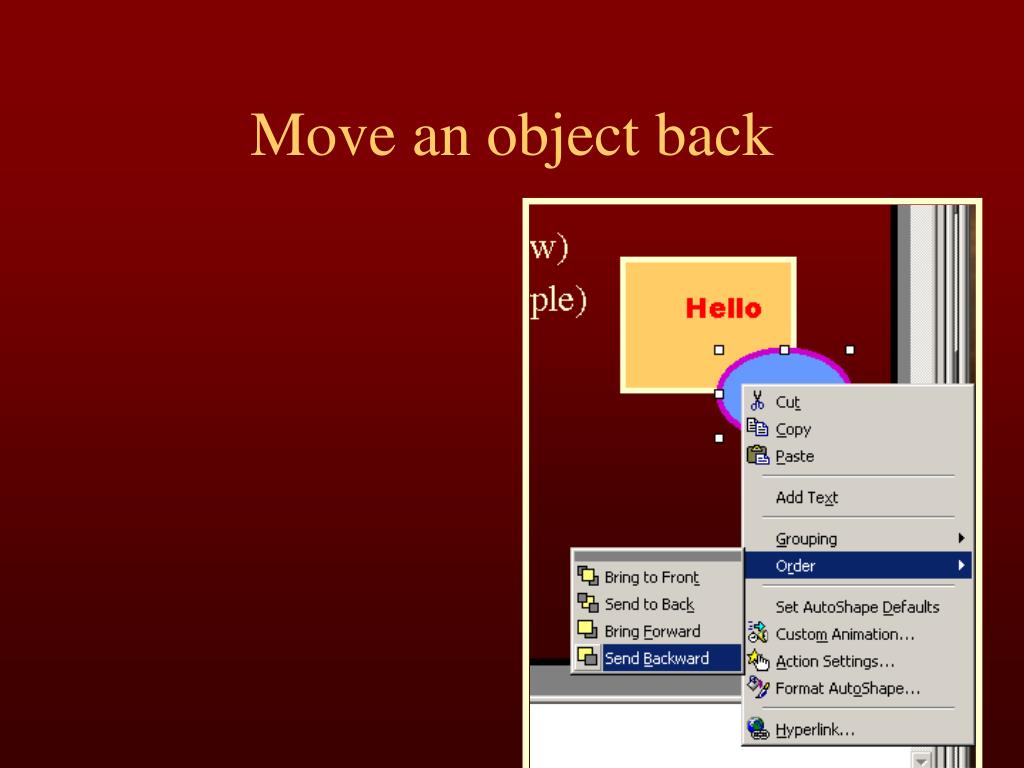

  25. Move an object back

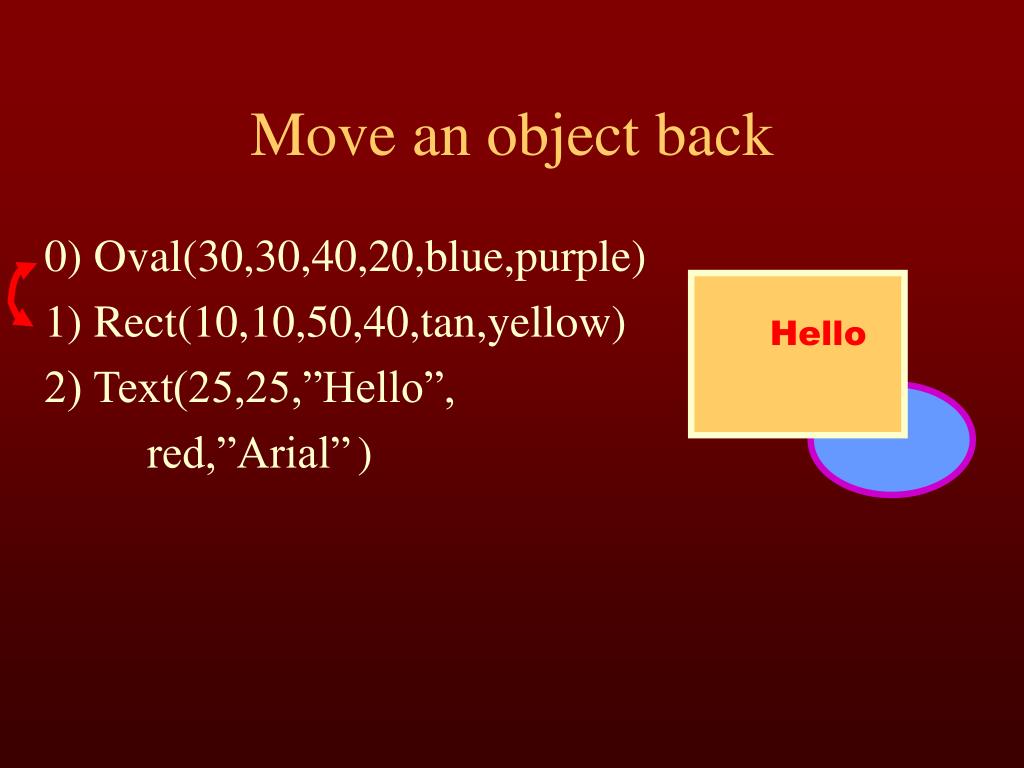

  26. Move an object back 0) Oval(30,30,40,20,blue,purple) 1) Rect(10,10,50,40,tan,yellow) 2) Text(25,25,”Hello”, red,”Arial”) Hello

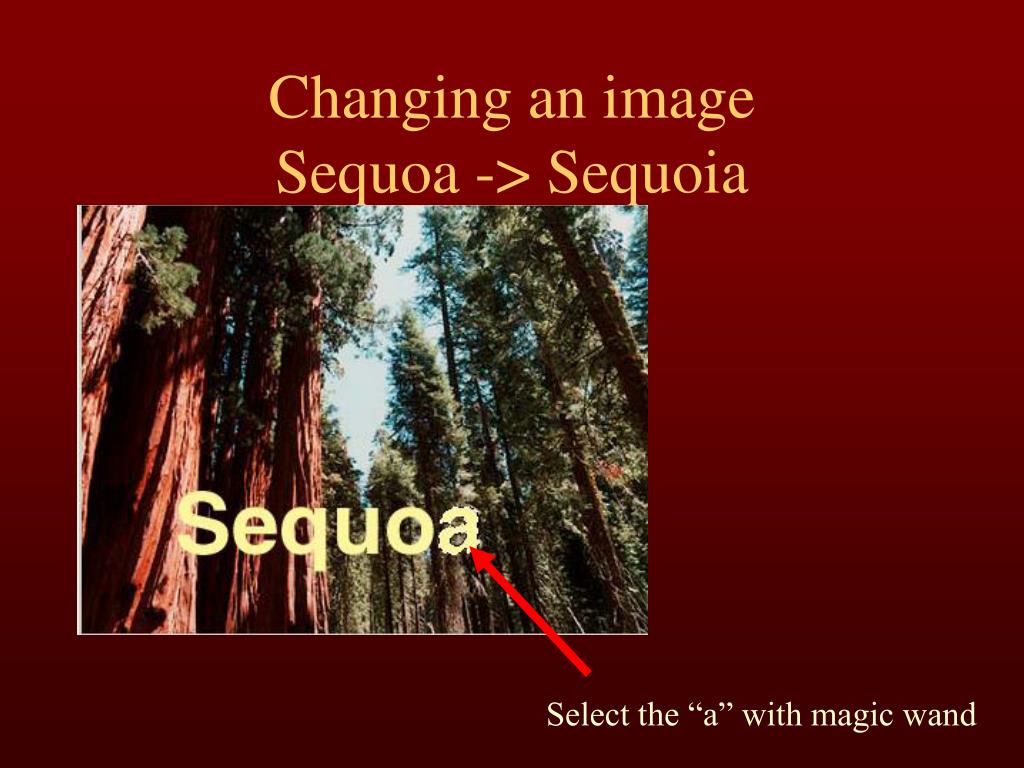

  27. Select the “a” with magic wand Changing an imageSequoa -> Sequoia

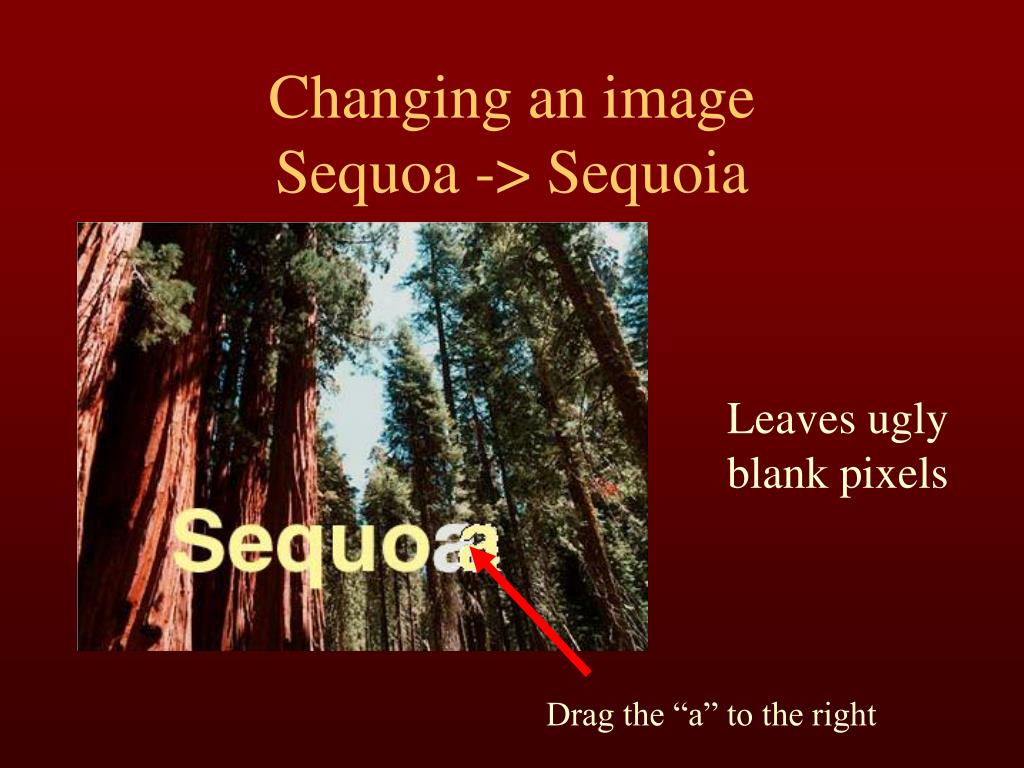

  28. Drag the “a” to the right Changing an imageSequoa -> Sequoia Leaves ugly blank pixels

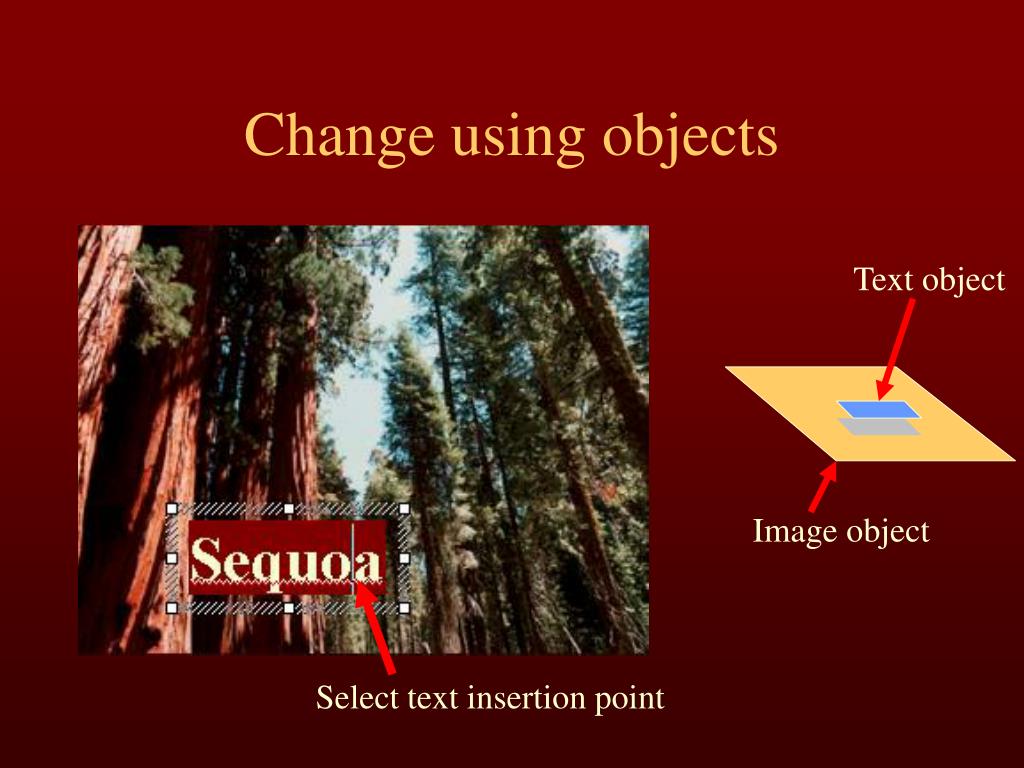

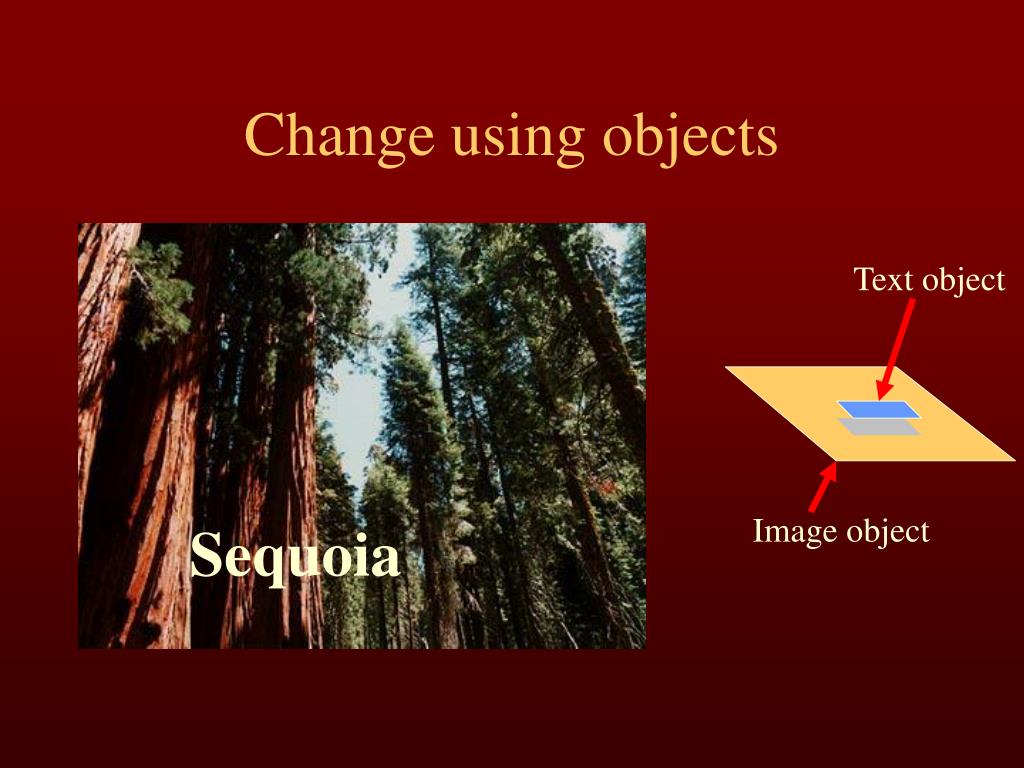

  29. Select text insertion point Change using objects Text object Image object Sequoa

  30. Change using objects Text object Image object Sequoia

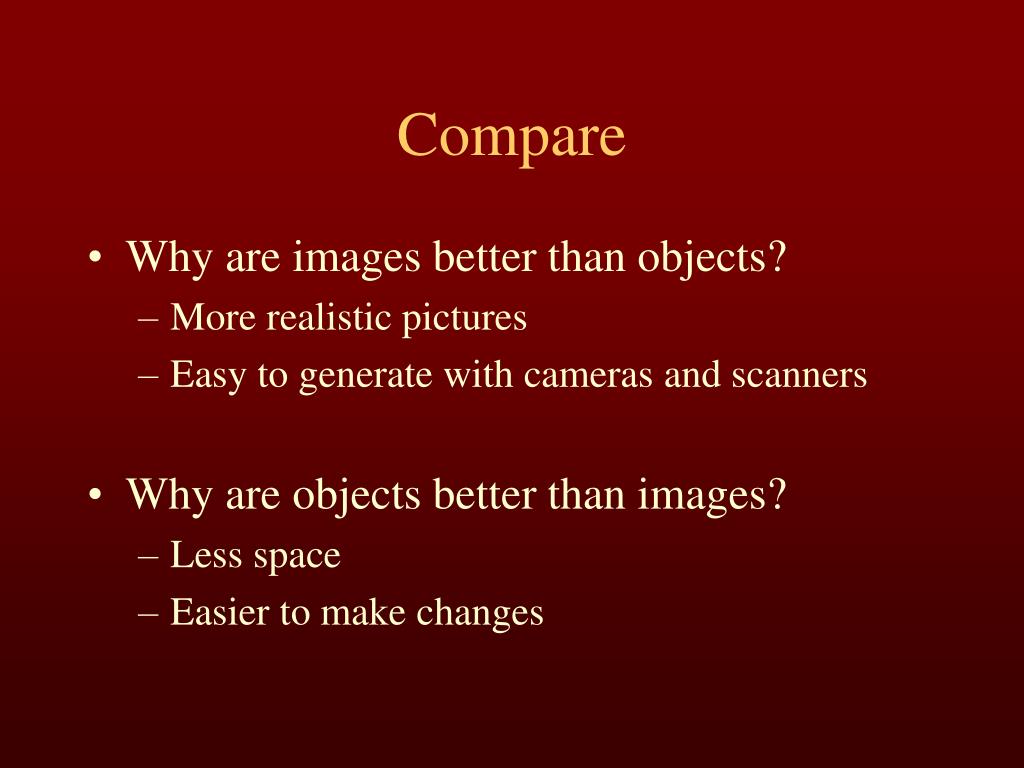

  31. Compare • Why are images better than objects? • More realistic pictures • Easy to generate with cameras and scanners • Why are objects better than images? • Less space • Easier to make changes
