  1. Application Communities Phase IITechnical Progress, Instrumentation, System Design, Plans March 10, 2009

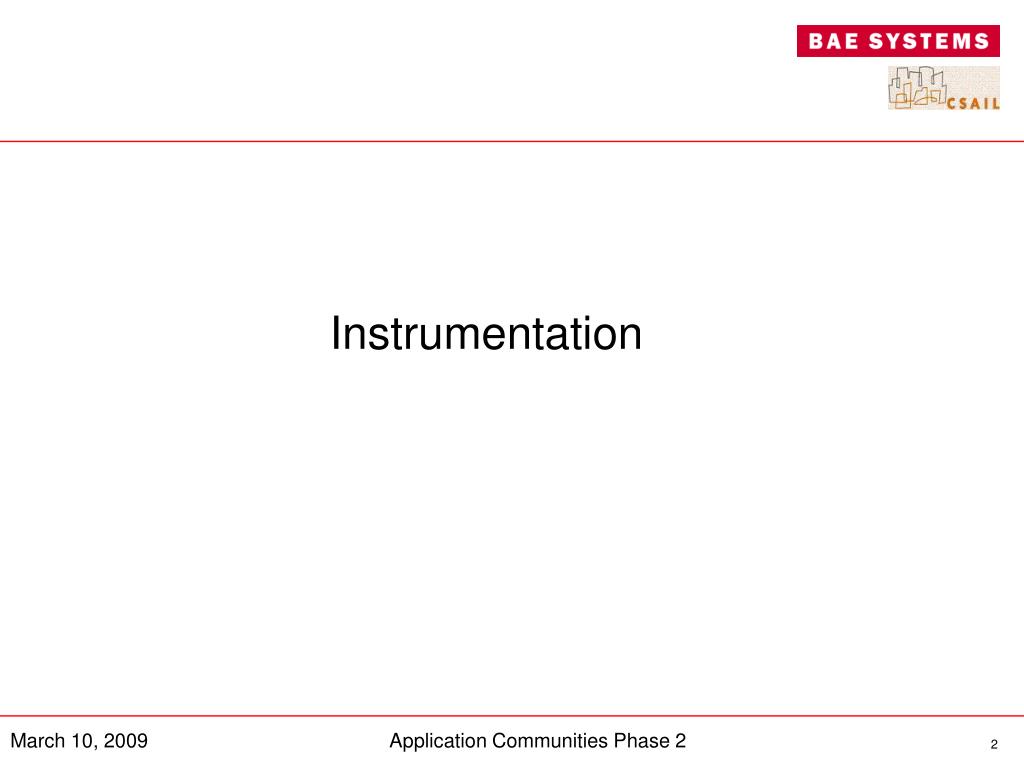

  2. Instrumentation Application Communities Phase 2

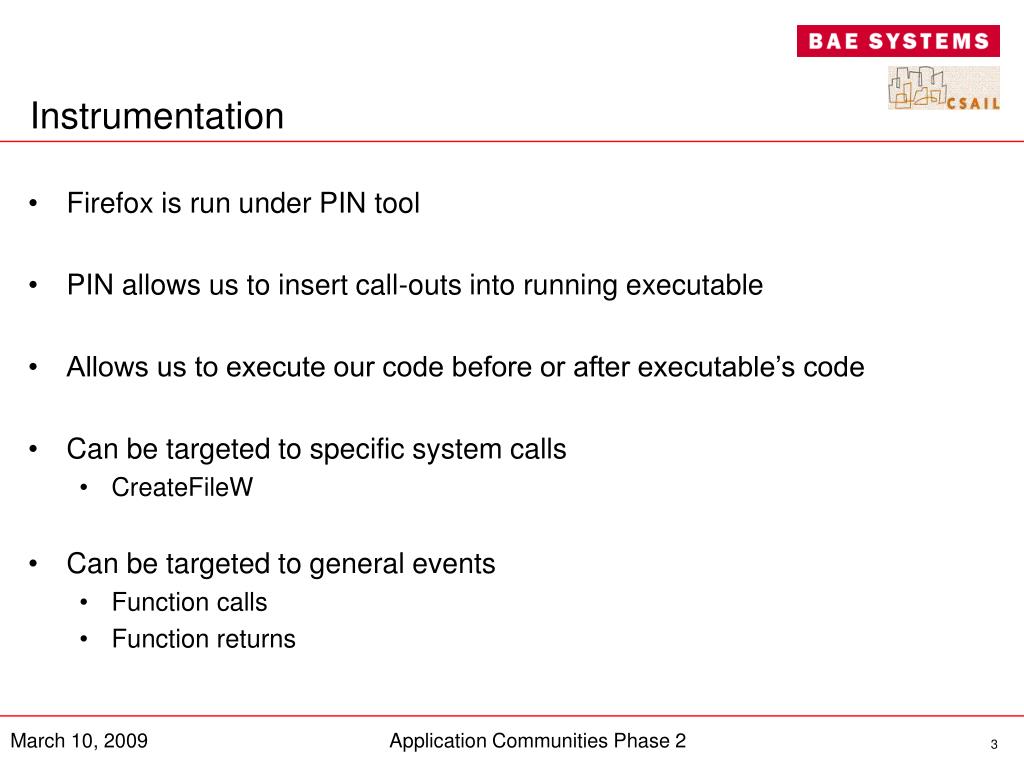

  3. Instrumentation • Firefox is run under PIN tool • PIN allows us to insert call-outs into running executable • Allows us to execute our code before or after executable’s code • Can be targeted to specific system calls • CreateFileW • Can be targeted to general events • Function calls • Function returns Application Communities Phase 2

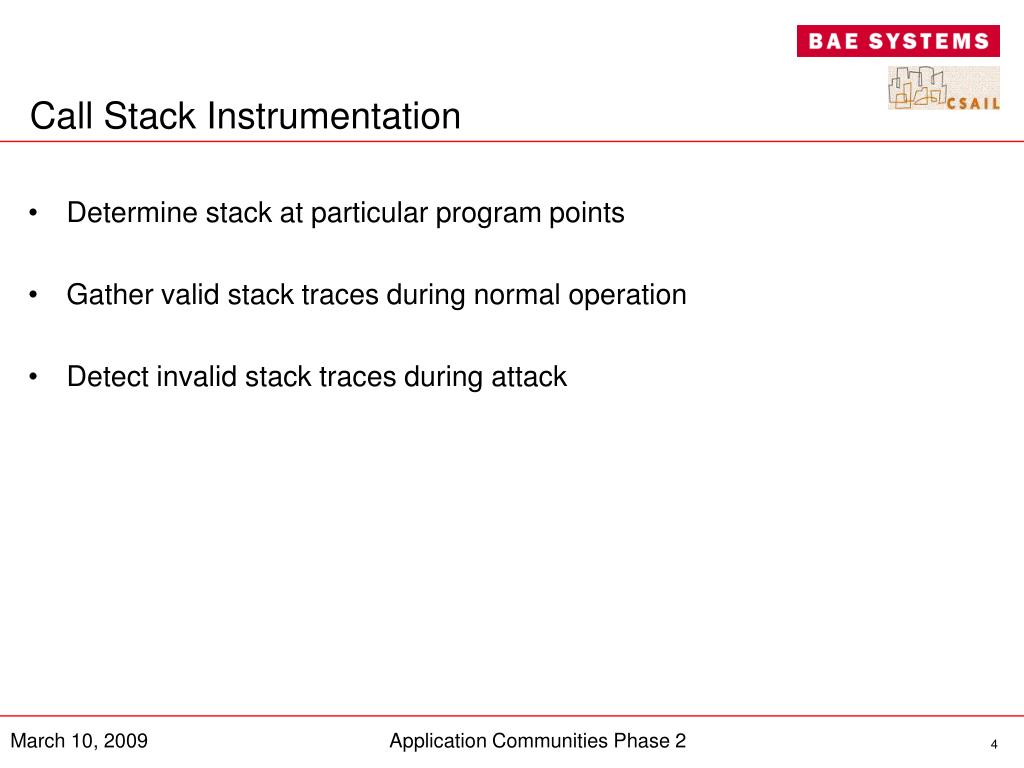

  4. Call Stack Instrumentation • Determine stack at particular program points • Gather valid stack traces during normal operation • Detect invalid stack traces during attack Application Communities Phase 2

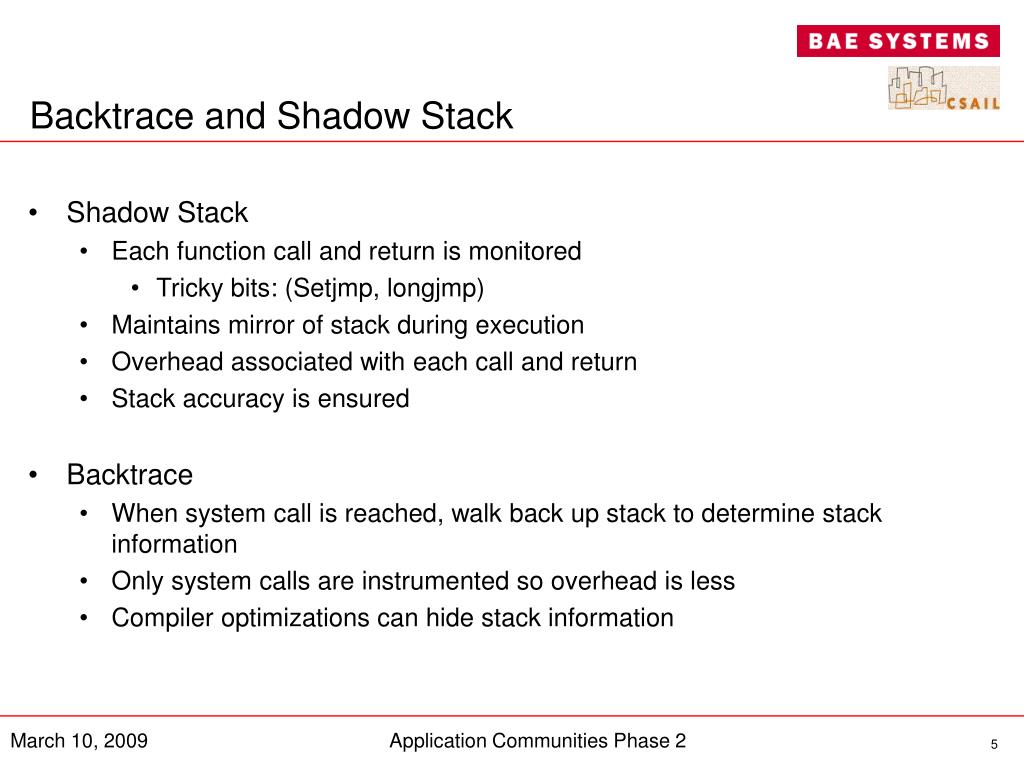

  5. Backtrace and Shadow Stack • Shadow Stack • Each function call and return is monitored • Tricky bits: (Setjmp, longjmp) • Maintains mirror of stack during execution • Overhead associated with each call and return • Stack accuracy is ensured • Backtrace • When system call is reached, walk back up stack to determine stack information • Only system calls are instrumented so overhead is less • Compiler optimizations can hide stack information Application Communities Phase 2

  6. Stack Trace Example funccall:[0]<CreateFileW>c:\AC2\firefox_bin\searchplugins\google.gif 54: CreateFileW[0x10760] C:\WINDOWS\system32\kernel32.dll [S] 53: CreateFileA[0x1a24] C:\WINDOWS\system32\kernel32.dll [S] 52: __PR_MD_OPEN[0x25920] c:\AC2\firefox_bin\nspr4.dll [S] 51: _PR_Open[0x1c8d0] c:\AC2\firefox_bin\nspr4.dll [S] 50: nsLocalFile::OpenNSPRFileDesc[0x39c90] c:\AC2\firefox_bin\xpcom.dll [S] 49: nsFileInputStream::Open[0xa2f0] c:\AC2\firefox_bin\components\necko.dll [S] 48: nsFileInputStream::Init[0xa440] c:\AC2\firefox_bin\components\necko.dll [S] 47: NS_NewLocalFileInputStream[0x7b750] c:\AC2\firefox_bin\components\necko.dll [S] 46: nsFileChannel::EnsureStream[0x7fe20] c:\AC2\firefox_bin\components\necko.dll [S] 45: nsFileChannel::AsyncOpen[0x80bb0] c:\AC2\firefox_bin\components\necko.dll [S] 44: imgLoader::LoadImage[0x5520] c:\AC2\firefox_bin\components\imglib2.dll [S] 43: nsContentUtils::LoadImage[0x138600] c:\AC2\firefox_bin\components\gklayout.dll [S] 42: nsImageBoxFrame::UpdateImage[0x10cdc0] c:\AC2\firefox_bin\components\gklayout.dll [S] 40: nsImageBoxFrame::AttributeChanged[0x10c790] c:\AC2\firefox_bin\components\gklayout.dll [S] 39: nsCSSFrameConstructor::AttributeChanged[0x8fcb0] c:\AC2\firefox_bin\components\gklayout.dll [S] 38: PresShell::AttributeChanged[0x334e0] c:\AC2\firefox_bin\components\gklayout.dll [S] 37: nsXULDocument::AttributeChanged[0x2c0f60] c:\AC2\firefox_bin\components\gklayout.dll [S] 36: nsXULElement::SetAttrAndNotify[0x3587d0] c:\AC2\firefox_bin\components\gklayout.dll [S] 35: nsXULElement::SetAttr[0x358500] c:\AC2\firefox_bin\components\gklayout.dll [S] 34: nsIContent::SetAttr[0x33230] c:\AC2\firefox_bin\components\gklayout.dll [S] 33: nsXBLPrototypeBinding::AttributeChanged[0x2ab860] c:\AC2\firefox_bin\components\gklayout.dll [S] 32: nsXBLBinding::AttributeChanged[0x2a8e10] c:\AC2\firefox_bin\components\gklayout.dll [S] 31: nsXULElement::SetAttrAndNotify[0x3587d0] c:\AC2\firefox_bin\components\gklayout.dll [S] 30: nsXULElement::SetAttr[0x358500] c:\AC2\firefox_bin\components\gklayout.dll [S] 29: nsIContent::SetAttr[0x33230] c:\AC2\firefox_bin\components\gklayout.dll [S] 28: nsXBLPrototypeBinding::AttributeChanged[0x2ab860] c:\AC2\firefox_bin\components\gklayout.dll [S] 27: nsXBLBinding::AttributeChanged[0x2a8e10] c:\AC2\firefox_bin\components\gklayout.dll [S] 26: nsXULElement::SetAttrAndNotify[0x3587d0] c:\AC2\firefox_bin\components\gklayout.dll [S] 24: nsXULElement::SetAttr[0x3550f0] c:\AC2\firefox_bin\components\gklayout.dll [S] 23: nsXULElement::SetAttribute[0x354fd0] c:\AC2\firefox_bin\components\gklayout.dll [S] 22: XPTC_InvokeByIndex[0x8e2b0] c:\AC2\firefox_bin\xpcom.dll [S] 9: nsJSContext::CallEventHandler[0x325830] c:\AC2\firefox_bin\components\gklayout.dll [S] 8: GlobalWindowImpl::RunTimeout[0x314310] c:\AC2\firefox_bin\components\gklayout.dll [S] 7: GlobalWindowImpl::TimerCallback[0x315180] c:\AC2\firefox_bin\components\gklayout.dll [S] 6: nsTimerImpl::Fire[0x6d050] c:\AC2\firefox_bin\xpcom.dll [S] 5: nsTimerManager::FireNextIdleTimer[0x6dad0] c:\AC2\firefox_bin\xpcom.dll [S] 4: nsAppShell::Run[0x14cd0] c:\AC2\firefox_bin\components\gkwidget.dll [S] 2: xre_main[0x2f30] c:\AC2\firefox_bin\firefox.exe [S] 0: mainCRTStartup[0x16d20] c:\AC2\firefox_bin\firefox.exe [S] Application Communities Phase 2

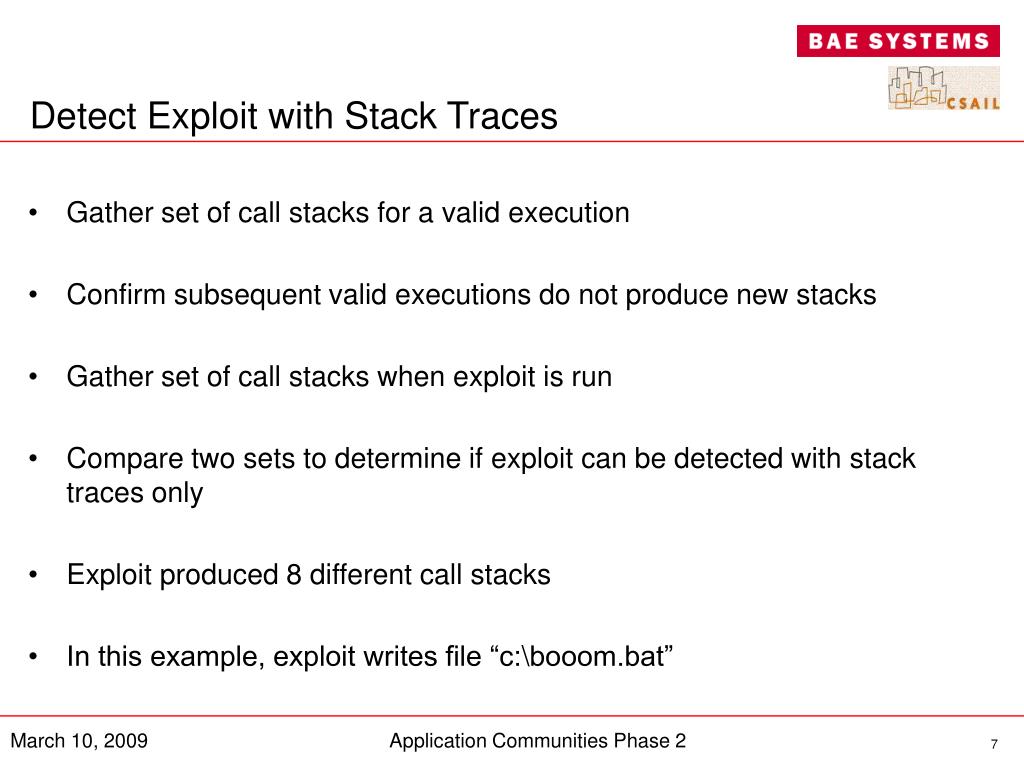

  7. Detect Exploit with Stack Traces • Gather set of call stacks for a valid execution • Confirm subsequent valid executions do not produce new stacks • Gather set of call stacks when exploit is run • Compare two sets to determine if exploit can be detected with stack traces only • Exploit produced 8 different call stacks • In this example, exploit writes file “c:\booom.bat” Application Communities Phase 2

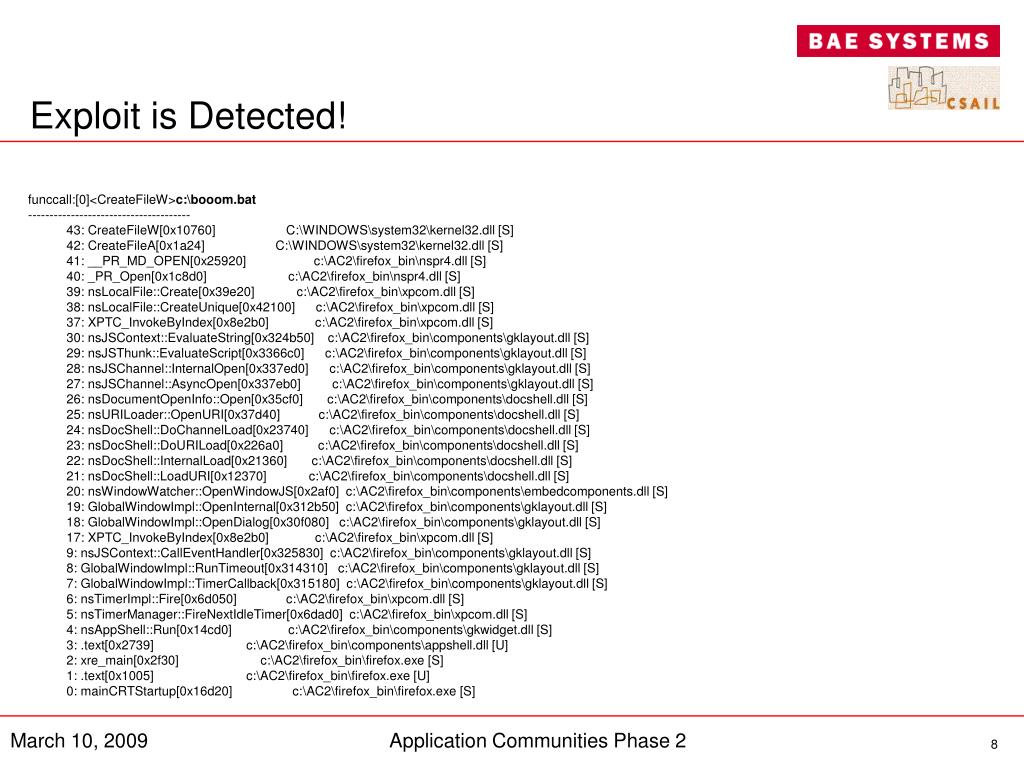

  8. Exploit is Detected! funccall:[0]<CreateFileW>c:\booom.bat -------------------------------------- 43: CreateFileW[0x10760] C:\WINDOWS\system32\kernel32.dll [S] 42: CreateFileA[0x1a24] C:\WINDOWS\system32\kernel32.dll [S] 41: __PR_MD_OPEN[0x25920] c:\AC2\firefox_bin\nspr4.dll [S] 40: _PR_Open[0x1c8d0] c:\AC2\firefox_bin\nspr4.dll [S] 39: nsLocalFile::Create[0x39e20] c:\AC2\firefox_bin\xpcom.dll [S] 38: nsLocalFile::CreateUnique[0x42100] c:\AC2\firefox_bin\xpcom.dll [S] 37: XPTC_InvokeByIndex[0x8e2b0] c:\AC2\firefox_bin\xpcom.dll [S] 30: nsJSContext::EvaluateString[0x324b50] c:\AC2\firefox_bin\components\gklayout.dll [S] 29: nsJSThunk::EvaluateScript[0x3366c0] c:\AC2\firefox_bin\components\gklayout.dll [S] 28: nsJSChannel::InternalOpen[0x337ed0] c:\AC2\firefox_bin\components\gklayout.dll [S] 27: nsJSChannel::AsyncOpen[0x337eb0] c:\AC2\firefox_bin\components\gklayout.dll [S] 26: nsDocumentOpenInfo::Open[0x35cf0] c:\AC2\firefox_bin\components\docshell.dll [S] 25: nsURILoader::OpenURI[0x37d40] c:\AC2\firefox_bin\components\docshell.dll [S] 24: nsDocShell::DoChannelLoad[0x23740] c:\AC2\firefox_bin\components\docshell.dll [S] 23: nsDocShell::DoURILoad[0x226a0] c:\AC2\firefox_bin\components\docshell.dll [S] 22: nsDocShell::InternalLoad[0x21360] c:\AC2\firefox_bin\components\docshell.dll [S] 21: nsDocShell::LoadURI[0x12370] c:\AC2\firefox_bin\components\docshell.dll [S] 20: nsWindowWatcher::OpenWindowJS[0x2af0] c:\AC2\firefox_bin\components\embedcomponents.dll [S] 19: GlobalWindowImpl::OpenInternal[0x312b50] c:\AC2\firefox_bin\components\gklayout.dll [S] 18: GlobalWindowImpl::OpenDialog[0x30f080] c:\AC2\firefox_bin\components\gklayout.dll [S] 17: XPTC_InvokeByIndex[0x8e2b0] c:\AC2\firefox_bin\xpcom.dll [S] 9: nsJSContext::CallEventHandler[0x325830] c:\AC2\firefox_bin\components\gklayout.dll [S] 8: GlobalWindowImpl::RunTimeout[0x314310] c:\AC2\firefox_bin\components\gklayout.dll [S] 7: GlobalWindowImpl::TimerCallback[0x315180] c:\AC2\firefox_bin\components\gklayout.dll [S] 6: nsTimerImpl::Fire[0x6d050] c:\AC2\firefox_bin\xpcom.dll [S] 5: nsTimerManager::FireNextIdleTimer[0x6dad0] c:\AC2\firefox_bin\xpcom.dll [S] 4: nsAppShell::Run[0x14cd0] c:\AC2\firefox_bin\components\gkwidget.dll [S] 3: .text[0x2739] c:\AC2\firefox_bin\components\appshell.dll [U] 2: xre_main[0x2f30] c:\AC2\firefox_bin\firefox.exe [S] 1: .text[0x1005] c:\AC2\firefox_bin\firefox.exe [U] 0: mainCRTStartup[0x16d20] c:\AC2\firefox_bin\firefox.exe [S] Application Communities Phase 2

  9. Callstack Tree Application Communities Phase 2

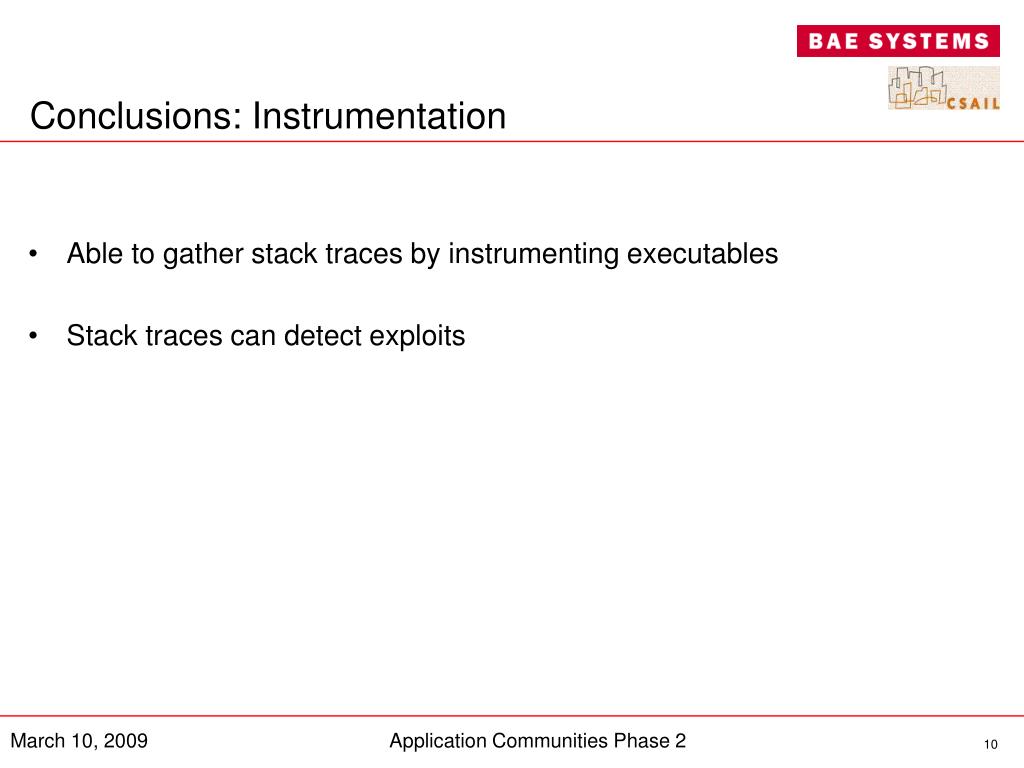

  10. Conclusions: Instrumentation • Able to gather stack traces by instrumenting executables • Stack traces can detect exploits Application Communities Phase 2

  11. System Design Application Communities Phase 2

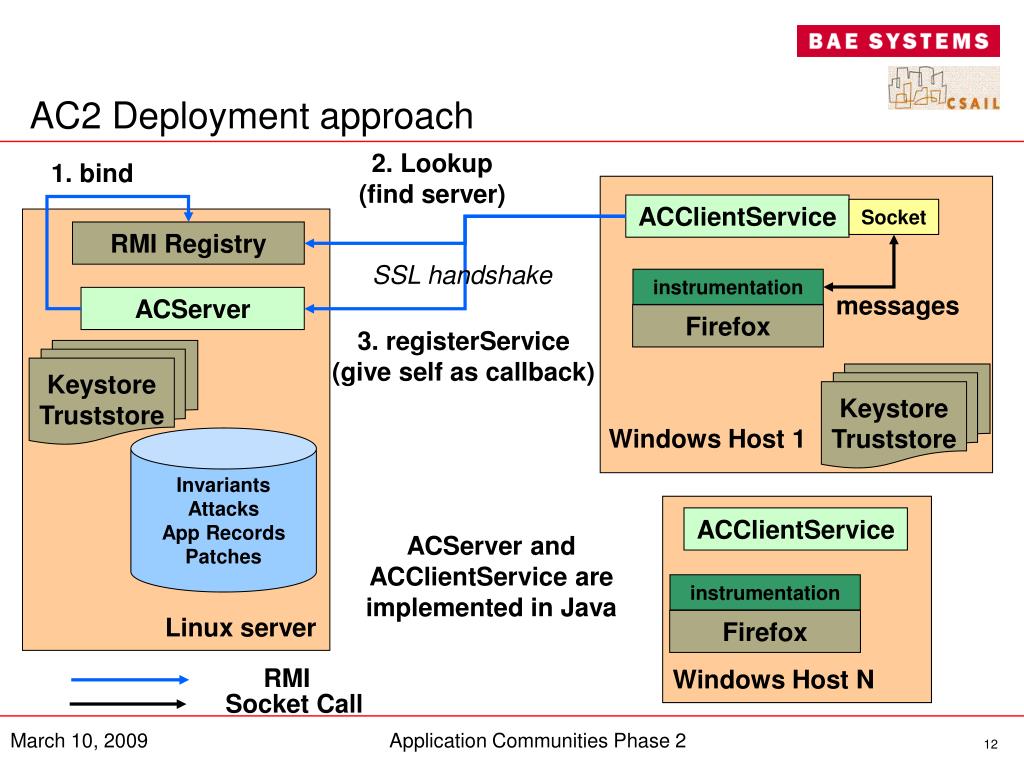

  12. instrumentation instrumentation Firefox Firefox AC2 Deployment approach 2. Lookup (find server) 1. bind ACClientService Socket RMI Registry SSL handshake messages ACServer 3. registerService (give self as callback) Keystore Truststore Keystore Truststore Windows Host 1 Invariants Attacks App Records Patches ACClientService ACServer and ACClientService are implemented in Java Linux server RMI Windows Host N Socket Call Application Communities Phase 2

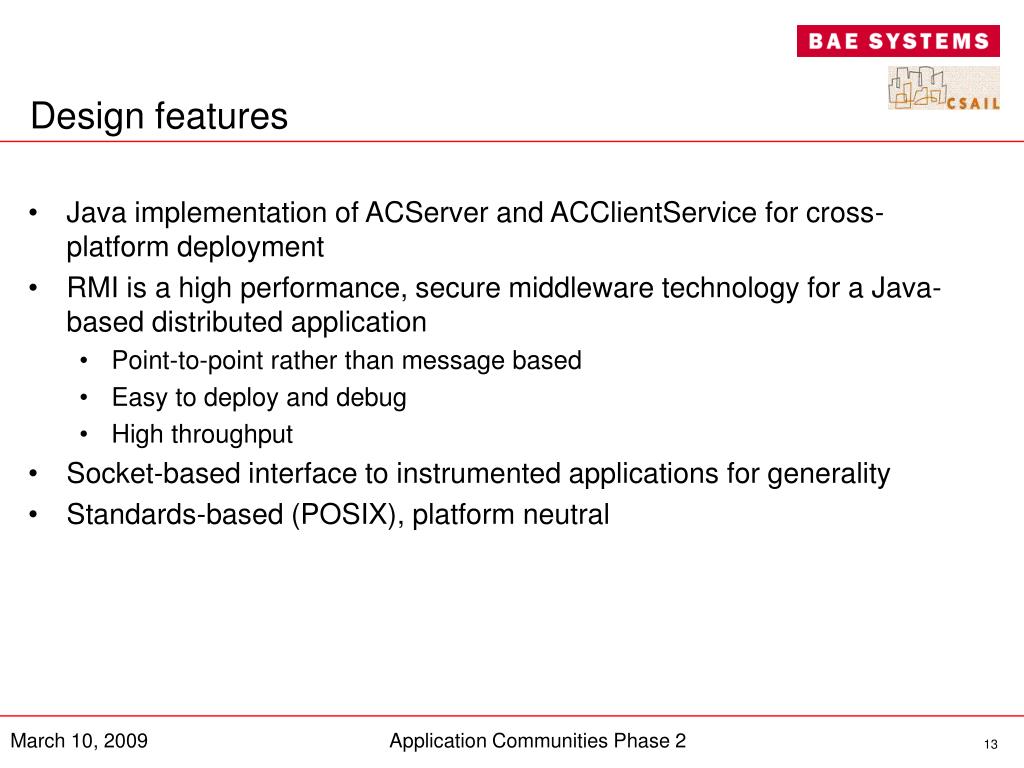

  13. Design features • Java implementation of ACServer and ACClientService for cross-platform deployment • RMI is a high performance, secure middleware technology for a Java-based distributed application • Point-to-point rather than message based • Easy to deploy and debug • High throughput • Socket-based interface to instrumented applications for generality • Standards-based (POSIX), platform neutral Application Communities Phase 2

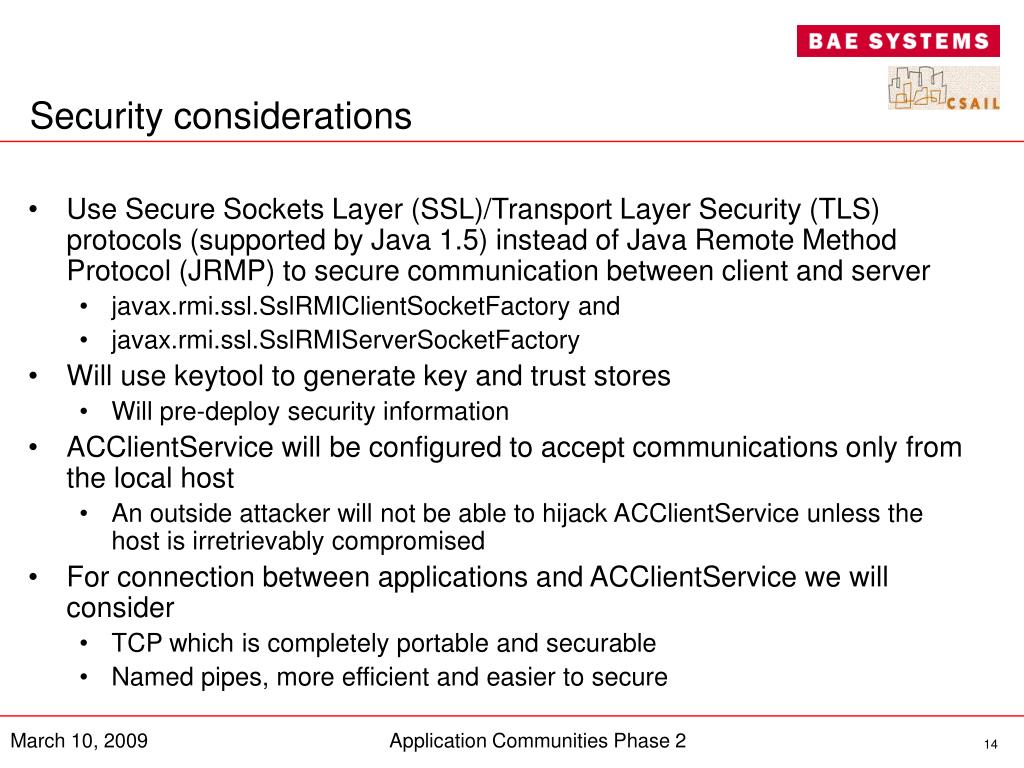

  14. Security considerations • Use Secure Sockets Layer (SSL)/Transport Layer Security (TLS) protocols (supported by Java 1.5) instead of Java Remote Method Protocol (JRMP) to secure communication between client and server • javax.rmi.ssl.SslRMIClientSocketFactory and  • javax.rmi.ssl.SslRMIServerSocketFactory • Will use keytool to generate key and trust stores • Will pre-deploy security information • ACClientService will be configured to accept communications only from the local host • An outside attacker will not be able to hijack ACClientService unless the host is irretrievably compromised • For connection between applications and ACClientService we will consider • TCP which is completely portable and securable • Named pipes, more efficient and easier to secure Application Communities Phase 2

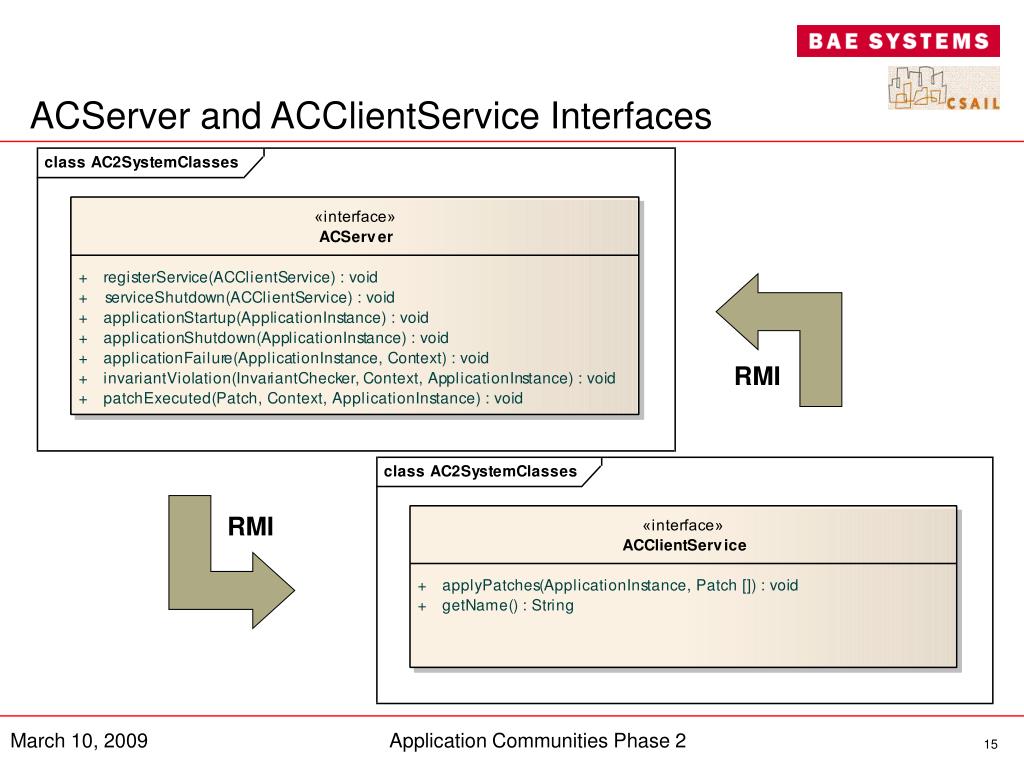

  15. ACServer and ACClientService Interfaces RMI RMI Application Communities Phase 2

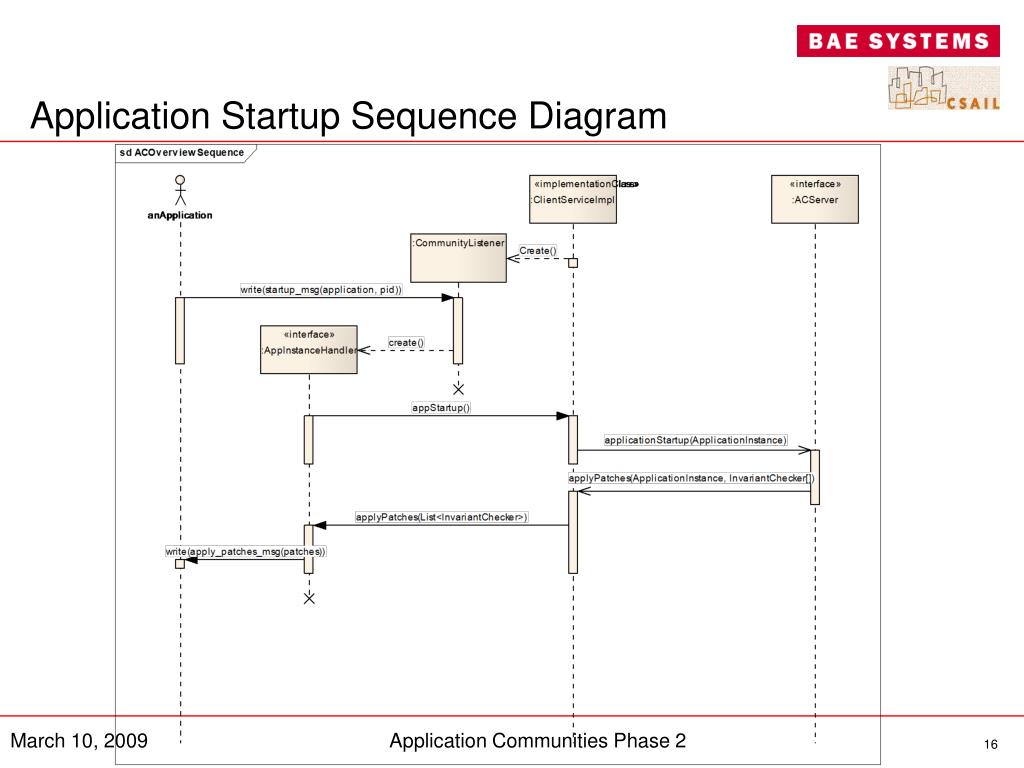

  16. Application Startup Sequence Diagram Application Communities Phase 2

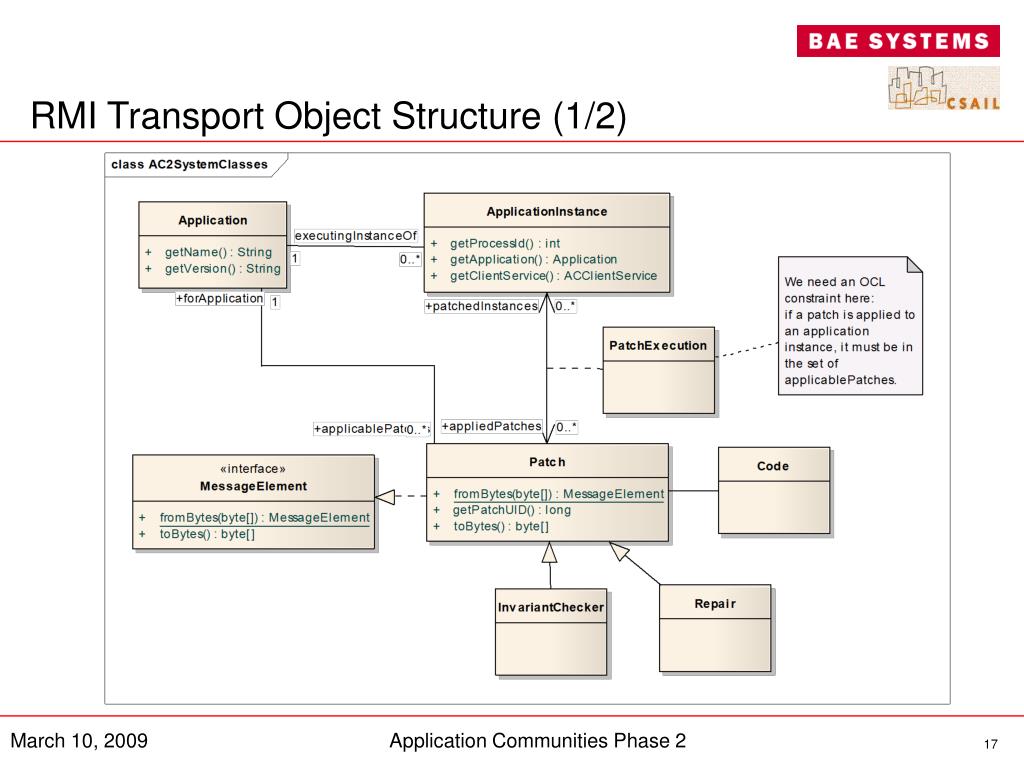

  17. RMI Transport Object Structure (1/2) Application Communities Phase 2

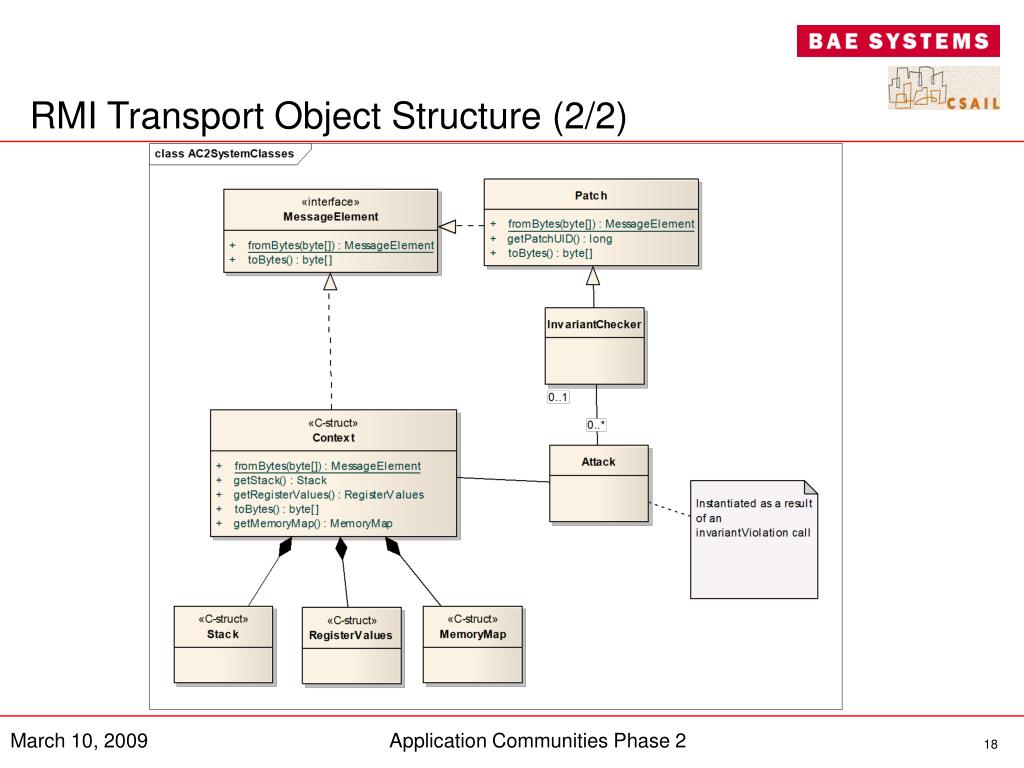

  18. RMI Transport Object Structure (2/2) Application Communities Phase 2

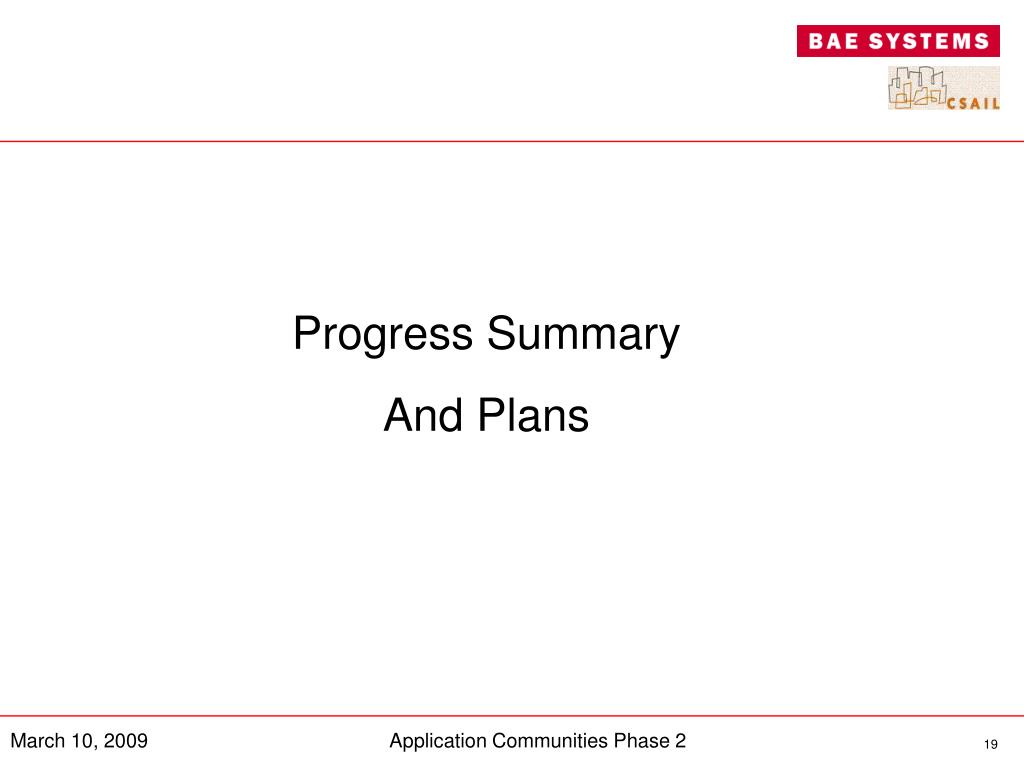

  19. Progress Summary And Plans Application Communities Phase 2

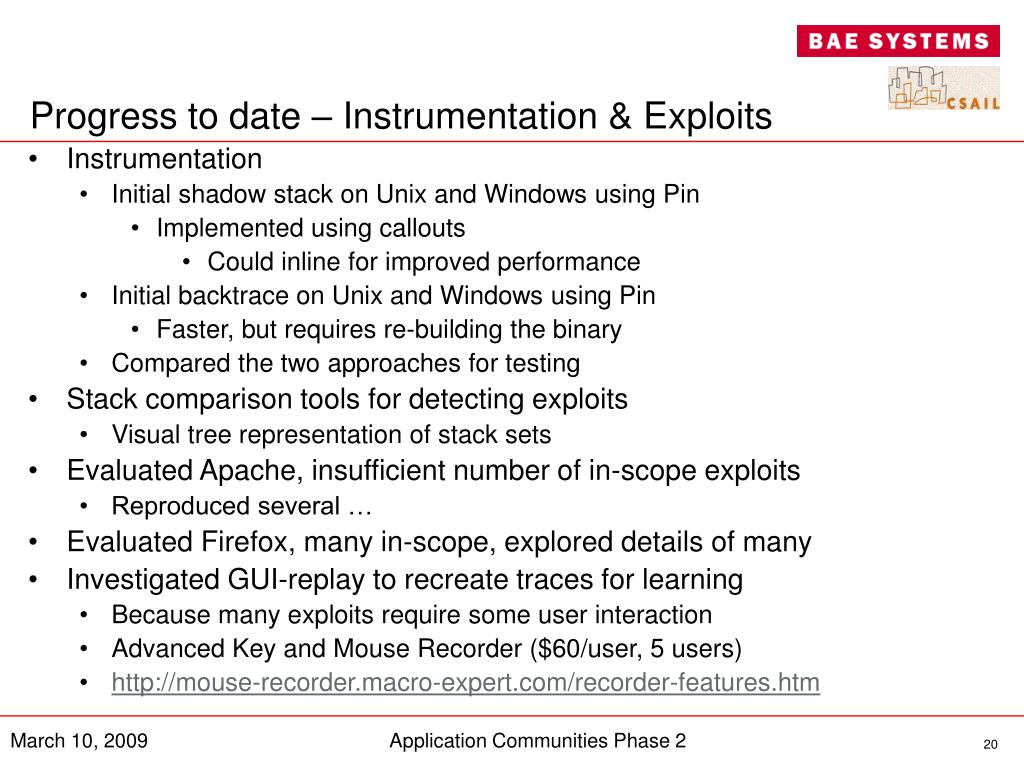

  20. Progress to date – Instrumentation & Exploits • Instrumentation • Initial shadow stack on Unix and Windows using Pin • Implemented using callouts • Could inline for improved performance • Initial backtrace on Unix and Windows using Pin • Faster, but requires re-building the binary • Compared the two approaches for testing • Stack comparison tools for detecting exploits • Visual tree representation of stack sets • Evaluated Apache, insufficient number of in-scope exploits • Reproduced several … • Evaluated Firefox, many in-scope, explored details of many • Investigated GUI-replay to recreate traces for learning • Because many exploits require some user interaction • Advanced Key and Mouse Recorder ($60/user, 5 users) • http://mouse-recorder.macro-expert.com/recorder-features.htm Application Communities Phase 2

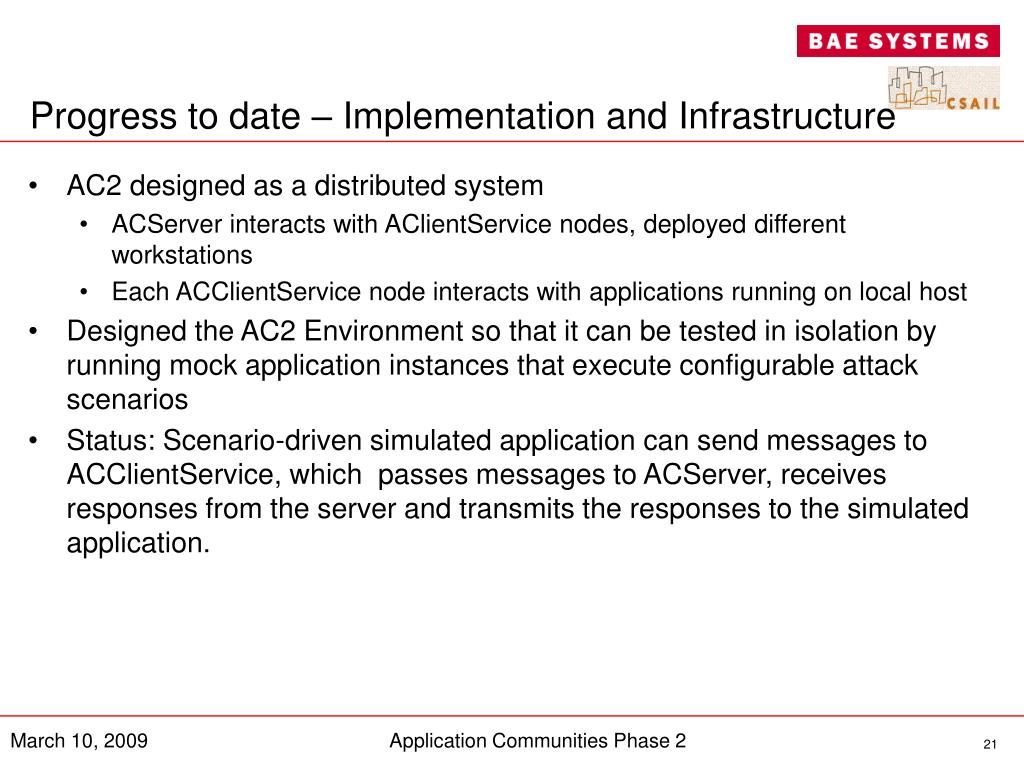

  21. Progress to date – Implementation and Infrastructure • AC2 designed as a distributed system • ACServer interacts with AClientService nodes, deployed different workstations • Each ACClientService node interacts with applications running on local host • Designed the AC2 Environment so that it can be tested in isolation by running mock application instances that execute configurable attack scenarios • Status: Scenario-driven simulated application can send messages to ACClientService, which passes messages to ACServer, receives responses from the server and transmits the responses to the simulated application. Application Communities Phase 2

  22. Plans – Infrastructure/Implementation • Implement socket-based messages between applications and ACClientService • Complete the design and implementation of the RMI transportable objects between ACServer and ACClientService • Incrementally add functionality to ACServer • Add detailed debug scenarios to thoroughly test the infrastructure with a covering set of use cases • Integrate with instrumented Firefox • Flesh out learning infrastructure – design & implementation. • Create demonstration for next program review • Attack on Firefox • Response based on default repair to abnormal stack trace or context • Prevent a system call and return error code • Elaborate this demo by reporting invariant violation and receiving repairs Application Communities Phase 2
