  1. CS 471 - Lecture 3Process Synchronization & Deadlock Ch. 6 (6.1-6.7), 7 Fall 2009

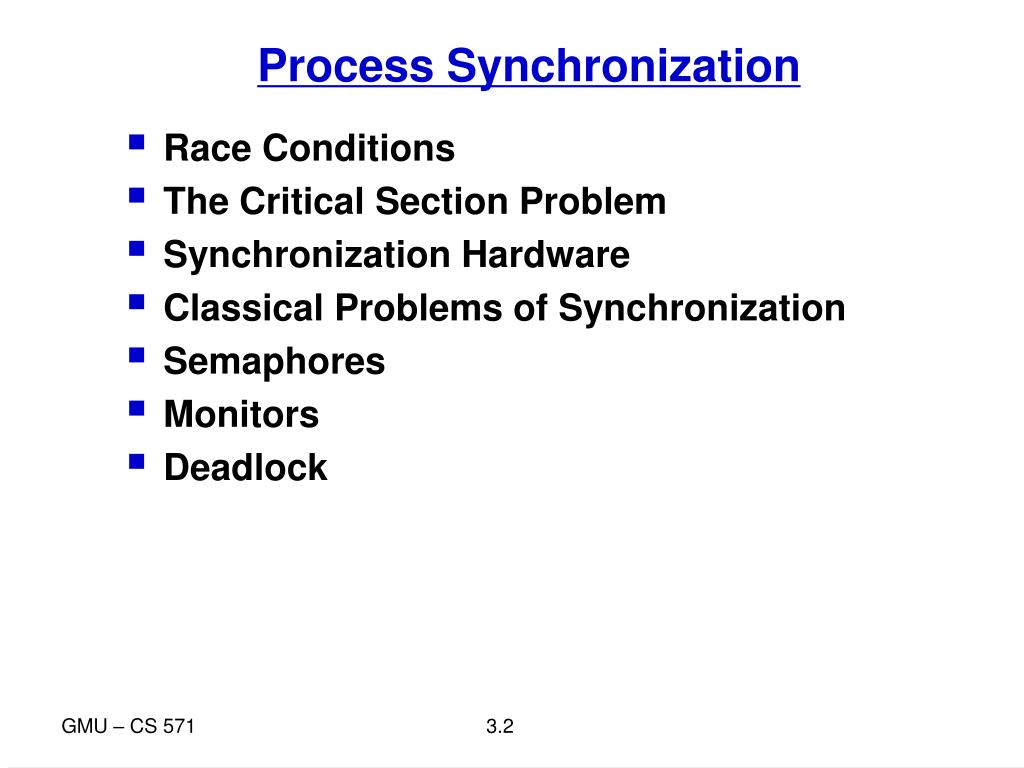

  2. Process Synchronization • Race Conditions • The Critical Section Problem • Synchronization Hardware • Classical Problems of Synchronization • Semaphores • Monitors • Deadlock GMU – CS 571

  3. Concurrent Access to Shared Data • Suppose that two processes A and B have access to a shared variable “Balance”. PROCESS A: PROCESS B: Balance = Balance - 100 Balance = Balance + 200 • Further, assume that Process A and Process B are executing concurrently in a time-shared, multi-programmed system. GMU – CS 571

  4. Concurrent Access to Shared Data • The statement “Balance = Balance – 100” is implemented by several machine level instructions such as: A1. lw $t0, BALANCE A2. sub $t0,$t0,100 A3. sw $t0, BALANCE • Similarly, “Balance = Balance + 200” can be implemented by the following: B1. lw $t1, BALANCE B2. add $t1,$t1,200 B3. sw $t1, BALANCE GMU – CS 571

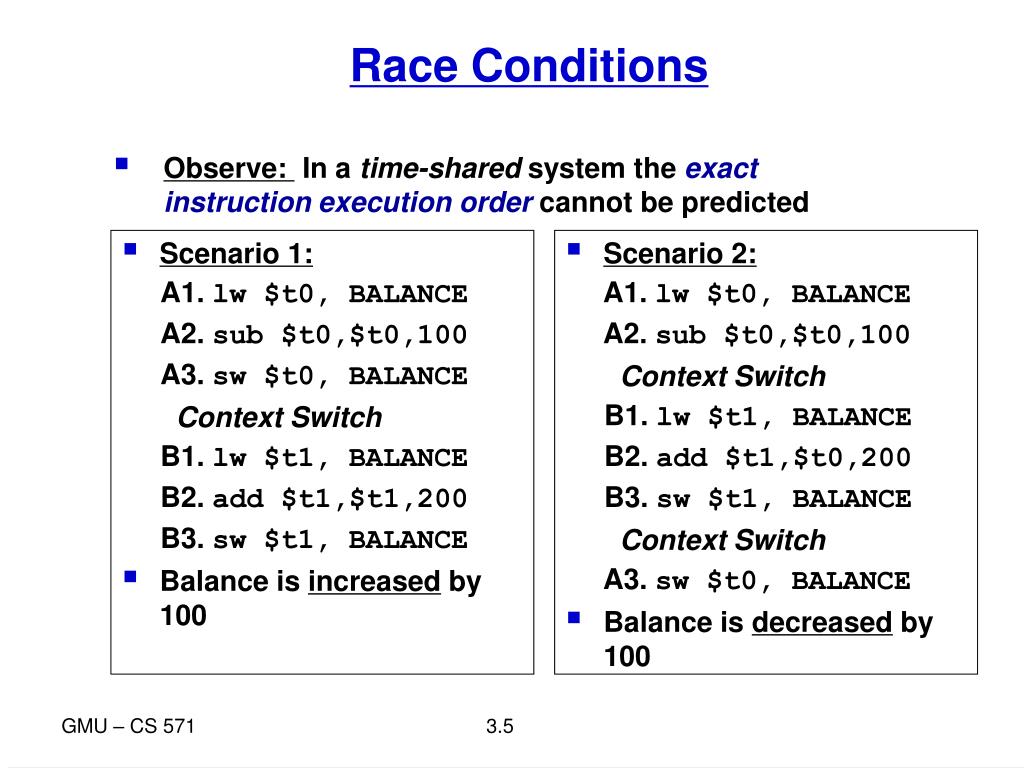

  5. Race Conditions • Scenario 1: A1. lw $t0, BALANCE A2. sub $t0,$t0,100 A3. sw $t0, BALANCE Context Switch B1. lw $t1, BALANCE B2. add $t1,$t1,200 B3. sw $t1, BALANCE • Balance is increased by 100 • Observe: In a time-shared system the exact instruction executionorder cannot be predicted • Scenario 2: A1. lw $t0, BALANCE A2. sub $t0,$t0,100 Context Switch B1. lw $t1, BALANCE B2. add $t1,$t0,200 B3. sw $t1, BALANCE Context Switch A3. sw $t0, BALANCE • Balance is decreased by 100 GMU – CS 571

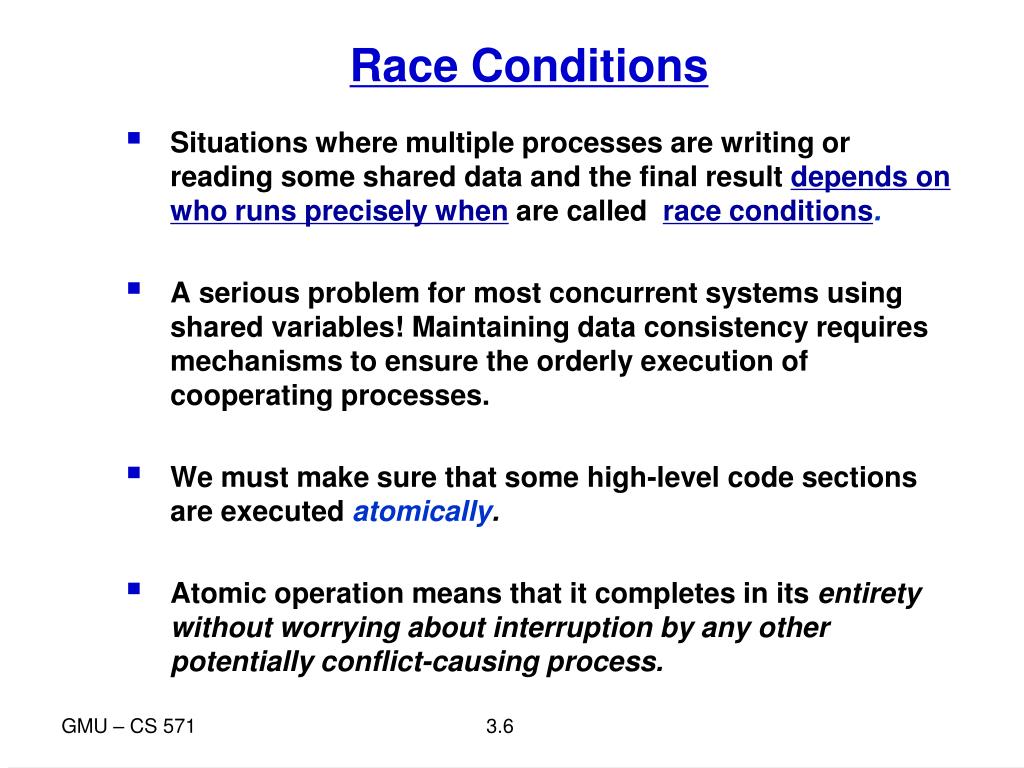

  6. Race Conditions • Situations where multiple processes are writing or reading some shared data and the final result depends on who runs precisely when are called race conditions. • A serious problem for most concurrent systems using shared variables! Maintaining data consistency requires mechanisms to ensure the orderly execution of cooperating processes. • We must make sure that some high-level code sections are executed atomically. • Atomic operation means that it completes in its entirety without worrying about interruption by any other potentially conflict-causing process. GMU – CS 571

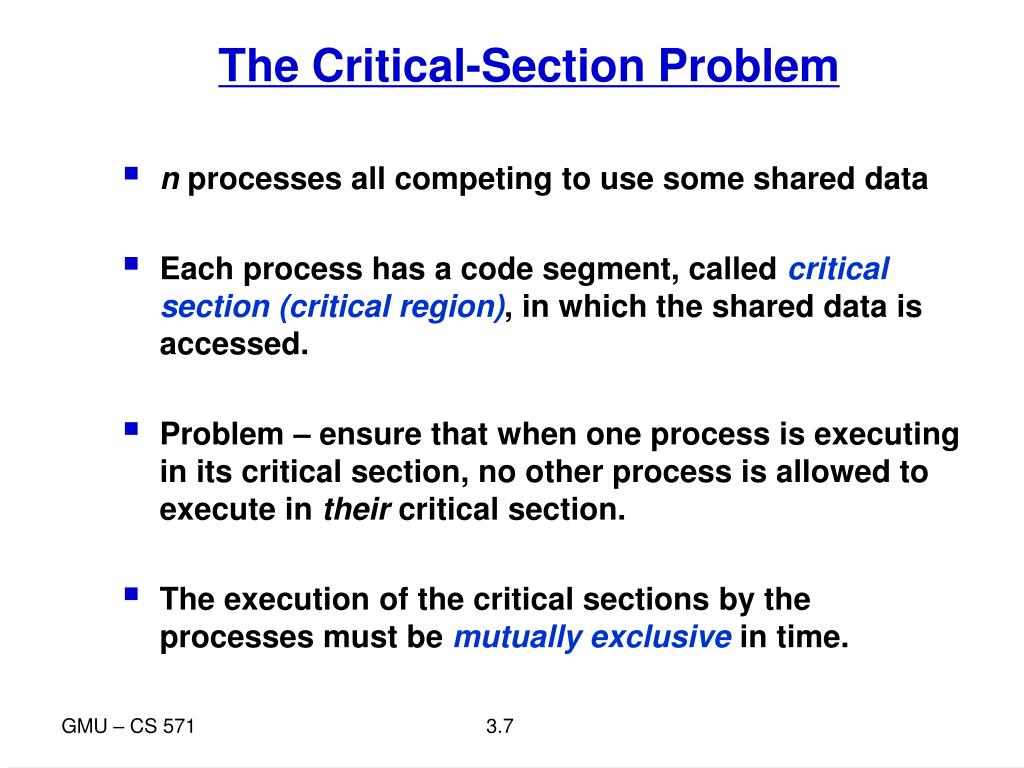

  7. The Critical-Section Problem • n processes all competing to use some shared data • Each process has a code segment, called critical section (critical region), in which the shared data is accessed. • Problem – ensure that when one process is executing in its critical section, no other process is allowed to execute in their critical section. • The execution of the critical sections by the processes must be mutually exclusivein time. GMU – CS 571

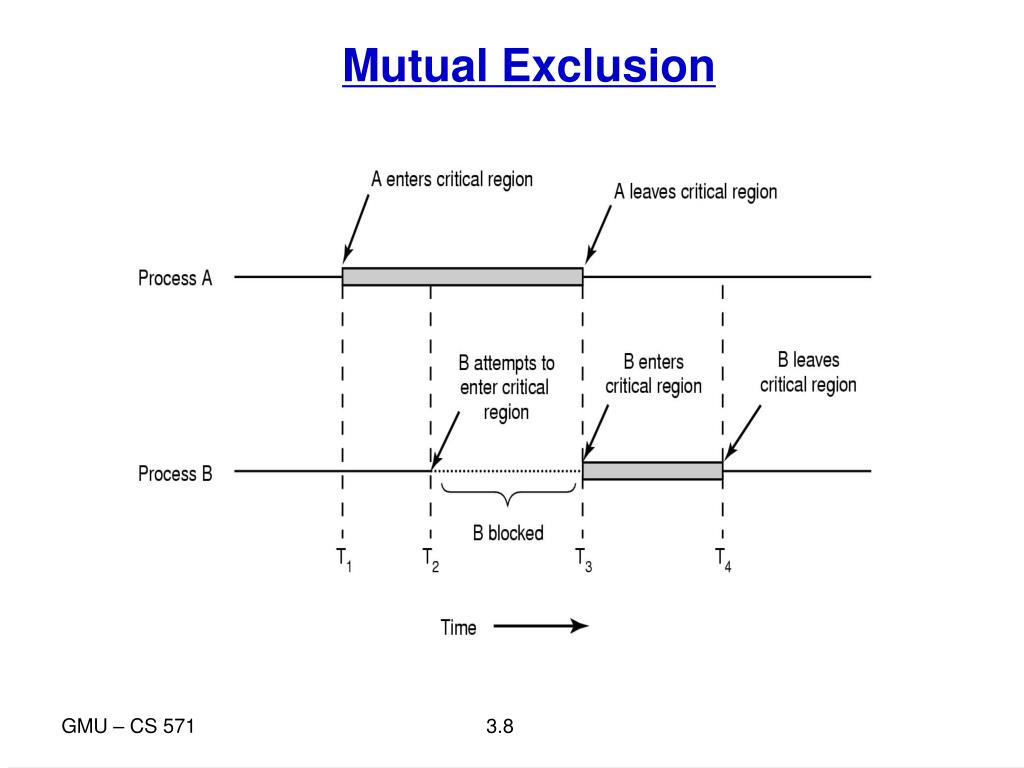

  8. Mutual Exclusion GMU – CS 571

  9. Solving Critical-Section Problem Any solution to the problem must satisfy three conditions. • Mutual Exclusion: No two processes may be simultaneously inside the same critical section. • Bounded Waiting: No process should have to wait forever to enter a critical section. • Progress: No process executing a code segment unrelated to a given critical section can block another process trying to enter the same critical section. • Arbitrary Speed: In addition,no assumption can be made about the relative speed of different processes (though all processes have a non-zero speed). GMU – CS 571

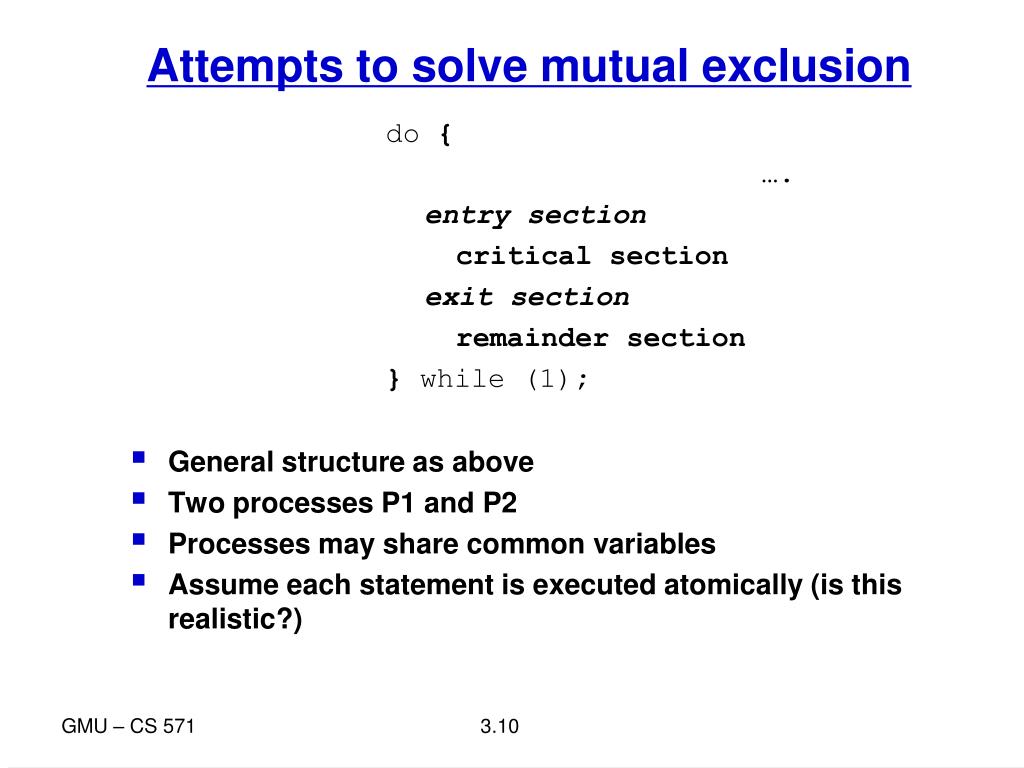

  10. Attempts to solve mutual exclusion do { …. entry section critical section exit section remainder section } while (1); • General structure as above • Two processes P1 and P2 • Processes may share common variables • Assume each statement is executed atomically (is this realistic?) GMU – CS 571

  11. Algorithm 1 • Shared variables: • int turn; initially turn = 0 • turn = i  Pi can enter its critical section • Process Pi do { while (turn != i) ; //it can be forever critical section turn = j; reminder section } while (1); • Satisfies mutual exclusion, but not progress busy waiting GMU – CS 571

  12. Algorithm 2 • Shared variables: • boolean flag[2]; initially flag[0] = flag[1] = false • flag[i] = true  Pi wants to enter its critical region • Process Pi do { flag[i]=true; while (flag[j]) ; //Pi & Pj both waiting critical section flag[i] = false; reminder section } while (1); • Satisfies mutual exclusion, but not progress GMU – CS 571

  13. Algorithm 3: Peterson’s solution • Combine shared variables of previous attempts • Process Pi do { flag[i]=true; turn = j; while (flag[j] and turn == j) ; critical section flag[i] = false; reminder section } while (1); • Meets our 3 requirements (assuming each individual statement is executed atomically) flag[j] = false or turn = i GMU – CS 571

  14. Synchronization Hardware • Many machines provide special hardware instructions that help to achieve mutual exclusion • The TestAndSet (TAS) instruction tests and modifies the content of a memory word atomically • TAS R1,LOCKreads the contents of the memory word LOCK into register R1, and stores a nonzero value (e.g. 1) at the memory word LOCK (atomically) • Assume LOCK = 0 • calling TAS R1, LOCK will set R1 to 0, and set LOCK to 1. • Assume LOCK = 1 • calling TAS R1, LOCK will set R1 to 1, and set LOCK to 1. GMU – CS 571

  15. Mutual Exclusion with Test-and-Set • Initially, shared memory word LOCK = 0. • Process Pi do { entry_section: TAS R1, LOCK CMP R1, #0 /* was LOCK = 0? */ JNE entry_section critical section MOVE LOCK, #0 /* exit section*/ remainder section } while(1); GMU – CS 571

  16. Classical Problems of Synchronization • Producer-Consumer Problem • Readers-Writers Problem • Dining-Philosophers Problem • We will develop solutions using semaphores and monitors as synchronization tools (no busy waiting). GMU – CS 571

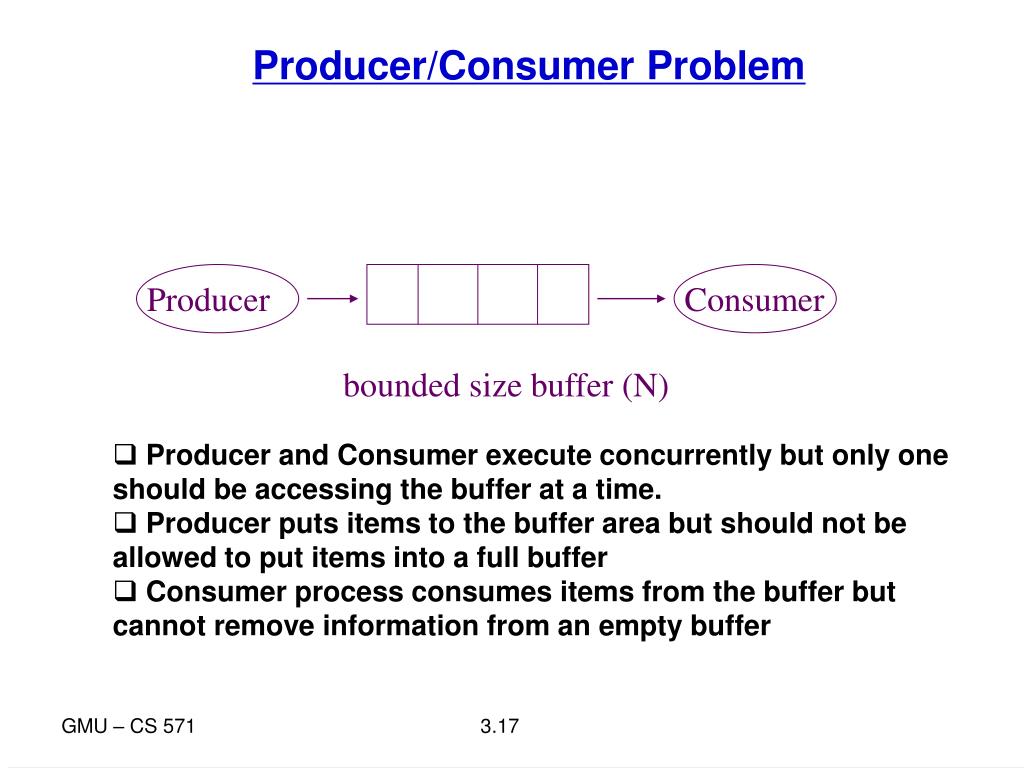

  17. Producer/Consumer Problem Producer Consumer bounded size buffer (N) • Producer and Consumer execute concurrently but only one should be accessing the buffer at a time. • Producer puts items to the buffer area but should not be allowed to put items into a full buffer • Consumer process consumes items from the buffer but cannot remove information from an empty buffer GMU – CS 571

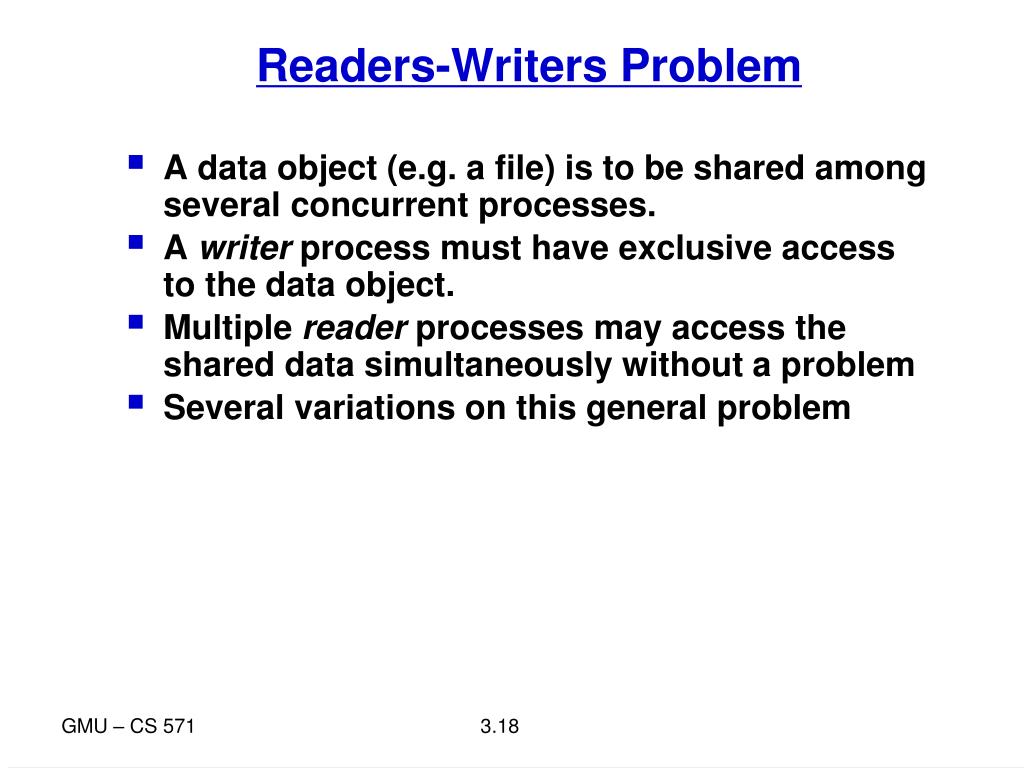

  18. Readers-Writers Problem • A data object (e.g. a file) is to be shared among several concurrent processes. • A writer process must have exclusive access to the data object. • Multiple reader processes may access the shared data simultaneously without a problem • Several variations on this general problem GMU – CS 571

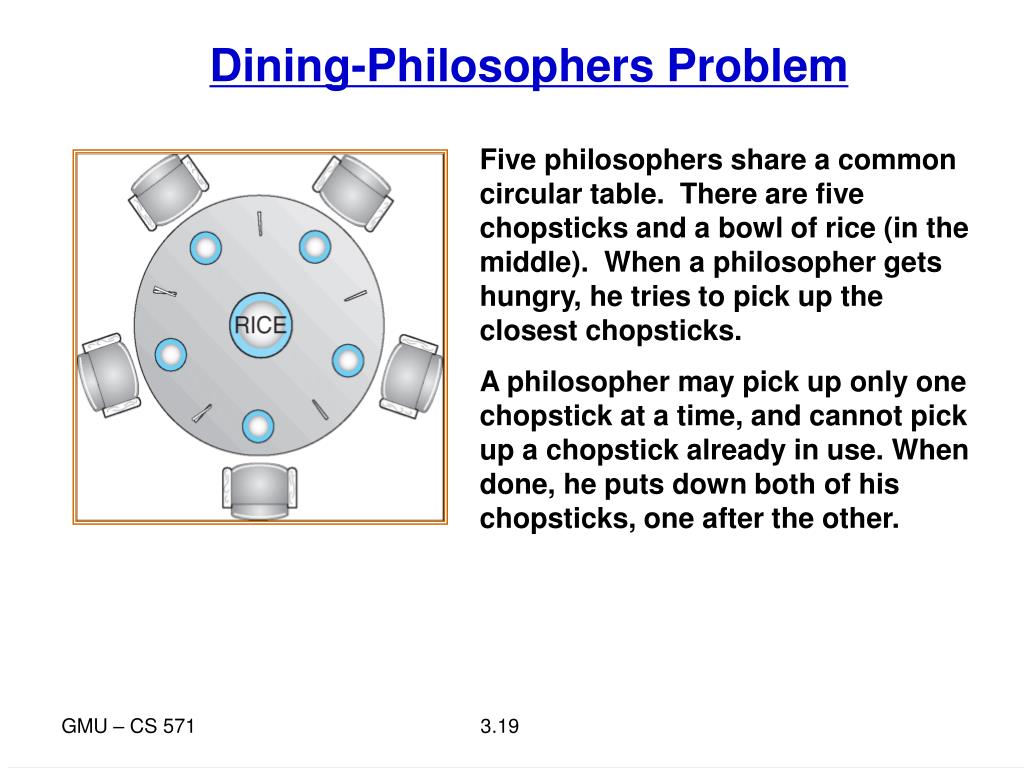

  19. Dining-Philosophers Problem Five philosophers share a common circular table. There are five chopsticks and a bowl of rice (in the middle). When a philosopher gets hungry, he tries to pick up the closest chopsticks. A philosopher may pick up only one chopstick at a time, and cannot pick up a chopstick already in use. When done, he puts down both of his chopsticks, one after the other. GMU – CS 571

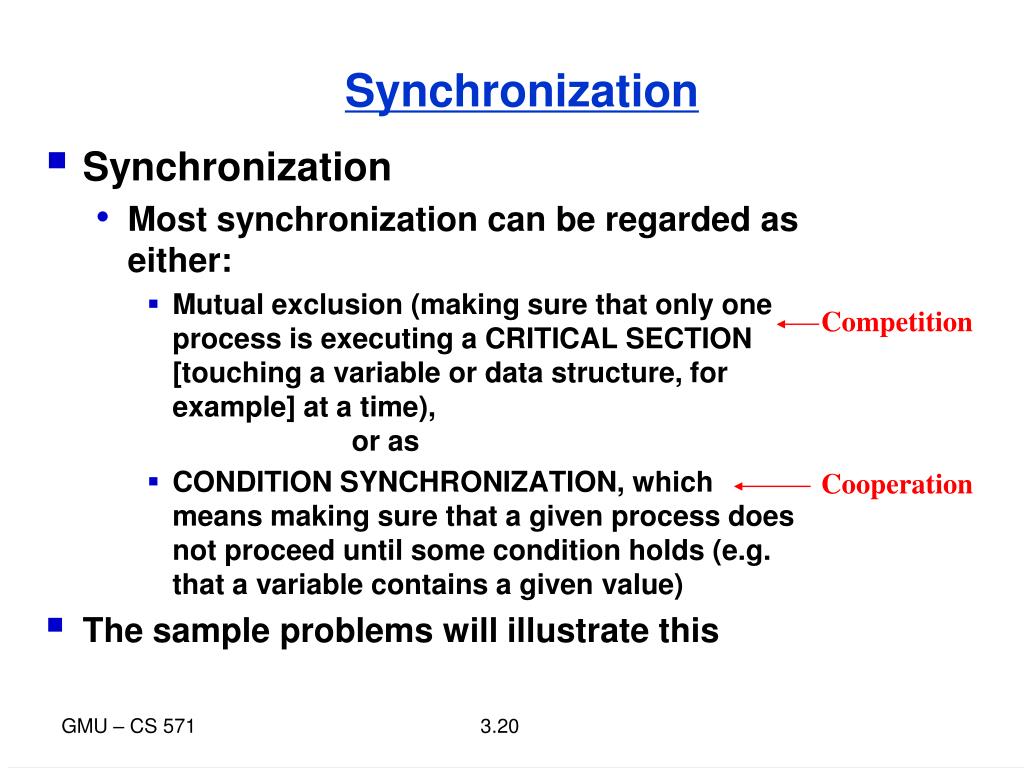

  20. Synchronization • Synchronization • Most synchronization can be regarded as either: • Mutual exclusion (making sure that only one process is executing a CRITICAL SECTION [touching a variable or data structure, for example] at a time), or as • CONDITION SYNCHRONIZATION, which means making sure that a given process does not proceed until some condition holds (e.g. that a variable contains a given value) • The sample problems will illustrate this Competition Cooperation GMU – CS 571

  21. Semaphores • Language level synchronization construct introduced by E.W. Dijkstra (1965) • Motivation: Avoid busy waiting by blocking a process execution until some condition is satisfied. • Each semaphore has an integer value and a queue. • Two operations are defined on a semaphore variable s: wait(s) (also called P(s) or down(s)) signal(s) (also called V(s) or up(s)) • We will assume that these are the only user-visible operations on a semaphore. • Semaphores are typically available in thread implementations. GMU – CS 571

  22. Semaphore Operations • Conceptually a semaphore has an integer value greater than or equal to 0. • wait(s):: wait/block until s.value > 0; s.value-- ; /* Executed atomically! */ • A process executing the wait operation on a semaphore with value 0 is blocked (put on a queue) until the semaphore’s value becomes greater than 0. • No busy waiting • signal(s):: s.value++; /* Executed atomically! */ GMU – CS 571

  23. Semaphore Operations (cont.) • If multiple processes are blocked on the same semaphore s, only one of them will be awakened when another process performs signal(s) operation. Who will have priority? • Binary semaphores only have value 0 or 1. • Counting semaphores can have any non-negative value. [We will see some of these later] GMU – CS 571

  24. Critical Section Problem with Semaphores • Shared data: semaphore mutex; /* initially mutex = 1 */ • Process Pi: do { wait(mutex);critical section signal(mutex);remainder section} while (1); GMU – CS 571

  25. Re-visiting the “Simultaneous Balance Update” Problem • Shared data:int Balance; semaphore mutex; // initially mutex = 1 • Process A: ……. wait (mutex); Balance = Balance – 100; signal (mutex); …… • Process B: ……. wait (mutex); Balance = Balance + 200; signal (mutex); …… GMU – CS 571

  26. Semaphore as a General Synchronization Tool • Suppose we need to execute B in Pj only after A executed in Pi • Use semaphore flag initialized to 0 • Code: Pi : Pj :   Await(flag) signal(flag) B GMU – CS 571

  27. Returning to Producer/Consumer Producer Consumer bounded size buffer (N) • Producer and Consumer execute concurrently but only one should be accessing the buffer at a time. • Producer puts items to the buffer area but should not be allowed to put items into a full buffer • Consumer process consumes items from the buffer but cannot remove information from an empty buffer GMU – CS 571

  28. Producer-Consumer Problem (Cont.) • Make sure that: • The producer and the consumer do not access the buffer area and related variables at the same time. • No item is made available to the consumer if all the buffer slots are empty. • No slot in the buffer is made available to the producer if all the buffer slots are full. competition cooperation GMU – CS 571

  29. Producer-Consumer Problem • Shared datasemaphore full, empty, mutex;Initially:full = 0 /* The number of full buffers */ empty = n /* The number of empty buffers */ mutex = 1 /* Semaphore controlling the access to the buffer pool */ binary counting GMU – CS 571

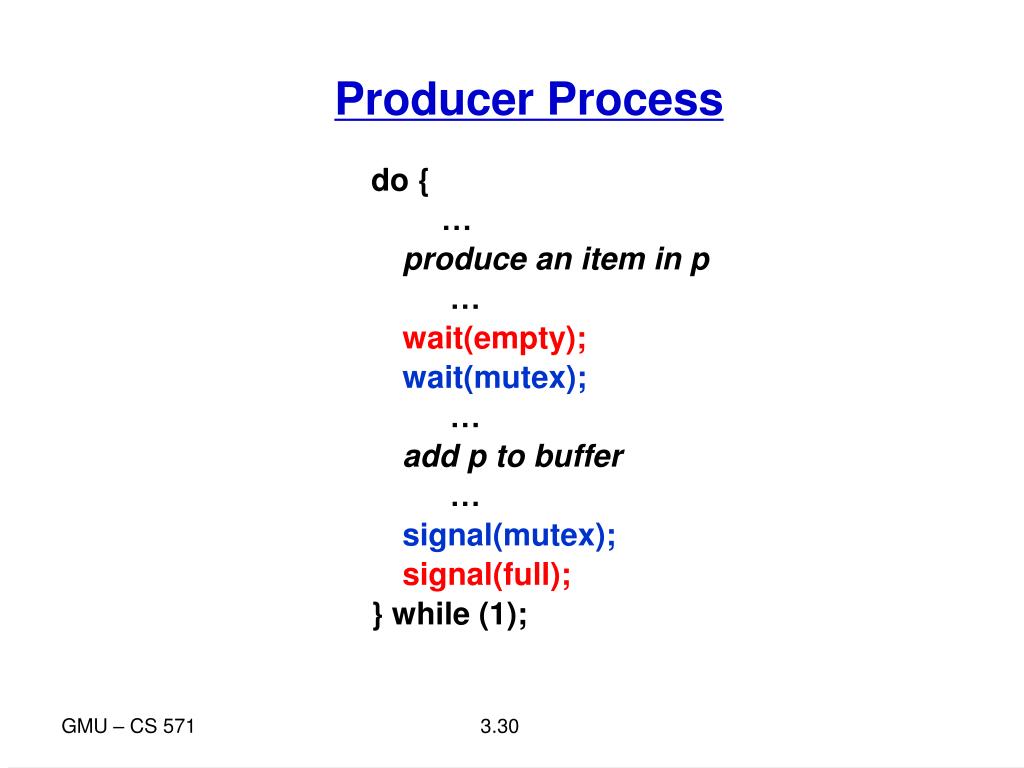

  30. Producer Process do { … produce an item in p … wait(empty); wait(mutex); … add p to buffer … signal(mutex); signal(full); } while (1); GMU – CS 571

  31. Consumer Process do { wait(full); wait(mutex); … remove an item from buffer to c … signal(mutex); signal(empty); … consume the item in c … } while (1); GMU – CS 571

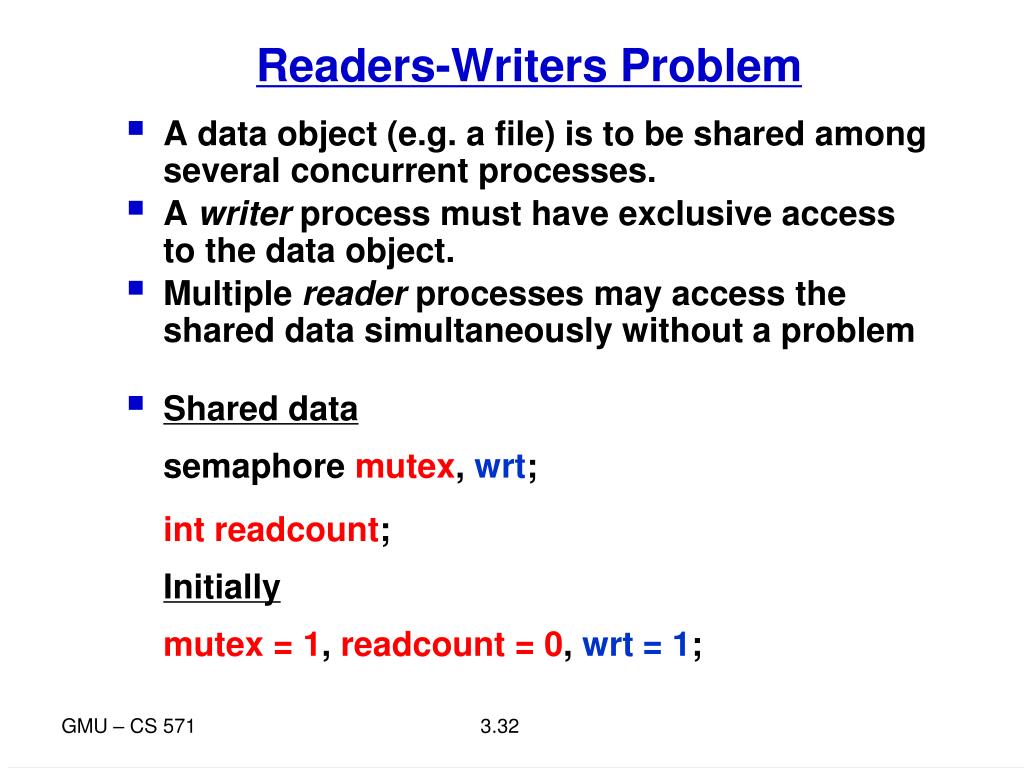

  32. Readers-Writers Problem • A data object (e.g. a file) is to be shared among several concurrent processes. • A writer process must have exclusive access to the data object. • Multiple reader processes may access the shared data simultaneously without a problem • Shared datasemaphore mutex, wrt; int readcount; Initiallymutex = 1, readcount = 0, wrt = 1; GMU – CS 571

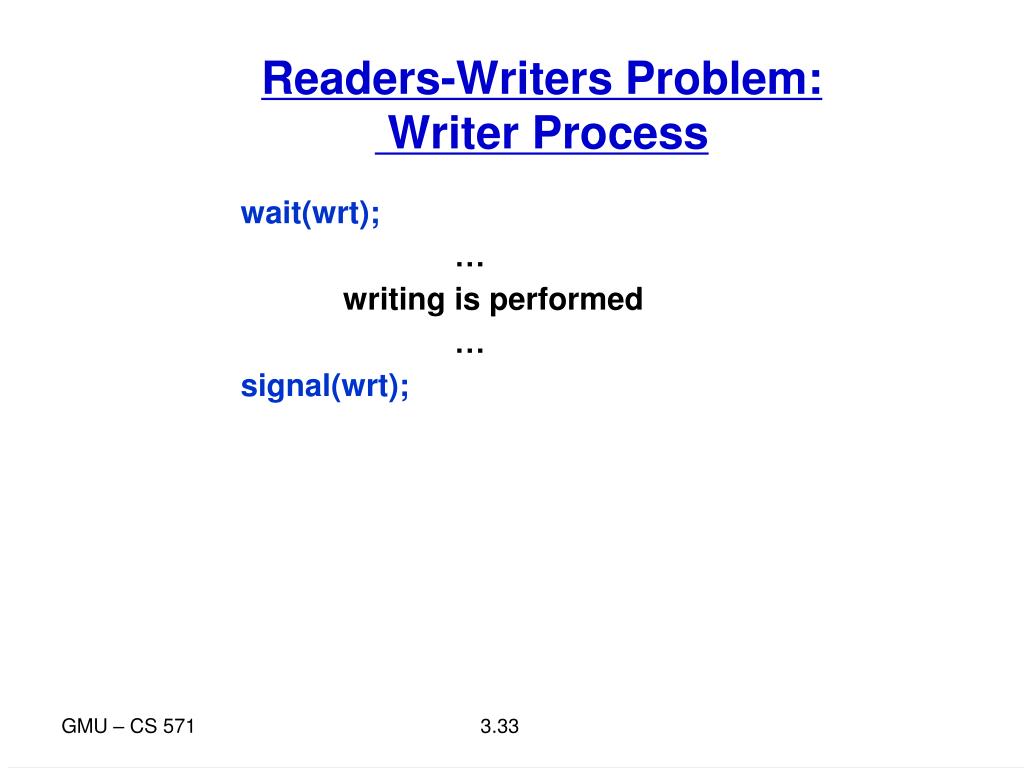

  33. Readers-Writers Problem: Writer Process wait(wrt); … writing is performed … signal(wrt); GMU – CS 571

  34. Readers-Writers Problem: Reader Process wait(mutex); readcount++; if (readcount == 1) wait(wrt); signal(mutex); … reading is performed … wait(mutex); readcount--; if (readcount == 0) signal(wrt); signal(mutex); Is this solution o.k.? GMU – CS 571

  35. Dining-Philosophers Problem • Shared data semaphore chopstick[5]; Initially all semaphore values are 1 Five philosophers share a common circular table. There are five chopsticks and a bowl of rice (in the middle). When a philosopher gets hungry, he tries to pick up the closest chopsticks. A philosopher may pick up only one chopstick at a time, and cannot pick up a chopstick already in use. When done, he puts down both of his chopsticks, one after the other. GMU – CS 571

  36. Dining-Philosophers Problem • Philosopher i: do { wait(chopstick[i]); wait(chopstick[(i+1) % 5]); … eat … signal(chopstick[i]); signal(chopstick[(i+1) % 5]); … think … } while (1); Is this solution o.k.? GMU – CS 571

  37. Semaphores • It is generally assumed that semaphores are fair, in the sense that processes complete semaphore operations in the same order they start them • Problems with semaphores • They're pretty low-level. • When using them for mutual exclusion, for example (the most common usage), it's easy to forget a wait or a release, especially when they don't occur in strictly matched pairs. • Their use is scattered. • If you want to change how processes synchronize access to a data structure, you have to find all the places in the code where they touch that structure, which is difficult and error-prone. • Order Matters • What could happen if we switch the two ‘wait’ instructions in the consumer (or producer)? GMU – CS 571

  38. Deadlock and Starvation • Deadlock – two or more processes are waiting indefinitely for an event that can be caused by only one of the waiting processes. • Let S and Q be two semaphores initialized to 1 P0 P1 wait(S); wait(Q); wait(Q); wait(S); M M signal(S); signal(Q); signal(Q) signal(S); • Starvation – indefinite blocking. A process may never be removed from the semaphore queue in which it is suspended. GMU – CS 571

  39. High Level Synchronization Mechanisms • Several high-level mechanisms that are easier to use have been proposed. • Monitors • Critical Regions • Read/Write locks • We will study monitors (Java and Pthreads provide synchronization mechanisms based on monitors) • They were suggested by Dijkstra, developed more thoroughly by Brinch Hansen, and formalized nicely by Tony Hoare in the early 1970s • Several parallel programming languages have incorporated some version of monitors as their fundamental synchronization mechanism GMU – CS 571

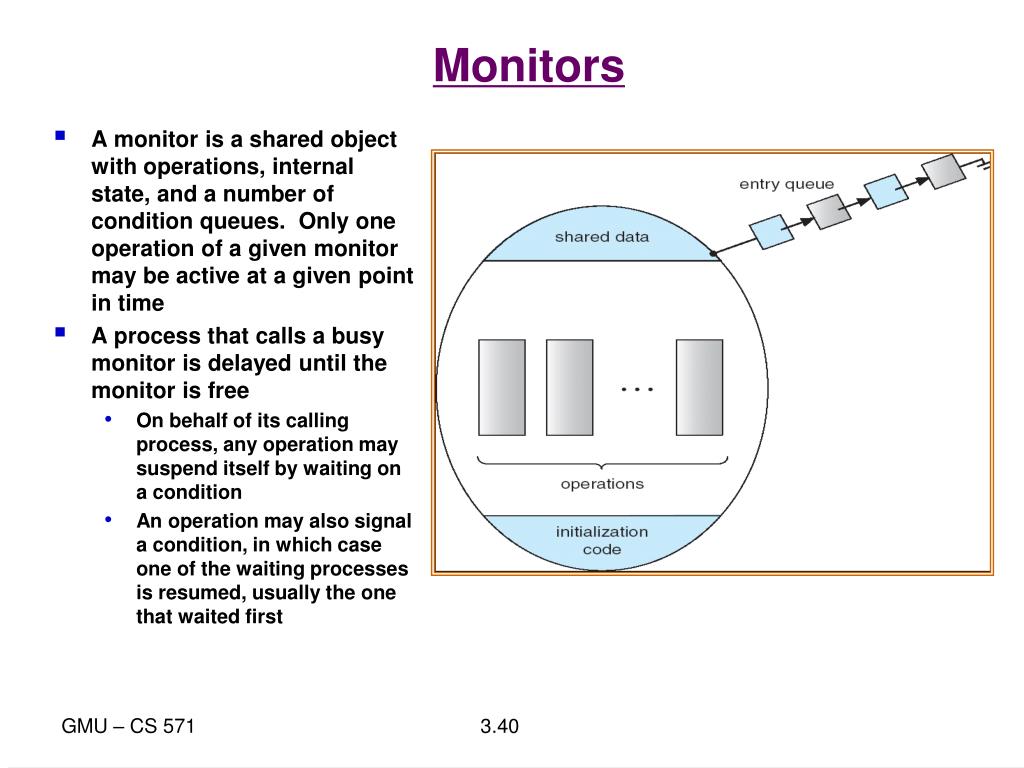

  40. A monitor is a shared object with operations, internal state, and a number of condition queues. Only one operation of a given monitor may be active at a given point in time A process that calls a busy monitor is delayed until the monitor is free On behalf of its calling process, any operation may suspend itself by waiting on a condition An operation may also signal a condition, in which case one of the waiting processes is resumed, usually the one that waited first Monitors GMU – CS 571

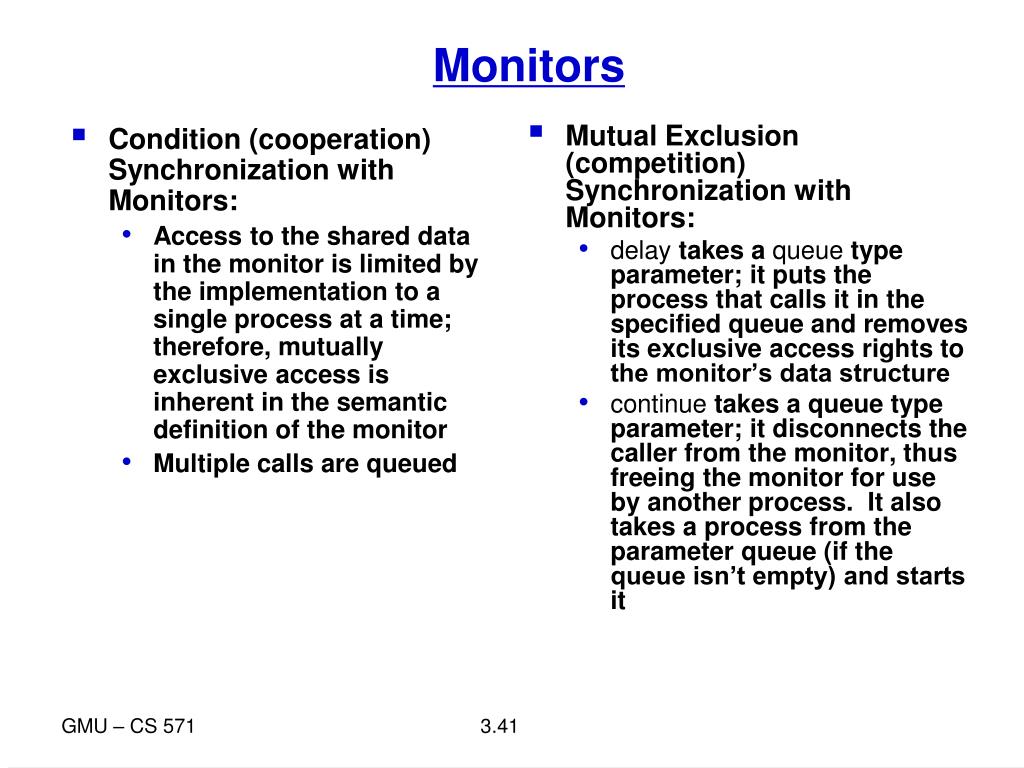

  41. Condition (cooperation) Synchronization with Monitors: Access to the shared data in the monitor is limited by the implementation to a single process at a time; therefore, mutually exclusive access is inherent in the semantic definition of the monitor Multiple calls are queued Mutual Exclusion (competition) Synchronization with Monitors: delay takes a queue type parameter; it puts the process that calls it in the specified queue and removes its exclusive access rights to the monitor’s data structure continue takes a queue type parameter; it disconnects the caller from the monitor, thus freeing the monitor for use by another process. It also takes a process from the parameter queue (if the queue isn’t empty) and starts it Monitors GMU – CS 571

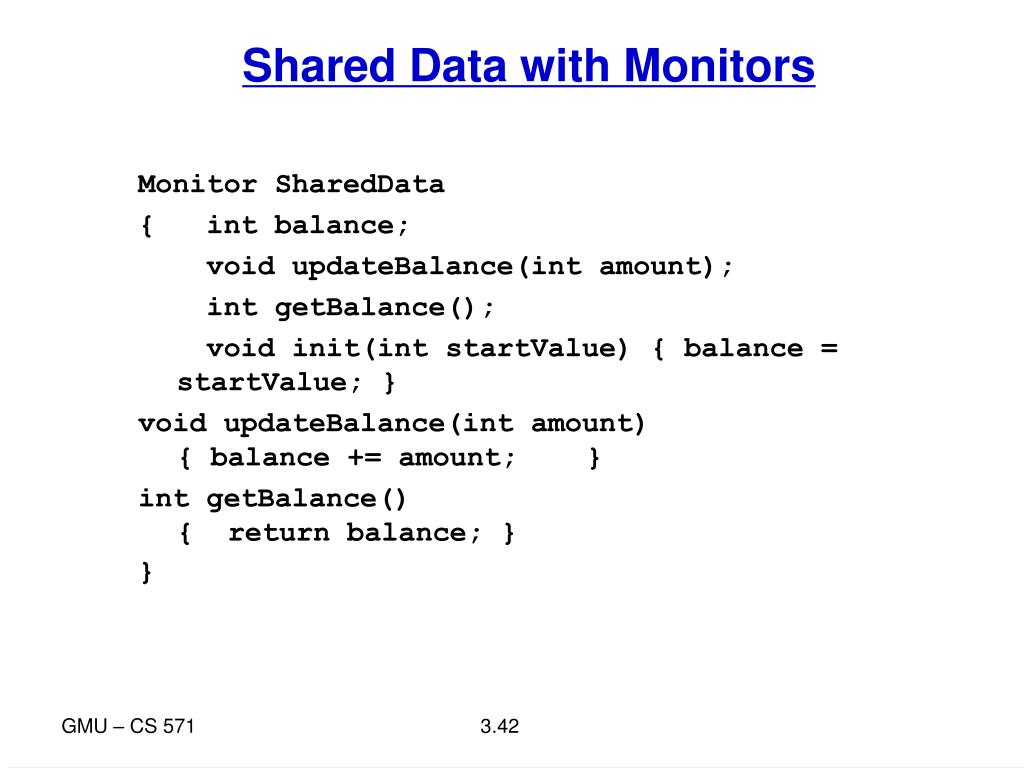

  42. Shared Data with Monitors Monitor SharedData { int balance; void updateBalance(int amount); int getBalance(); void init(int startValue) { balance = startValue; } void updateBalance(int amount){ balance += amount; } int getBalance(){ return balance; } } GMU – CS 571

  43. Monitors • To allow a process to wait within the monitor, a condition variable must be declared, as condition x, y; • Condition variable can only be used with the operations wait and signal. • The operation x.wait();means that the process invoking this operation is suspended until another process invokes x.signal(); • The x.signal operation resumes exactly one suspended process on condition variable x. If no process is suspended on condition variable x, then thesignal operation has no effect. • Wait and signal operations of the monitors are not the same as semaphore wait and signal operations! GMU – CS 571

  44. Monitor with Condition Variables • When a process P “signals” to wake up the process Q that was waiting on a condition, potentially both of them can be active. • However, monitor rules require that at most one process can be active within the monitor. Who will go first? • Signal-and-wait:P waits until Q leaves the monitor (or, until Q waits for another condition). • Signal-and-continue:Q waits until P leaves the monitor (or, until P waits for another condition). • Signal-and-leave: P has to leave the monitor after signaling (Concurrent Pascal) • The design decision is different for different programming languages GMU – CS 571

  45. Monitor with Condition Variables GMU – CS 571

  46. Producer-Consumer Problem with Monitors Monitor Producer-consumer { condition full, empty; int count; void insert(int item); //the following slide int remove(); //the following slide void init() { count = 0; } } GMU – CS 571

  47. Producer-Consumer Problem with Monitors (Cont.) void insert(int item){if (count == N) full.wait(); insert_item(item); // Add the new item count ++;if (count == 1) empty.signal(); } int remove(){ int m;if (count == 0) empty.wait();m = remove_item(); // Retrieve one itemcount --;if (count == N–1) full.signal(); return m; } GMU – CS 571

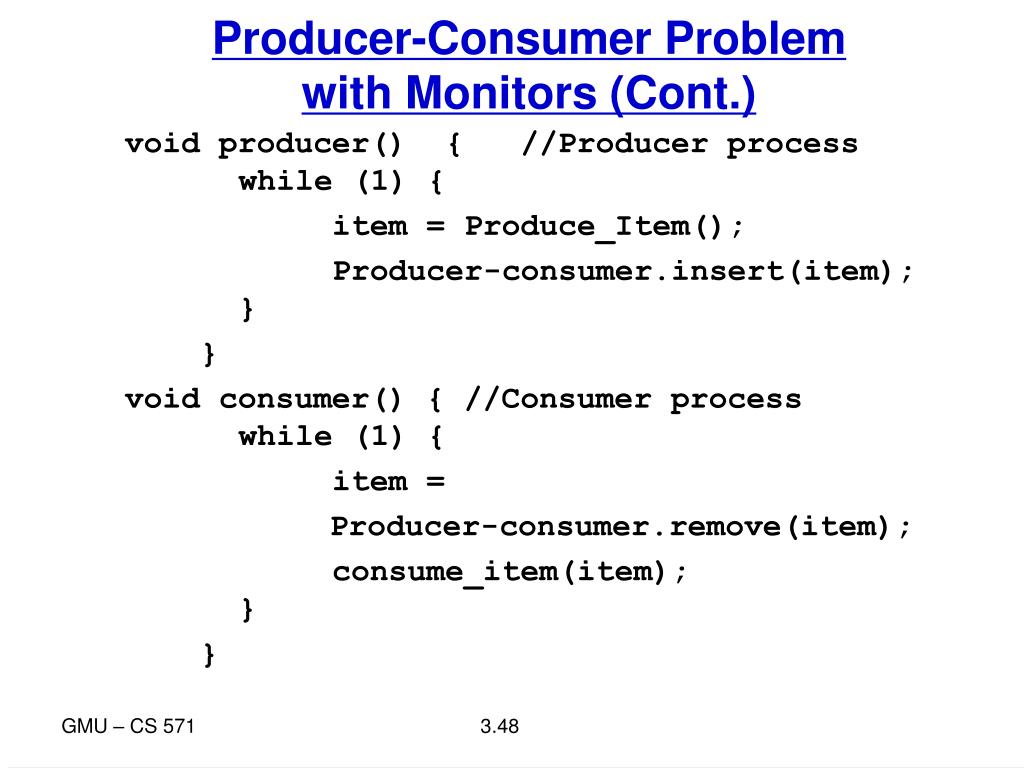

  48. Producer-Consumer Problem with Monitors (Cont.) void producer() { //Producer process while (1) { item = Produce_Item(); Producer-consumer.insert(item); } } void consumer() { //Consumer process while (1) { item = Producer-consumer.remove(item); consume_item(item); } } GMU – CS 571

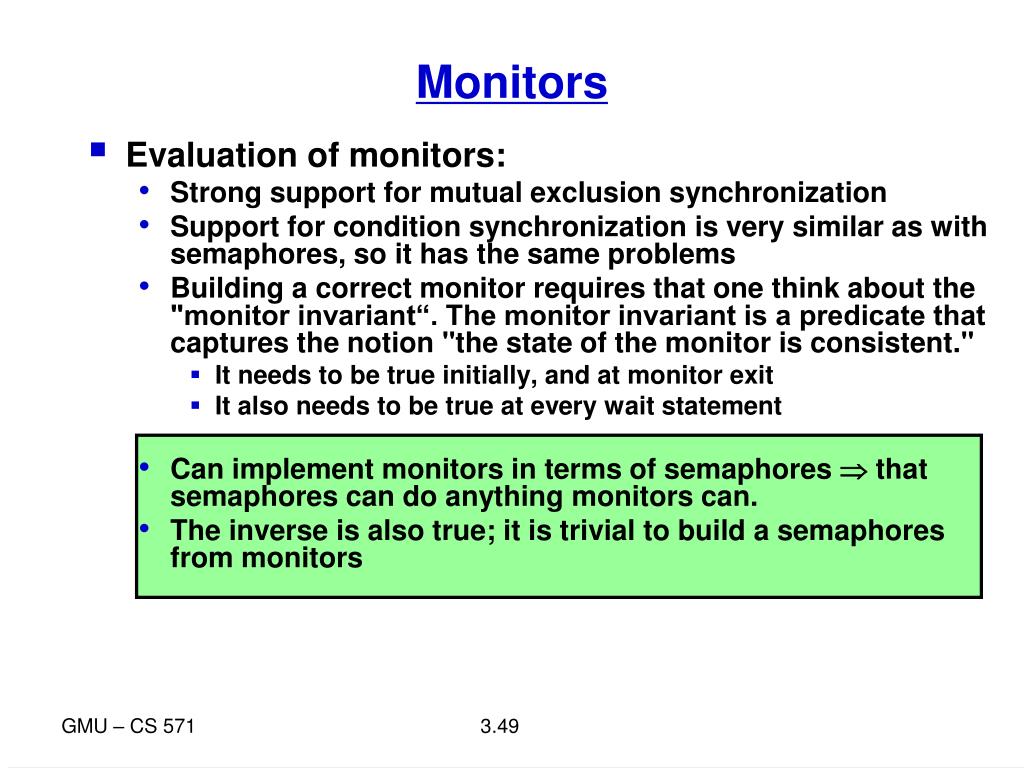

  49. Monitors • Evaluation of monitors: • Strong support for mutual exclusion synchronization • Support for condition synchronization is very similar as with semaphores, so it has the same problems • Building a correct monitor requires that one think about the "monitor invariant“. The monitor invariant is a predicate that captures the notion "the state of the monitor is consistent." • It needs to be true initially, and at monitor exit • It also needs to be true at every wait statement • Can implement monitors in terms of semaphores  that semaphores can do anything monitors can. • The inverse is also true; it is trivial to build a semaphores from monitors GMU – CS 571

  50. Dining-Philosophers Problem with Monitors monitor dp { enum {thinking, hungry, eating} state[5]; condition self[5]; void pickup(int i) // following slides void putdown(int i) // following slides void test(int i) // following slides void init() { for (int i = 0; i < 5; i++) state[i] = thinking; } } Each philosopher will perform: dp. pickup (i); …eat.. dp. putdown(i); GMU – CS 571
