  1. Respirator types

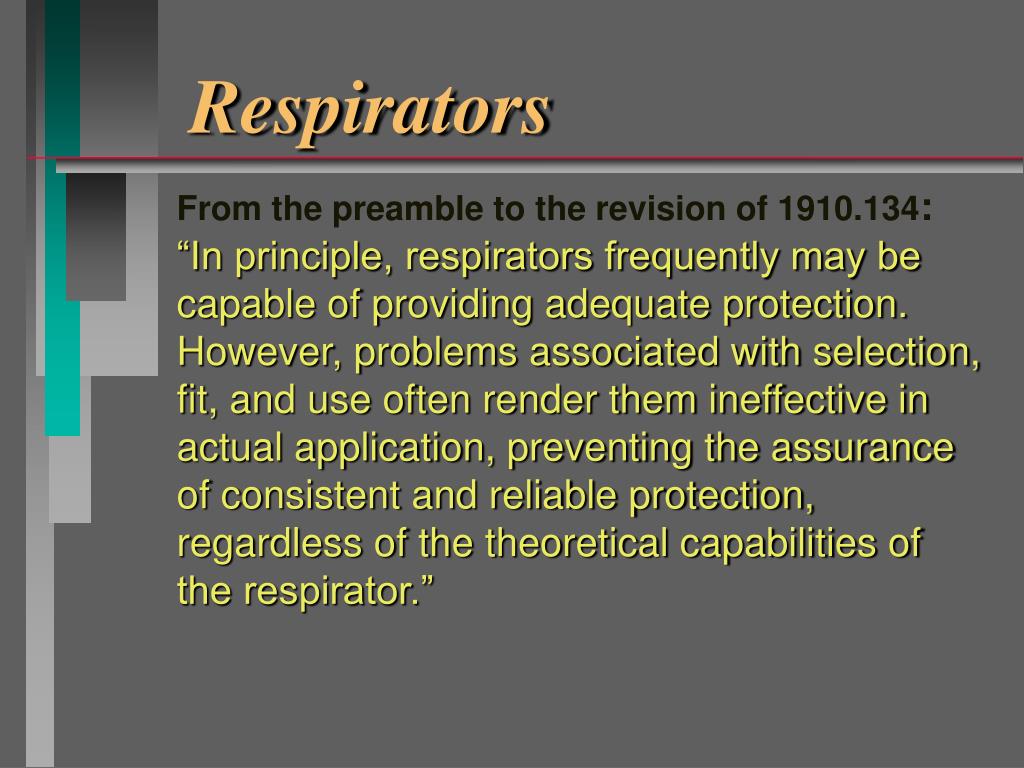

  2. Respirators From the preamble to the revision of 1910.134: “In principle, respirators frequently may be capable of providing adequate protection. However, problems associated with selection, fit, and use often render them ineffective in actual application, preventing the assurance of consistent and reliable protection, regardless of the theoretical capabilities of the respirator.”

  3. A little respirator history. . . . • In Roman mines they used loose-fitting animal bladders to try to filter out lead • 1814: development of a particulate removing filter in a rigid container • 1854: discovery that activated charcoal could be used to capture some vapors • WWI: improvements in full face gas masks • 1930: the development of resin impregnated dust filters permitted cheaper, improved units • 1940s: SCBA developed from SCUBA concept

  4. Types of Respirators

  5. Types of Respirators Air-Purifying: cleans air* can’t add oxygen *maybe

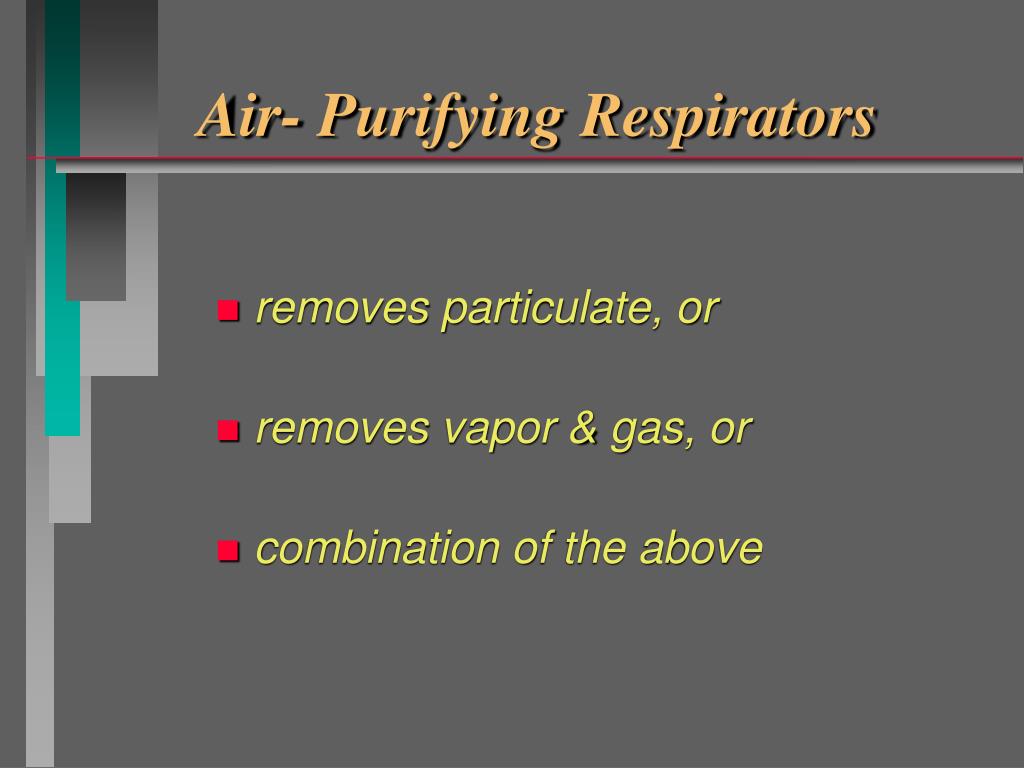

  6. Air- Purifying Respirators • removes particulate, or • removes vapor & gas, or • combination of the above

  7. Air- Purifying Respirators • particulates: filters • gases or vapors: chemical cartridges or chemical canisters

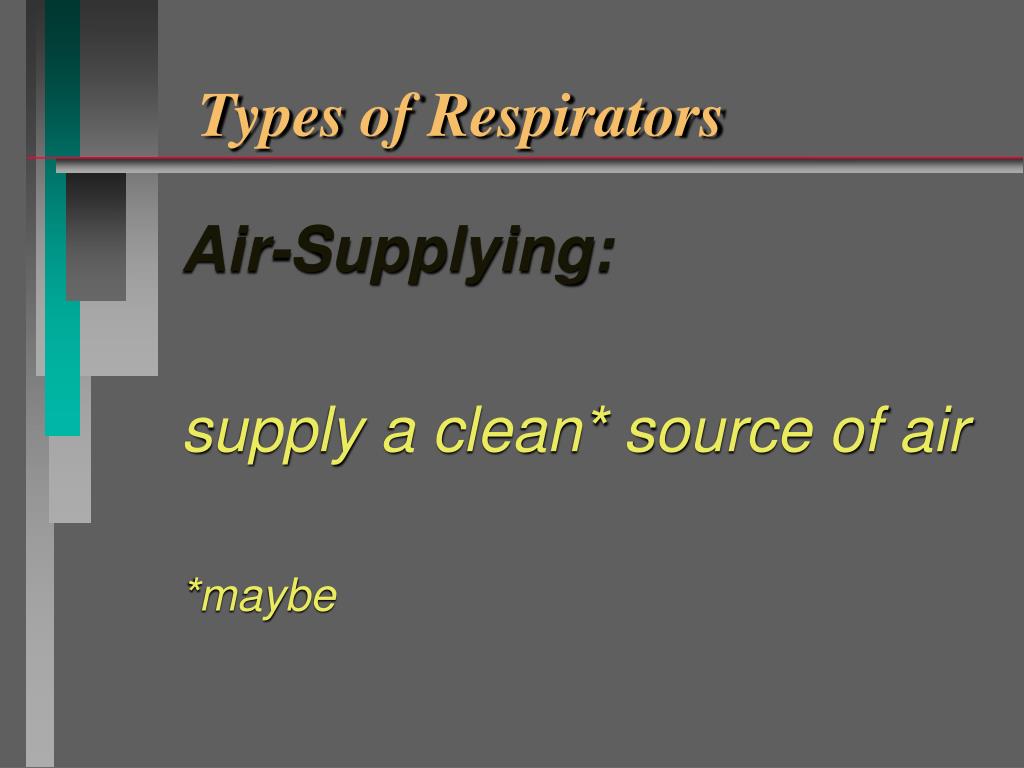

  8. Types of Respirators Air-Supplying: supply a clean* source of air *maybe

  9. Air- Purifying Respirators • Negative pressure • user draws in air through a filter or cartridge • creates a negative pressure • Powered air-purifying (PAPR) • battery powered pump draws in air through a filter • provides positive pressure to user

  10. Air-Supplying Respirators • Airline air is supplied to facepiece via air line from either a compressor, a large cylinder or cascade system • SCBA air is supplied via short air line from a user-worn cylinder (thus, “self- contained”) • Airline with escape bottle combo unit • SCBA escape only units

  11. Operation modes: See tab3-3 • Demand mode • Positive pressure mode • Pressure-demand mode

  12. Operation modes: • Demand mode: air enters facepiece only when wearer creates negative pressure • Positive pressure mode • Pressure-demand mode

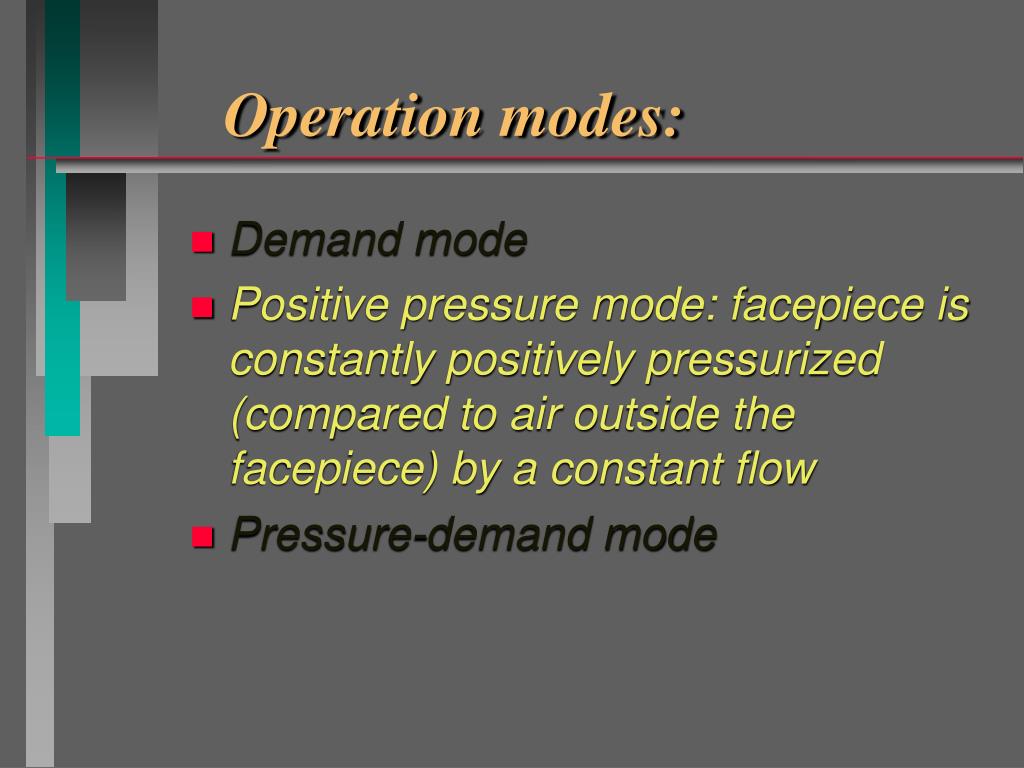

  13. Operation modes: • Demand mode • Positive pressure mode: facepiece is constantly positively pressurized (compared to air outside the facepiece) by a constant flow • Pressure-demand mode

  14. Operation modes: • Demand mode • Positive pressure mode • Pressure-demand mode: facepiece is always positively pressurized but flow changes according to demand from user

  15. Types of Facepieces • Tight-fitting: requires seal on face (thus no facial hair); air-purifying or air-supplying • Loose-fitting: no seal on face; airline only (but not airline with escape bottle)

  16. Tight-fitting facepieces • Full face: hairline to below chin (covers nose, mouth & eyes) • Half face: nose & mouth, & seals under chin • Quarter face: nose & mouth, but seals between mouth & chin

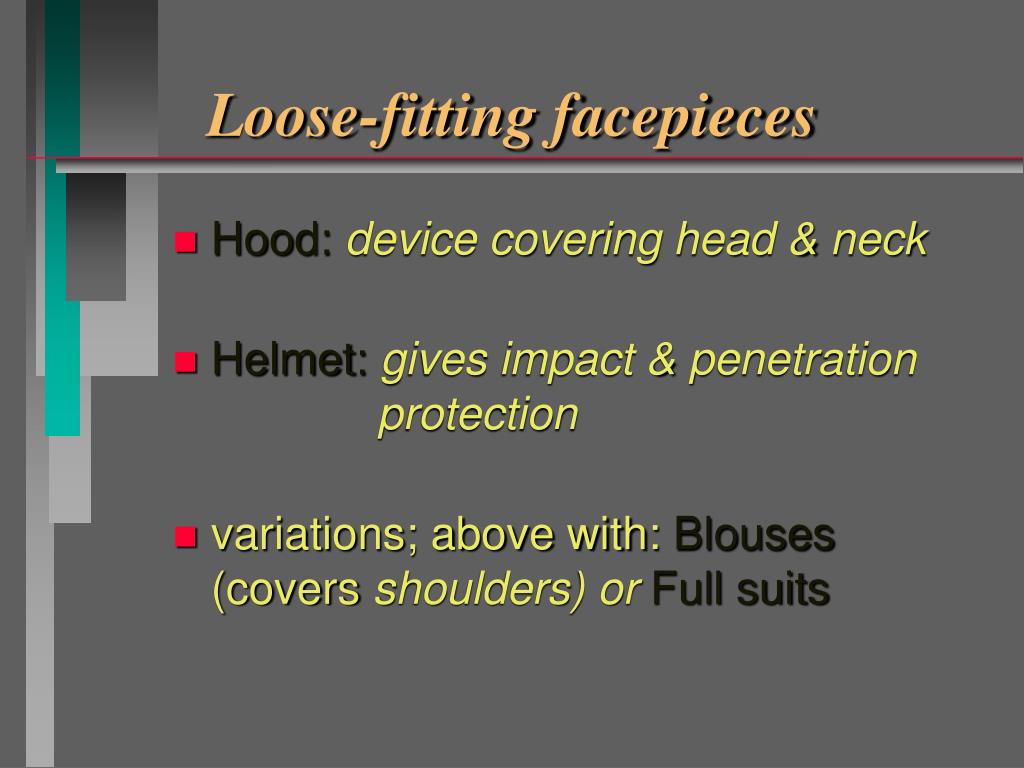

  17. Loose-fitting facepieces • Hood: device covering head & neck • Helmet: gives impact & penetration protection • variations; above with: Blouses (coversshoulders) or Full suits

  18. TC approval schedules: • TC-13F-XXXX SCBA • TC-14G-XXXX gas masks • TC-19C-XXXX air supply • TC-21C-XXXX DFM (term out-dated) • TC-23C-XXXX chemical cartridge • TC-84A-XXXX non-powered APR (under 84)
