Presentation Transcript

  1. CS510 forward regional southern ocean optimization w/ Green's function Looking at Theo's series of runs (skylla:/data14/scratch/touvet/README.txt) Continuing spin-up/sensitivity exps after Theo's leave

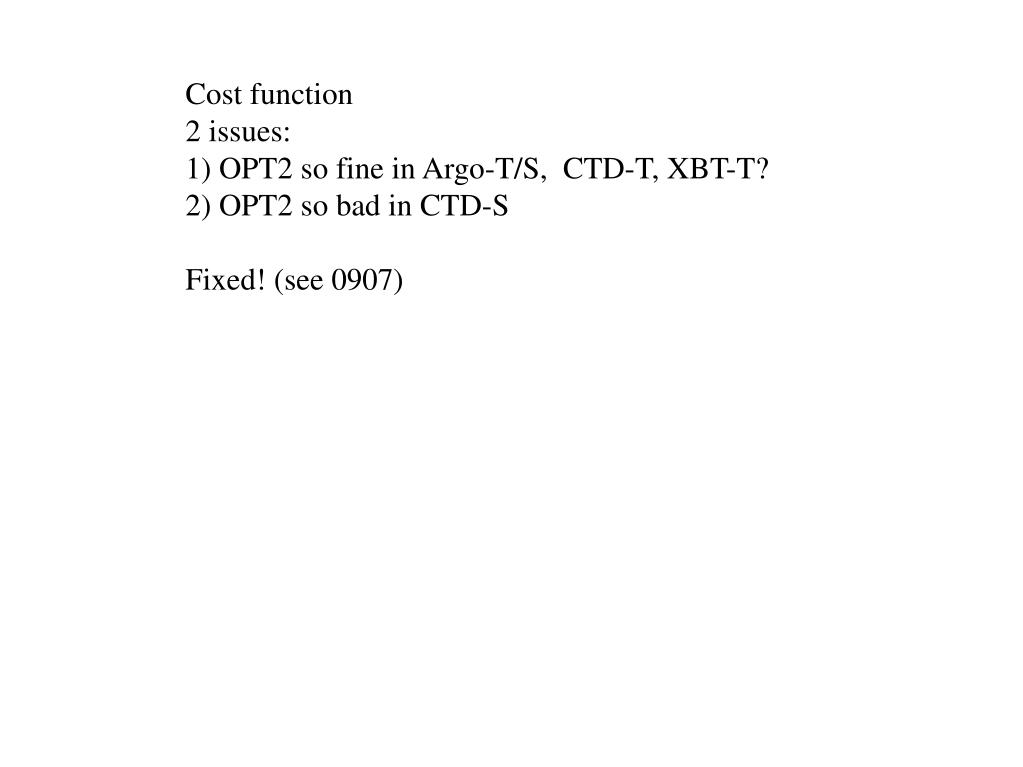

  2. Cost function 2 issues: 1) OPT2 so fine in Argo-T/S, CTD-T, XBT-T? 2) OPT2 so bad in CTD-S Fixed! (see 0907)

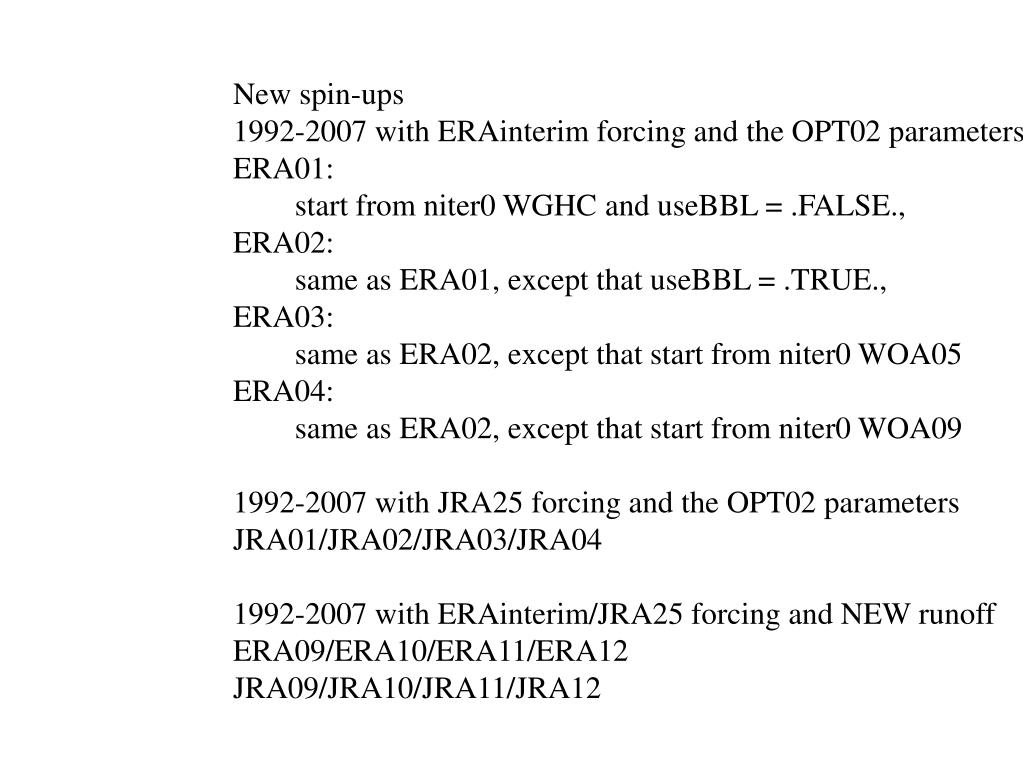

  3. New spin-ups 1992-2007 with ERAinterim forcing and the OPT02 parameters ERA01: start from niter0 WGHC and useBBL = .FALSE., ERA02: same as ERA01, except that useBBL = .TRUE., ERA03: same as ERA02, except that start from niter0 WOA05 ERA04: same as ERA02, except that start from niter0 WOA09 1992-2007 with JRA25 forcing and the OPT02 parameters JRA01/JRA02/JRA03/JRA04 1992-2007 with ERAinterim/JRA25 forcing and NEW runoff ERA09/ERA10/ERA11/ERA12 JRA09/JRA10/JRA11/JRA12 Cost function 2 issues: 1) O2 so fine in Argo-T/S, CTD-T, XBT-T? 2) O2 so bad in CTD-S Fixed! (see 0907) New spin-ups ERA01: start from niter0 WGHC and useBBL = .FALSE., 1992-2007 with ERAinterim forcing and the following parameters (as in opt02) exf_albedo = 0.1489 exf_scal_BulkCdn = 1.0210 SEAICE_dryIceAlb = 0.8482 SEAICE_wetIceAlb = 0.7290 SEAICE_drySnowAlb = 0.7744 SEAICE_wetSnowAlb = 0.7762 SEAICE_strength / P* = 1.0188e4 SEAICE_waterDrag = 5.6146 SEAICE_drag = 0.00120618 H0 = 1.1957 SHELFICEheatTransCoeff = 1.0e-4 GM_background_K = 53.0758 diffKrT = 1e-5 diffKrS = 1e-5 ERA02: same as ERA01, except that useBBL = .TRUE., ERA03: same as ERA02, except that start from niter0 WOA05 ERA04: same as ERA02, except that start from niter0 WOA09

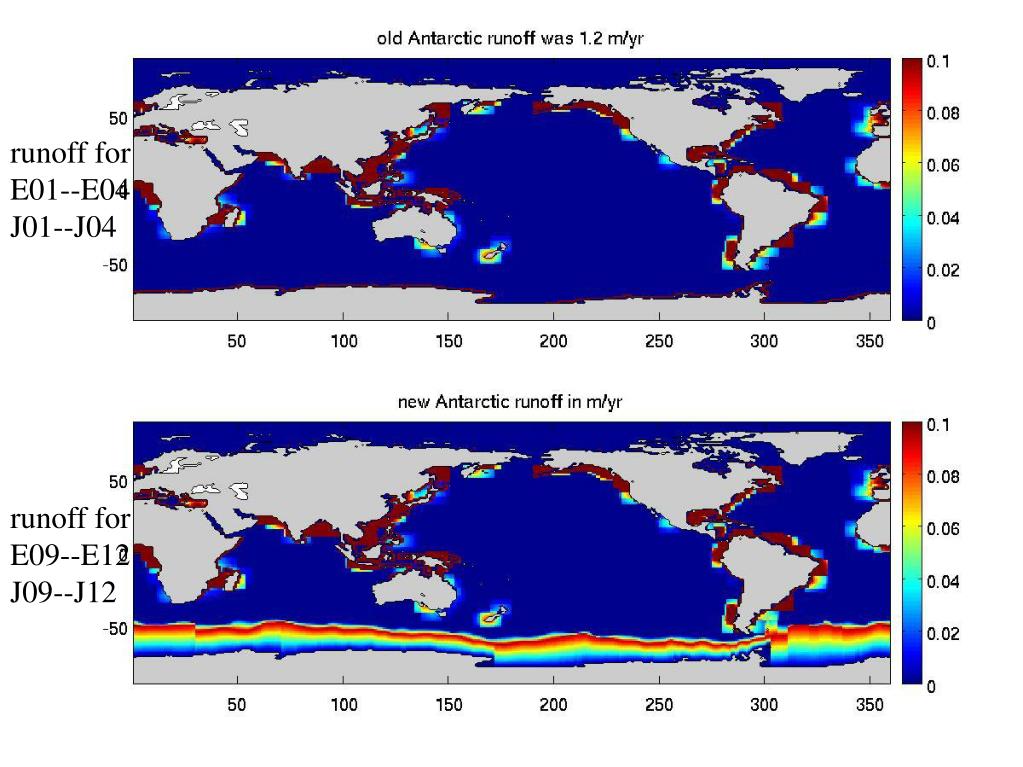

  4. runoff for E01--E04 J01--J04 runoff for E09--E12 J09--J12

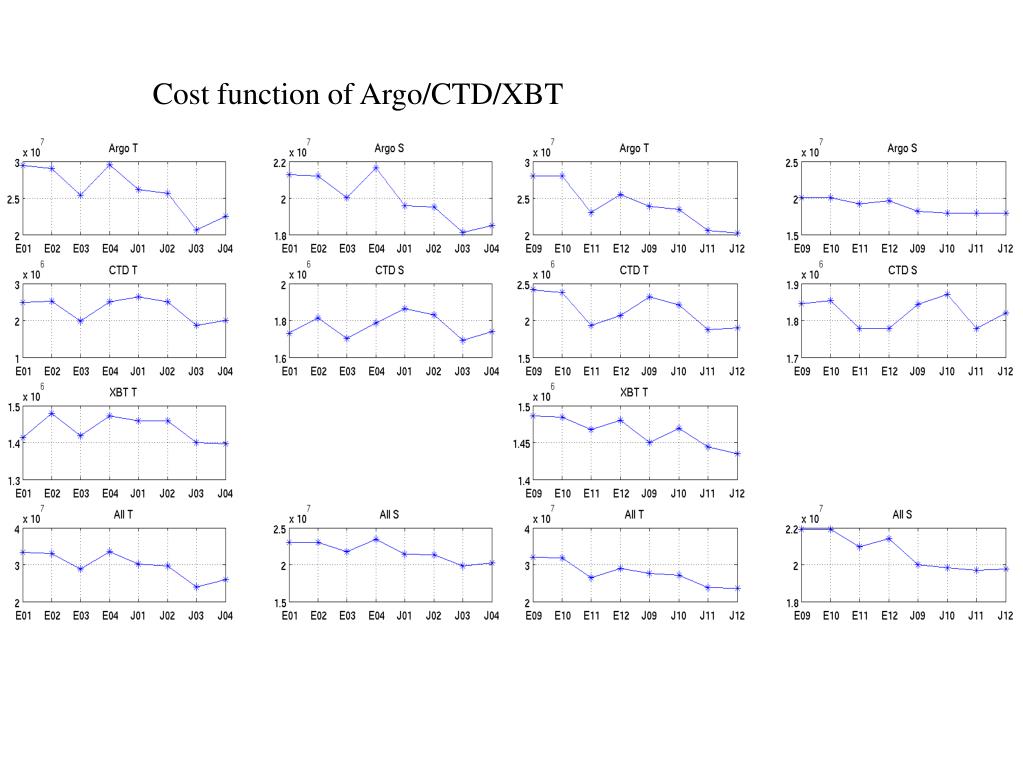

  5. Cost function of Argo/CTD/XBT

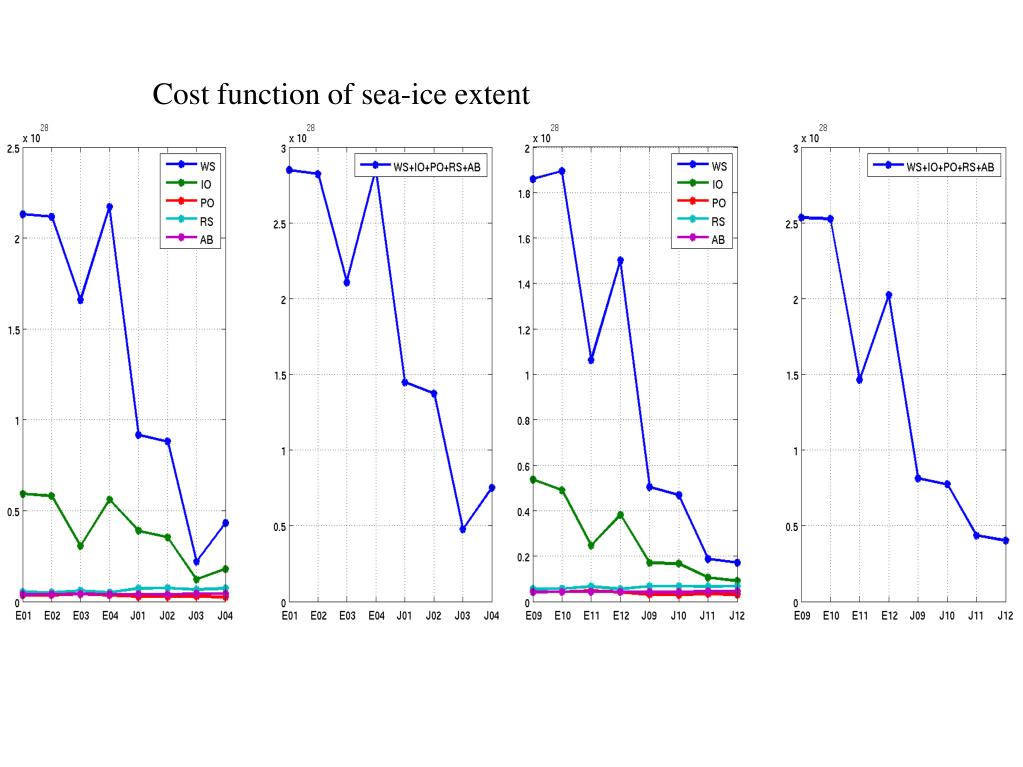

  6. Cost function of sea-ice extent

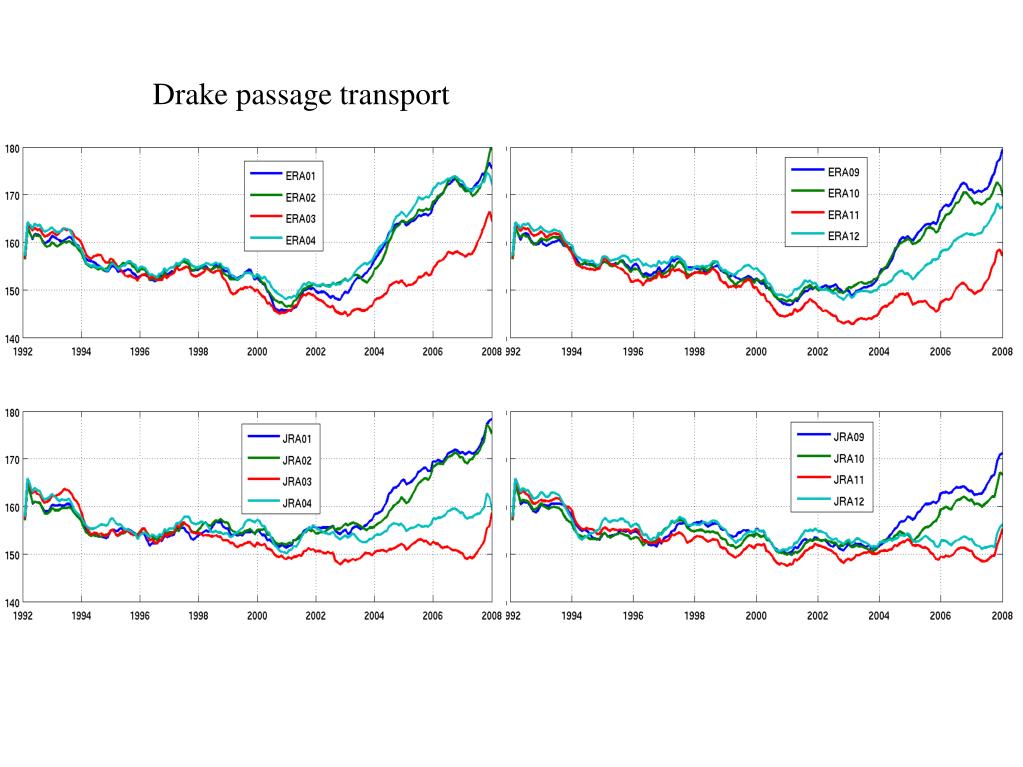

  7. Drake passage transport

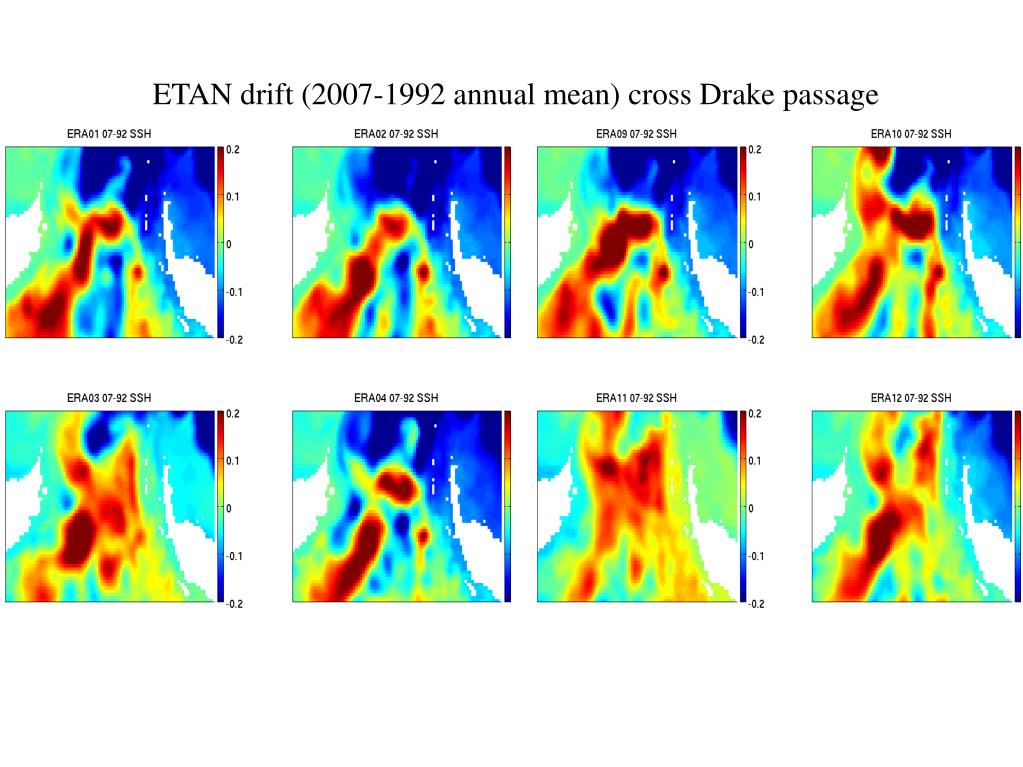

  8. ETAN drift (2007-1992 annual mean) cross Drake passage

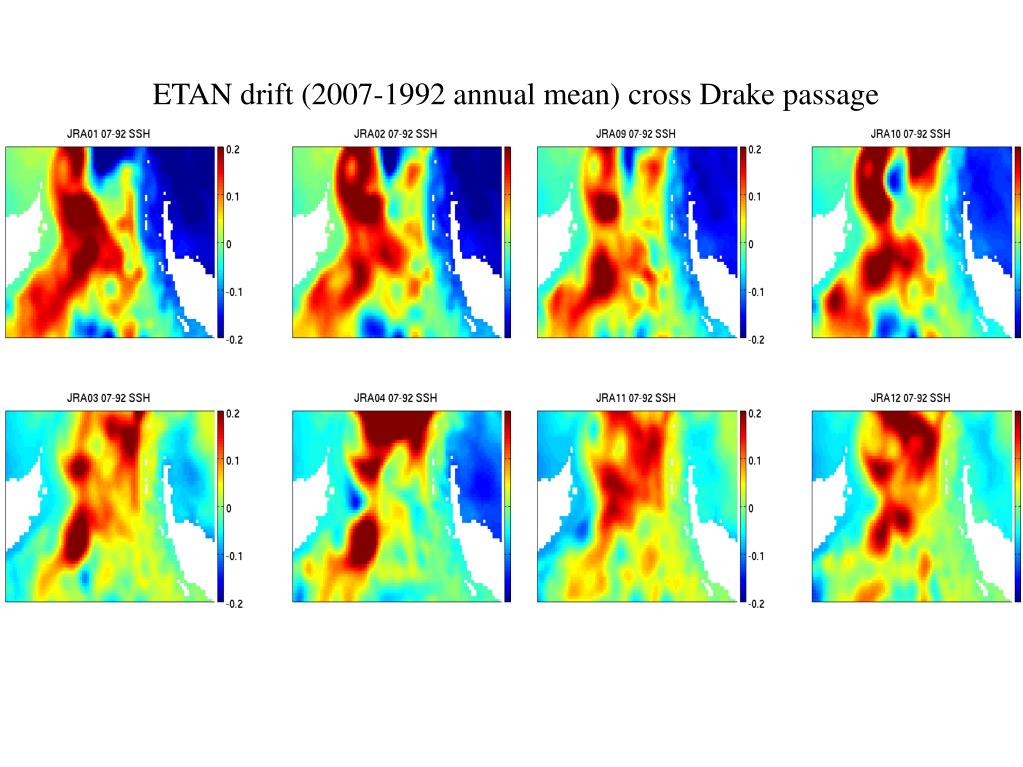

  9. ETAN drift (2007-1992 annual mean) cross Drake passage

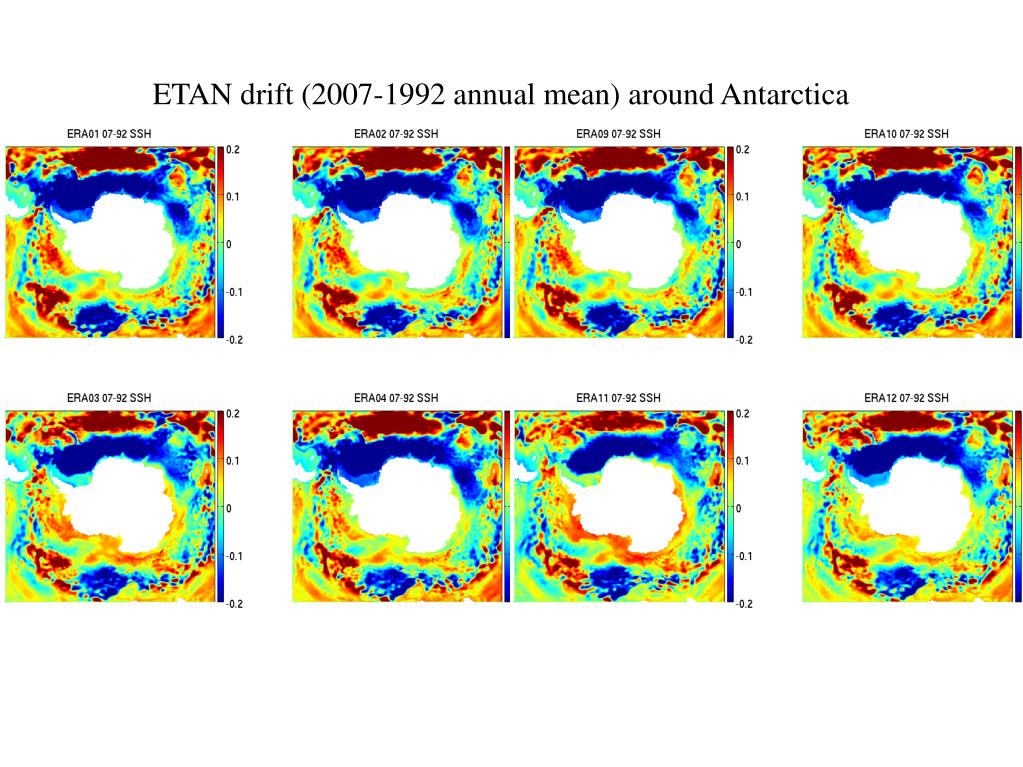

  10. ETAN drift (2007-1992 annual mean) around Antarctica

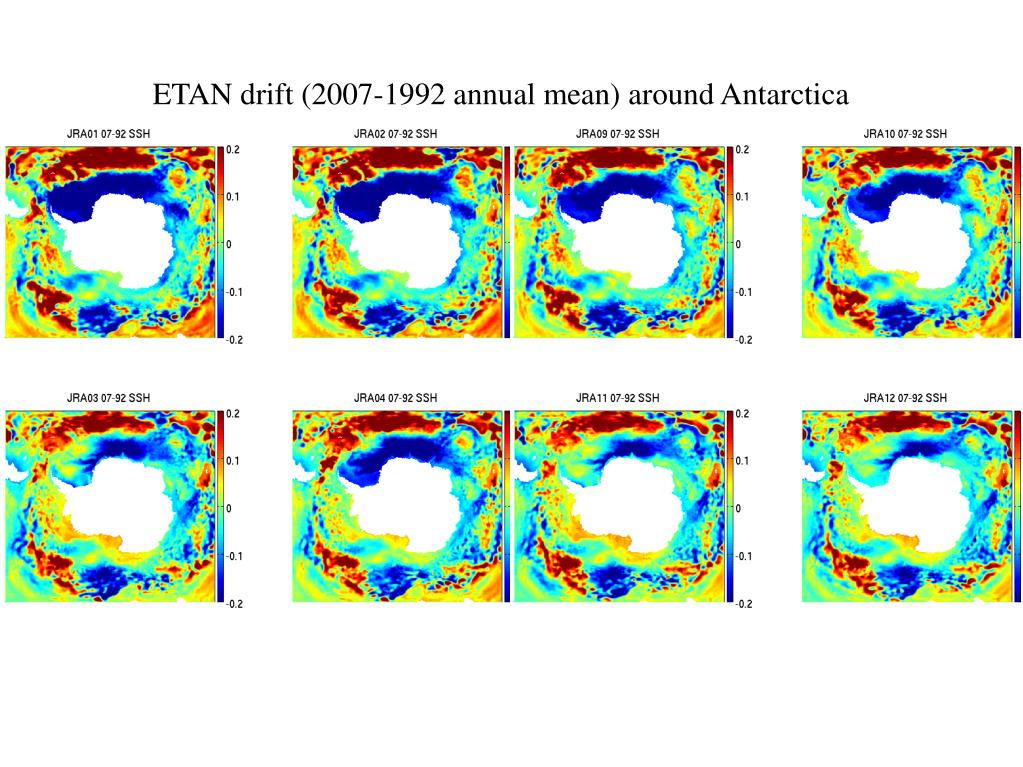

  11. ETAN drift (2007-1992 annual mean) around Antarctica

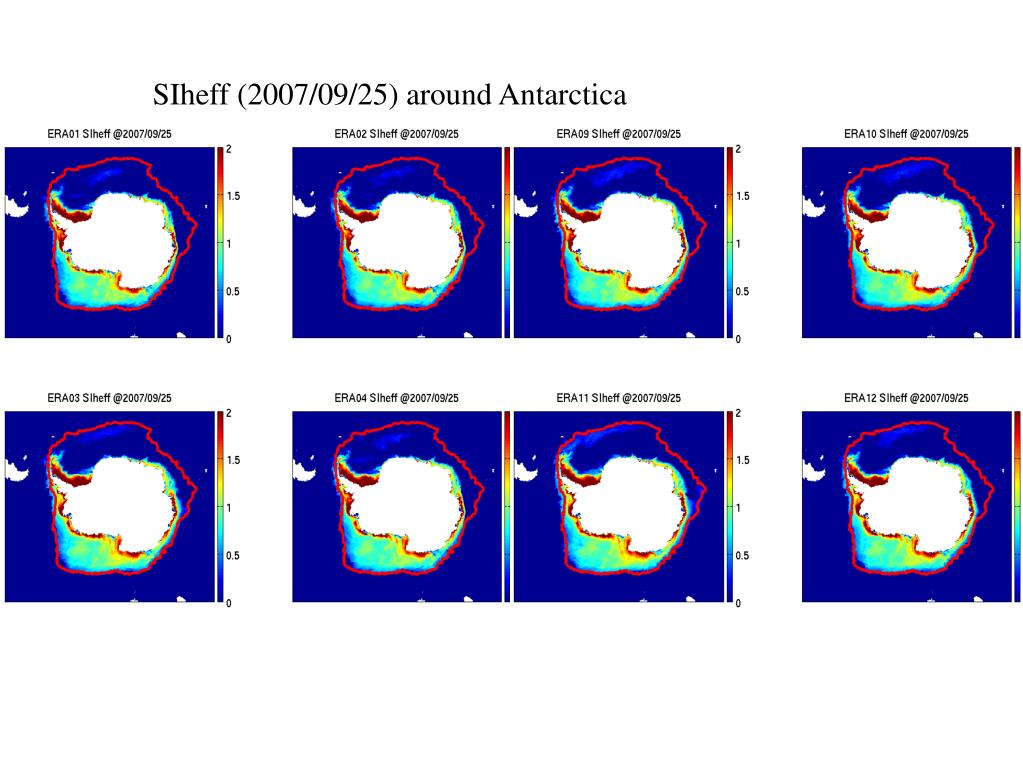

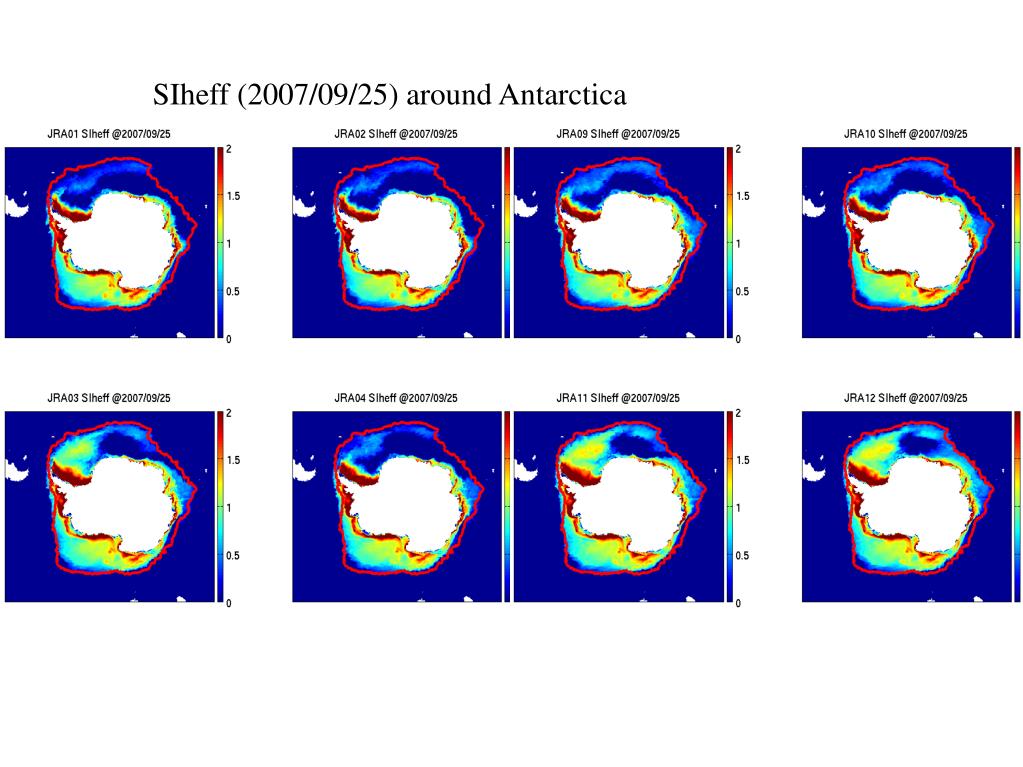

  12. SIheff (2007/09/25) around Antarctica

  13. SIheff (2007/09/25) around Antarctica
