  1. Measuring and analyzing the energy use of enterprise computing systems Xiuming Zhang

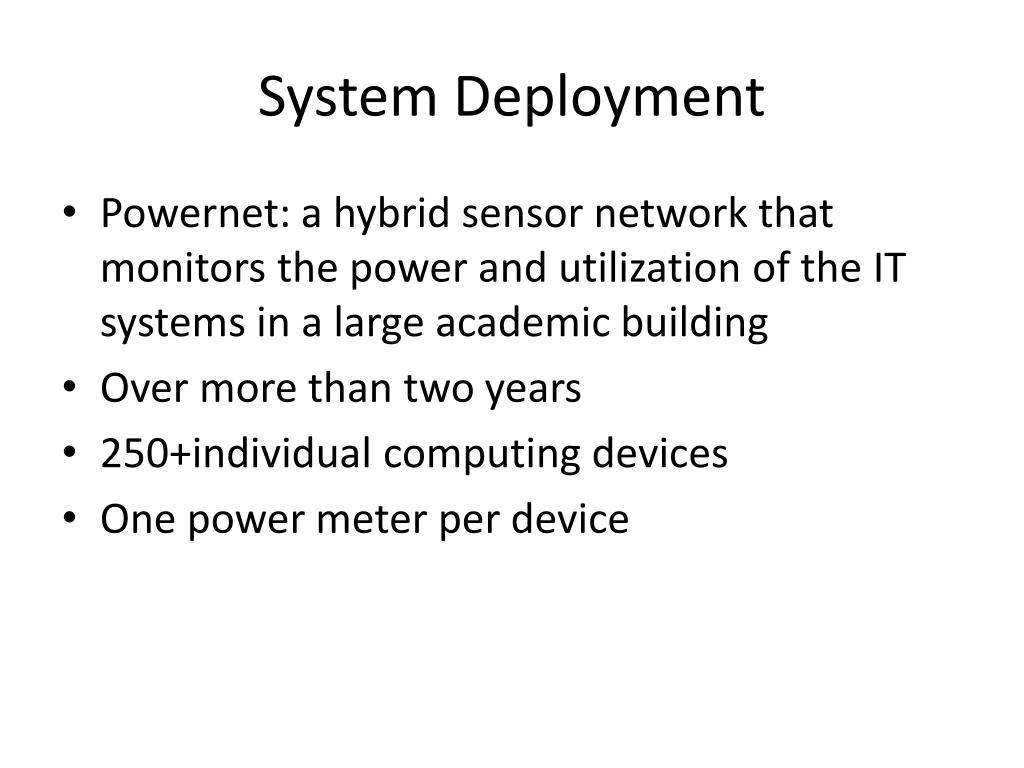

  2. SystemDeployment • Powernet:a hybrid sensor network that monitors the power and utilization of the IT systems in a large academic building • Over more than two years • 250+individual computing devices • Onepowermeterperdevice

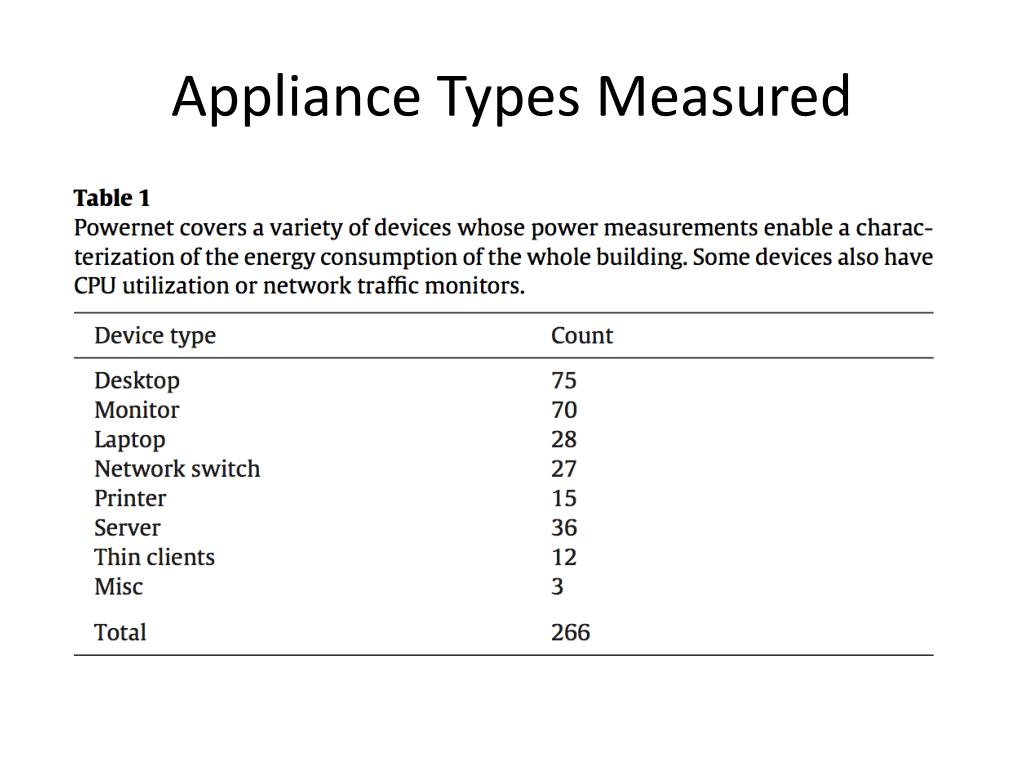

  3. Appliance TypesMeasured

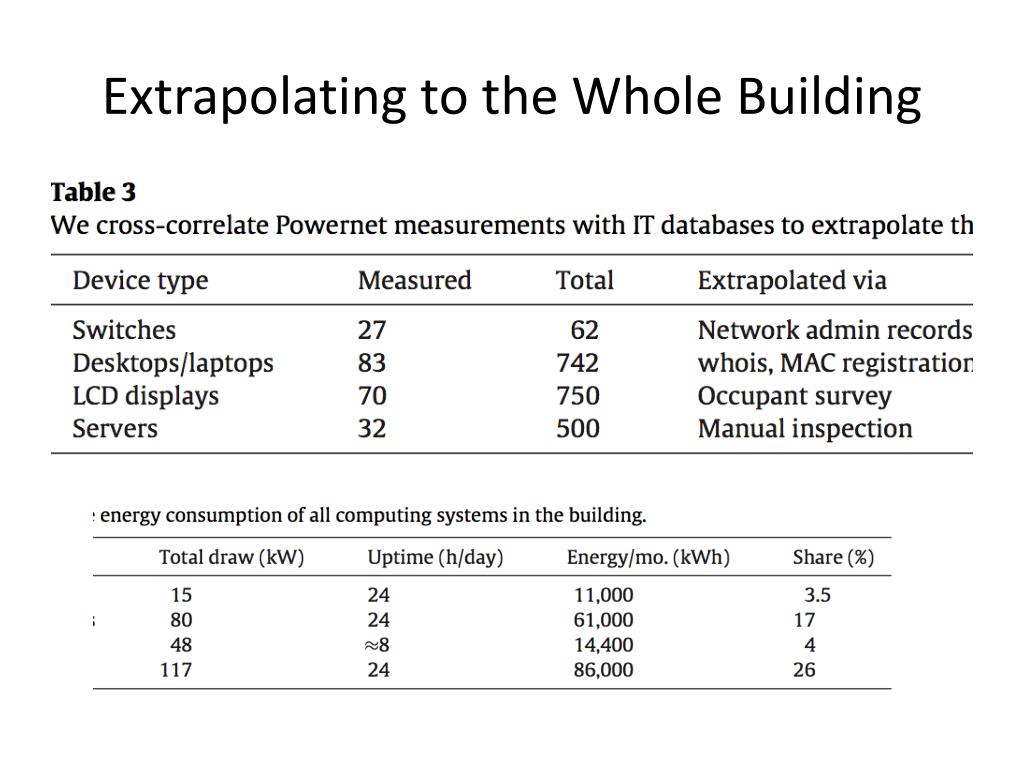

  4. ExtrapolatingtotheWholeBuilding

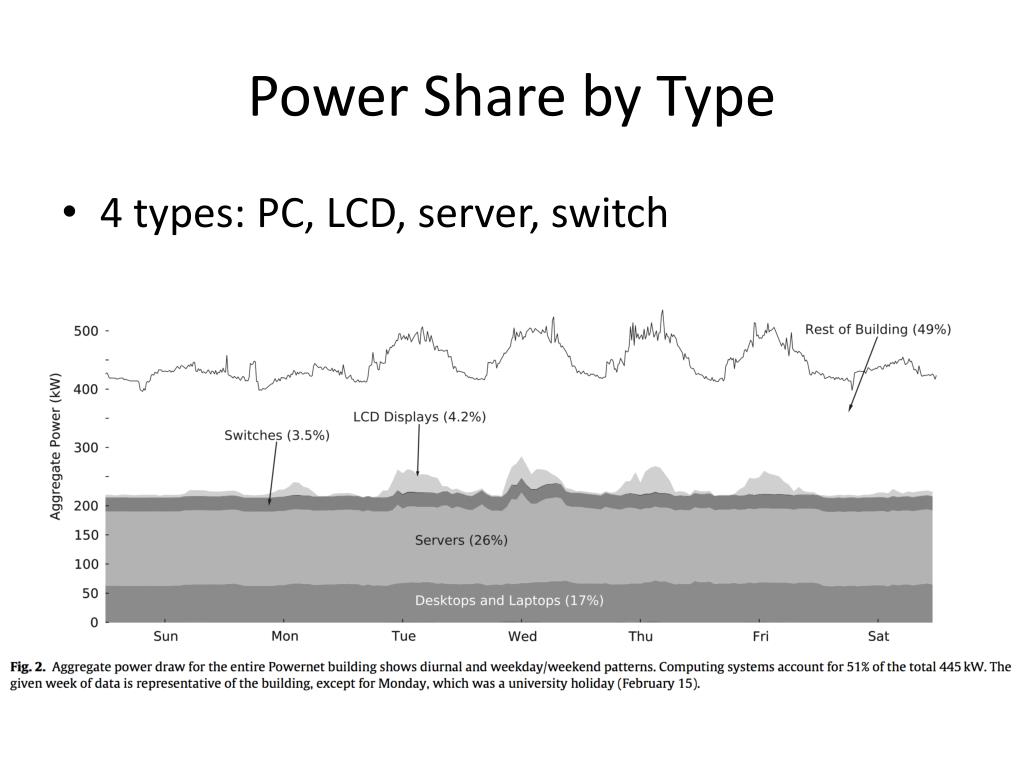

  5. Power Share by Type • 4 types: PC, LCD, server, switch

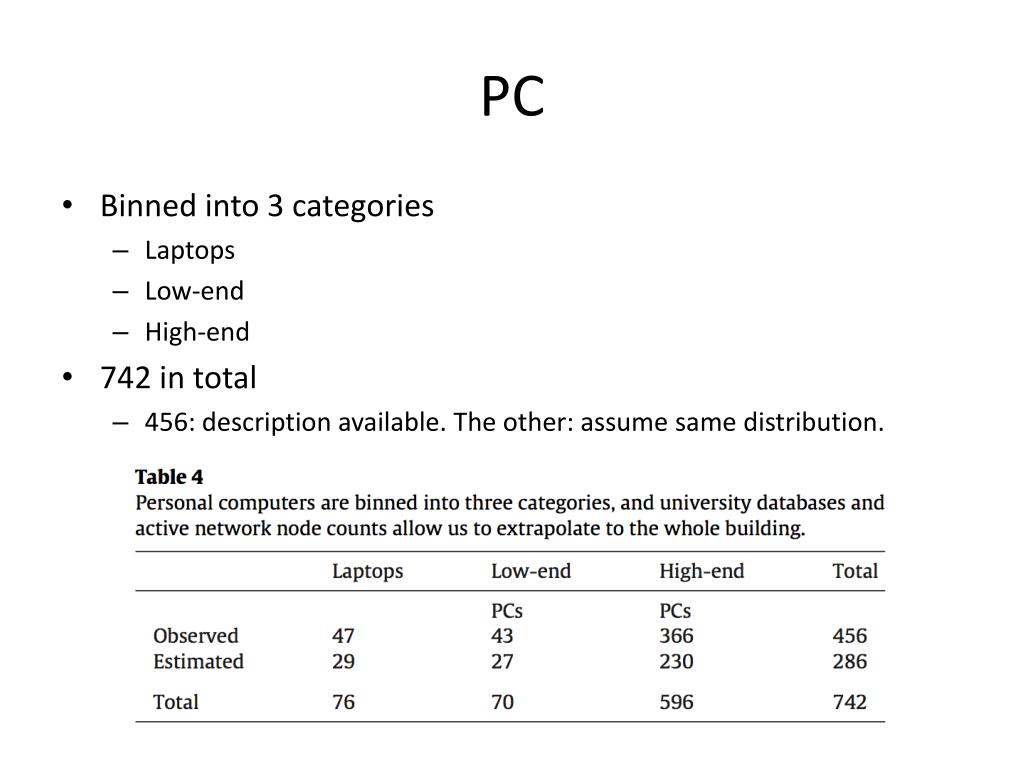

  6. PC • Binned into 3 categories • Laptops • Low-end • High-end • 742 in total • 456: description available. The other: assume same distribution.

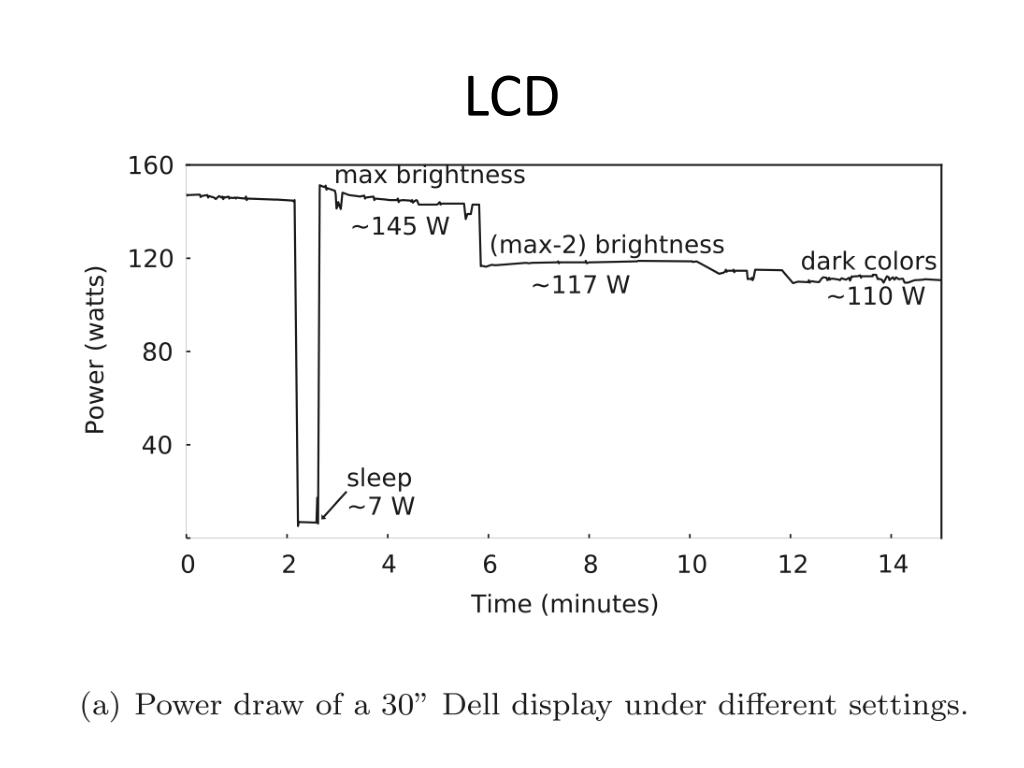

  7. LCD

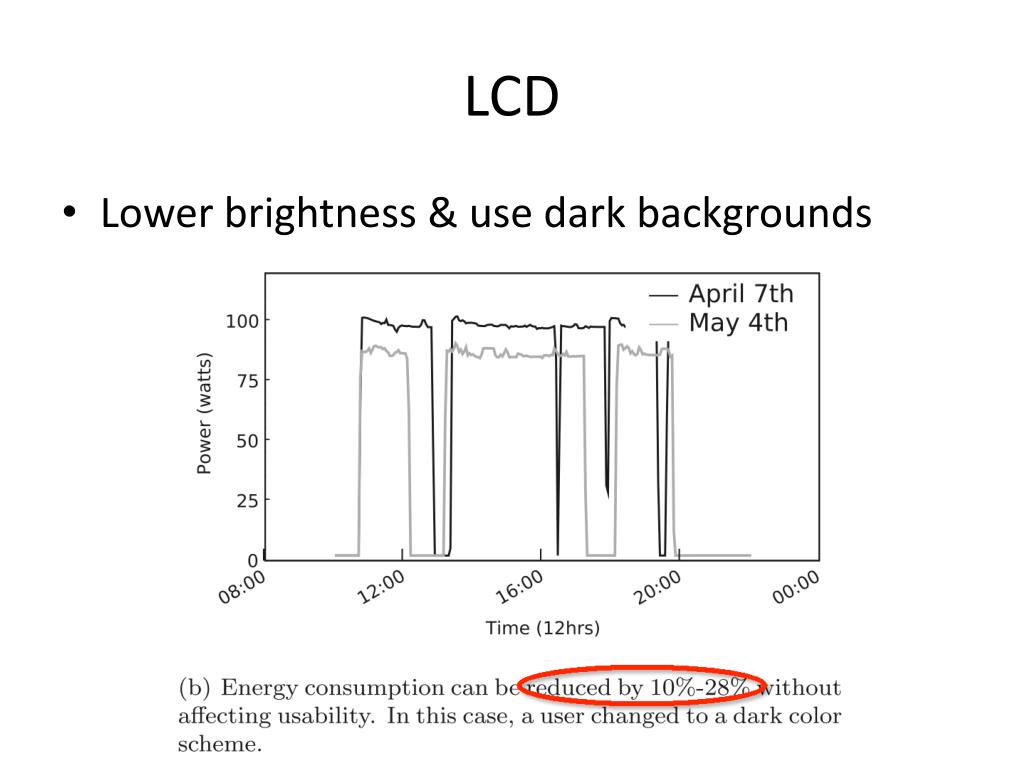

  8. LCD • Lower brightness & use dark backgrounds

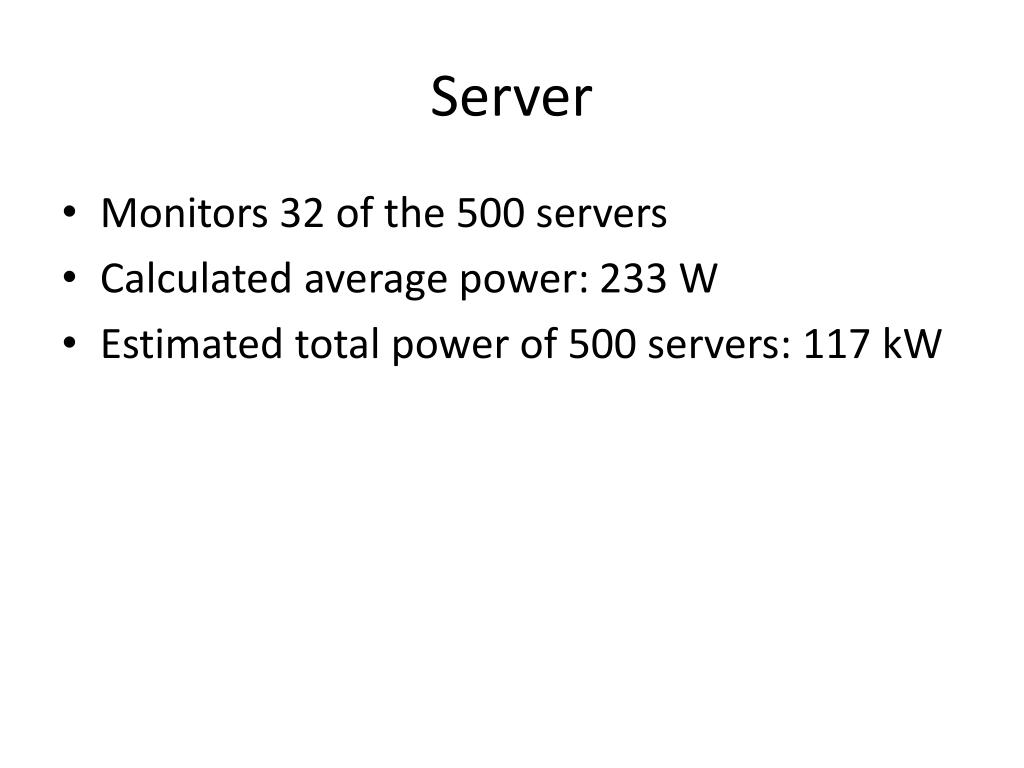

  9. Server • Monitors 32 of the 500 servers • Calculated average power: 233 W • Estimated total power of 500 servers: 117 kW

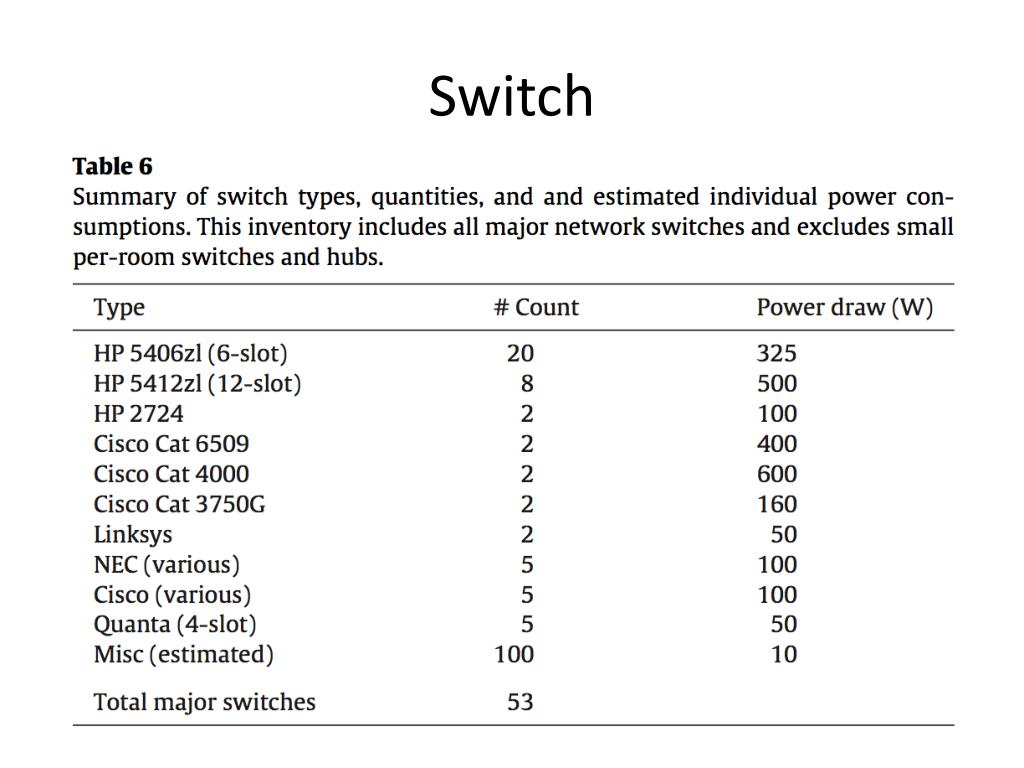

  10. Switch

  11. Switch

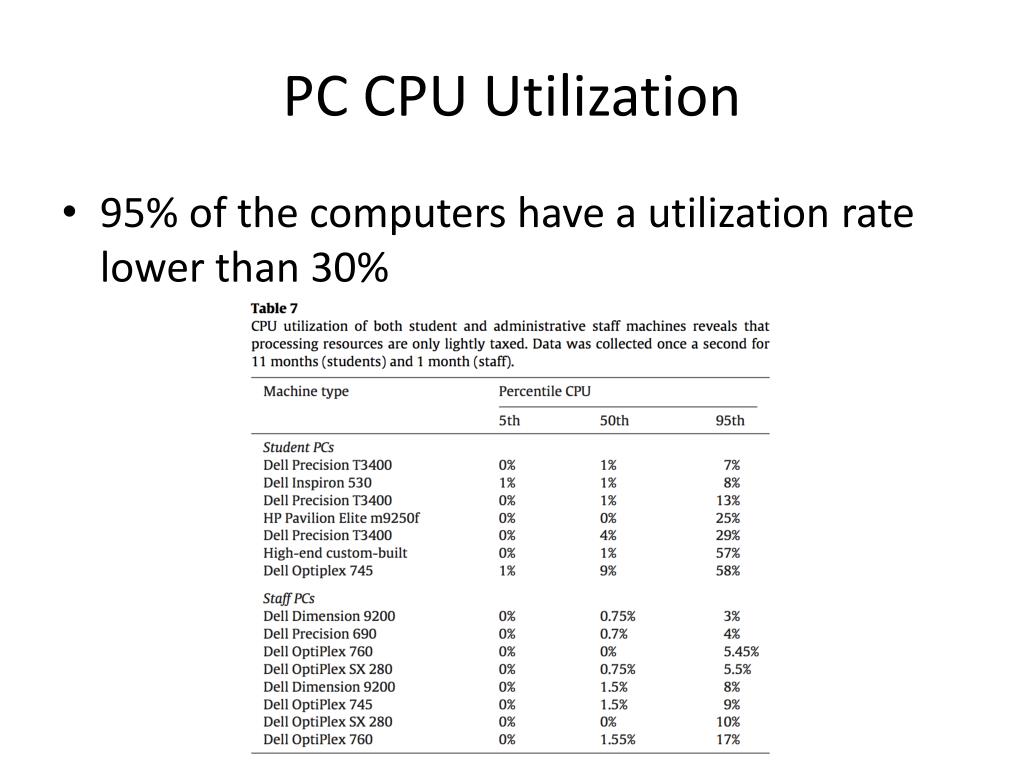

  12. PCCPU Utilization • 95%ofthecomputershaveautilizationratelowerthan30%

  13. PopularWorkloads

  14. NetworkSwitchUtilization • The demand never exceeded 200 Mbps

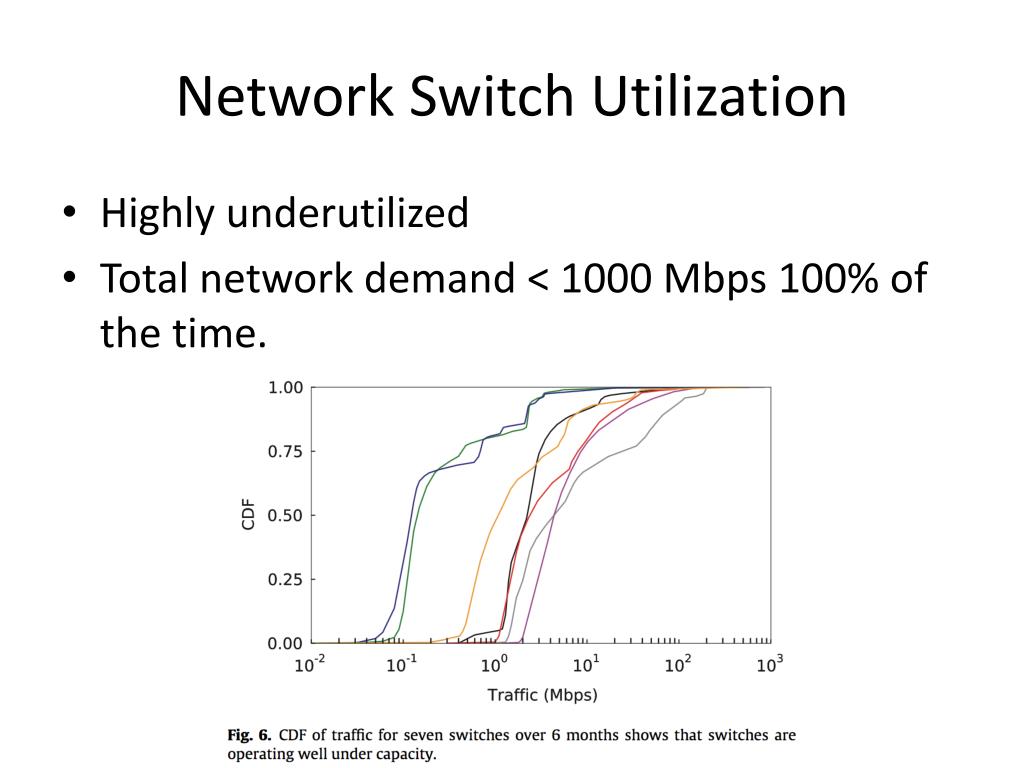

  15. NetworkSwitchUtilization • Highly underutilized • Total network demand <1000 Mbps 100% of the time.

  16. Discussions

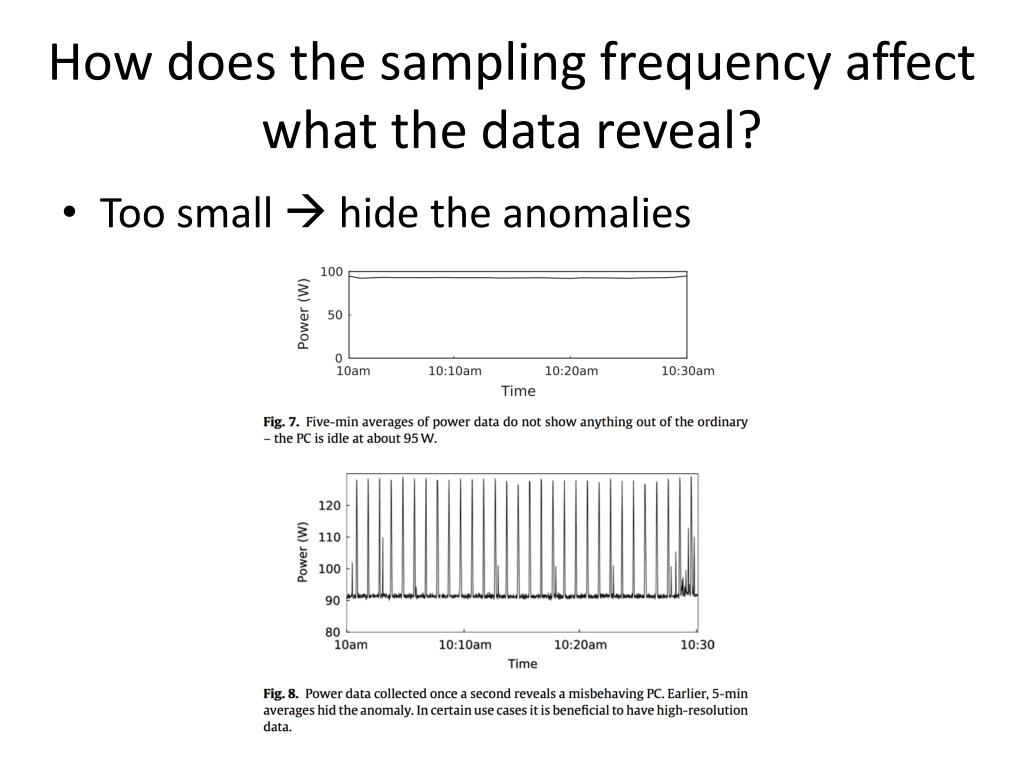

  17. How does the sampling frequency affect what the data reveal? • Too small  hide the anomalies

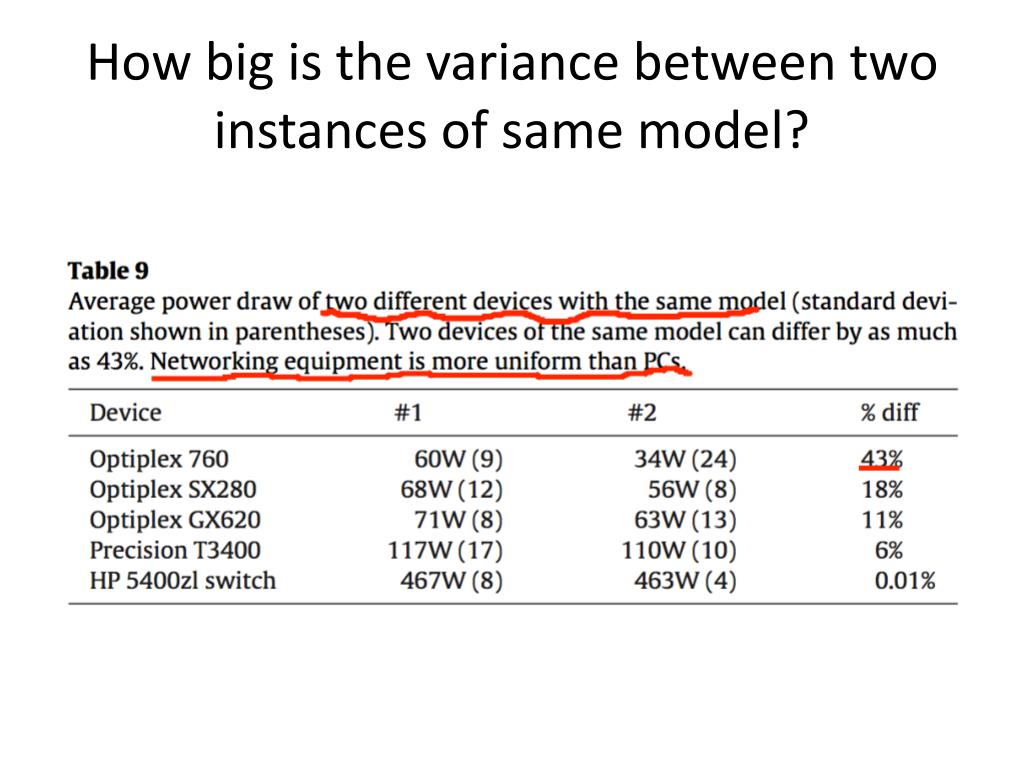

  18. How big is the variance between two instances of same model?

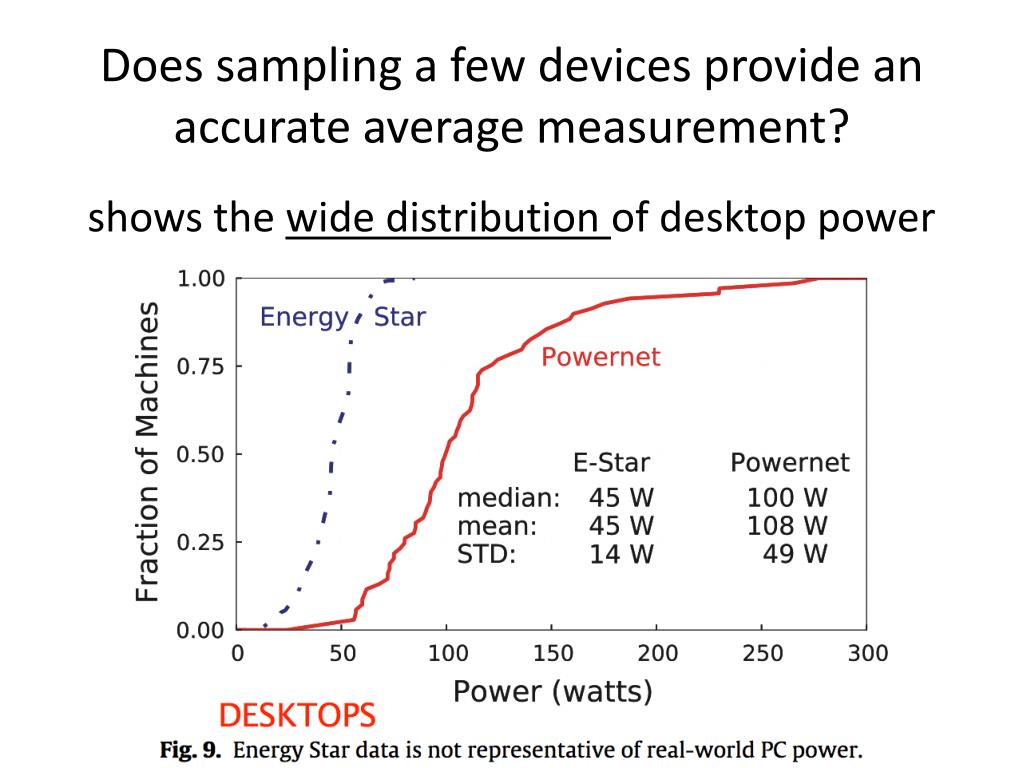

  19. Does sampling a few devices provide an accurate average measurement? shows the wide distribution of desktop power

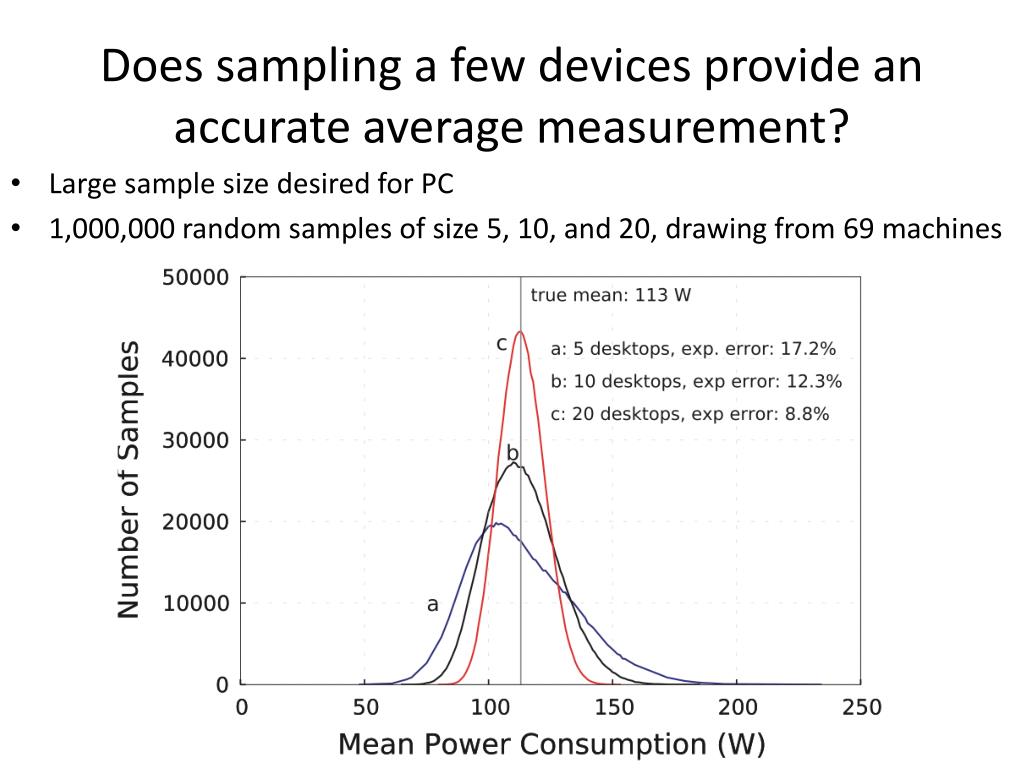

  20. Does sampling a few devices provide an accurate average measurement? • Large sample size desired for PC • 1,000,000 random samples of size 5, 10, and 20, drawing from 69 machines

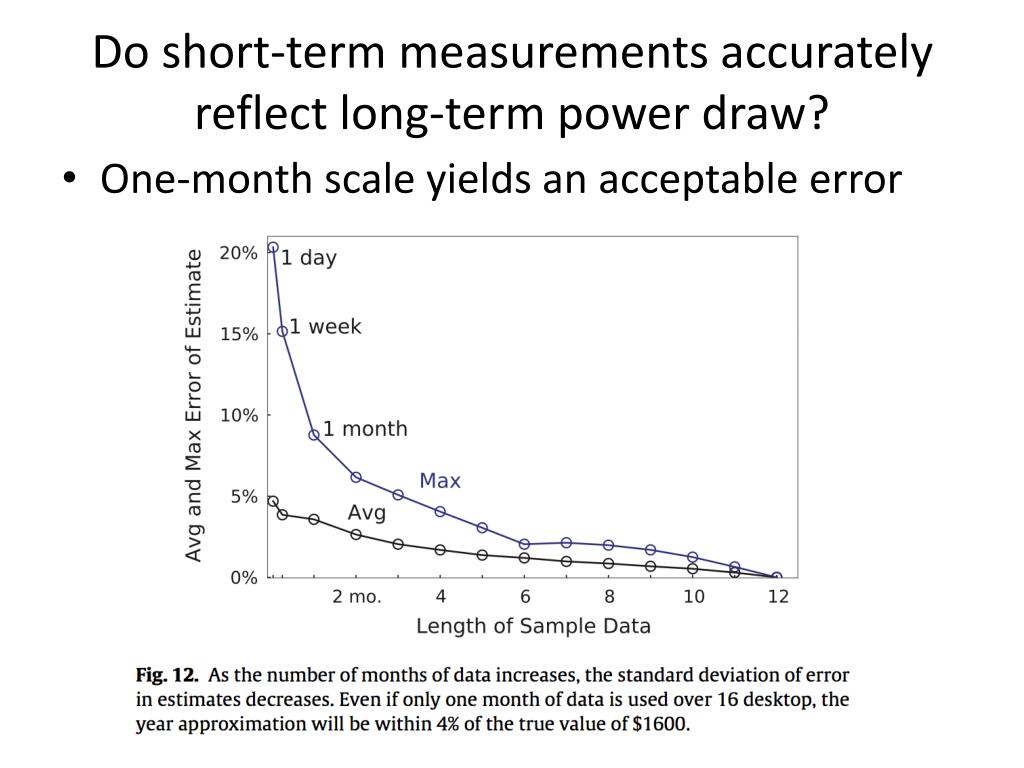

  21. Do short-term measurements accurately reflect long-term power draw? • One-month scale yields an acceptable error

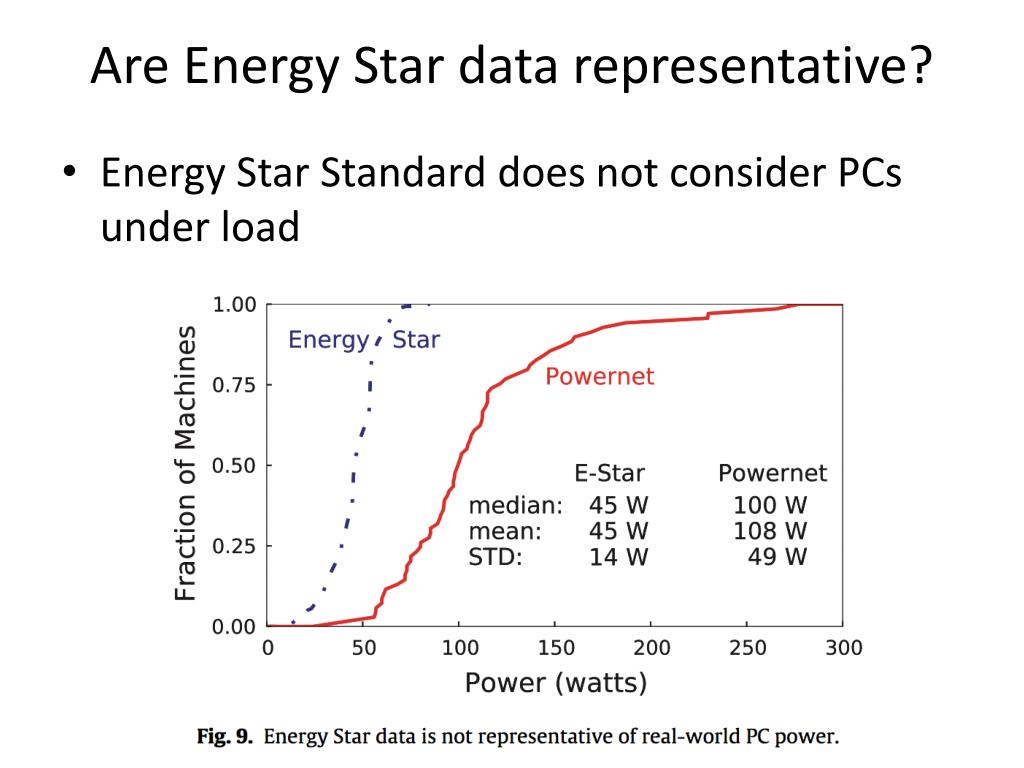

  22. Are Energy Star data representative? • Energy Star Standard does not consider PCs under load

  23. Thanks for the attention!
