  1. Legacy Voice World Chapter 03

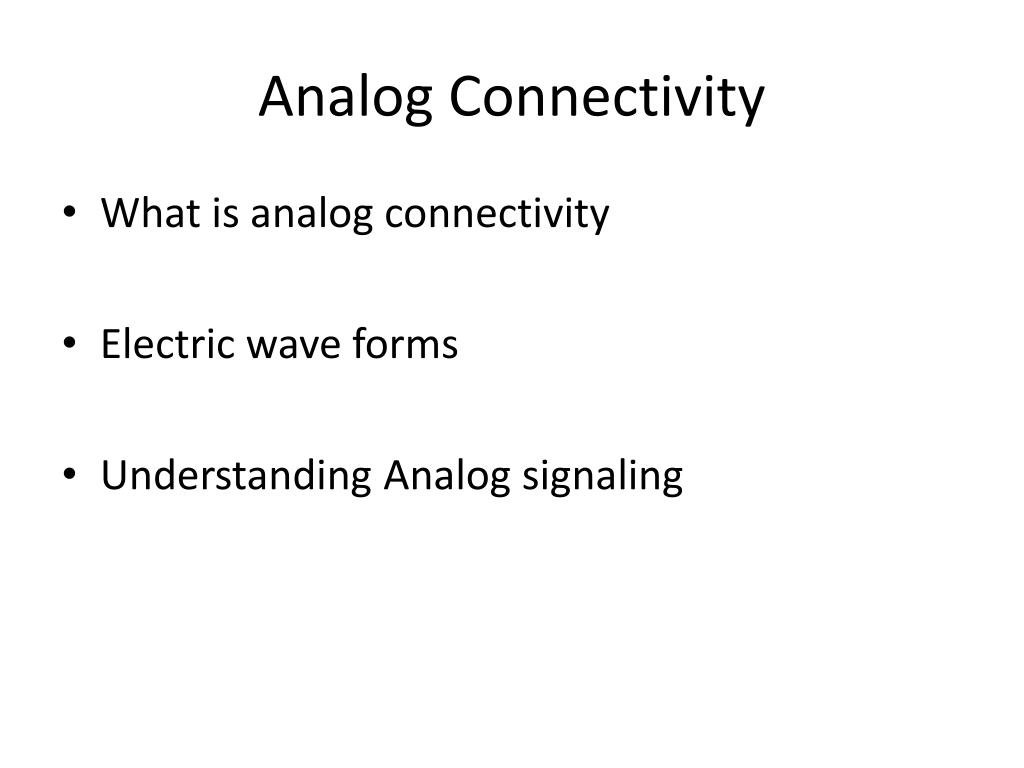

  2. Analog Connectivity • What is analog connectivity • Electric wave forms • Understanding Analog signaling

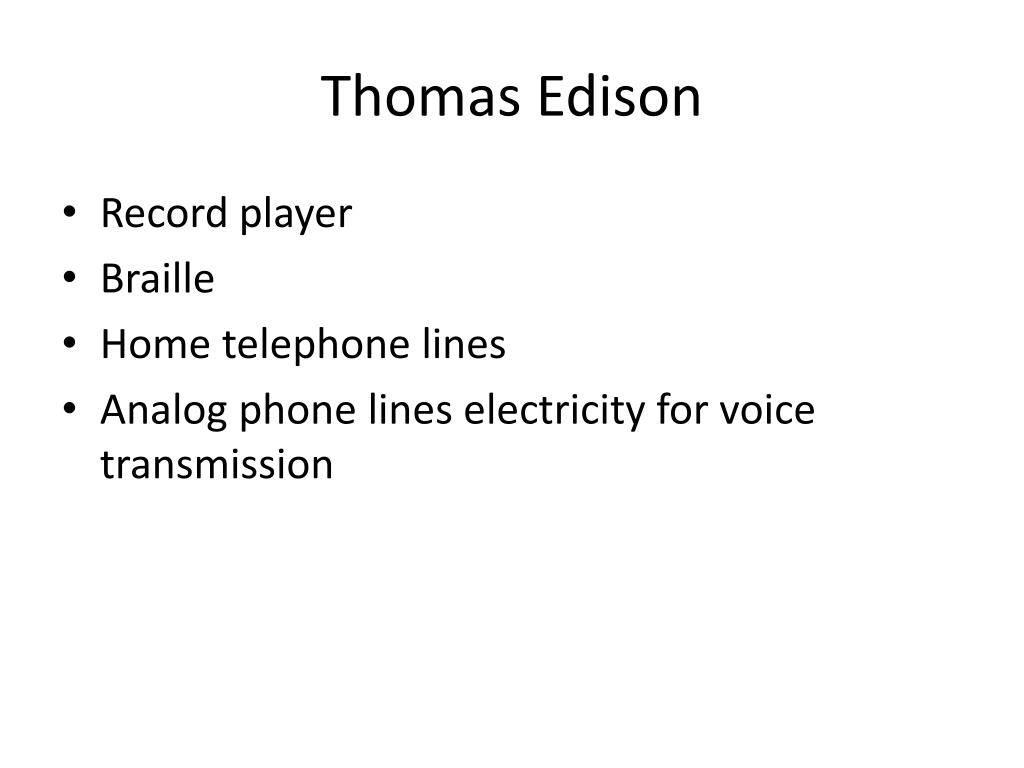

  3. Thomas Edison • Record player • Braille • Home telephone lines • Analog phone lines electricity for voice transmission

  4. As you speak • Analog to digital • Properties of electricity as used to convey properties of voice • Digital to analog

  5. Signaling • When receiver is on-hook, circuit is broken Loop - + Battery at the CO Tip - Ring

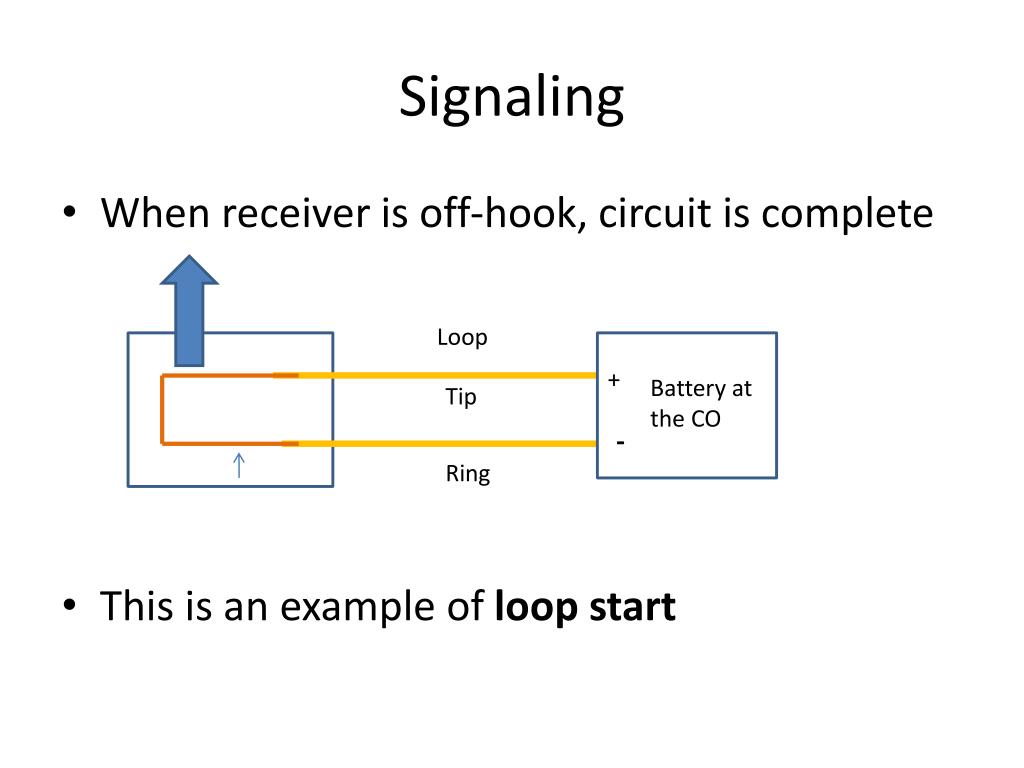

  6. Signaling • When receiver is off-hook, circuit is complete • This is an example of loop start Loop - + Battery at the CO Tip - Ring

  7. Signaling • This is an example of Ground start • Off-hook signal accomplished by temporarily grounding the ring wire • Stops GLARE Loop - + Battery at the CO Tip PBX - Ring

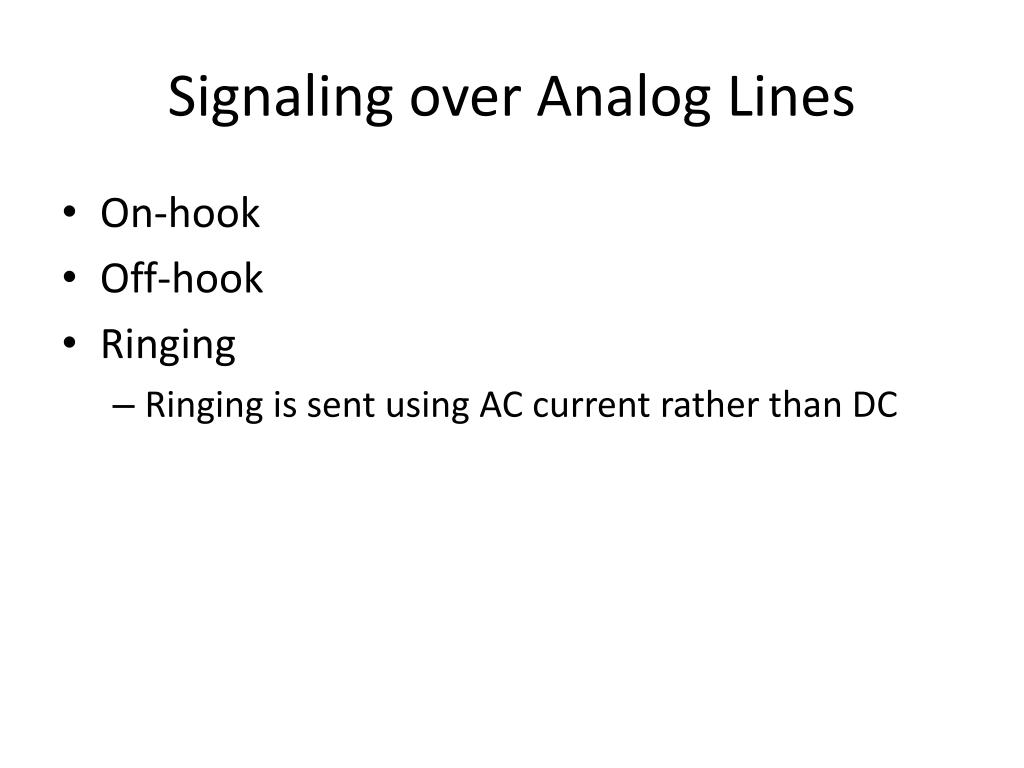

  8. Signaling over Analog Lines • On-hook • Off-hook • Ringing • Ringing is sent using AC current rather than DC

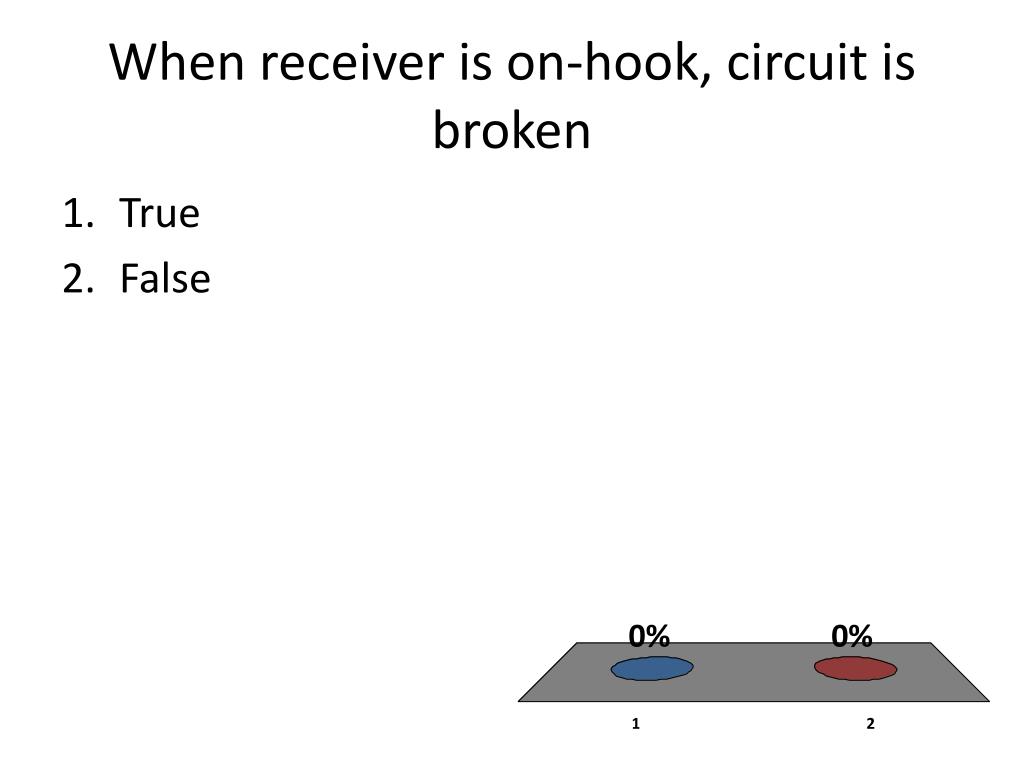

  9. When receiver is on-hook, circuit is broken • True • False

  10. Additional Signaling • Dual tone • Busy • Ring back • Congestion • Re-ordering • Receiver off-hook • No such number • Confirmation • And more

  11. Address Signaling • Pulse (70% connected and 30% broken connection) • DTMF (dual tone multi-frequency)

  12. DTMF works on • Only analog phones • Only on digital phones • Both analog and digital phones • Neither analog or digital phones

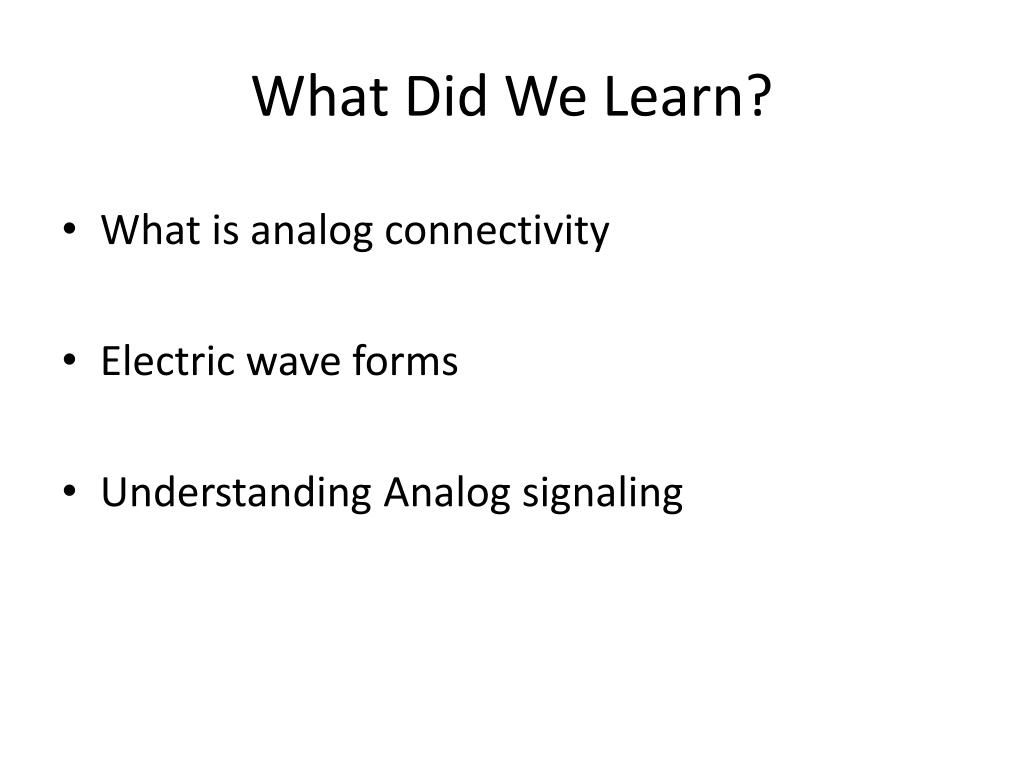

  13. What Did We Learn? • What is analog connectivity • Electric wave forms • Understanding Analog signaling

  14. Historical Voice • Problems with Analog connection • Converting Analog to Digital • Converting Digital to Analog

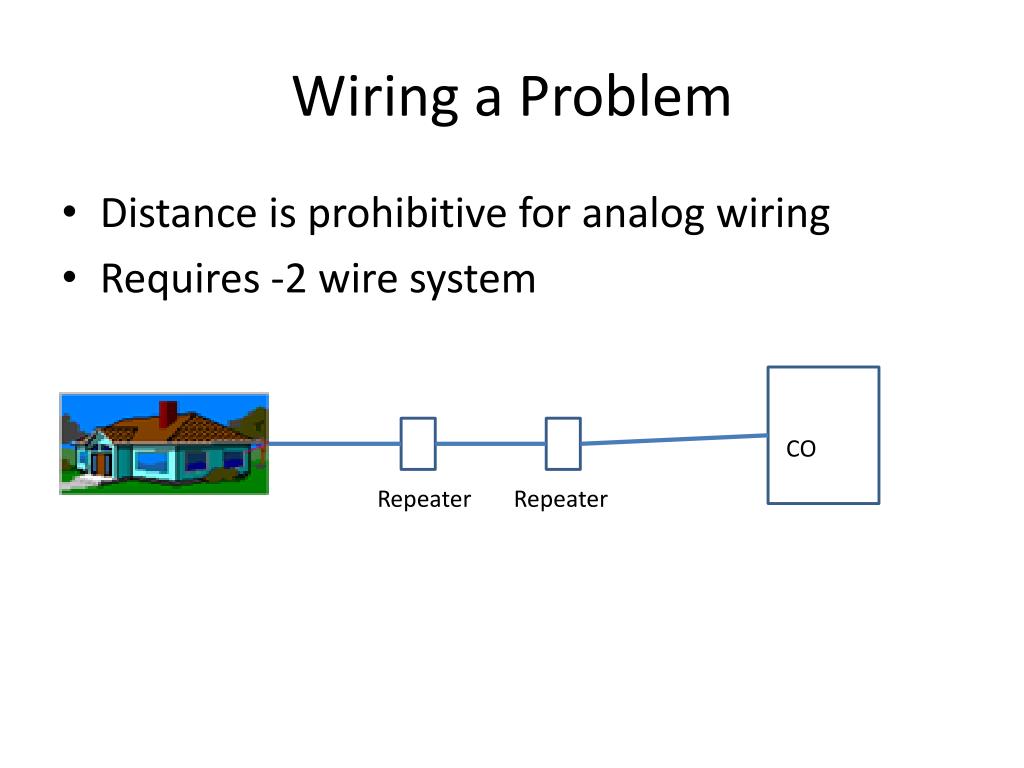

  15. Wiring a Problem • Distance is prohibitive for analog wiring • Requires -2 wire system CO Repeater Repeater

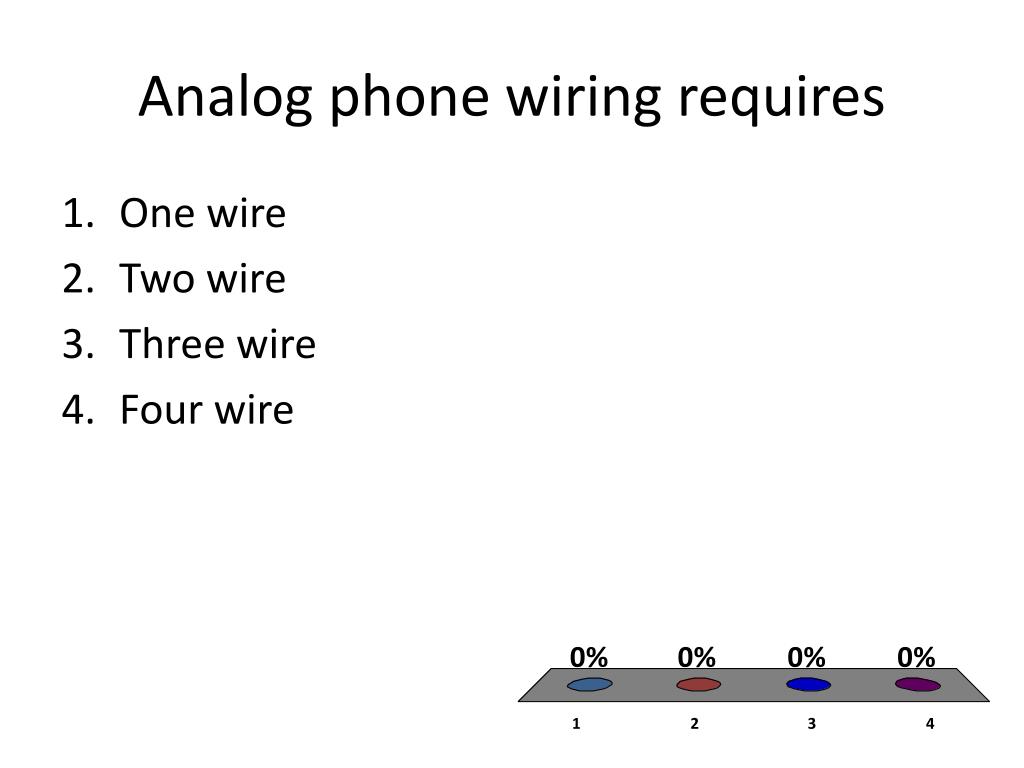

  16. Analog phone wiring requires • One wire • Two wire • Three wire • Four wire

  17. Sample Voice • Nyquist: If you sample at twice the highest frequency, you can accurately reconstruct a signal digitally • Common frequencies: • Human hearing 20-20,000Hz • Human speech 200-9,000Hz • Nyquist therum 300-4000Hz

  18. Quantizing the Sample PAM – Pulse Amplitude Modulation

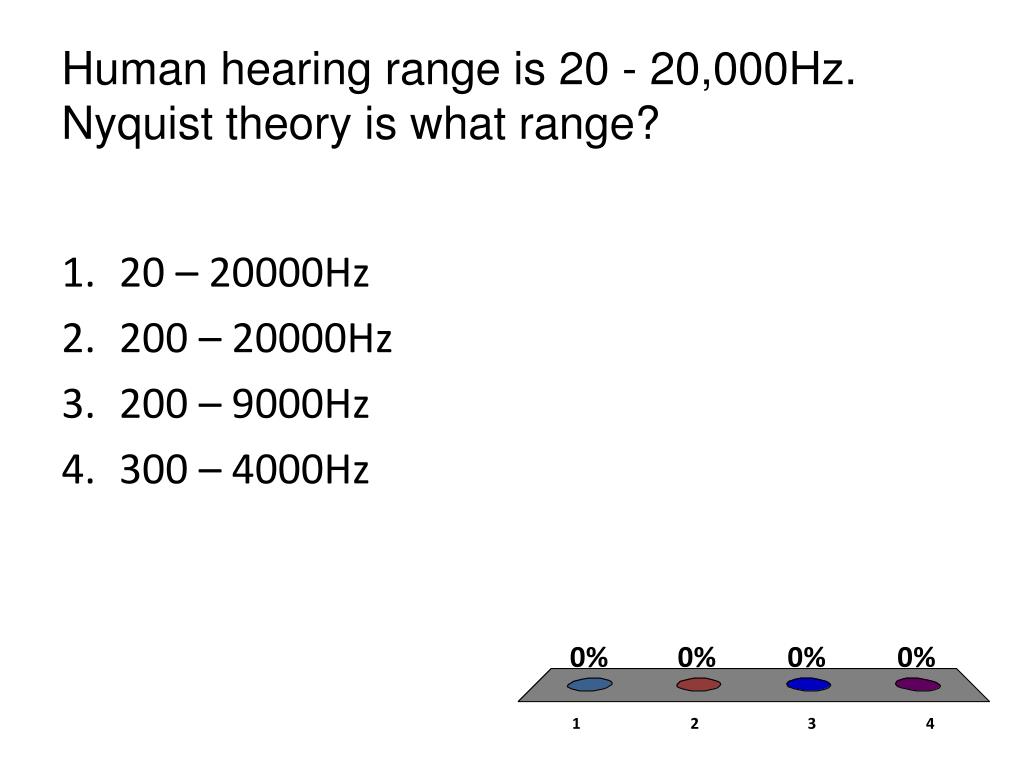

  19. Human hearing range is 20 - 20,000Hz. Nyquist theory is what range? • 20 – 20000Hz • 200 – 20000Hz • 200 – 9000Hz • 300 – 4000Hz

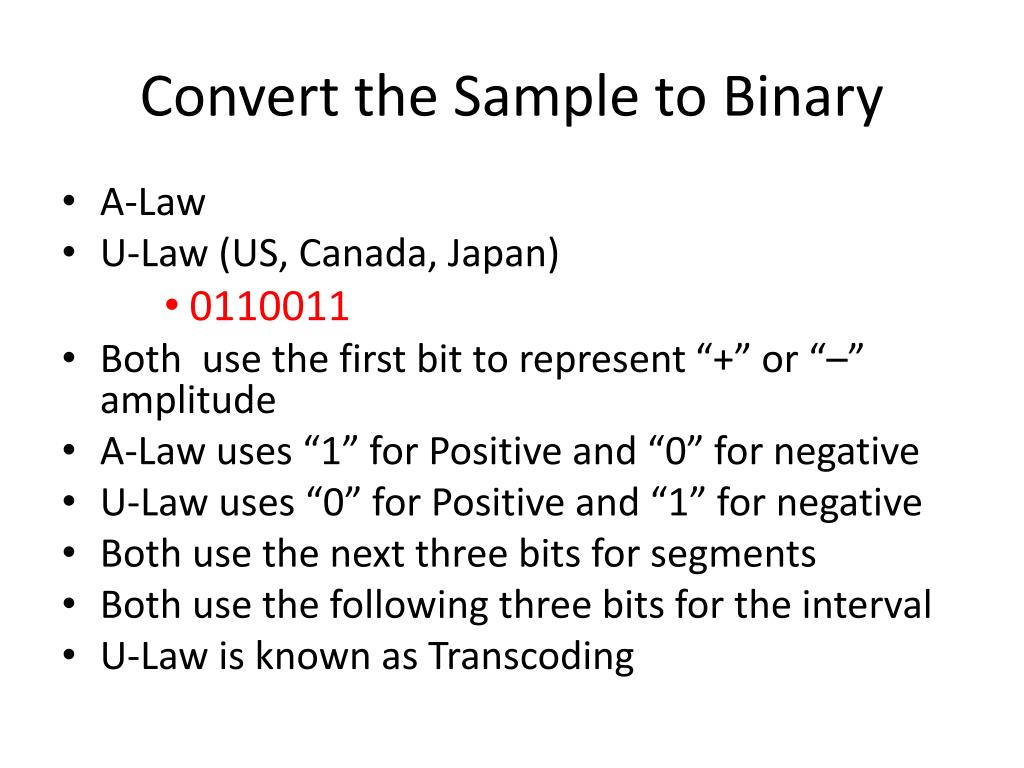

  20. Convert the Sample to Binary • A-Law • U-Law (US, Canada, Japan) • 0110011 • Both use the first bit to represent “+” or “–” amplitude • A-Law uses “1” for Positive and “0” for negative • U-Law uses “0” for Positive and “1” for negative • Both use the next three bits for segments • Both use the following three bits for the interval • U-Law is known as Transcoding

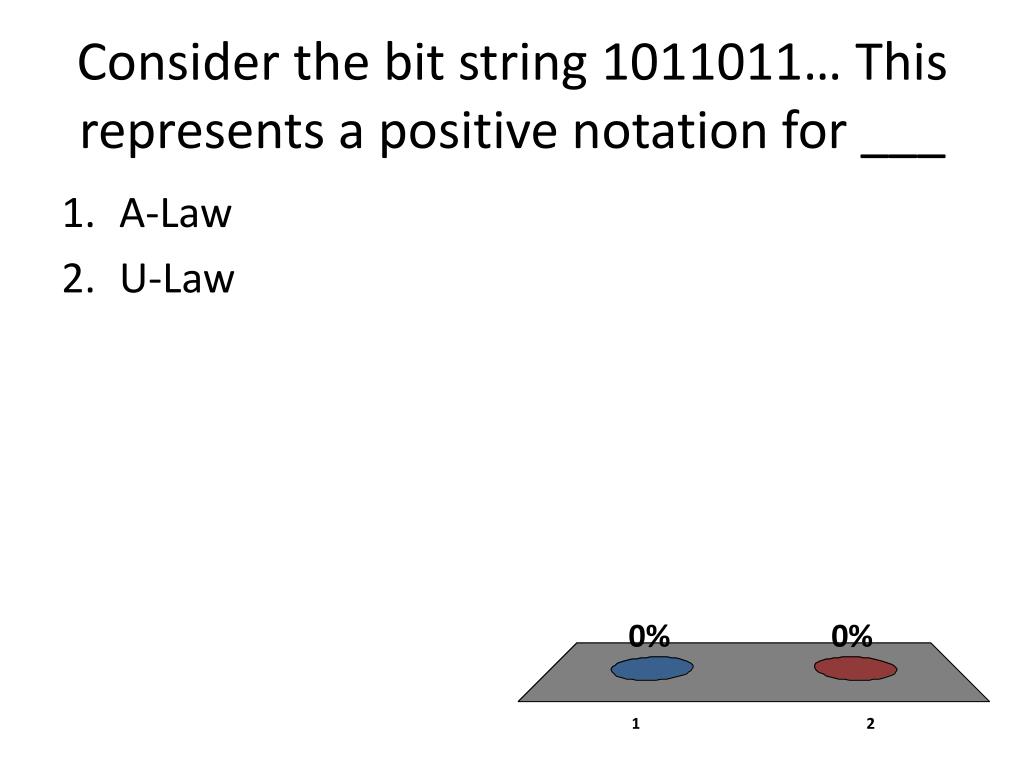

  21. Consider the bit string 1011011… This represents a positive notation for ___ • A-Law • U-Law

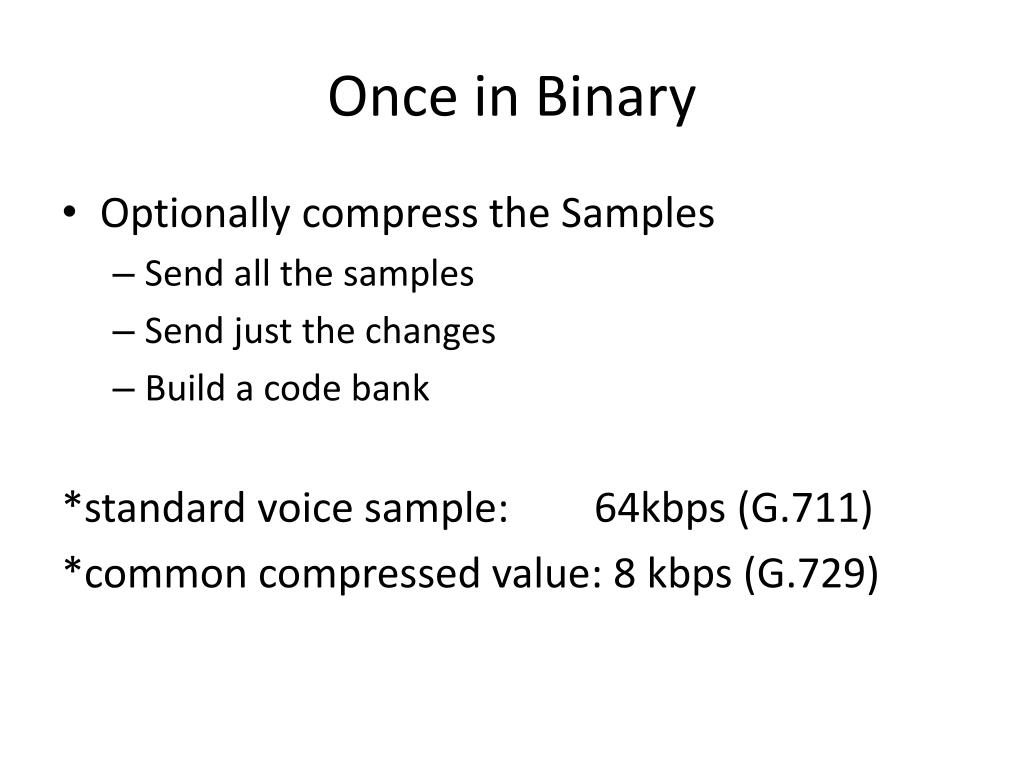

  22. Once in Binary • Optionally compress the Samples • Send all the samples • Send just the changes • Build a code bank *standard voice sample: 64kbps (G.711) *common compressed value: 8 kbps (G.729)

  23. Which codec provides the best QoS? • G.729 • G.726 • G.723 • G.711

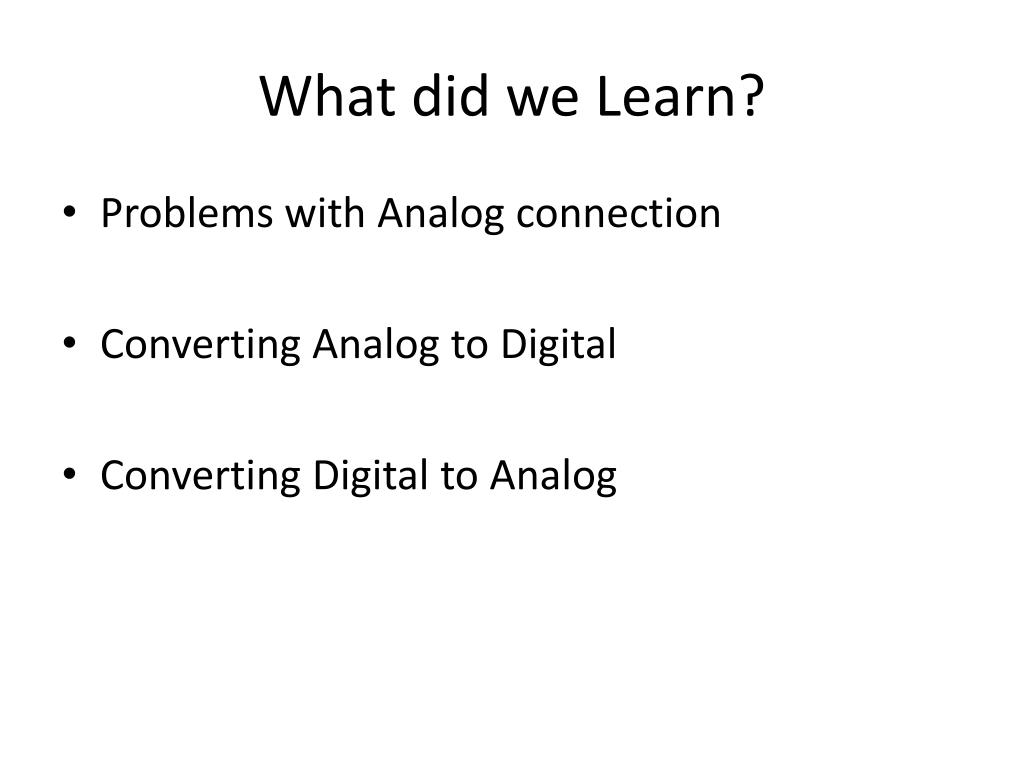

  24. What did we Learn? • Problems with Analog connection • Converting Analog to Digital • Converting Digital to Analog

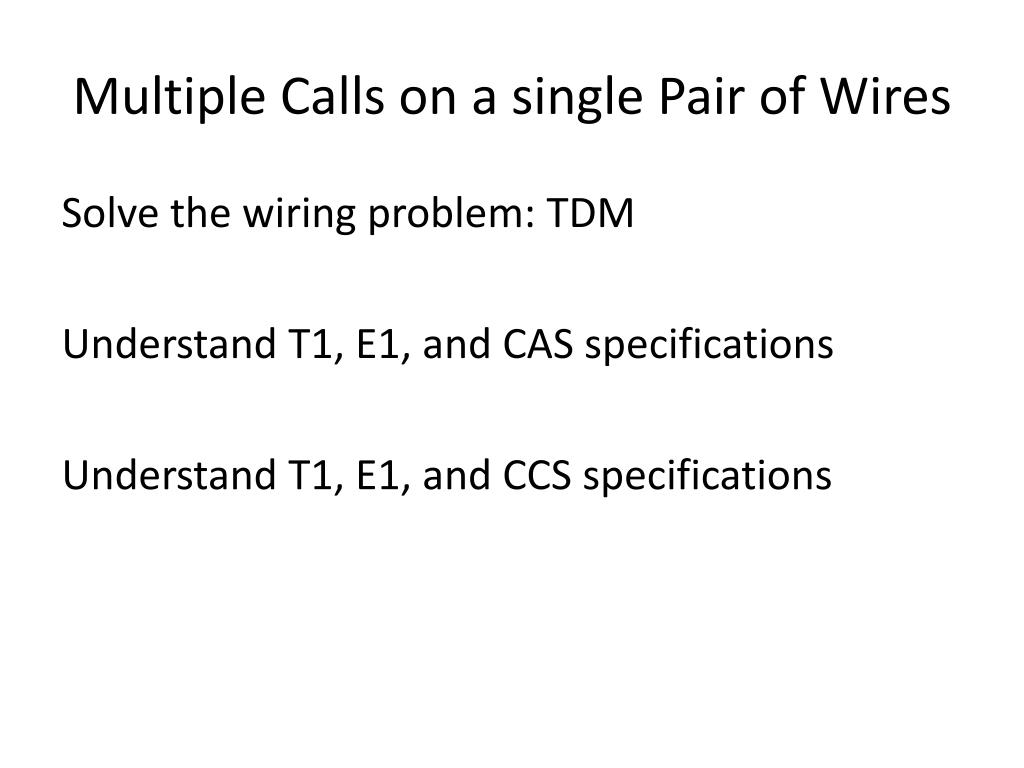

  25. Multiple Calls on a single Pair of Wires Solve the wiring problem: TDM Understand T1, E1, and CAS specifications Understand T1, E1, and CCS specifications

  26. TDM • Carries multiple conversations over a 4 wire path • Build wire channels called DS0s • Each channel gives a time slot to transmit • Common DS0 Groups: • T1 (24 DS0 frames) • E1 (32 DS0 frames_) PBX PBX 1 1 1 1 2 2 2 2 4 4 4 4

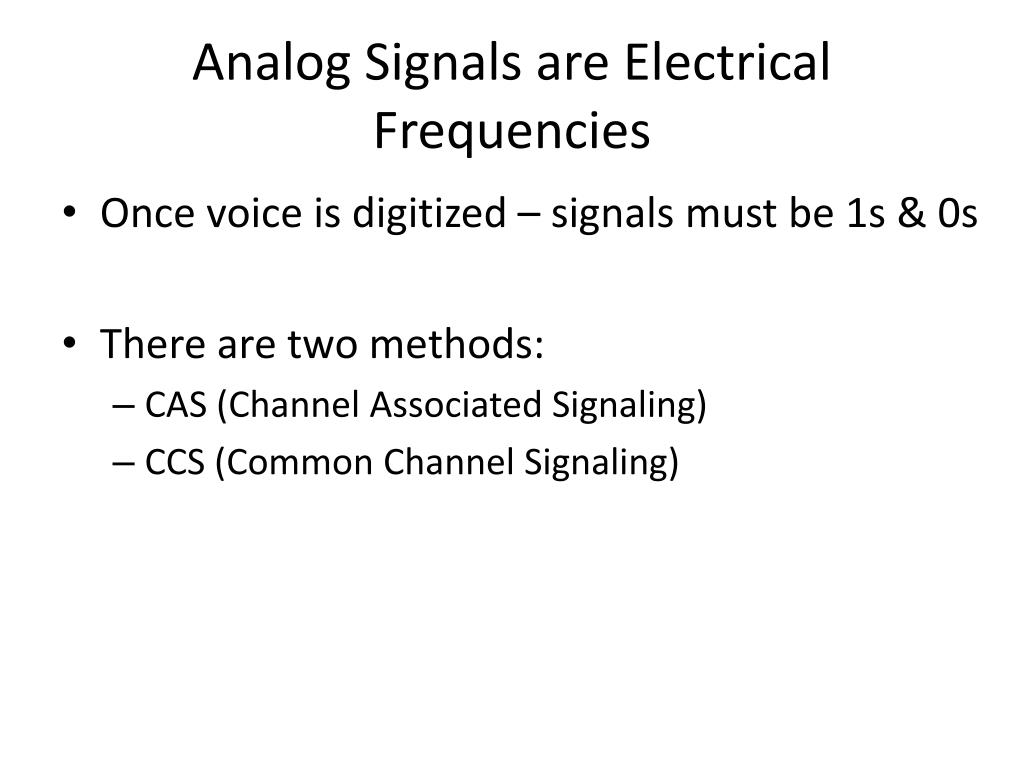

  27. Analog Signals are Electrical Frequencies • Once voice is digitized – signals must be 1s & 0s • There are two methods: • CAS (Channel Associated Signaling) • CCS (Common Channel Signaling)

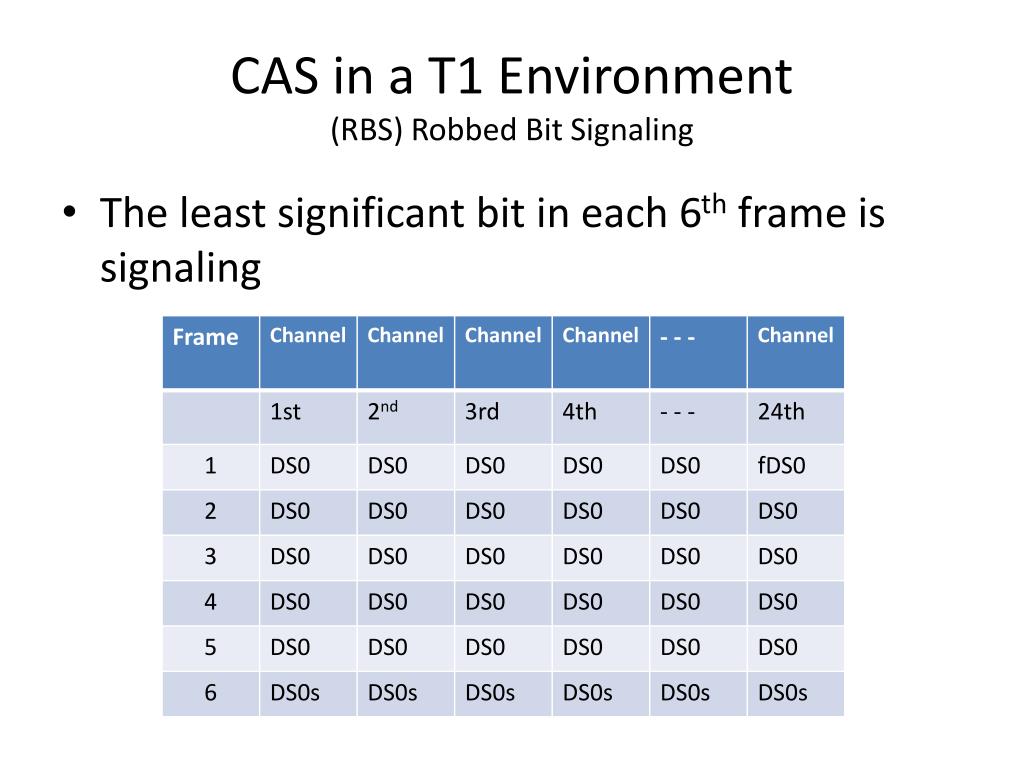

  28. CAS in a T1 Environment (RBS) Robbed Bit Signaling • The least significant bit in each 6th frame is signaling

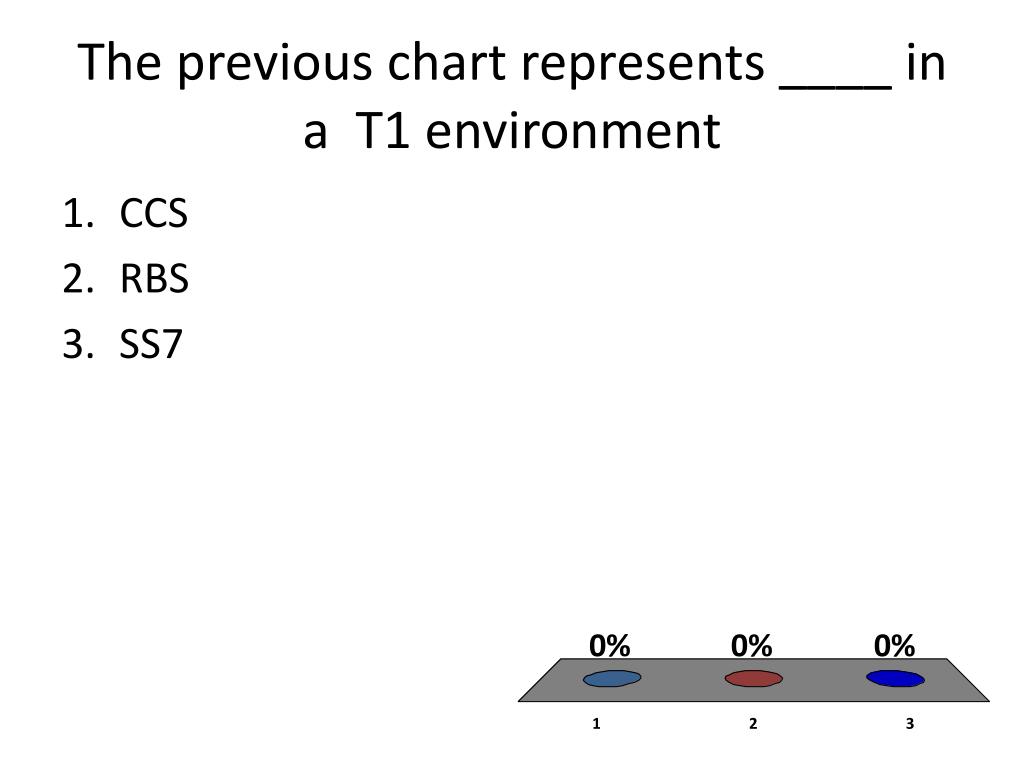

  29. The previous chart represents ____ in a T1 environment • CCS • RBS • SS7

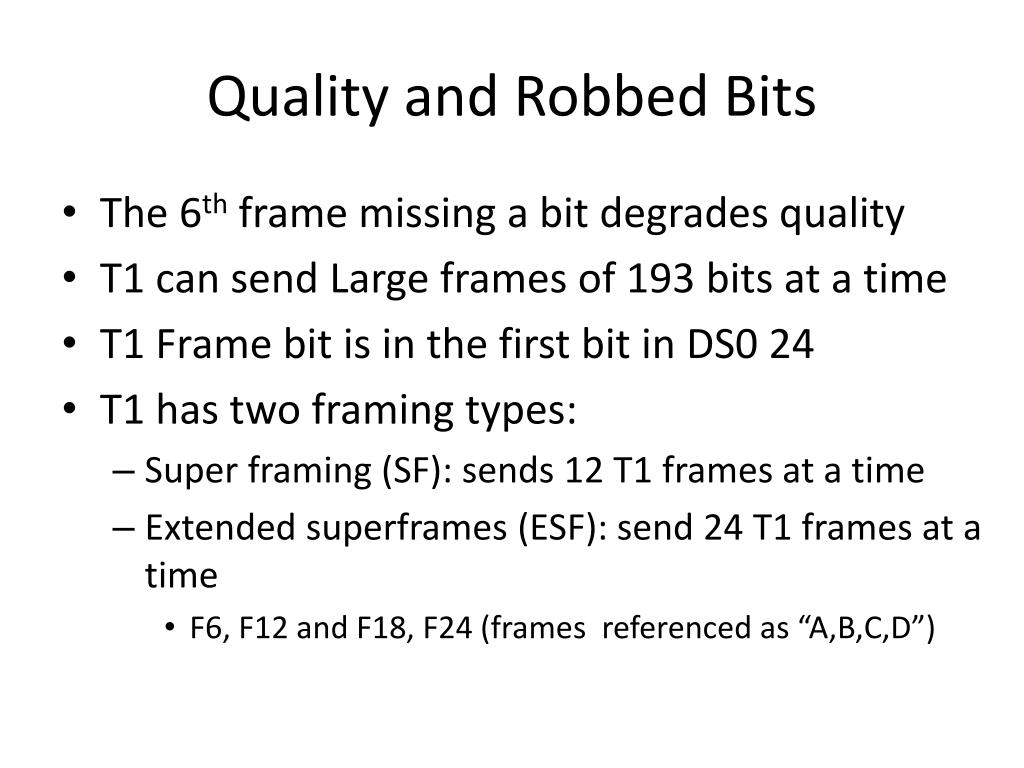

  30. Quality and Robbed Bits • The 6th frame missing a bit degrades quality • T1 can send Large frames of 193 bits at a time • T1 Frame bit is in the first bit in DS0 24 • T1 has two framing types: • Super framing (SF): sends 12 T1 frames at a time • Extended superframes (ESF): send 24 T1 frames at a time • F6, F12 and F18, F24 (frames referenced as “A,B,C,D”)

  31. CAS in an E1 Environment • CAS has dedicated frames and signaling in separate channels • CAS E1 has 32 channels • Ch1 – dedicated to framing • Ch17 – dedicated to signaling • Chs2 - 16 and 18 - 32 are dedicated to voice • E1 is contra-intuitive ; called CAS since each time a slot is signaled it matches to a voice channel • It is compatible with T1 CAS (has the same ABCD signaling format

  32. Bundling Channels Together on a T1 and E1 Connection • CCS (Common Channel Signaling) is simpler than CAS • CCS dedicates a signaling channel on T1 and E1 • Allows for the use of a signal protocol rather than just four bits of signaling per channel • Allows for more clmplex signaling messages • Allows for proprietary signaling messages • Most common signaling protocol is ISDN’s Q.931 • Other signaling protocols exist such as SS7 • Signaling Channel: • T 1 signaling channel 24 • E1 signaling channel 17

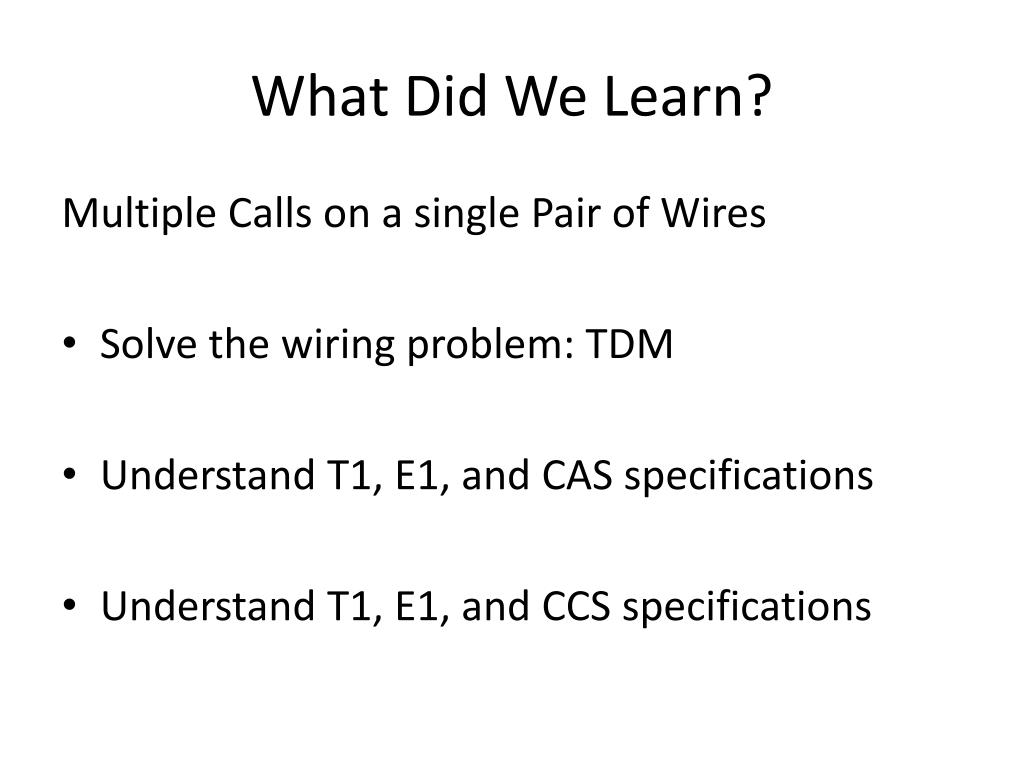

  33. What Did We Learn? Multiple Calls on a single Pair of Wires • Solve the wiring problem: TDM • Understand T1, E1, and CAS specifications • Understand T1, E1, and CCS specifications

  34. PSTN • Components of the PSN • Difference between PBX and Key Systems • PSTN Numbering Plans

  35. PSTN Components • Analog telephone • Local loop • Central Office (CO) • Trunks (SS7) • Trunks (CAS) • PBX • Digital Phones

  36. Trunks

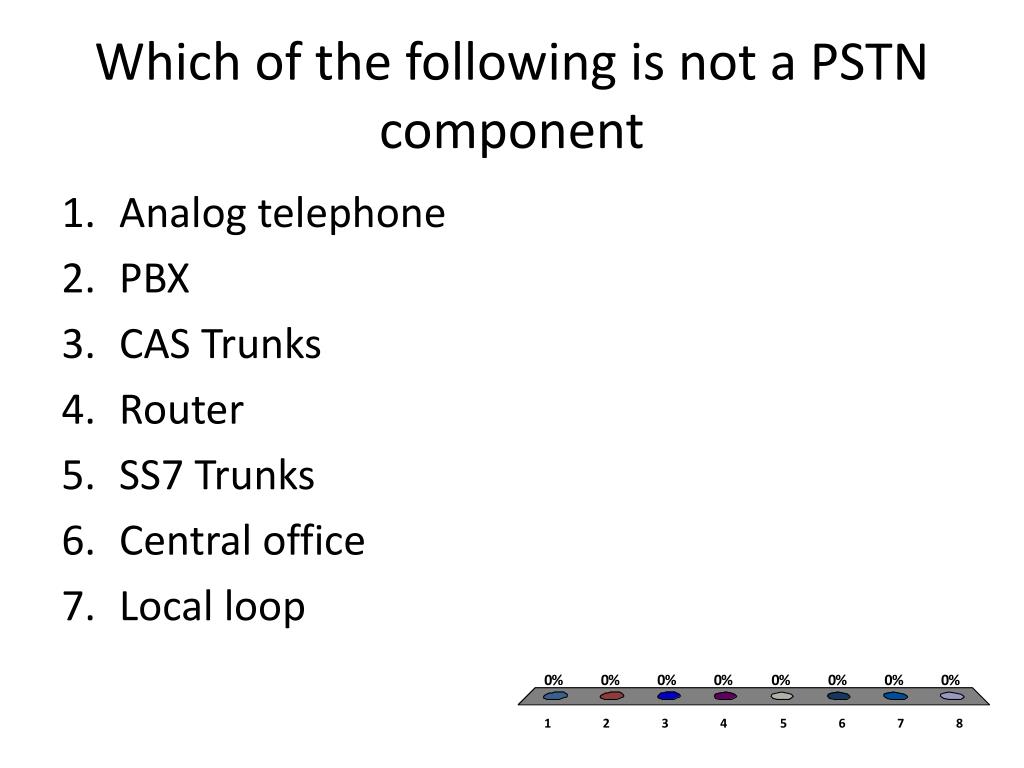

  37. Which of the following is not a PSTN component • Analog telephone • PBX • CAS Trunks • Router • SS7 Trunks • Central office • Local loop

  38. Offices • PBX and Key Systems • Typical digital PSTN connection (T1 & E1) • Provide each user unique extension number • Support a large number of features • Key Systems • Typically Analog PSTN connection • Users share lines between phones • Support smaller number of features

  39. PSTN Dialing Plan • PSTN number plan managed under ITU-T E-164 standard • Country • National description code • Subscriber number North American Numbering Plan (NANP) • Country code • Area code • Central office code • Subscriber code • 1-555-510-3001 (NANP)

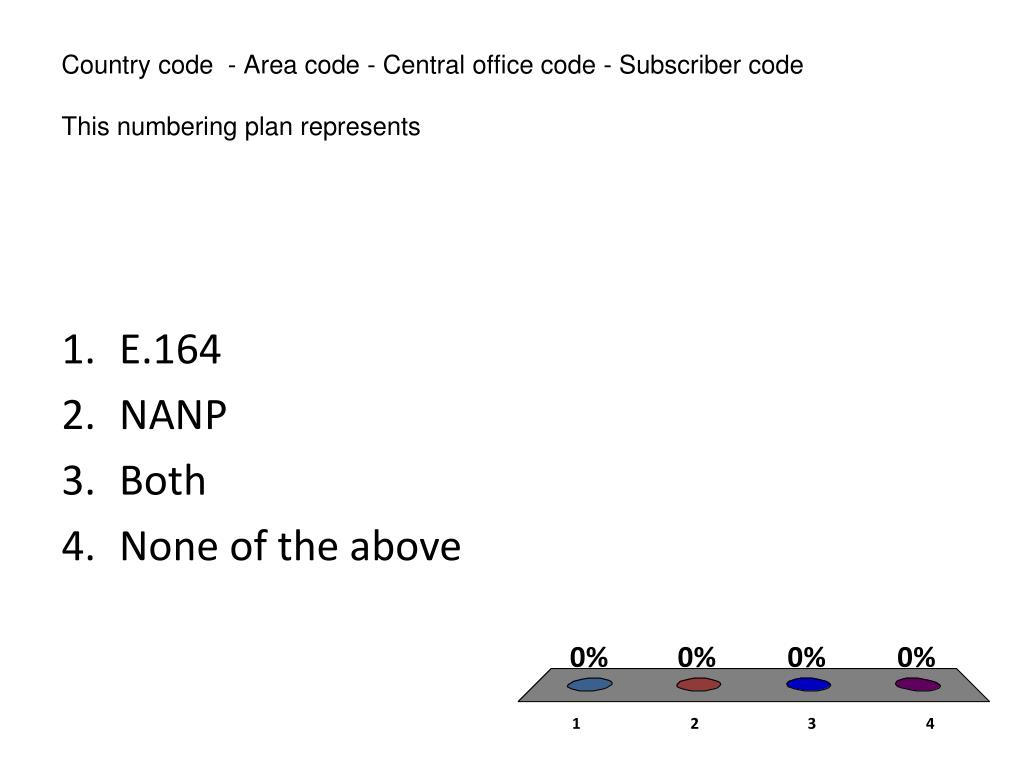

  40. Country code - Area code - Central office code - Subscriber codeThis numbering plan represents • E.164 • NANP • Both • None of the above

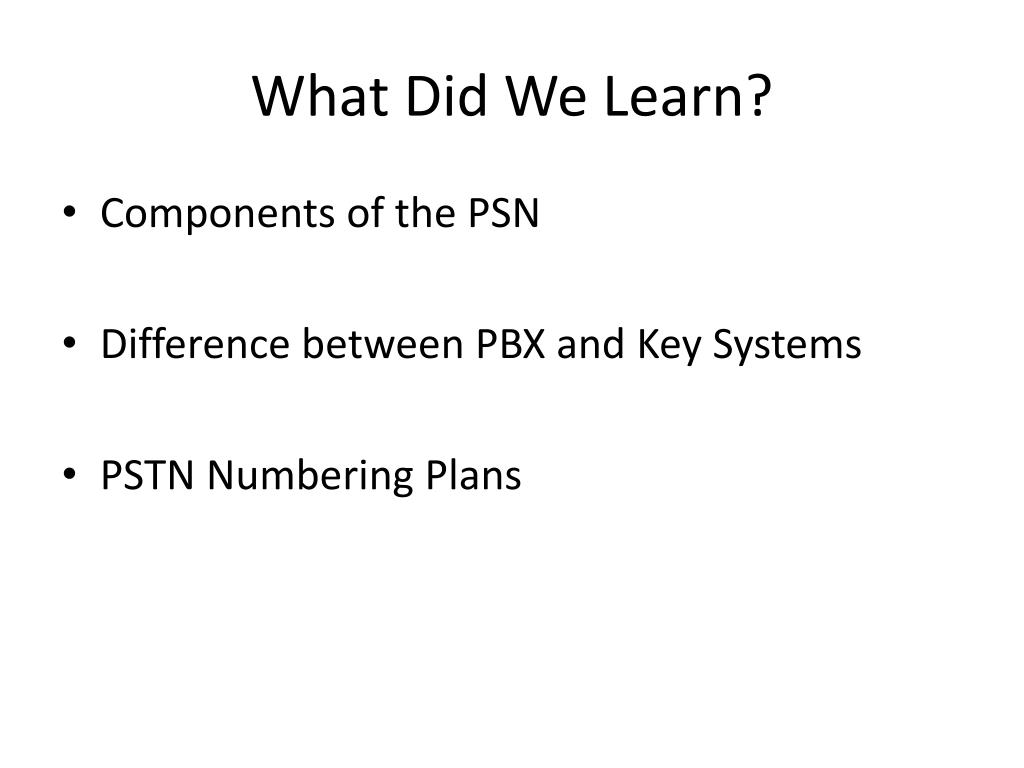

  41. What Did We Learn? • Components of the PSN • Difference between PBX and Key Systems • PSTN Numbering Plans

  42. Cisco Components of the Voice Networks • Cisco infrastructure model • Cisco Call Processing • Cisco applications options

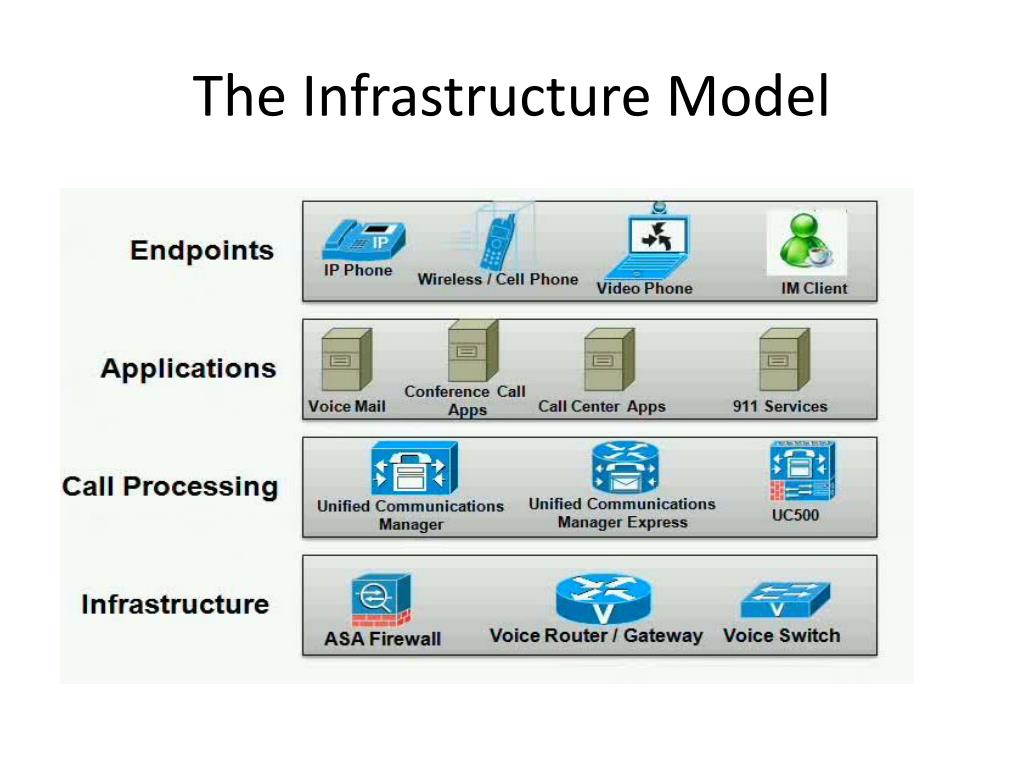

  43. The Infrastructure Model

  44. Call Processing: UC500 • Supports 8 to 48 IP phones • Integrated Voice main and Auto-attendant • External MOH • FX0 modules for external Analog phones • FX1 modules for analog phone connections • Routing/NAT support support • VPN support • Opt 802.11 wireless

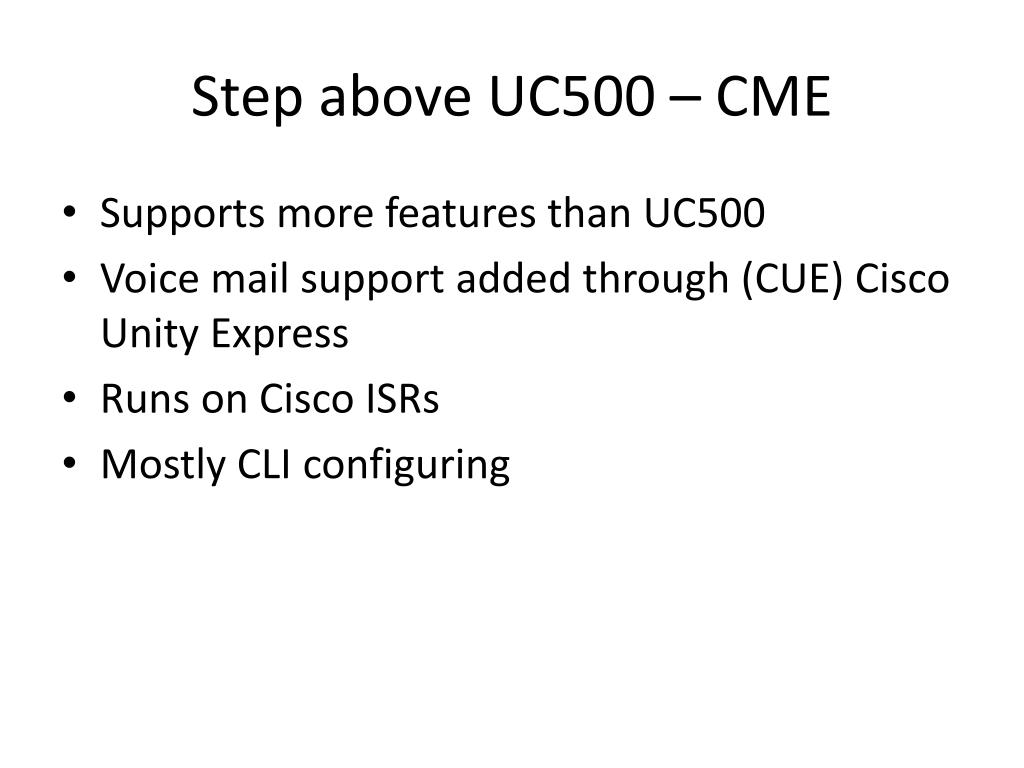

  45. Step above UC500 – CME • Supports more features than UC500 • Voice mail support added through (CUE) Cisco Unity Express • Runs on Cisco ISRs • Mostly CLI configuring

  46. Infrastructure Parts • End Points • Hardware • Applications • Infrastructure • Call processing

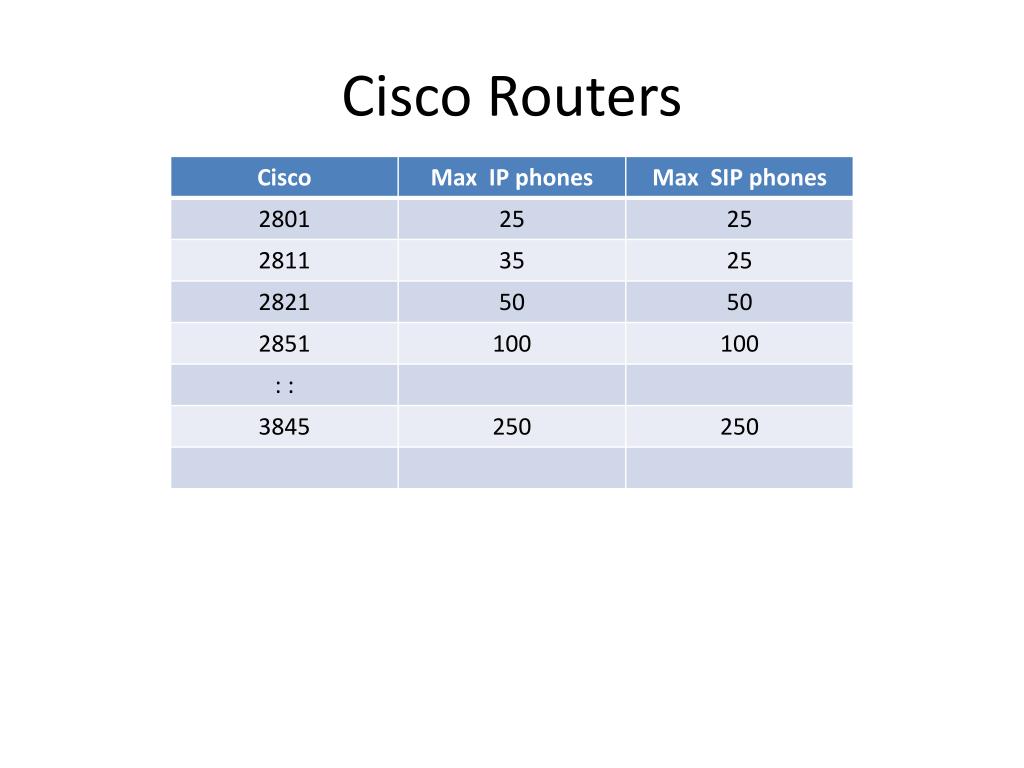

  47. Cisco Routers

  48. Business Edition • Provide scalability to 500 IP phones • Combines three applications into one • CCM (Cisco Communications Manager) • Cisco Unity Communications • Cisco Unified mobility • Fantastic but NO REDUNDANCY

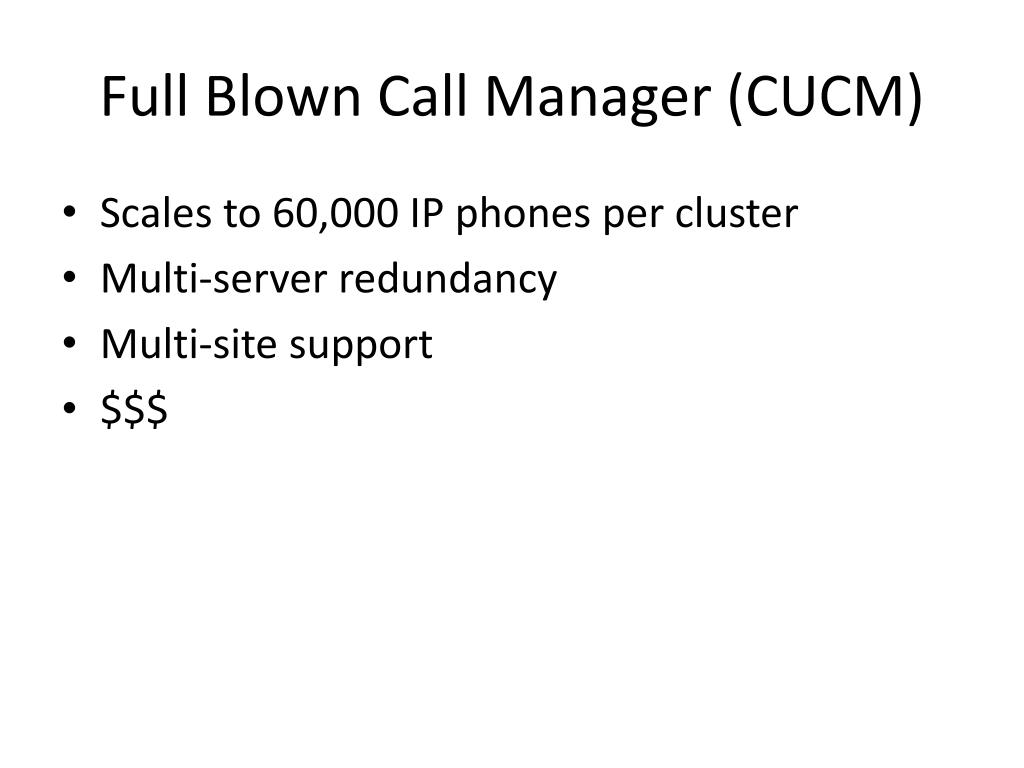

  49. Full Blown Call Manager (CUCM) • Scales to 60,000 IP phones per cluster • Multi-server redundancy • Multi-site support • $$$
