Presentation Transcript

  1. What is this???????

  2. Bone Connective Tissue

  3. Skeletal System

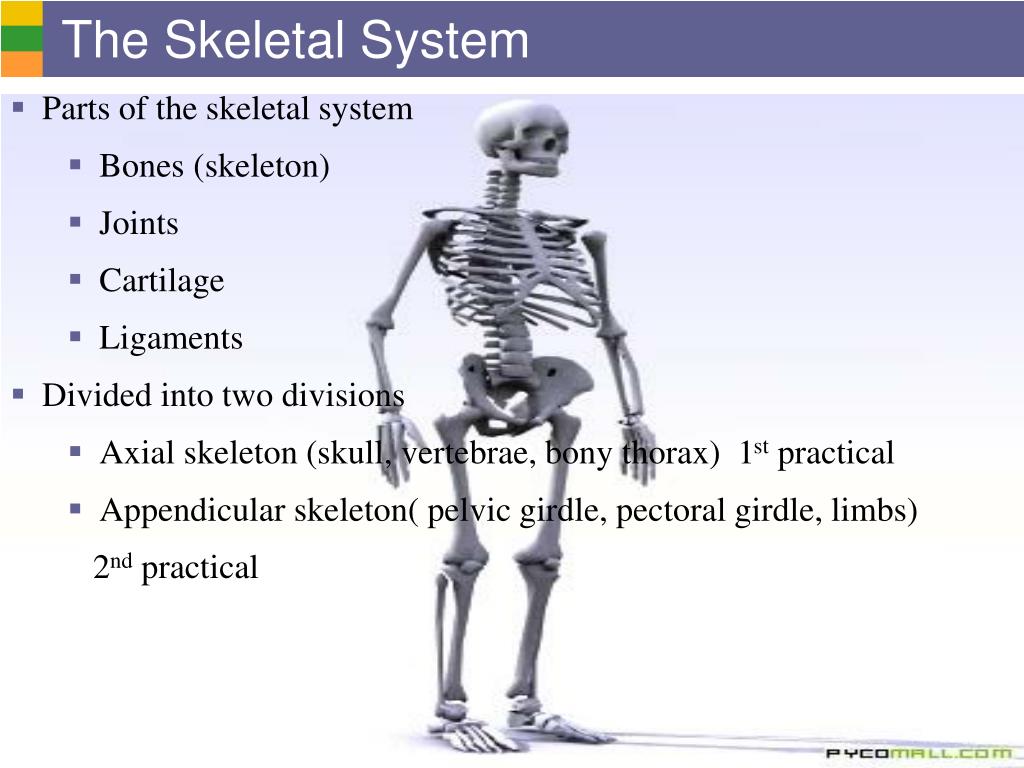

  4. The Skeletal System • Parts of the skeletal system • Bones (skeleton) • Joints • Cartilage • Ligaments • Divided into two divisions • Axial skeleton (skull, vertebrae, bony thorax) 1st practical • Appendicular skeleton( pelvic girdle, pectoral girdle, limbs) 2nd practical

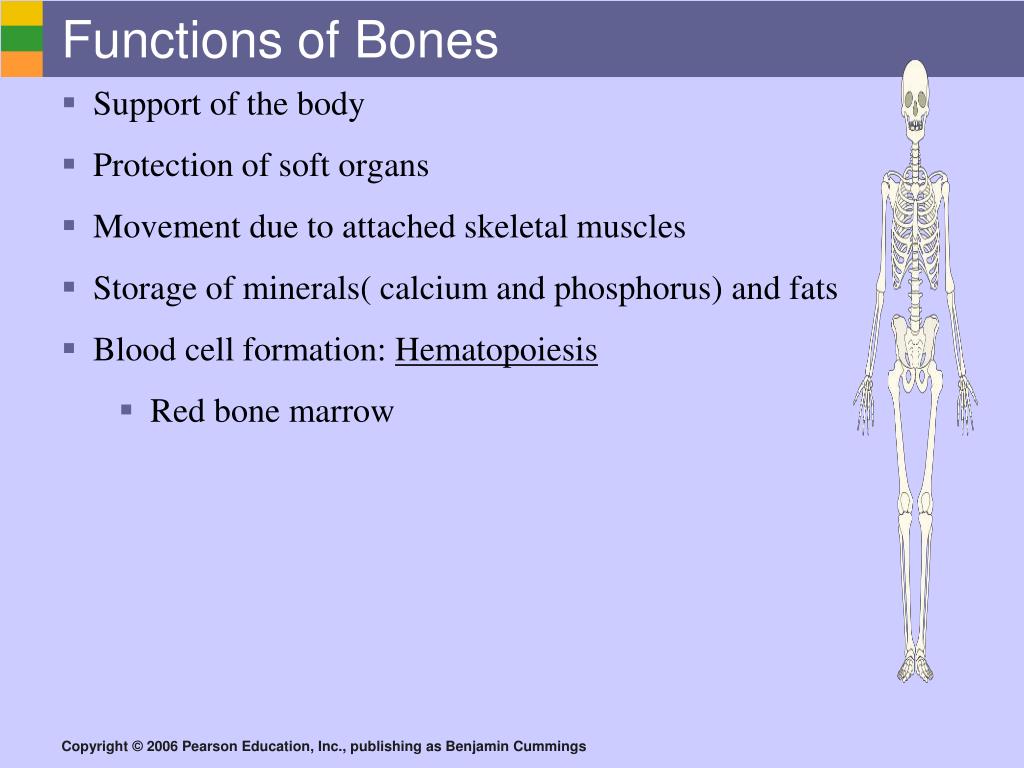

  5. Functions of Bones • Support of the body • Protection of soft organs • Movement due to attached skeletal muscles • Storage of minerals( calcium and phosphorus) and fats • Blood cell formation: Hematopoiesis • Red bone marrow

  6. Bones of the Human Body • The adult skeleton has 206 bones • Two basic types of bone tissue • Compact bone • Dense bone • Spongy bone • Small needle-like pieces of bone • Many open spaces Figure 5.2b

  7. Classification of Bones on the Basis of Shape Figure 5.1

  8. Classification of Bones based on shape • Long bones • Typically longer than wide • Have a shaft with heads at both ends • Contain mostly compact bone • All of the bones of the limbs except the ankle and wrist bones • Examples: Femur, humerus

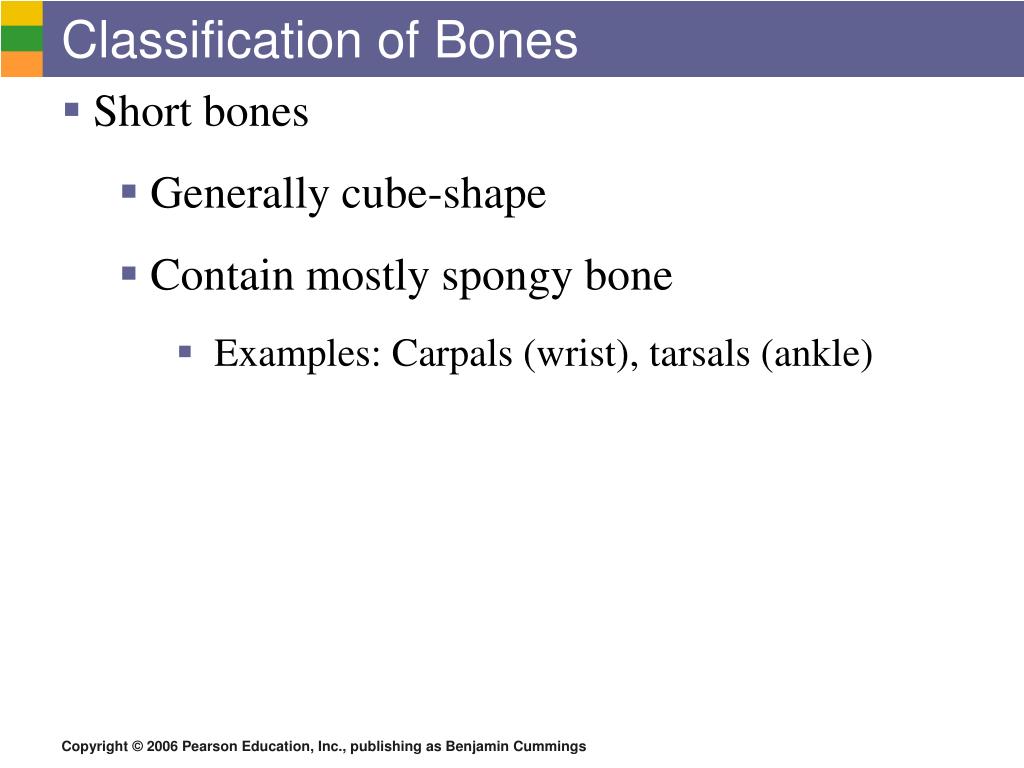

  9. Classification of Bones • Short bones • Generally cube-shape • Contain mostly spongy bone • Examples: Carpals (wrist), tarsals (ankle)

  10. Classification of Bones • Flat bones • Thin and flattened • Usually curved • Thin layers of compact bone around a layer of spongy bone • Examples: Skull, ribs, sternum

  11. Classification of Bones • Irregular bones • Irregular shape • Do not fit into other bone classification categories • Example: Vertebrae and hip

  12. Gross Anatomy of a Long Bone • Diaphysis • Shaft • Composed of compact bone • Epiphysis (pl.epiphyses) • Ends of the bone • Composed mostly of spongy bone • Epiphyseal line remnant of epiphyseal growth plate Figure 5.2a

  13. Structures of a Long Bone • Periosteum • Outside covering of the diaphysis • Fibrous connective tissue membrane • Sharpey’s (perforating) fibers • Secure periosteum to underlying bone • Arteries • Supply bone cells with nutrients Figure 5.2c

  14. Structures of a Long Bone • Articular cartilage • Made of hyaline cartilage • Covers the external surface of the epiphyses • Protects ends of long bones • Decreases friction at joint surfaces Figure 5.2a

  15. Structures of a Long Bone • Medullary cavity • Cavity of the shaft • In adults: contains yellow marrow: stores primarily fat • In infants: contains all red marrow (site of blood cell formation) • As we get older, ½ is converted to yellow marrow (stores fat) • Primary location for red marrow in adults: • Cavities of spongy bone • Epiphyses of some long bones Figure 5.2a

  16. Bone Marrow • Primary location for red marrow in adults: • Cavities of spongy bone • Epiphyses of some long bones

  17. Microscopic Anatomy of Bone • Osteon • A unit of compact bone • Central (Haversian) canal • Opening in the center of an osteon • Carries blood vessels and nerves • Volkmann’s canal • Canal perpendicular to the central canal • Carries blood vessels and nerves

  18. Microscopic Anatomy of Bone Figure 5.3

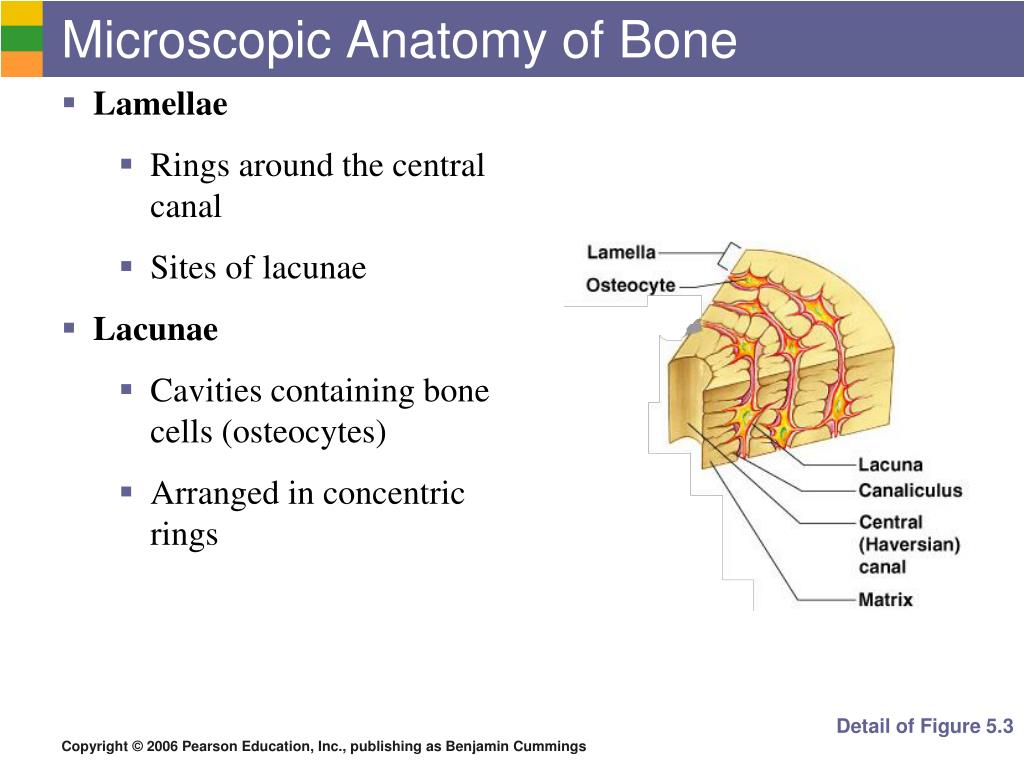

  19. Microscopic Anatomy of Bone • Lamellae • Rings around the central canal • Sites of lacunae • Lacunae • Cavities containing bone cells (osteocytes) • Arranged in concentric rings Detail of Figure 5.3

  20. Microscopic Anatomy of Bone • Canaliculi • Tiny canals • Radiate from the central canal to lacunae • Form a transport system Detail of Figure 5.3

  21. Types of Bone Cells • Osteocytes • Mature bone cells • Osteoblasts (“b” build) • Bone-forming cells, later become osteocytes • Osteoclasts (“c”crash) • Bone-destroying cells • Break down bone matrix for remodeling and release of calcium • Bone remodeling is a process by both osteoblasts and osteoclasts

  22. Bone Growth • Epiphyseal plates allow long bones to grow in length during childhood • New cartilage is continuously formed • Older cartilage is broken down and becomes ossified (ossification: conversion to bone) • Bone replaces cartilage

  23. Bone Growth • Bones are remodeled and lengthened until growth stops • Bones change shape somewhat • Bones grow in width “appositional growth” (increase muscle mass, throughout life)

  24. Long Bone Formation and Growth Figure 5.4b

  25. Bone Remodeling • 2 Factors that contribute to Bone Remodeling (bone diameter) 1. Blood calcium levels • Low blood calcium levels: • Parathyroid glands release PTH(parathyroid hormone) into blood: • PTH stimulates osteoclasts to break down calcium in matrix and release calcium into blood

  26. High blood calcium levels: • Thyroid gland releases Calcitonin to decrease activity of osteoclasts, which lowers blood calcium

  27. 2. Mechanical Stress (pull of gravity and muscles on the skeleton) • Determines where bone matrix is to be broken down or formed. • Bones become thicker to increase their strength in regions where bulky muscles are attached. • Osteoblasts lay down the matrix and become trapped (osteocytes) Exercise helps to buildmuscle mass. • Bed-ridden, physically inactive lose muscle/bone mass (atrophy) because bones are not subjected to stress
