  1. DEEPARTI SILICONS • Our Factory • Deeparti Silicons • Factory Area 10000 sq ft

  2. INTRODUCTION • DEEPARTI SILICONS • 133-A, SECTOR –A, INDUSTRIAL AREA, MANDIDEEP-462046 • Telephone: - 07480-403877, mob. No. 9303131905 • E-mail.:- deepartisilicons@yahoo.com • We introduce ourselves as manufacturers of CT windings, CT, PT, and CT-PT Units indoor & outdoor and are located atMandideep near Bhopal. • We are very well versed in this line and are more than 15 years old, involved in the manufacturer of Transformer laminations, toroidal cores , ring cores, cut core ,stepped round/rectangular core, DG cores etc., secondary winding of cores for CT’s up to 400 kV, wall shunt assembly for power transformer tanks etc.

  3. We have recently added a complete product range for manufacture of CT, PT up to 33 kv (outdoor & indoor) we are well equipped with all manufacturing facility for CT/PT .We have in- house set up for production of transformer laminations, slitting line for manufacture toroidal cores, winding of Toroidal cores, primary and secondary winding of CT/ PT, heat treatment etc. We have a full fledged set up of testing facility of the highest accuracies .We have qualified / skilled man power involved in manufacture, production, quality assurance, testing of our product range.

  4. Informatively, our CT/PT units have been type tested with CPRI Bhopal. The relevant certificate will be submitted. We have been well accepted in terms of quality, delivery, etc. by our customers including M/S BHEL, M/S ABB LTD., M/S Siemens, and M/S. Areva among others. May we request you to consider us as a source to meet your Transformer Laminations, Toroidal cores, Ring Core, Secondary windings, CT/PT requirement and forward your valued enquiry enabling us to initiate the process for business development.

  5. Product We offer comprehensive range of industrial products these are cost efficient, highly durable and have long service life. Any tailor-made specification in the product can be incorporated based on customer’s requirements. Our industrial products are:- • CT-PT COMBINED UNIT :- combined CT-PT units up to 33kV , this is a system having 3 nos. Of CT’s& PT’s housed in metallic enclosure live and earth parts are insulated by porcelain insulators. This unit used for 3 phase 4 wire system. These units are hermetically sealed to ensure non ageing of insulation. • CURRENT TRANSFORMER:- It is a measuring device for metering and protection system. • POTENTIAL TRANSFORMER:- PT is used to step down the system voltage to Measureable voltage of 110/63.5 V Features Type :- Outdoor/indoor Related voltage : - up to 33kV Primary current :- 5A to 2000A Secondary current :- 5A & 1A Ratio :- as per requirement Accuracy/Burden :- as per requirement Voltage factor :- 1.2 cont.& as per requirement

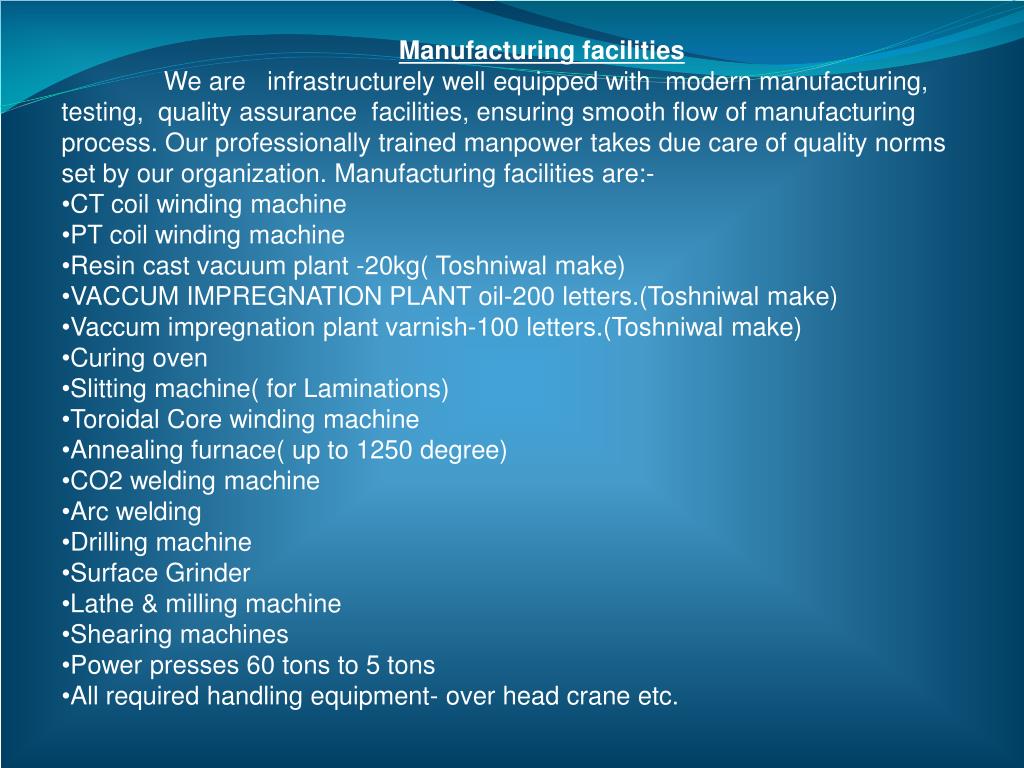

  6. Manufacturing facilities We are infrastructurely well equipped with modern manufacturing, testing, quality assurance facilities, ensuring smooth flow of manufacturing process. Our professionally trained manpower takes due care of quality norms set by our organization. Manufacturing facilities are:- • CT coil winding machine • PT coil winding machine • Resin cast vacuum plant -20kg( Toshniwal make) • VACCUM IMPREGNATION PLANT oil-200 letters.(Toshniwal make) • Vaccum impregnation plant varnish-100 letters.(Toshniwal make) • Curing oven • Slitting machine( for Laminations) • Toroidal Core winding machine • Annealing furnace( up to 1250 degree) • CO2 welding machine • Arc welding • Drilling machine • Surface Grinder • Lathe & milling machine • Shearing machines • Power presses 60 tons to 5 tons • All required handling equipment- over head crane etc.

  7. Testing facilities • Accuracy testing bridge for CT & PT of ELTEL, Bangalore. (2 units) • Standard CT 5A & 1A( make Sev electrical)ratio :- up to 1200 A • Standard PT ratio:-33-11-6.6-3.3kV/110-63.5V • High voltage test set-0 to 100 kV(make Automatic electric) • CT core test set • High current injection source up to 2000A • High voltage injection source up to 33 kv • High frequency voltage generator 200 Hz(DVDF) • Resistance meter(rishabh) • Multimeter(fluke/rishabh) • PT Burden box(up to 150 VA) • CT Burden Box( up to 40 VA) • Meger meter • Ratio meter( Eltel) • True RMS. Meter( fluke) • Low voltage meter-0 to 5 kv • All related standard measuring equipment

  8. Details Of Type Tests Conducted

  9. ATOSMOSPHHERE • Eco friendly atosmophere

  10. GARDEN • Garden

  11. CUT CORE • Cut core • Used in MVR coils • Dim:- • Material: M4 Lamination

  12. CUT CORE • Two halves of cut core • Complete taped core with earth strip

  13. IVT COIL • IVT coil (Intermediate voltage transformer) used in 220 KV CVT assembly.

  14. IVT COIL • IVT coil used in CVT assembly

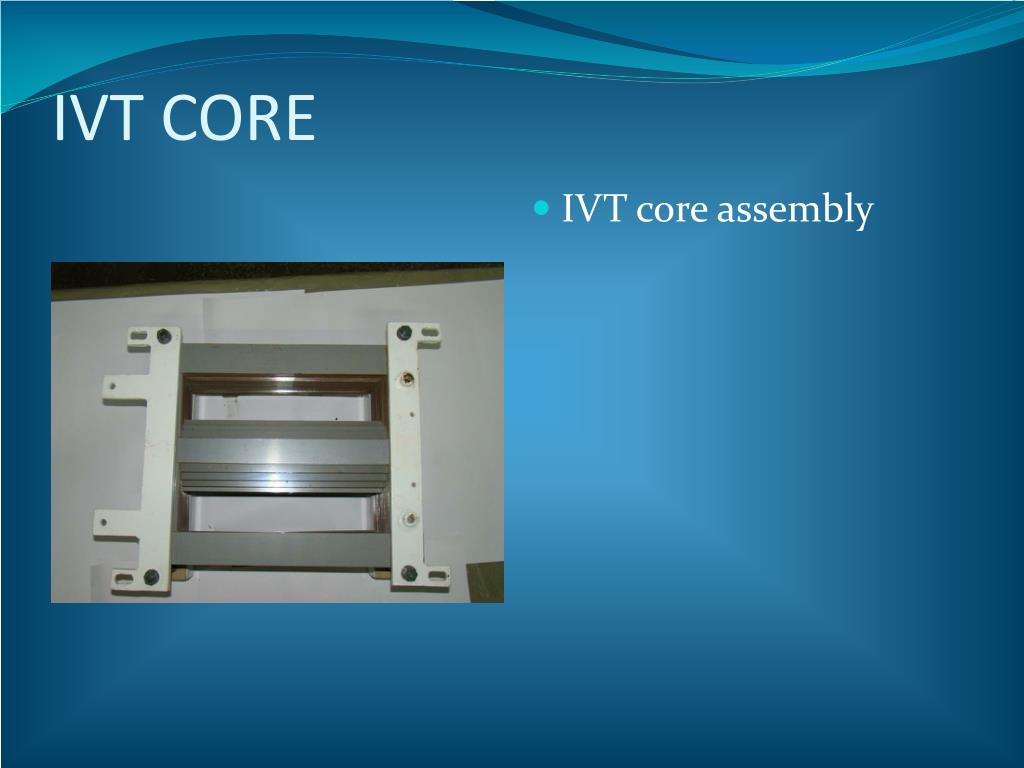

  15. IVT CORE • IVT core assembly

  16. IVT CORE • IVT core assembly

  17. IVT ASSEMBLY • IVT core assembly with coil used in EMU assembly for 220 KV cvt

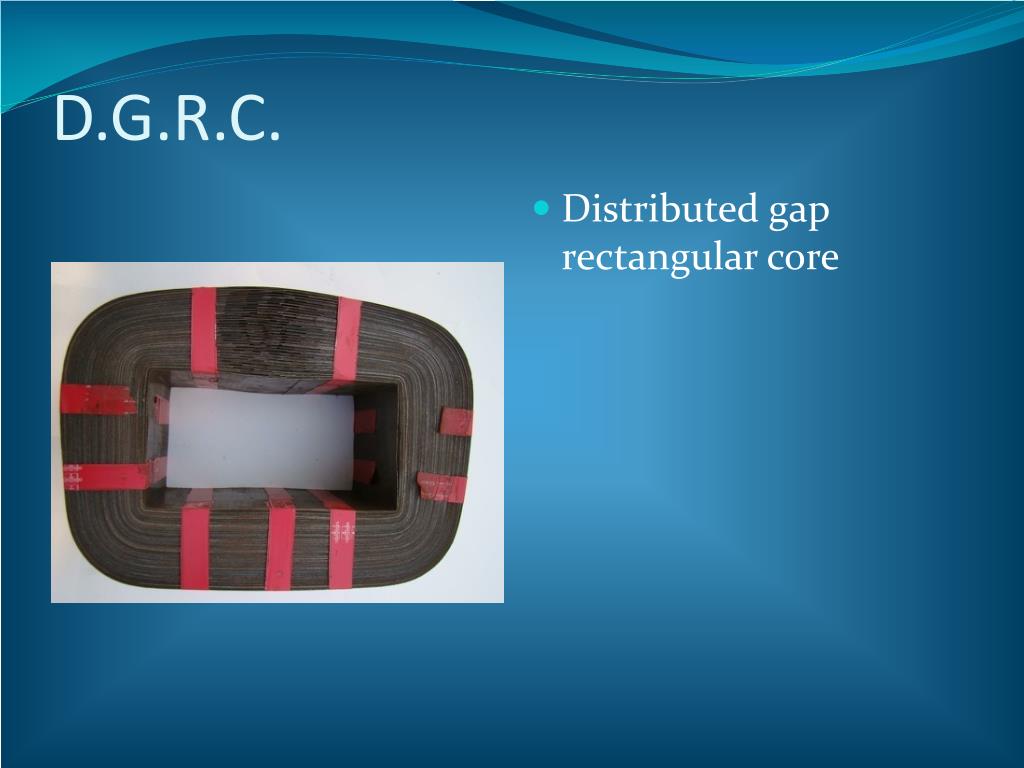

  18. D.G.R.C. • Distributed gap rectangular core

  19. D.G.R.C. • Distributed gap core • The gaps are seen

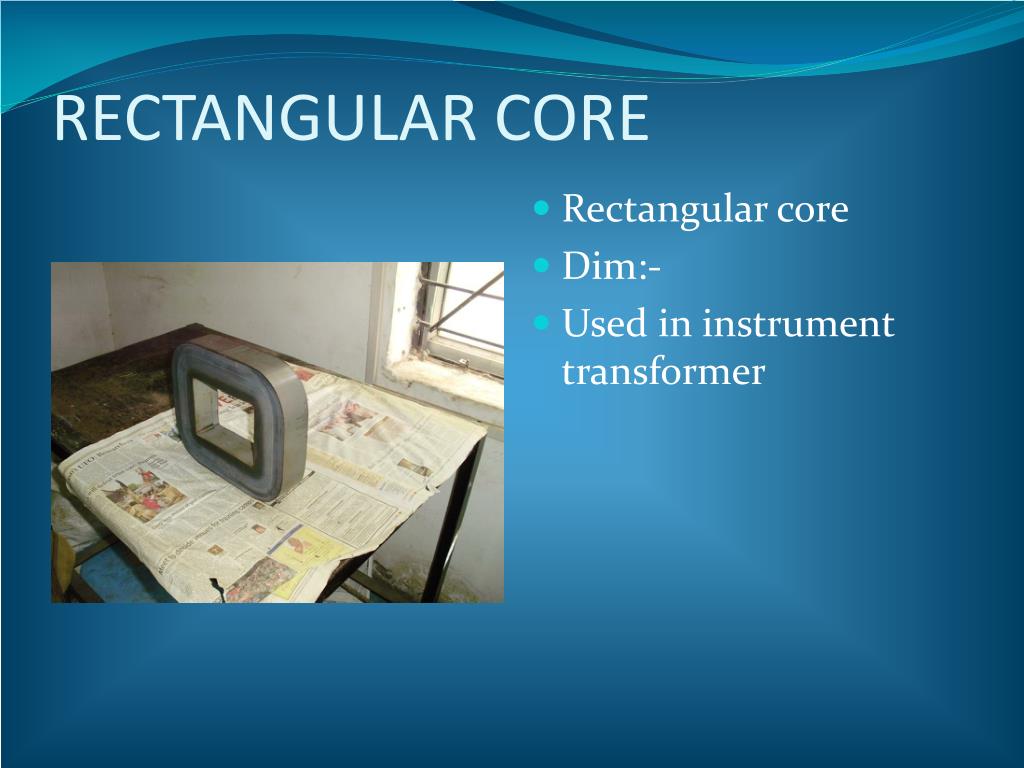

  20. RECTANGULAR CORE • Rectangular core • Dim:- • Used in instrument transformer

  21. RECTANGULAR CORE • Bare rectangular core • Taped rectangular core with earthing strip

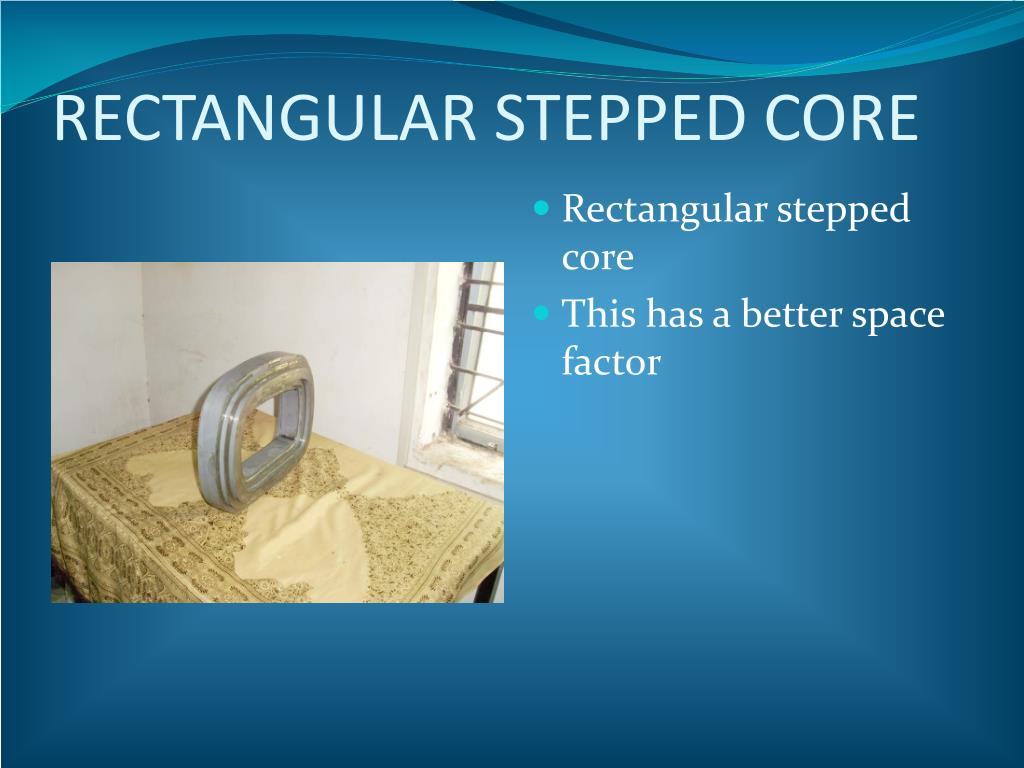

  22. RECTANGULAR STEPPED CORE • Rectangular stepped core • This has a better space factor

  23. STEPPED CORE • Rectangular stepped core with round corners

  24. ROUND CORNER • Rectangular round corner core

  25. RING STEPPED CORE • Round stepped core • Dim:-

  26. RING STEPPED CORE • Round stepped core • Dim:-As per requirment

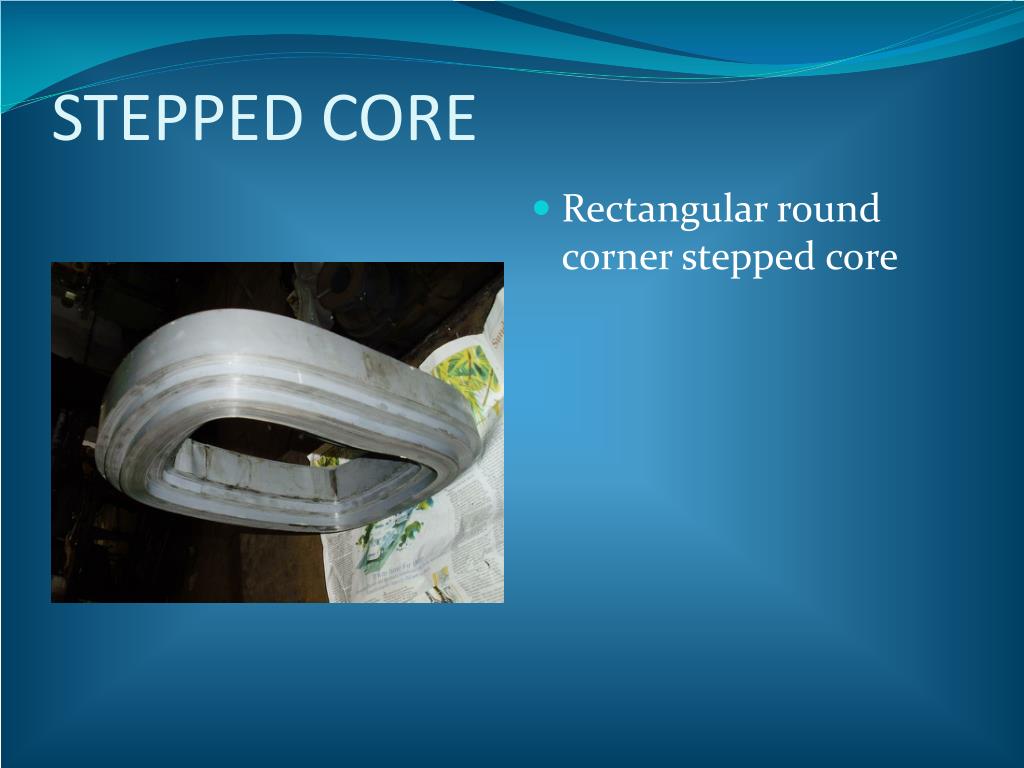

  27. STEPPED CORE • Rectangular round corner stepped core

  28. RING CORE • Round corner stepped core

  29. STEPPED RING CORE • Round core stepped core

  30. 33 KV CT-PT UNIT

  31. 11KV CT-PT UNIT

  32. CURRENT TRANSFORMER

  33. VOLTAGE TRANSFORMER

  34. SECONDARY WINDING

  35. SHUNT WALL FOR POWER TRANSFORMER
