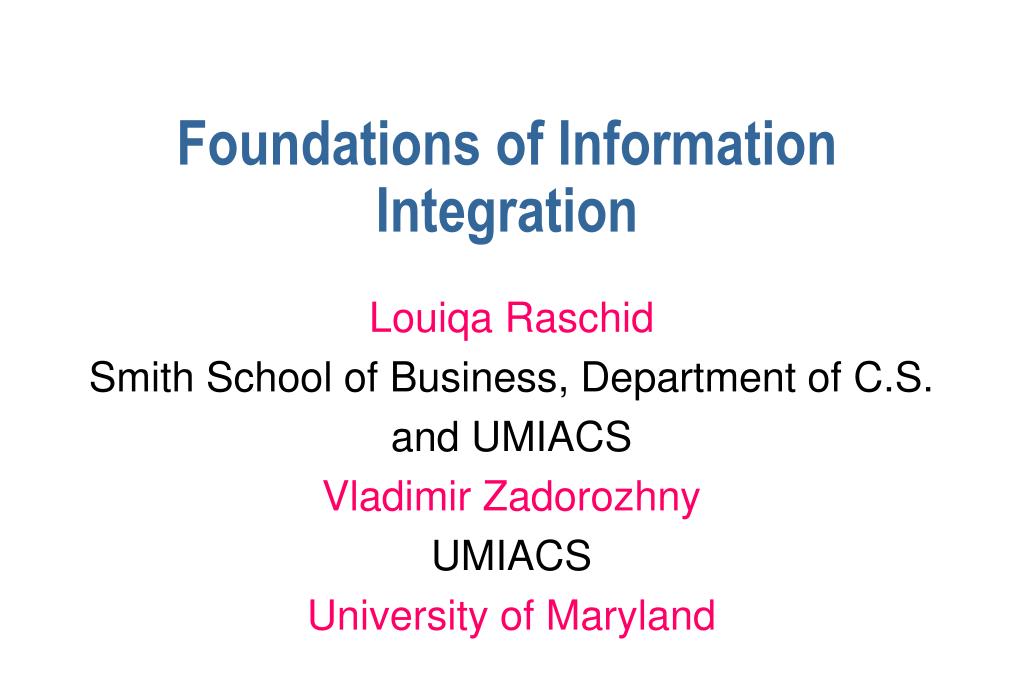

  1. Foundations of Information Integration Louiqa Raschid Smith School of Business, Department of C.S. and UMIACS Vladimir Zadorozhny UMIACS University of Maryland

  2. Preliminary Observations Information integration is pushing the state-of-the-art of current practice. Roadblocks to success will be inherent to the organization rather than technology limitations. Presentation to JRSA - June 15, 1999

  3. Dimensions of Interoperability(initial) • Platform (machine and O/S) • Programming Language • Application Semantics • Database Model • Query Language • Database Schema • Database Semantics Presentation to JRSA - June 15, 1999

  4. Technology Solutions and Interoperability Dimensions • Middleware • Focus on platform, language, application semantics. • Database Gateways, MultiDBMS, Heterogeneous DBMS • Focus on database integration, database query processing. • Data Warehouses • Focus on management decision support. • Workflow Management NONE OF the solutions address DATABASESEMANTICS. Additional dimensions: Multi-media (full text, images, video) Presentation to JRSA - June 15, 1999

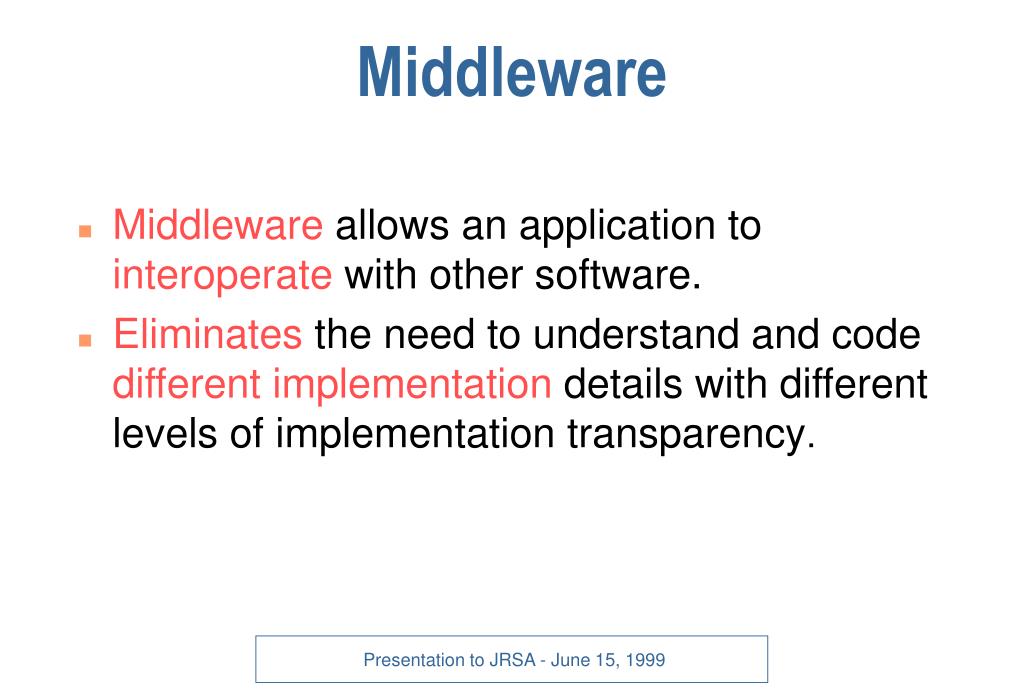

  5. Middleware • Middleware allows an application to interoperate with other software. • Eliminates the need to understand and code different implementation details with different levels of implementation transparency. Presentation to JRSA - June 15, 1999

  6. Presentation to JRSA - June 15, 1999

  7. CORBA approach • PL neutral “contract language” OMG IDL • IDL/PL compiler based on standard Object Request Broker (ORB) architecture ensuring “common address space” and “common data format”. • ORB is a standard middleware that may have specific implementations in different environments • Iona Orbix, BEA ObjectBroker Presentation to JRSA - June 15, 1999

  8. Presentation to JRSA - June 15, 1999

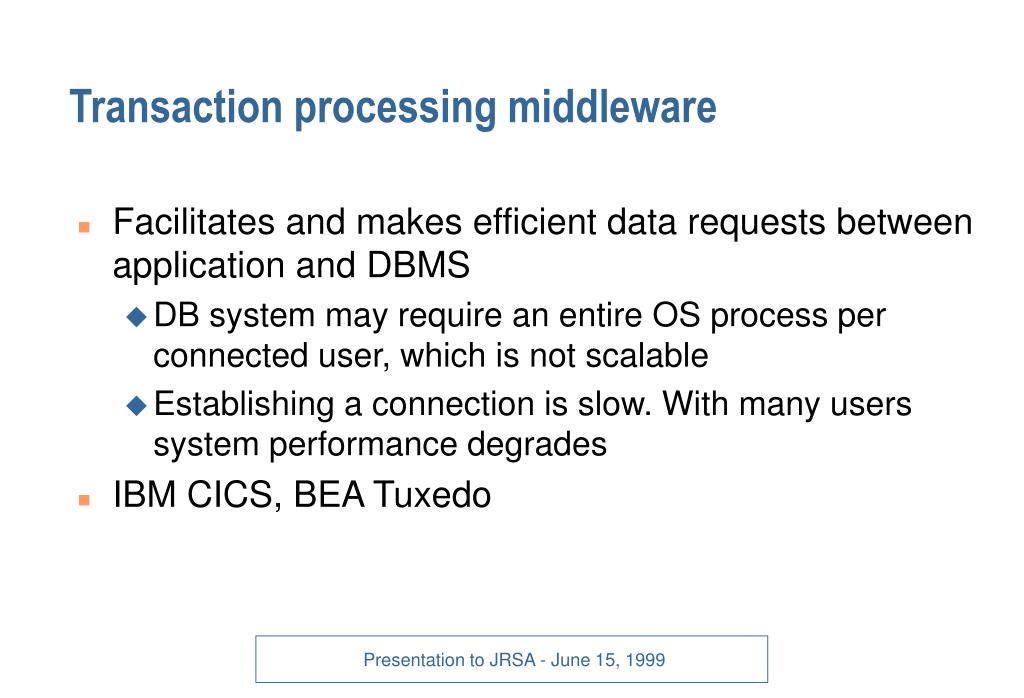

  9. Transaction processing middleware • Facilitates and makes efficient data requests between application and DBMS • DB system may require an entire OS process per connected user, which is not scalable • Establishing a connection is slow. With many users system performance degrades • IBM CICS, BEA Tuxedo Presentation to JRSA - June 15, 1999

  10. Database Gateways, Multi-DBMS, Heterogeneous DBMS • Transparent access to multiple physical DBMS • Typically transparent to platform and DBMS product • Provides Logical Database Integration, i.e., transparent support of SQL queries over multiple DBMS • Support joins, unions, views over multiple DBMS • Example products • IBM DataJoiner, • Informix Enterprise Gateway Manager Presentation to JRSA - June 15, 1999

  11. Presentation to JRSA - June 15, 1999

  12. Presentation to JRSA - June 15, 1999

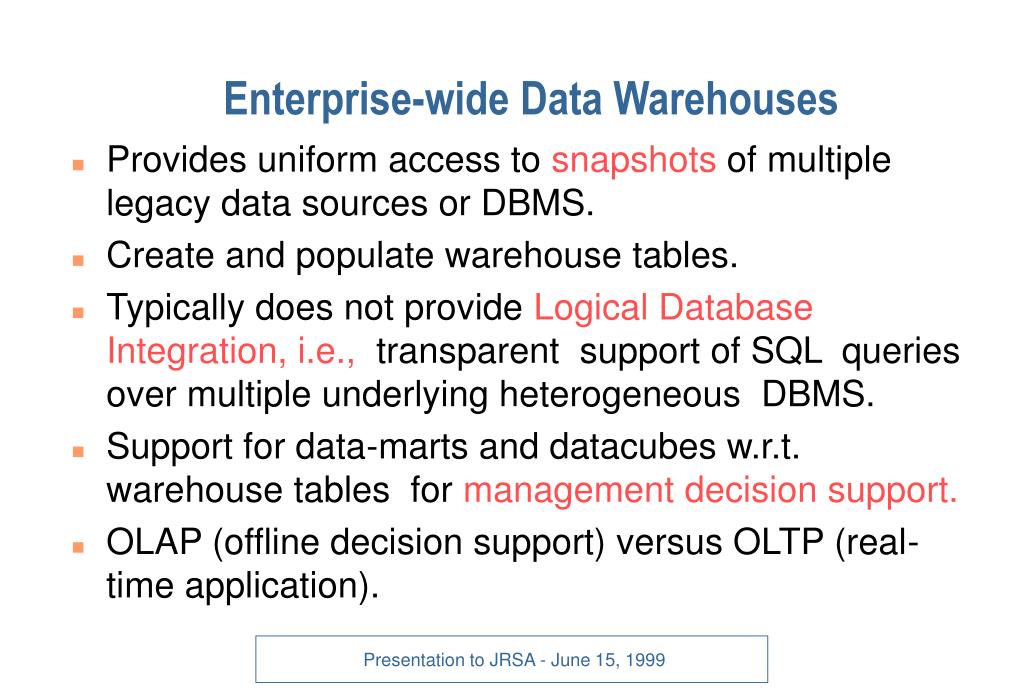

  13. Enterprise-wide Data Warehouses • Provides uniform access to snapshots of multiple legacy data sources or DBMS. • Create and populate warehouse tables. • Typically does not provide Logical Database Integration, i.e., transparent support of SQL queries over multiple underlying heterogeneous DBMS. • Support for data-marts and datacubes w.r.t. warehouse tables for management decision support. • OLAP (offline decision support) versus OLTP (real-time application). Presentation to JRSA - June 15, 1999

  14. Presentation to JRSA - June 15, 1999

  15. Workflow Management • Focus on business transactions / event management. • May be transparent to platform and DBMS product. • Typically does not provide Logical Database Integration i.e., transparent support of SQL queries over multiple heterogeneous DBMS. • Example products • Staffware • JetForm Presentation to JRSA - June 15, 1999

  16. Useful Links • A general product overview site of more then 900 products (formerly DBMS Buyer’s Guide): • http://www.iemagazine.com/pguide_frm.shtml • Comprehensive technology guides and articles: • http://www.techguide.com • http://www.intelligententerprise.com/archives.shtml • A comprehensive guide to Workflow Management: • http://www.concordium.co.uk Presentation to JRSA - June 15, 1999
