  1. WLCG Transfers Dashboard A unified monitoring tool for heterogeneous data transfers. AlexandreBeche <Alexandre.beche@cern.ch>

  2. Outlines Mission History of the data transfers monitoring tools Generic monitoring workflow New WLCG Transfers Dashboard Summary Alexandre Beche – White Area

  3. Mission ATLAS FTS + XRootD CMS FTS + XRootD LHCb FTS ALICE XRootD Alexandre Beche – White Area

  4. Mission ATLAS FTS + XRootD CMS FTS + XRootD LHCb FTS ALICE XRootD Alexandre Beche – White Area

  5. Mission ATLAS FTS + XRootD CMS FTS + XRootD LHCb FTS ALICE XRootD Alexandre Beche – White Area

  6. History of data transfers monitoring tools WLCG Transfers Dashboard WEB API / UI WLCG FTS Alexandre Beche – White Area

  7. History of data transfers monitoring tools WLCG Transfers Dashboard WEB API / UI XRootD integration WLCG FTS FAX AAA Alexandre Beche – White Area

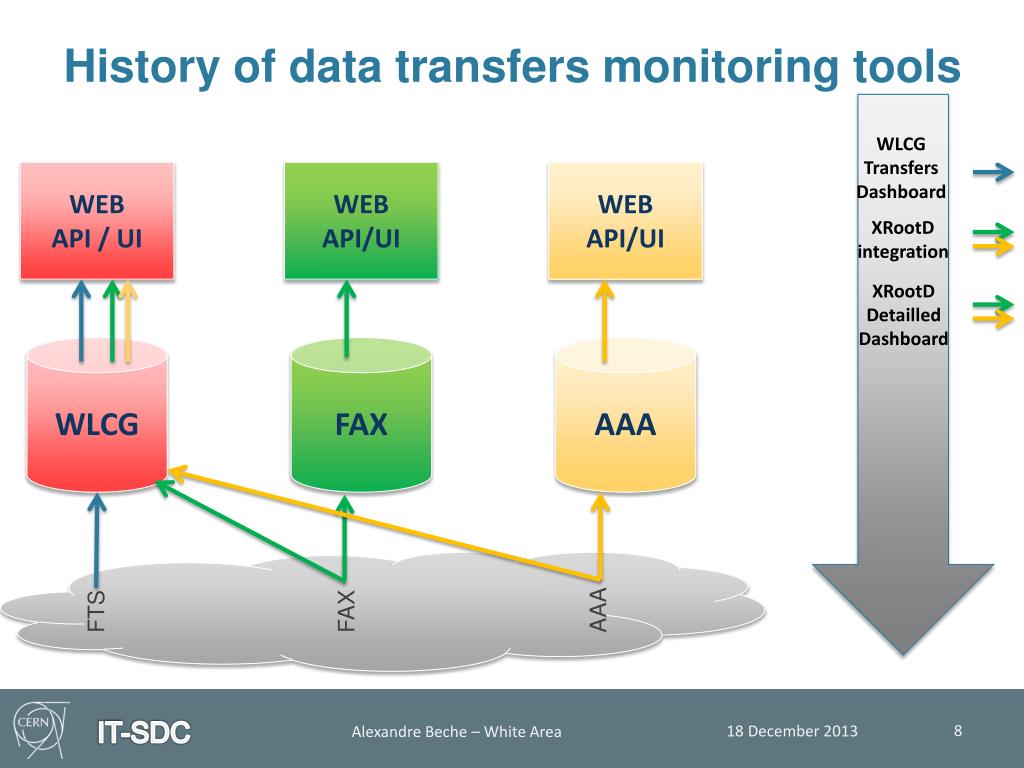

  8. History of data transfers monitoring tools WLCG Transfers Dashboard WEB API/UI WEB API/UI WEB API / UI XRootD integration XRootD Detailled Dashboard WLCG AAA FAX FTS FAX AAA Alexandre Beche – White Area

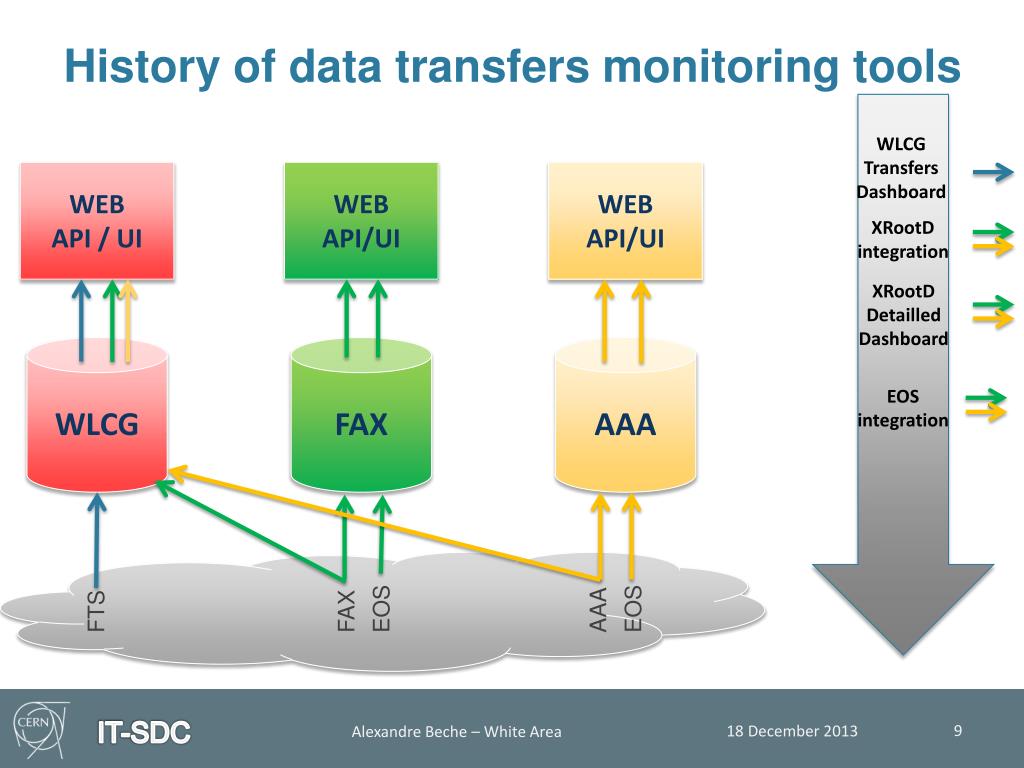

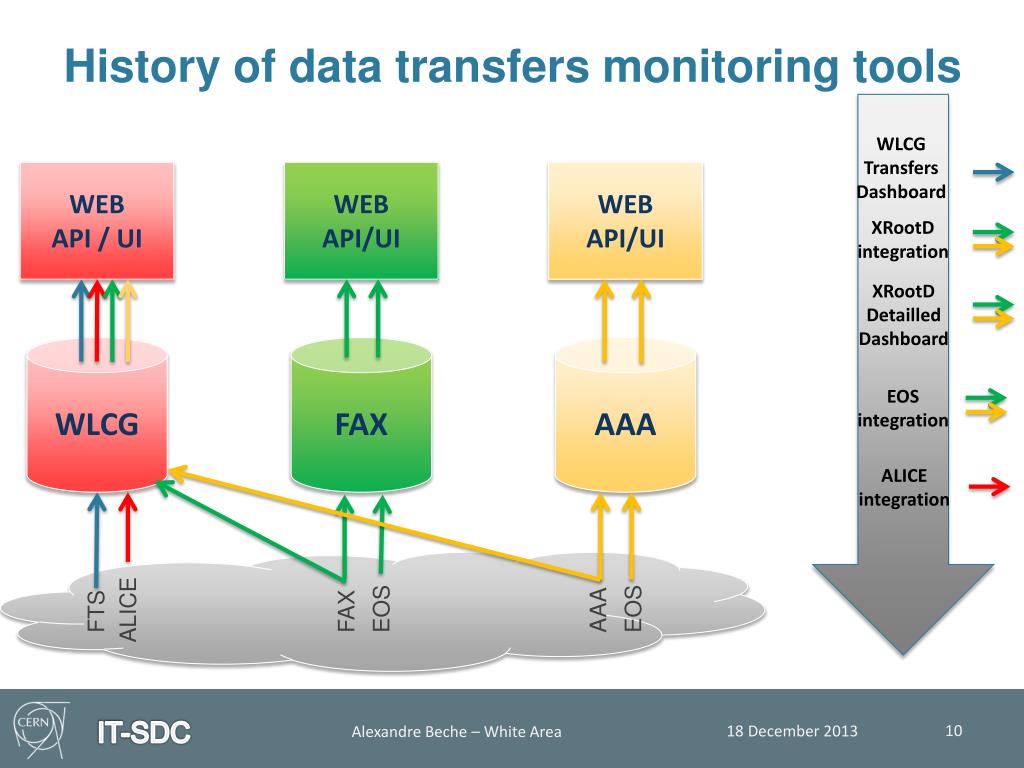

  9. History of data transfers monitoring tools WLCG Transfers Dashboard WEB API/UI WEB API/UI WEB API / UI XRootD integration XRootD Detailled Dashboard WLCG AAA FAX EOS integration FTS FAX EOS AAA EOS Alexandre Beche – White Area

  10. History of data transfers monitoring tools WLCG Transfers Dashboard WEB API/UI WEB API/UI WEB API / UI XRootD integration XRootD Detailled Dashboard WLCG AAA FAX EOS integration ALICE integration FTS FAX EOS AAA EOS ALICE Alexandre Beche – White Area

  11. Generic monitoring workflow AMQ AMQ Raw & Statistics WEB UI WEB API Consumer Alexandre Beche – White Area

  12. From ActiveMQ to Oracle • Load balanced collector • Horizontal scaling Consumer AMQ DB Consumer Alexandre Beche – White Area

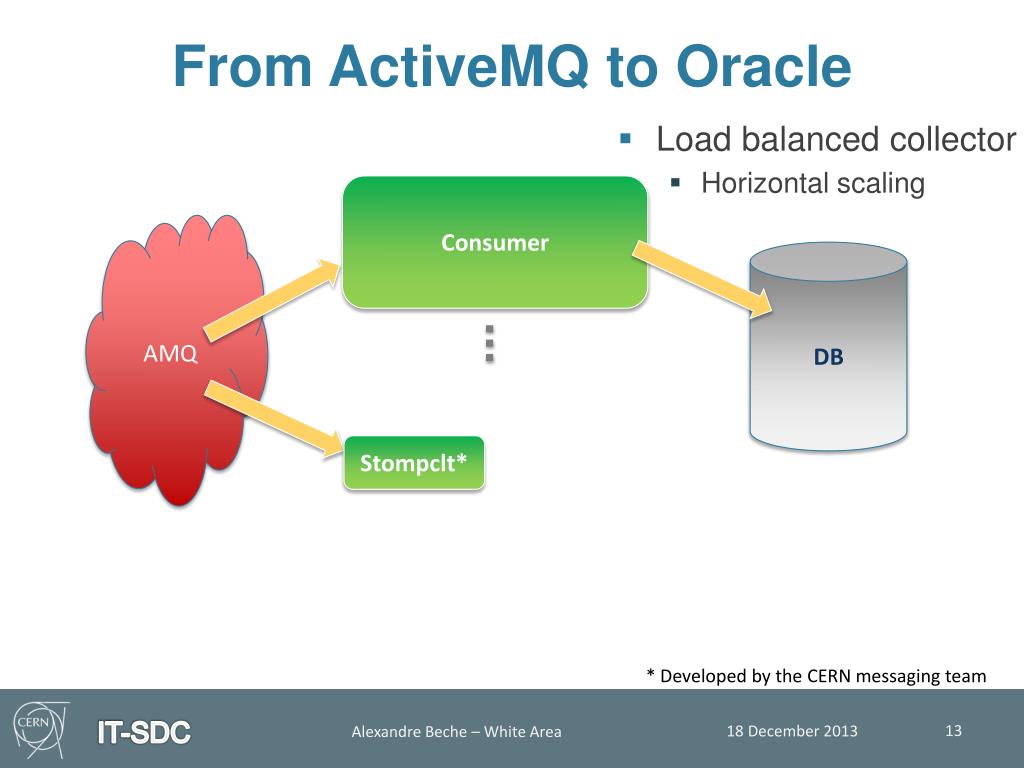

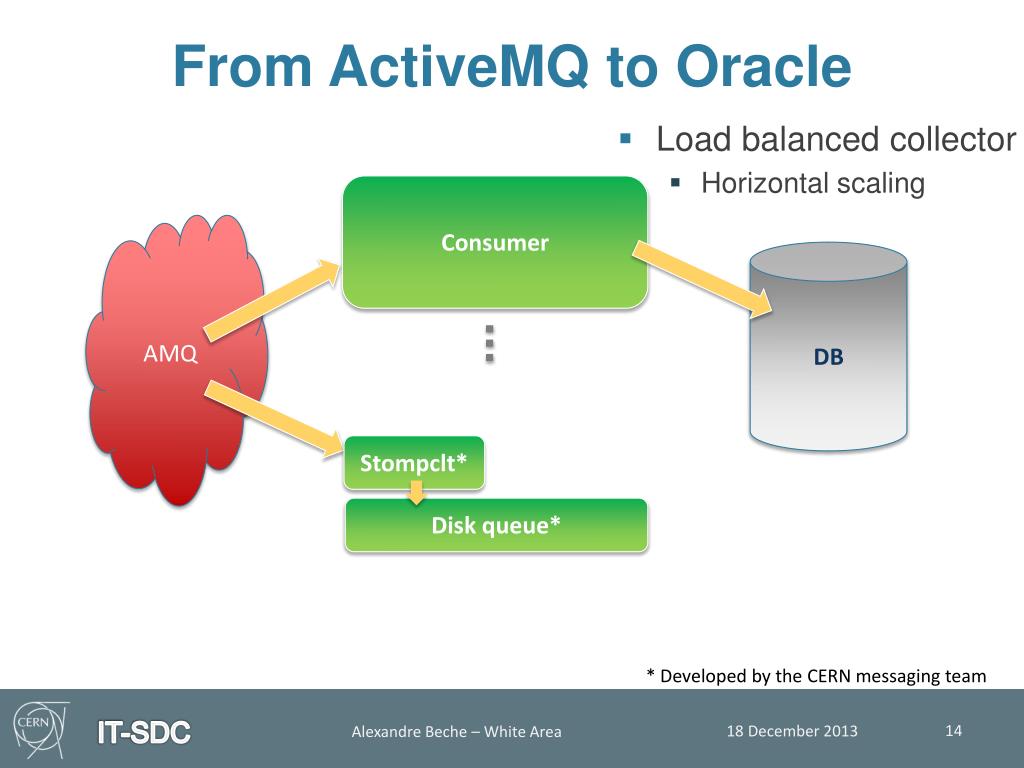

  13. From ActiveMQ to Oracle • Load balanced collector • Horizontal scaling Consumer AMQ DB Stompclt* * Developed by the CERN messaging team Alexandre Beche – White Area

  14. From ActiveMQ to Oracle • Load balanced collector • Horizontal scaling Consumer AMQ DB Stompclt* Disk queue* * Developed by the CERN messaging team Alexandre Beche – White Area

  15. From ActiveMQ to Oracle • Load balanced collector • Horizontal scaling Consumer AMQ DB Stompclt* DB inserter • Customizable inserter • Data enhancement • Filtering Disk queue* * Developed by the CERN messaging team Alexandre Beche – White Area

  16. From ActiveMQ to Oracle • Load balanced collector • Horizontal scaling Consumer AMQ DB Simplevisor* Stompclt* DB inserter • Customizable inserter • Data enhancement • Filtering Disk queue* * Developed by the CERN messaging team • Modular architecture • Common building blocks (EPEL) • Reliable Alexandre Beche – White Area

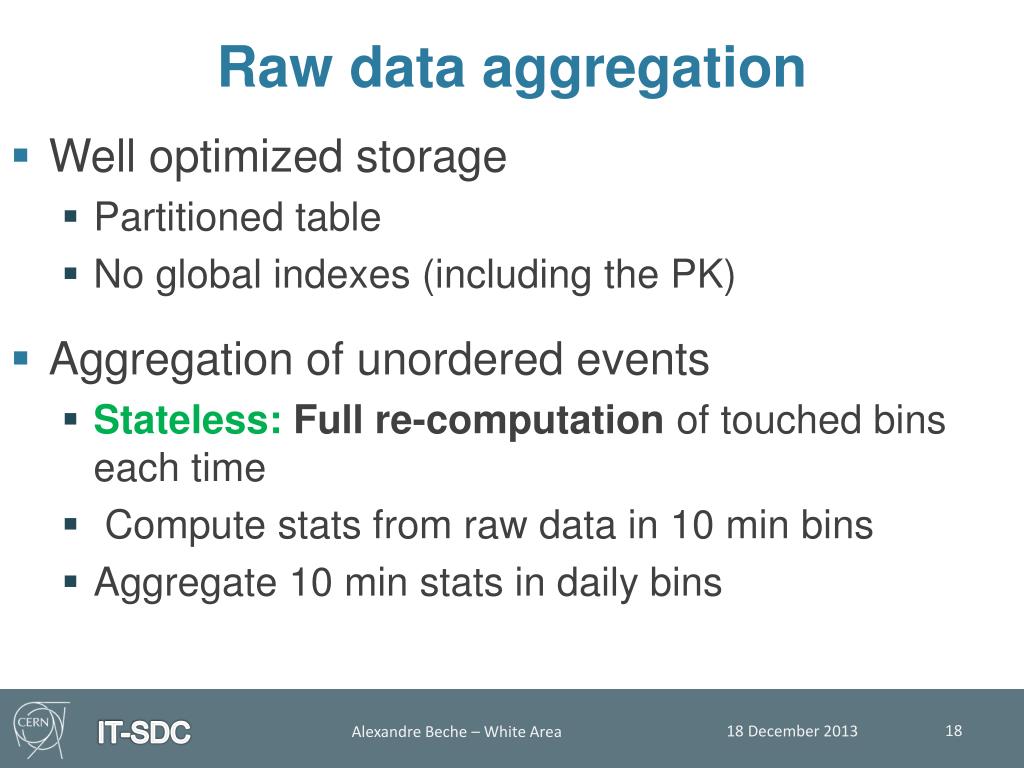

  17. Raw data aggregation • Well optimized storage • Partitioned table • No global indexes (including the PK) Alexandre Beche – White Area

  18. Raw data aggregation • Well optimized storage • Partitioned table • No global indexes (including the PK) • Aggregation of unordered events • Stateless: Full re-computation of touched bins each time • Compute stats from raw data in 10 min bins • Aggregate 10 min stats in daily bins Alexandre Beche – White Area

  19. Aggregation methods Transfers 2pm 3pm 4pm 5pm 6pm 7pm Alexandre Beche – White Area

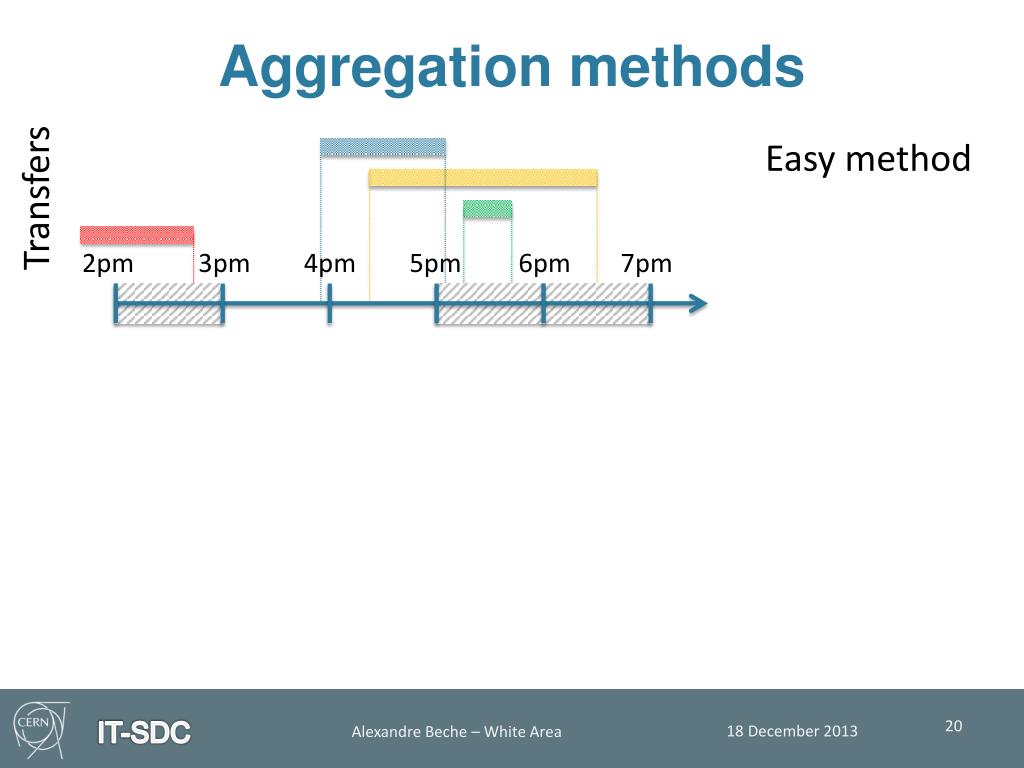

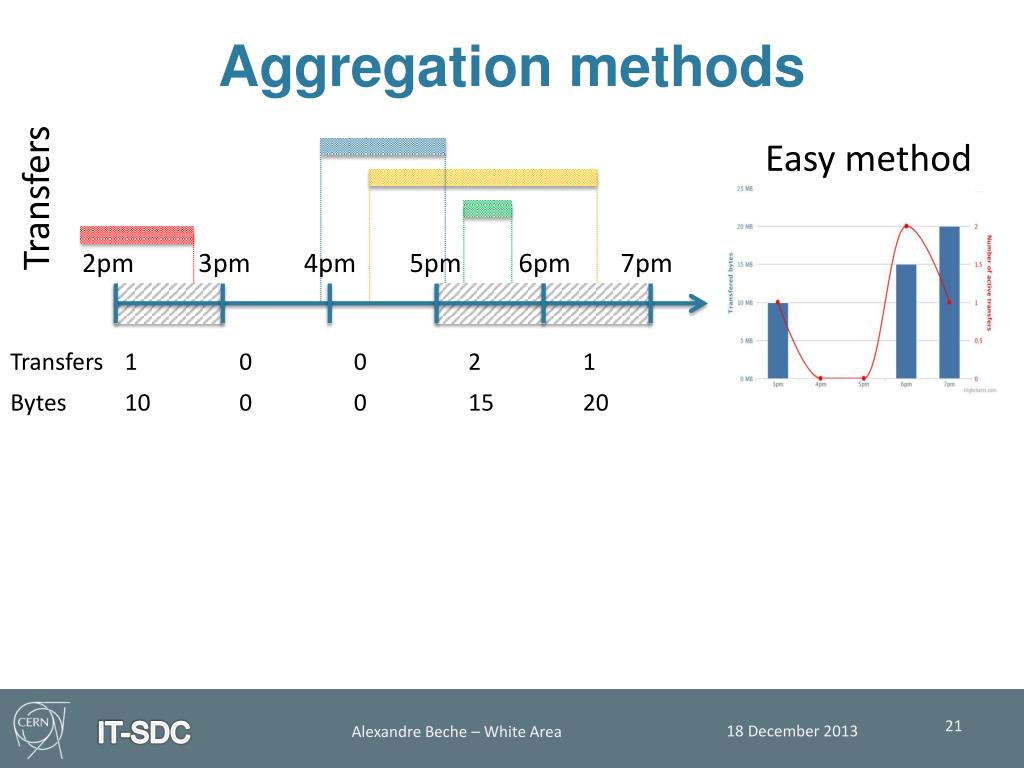

  20. Aggregation methods Easy method Transfers 2pm 3pm 4pm 5pm 6pm 7pm Alexandre Beche – White Area

  21. Aggregation methods Easy method Transfers 2pm 3pm 4pm 5pm 6pm 7pm Alexandre Beche – White Area

  22. Aggregation methods Easy method Transfers 2pm 3pm 4pm 5pm 6pm 7pm Alexandre Beche – White Area

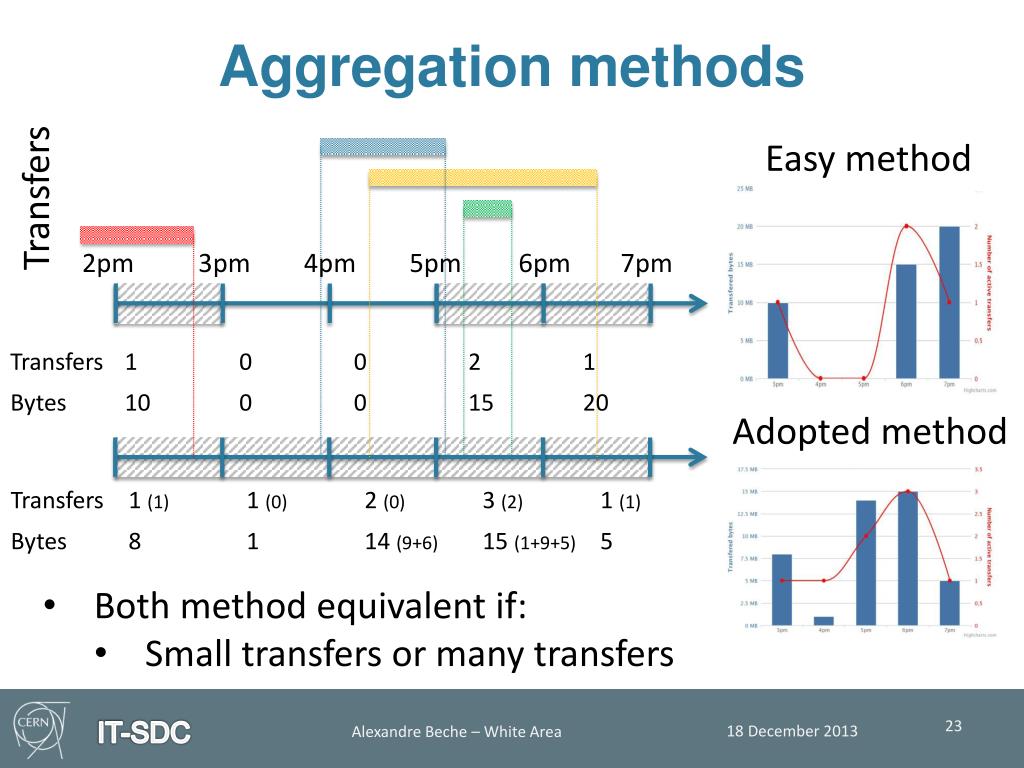

  23. Aggregation methods Easy method Transfers 2pm 3pm 4pm 5pm 6pm 7pm Adopted method • Both method equivalent if: • Small transfers or many transfers Alexandre Beche – White Area

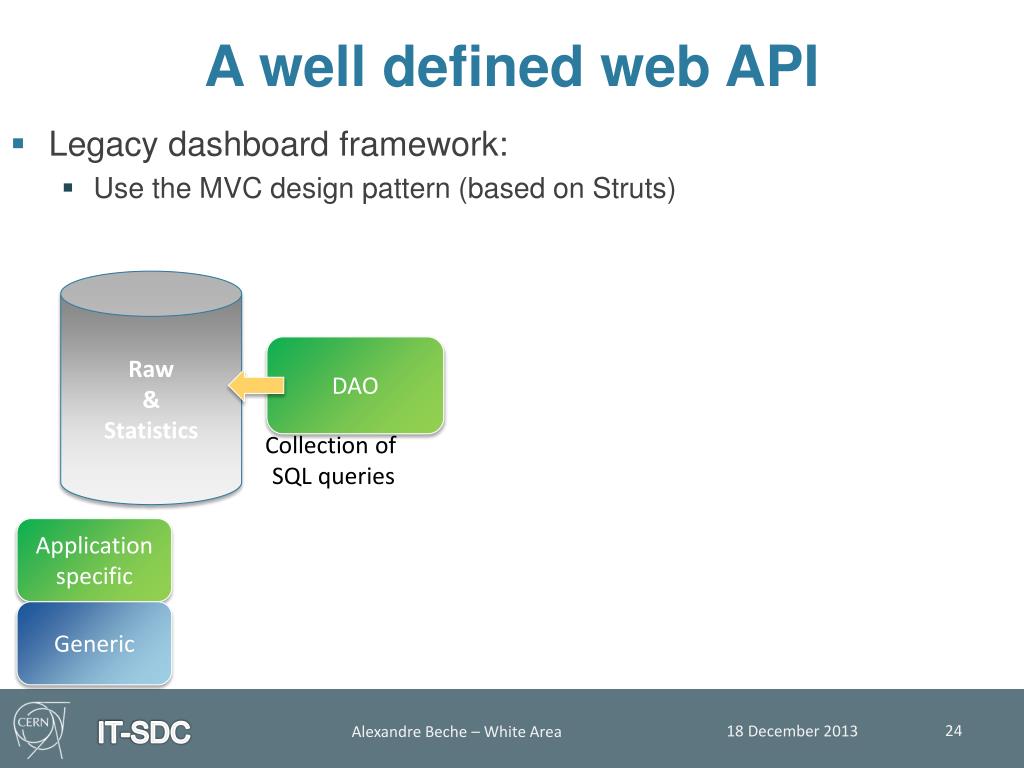

  24. A well defined web API Raw & Statistics DAO Collection of SQL queries Application specific Generic • Legacy dashboard framework: • Use the MVC design pattern (based on Struts) Alexandre Beche – White Area

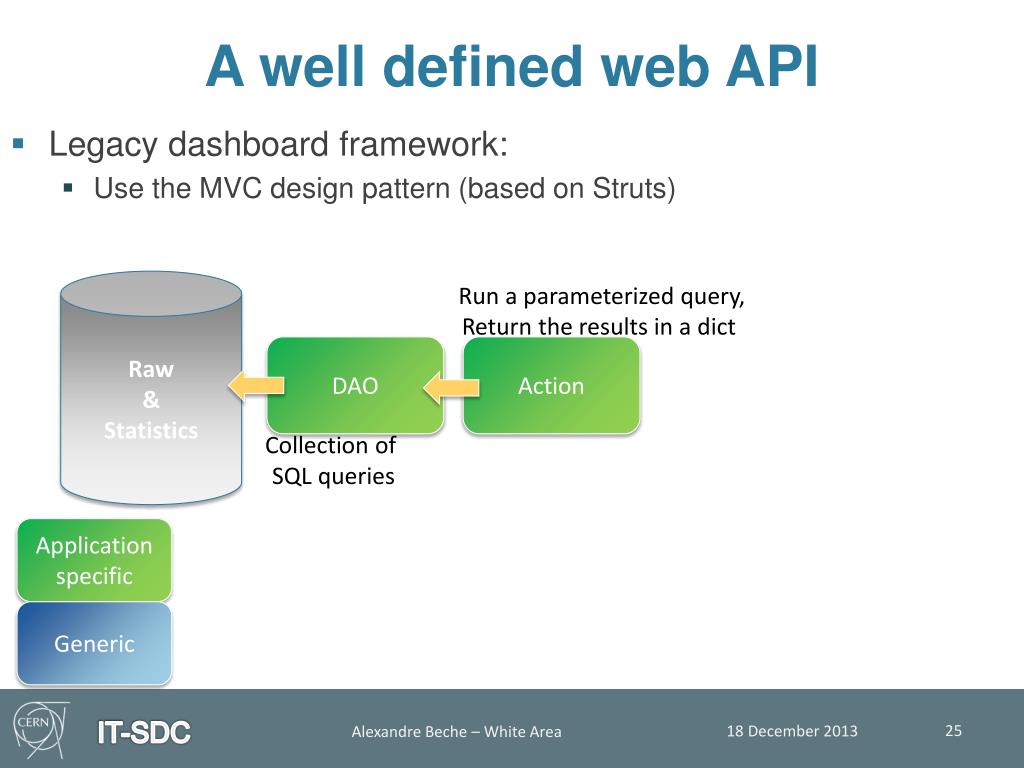

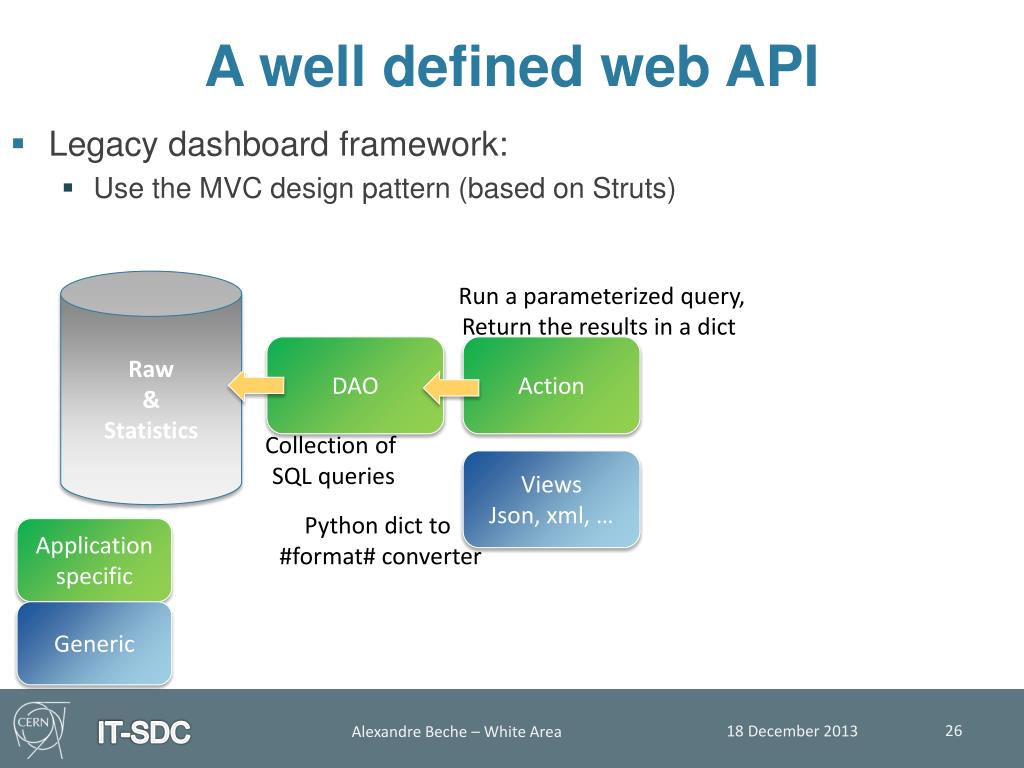

  25. A well defined web API Raw & Statistics Run a parameterized query, Return the results in a dict DAO Action Collection of SQL queries Application specific Generic • Legacy dashboard framework: • Use the MVC design pattern (based on Struts) Alexandre Beche – White Area

  26. A well defined web API Raw & Statistics Run a parameterized query, Return the results in a dict DAO Action Collection of SQL queries Views Json, xml, … Python dict to #format# converter Application specific Generic • Legacy dashboard framework: • Use the MVC design pattern (based on Struts) Alexandre Beche – White Area

  27. A well defined web API Raw & Statistics Run a parameterized query, Return the results in a dict DAO Action Controller Router of url+mime To action + view Collection of SQL queries Views Json, xml, … Python dict to #format# converter Application specific Generic • Legacy dashboard framework: • Use the MVC design pattern (based on Struts) Alexandre Beche – White Area

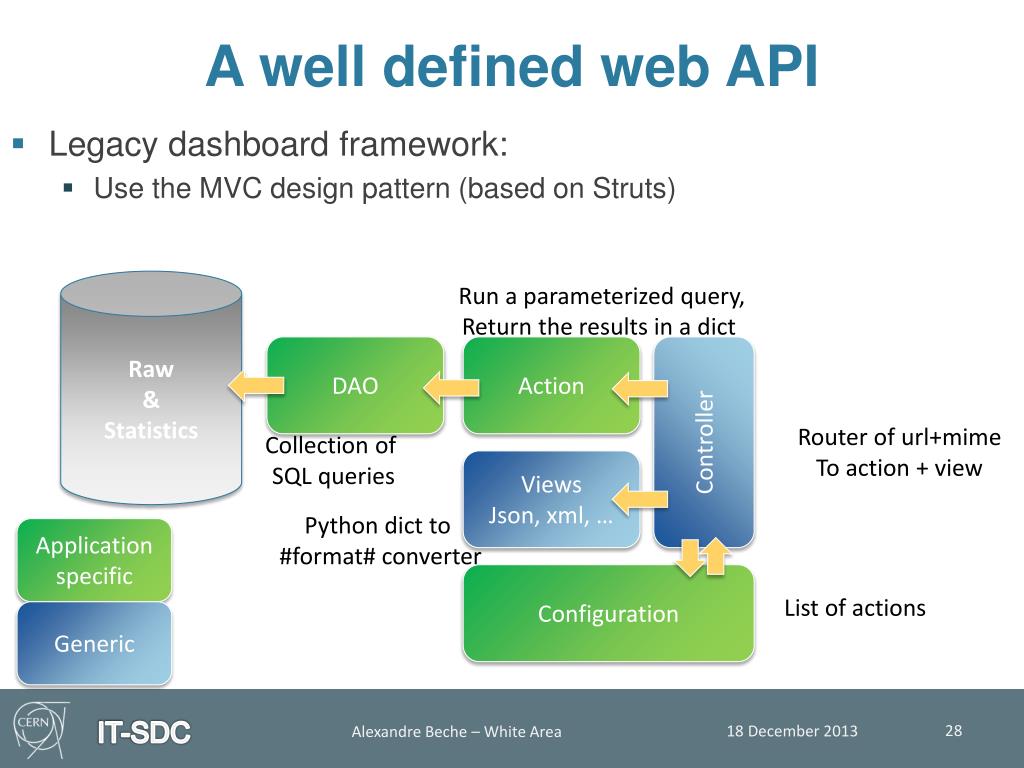

  28. A well defined web API Raw & Statistics Run a parameterized query, Return the results in a dict DAO Action Controller Router of url+mime To action + view Collection of SQL queries Views Json, xml, … Python dict to #format# converter Application specific Configuration List of actions Generic • Legacy dashboard framework: • Use the MVC design pattern (based on Struts) Alexandre Beche – White Area

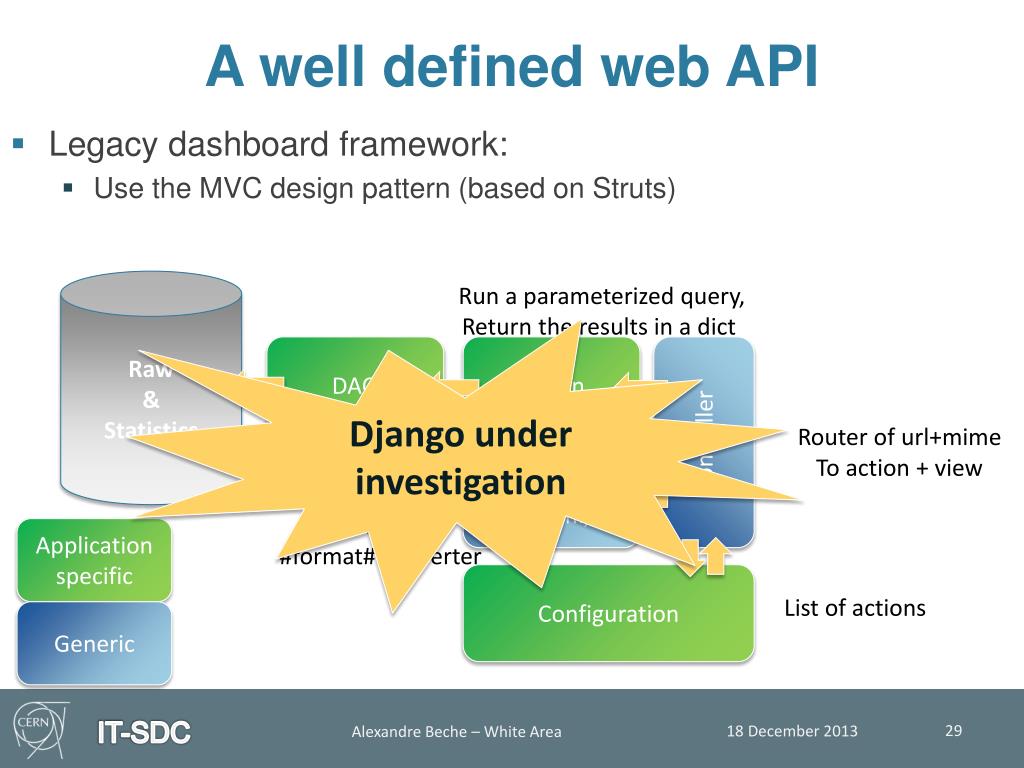

  29. A well defined web API Raw & Statistics Run a parameterized query, Return the results in a dict Django under investigation DAO Action Controller Router of url+mime To action + view Collection of SQL queries Views Json, xml, … Python dict to #format# converter Application specific Configuration List of actions Generic • Legacy dashboard framework: • Use the MVC design pattern (based on Struts) Alexandre Beche – White Area

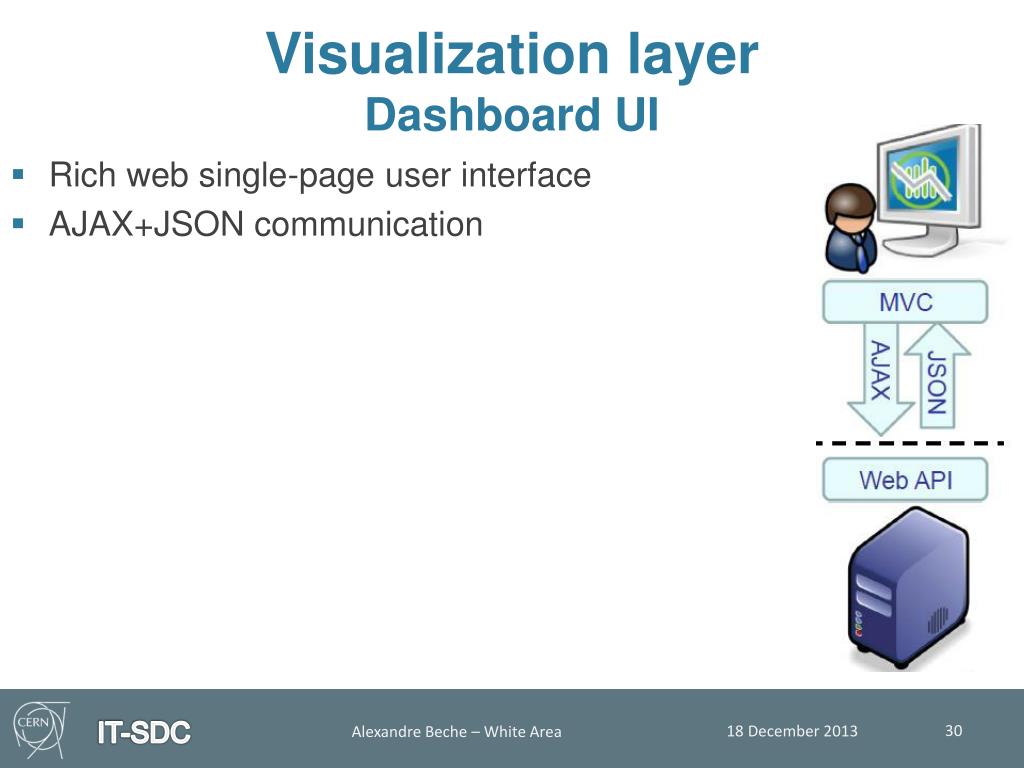

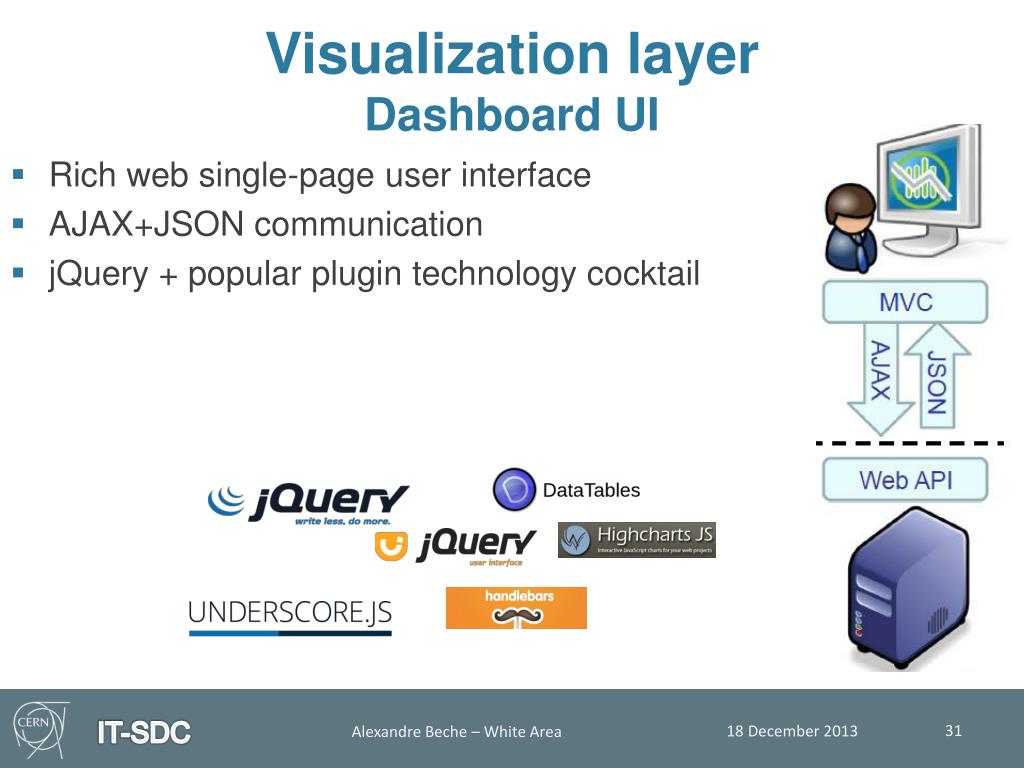

  30. Visualization layerDashboard UI Rich web single-page user interface AJAX+JSON communication Alexandre Beche – White Area

  31. Visualization layerDashboard UI Rich web single-page user interface AJAX+JSON communication jQuery + popular plugin technology cocktail Alexandre Beche – White Area

  32. Visualization layerDashboard UI xbrowse • Rich web single-page user interface • AJAX+JSON communication • jQuery + popular plugin technology cocktail • Modular code reuse with xbrowse framework • Lightweight in-house URL-driven MVC (<300 LOC) • Views shared with several other applications • Common look and feel Alexandre Beche – White Area

  33. History of data transfers monitoring tools WLCG Transfers Dashboard WEB API/UI WEB API/UI WEB API / UI XRootD integration XRootD Detailled Dashboard WLCG AAA FAX EOS integration ALICE integration FTS FAX EOS AAA EOS ALICE Alexandre Beche – White Area

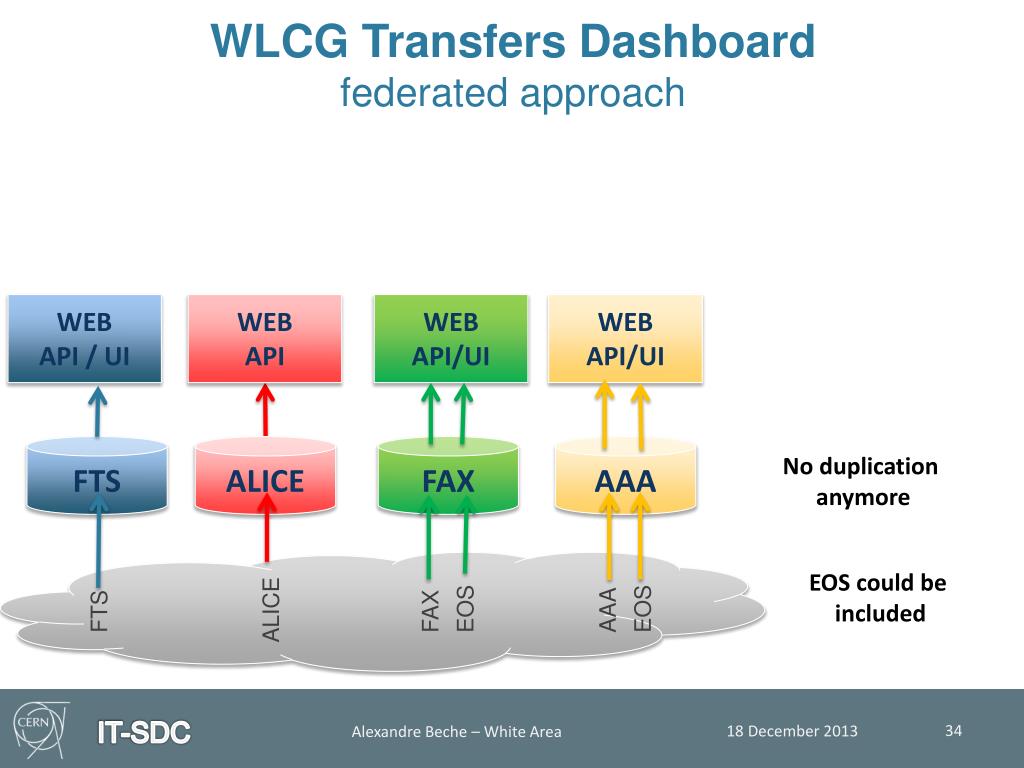

  34. WLCG Transfers Dashboardfederated approach WEB API/UI WEB API WEB API/UI WEB API / UI ALICE FTS AAA FAX No duplication anymore EOS could be included FTS FAX EOS AAA EOS ALICE Alexandre Beche – White Area

  35. WLCG Transfers Dashboardfederated approach WLCG Transfers Dashboard API / UI WEB API/UI WEB API WEB API/UI WEB API / UI ALICE FTS AAA FAX No duplication anymore EOS could be included FTS FAX EOS AAA EOS ALICE Alexandre Beche – White Area

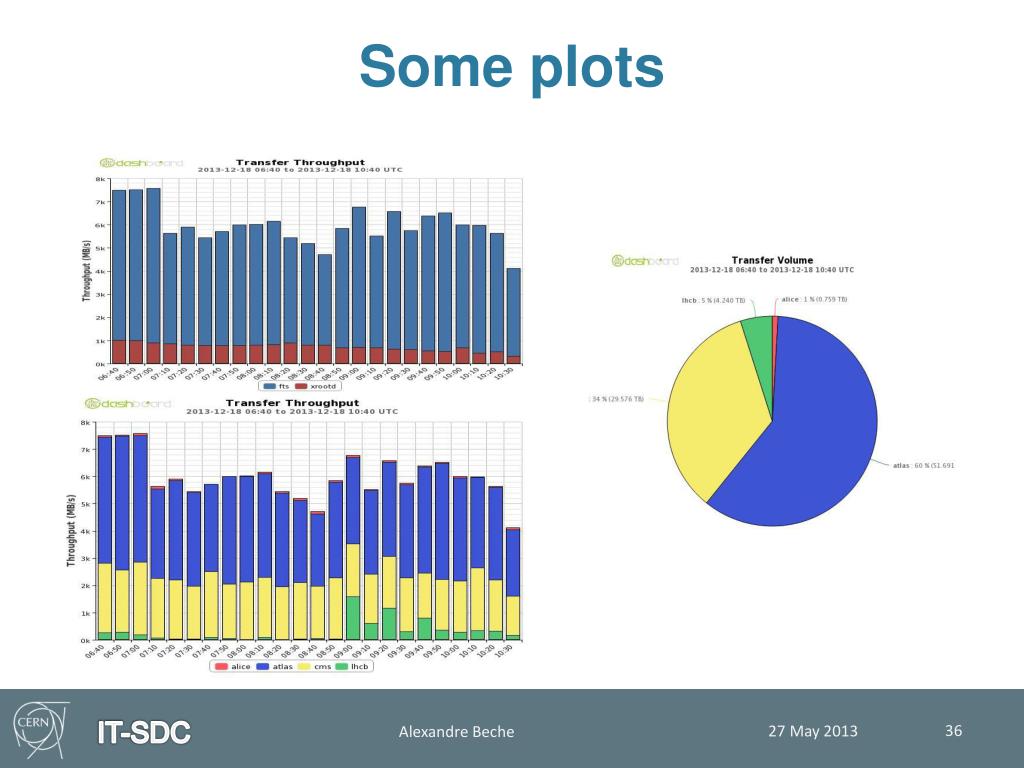

  36. Some plots Alexandre Beche

  37. New WLCG Transfers Dashboard Aggregate Main thread Get results Return Async call 1 Async call 2 • Multi-threaded HTTP Call • Thread pool • Async request (std::future c++11) Alexandre Beche – White Area

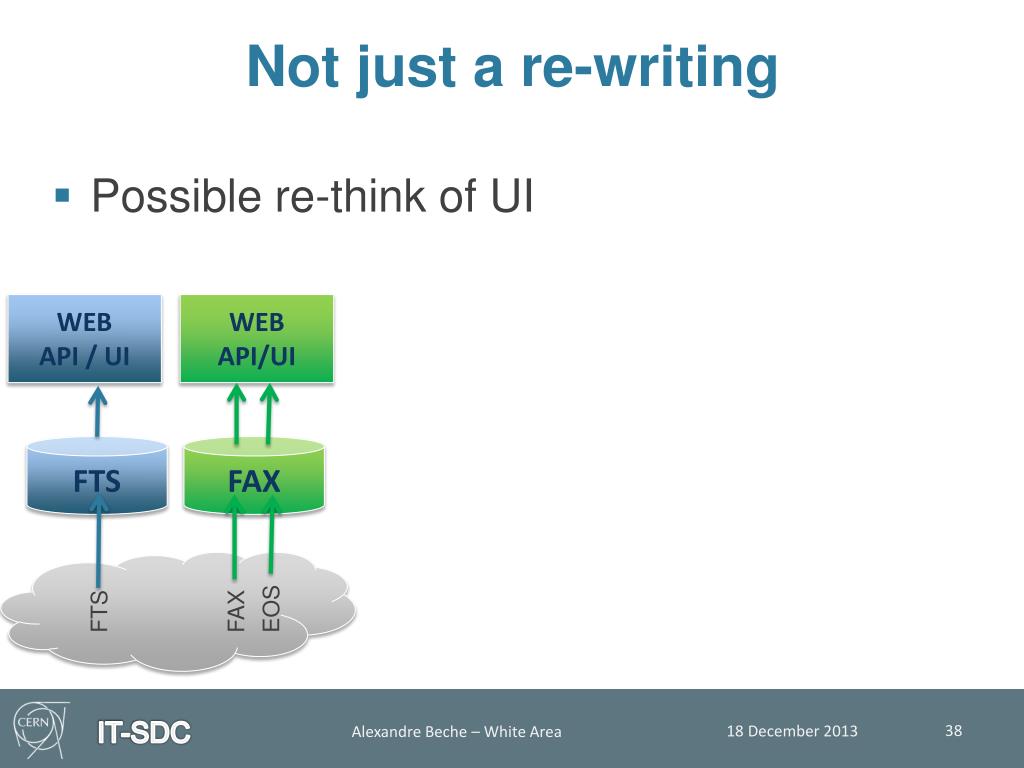

  38. Not just a re-writing WEB API/UI WEB API / UI FTS FAX FTS FAX EOS Possible re-think of UI Alexandre Beche – White Area

  39. Not just a re-writing ATLAS Monitoring UI WEB API/UI WEB API WEB API / UI WEB API FTS FTS FAX FAX FTS FTS FAX FAX EOS EOS • Possible re-think of UI • VO specific UI Alexandre Beche – White Area

  40. Summary Thanks for your attention • More flexible architecture • Database-less • Based on common building blocks • UI code fully re-used Alexandre Beche – White Area

  41. Useful links • AAA Dashboard • http://dashb-cms-xrootd-transfers.cern.ch • FAX Dashboard: • http://dashb-atlas-xrootd-transfers.cern.ch • FTS Dashboard: • http://dashb-fts-transfers/ui/ • WLG Transfers Dashboard: • http://dashb-wlcg-transfers-new/ui/# • Xbrowse framework: • https://twiki.cern.ch/twiki/bin/view/ArdaGrid/XbrowseFramework Alexandre Beche - ITTF
