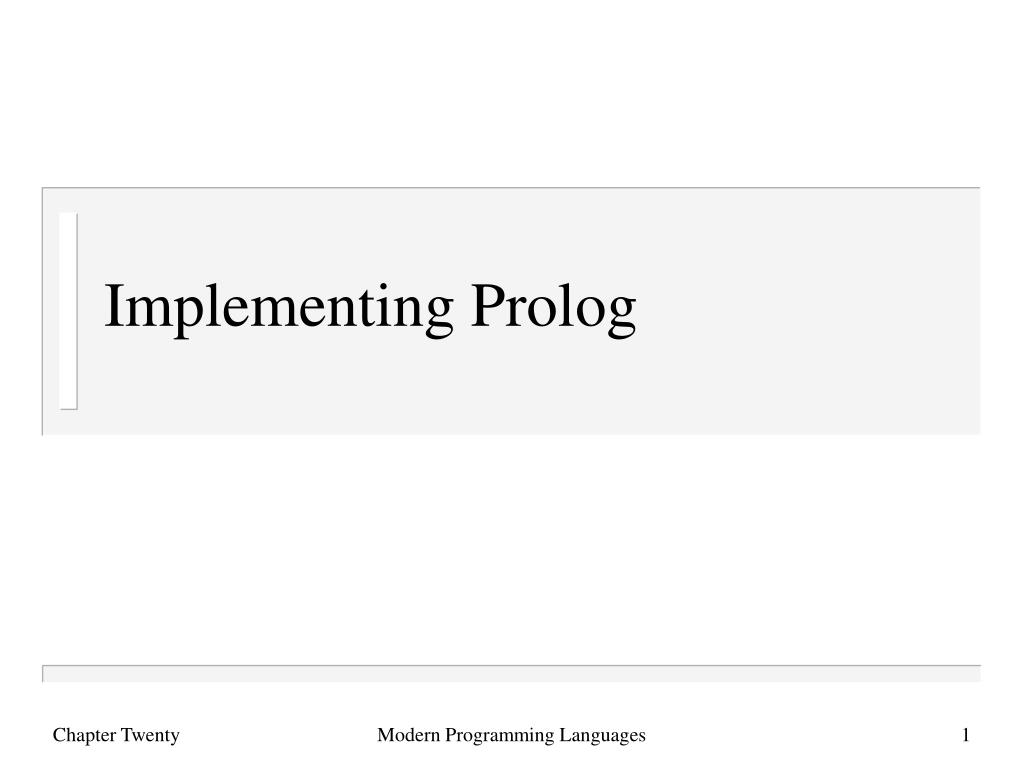

  1. Implementing Prolog Modern Programming Languages

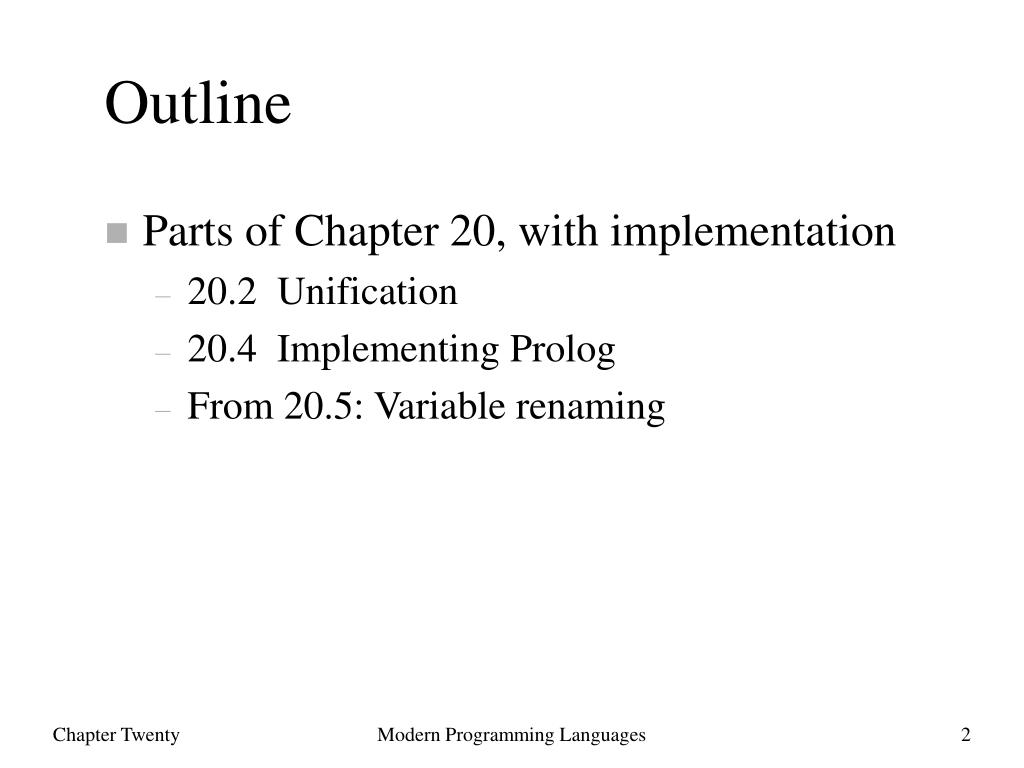

  2. Outline • Parts of Chapter 20, with implementation • 20.2 Unification • 20.4 Implementing Prolog • From 20.5: Variable renaming Modern Programming Languages

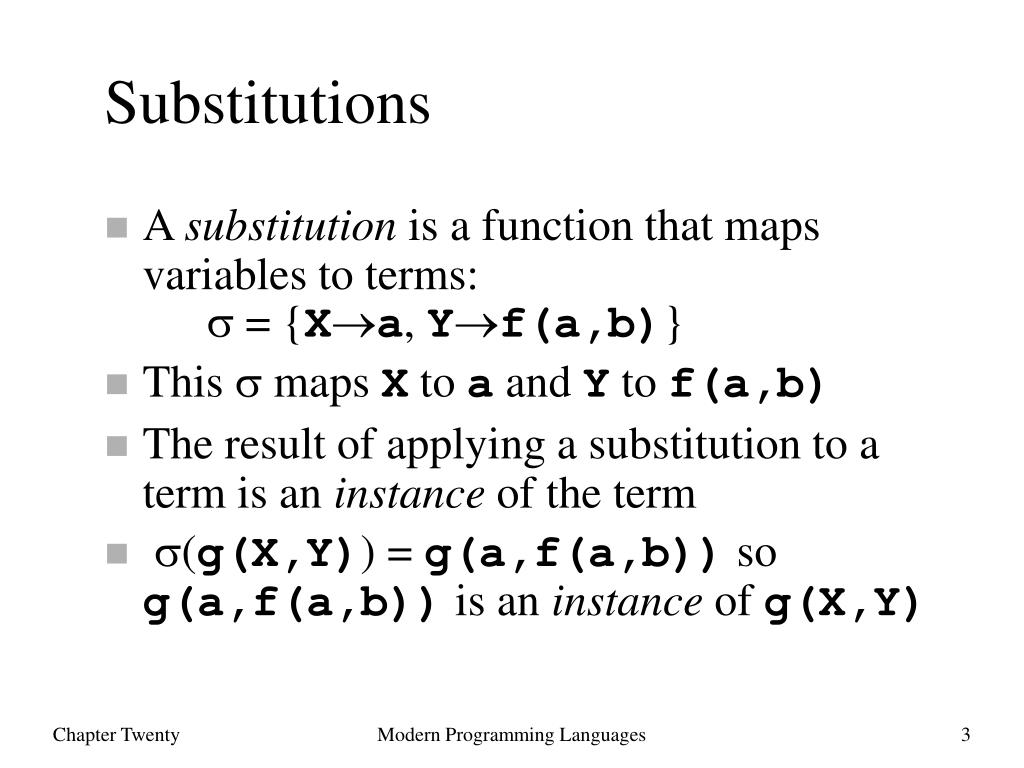

  3. Substitutions • A substitution is a function that maps variables to terms: = {Xa, Yf(a,b)} • This  maps X to a and Y to f(a,b) • The result of applying a substitution to a term is an instance of the term • (g(X,Y)) = g(a,f(a,b)) so g(a,f(a,b)) is an instance of g(X,Y) Modern Programming Languages

  4. Unification • Two Prolog terms t1 and t2unify if there is some substitution  (their unifier) that makes them identical: (t1) = (t2) • a and b do not unify • f(X,b) and f(a,Y) unify: a unifier is {Xa, Yb} • f(X,b) and g(X,b) do not unify • a(X,X,b) and a(b,X,X) unify: a unifier is {Xb} • a(X,X,b) and a(c,X,X) do not unify • a(X,f) and a(X,f) do unify: a unifier is {} Modern Programming Languages

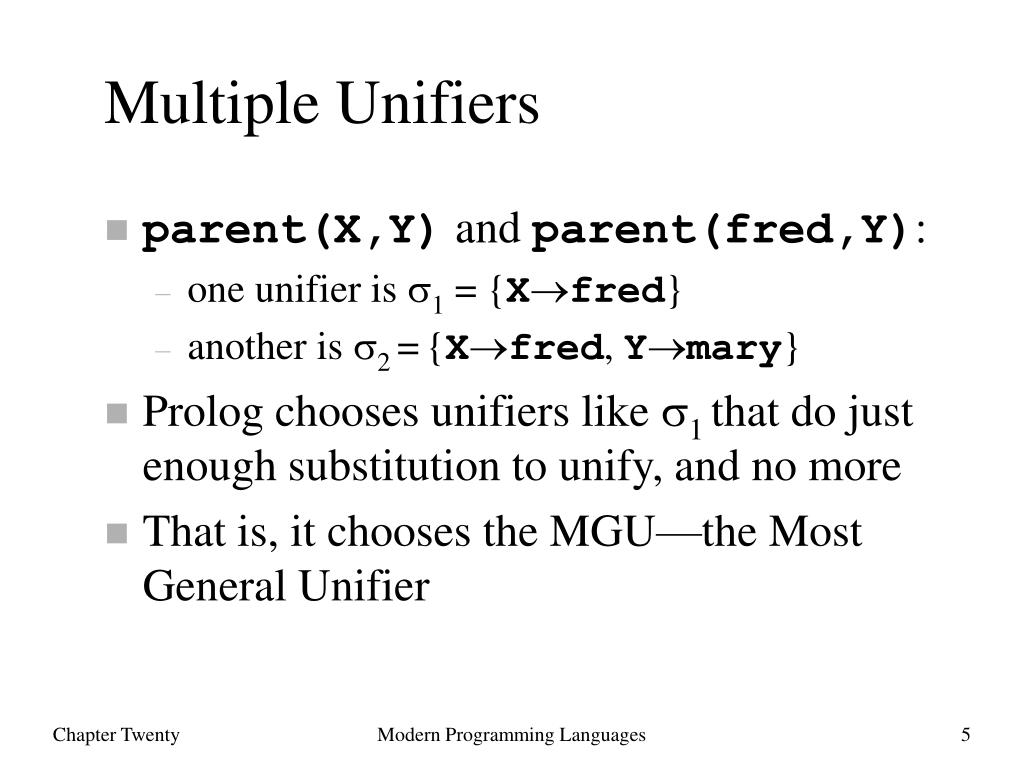

  5. Multiple Unifiers • parent(X,Y) and parent(fred,Y): • one unifier is 1 = {Xfred} • another is 2 ={Xfred, Ymary} • Prolog chooses unifiers like 1 that do just enough substitution to unify, and no more • That is, it chooses the MGU—the Most General Unifier Modern Programming Languages

  6. MGU • Term x1 is more general than x2 if x2 is an instance of x1 but x1 is not an instance of x2 • Example: parent(fred,Y) is more general than parent(fred,mary) • A unifier 1 of two terms t1 and t2 is an MGU if there is no other unifier 2 such that 2(t1) is more general than 1(t1) • MGU is unique up to variable renaming Modern Programming Languages

  7. Unification For Everything • Parameter passing • reverse([1,2,3],X) • Binding • X=0 • Data construction • X=.(1,[2,3]) • Data selection • [1,2,3]=.(X,Y) Modern Programming Languages

  8. The Occurs Check • Any variable X and term t unify with {Xt}: • X and b unify: an MGU is {Xb} • X and f(a,g(b,c)) unify: an MGU is {Xf(a,g(b,c))} • X and f(a,Y) unify: an MGU is {Xf(a,Y)} • Unless X occurs in t: • X and f(a,X)do not unify, in particular not by {Xf(a,X)} Modern Programming Languages

  9. Occurs Check Example append([], B, B).append([Head|TailA], B, [Head|TailC]) :- append(TailA, B, TailC). • Most Prologs omit the occurs check • ISO standard says the result of Prolog “unification” is undefined in cases that should fail the occurs check ?- append([], X, [a | X]).X = [a, a, a, a, a, a, a, a, a|...] Yes Modern Programming Languages

  10. ML Implementation • We will look at an implementation of Prolog in ML • First, some code for representing terms Modern Programming Languages

  11. Representing Terms (* A datatype for Prolog terms. A term can be an Atom, a Variable, or a Compound term. We represent all the lexemes using strings. *) datatype term = Atom of string | Variable of string | Compound of string * term list; Modern Programming Languages

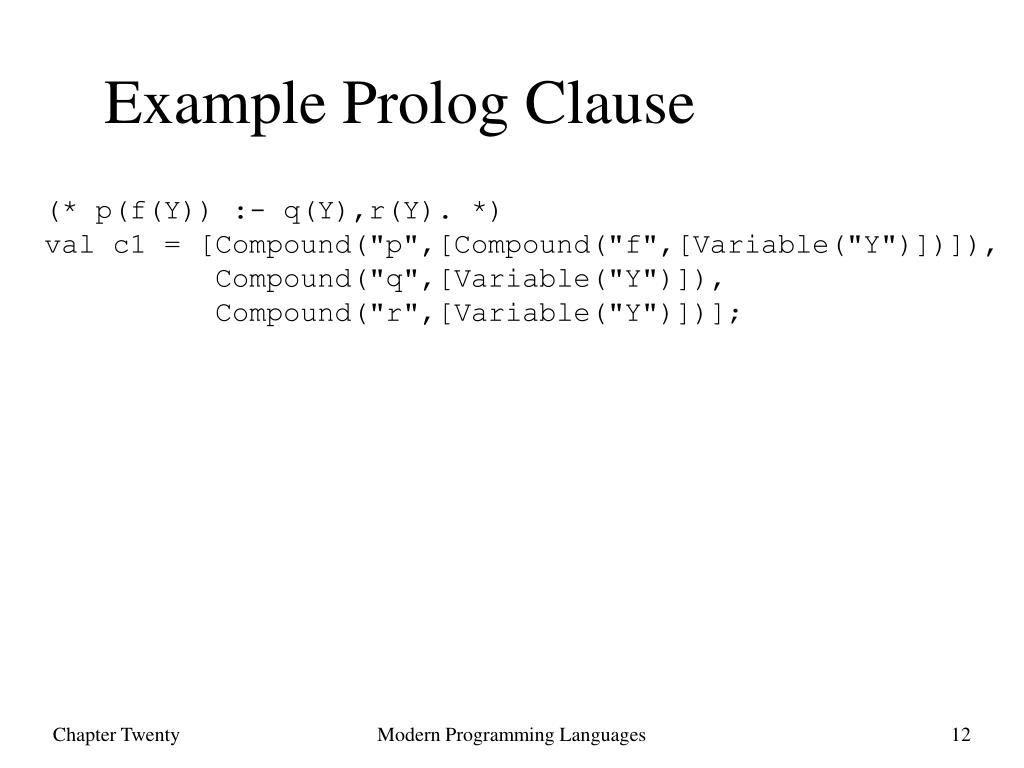

  12. Example Prolog Clause (* p(f(Y)) :- q(Y),r(Y). *) val c1 = [Compound("p",[Compound("f",[Variable("Y")])]), Compound("q",[Variable("Y")]), Compound("r",[Variable("Y")])]; Modern Programming Languages

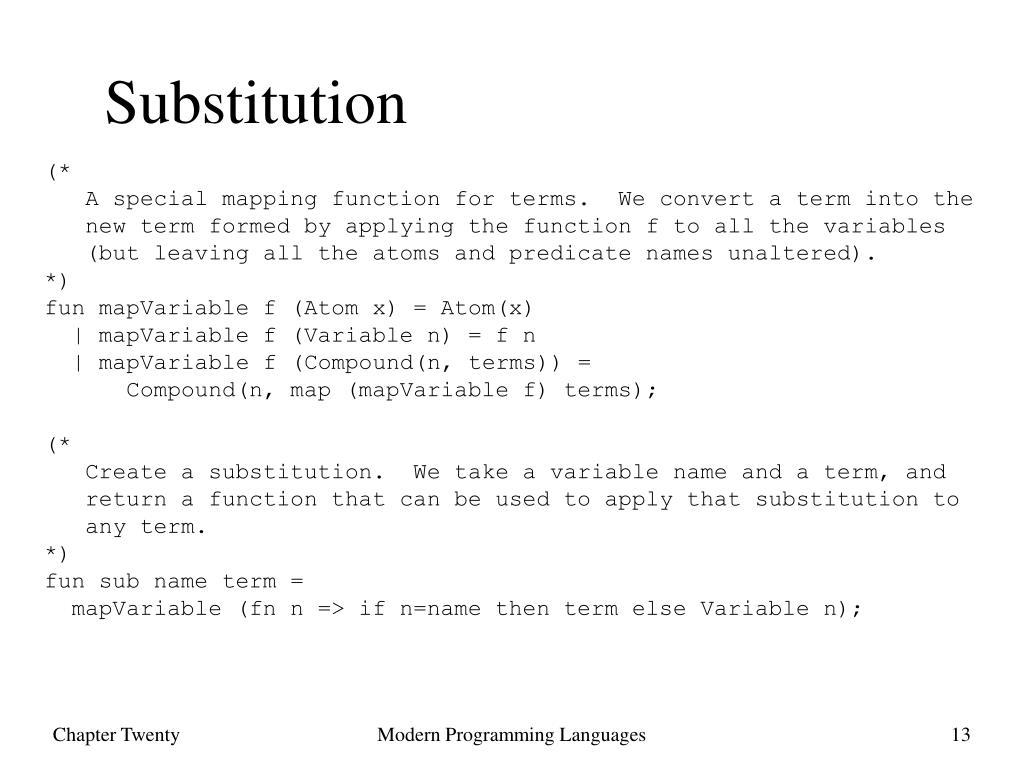

  13. Substitution (* A special mapping function for terms. We convert a term into the new term formed by applying the function f to all the variables (but leaving all the atoms and predicate names unaltered). *) fun mapVariable f (Atom x) = Atom(x) | mapVariable f (Variable n) = f n | mapVariable f (Compound(n, terms)) = Compound(n, map (mapVariable f) terms); (* Create a substitution. We take a variable name and a term, and return a function that can be used to apply that substitution to any term. *) fun sub name term = mapVariable (fn n => if n=name then term else Variable n); Modern Programming Languages

  14. Unification (* Find a most general unifier of two terms. We return a pair of values, like this: val (unifiable, unifier) = mgu(a,b) The first value we return is a boolean, true iff the two terms are unifiable. If they are, the second value we return is a most general unifier: a function that, when applied to a and b, makes them identical. We do not perform the occurs check. *) fun mgu(a,b) = let fun ut([], [], unifier) = (true, unifier) | ut(term::t1, Variable(name)::t2, unifier) = let val r = (sub name term) o unifier in ut(map r t1, map r t2, r) end | ut(Variable(name)::t1, term::t2, unifier) = let val r = (sub name term) o unifier in ut(map r t1, map r t2, r) end Modern Programming Languages

  15. More Unification | ut(Atom(n)::t1, Atom(m)::t2, unifier) = if n=m then ut(t1,t2,unifier) else (false, unifier) | ut(Compound(n1,xt1)::t1, Compound(n2,xt2)::t2, unifier) = if n1=n2 andalso length xt1 = length xt2 then ut(xt1@t1, xt2@t2, unifier) else (false, unifier) | ut(_,_,unifier) = (false, unifier); in ut([a],[b], (fn x => x)) end; Modern Programming Languages

  16. About Unification Algorithms • The one just shown takes exponential time in the worst case • In fact, any algorithm that linearly represents the unified term, without shared structure, takes exponential time and space • Using fancier techniques, it can be done in linear time Modern Programming Languages

  17. Outline • Parts of Chapter 20, with implementation • 20.2 Unification • 20.4 Implementing Prolog • From 20.5: Variable renaming Modern Programming Languages

  18. Resolution • The hardwired inference step • A clause is represented as a list of terms (a list of one term, if it is a fact) • Resolution step applies one clause, once, to make progress on a list of goal terms function resolution(clause, goals):let sub = the MGU of head(clause) and head(goals)return sub(tail(clause) concatenated with tail(goals)) Modern Programming Languages

  19. Resolution Example Given this list of goal terms:[p(X),s(X)]And this rule to apply:p(f(Y)) :- q(Y), r(Y).The MGU of the heads is {Xf(Y)}, and we get:resolution([p(f(Y)),q(Y),r(Y)], [p(X),s(X)]) = [q(Y),r(Y),s(f(Y))] function resolution(clause, goals):let sub = the MGU of head(clause) and head(goals)return sub(tail(clause) concatenated with tail(goals)) Modern Programming Languages

  20. Resolution in ML fun resolution(head::conds,goal::goals) = let val (unifiable, unifier) = mgu(head,goal) in map unifier (conds@goals) end; function resolution(clause, goals):let sub = the MGU of head(clause) and head(goals)return sub(tail(clause) concatenated with tail(goals)) Modern Programming Languages

  21. A Prolog Interpreter function solve(goals)if goals is empty then succeed()else for each clause c in the program, in orderif head(c) does not unify with head(goals) then do nothingelse solve(resolution(c, goals)) Modern Programming Languages

  22. Program: 1. p(f(Y)) :- q(Y),r(Y).2. q(g(Z)).3. q(h(Z)).4. r(h(a)). A partial trace for query p(X): solve([p(X)]) 1. solve([q(Y),r(Y)]) … 2. nothing 3. nothing 4. nothing • solve tries each of the four clauses in turn • The first works, so it calls itself recursively on the result of the resolution step (not shown yet) • The other three do not work: heads do not unify with the first goal term Modern Programming Languages

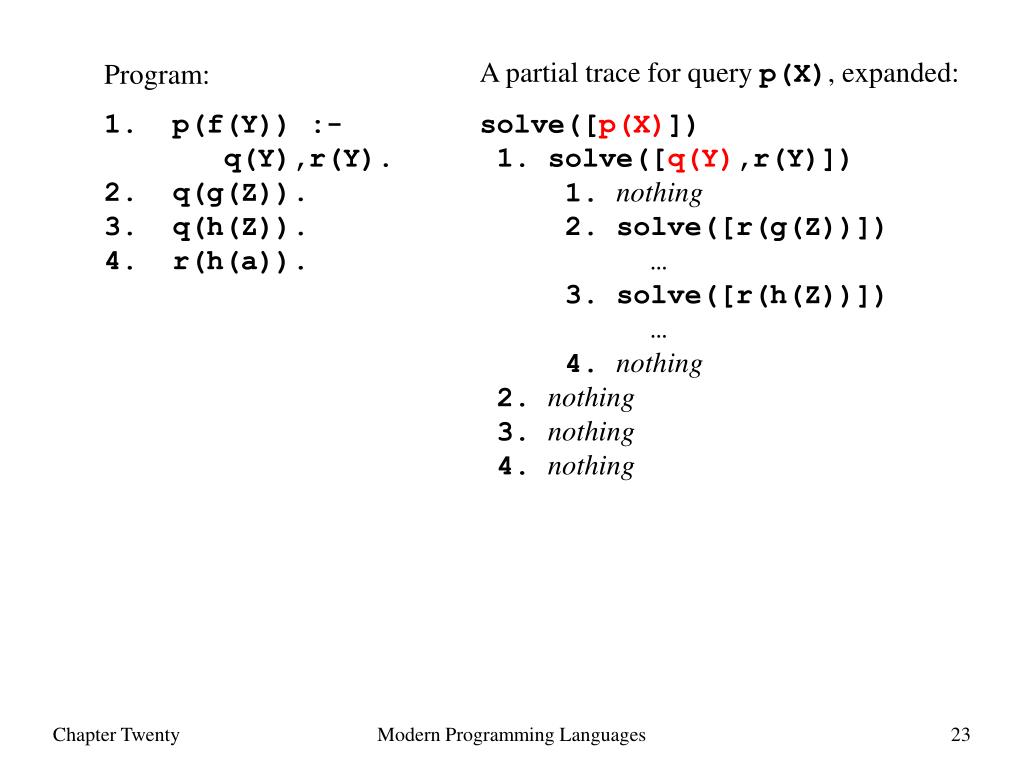

  23. Program: 1. p(f(Y)) :- q(Y),r(Y).2. q(g(Z)).3. q(h(Z)).4. r(h(a)). A partial trace for query p(X), expanded: solve([p(X)]) 1. solve([q(Y),r(Y)])1.nothing2. solve([r(g(Z))]) …3. solve([r(h(Z))]) …4.nothing2.nothing3.nothing4.nothing Modern Programming Languages

  24. Program: 1. p(f(Y)) :- q(Y),r(Y).2. q(g(Z)).3. q(h(Z)).4. r(h(a)). A complete trace for query p(X): solve([p(X)]) 1. solve([q(Y),r(Y)]) 1.nothing2. solve([r(g(Z))]) 1.nothing2.nothing3.nothing4.nothing3. solve([r(h(Z))]) 1.nothing2.nothing3.nothing4. solve([]) —success!4.nothing2.nothing3.nothing4.nothing Modern Programming Languages

  25. Collecting The Substitutions function resolution(clause, goals, query):let sub = the MGU of head(clause) and head(goals)return (sub(tail(clause) concatenated with tail(goals)), sub(query)) function solve(goals, query)if goals is empty then succeed(query)else for each clause c in the program, in orderif head(c) does not unify with head(goals) then do nothingelse solve(resolution(c, goals, query)) • Modified to pass original query along and apply all substitutions to it • Proved instance is passed to succeed Modern Programming Languages

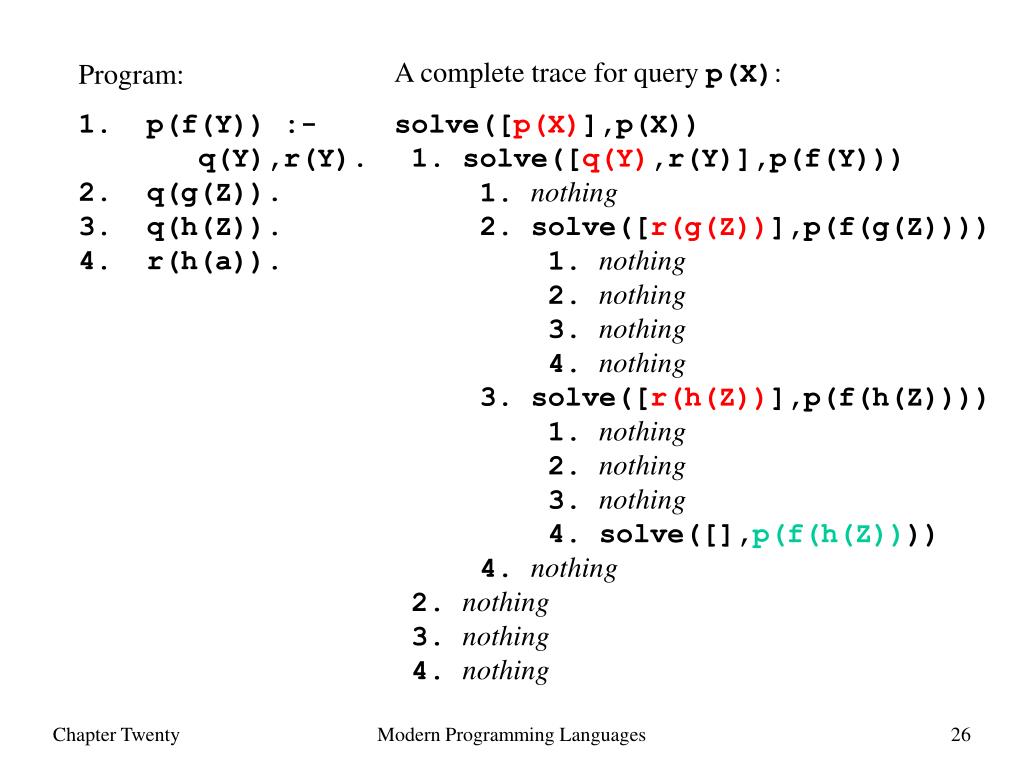

  26. Program: 1. p(f(Y)) :- q(Y),r(Y).2. q(g(Z)).3. q(h(Z)).4. r(h(a)). A complete trace for query p(X): solve([p(X)],p(X)) 1. solve([q(Y),r(Y)],p(f(Y))) 1.nothing2. solve([r(g(Z))],p(f(g(Z)))) 1.nothing2.nothing3.nothing4.nothing3. solve([r(h(Z))],p(f(h(Z)))) 1.nothing2.nothing3.nothing4. solve([],p(f(h(Z))))4.nothing2.nothing3.nothing4.nothing Modern Programming Languages

  27. Prolog in ML fun solve(_,nil,query) = succeed query | solve(program,goal::goals,query) = let fun onestep (head::conds, _) = let val (unifiable, unifier) = mgu(head,goal) in if unifiable then solve(program, map unifier (conds@goals), unifier query) else true end in foldl onestep true program end; fun prolog(program,query) = solve(program,[query],query); Modern Programming Languages

  28. Outline • Parts of Chapter 20, with implementation • 20.2 Unification • 20.4 Implementing Prolog • From 20.5: Variable renaming Modern Programming Languages

  29. A Problem • Model of Prolog execution just shown is flawed, as is the ML Prolog implementation • It works on some examples • On others it does not agree with common sense, or with the actual behavior of a Prolog language system • For instance, reverse([1,2],X) Modern Programming Languages

  30. Program: 1. reverse([],[]).2. reverse([Head|Tail],X) :- reverse(Tail,Y), append(Y,[Head],X). A trace for query reverse([1,2],X) solve([reverse([1,2],X)]) 1. nothing 2. solve([reverse([2],Y),append(Y,[1],X)]) 1.nothing2. solve([reverse([],X), append(X,[2],X), append(X,[1],X)]) 1.solve([append([],[2],[]), append([],[1],[])])…no solution: what went wrong?2.nothing Modern Programming Languages

  31. Program: 1. reverse([],[]).2. reverse([Head|Tail],X) :- reverse(Tail,Y), append(Y,[Head],X). This step was wrong; we substituted X for Y, but there is already an X in the goal list A trace for query reverse([1,2],X) solve([reverse([1,2],X)]) 1. nothing 2. solve([reverse([2],Y),append(Y,[1],X)]) 1.nothing2. solve([reverse([],X), append(X,[2],X), append(X,[1],X)]) 1.solve([append([],[2],[]), append([],[1],[])])…no solution2.nothing Modern Programming Languages

  32. Capture • Recall Prolog’s scope rule: the scope of a definition of a variable is the clause containing it • Our resolution step mashes two scopes together, incorrectly identifying any variables that happen to have the same names • Another kind of capture Modern Programming Languages

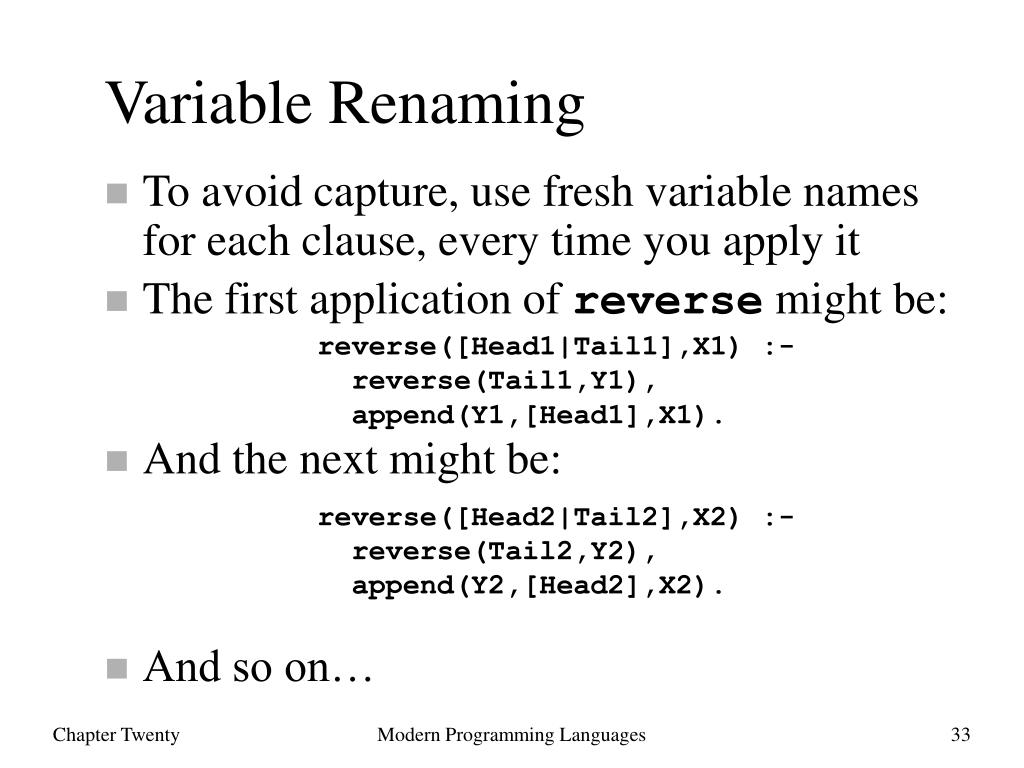

  33. Variable Renaming • To avoid capture, use fresh variable names for each clause, every time you apply it • The first application of reverse might be: • And the next might be: • And so on… reverse([Head1|Tail1],X1) :- reverse(Tail1,Y1), append(Y1,[Head1],X1). reverse([Head2|Tail2],X2) :- reverse(Tail2,Y2), append(Y2,[Head2],X2). Modern Programming Languages

  34. Program: 1. reverse([],[]).2. reverse([Head|Tail],X) :- reverse(Tail,Y), append(Y,[Head],X). A trace for query reverse([1,2],X) solve([reverse([1,2],X)]) 1. nothing 2. solve([reverse([2],Y1),append(Y1,[1],X1)]) 1.nothing2. solve([reverse([],Y2), append(Y2,[2],X2), append(X2,[1],X1)]) 1.solve([append([],[2],X2), append(X2,[1],X1)])…solution with X2=[2], X1=[2,1] 2.nothing Modern Programming Languages

  35. ML Renaming • This ML implementation solves the problem by renaming • It adds “#n” to the end of every variable name whenever a clause from the program is used, where n is the depth of the recursion • Real Prologs find a more efficient way to do this, of course Modern Programming Languages

  36. fun rename iter term = mapVariable (fn n => Variable(n^"#"^iter)) term; fun solve(_,nil,query,_) = succeed query | solve(program,goal::goals,query,depth) = let fun onestep (clause, _) = let val head::conds = map (rename (Int.toString depth)) clause val (unifiable, unifier) = mgu(head,goal) in if unifiable then solve(program, map unifier (conds@goals), unifier query, depth+1) else true end in foldl onestep true program end; fun prolog(program,query) = solve(program,[query],query,1); Modern Programming Languages

  37. Conclusion • Prolog has a simple model of execution • Compare with implementations of similar interpreters for Java or ML • (We’ll use Prolog to write some interpreters for ML-like languages in Chapter 23) • Interestingly: using Prolog is tricky, in spite of its simple interpreter and simple syntax • ML is a good language for this kind of thing Modern Programming Languages
