  1. 5. Developmental Testbed Center Preliminary Core Test Results Bob Gall 18 April 2006

  2. Core Test • Cases: Complete two retrospective runs per day, two months per season, all four seasons for both WRF-NMM and ARW (960 runs) • Domains: nearly (99%) identical (dissimilar map projections) • Verification: exclude 5-grid point “halo” region outside common domain • Resolution: 13km for both cores (RUC resolution) • Vertical resolution: 50 levels for both cores, similar distribution • Initial conditions: RUC-13 for both cores (imposes domain limit) • Soil initial conditions: Noah LSM “option 99” (RUC LSM in Phase 2) • Boundary conditions: 6-h NAM for both cores (as with RUC) • Phase 1 (Dec05-Mar06): Use NMM physics for both dynamic cores • More tractable task to port NMM physics to ARW core than v.v. • “NMM physics”: Ferrier microphysics, MYJ PBL, BMJ convective scheme • Phase 2(Mar06-Jun06): Use “RUC-like” WRF-RR physics for both dynamic cores (requires porting of NCAR/RUC physics to NMM)

  3. 250 mb Temperature

  4. 500 mb Temperature

  5. Temperature all levels

  6. Relative Humidity all levels

  7. 250 mb Wind Vector

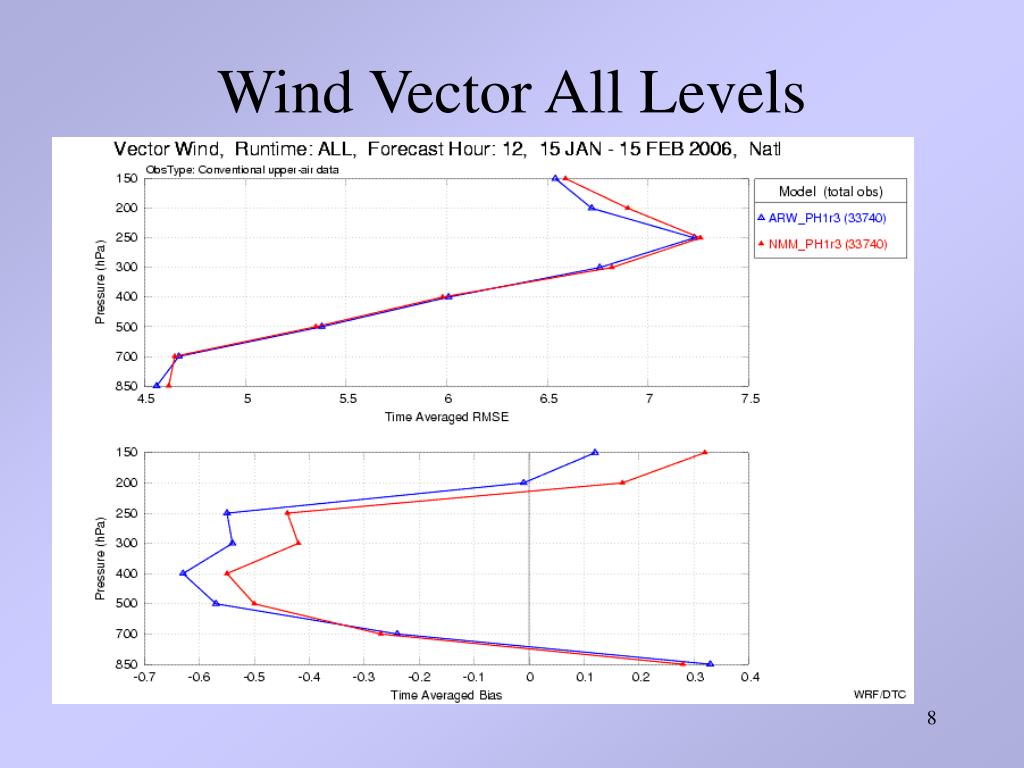

  8. Wind Vector All Levels

  9. Precipitation

  10. Time step 36 sec NMM 50 sec ARW Ratio ARW/NMM 1.40 Time step 30 sec NMM 72 sec ARW Ratio ARW/NMM 1.08 Preliminary Timing ResultsCore test domain and resolutionforecast duration 24 hoursPhysics calls:Radiation every 30 min both modelsOther physicsEvery other time step NMMEvery time step ARW

  11. End
