  1. Discrete Time Markov Chains EE384X Review 2 Winter 2006

  2. Outline • Some examples • Definitions • Stationary Distributions References (on reserve in library): 1. Hoel, Port, and Stone: Introduction to Stochastic Processes 2. Wolff: Stochastic Modeling and the Theory of Queues

  3. p 1-p 1-q 0 1 q Simple DTMCs e 1 0 • “States” can be labeled (0,)1,2,3,… • At every time slot a “jump” decision is made randomly based on current state a c b f d 2 (Sometimes the arrow pointing back to the same state is omitted)

  4. 1-D Random Walk p 1-p • Time is slotted • The walker flips a coin every time slot to decide which way to go X(t)

  5. Single Server Queue Geom(q) • Consider a queue at a supermarket • In every time slot: • A customer arrives with probability p • The HoL customer leaves with probability q Bernoulli(p)

  6. 3 0 2 1 Birth-Death Chain • Can be modeled by a Birth-Death Chain (aka. Geom/Geom/1 queue) • Want to know: • Queue size distribution • Average waiting time, etc.

  7. Markov Property • “Future” is independent of “Past” given “Present” • In other words: Memoryless • We’ve seen memoryless distributions: Exponential and Geometric • Useful for modeling and analyzing real systems

  8. Discrete Time Markov Chains • A sequence of random variables {Xn} is called a Markov chain if it has the Markov property: • States are usually labeled {(0,)1,2,…} • State space can be finite or infinite

  9. Transition Probability • Probability to jump from state i to state j • Assume stationary: independent of time • Transition probability matrix: P = (pij) • Two state MC:

  10. Stationary Distribution Define Then pk+1 = pk P (p is a row vector) Stationary Distribution: if the limit exists. If p exists, we can solve it by

  11. Balance Equations • These are called balance equations • Transitions in and out of state i are balanced

  12. In General • If we partition all the states into two sets, then transitions between the two sets must be “balanced”. • Equivalent to a bi-section in the state transition graph • This can be easily derived from the Balance Equations

  13. Conditions for p to Exist (I) • Definitions: • State j is reachable by state i if • State i and jcommute if they are reachable by each other • The Markov chain is irreducible if all states commute

  14. Conditions for p to Exist (I) (cont’d) • Condition: The Markov chain is irreducible • Counter-examples: 3 4 1 2 p=1 2 1 3

  15. Conditions for p to Exist (II) • The Markov chain is aperiodic: • Counter-example: 0 1 0 1 1 1 0 0 2

  16. Conditions for p to Exist (III) • The Markov chain is positive recurrent: • State i is recurrent if • Otherwise transient • If recurrent • State i is positive recurrent if E(Ti)<1, where Tiis time between visits to state i • Otherwise null recurrent

  17. p 1-p 1-q 0 1 q Solving for p

  18. 1-u-d 1-u-d 1-u-d u u u u 1-u 0 2 1 3 d d d d Birth-Death Chain • Arrival w.p. p ; departure w.p. q • Let u = p(1-q), d = q(1-p), r = u/d • Balance equations:

  19. Birth-Death Chain (cont’d) • Continue like this, we can derive: p(i-1) u = p(i) d • Equivalently, we can draw a bi-section between state i and state i-1 • Therefore, we have

  20. Birth-Death Chain (cont’d)

  21. Any Problems? • What if r is greater than 1? • Then the stationary distribution does not exist • Which condition does it violate?

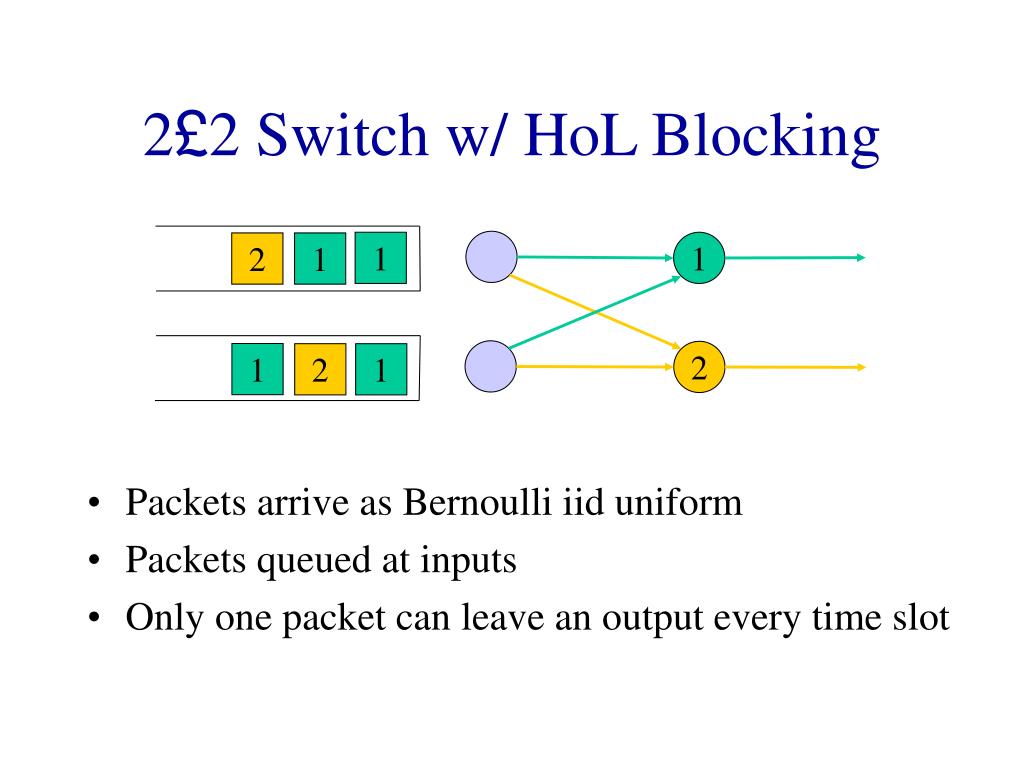

  22. 1 1 2 1 2 1 2 1 2£2 Switch w/ HoL Blocking • Packets arrive as Bernoulli iid uniform • Packets queued at inputs • Only one packet can leave an output every time slot

  23. 2£2 Switch (cont’d) • If both HoL packets are destined to the same output • Only one of them is served (chosen randomly) • The other output is idle, as packets are blocked • This is called head of line blocking • HoL blocking reduces throughput • Want to know: throughput of this switch

  24. 2£2 Switch - DTMC 0.5 • States are the number of HoL packets destined to output 1 and output 2 • But states (0,2) and (2,0) are the same • Can “collapse” them together 0.25 0.25 0,2 2,0 1,1 0.5 0.5 0.5 0.5

  25. 2£2 Switch – DTMC (cont’d) 0.5 • Now P{(0,2)} = P{(1,1)} = 0.5 • Switch throughput = 0.5£1+0.5£2 = 1.5 • Per output throughput = 1.5/2 = 0.75 0,2 1,1 0.5 0.5 0.5

  26. Another Method to Find p • Sometimes the Markov chain is not easy to solve analytically • Can run the Markov chain for a long time, then {fraction of time spent in state i} !p (i)
