OLTC Failure

OLTC Failure. 45MVA 132kV. Manufacturer Takaoka Japan. 16 positions No change-over switch. Linear design of tap winding. Bucholz tripped the unit. OLTC oil sample. Bucholz relay oil sample. Phase U. Even positions higher resistance. Odd and Even contacts. Burned contacts.

tashya-hudson
Télécharger la présentation

OLTC Failure

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. OLTC Failure 45MVA 132kV

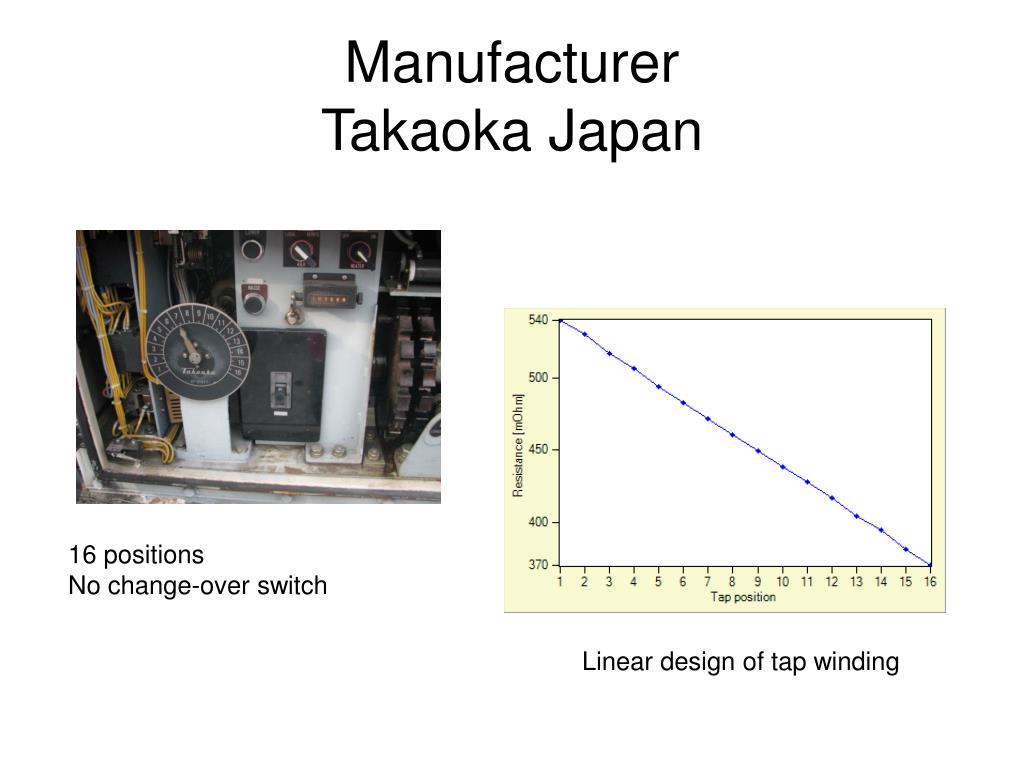

  2. ManufacturerTakaoka Japan 16 positions No change-over switch Linear design of tap winding

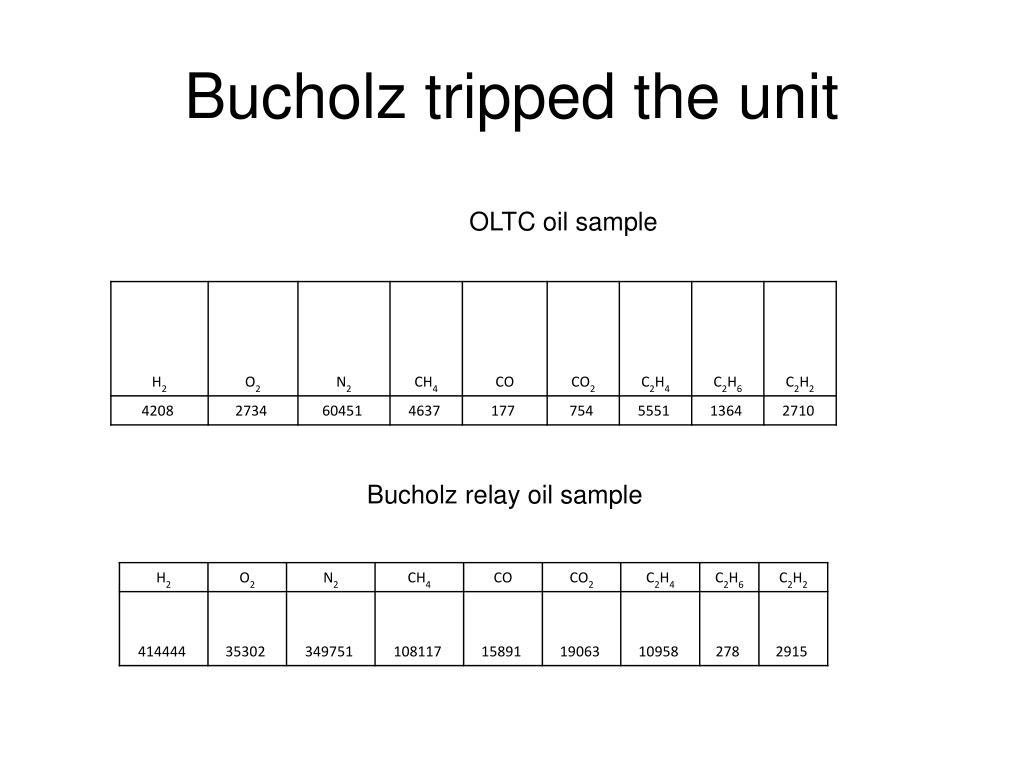

  3. Bucholz tripped the unit OLTC oil sample Bucholz relay oil sample

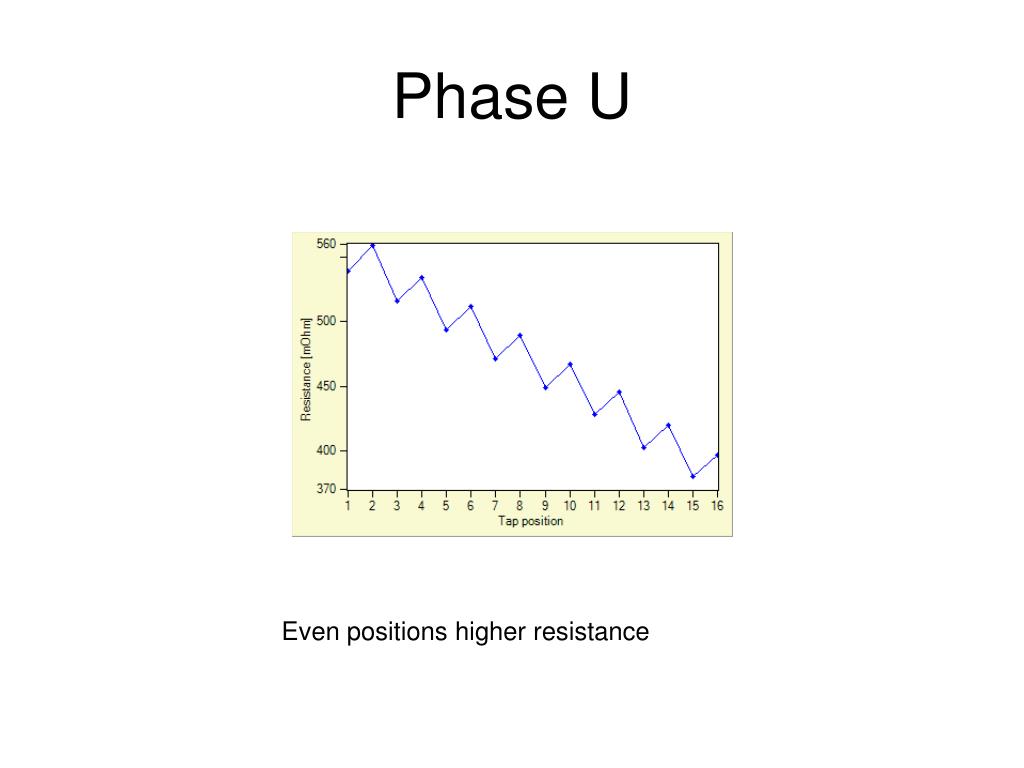

  4. Phase U Even positions higher resistance

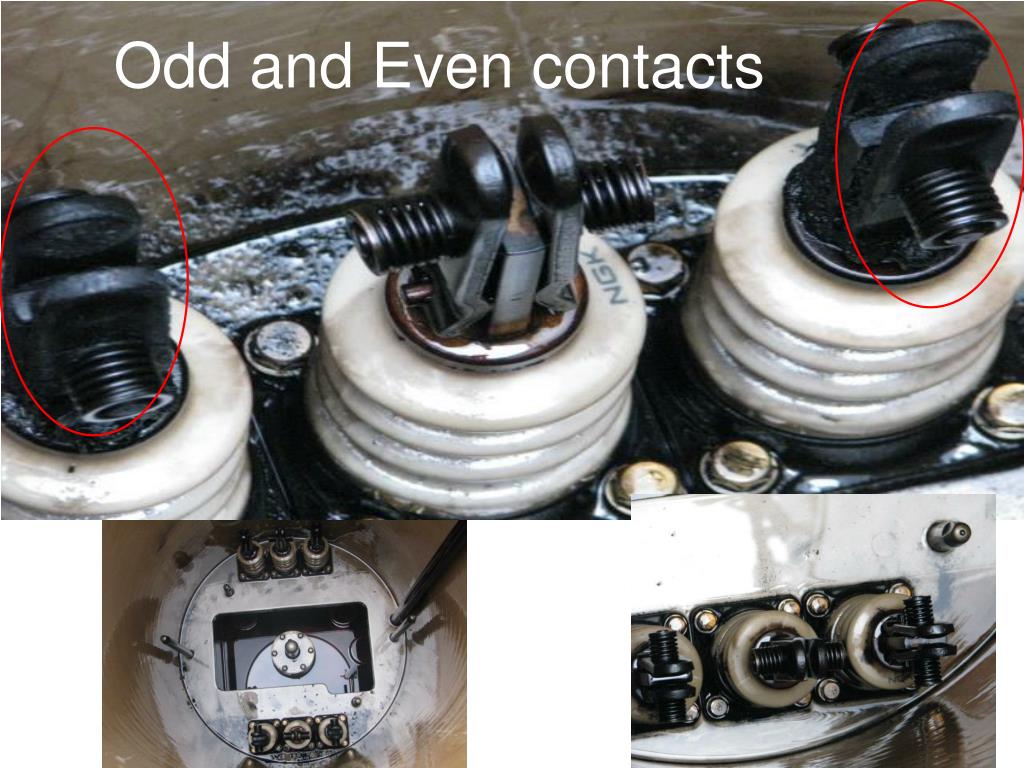

  5. Odd and Even contacts

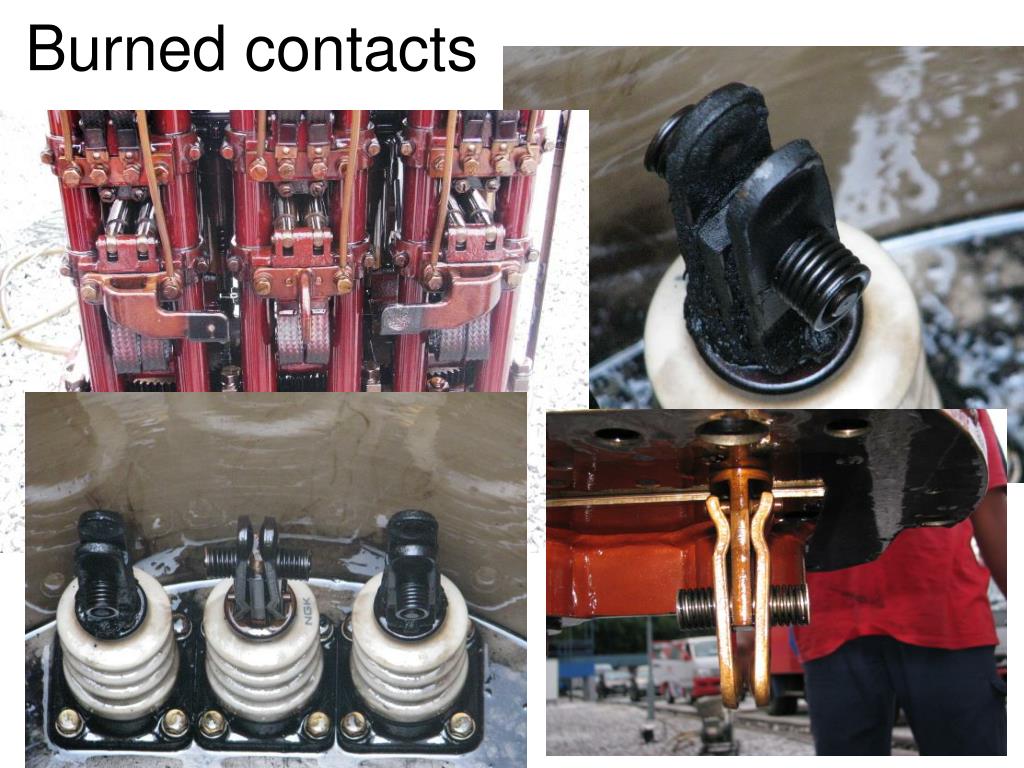

  6. Burned contacts

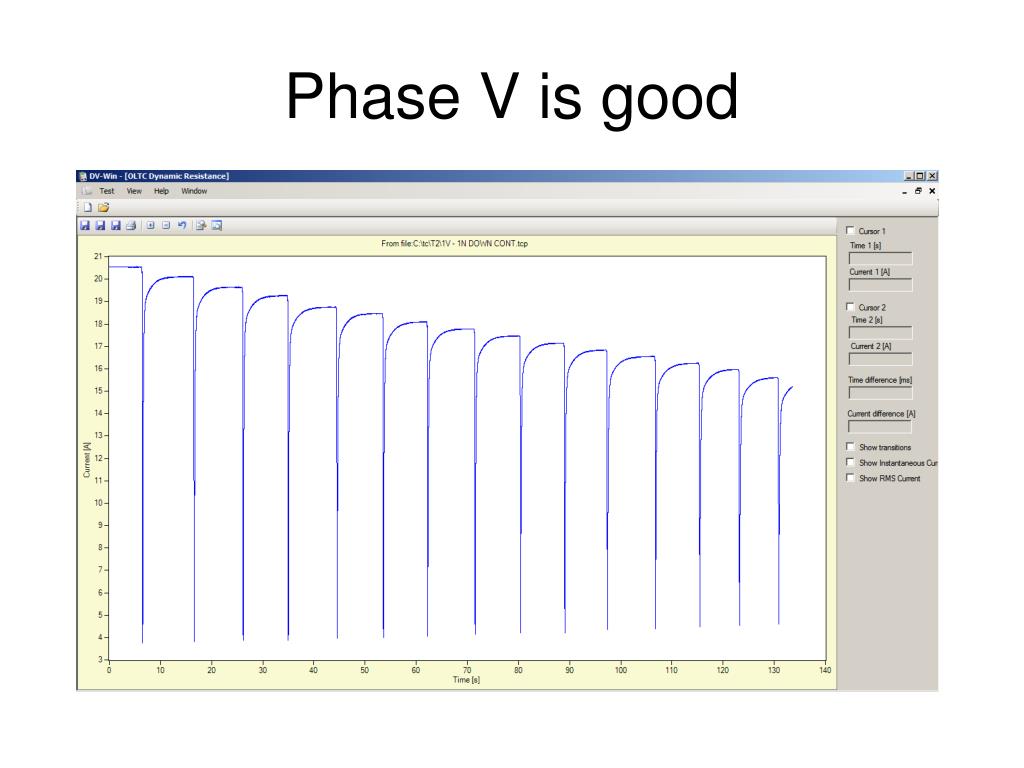

  7. Phase V is good

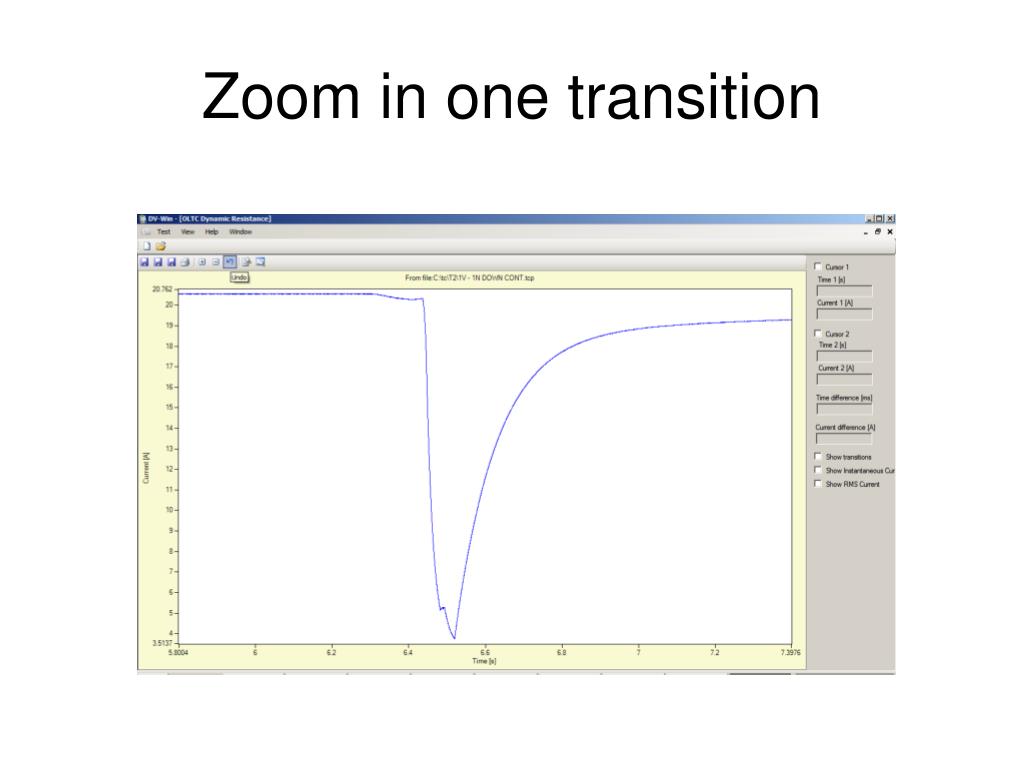

  8. Zoom in one transition

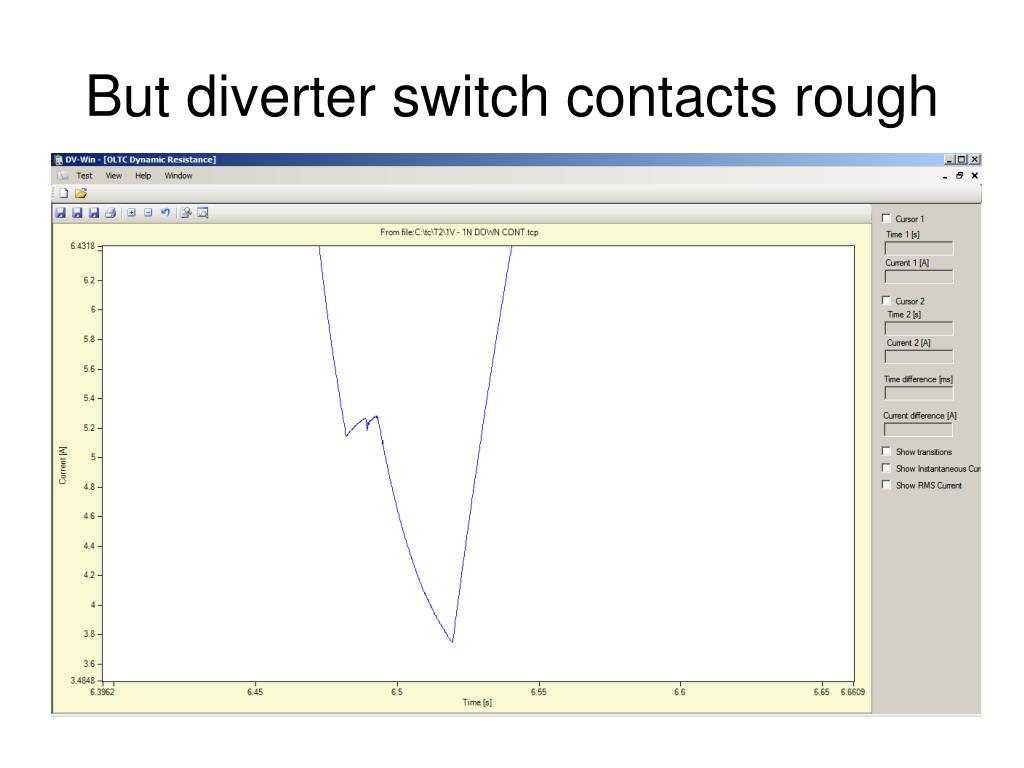

  9. But diverter switch contacts rough

  10. Phase W PROBLEM

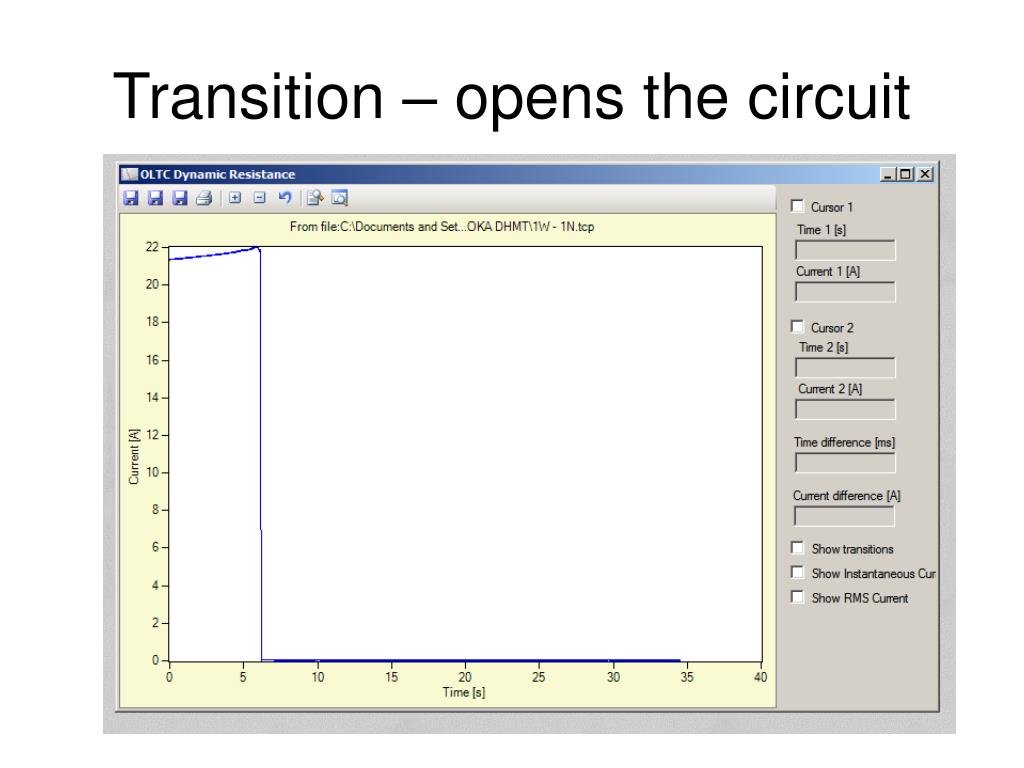

  11. Transition – opens the circuit

  12. Second resistor opens

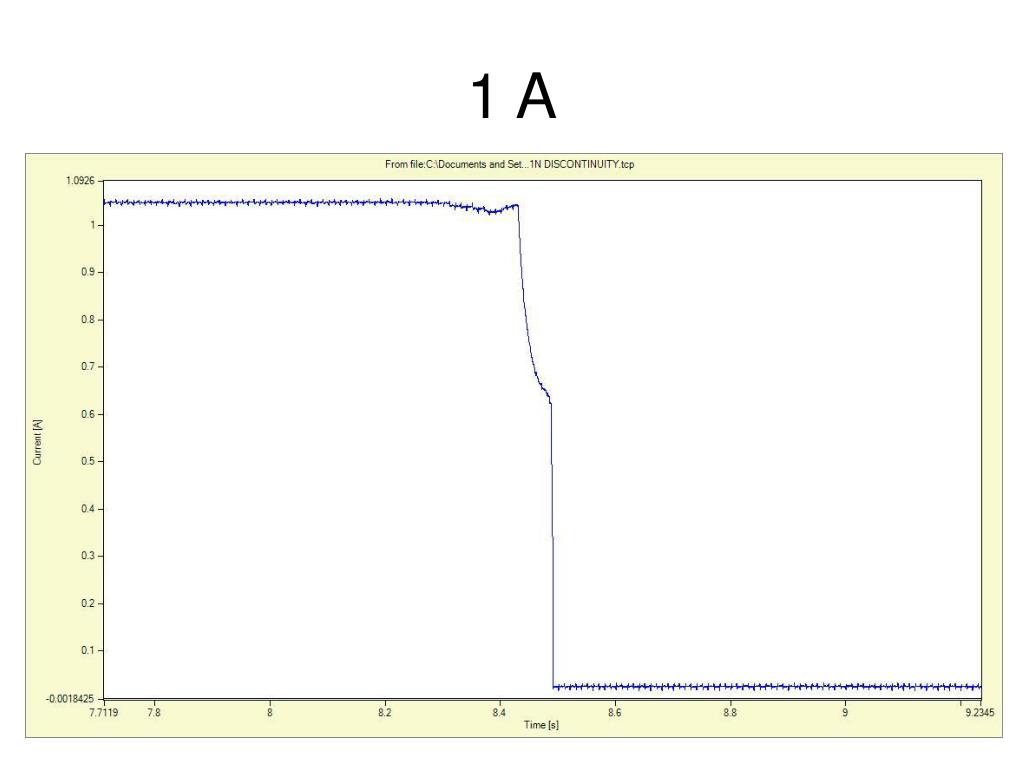

  13. 1 A

  14. INVESTIGATION

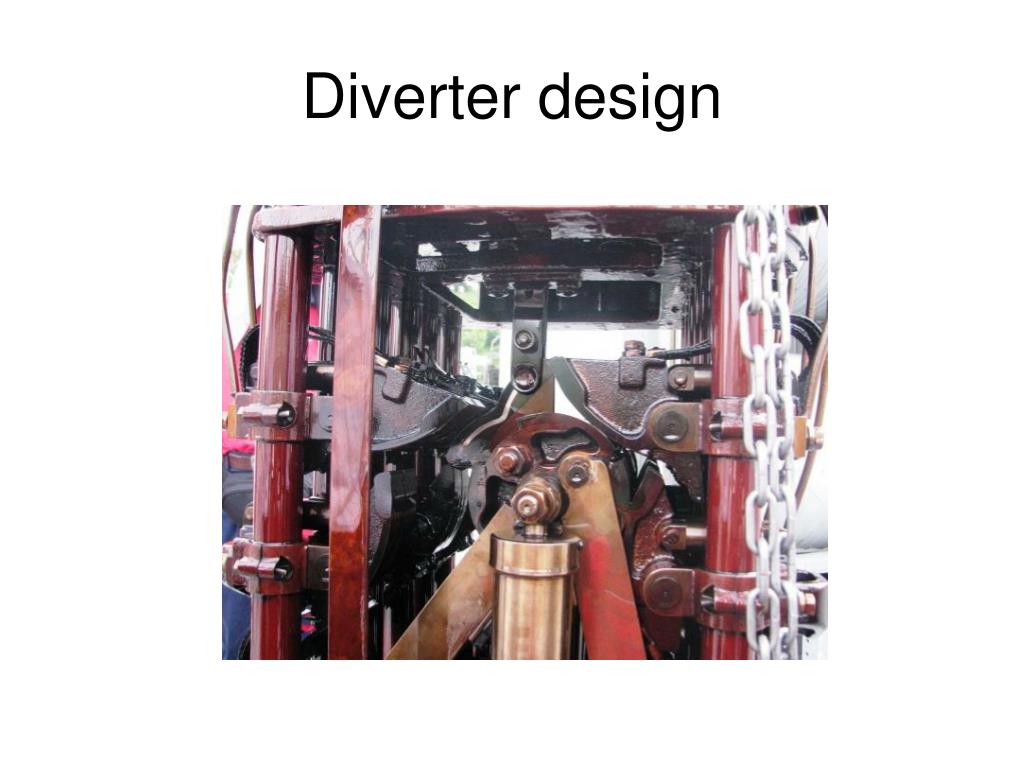

  15. Diverter design

  16. One phase does not make

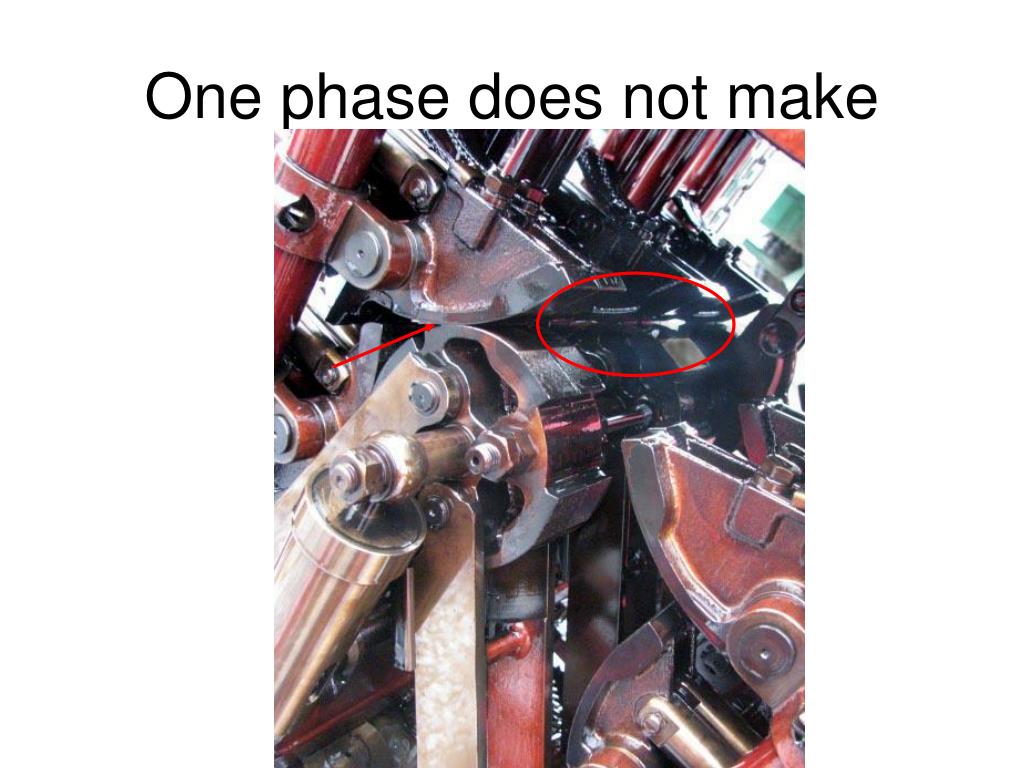

  17. Principle of operation

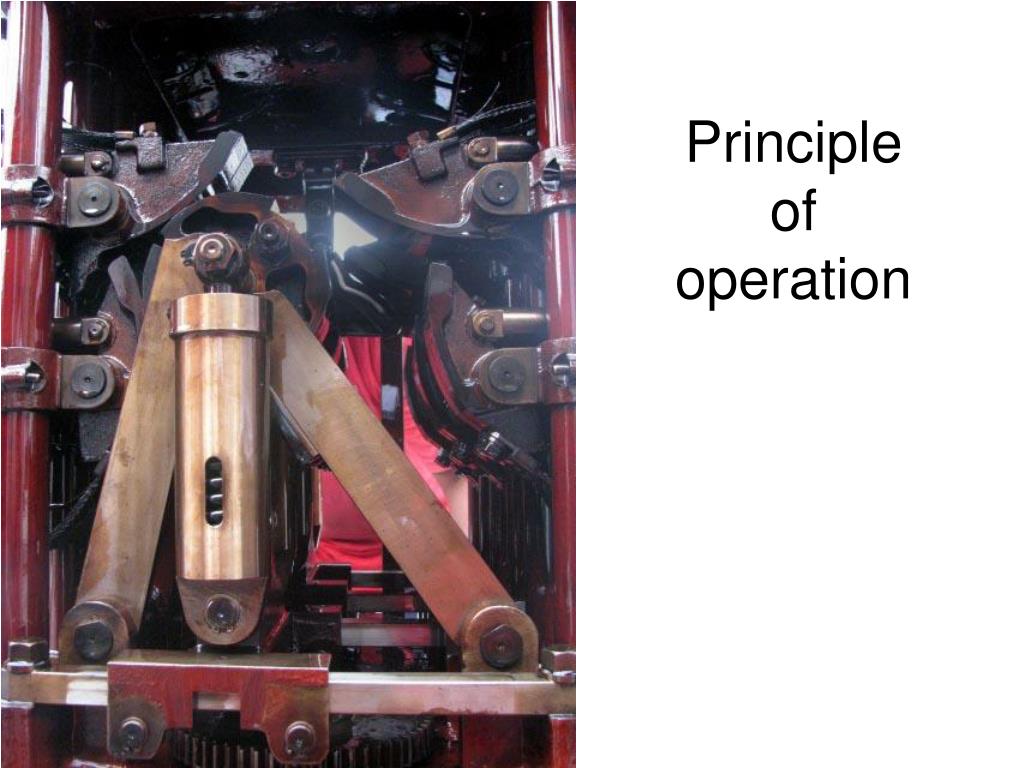

  18. Transition resistors

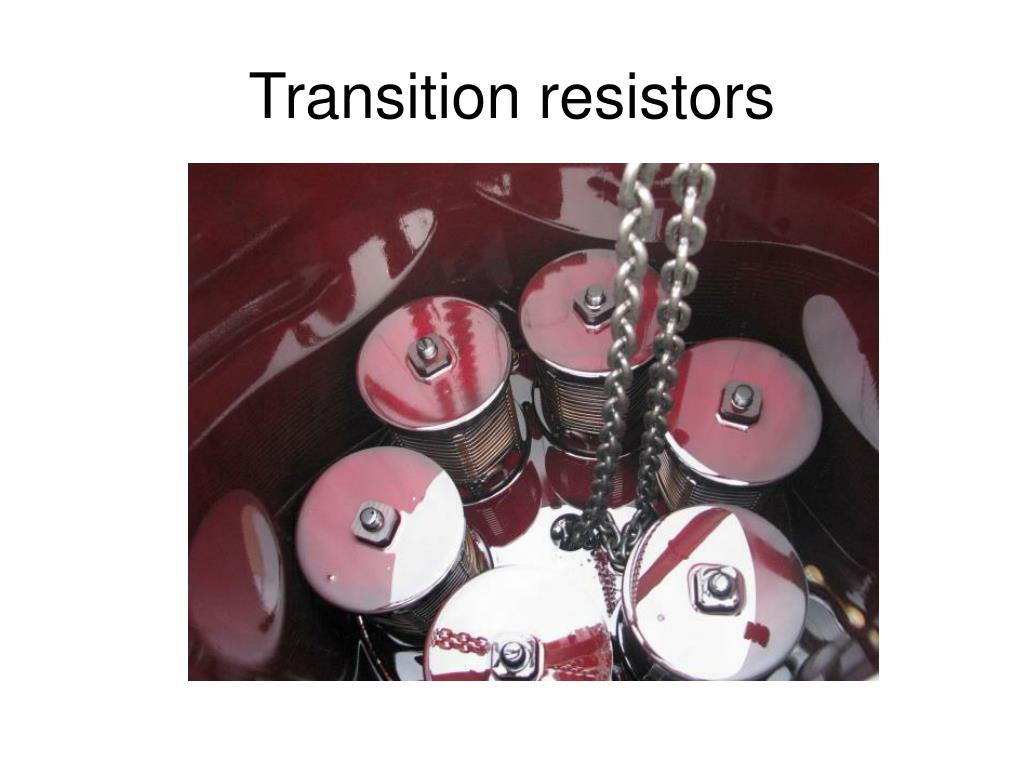

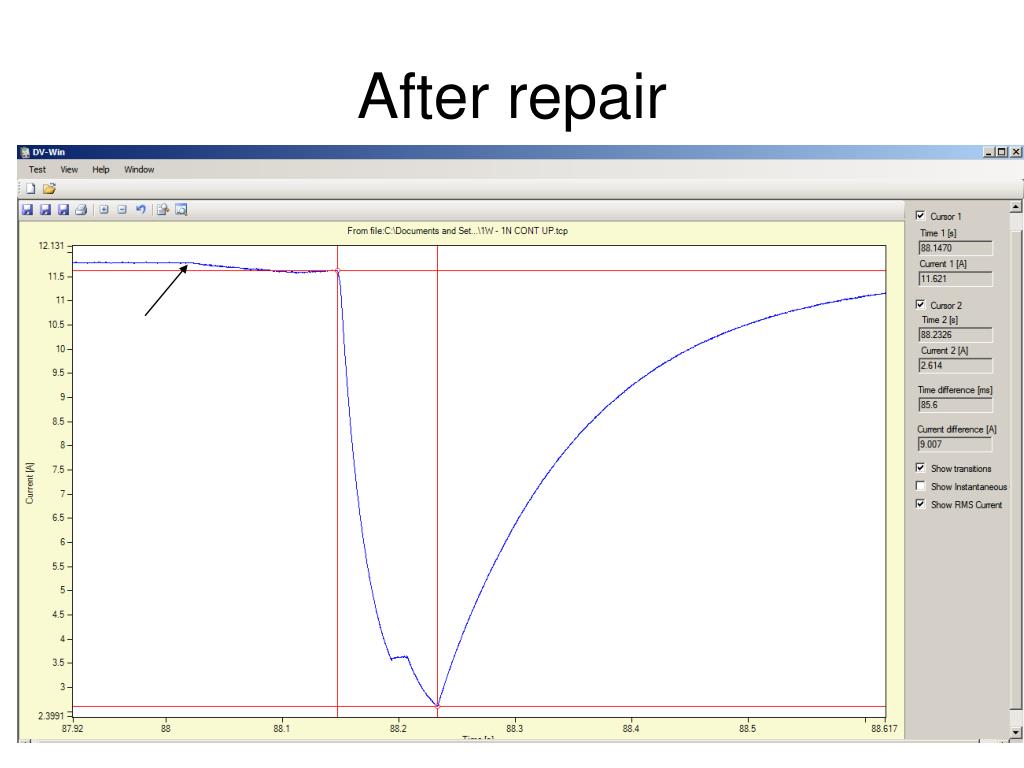

  19. After repair

  20. Going UP
