  1. Andrew Dalke Dalke Scientific Software, LLC "More Science, Less Time" Usability

  2. "can be used" But some things are "more usable" than others Suppose you have a computer that's a bajllion-fold more powerful (memory, speed, resolution, etc.) What remains is usability (... and research) What is usability?

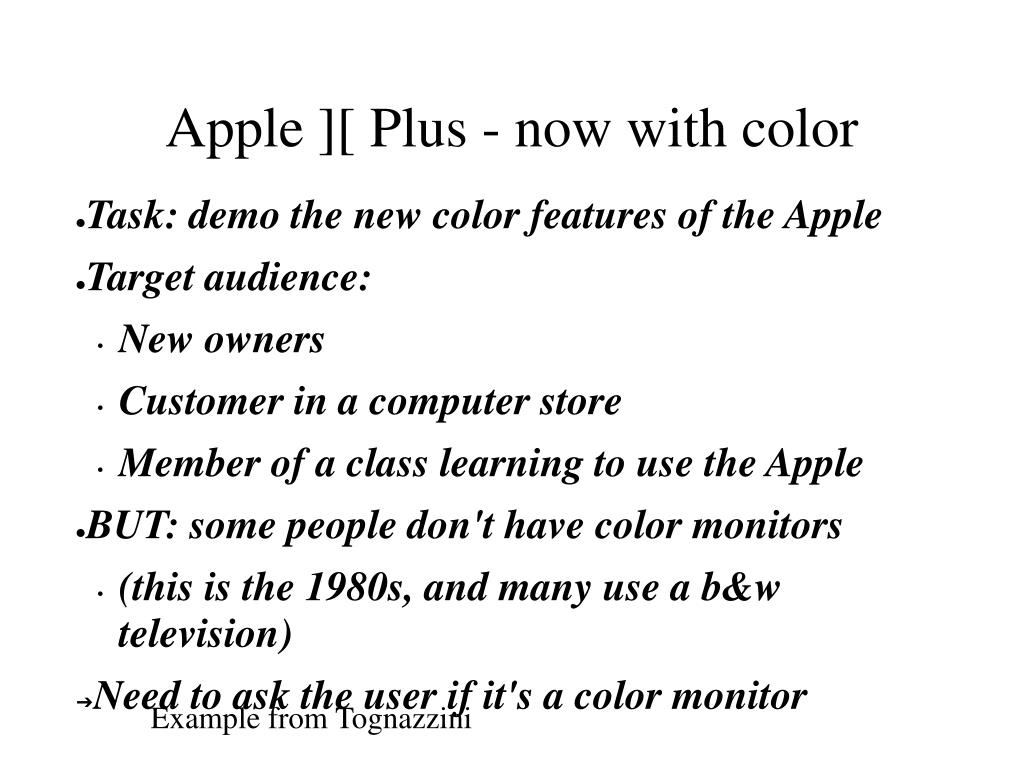

  3. Task: demo the new color features of the Apple Target audience: New owners Customer in a computer store Member of a class learning to use the Apple BUT: some people don't have color monitors (this is the 1980s, and many use a b&w television) Need to ask the user if it's a color monitor Apple ][ Plus - now with color Example from Tognazzini

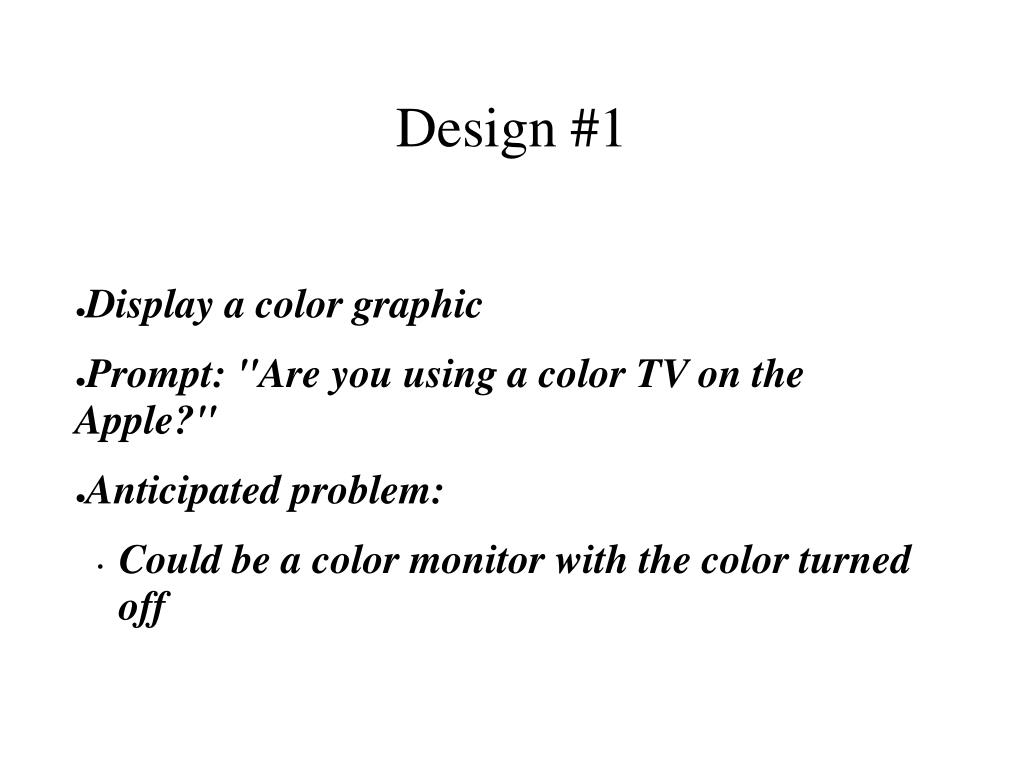

  4. Display a color graphic Prompt: "Are you using a color TV on the Apple?" Anticipated problem: Could be a color monitor with the color turned off Design #1

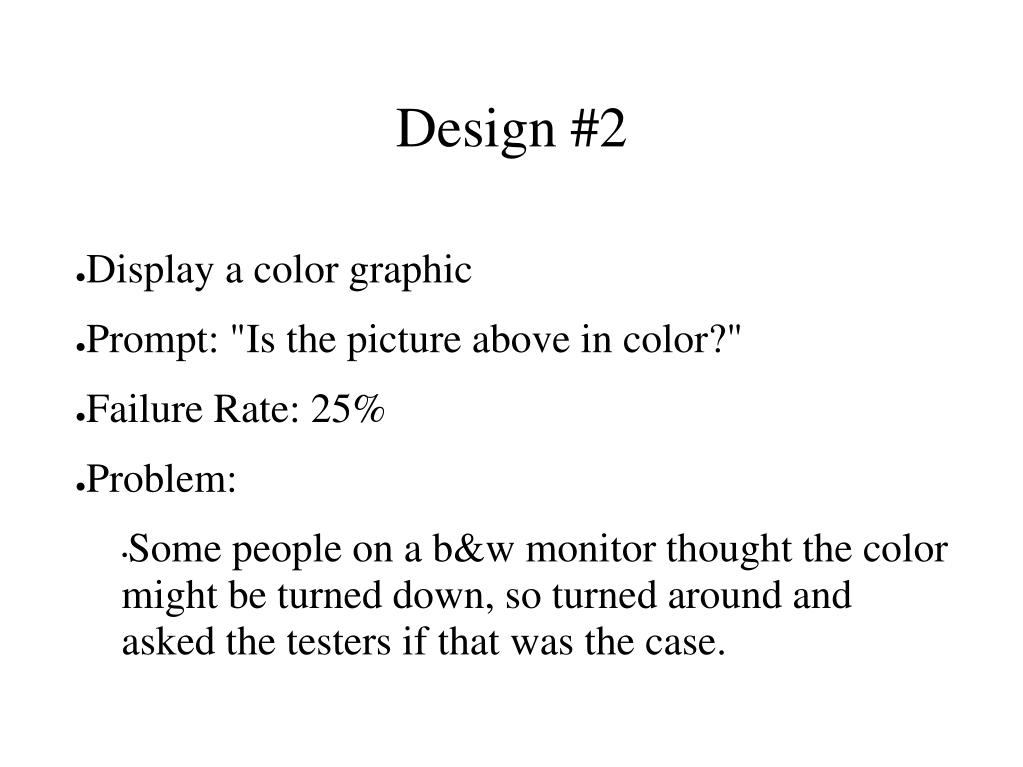

  5. Design #2 • Display a color graphic • Prompt: "Is the picture above in color?" • Failure Rate: 25% • Problem: • Some people on a b&w monitor thought the color might be turned down, so turned around and asked the testers if that was the case.

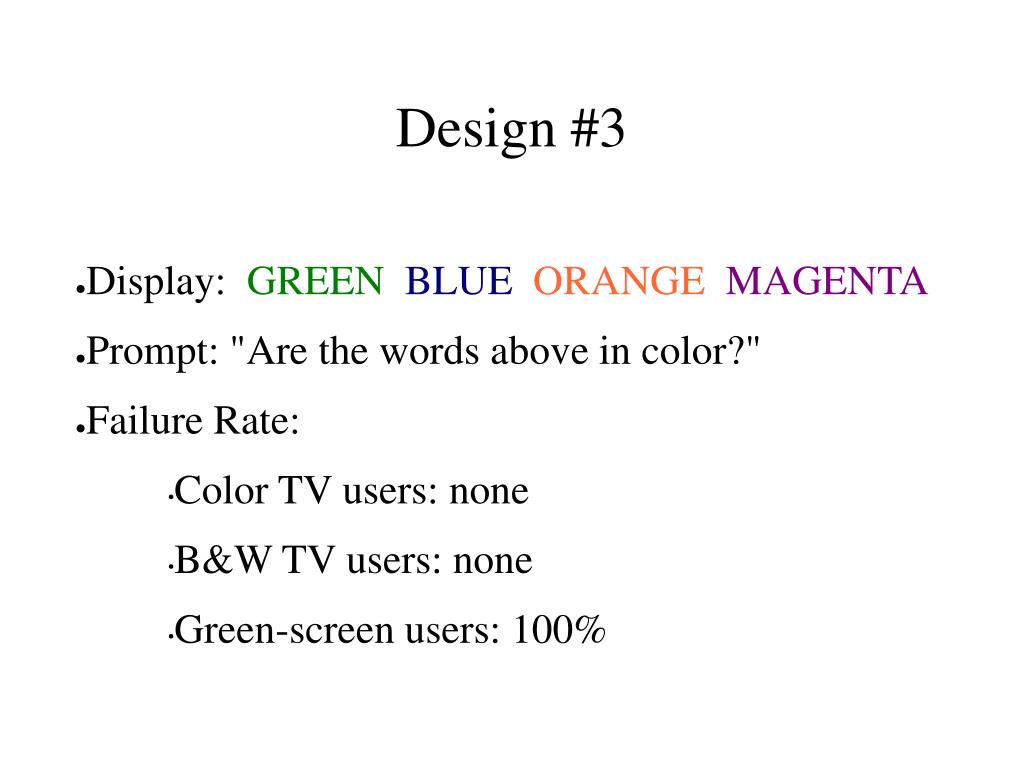

  6. Design #3 • Display: GREENBLUEORANGEMAGENTA • Prompt: "Are the words above in color?" • Failure Rate: • Color TV users: none • B&W TV users: none • Green-screen users: 100%

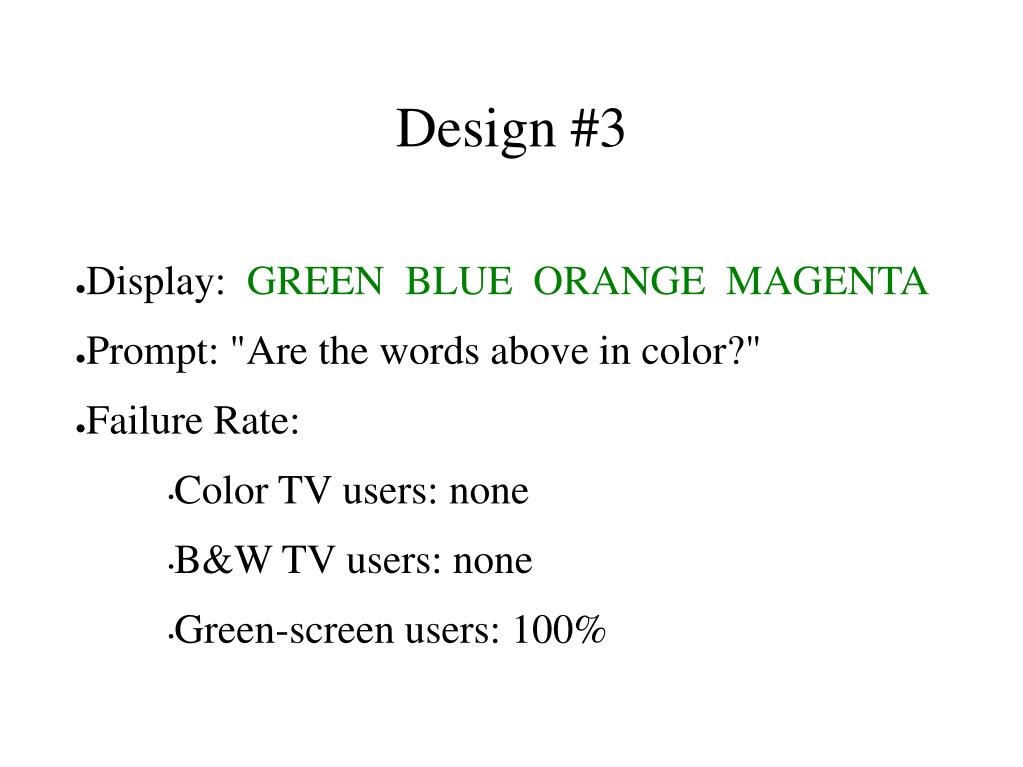

  7. Design #3 • Display: GREEN BLUE ORANGE MAGENTA • Prompt: "Are the words above in color?" • Failure Rate: • Color TV users: none • B&W TV users: none • Green-screen users: 100%

  8. Design #4 • Display: GREENBLUEORANGEMAGENTA • Prompt: "Are the words above in more than one color?" • Failure Rate: • Color TV users: none • B&W TV users: 20% (on purpose) • Green-screen: 50% - "two colors: black and green"

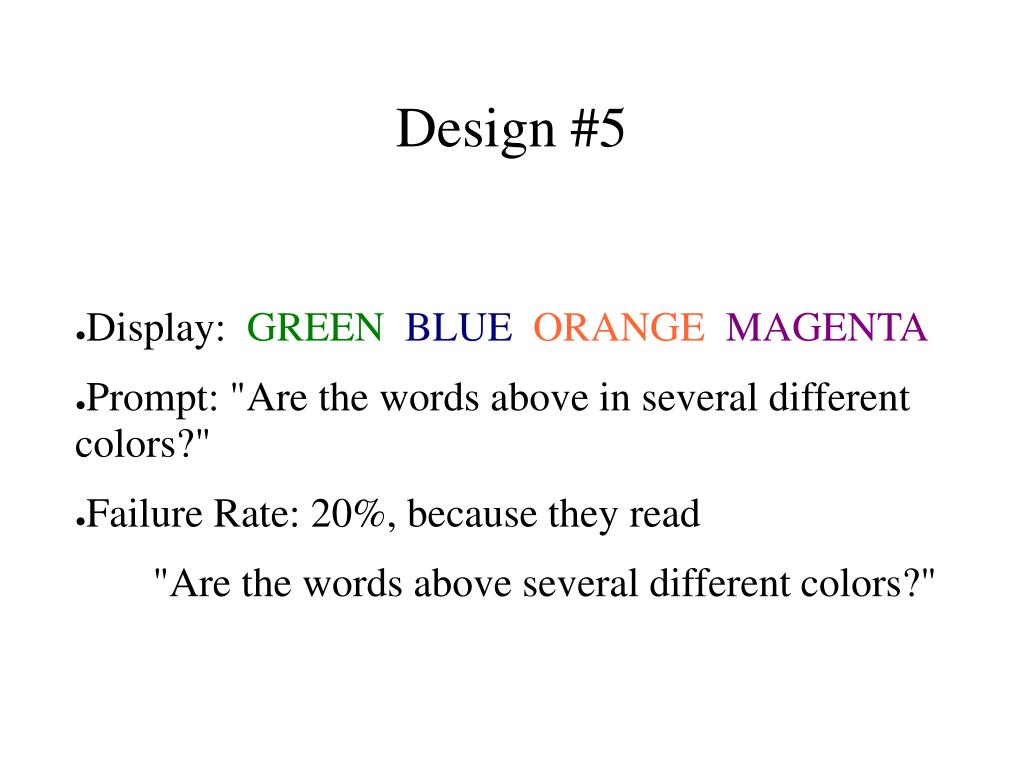

  9. Design #5 • Display: GREENBLUEORANGEMAGENTA • Prompt: "Are the words above in several different colors?" • Failure Rate: 20%, because they read "Are the words above several different colors?"

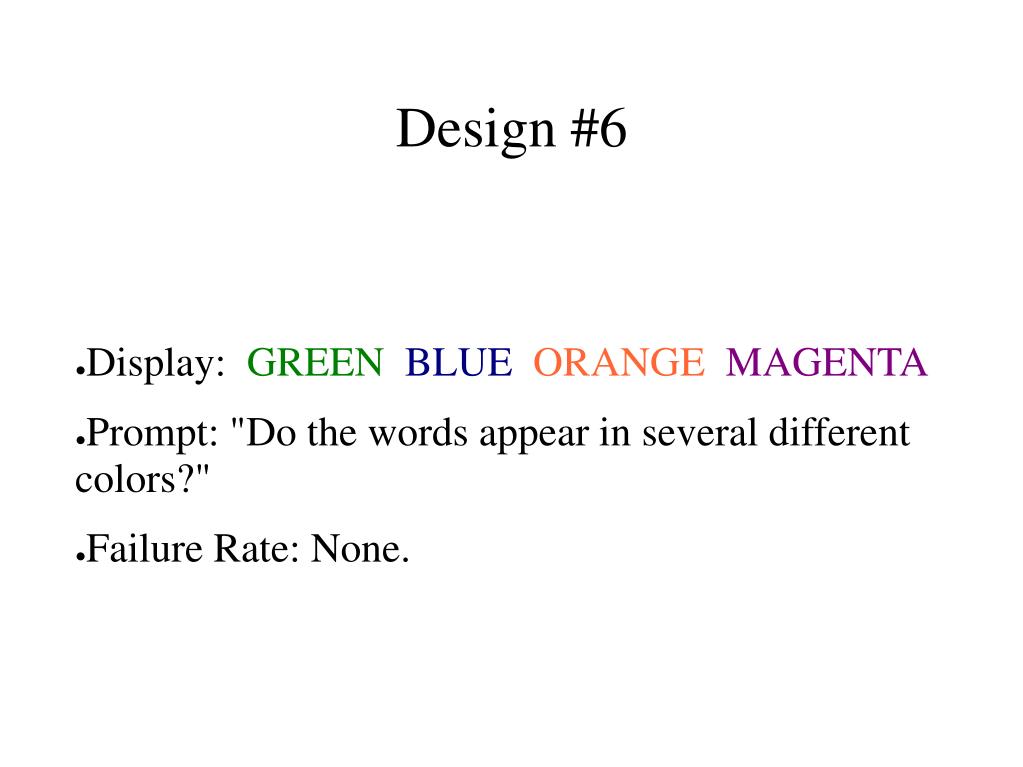

  10. Design #6 • Display: GREENBLUEORANGEMAGENTA • Prompt: "Do the words appear in several different colors?" • Failure Rate: None.

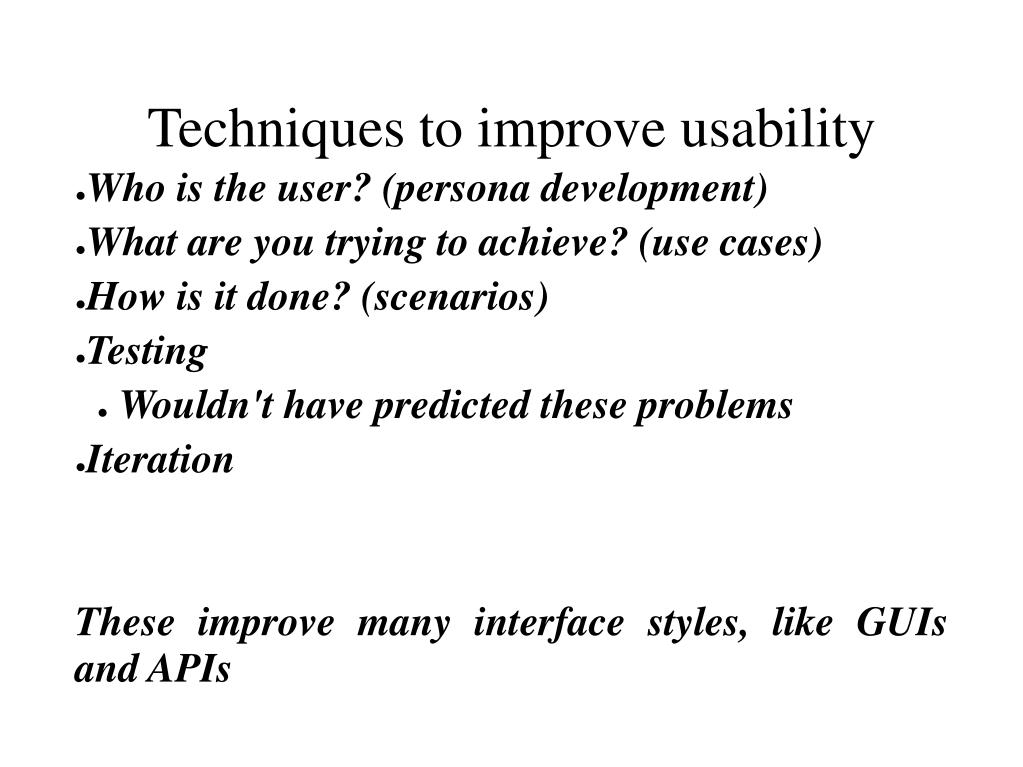

  11. Who is the user? (persona development) What are you trying to achieve? (use cases) How is it done? (scenarios) Testing Wouldn't have predicted these problems Iteration These improve many interface styles, like GUIs and APIs Techniques to improve usability

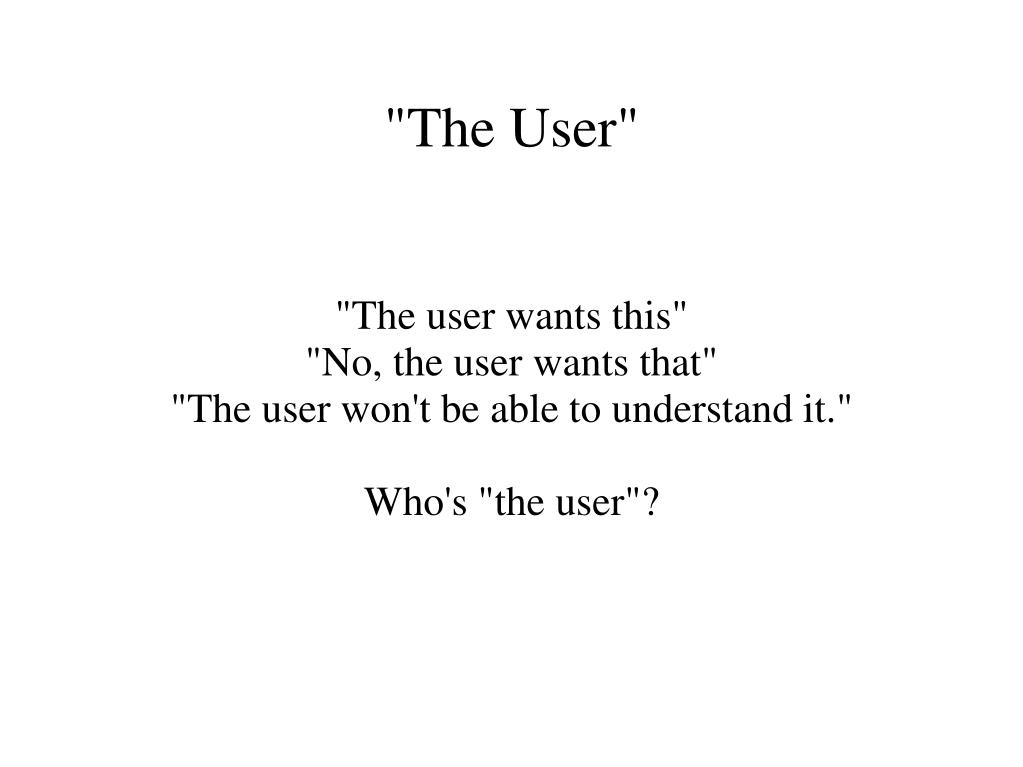

  12. "The user wants this" "No, the user wants that" "The user won't be able to understand it." Who's "the user"? "The User"

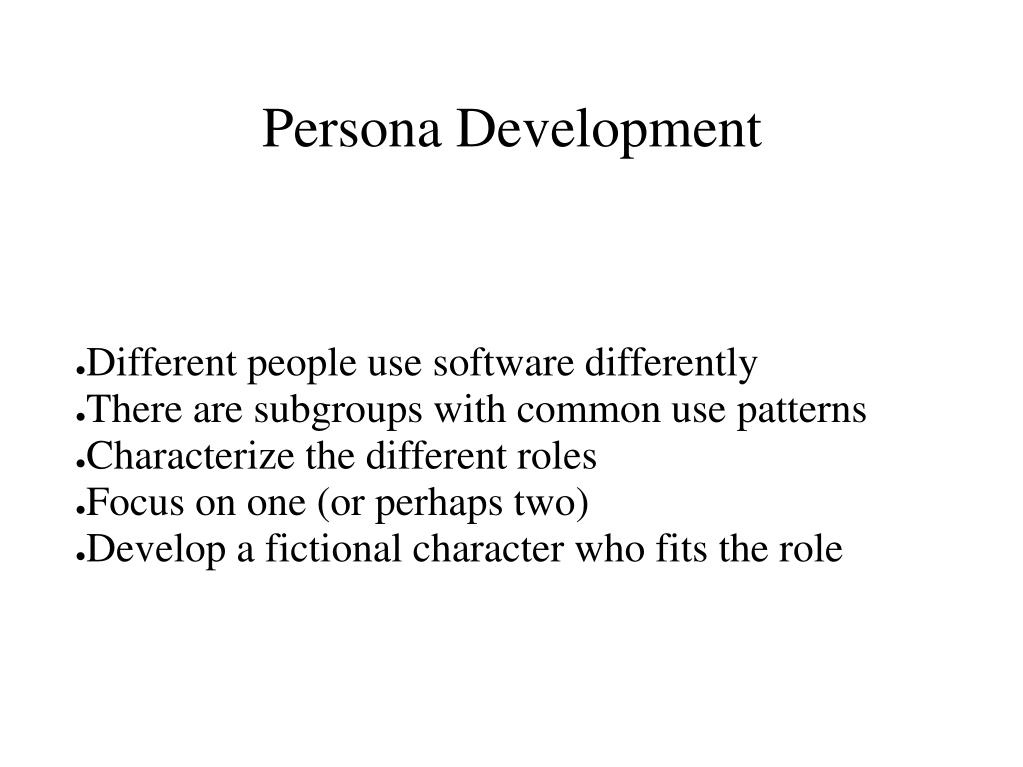

  13. Different people use software differently There are subgroups with common use patterns Characterize the different roles Focus on one (or perhaps two) Develop a fictional character who fits the role Persona Development

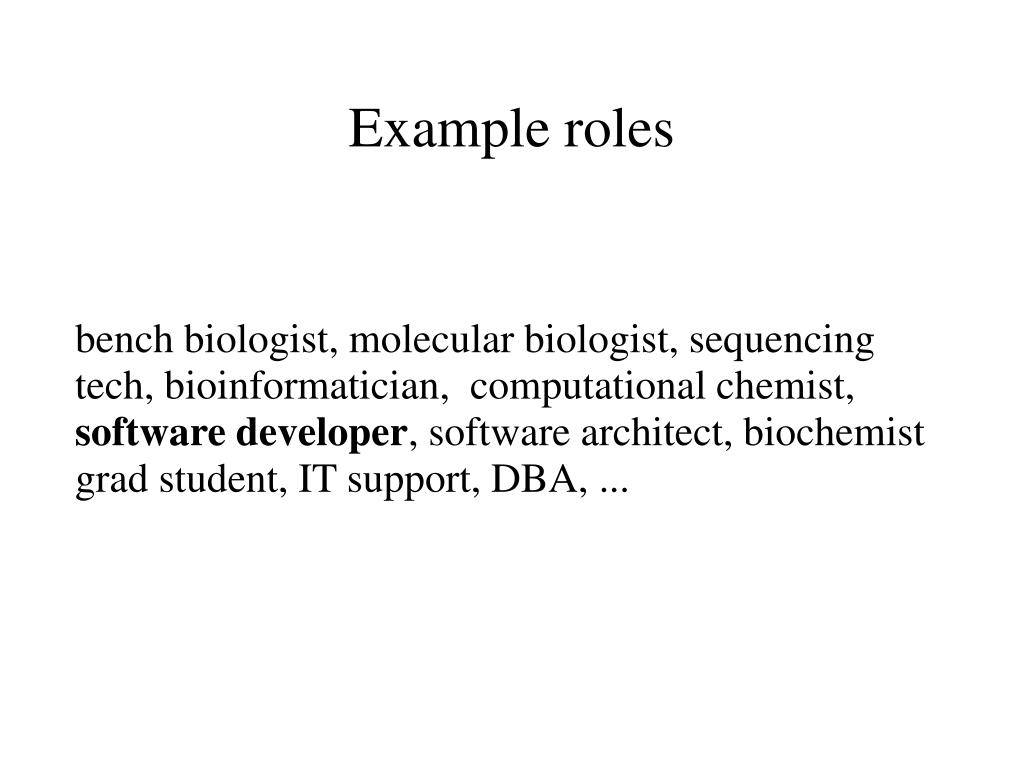

  14. bench biologist, molecular biologist, sequencing tech, bioinformatician, computational chemist, software developer, software architect, biochemist grad student, IT support, DBA, ... Example roles

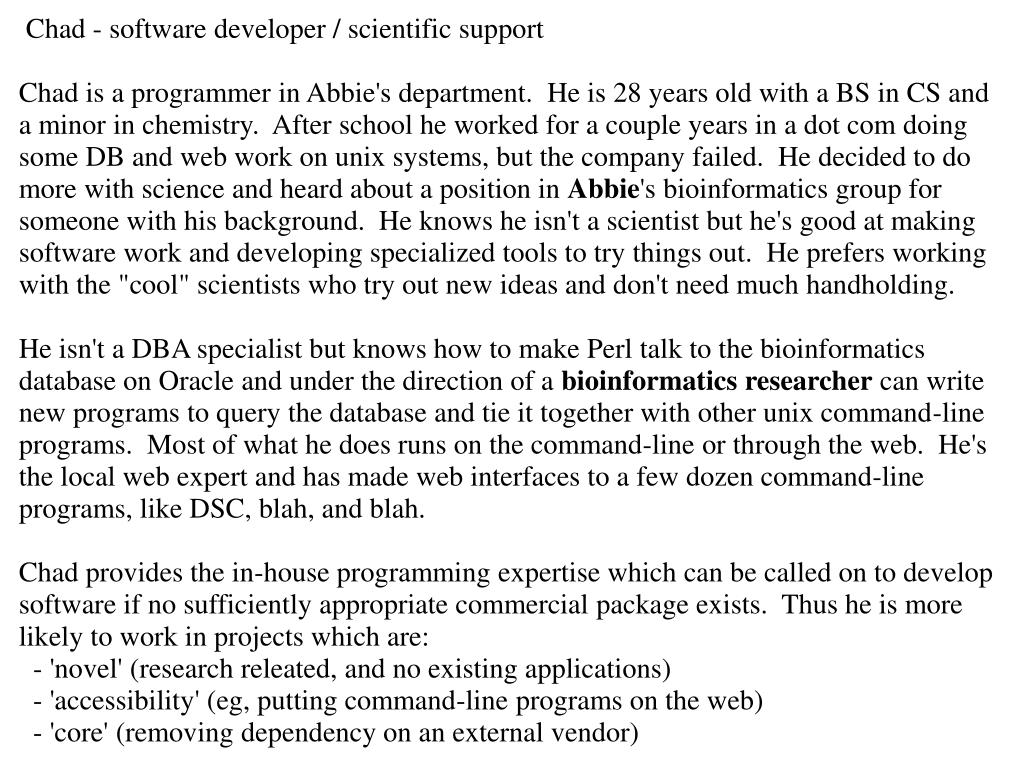

  15. Chad - software developer / scientific support Chad is a programmer in Abbie's department. He is 28 years old with a BS in CS and a minor in chemistry. After school he worked for a couple years in a dot com doing some DB and web work on unix systems, but the company failed. He decided to do more with science and heard about a position in Abbie's bioinformatics group for someone with his background. He knows he isn't a scientist but he's good at making software work and developing specialized tools to try things out. He prefers working with the "cool" scientists who try out new ideas and don't need much handholding. He isn't a DBA specialist but knows how to make Perl talk to the bioinformatics database on Oracle and under the direction of a bioinformatics researcher can write new programs to query the database and tie it together with other unix command-line programs. Most of what he does runs on the command-line or through the web. He's the local web expert and has made web interfaces to a few dozen command-line programs, like DSC, blah, and blah. Chad provides the in-house programming expertise which can be called on to develop software if no sufficiently appropriate commercial package exists. Thus he is more likely to work in projects which are: - 'novel' (research releated, and no existing applications) - 'accessibility' (eg, putting command-line programs on the web) - 'core' (removing dependency on an external vendor)

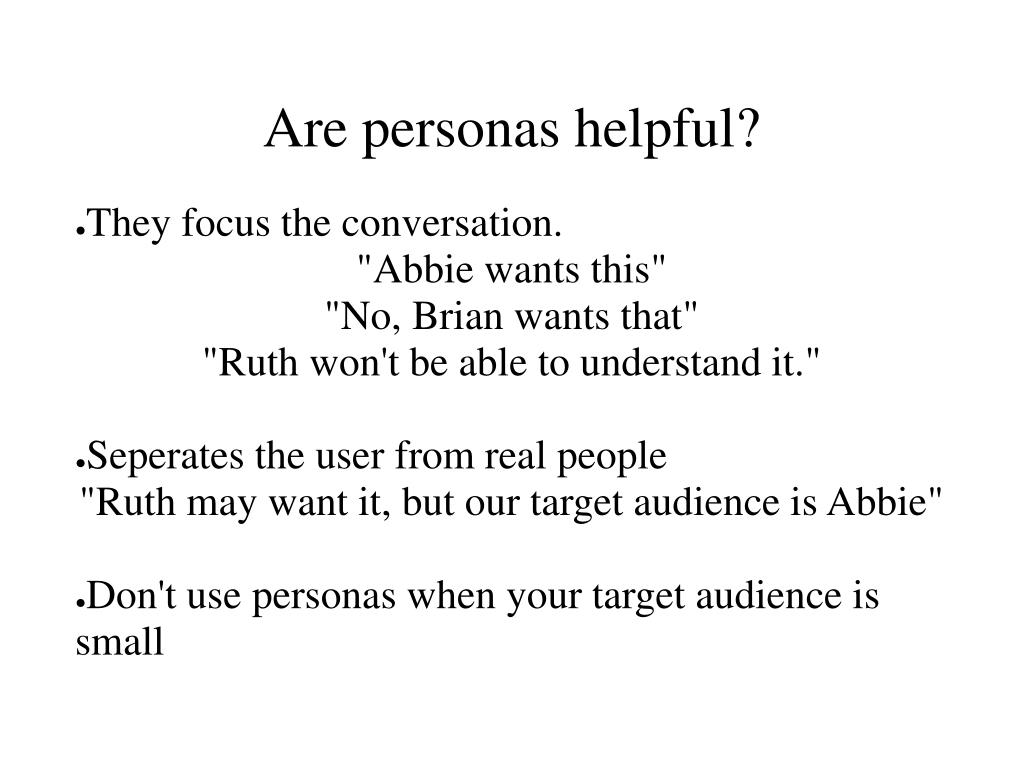

  16. They focus the conversation. "Abbie wants this" "No, Brian wants that" "Ruth won't be able to understand it." Seperates the user from real people "Ruth may want it, but our target audience is Abbie" Don't use personas when your target audience is small Are personas helpful?

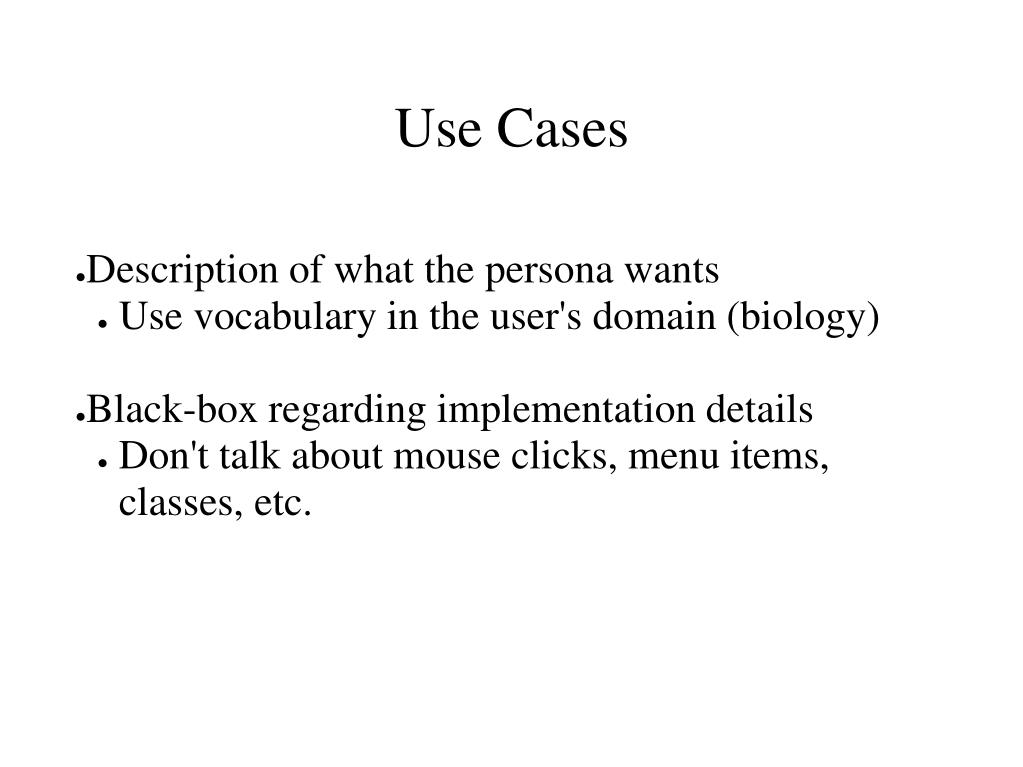

  17. Description of what the persona wants Use vocabulary in the user's domain (biology) Black-box regarding implementation details Don't talk about mouse clicks, menu items, classes, etc. Use Cases

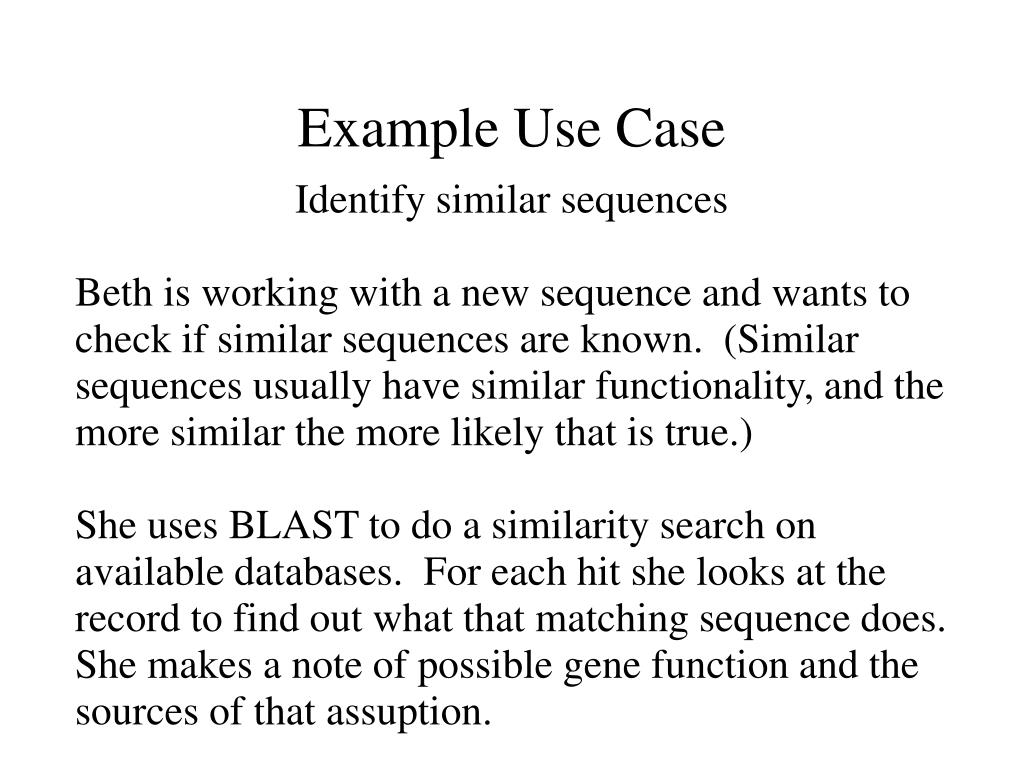

  18. Identify similar sequences Beth is working with a new sequence and wants to check if similar sequences are known. (Similar sequences usually have similar functionality, and the more similar the more likely that is true.) She uses BLAST to do a similarity search on available databases. For each hit she looks at the record to find out what that matching sequence does. She makes a note of possible gene function and the sources of that assuption. Example Use Case

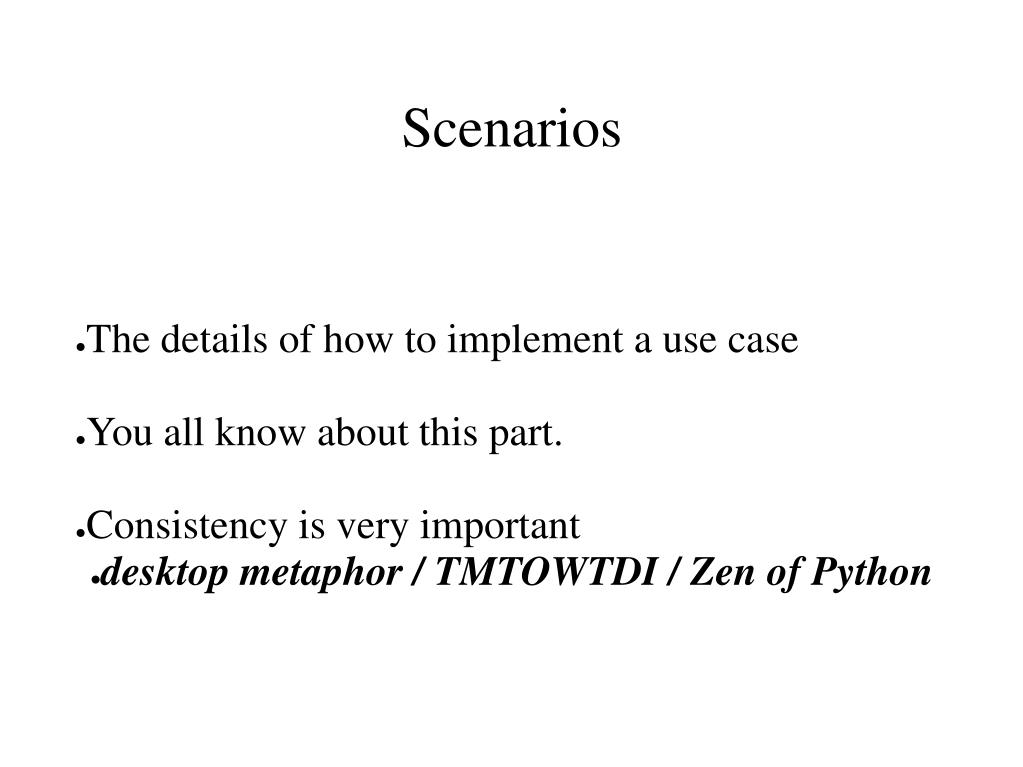

  19. The details of how to implement a use case You all know about this part. Consistency is very important desktop metaphor / TMTOWTDI / Zen of Python Scenarios

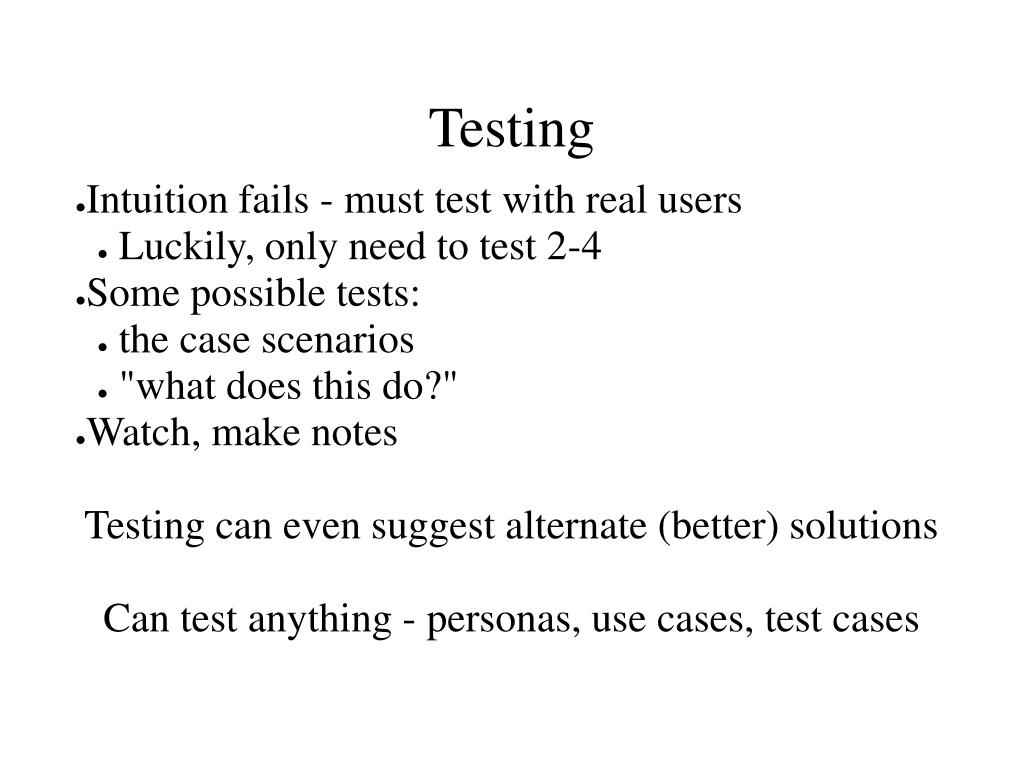

  20. Intuition fails - must test with real users Luckily, only need to test 2-4 Some possible tests: the case scenarios "what does this do?" Watch, make notes Testing can even suggest alternate (better) solutions Can test anything - personas, use cases, test cases Testing

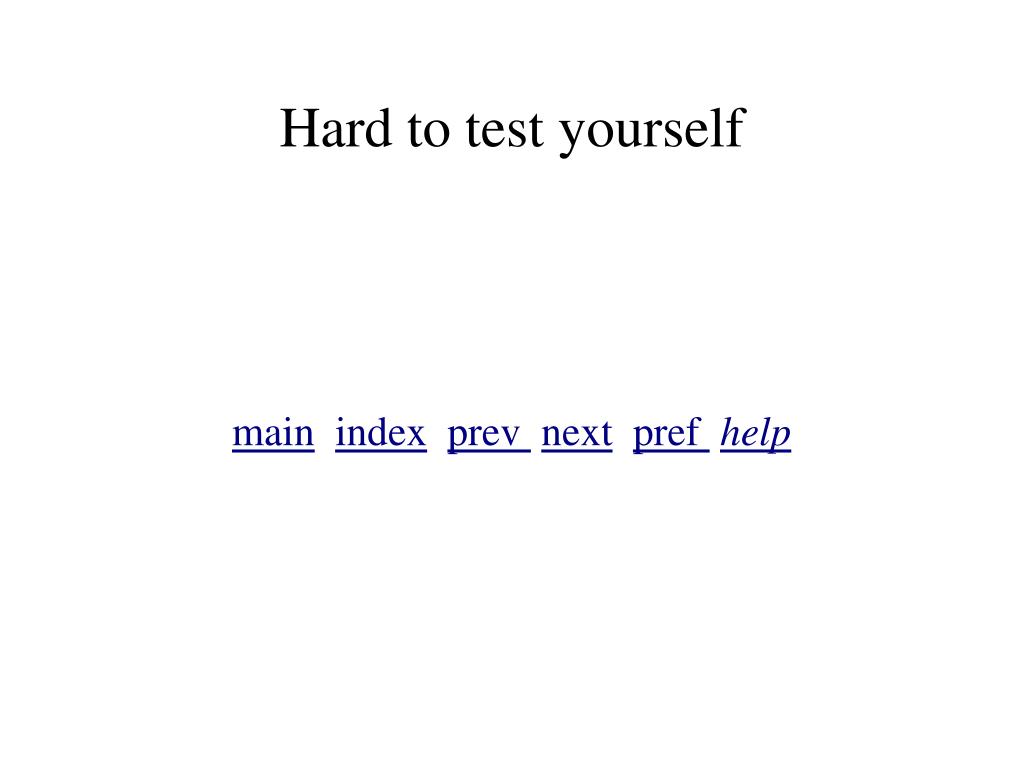

  21. mainindexprev nextpref help Hard to test yourself

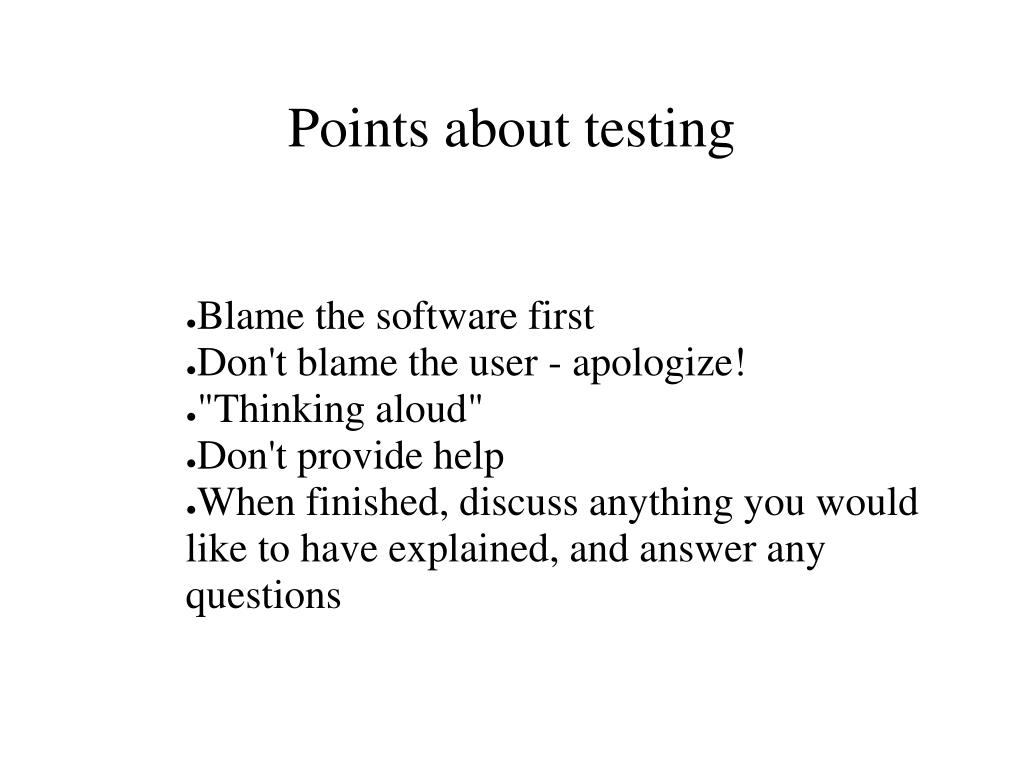

  22. Blame the software first Don't blame the user - apologize! "Thinking aloud" Don't provide help When finished, discuss anything you would like to have explained, and answer any questions Points about testing

  23. Software development doesn't work in distinct stages There is flow between the different steps When `finished', will need to rethink/refactor the design Ways to speed up the iteration prototypes paper / web / GUI designers "scripting languages" For APIs; write test and sample code first easy access to a "customer representative" Iterative Development

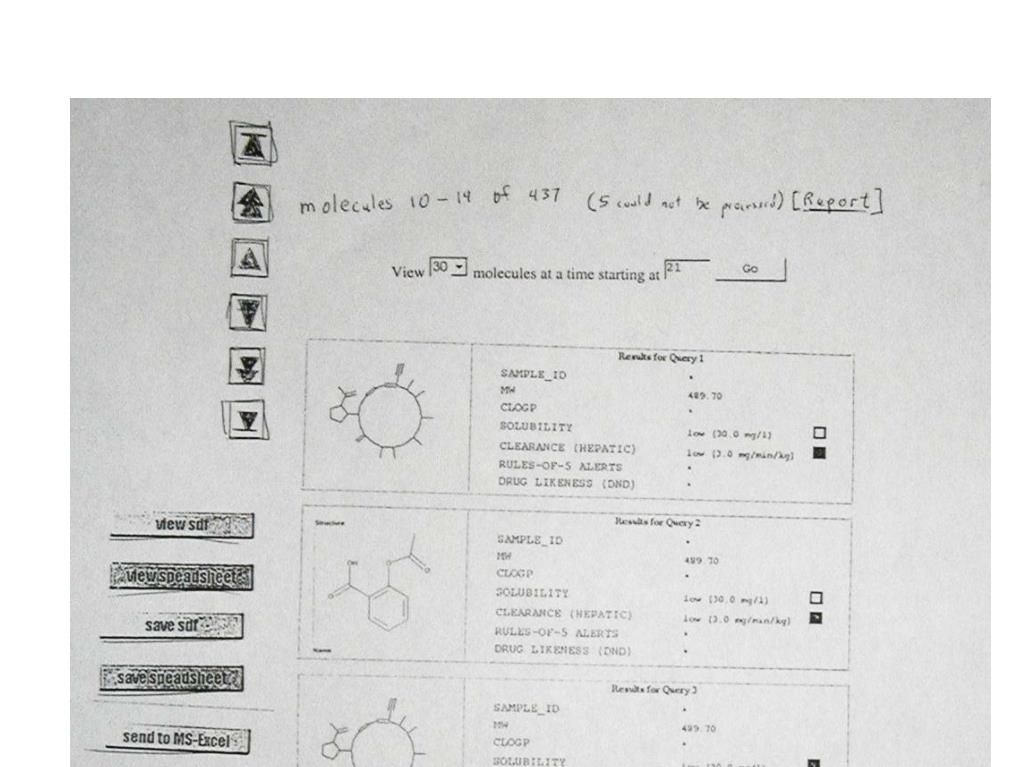

  24. Example paper prototype

  25. Few usability designers Esp. ones who work free Less experienced developer base Usability designers have less respect "he who writes the code wins" Hackers code things up for themselves (power users) The solution is often "make it configurable" Lack of testing Special problems of OSS http://mpt.phrasewise.com/discuss/msgReader$173

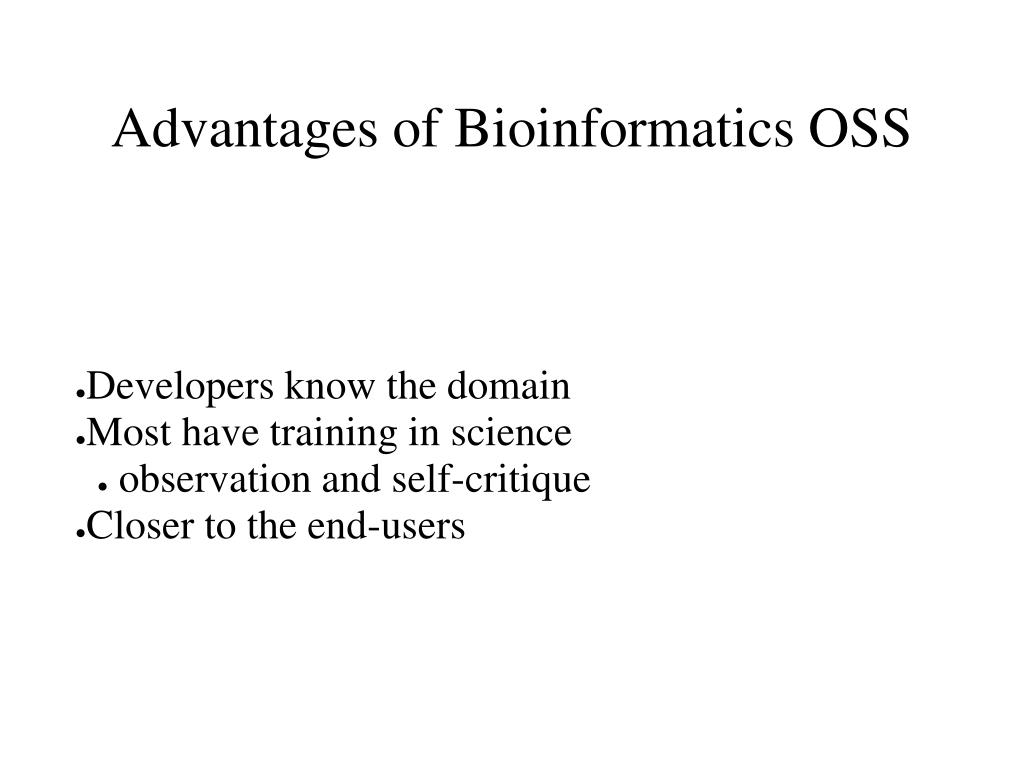

  26. Developers know the domain Most have training in science observation and self-critique Closer to the end-users Advantages of Bioinformatics OSS

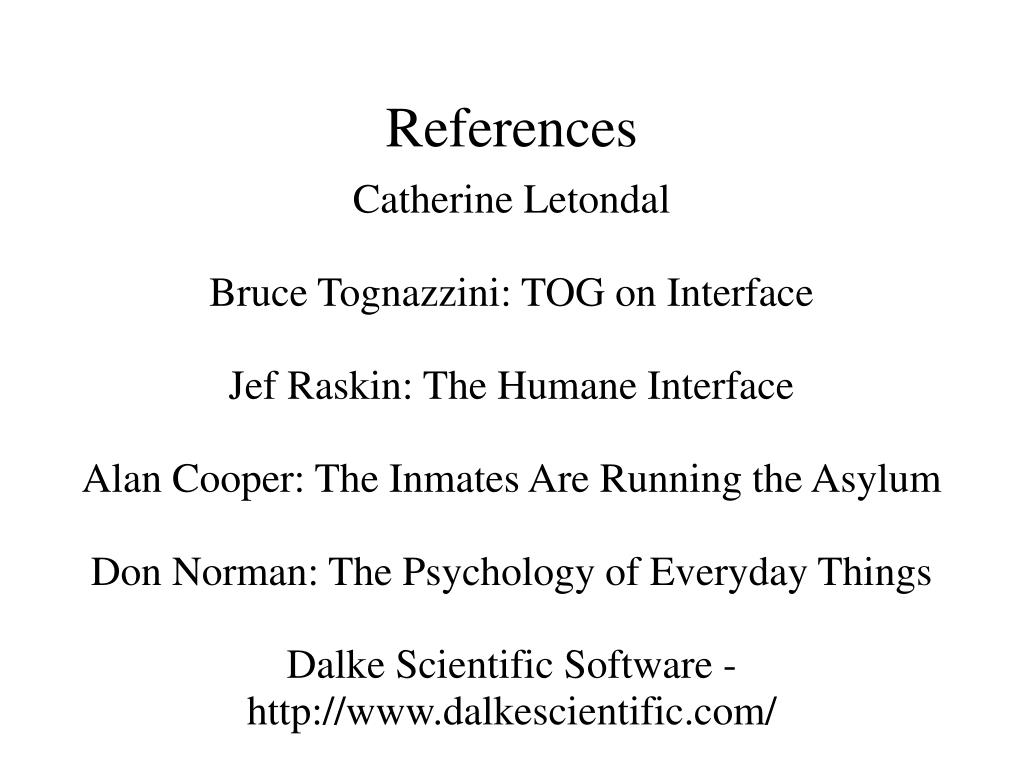

  27. Catherine Letondal Bruce Tognazzini: TOG on Interface Jef Raskin: The Humane Interface Alan Cooper: The Inmates Are Running the Asylum Don Norman: The Psychology of Everyday Things Dalke Scientific Software - http://www.dalkescientific.com/ References
