Enforcing Modularity

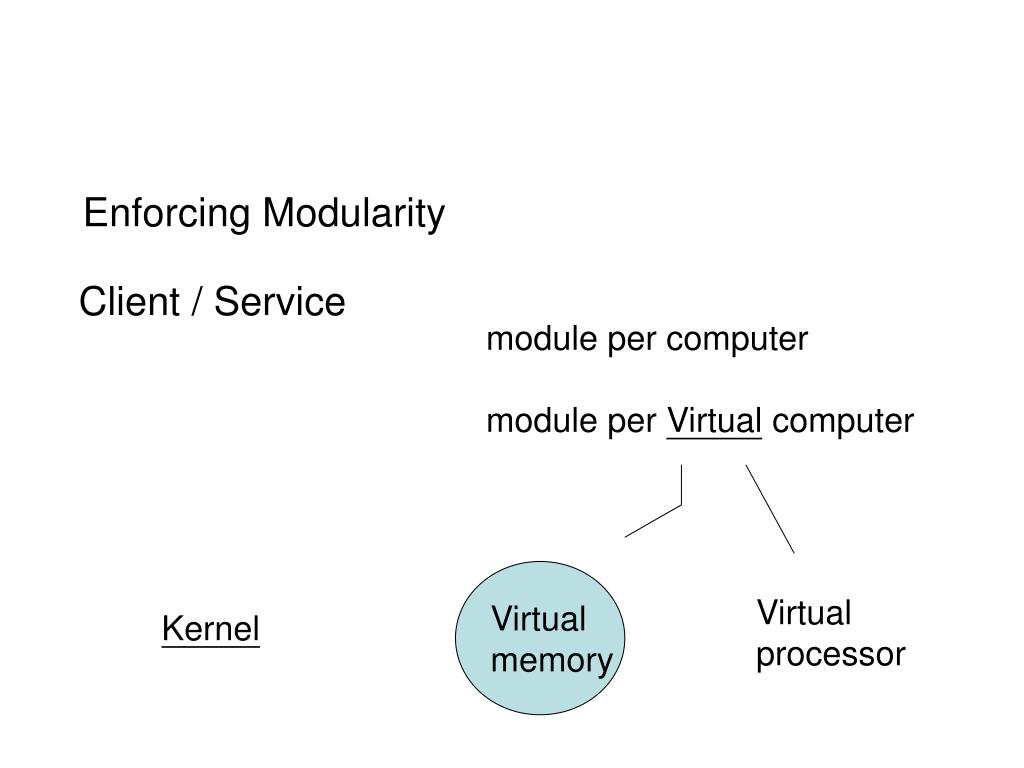

Enforcing Modularity. Client / Service. module per computer module per Virtual computer. Virtual memory. Virtual processor. Kernel. Why VM:. -A can overwrite B’s memory. Mem. code. μProc. Mod A. ST R1,B. data. Mod B. Virtual Memory. VA  VM  Physical. Addr. VA. Address

tawny
Télécharger la présentation

Enforcing Modularity

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Enforcing Modularity Client / Service module per computer module per Virtual computer Virtual memory Virtual processor Kernel

  2. Why VM: -A can overwrite B’s memory Mem code μProc. Mod A ST R1,B data Mod B

  3. Virtual Memory VA VM  Physical Addr VA Address Space code Memory code code code Disk

  4. Simplified VM Hardware Mem PA VA VM (MMU) LD VA, R1 μProc. pmar VA PA “page map address reg”

  5. 20 bit 12 bit 212= 4096 words 32 bit VA Page # Offset Page PA Mem Page 4096 bytes

  6. Supervisory Module -Kernel Kernel AS μProc. maps only kernel can change PMAR pmar user / kernel

  7. Supervisor Call -SVC Set U / K  K Set PMAR to kernel map Save PC PC  addr gate SVC gate malloc

  8. Kernel –Trusted intermediary producer (put) Consumer (get) Graphics ES IPC Net Graphics

  9. AS A AS B Memory Code A Code 1 Code B Lib 1 Lib 1,2 Code 2
