  1. Verifying Type Systems with Glass Box Model Checking Melanie Agnew Michael Roberson

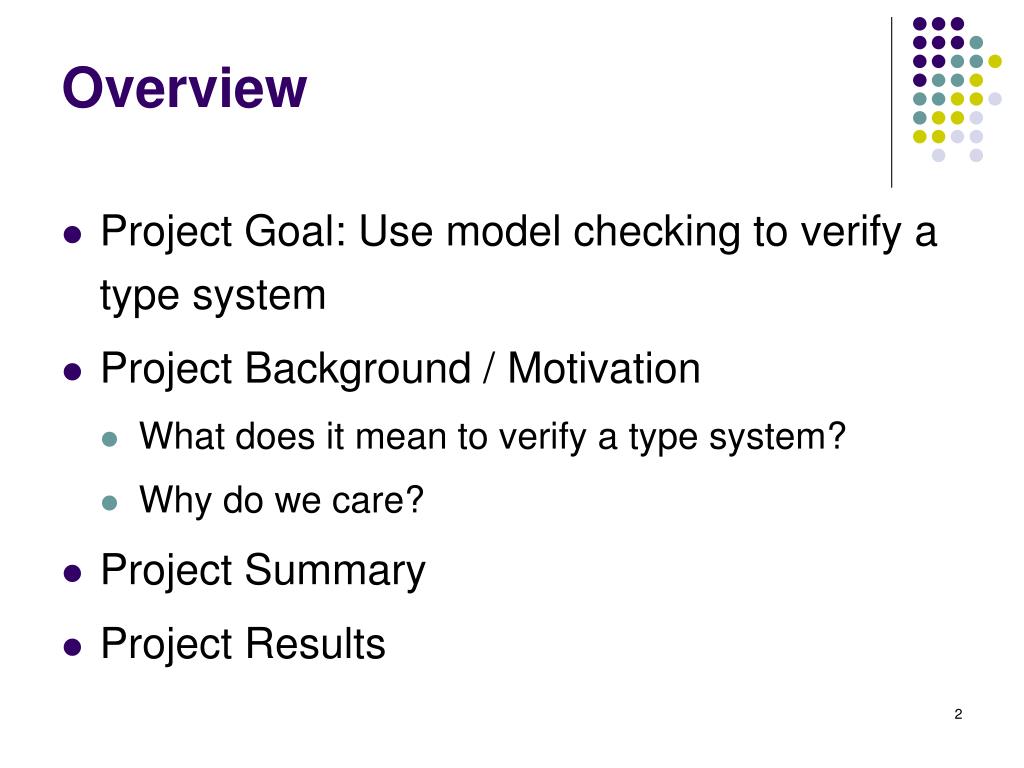

  2. Overview • Project Goal: Use model checking to verify a type system • Project Background / Motivation • What does it mean to verify a type system? • Why do we care? • Project Summary • Project Results

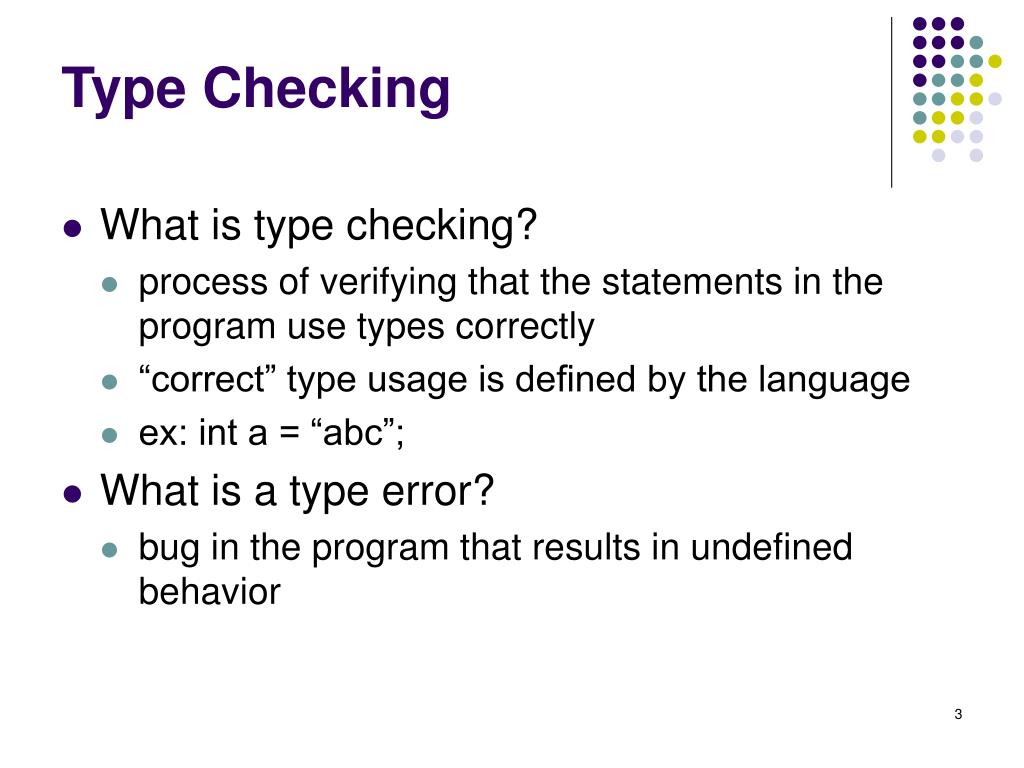

  3. Type Checking • What is type checking? • process of verifying that the statements in the program use types correctly • “correct” type usage is defined by the language • ex: int a = “abc”; • What is a type error? • bug in the program that results in undefined behavior

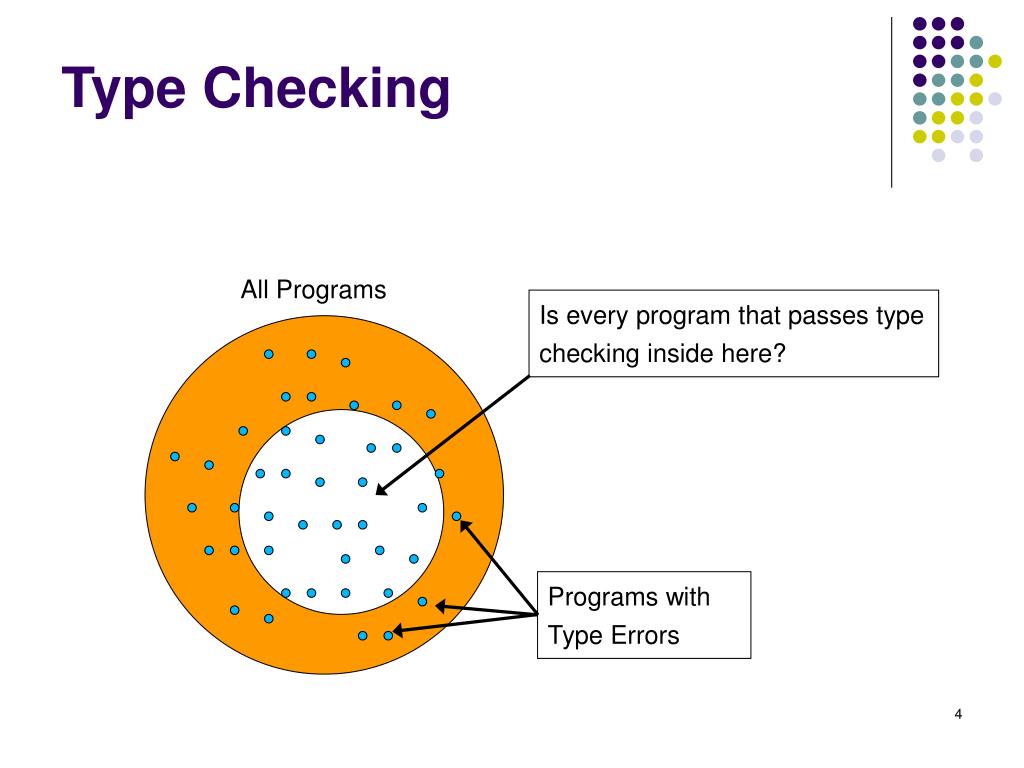

  4. Type Checking All Programs Is every program that passes type checking inside here? Programs with Type Errors

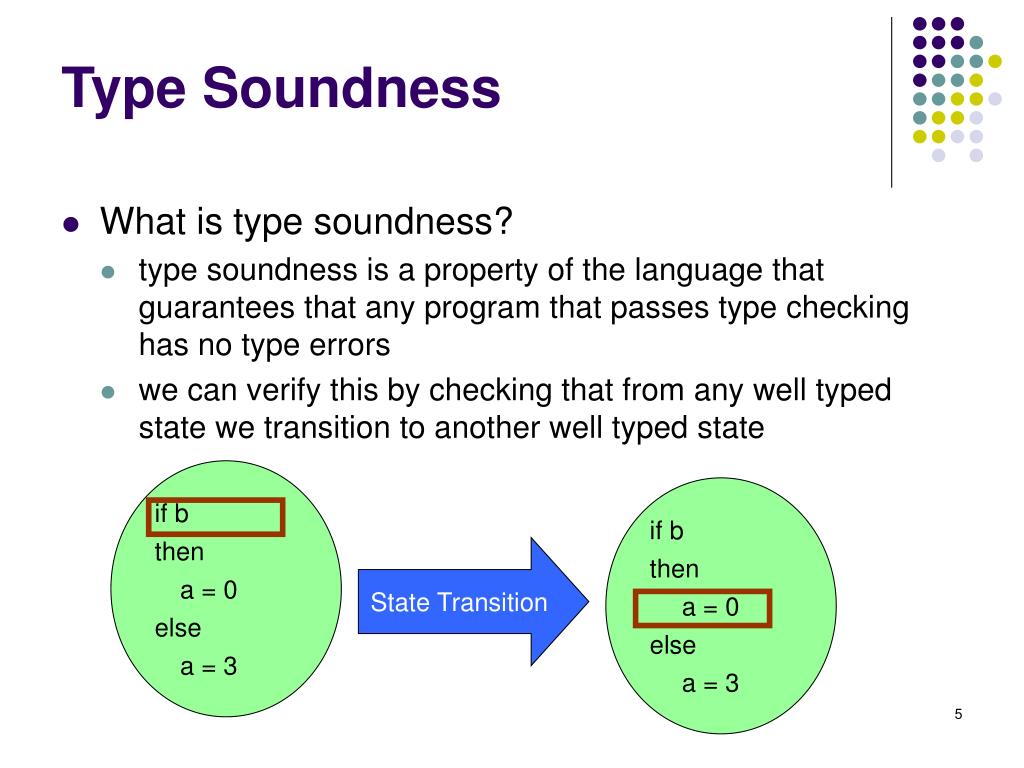

  5. Type Soundness • What is type soundness? • type soundness is a property of the language that guarantees that any program that passes type checking has no type errors • we can verify this by checking that from any well typed state we transition to another well typed state if b then a = 0 else a = 3 if b then a = 0 else a = 3 State Transition

  6. Example Language literals: 0, true, false operators: +1, -1 if statement: ife1thene2elsee3 Types: Boolean, Integer Example program: (if true then 0 else 0+1)+1

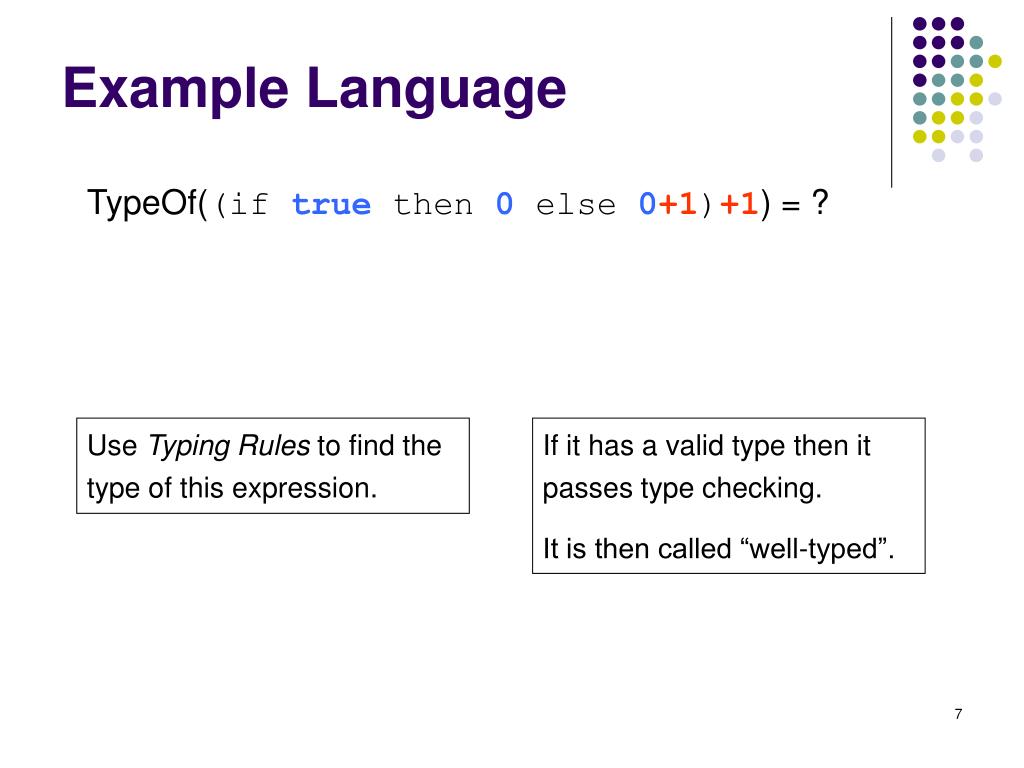

  7. Example Language TypeOf((if true then 0 else 0+1)+1) = ? Use Typing Rules to find the type of this expression. If it has a valid type then it passes type checking. It is then called “well-typed”.

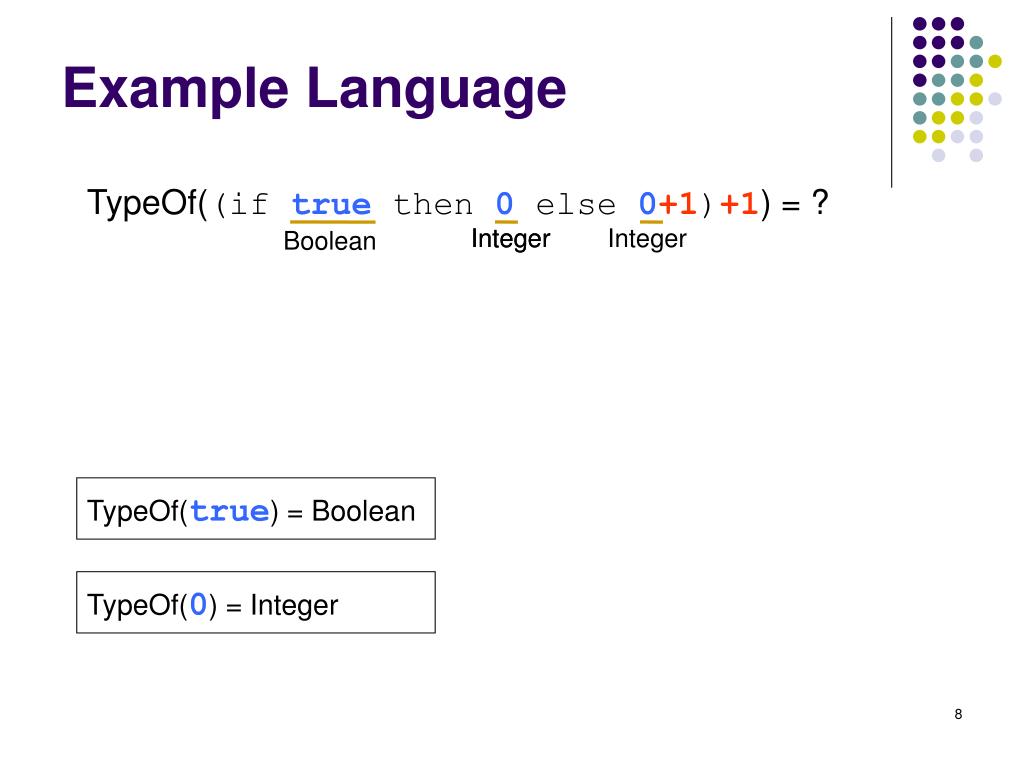

  8. Example Language TypeOf((if true then 0 else 0+1)+1) = ? Integer Integer Integer Boolean TypeOf(true) = Boolean TypeOf(0) = Integer

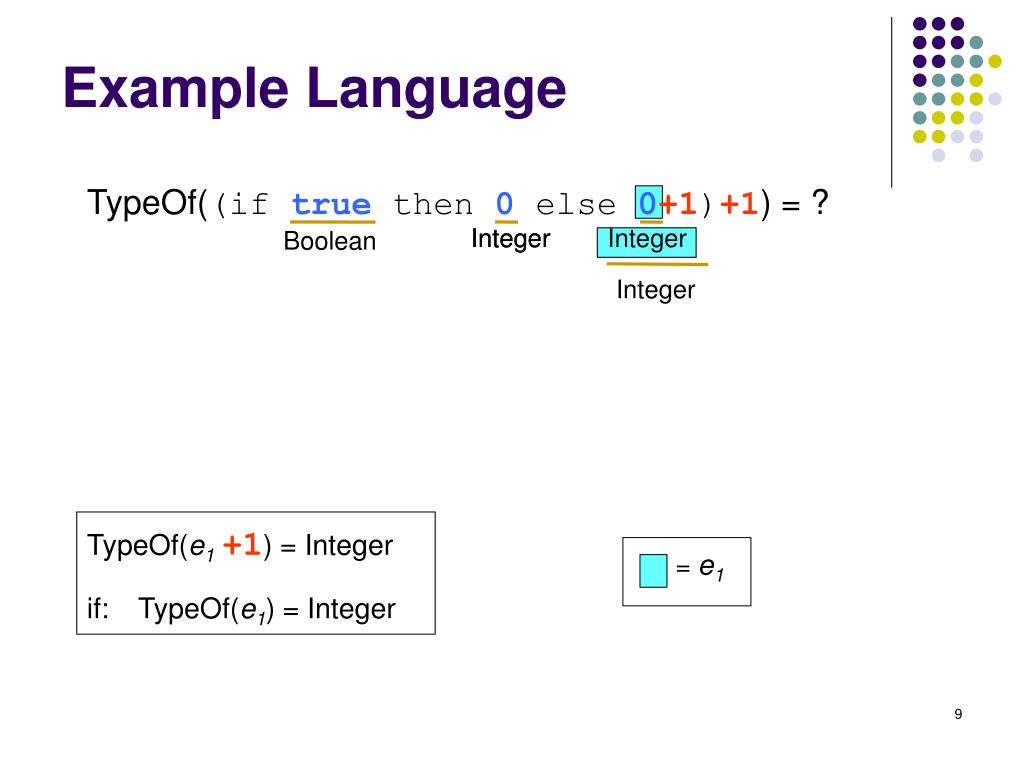

  9. = e1 Example Language TypeOf((if true then 0 else 0+1)+1) = ? Integer Integer Integer Boolean Integer TypeOf(e1+1) = Integer if: TypeOf(e1) = Integer

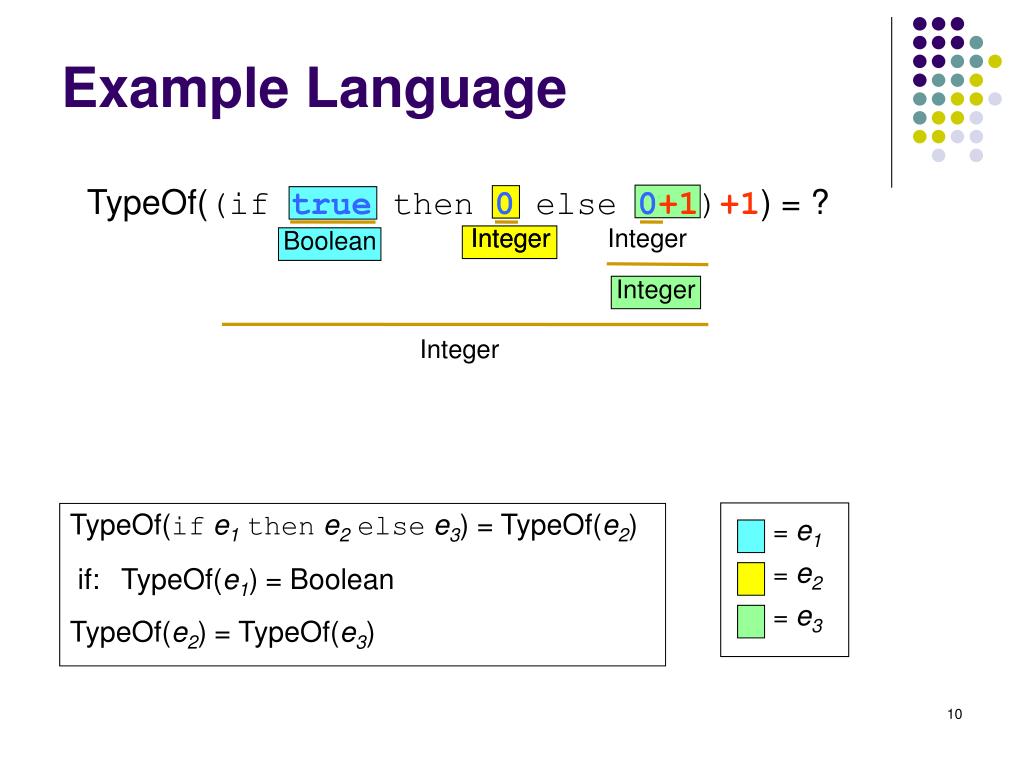

  10. Example Language TypeOf((if true then 0 else 0+1)+1) = ? Integer Integer Integer Boolean Integer Integer = e1 TypeOf(ife1thene2elsee3) = TypeOf(e2) if: TypeOf(e1) = Boolean TypeOf(e2) = TypeOf(e3) = e2 = e3

  11. = e1 Example Language TypeOf((if true then 0 else 0+1)+1) = ? Integer Integer Integer Boolean Integer Integer Integer TypeOf(e1+1) = Integer if: TypeOf(e1) = Integer

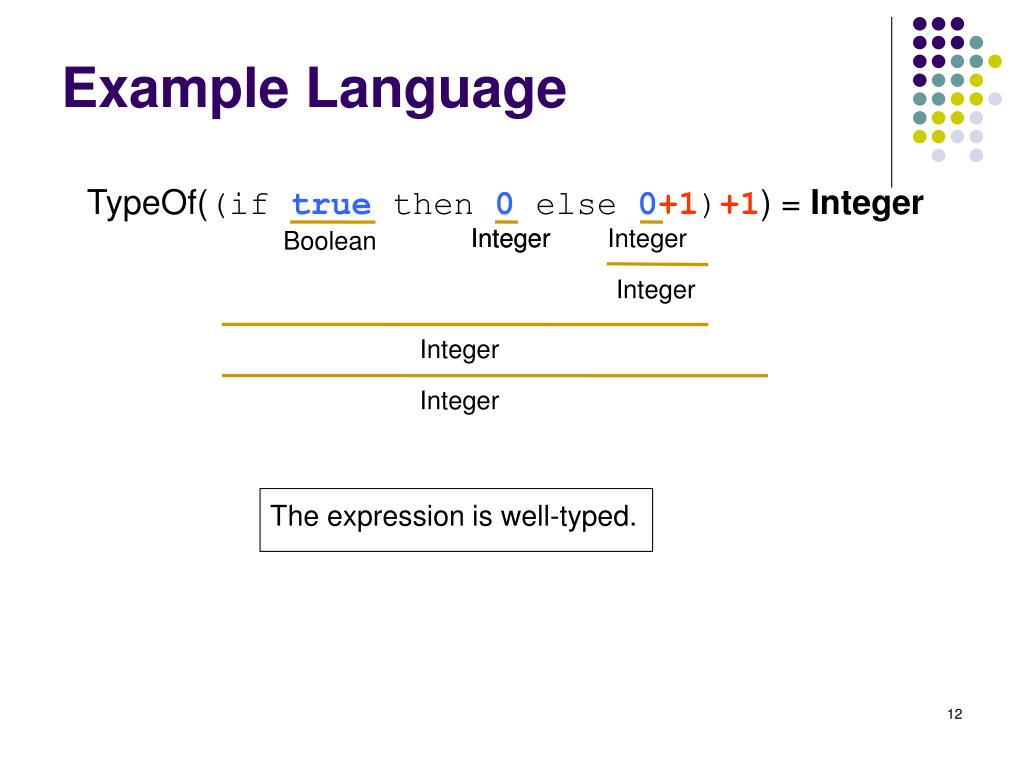

  12. Example Language TypeOf((if true then 0 else 0+1)+1) = Integer Integer Integer Integer Boolean Integer Integer Integer The expression is well-typed.

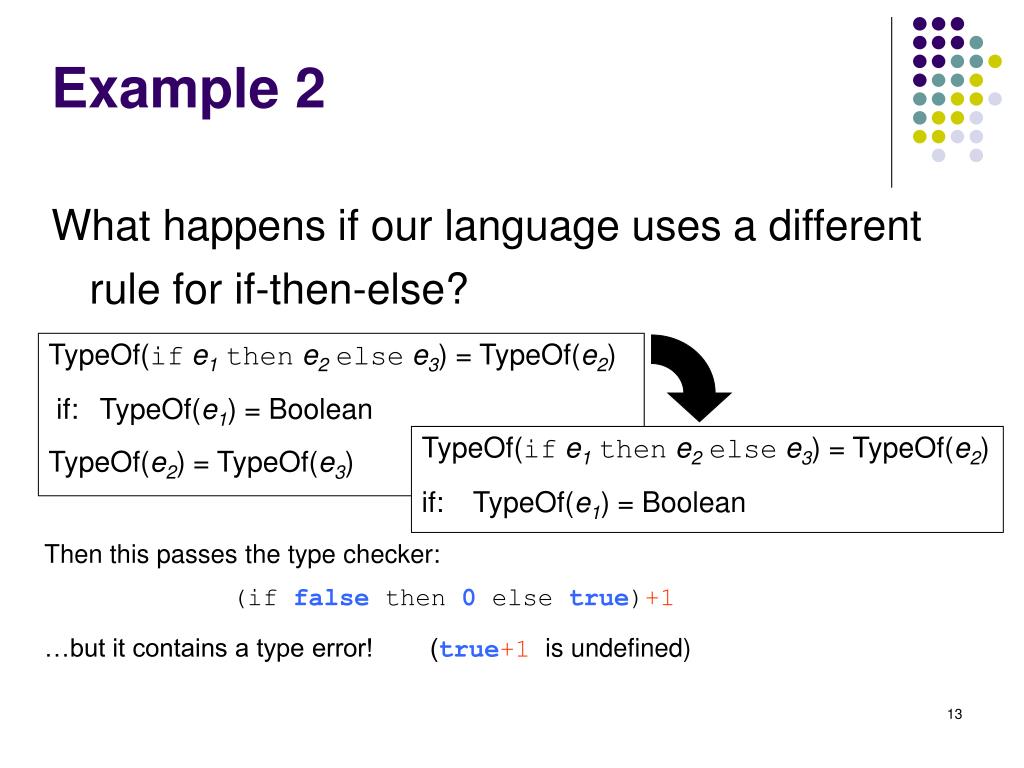

  13. Example 2 What happens if our language uses a different rule for if-then-else? TypeOf(ife1thene2elsee3) = TypeOf(e2) if: TypeOf(e1) = Boolean TypeOf(e2) = TypeOf(e3) TypeOf(ife1thene2elsee3) = TypeOf(e2) if: TypeOf(e1) = Boolean Then this passes the type checker: (if false then 0 else true)+1 …but it contains a type error! (true+1 is undefined)

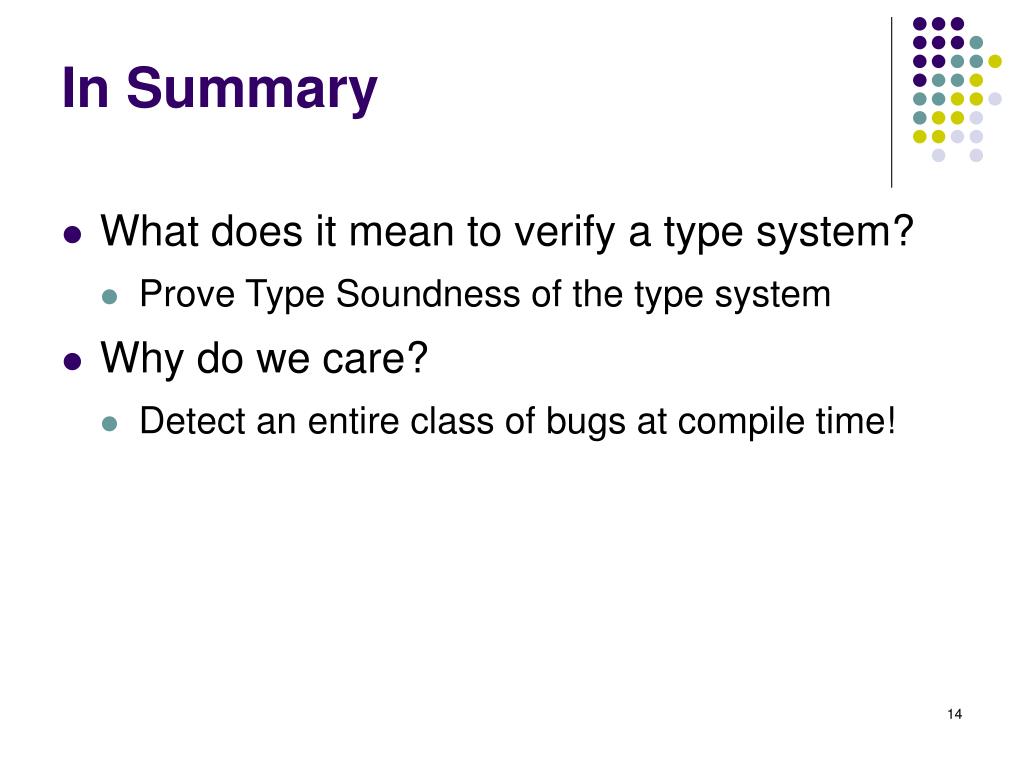

  14. In Summary • What does it mean to verify a type system? • Prove Type Soundness of the type system • Why do we care? • Detect an entire class of bugs at compile time!

  15. Proving Type Soundness • Traditional method is to write out a symbolic proof • need to prove soundness for each type of statement • We use software model checking • Verify that each well-typed program state transitions to another well-typed state

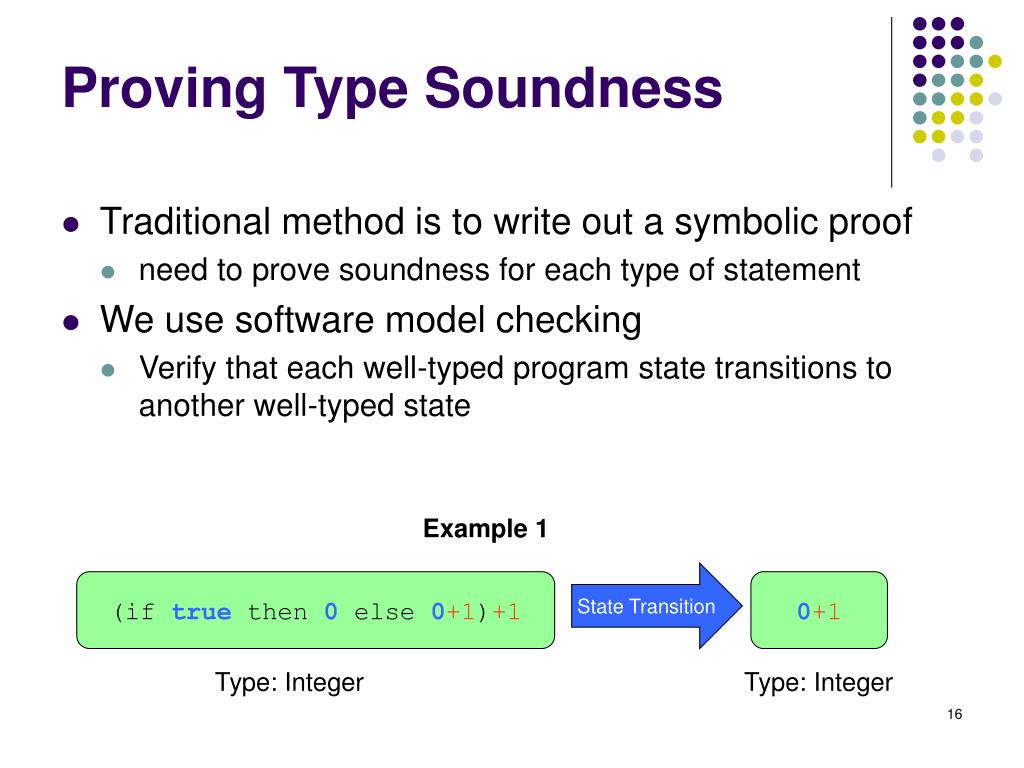

  16. Proving Type Soundness • Traditional method is to write out a symbolic proof • need to prove soundness for each type of statement • We use software model checking • Verify that each well-typed program state transitions to another well-typed state Example 1 State Transition (if true then 0 else 0+1)+1 0+1 Type: Integer Type: Integer

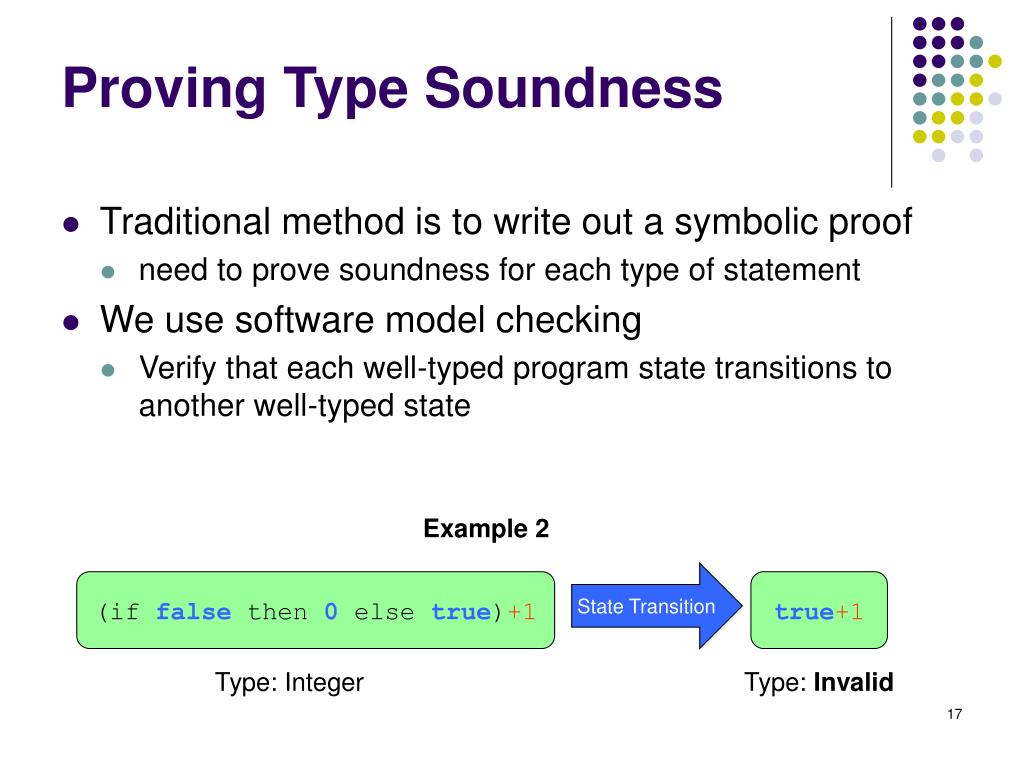

  17. Proving Type Soundness • Traditional method is to write out a symbolic proof • need to prove soundness for each type of statement • We use software model checking • Verify that each well-typed program state transitions to another well-typed state Example 2 State Transition (if false then 0 else true)+1 true+1 Type: Integer Type: Invalid

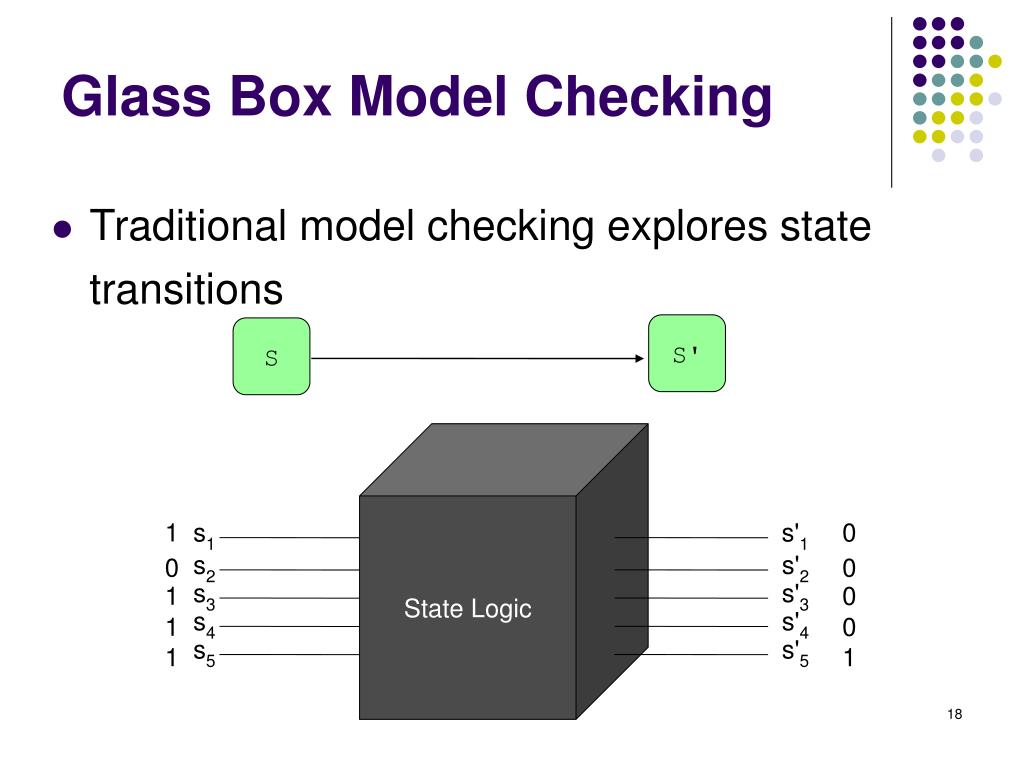

  18. Glass Box Model Checking • Traditional model checking explores state transitions S' S State Logic 1 s1 s'1 0 s2 s'2 0 0 s3 s'3 1 0 s4 s'4 1 0 s5 s'5 1 1

  19. Glass Box Model Checking • Glass Box checking determines which part of the state is used S' S Which bits are used? State Logic 1 s1 s'1 0 s2 s'2 0 0 s3 s'3 1 0 s4 s'4 1 0 s5 s'5 1 1

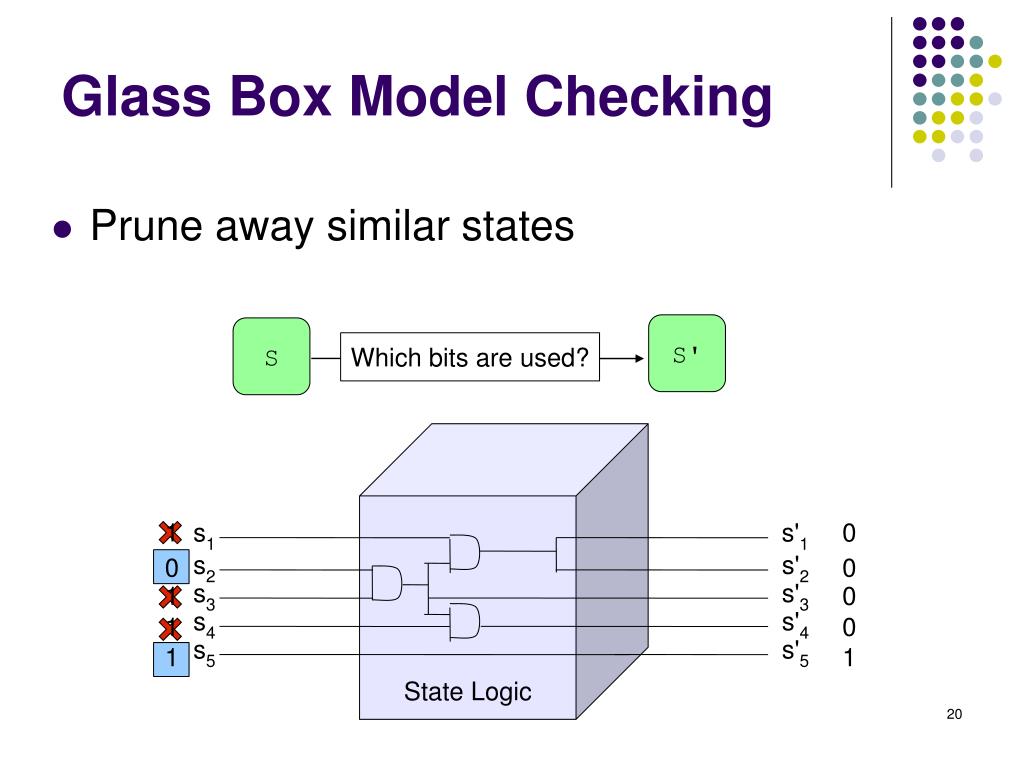

  20. Glass Box Model Checking • Prune away similar states S' S Which bits are used? State Logic 1 s1 s'1 0 s2 s'2 0 0 s3 s'3 1 0 s4 s'4 1 0 s5 s'5 1 1

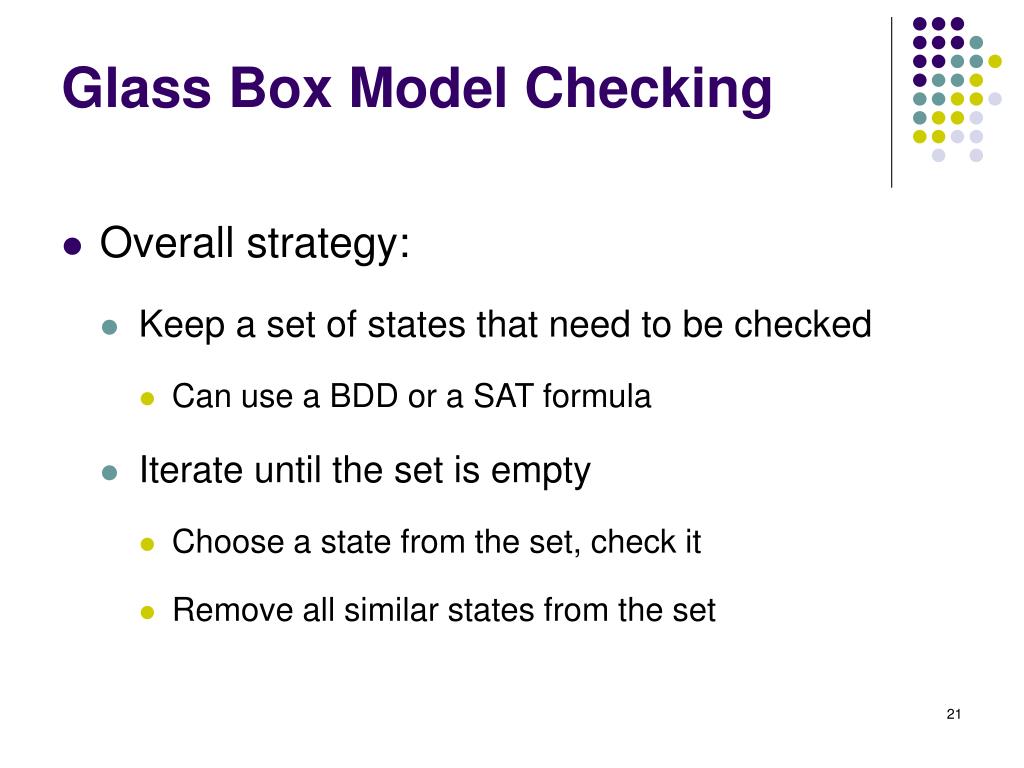

  21. Glass Box Model Checking • Overall strategy: • Keep a set of states that need to be checked • Can use a BDD or a SAT formula • Iterate until the set is empty • Choose a state from the set, check it • Remove all similar states from the set

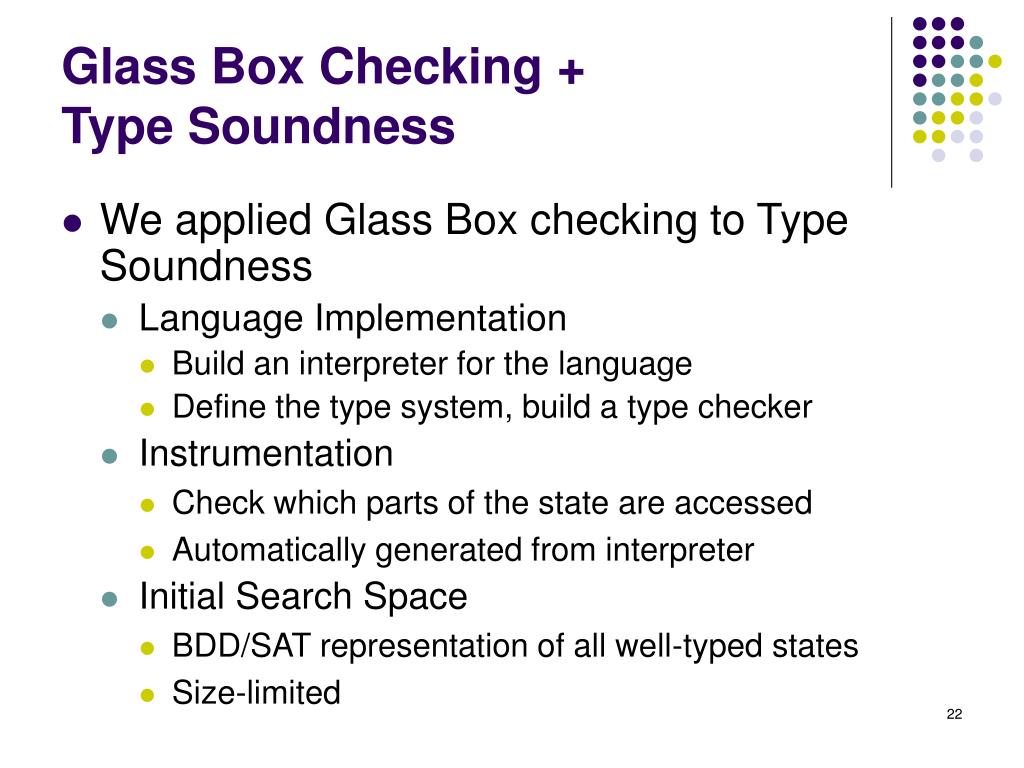

  22. Glass Box Checking +Type Soundness • We applied Glass Box checking to Type Soundness • Language Implementation • Build an interpreter for the language • Define the type system, build a type checker • Instrumentation • Check which parts of the state are accessed • Automatically generated from interpreter • Initial Search Space • BDD/SAT representation of all well-typed states • Size-limited

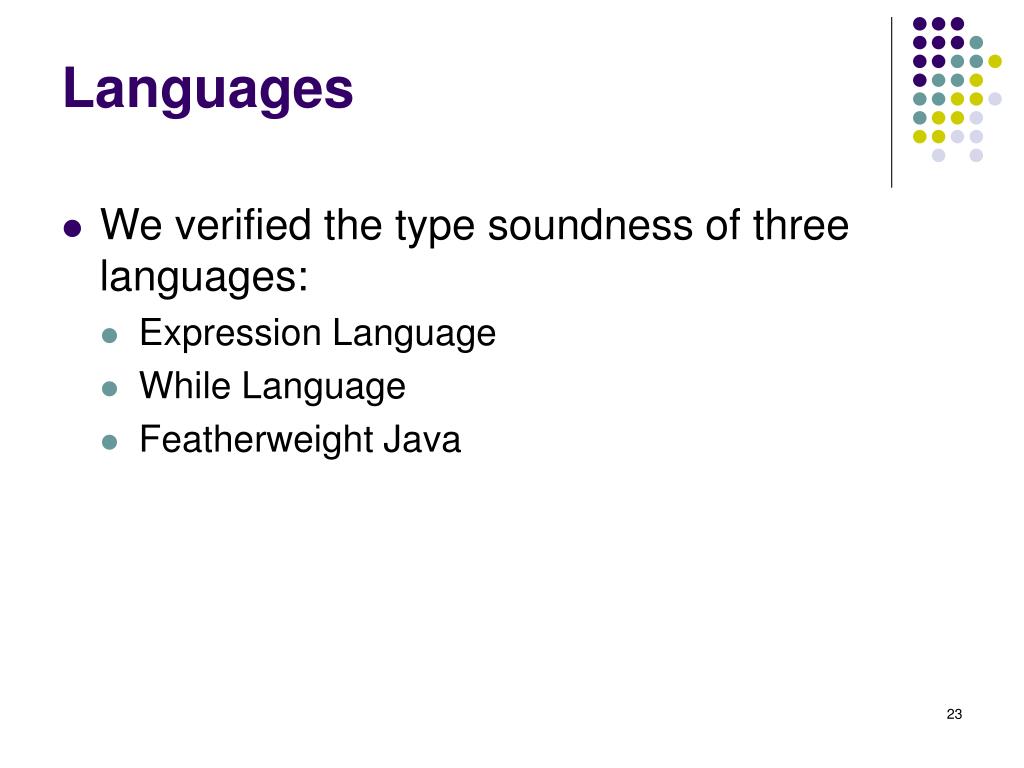

  23. Languages • We verified the type soundness of three languages: • Expression Language • While Language • Featherweight Java

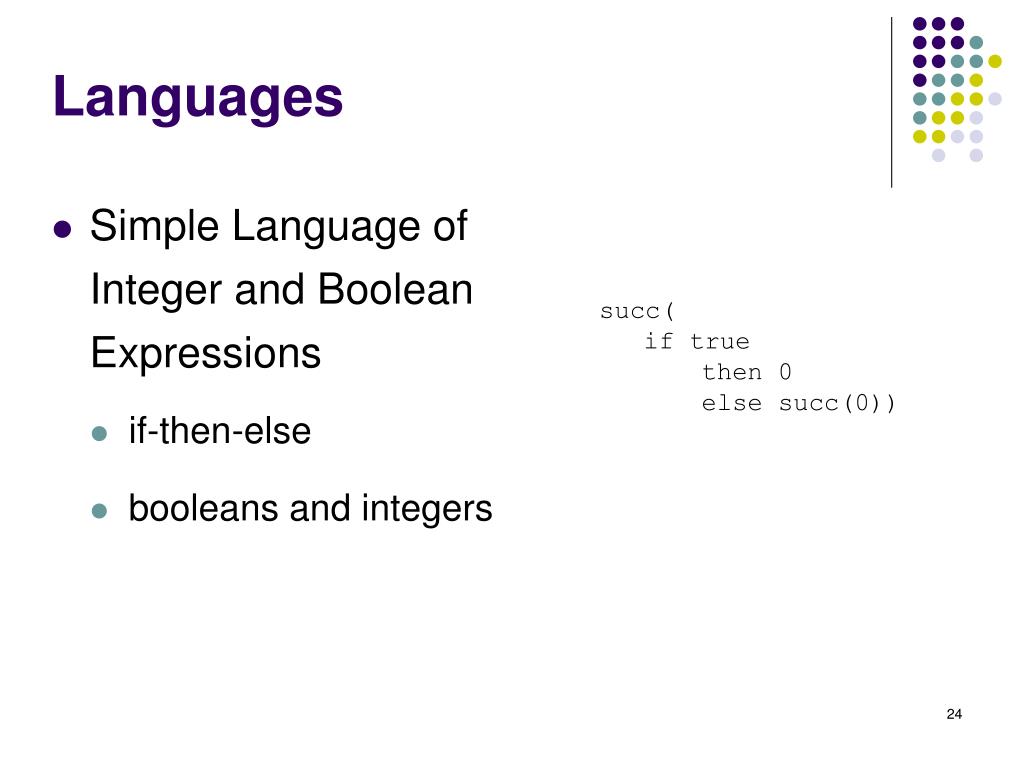

  24. Languages • Simple Language of Integer and Boolean Expressions • if-then-else • booleans and integers succ( if true then 0 else succ(0))

  25. Expression Height • Expression height measures the number of statements in a specific program body height 1: true height 2: succ(0) height 3: isZero(if true then 0 else 0) height 4: succ(if isZero(0) then succ(0) else 0)

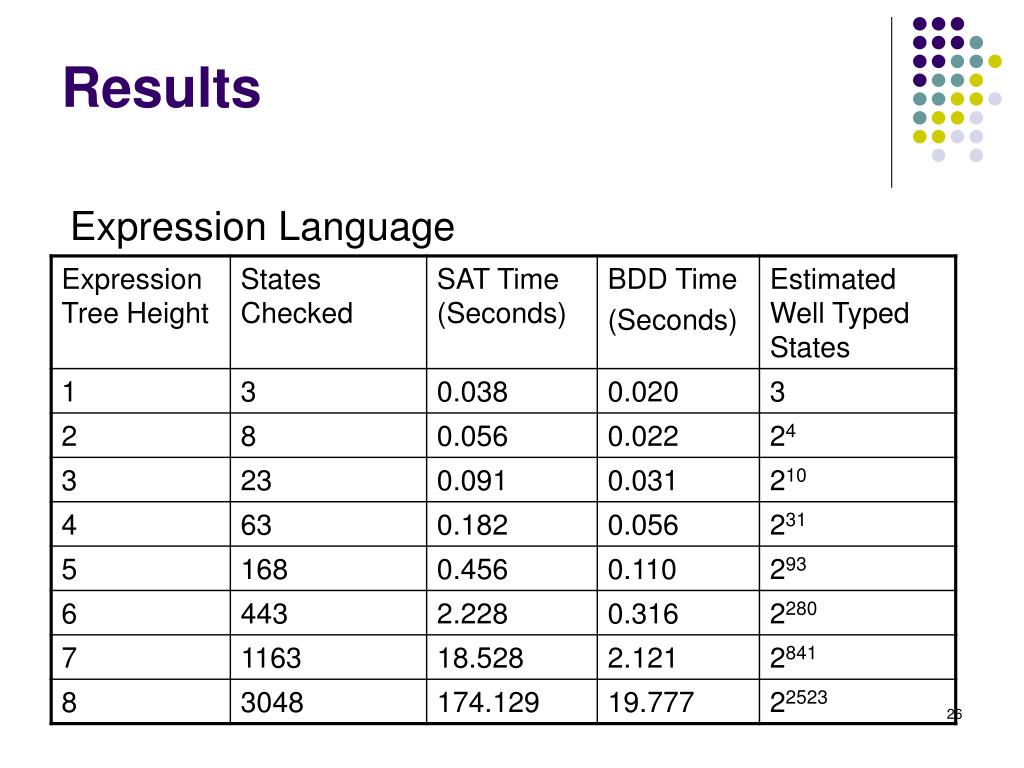

  26. Results Expression Language

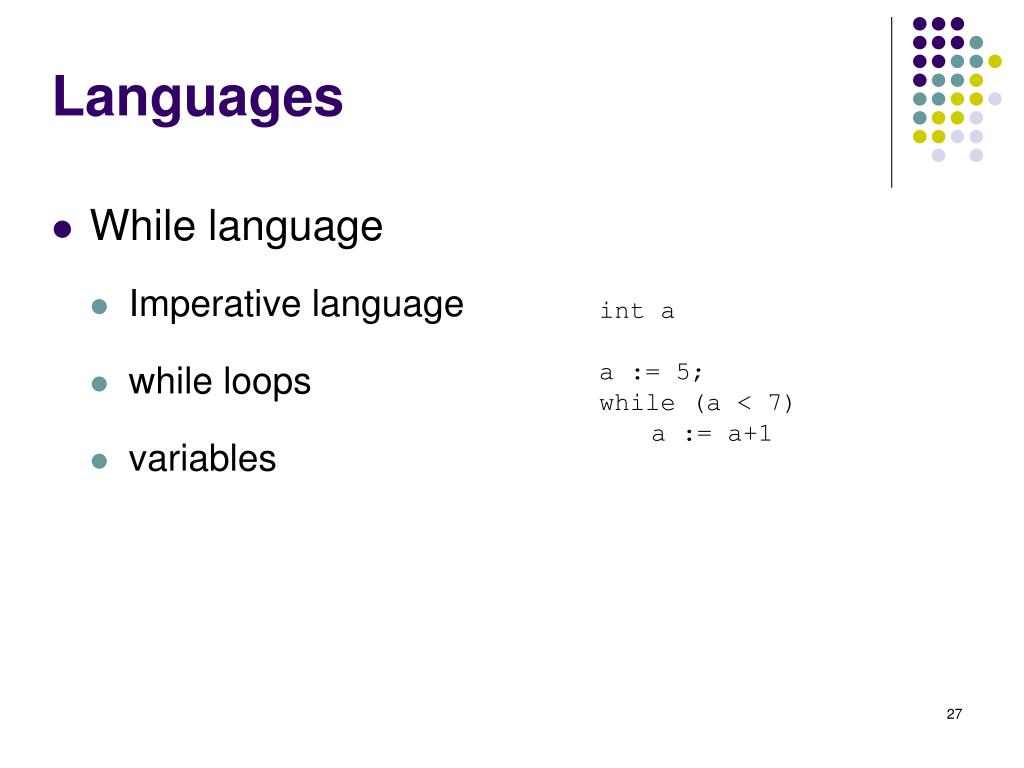

  27. Languages • While language • Imperative language • while loops • variables int a a := 5; while (a < 7) a := a+1

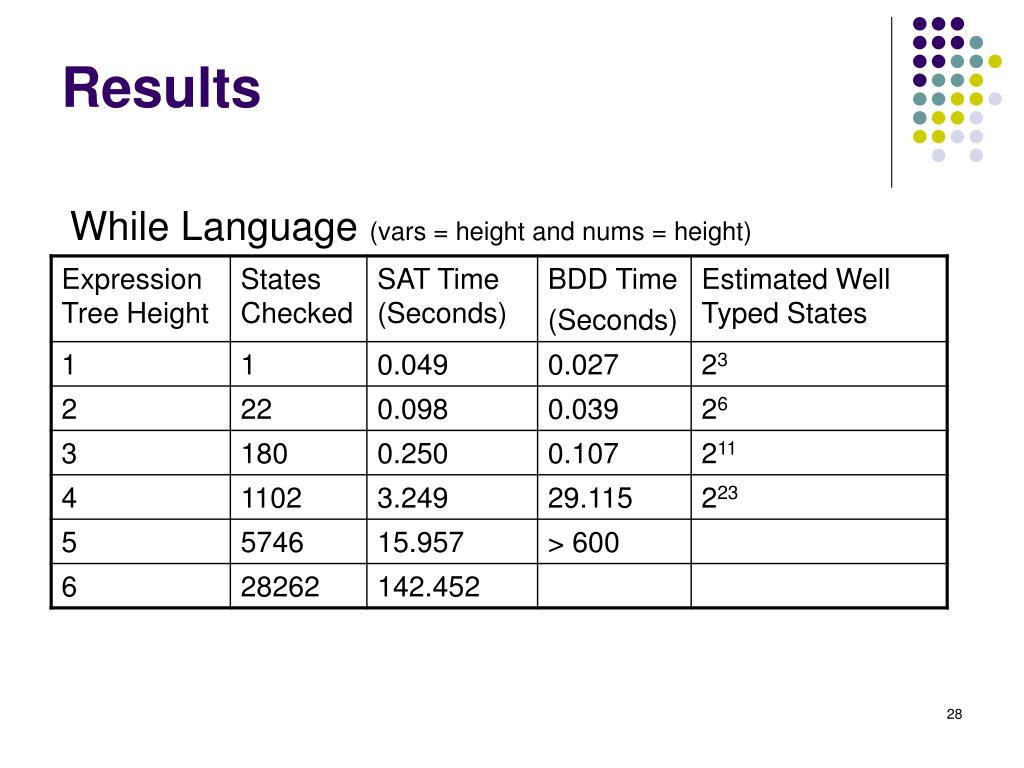

  28. Results While Language (vars = height and nums = height)

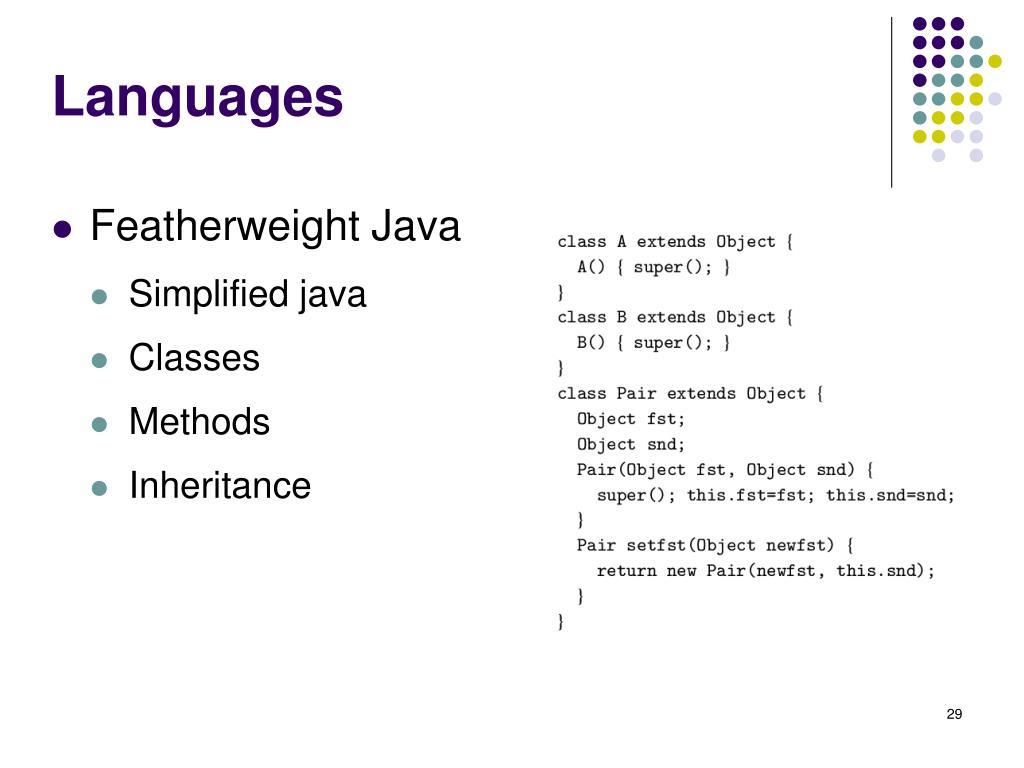

  29. Languages • Featherweight Java • Simplified java • Classes • Methods • Inheritance

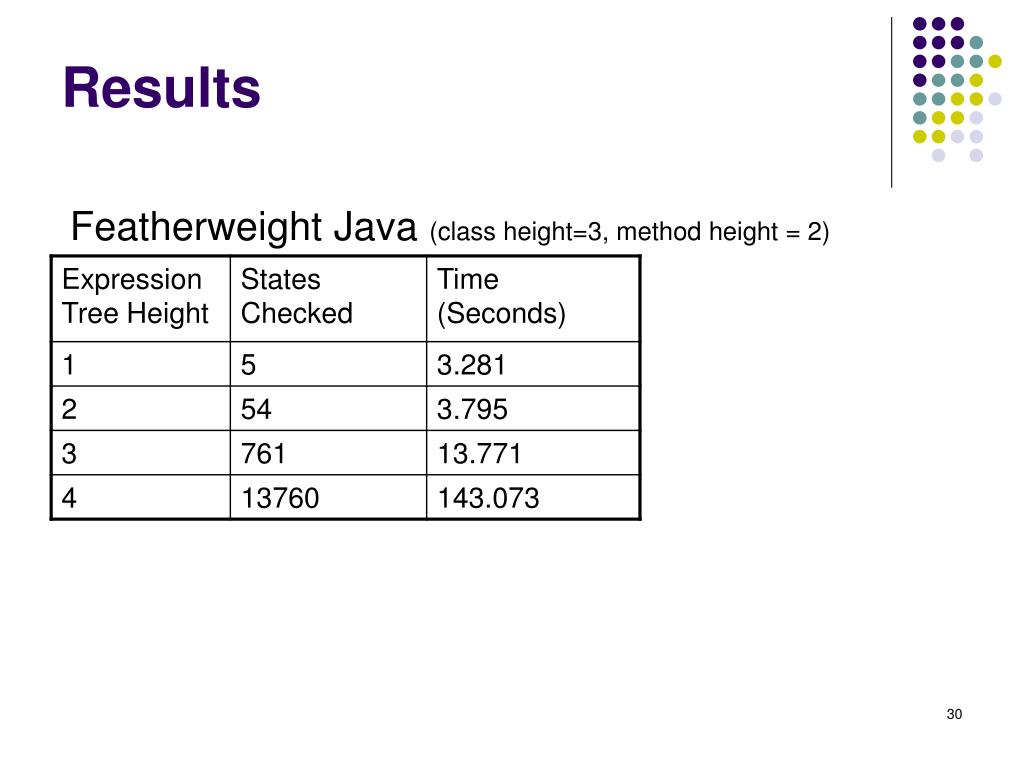

  30. Results Featherweight Java (class height=3, method height = 2)

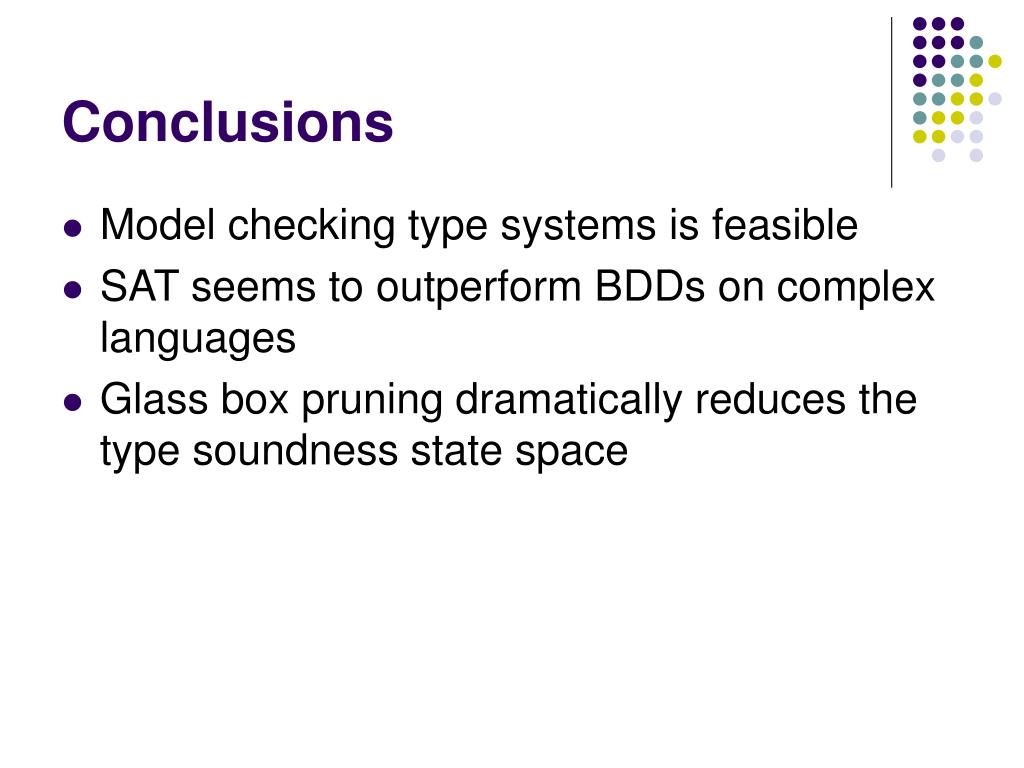

  31. Conclusions • Model checking type systems is feasible • SAT seems to outperform BDDs on complex languages • Glass box pruning dramatically reduces the type soundness state space

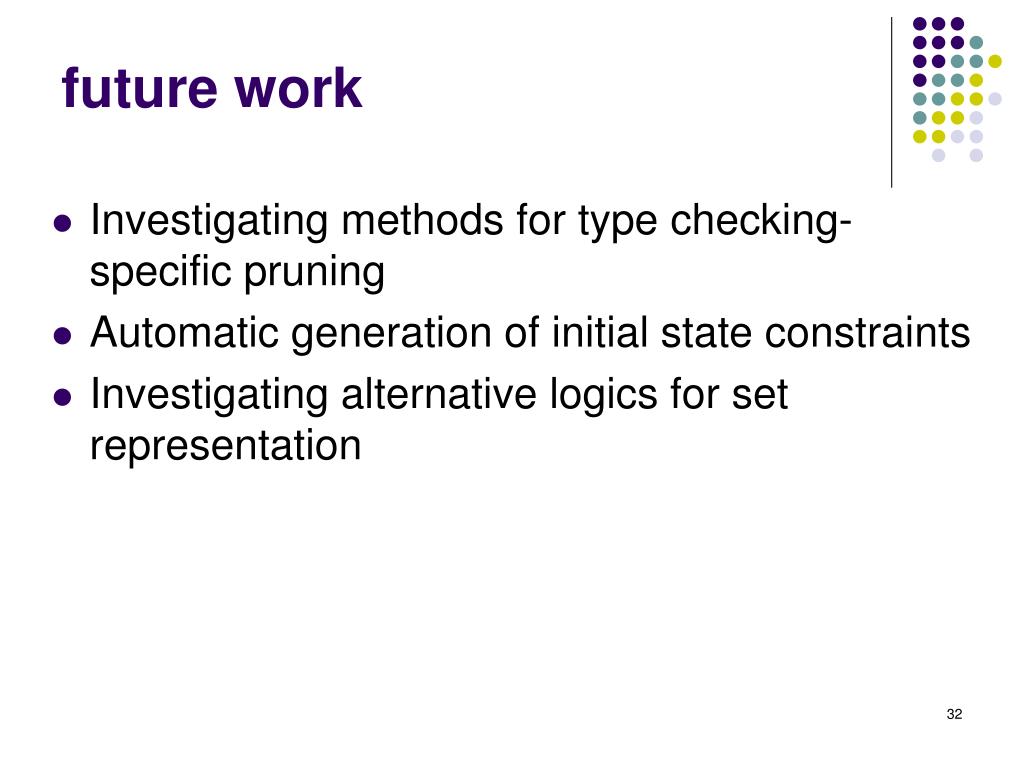

  32. future work • Investigating methods for type checking-specific pruning • Automatic generation of initial state constraints • Investigating alternative logics for set representation

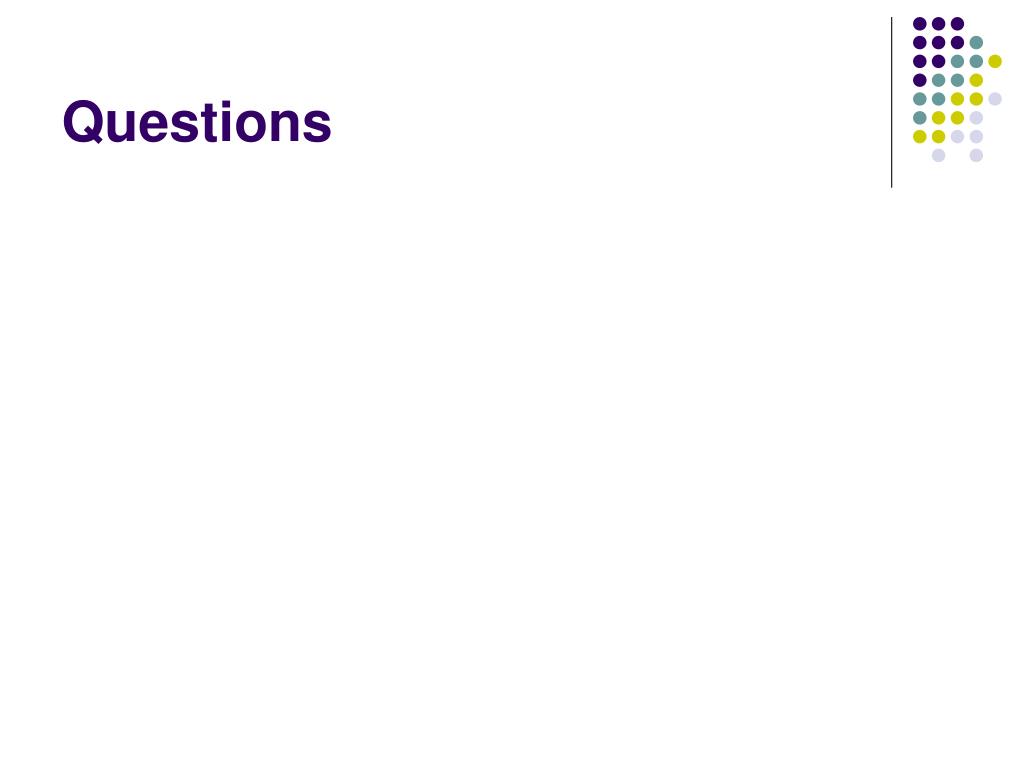

  33. Questions
