WHAT IS AN MRL ELEVATOR AND HOW IT WORKS

1. WHAT IS AN MRL ELEVATOR AND HOW IT WORKS PRESENTED BY: Techno Elevators +91 72288 32623 www.technoelevators.com

2. INTRODUCTION A Machine Room-Less (MRL) elevator is a cutting-edge vertical transportation system designed to function without a dedicated machine room. Unlike traditional elevators, which require a separate room to house the traction motor, gearbox, and control panels, MRL elevators integrate these components directly into the elevator shaft or hoistway. This integration allows for efficient use of building space, reduces construction complexity, and improves the overall aesthetic of modern buildings. MRL elevators are increasingly preferred in residential apartments, commercial offices, hotels, hospitals, and high-rise buildings. Their design is characterized by compactness, energy efficiency, smooth operation, and advanced safety mechanisms, which make them suitable for both low-rise and high-rise applications.

3. ABOUT US Techno Elevator, a top elevator manufacturer in India, is dedicated to delivering state-of-the-art, safe, and energy-efficient vertical transportation solutions. We specialize in the design, manufacturing, and installation of MRL, traction, and hydraulic elevators, catering to residential, commercial, and industrial projects across the country. Committed to quality, innovation, and safety, Techno Elevator provides comprehensive end-to-end services, including engineering, installation, and maintenance. Our elevators are engineered for durability, smooth operation, and compliance with international standards, ensuring superior performance and reliability for every project.

4. IMPORTANCE OF MRL ELEVATORS MRL elevators address challenges associated with traditional elevator systems: SPACE OPTIMIZATION COST EFFICIENCY Eliminates the need for a machine room, freeing up valuable space for additional rooms or usable areas. Particularly beneficial in urban buildings where construction space is limited. Reduces operational costs. Eliminates additional infrastructure for a machine room maintenance. both construction and and associated MODERN DESIGN & COMFORT ENERGY EFFICIENCY Counterweight systems balance the elevator car’s weight, reducing motor energy consumption. Modern MRL Passenger elevators may include drives, feeding excess energy back into the building’s electrical system. Sleek and compact design enhances building aesthetics. Smooth, quiet operation ensures passenger comfort and convenience. Elevators regenerative SAFETY Equipped with overspeed governors, buffers, emergency brakes, and door sensors. Advanced safety protection against electrical failures. systems mechanical ensure or

5. KEY FEATURES Compact design with machinery integrated into the hoistway. Energy-efficient operation with a counterweight system. Equipped with advanced safety devices, including emergency brakes and door sensors. Suitable for mid- to high-rise buildings as well as low-rise applications.

6. COMPONENTS OF AN MRL ELEVATOR 1. Hoistway: The vertical shaft in which the elevator travels. It houses the car, counterweight, ropes, belts, and the traction motor. Hoistways are designed to maintain structural stability, guide the elevator’s movement, and ensure safe operation even under high loads. 2. Elevator Car: The passenger or goods cabin is ergonomically designed for comfort, safety, and stability. It includes interior controls, lighting, ventilation, and emergency communication systems. Modern MRL cars often feature stylish interiors and energy- efficient lighting. 3. Traction Machine: Unlike conventional elevators, the traction motor is mounted inside the hoistway. It drives ropes or belts to move the elevator car up and down. MRL traction machines are compact, efficient, and reduce noise levels, eliminating the need for a separate machine room. 4. Control System: A microprocessor-based electronic system that manages all aspects of elevator operation, including: Acceleration and deceleration control for smooth rides. Floor-level detection and precision stopping. Door operation and obstruction detection. Energy management for reduced consumption.

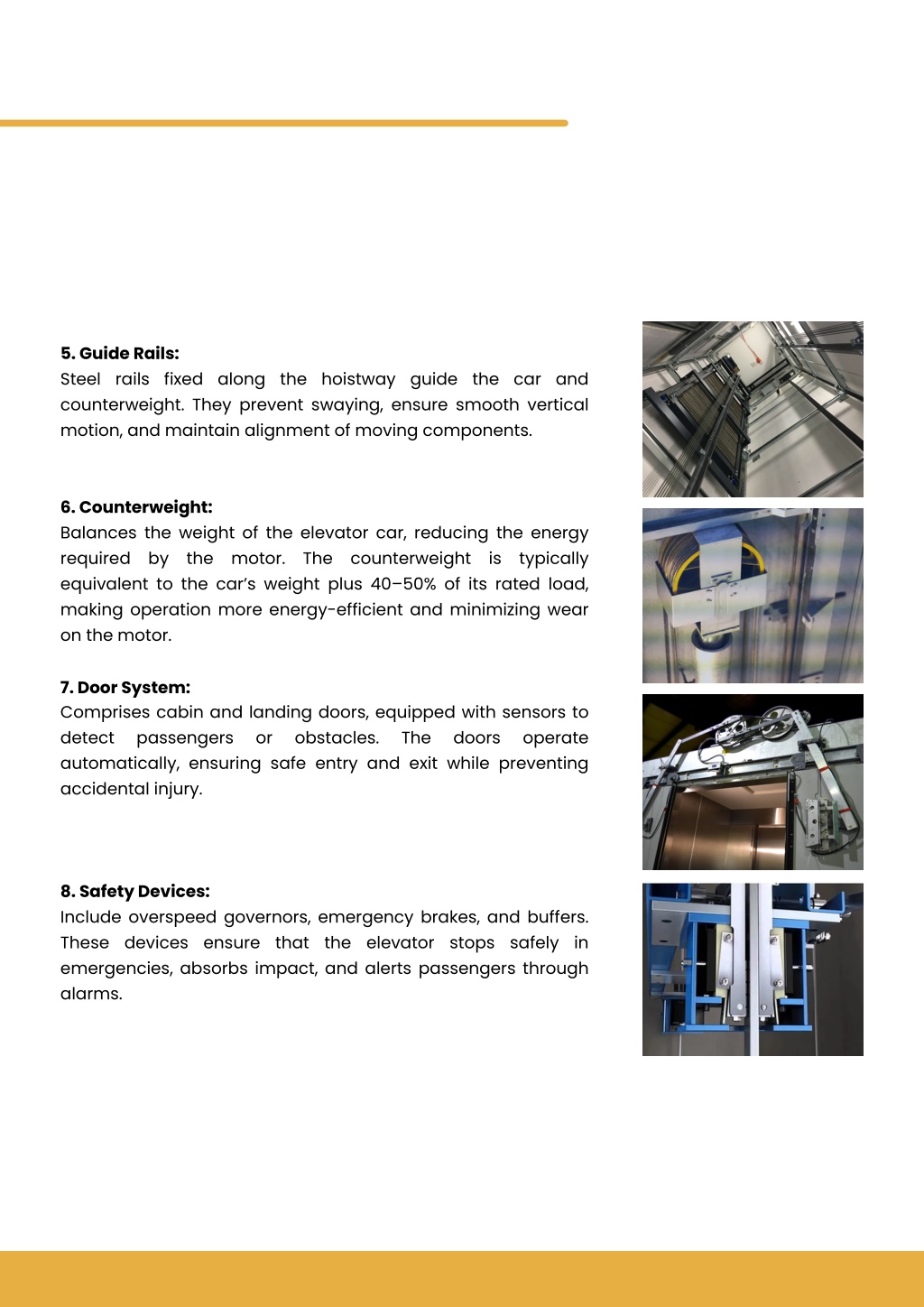

7. 5. Guide Rails: Steel rails fixed along the hoistway guide the car and counterweight. They prevent swaying, ensure smooth vertical motion, and maintain alignment of moving components. 6. Counterweight: Balances the weight of the elevator car, reducing the energy required by the motor. The counterweight is typically equivalent to the car’s weight plus 40–50% of its rated load, making operation more energy-efficient and minimizing wear on the motor. 7. Door System: Comprises cabin and landing doors, equipped with sensors to detect passengers or obstacles. automatically, ensuring safe entry and exit while preventing accidental injury. The doors operate 8. Safety Devices: Include overspeed governors, emergency brakes, and buffers. These devices ensure that the elevator stops safely in emergencies, absorbs impact, and alerts passengers through alarms.

8. HOW MRL ELEVATORS WORK (STEP-BY-STEP) The operation of an MRL elevator is based on traction and counterweight balance: 1. Call and Control Signal: A passenger presses a button inside the elevator or at a landing. The control system receives the signal and calculates the optimal operation. 2. Motor Activation: The traction motor, located inside the hoistway, is activated. The motor rotates the pulley connected to ropes or belts. 3. Car and Counterweight Movement: The elevator car moves up or down the hoistway according to the motor’s rotation. The counterweight moves in the opposite direction of the car, balancing the load and reducing motor energy consumption. 4. Guided Travel: The car travels along guide rails, preventing swaying or misalignment. The speed is regulated by the control system to ensure smooth acceleration and deceleration. 5. Floor Detection and Stopping: The control system detects the target floor. Elevator car slows down and stops precisely level with the floor. 6. Door Operation: Cabin and landing doors open automatically. Safety sensors ensure no obstacles are in the doorway. 7. Safety Check: Overspeed sensors monitor the car’s speed and engage emergency brakes if necessary. Buffers at the shaft bottom absorb impact if the car accidentally descends too fast.

9. TYPES OF MRL ELEVATORS GEARLESS TRACTION MRL ELEVATORS High-speed and smooth operation. Ideal for mid- to high-rise buildings. Requires minimal maintenance and is energy-efficient. GEARED TRACTION MRL ELEVATORS Moderate speed for low- to mid- rise buildings. Slightly lower installation cost. Suitable for shorter travel distances.

10. ADVANTAGES OF MRL ELEVATORS 1. Space-saving: No separate machine room required. 2. Energy-efficient: Counterweight reduces motor effort and operational costs. 3. Cost-effective: Lower construction and installation expenses. 4. Modern design: Smooth, quiet operation with minimal noise. 5. Low maintenance: Fewer moving parts and integrated machinery simplify upkeep. 6. Safety: Equipped with multiple layers of safety systems for passenger protection. APPLICATIONS Residential apartments and condominiums. Commercial office buildings and shopping complexes. Hotels, hospitals, and healthcare facilities. Buildings where space-saving and modern design are priorities.

11. ENERGY EFFICIENCY AND SUSTAINABILITY Counterweight reduces motor energy consumption by up to 30–40%. Advanced MRL elevators may include regenerative drives to feed excess energy back into the building’s electrical system. Optimized operation reduces overall building energy consumption. FUTURE TRENDS Integration with IoT and smart building technology for predictive maintenance and real-time monitoring. Increased adoption in urban high-rise buildings and smart residential complexes. Focus on green technology, energy savings, and space-efficient designs. CONCLUSION MRL elevators are a modern, safe, and energy-efficient solution for vertical transportation. By integrating the machinery within the hoistway, they save space, reduce costs, and provide smooth operation. With advanced safety systems and energy-efficient features, MRL elevators are ideal for residential, commercial, and healthcare buildings, representing the future of smart and sustainable vertical transport solutions.
