  1. Intro To Secure Comm.Exercise 3

  2. Problem • The following scenario is suggested for establishing session keys • Alice and Bob share a secret (key phrase/password) • Alice generates Session key K and send EP(K) to Bob • Bob receives EP(K), deciphers and uses K as the new session key. • What are the threats to the model? • Is this solution secure against an eavesdropper?

  3. Solution • The solution is problematic when a password is used. • Passwords are susceptible to dictionary attack. • The eavesdropper may discover p and thus the session key k (and may discover any other session keys) • Suggest a better protocol

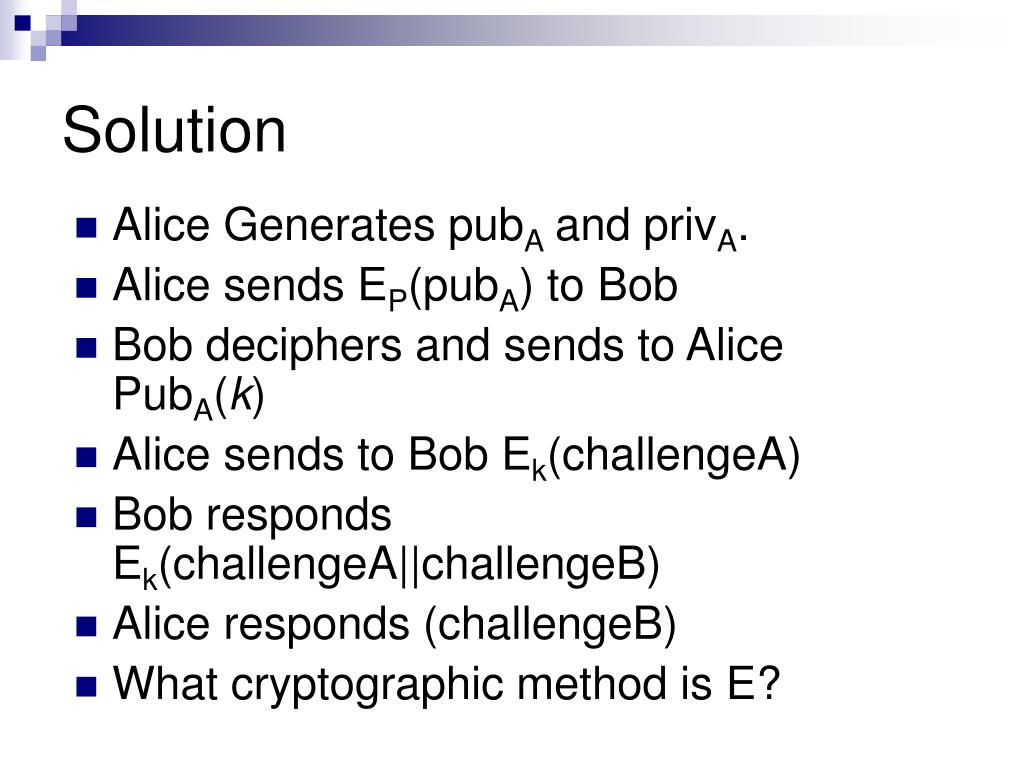

  4. Solution • Alice Generates pubA and privA. • Alice sends EP(pubA) to Bob • Bob deciphers and sends to Alice PubA(k) • Alice sends to Bob Ek(challengeA) • Bob responds Ek(challengeA||challengeB) • Alice responds (challengeB) • What cryptographic method is E?

  5. Solution • The cryptographic method is a MAC • Why not simply use an encryption method?

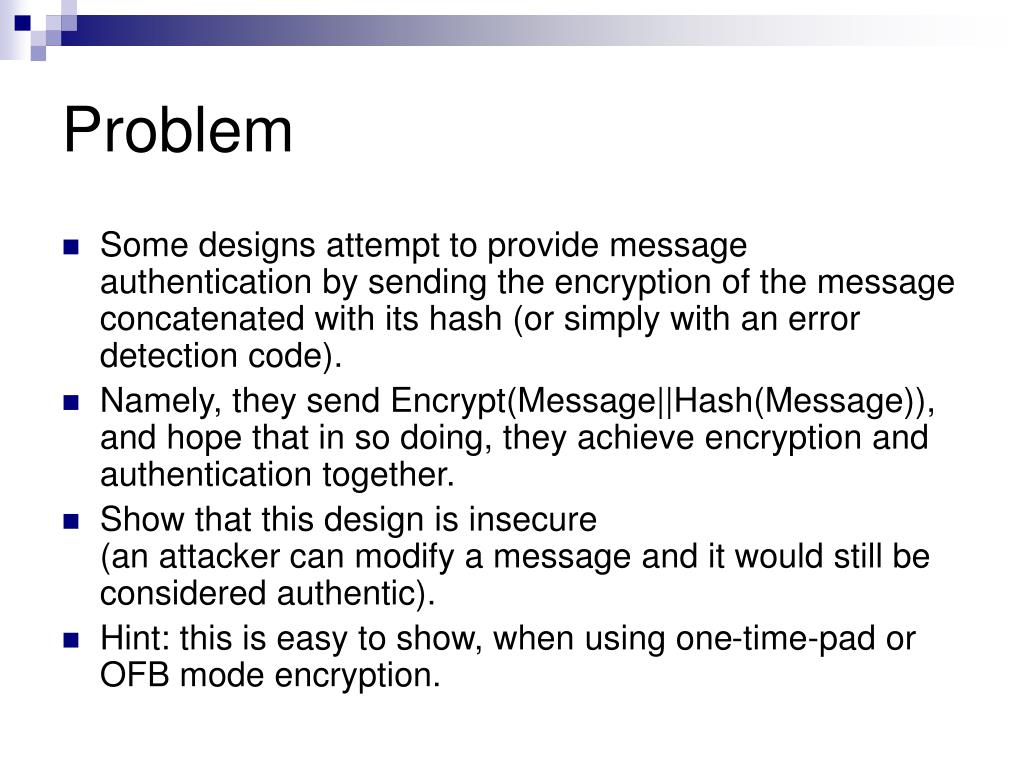

  6. Problem • Some designs attempt to provide message authentication by sending the encryption of the message concatenated with its hash (or simply with an error detection code). • Namely, they send Encrypt(Message||Hash(Message)),and hope that in so doing, they achieve encryption and authentication together. • Show that this design is insecure (an attacker can modify a message and it would still be considered authentic). • Hint: this is easy to show, when using one-time-pad or OFB mode encryption.

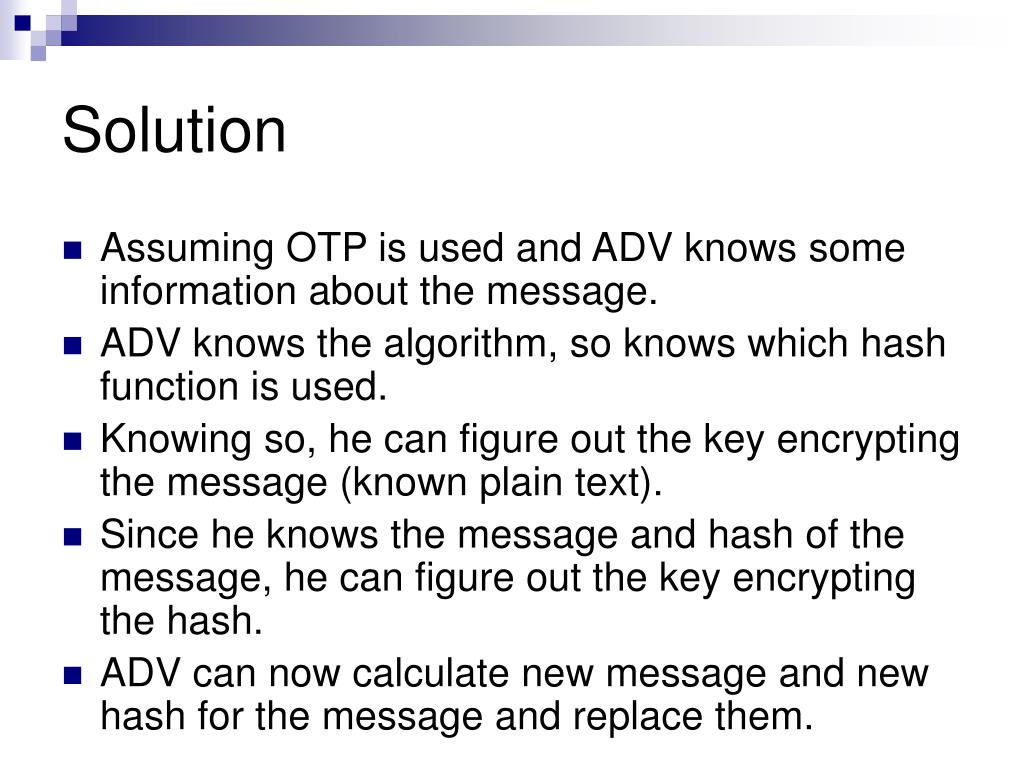

  7. Solution • Assuming OTP is used and ADV knows some information about the message. • ADV knows the algorithm, so knows which hash function is used. • Knowing so, he can figure out the key encrypting the message (known plain text). • Since he knows the message and hash of the message, he can figure out the key encrypting the hash. • ADV can now calculate new message and new hash for the message and replace them.

  8. Solution • ADV’s playout: • km=mcm (revealing the key of m) • kh(m)=h(m) ch(m) • Forge: m’km||h(m’)kh(m) • This is a poor MAC because it isn’t even immune to KMA.

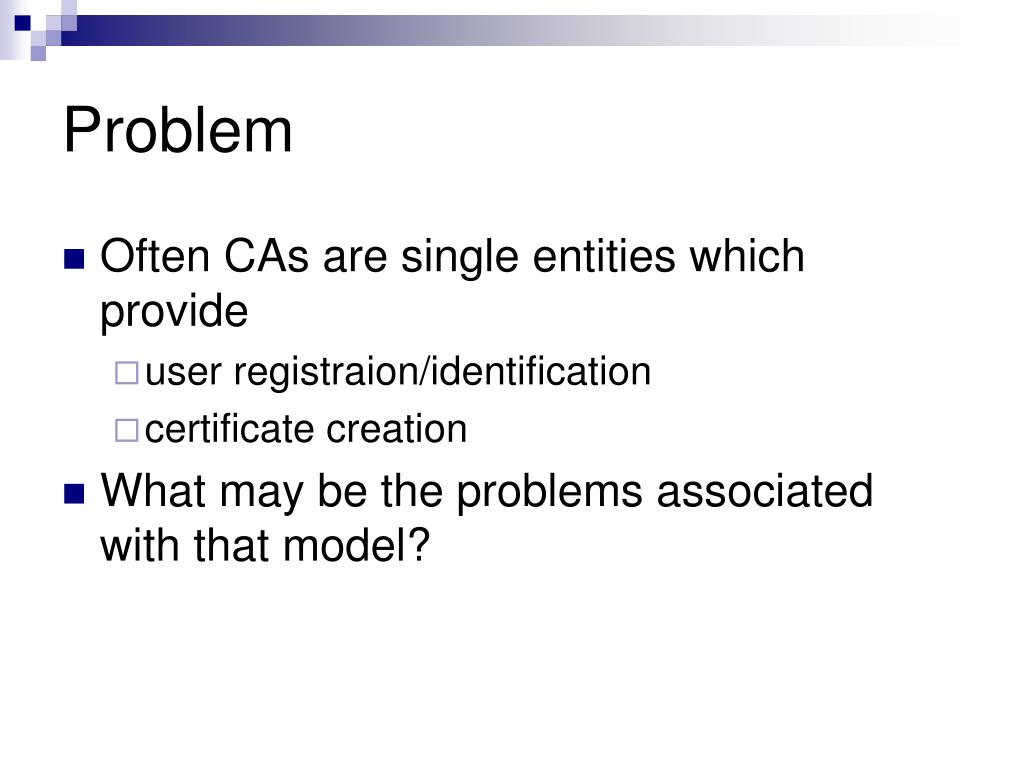

  9. Problem • Often CAs are single entities which provide • user registraion/identification • certificate creation • What may be the problems associated with that model?

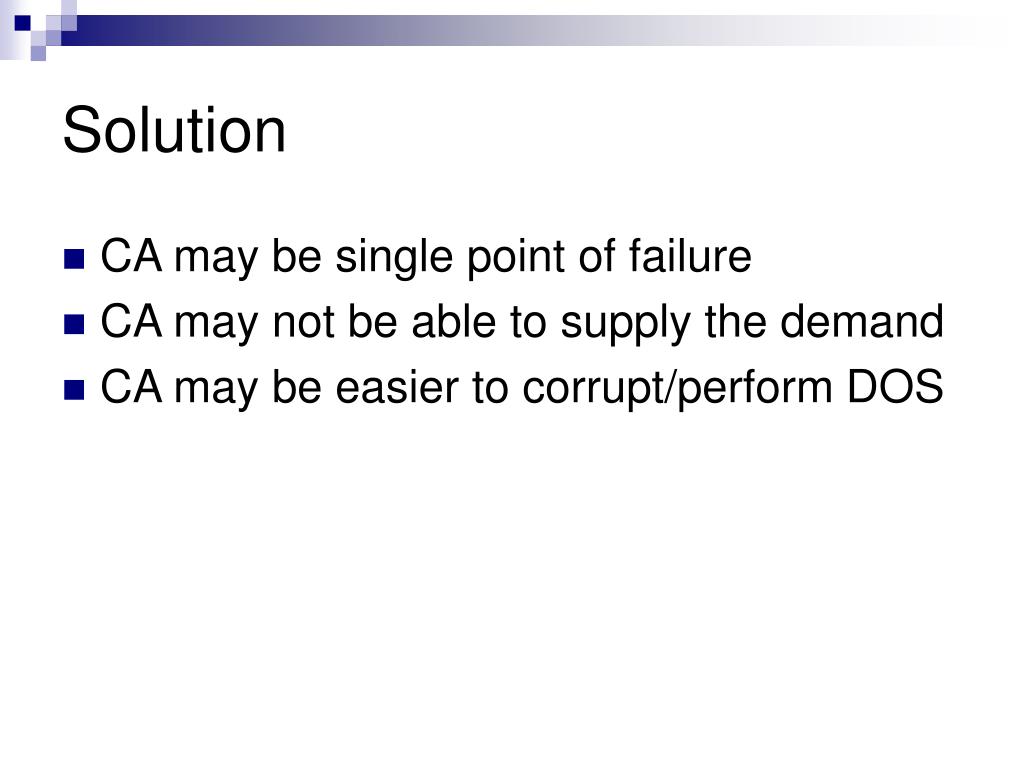

  10. Solution • CA may be single point of failure • CA may not be able to supply the demand • CA may be easier to corrupt/perform DOS

  11. Registration Authority • CA combines two functions: • Validate identity of source of public key • Sign public key with attributes (identity, others) • CA secret key required only to sign cert • Identify by separateregistration authority • Exercise: motivate byanalyzing threat!

  12. RA – Registration Authority • Also called LRA – Local RA • Goal: Off-load some work of CA to LRAs • Support all or some of: • Identification • User key generation/distribution • passwords/shared secrets and/or public/private keys • Interface to CA • Key/certificate management • Revocation initiation • Key recovery

  13. CA – Certification Authority • Issuer/Signer of the certificate • Binds public key w/ identity+attributes • Enterprise CA • Individual as CA (PGP) • Web of trust • “Global” or “Universal” CAs • VeriSign, Equifax, Entrust, CyberTrust, Identrus, … • Trust is the key word

  14. Problem • Define the threats to the above model • What type of threats/ADV can harm the solution?

  15. Solution • External Attackers • Operators • Viruses controlling CA pc’s

  16. Secure Hardware Alice, PA Sign(PrivCA,(Alice,PA)) Enter PINor smartcard Operator Alice proves her identity And provides PA Sign(PrivCA,(Alice,PA)) Alice (subject)

  17. Problem • What may be the problem of the secured hardware box?

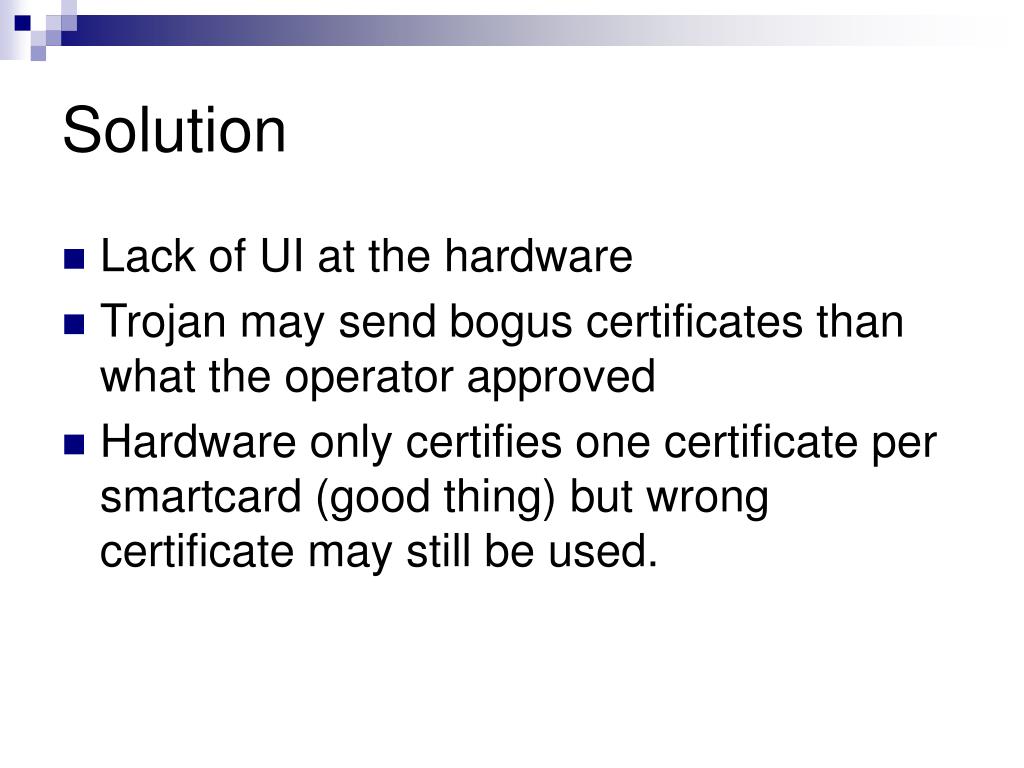

  18. Solution • Lack of UI at the hardware • Trojan may send bogus certificates than what the operator approved • Hardware only certifies one certificate per smartcard (good thing) but wrong certificate may still be used.

  19. A better solution • Integrate UI with secure hardware • Secure log to go over issues/suspected certificates • What if found a “corrupted” certificate? • May revoke it by publishing CRL
