  1. Spondylolisthesis Jwalant S. Mehta MS(Orth), D (Orth), MCh (Orth), FRCS (Tr & Orth) Consultant Spine Surgeon, ABMU Health Board

  2. Outline of the talk Classification Natural history Patho-physiology Treatment rationale Cases

  3. SpondylOlisthesis 1741 Nicholas Andry: hollow back 1782Herbiniaux Belgian obstetrician 1854Kilian slow displacement ‘Spondylolisthesis’ 1855 Roberts: No slip if arch intact

  4. Classifications

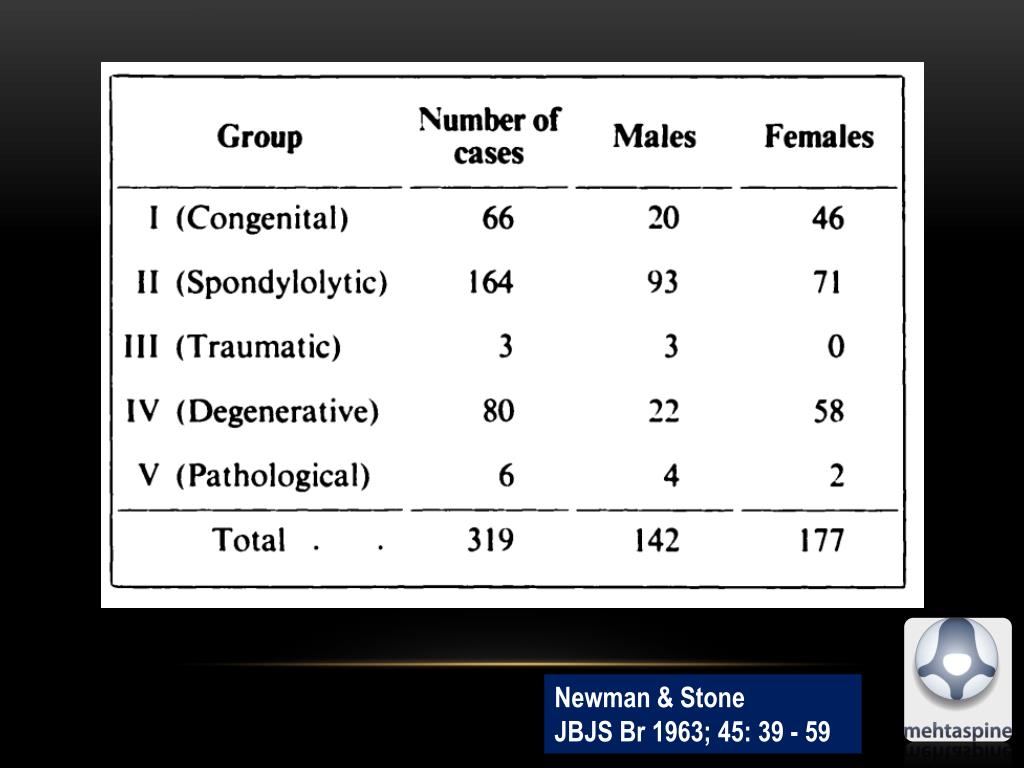

  5. Newman & Stone JBJS Br 1963; 45: 39 - 59

  6. Wiltse, Newmann, MacNabClinOrthop 1976

  7. Meyerdings grades Low Grade High Grade I II III IV V

  8. Important in grades III – V Slip angle

  9. Spino-pelvic measures

  10. Pelvic incidence Pelvic tilt Sacral slope PI = PT + SS

  11. Low PT High SS High PT Low SS

  12. Relevance of pelvic measures PI quantifies the pelvic shape Pelvic morphology and spino-pelvic balance are abnormal in spondylolisthesis

  13. Patho-physiology

  14. Hook and catch Hook: Pedicle Pars inter-articularis Inferior process of the cephalad level Catch: Superior process of the caudal level

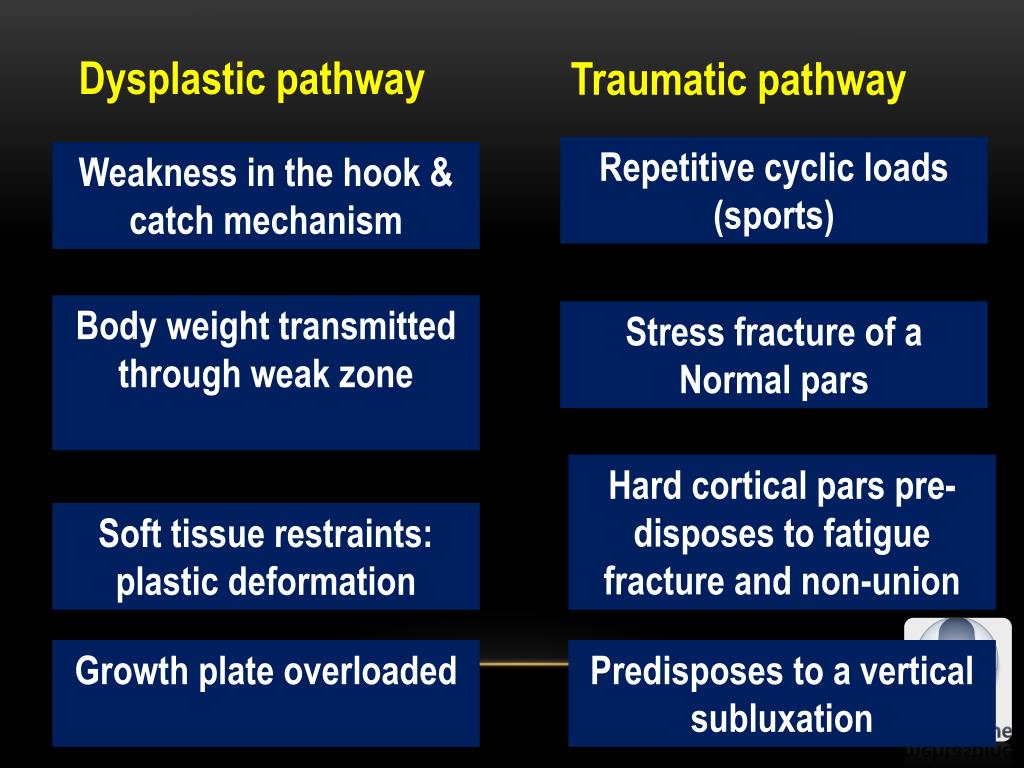

  15. Pathophysiology Dysplastic pathway Traumatic pathway

  16. Dysplastic pathway Traumatic pathway Repetitive cyclic loads (sports) Weakness in the hook & catch mechanism Body weight transmitted through weak zone Stress fracture of a Normal pars Hard cortical pars pre-disposes to fatigue fracture and non-union Soft tissue restraints: plastic deformation Growth plate overloaded Predisposes to a vertical subluxation

  17. Dysplastic changes Contributes to the mechanics of progression, but not causation Proximal sacral rounding Trapezoidal L5 Vertical sacrum Junctional kyphosis Compensatory hyper-lordosis

  18. proximal sacral rounding Yue Spine 2005

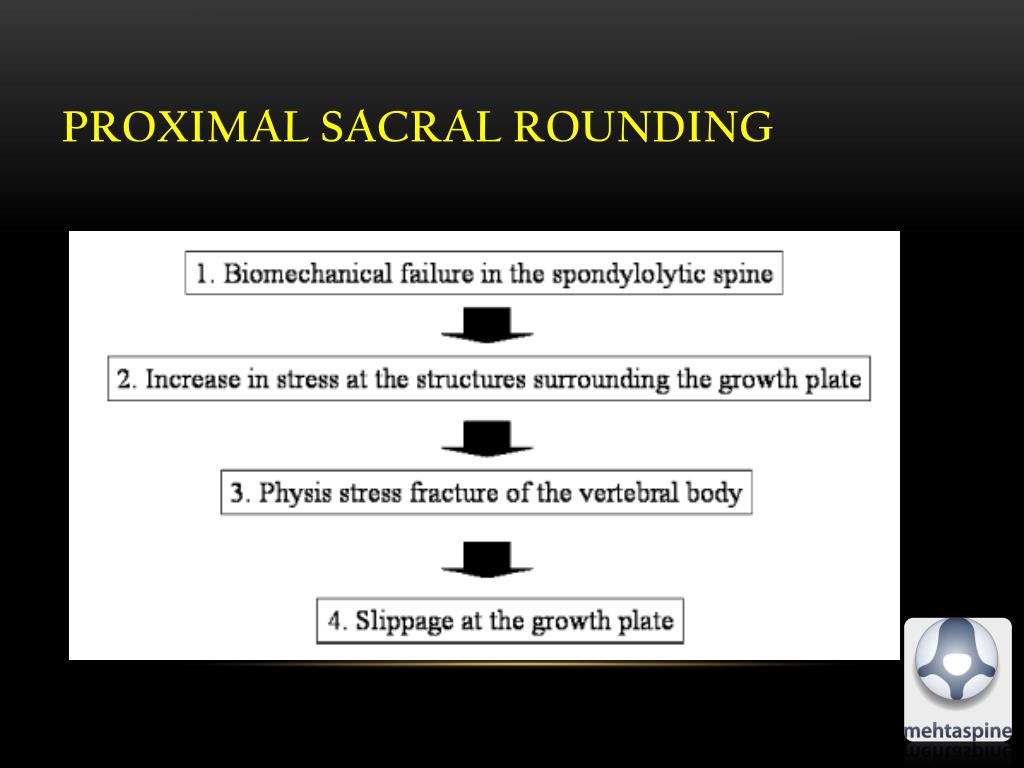

  19. proximal sacral rounding

  20. Discal over-loading Alternative loading pathway Haher Spine 1994 Both the pathways lead to ↑ shear loads, axial loads remaining constant Premature disc degeneration

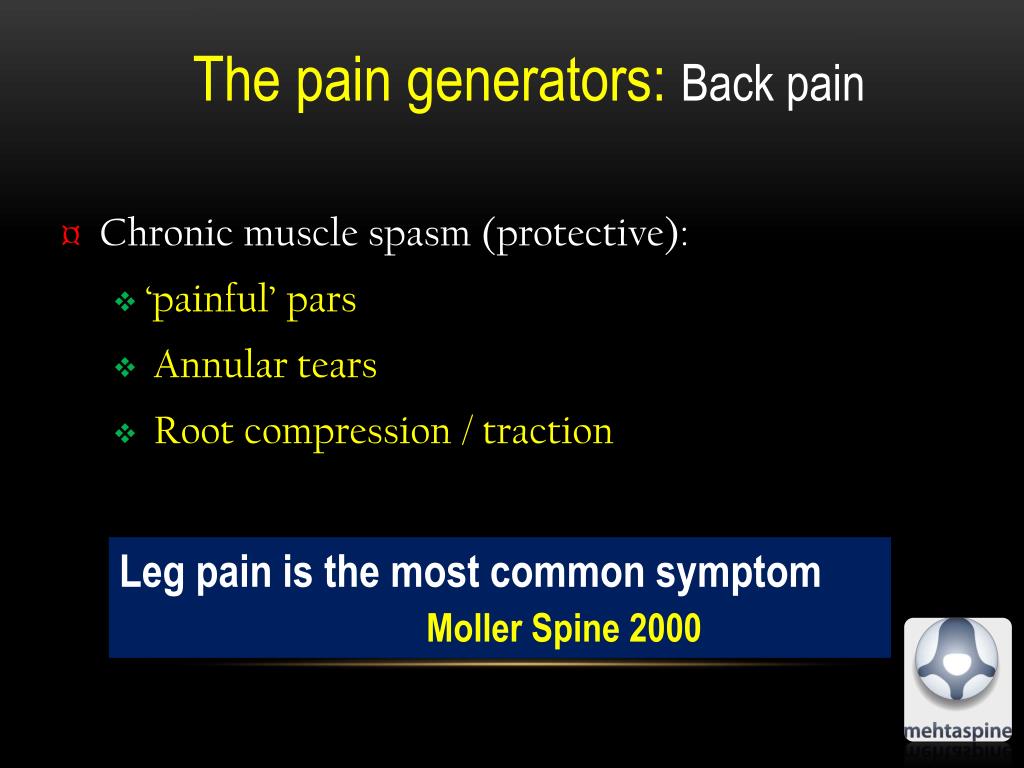

  21. The pain generators: Back pain Leg pain is the most common symptom Moller Spine 2000 • Chronic muscle spasm (protective): • ‘painful’ pars • Annular tears • Root compression / traction

  22. The pain generators: Leg pain L5 compression / traction Abnormal motion Facet joint arthrosis Pars scar The disc above far-lateral

  23. Clinical evaluation: history • Symptoms: • Back pain • Leg pain • Neurology • Severity • Activities of daily living

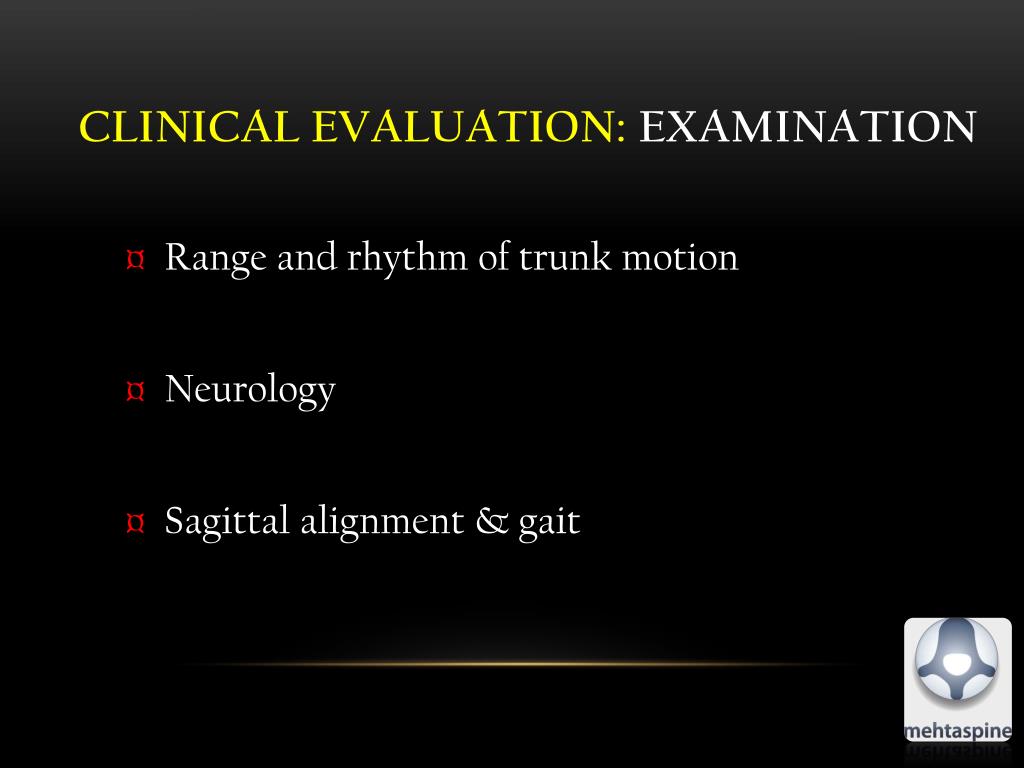

  24. Clinical evaluation: examination Range and rhythm of trunk motion Neurology Sagittal alignment & gait

  25. Sagittal alignment Stance Gait Head over pelvis Hips and knees

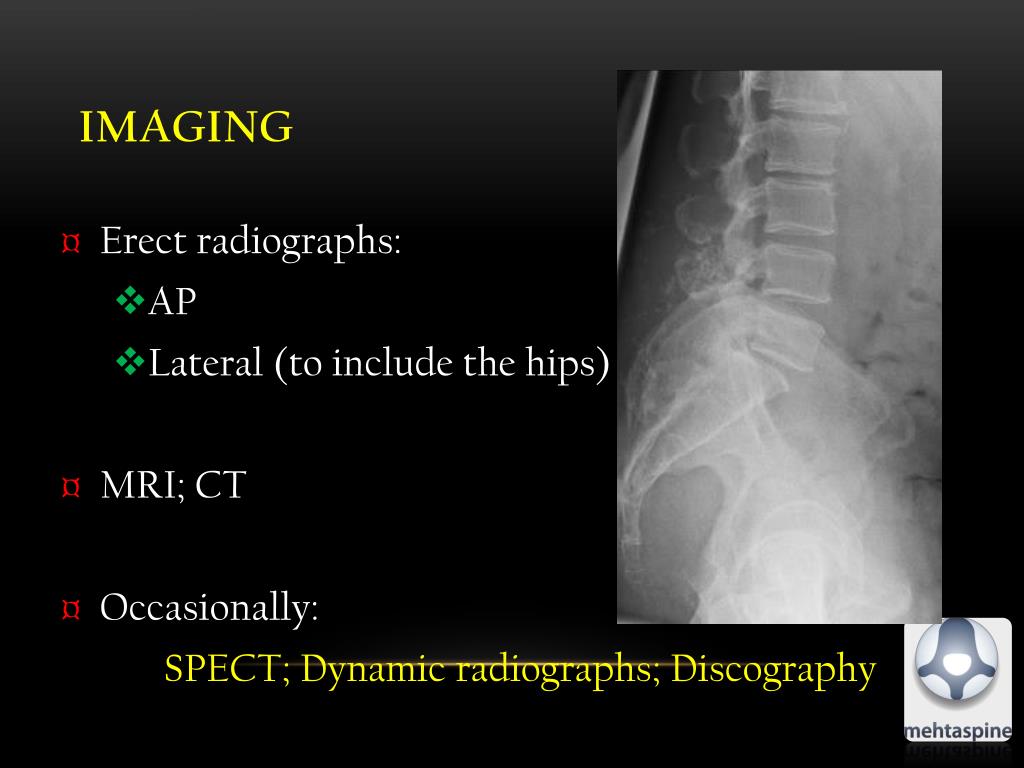

  26. Imaging • Erect radiographs: • AP • Lateral (to include the hips) • MRI; CT • Occasionally: SPECT; Dynamic radiographs; Discography

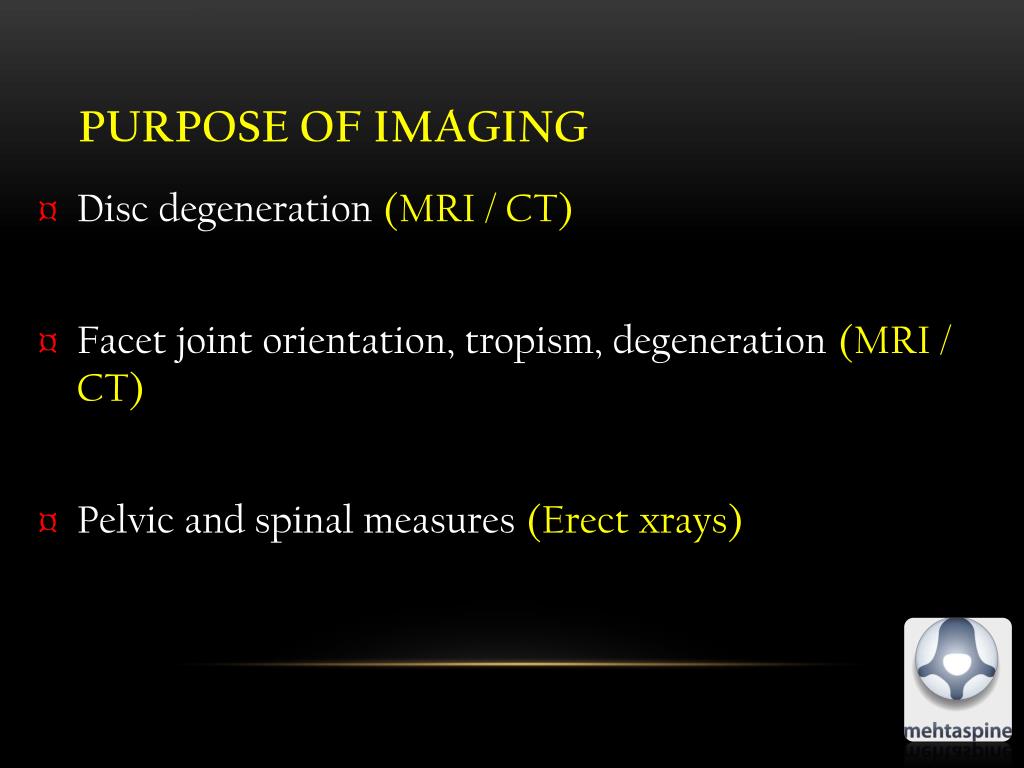

  27. Purpose of imaging Disc degeneration (MRI / CT) Facet joint orientation, tropism, degeneration (MRI / CT) Pelvic and spinal measures (Erect xrays)

  28. Disc degeneration

  29. Disc degeneration: MRI Grade II Grade III Grade IV Grade V Grade I Pfirrmann et al Spine 2001

  30. Facet joints

  31. Facet joints: orientation & tropism Don JSDT 2008 Wang Spine 2009 Boden JBJS Am 1996 Vanharanta Spine 1993 • Mean facet joint angle: Sagittal: anterior forces • Tropism R –L: asymmetric loads • Mild < 5° • Moderate 7° – 15° • Severe > 15°

  32. Facet degeneration: cartilage Grogan et al AJNR 1997 Uniformly thick layer Focal erosions Areas of deficiency with exposed bone Cartilage absent except traces

  33. Facet degeneration: sub-chondral sclerosis Grogan et al AJNR 1997 Thin layer of cortical bone Focal thickening Thick < ½ of the surface Dense cortical bone > ½ of the surface

  34. Facet degeneration: osteophytes Grogan et al AJNR 1997 No osteophyte Small Moderate Large

  35. Centre for Spinal Studies and Surgery Nottingham Severe Spinal Stenosis

  36. Wiltse classification:III. Degenerative • Instability phase: Kirkaldy Willis • Posterior elements are intact • L45; F >M • Disc: • degeneration, • ↓ height • Facets: • Tropism • Abnormal sagittal orientation • Facetal arthritis; subluxation

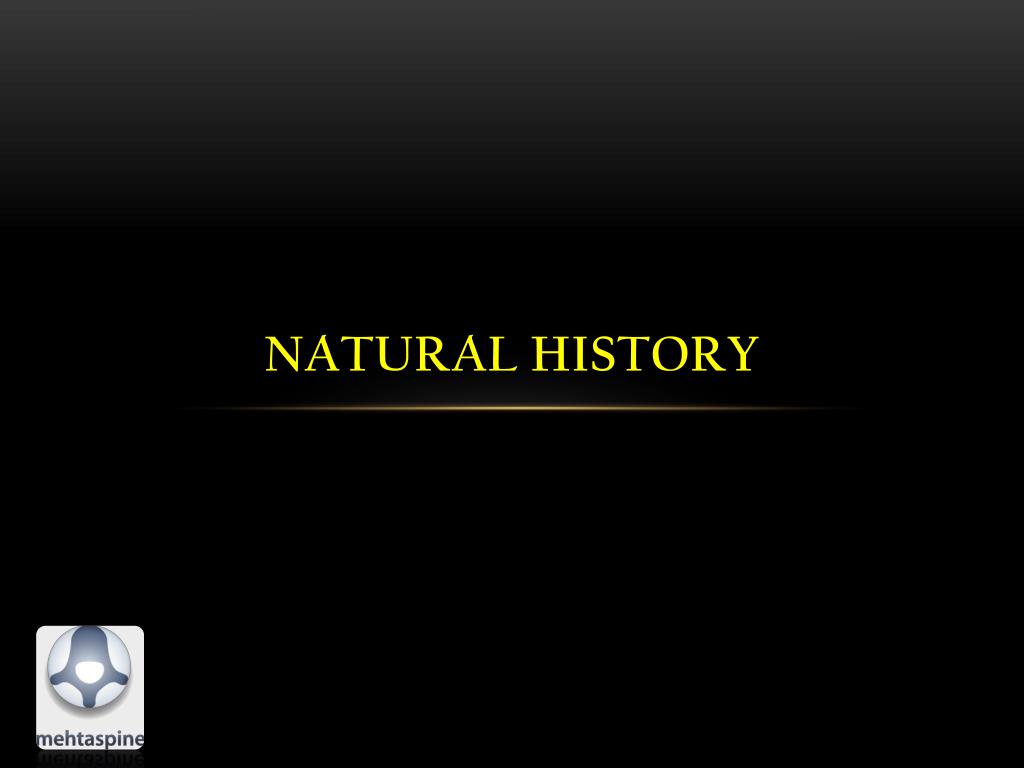

  37. Natural history

  38. Natural history: genetics Albanese JPO 1982 Wynne-Davies JBJS Br 1979 Roche JBJS Am 1952 Stewart JBJS Am 1953 15 – 70% 1st degree relatives Lysis commoner in boys Slips commoner in girls Eskimos 25% (arch defects)

  39. Natural history: ‘the slip’ Bentley Spine 2003 15% of persons with a pars lesion During the growth spurt Minimal change after 16 y No pain during progression

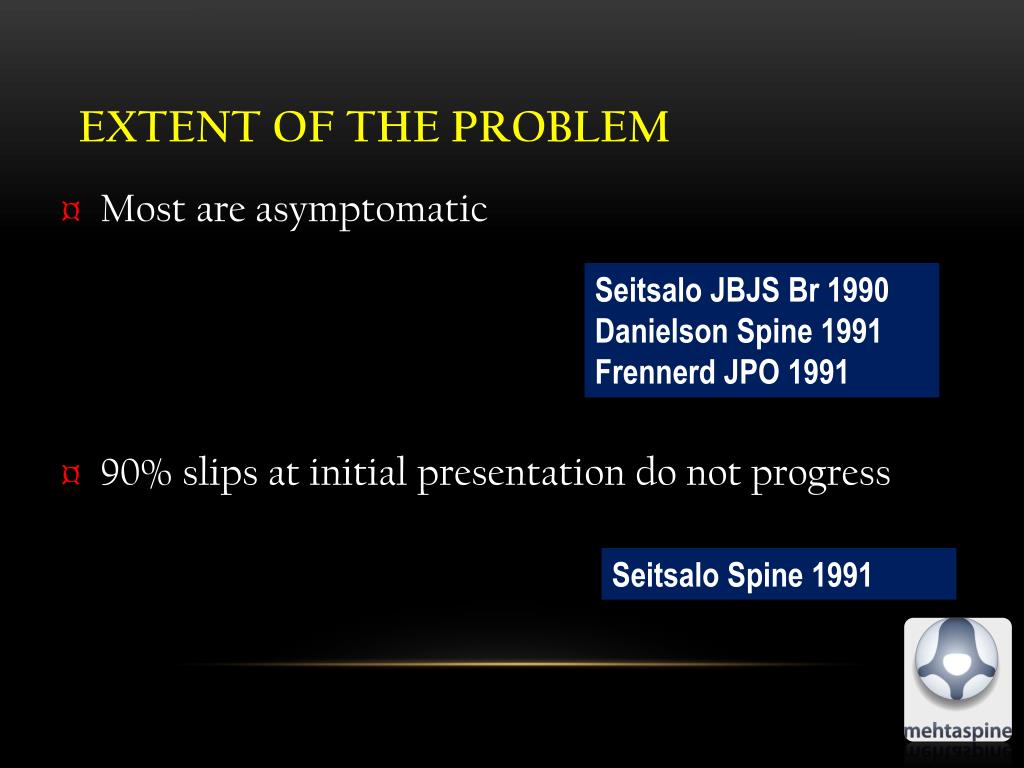

  40. Extent of the problem Seitsalo JBJS Br 1990 Danielson Spine 1991 Frennerd JPO 1991 Seitsalo Spine 1991 Most are asymptomatic 90% slips at initial presentation do not progress

  41. Progression

  42. Progression risk Ohmori JBJS Br 1995 Muschik JPO 1996 > 20 y: more stable, less symptomatic, less likely to progress High level of athletic activity, no effect on progression Association with back pain ‘weak’

  43. Risk of progression: higher levels

  44. The risk of progression in the young adult: disc degeneration

  45. Clinical Growth yrs (9 – 15) Girls > Boys Back pain Postural or gait abn Radiographic Type 1 (dysplastic) Vertical sacrum >50 % slip Increasing slip angle Instability on flex/ext views Risk factors for slip progression in spondyolisthesis(Hensinger 1989)

  46. Risk of progression: proximal sacral rounding

  47. Treatment rationale

  48. Adolescents III+: likely to progress I, II after mid-adolescence: unlikely to progress Natural history of progression

  49. Always consider first……………….everytime! Improvement likely if back > leg pain Isthmic / degnerative with leg pain: improvement less likely Investigate / treat osteopaenia Non-operative treatment

  50. Stop aggravating activities Gradual mobilisation Trunk strengthening Period of bracing Non-operative treatment: Paediatric
