Presentation Transcript

  1. Example Configurations for Network to the Desk

  2. Lync Sizing Assumptions 250 and 500 Users • All services enabled for users • Single Site, Lync Server Standard Edition* • 50% of users connect externally • 40% Click-to-Talk external (Direct SIP, 1 call per hour) • 60% Click-to-Talk internal • 50% of users have Lync phones • medium resilience 1000 and 2500 Users • All services enabled for users • Single Site, Lync Server Standard Edition* • 30% of users connect externally • 60 % of calls UC->PSTN • 2 PSTN calls per hour per user, 4 voicemails per day per user • 5% of users in conferences, 75% of conferences include all modalities • (Call duration of 3 minutes) * Lync Server and Client licenses are not included

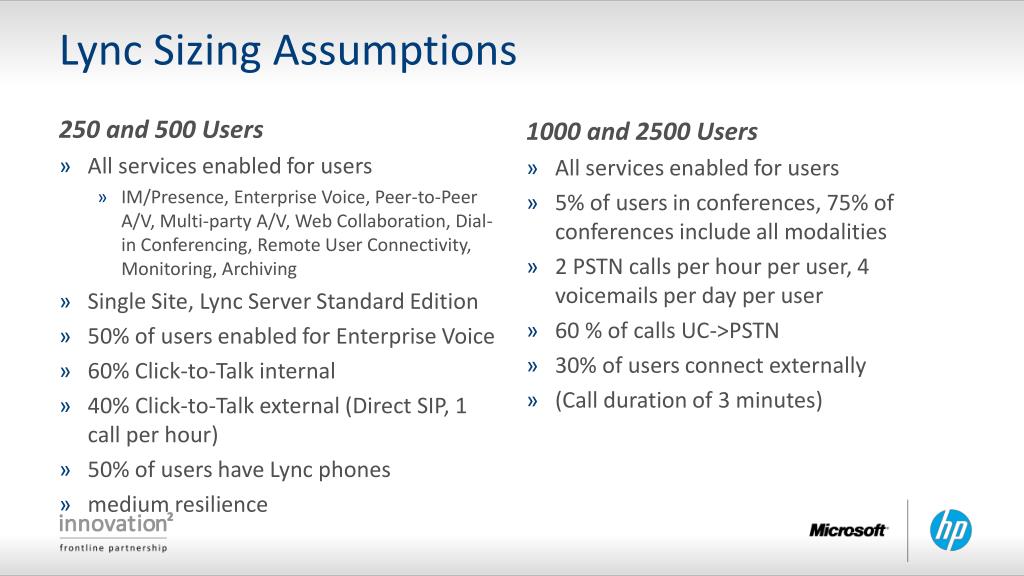

  3. Lync Sizing Assumptions 250 and 500 Users • All services enabled for users • IM/Presence, Enterprise Voice, Peer-to-Peer A/V, Multi-party A/V, Web Collaboration, Dial-in Conferencing, Remote User Connectivity, Monitoring, Archiving • Single Site, Lync Server Standard Edition • 50% of users enabled for Enterprise Voice • 60% Click-to-Talk internal • 40% Click-to-Talk external (Direct SIP, 1 call per hour) • 50% of users have Lync phones • medium resilience 1000 and 2500 Users • All services enabled for users • 5% of users in conferences, 75% of conferences include all modalities • 2 PSTN calls per hour per user, 4 voicemails per day per user • 60 % of calls UC->PSTN • 30% of users connect externally • (Call duration of 3 minutes)

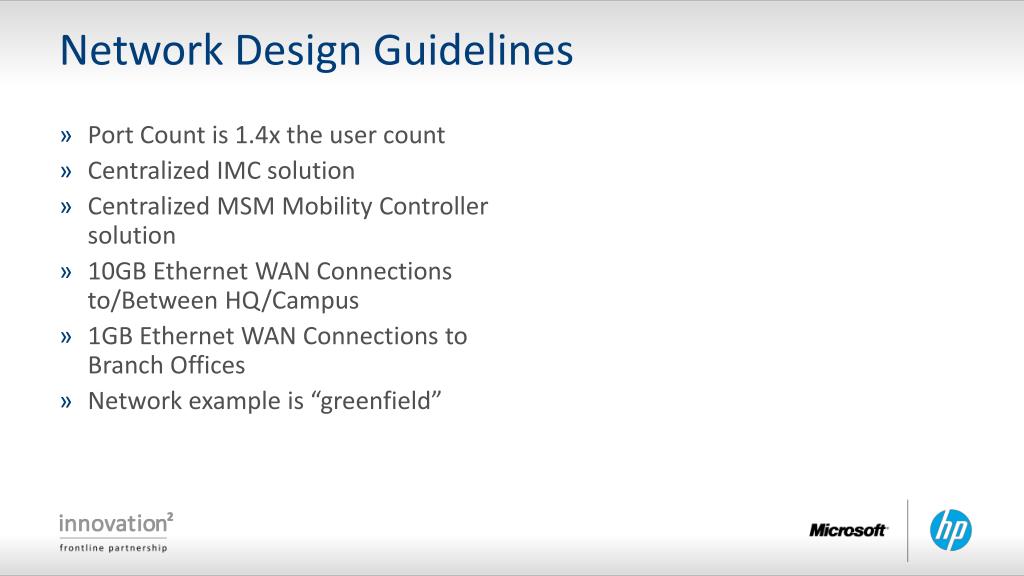

  4. Network Design Guidelines • Port Count is 1.4x the user count • Centralized IMC solution • Centralized MSM Mobility Controller solution • 10GB Ethernet WAN Connections to/Between HQ/Campus • 1GB Ethernet WAN Connections to Branch Offices • Network example is “greenfield”

  5. Example Network Architectures User Distribution and Network Topology • 250 User Environment: • One Main Building: 100 users (140 ports) • One Adjacent Building: 100 users (140 ports) • Two Remote Branches: 25 users each (44 ports) • 368 total ports • 500 User Environment: • One Main Building: with 125 users (188 ports) • Three Adjacent Buildings: each with 100 users (140 ports) • Two Remote Branches: One with 25 users (44 ports), and one with 50 users (68 ports) • 720 total ports 1000 User Environment: • One Main Building: 250 users (332 ports) • Three Adjacent Buildings: 200 users each (852 ports) • Four Remote Branches: 2 each at 25 users (44 ports) and 2 each at 50 users (68 ports) • 1,408 total ports 2500 User Environment: • Main Building: 500 users (720 ports) • Three Adjacent Buildings: each with 375 users (528 ports) and building 3 with 4 fewer ports • Fifteen Remote Branches: 5 at 25 users (44 ports), 5 at 50 users (68 ports), and 5 at 100 users (144 ports) • 3,580 total ports

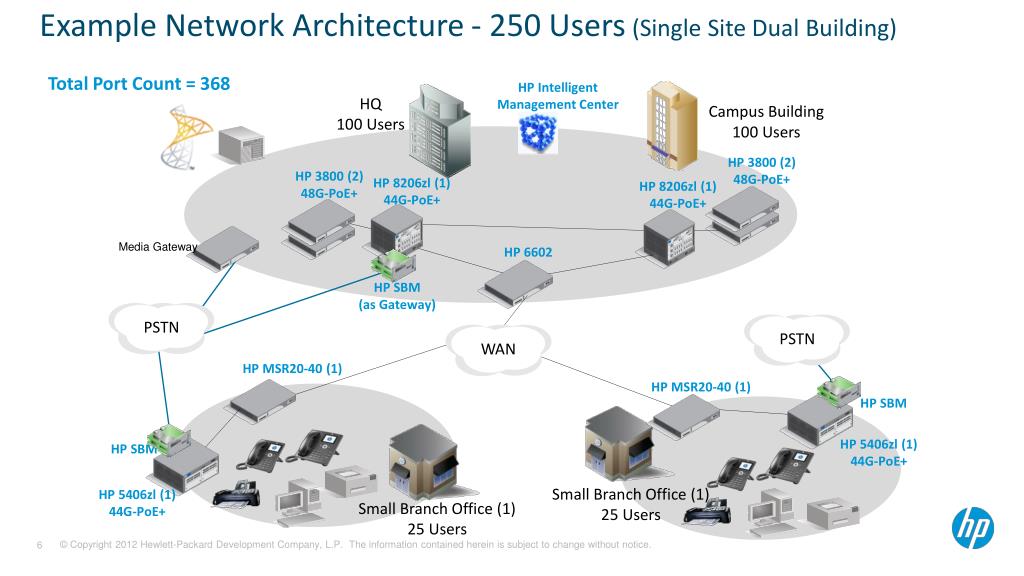

  6. Example Network Architecture - 250 Users(Single Site Dual Building) Total Port Count = 368 HP Intelligent Management Center HQ 100 Users Campus Building 100 Users HP 3800 (2) 48G-PoE+ HP 3800 (2) 48G-PoE+ HP 8206zl (1) 44G-PoE+ HP 8206zl (1) 44G-PoE+ Media Gateway HP 6602 HP SBM (as Gateway) PSTN WAN PSTN HP MSR20-40 (1) HP MSR20-40 (1) HP SBM HP 5406zl (1) 44G-PoE+ HP SBM Small Branch Office (1) 25 Users HP 5406zl (1) 44G-PoE+ Small Branch Office (1) 25 Users

  7. Network Components – 250 Users

  8. Example Network Architecture – 500 Users (HQ/Multi-Bldg Campus) Total Port Count = 720 HP 3800 (2) 48G-PoE+ HQ 125 Users (188 ports) Campus Buildings (3) 100 Users Each 300 Users Total (420 Ports Total) HP 8206zl (1) 44G-PoE+ HP 3800 (2) 48G-PoE+ HP Intelligent Management Center HP 8206zl (1) 44G-PoE+ HP 3800 (2) 48G-PoE+ HP 8212zl (1) 92G-PoE+ HP 3800 (2) 48G-PoE+ HP 8206zl (1) 44G-PoE+ HP 6604 (1) HP 6604 (1) HP SBM (as Gateway) Media Gateway HP SBM PSTN PSTN WAN HP MSR20-40 (1) HP MSR30-40 (1) HP SBM HP SBM HP 5406zl (1) 68G-PoE+ HP 5406zl (1) 44G-PoE+ Small Branch Office (1) 25 Users Medium Branch Office (1) 50 Users

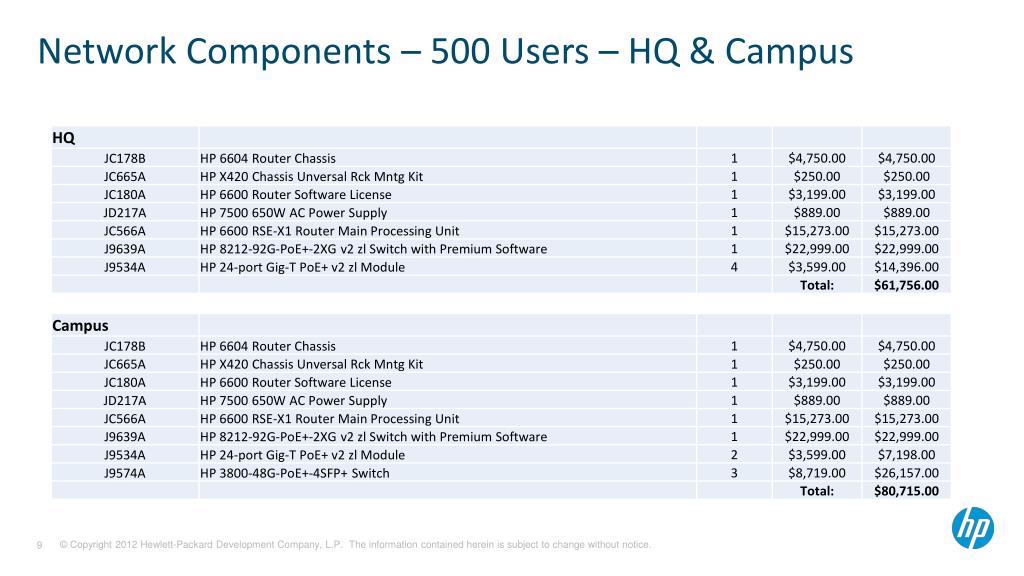

  9. Network Components – 500 Users – HQ & Campus

  10. Network Components – 500 Users – Branch Offices

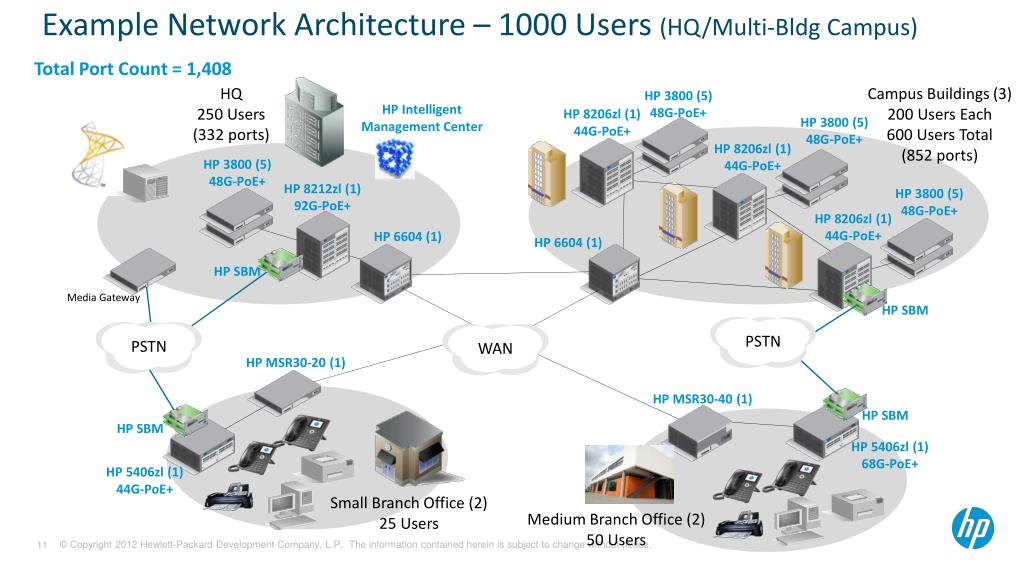

  11. Example Network Architecture – 1000 Users (HQ/Multi-Bldg Campus) Total Port Count = 1,408 HQ 250 Users (332 ports) Campus Buildings (3) 200 Users Each 600 Users Total (852 ports) HP 3800 (5) 48G-PoE+ HP Intelligent Management Center HP 8206zl (1) 44G-PoE+ HP 3800 (5) 48G-PoE+ HP 8206zl (1) 44G-PoE+ HP 3800 (5) 48G-PoE+ HP 8212zl (1) 92G-PoE+ HP 3800 (5) 48G-PoE+ HP 8206zl (1) 44G-PoE+ HP 6604 (1) HP 6604 (1) HP SBM Media Gateway HP SBM WAN PSTN PSTN HP MSR30-20 (1) HP MSR30-40 (1) HP SBM HP SBM HP 5406zl (1) 68G-PoE+ HP 5406zl (1) 44G-PoE+ Small Branch Office (2) 25 Users Medium Branch Office (2) 50 Users

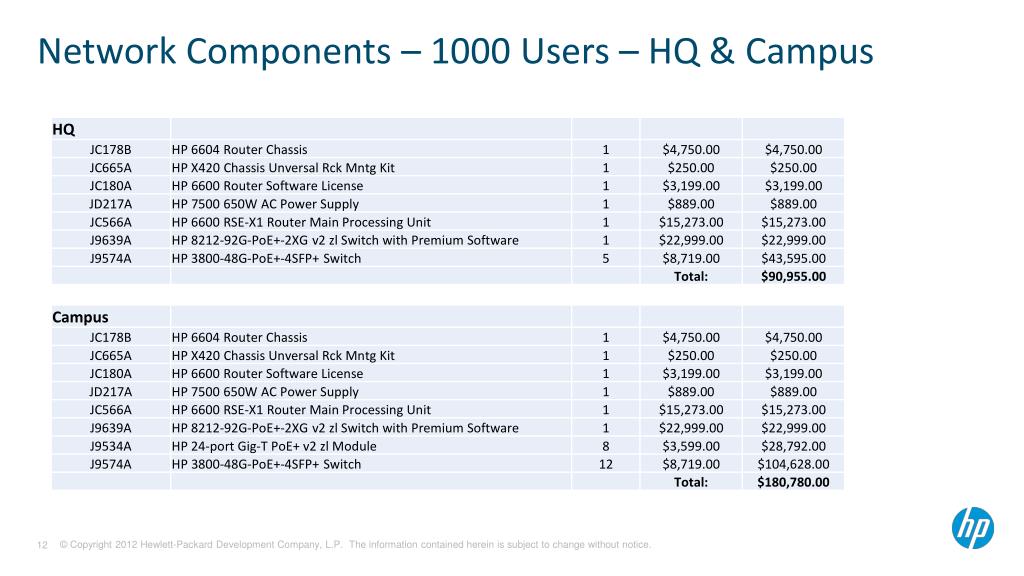

  12. Network Components – 1000 Users – HQ & Campus

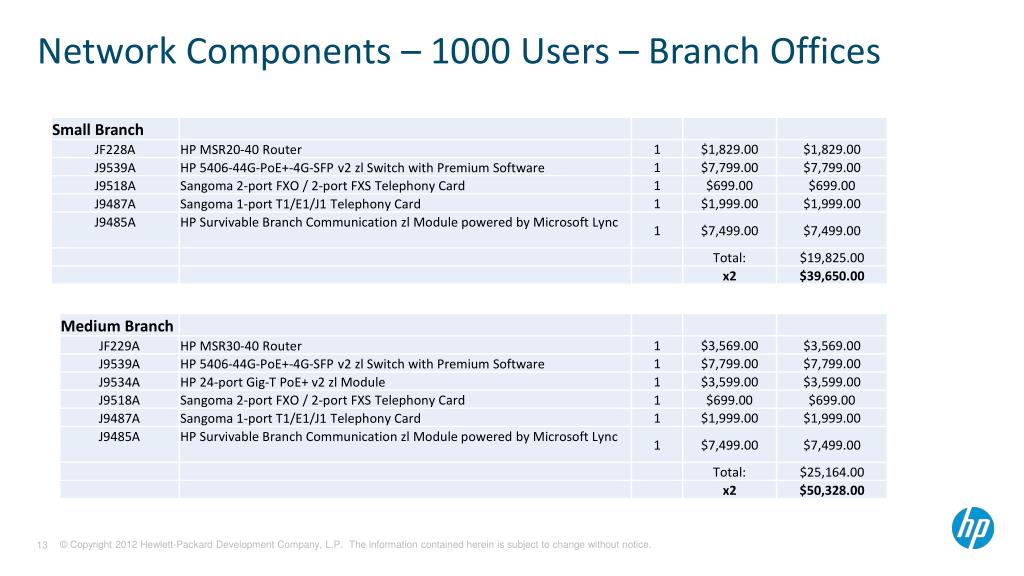

  13. Network Components – 1000 Users – Branch Offices

  14. Example Network Architecture – 2500 Users (HQ/Multi-Building Campus) Total Port Count = 3,580 Campus Buildings (3) 375/528 Users/Ports Each 1,125 Users Total (1,580 ports Total) HP 5500EI (10) 48G-PoE+ HQ 500 Users (720 ports) HP 5500 EI (10) 48G-PoE+ HP 10508(1) 48G HP Intelligent Management Center HP 10508(1) 48G HP 5500EI (9) 48G-PoE+ HP 5500EI (14) 48G-PoE+ HP 10508 (1) 48G-PoE+ HP 10508(1) 48G HP 5406zl (1) 44G-PoE+ HP 6608 (1) HP 6608 (1) HP SBM HP SBM (as Gateway) Media Gateway WAN PSTN PSTN HP SBM HP SBM HP MSR50-40 (1) HP MSR30-20 (1) HP MSR30-40 (1) HP 5412zl (1) 144G-PoE+ HP 5406zl (1) 44G-PoE+ HP SBM HP 5406zl (1) 68G-PoE+ Small Branch Office (5) 25 Users Large Branch Office (5) 100 Users Medium Branch Office (5) 50 Users

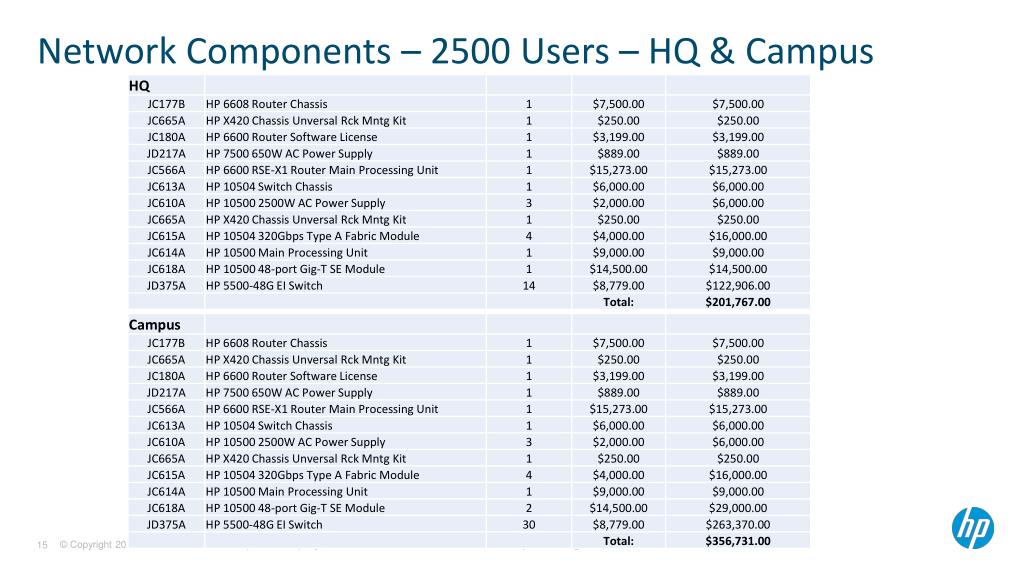

  15. Network Components – 2500 Users – HQ & Campus

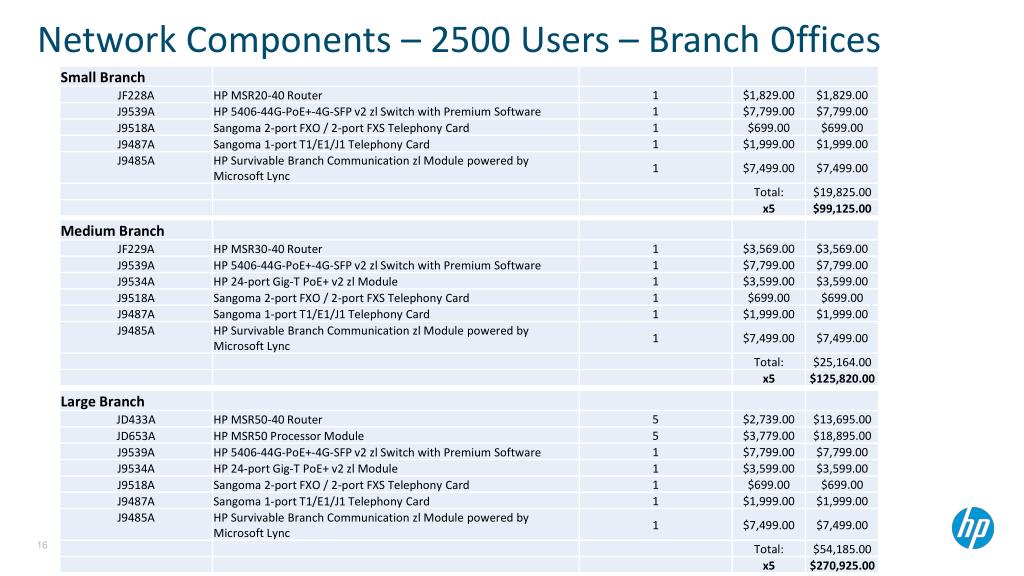

  16. Network Components – 2500 Users – Branch Offices

  17. PSTN Connectivity • Depending on connectivity requirements two options are suggested • 2 x ACME Packet 3820 Session Border Controllers (resilient) • Supports SIP-trunking • 1 x AudiocodesMediant 3000 resilient voice gateway • Legacy connectivity or integration with PBX • Exact configuration of voice cards (E1/T1 etc.) to be determined at point of sale

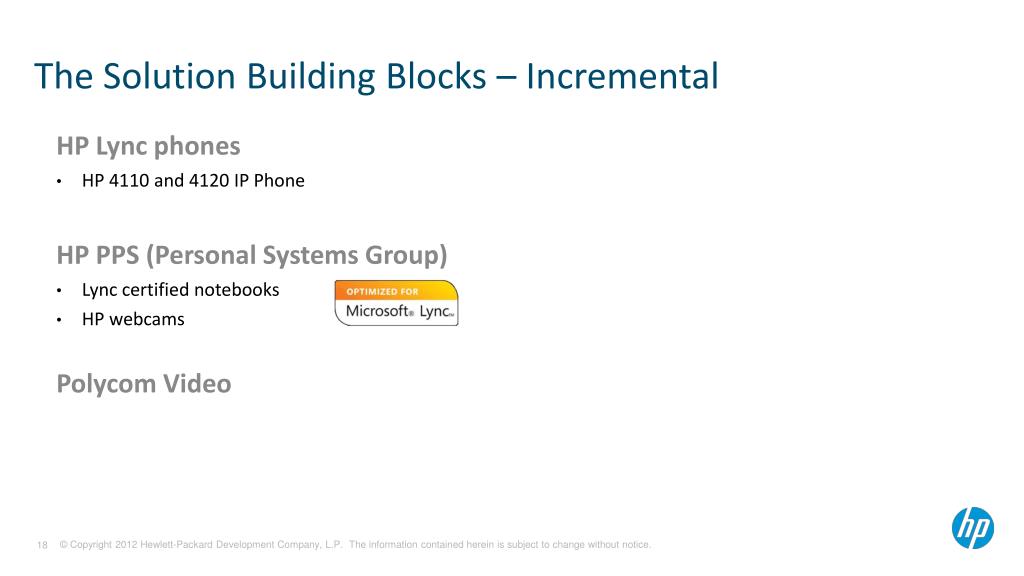

  18. The Solution Building Blocks – Incremental • HP Lync phones • HP 4110 and 4120 IP Phone • HP PPS (Personal Systems Group) • Lync certified notebooks • HP webcams Polycom Video
