  1. Thin Cylinders&Spherical Shells Analysis of above under Pressures

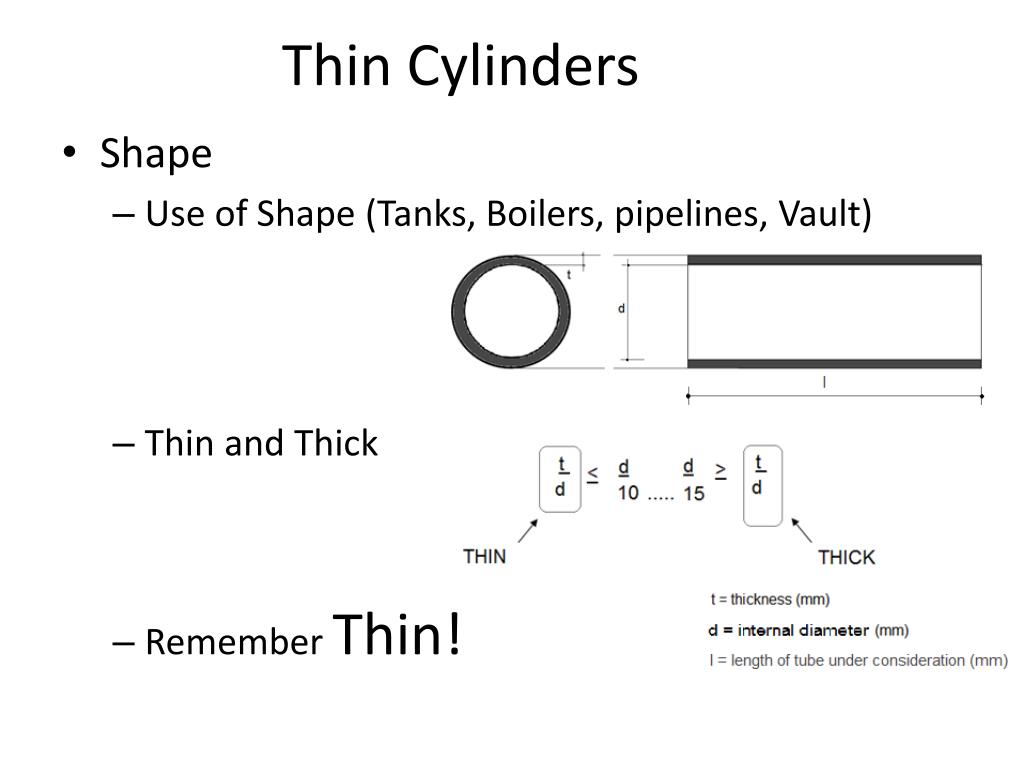

  2. Thin Cylinders • Shape • Use of Shape (Tanks, Boilers, pipelines, Vault) • Thin and Thick • Remember Thin!

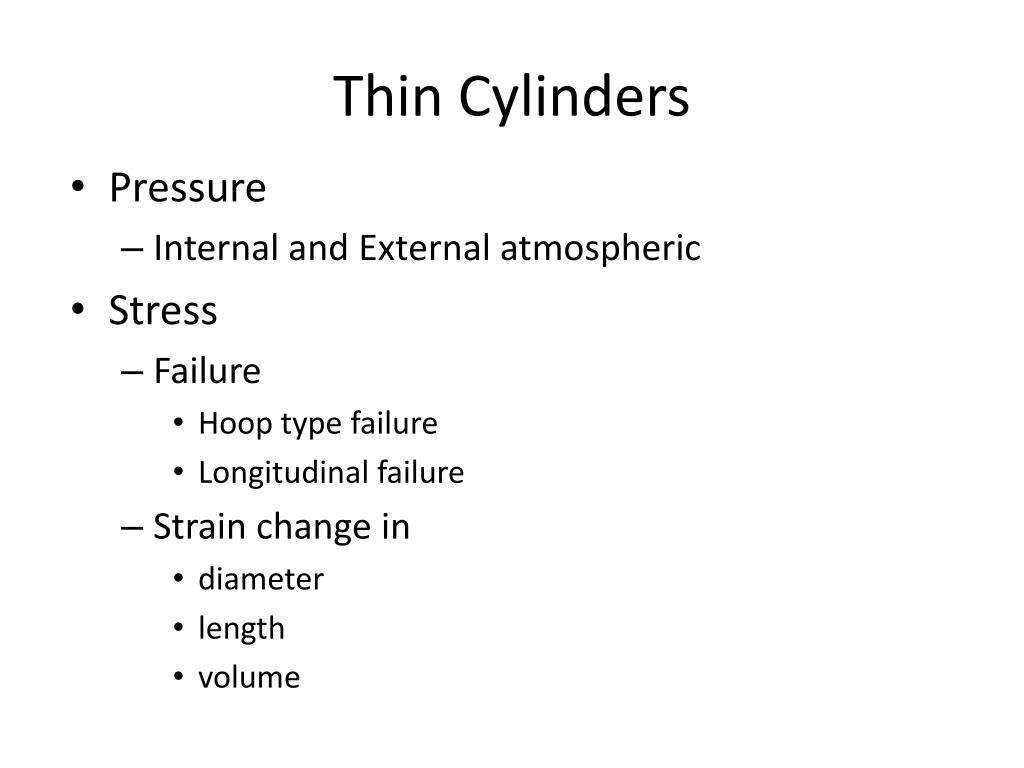

  3. Thin Cylinders • Pressure • Internal and External atmospheric • Stress • Failure • Hoop type failure • Longitudinal failure • Strain change in • diameter • length • volume

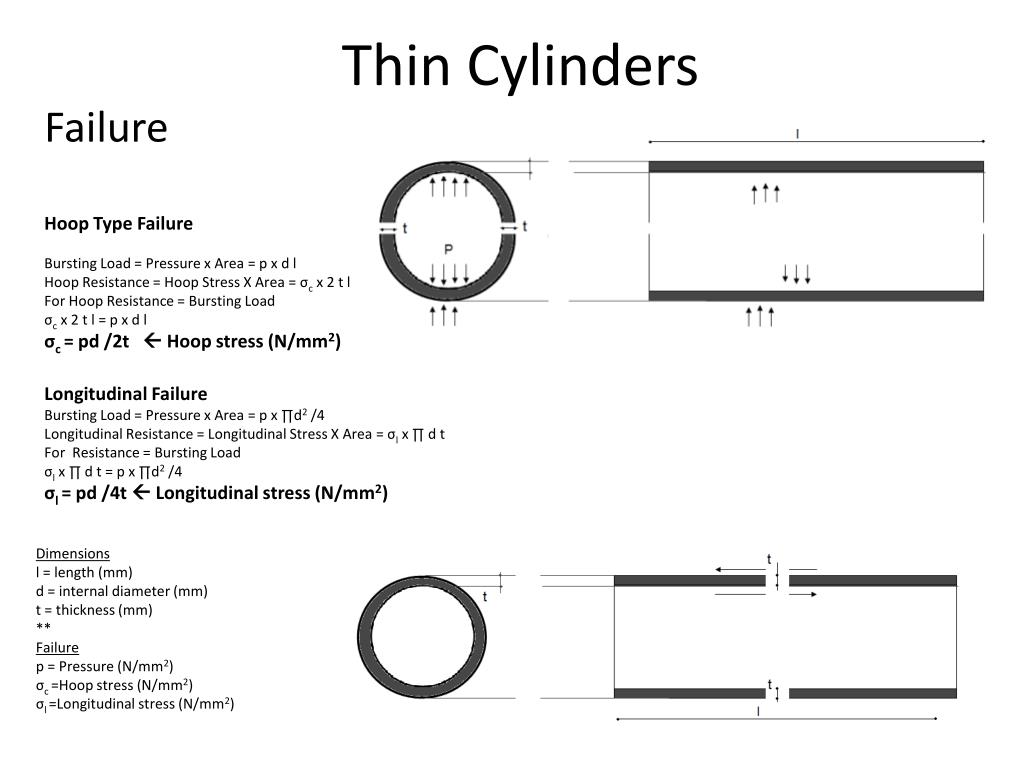

  4. Thin Cylinders Failure Hoop Type Failure Bursting Load = Pressure x Area = p x d l Hoop Resistance = Hoop Stress X Area = σc x 2 t l For Hoop Resistance = Bursting Load σc x 2 t l = p x d l σc = pd /2t  Hoop stress (N/mm2) Longitudinal Failure Bursting Load = Pressure x Area = p x ∏d2 /4 Longitudinal Resistance = Longitudinal Stress X Area = σl x ∏ d t For Resistance = Bursting Load σl x ∏ d t = p x ∏d2 /4 σl = pd /4t  Longitudinal stress (N/mm2) Dimensions l = length (mm) d = internal diameter (mm) t = thickness (mm) ** Failure p = Pressure (N/mm2) σc =Hoop stress (N/mm2) σl =Longitudinal stress (N/mm2)

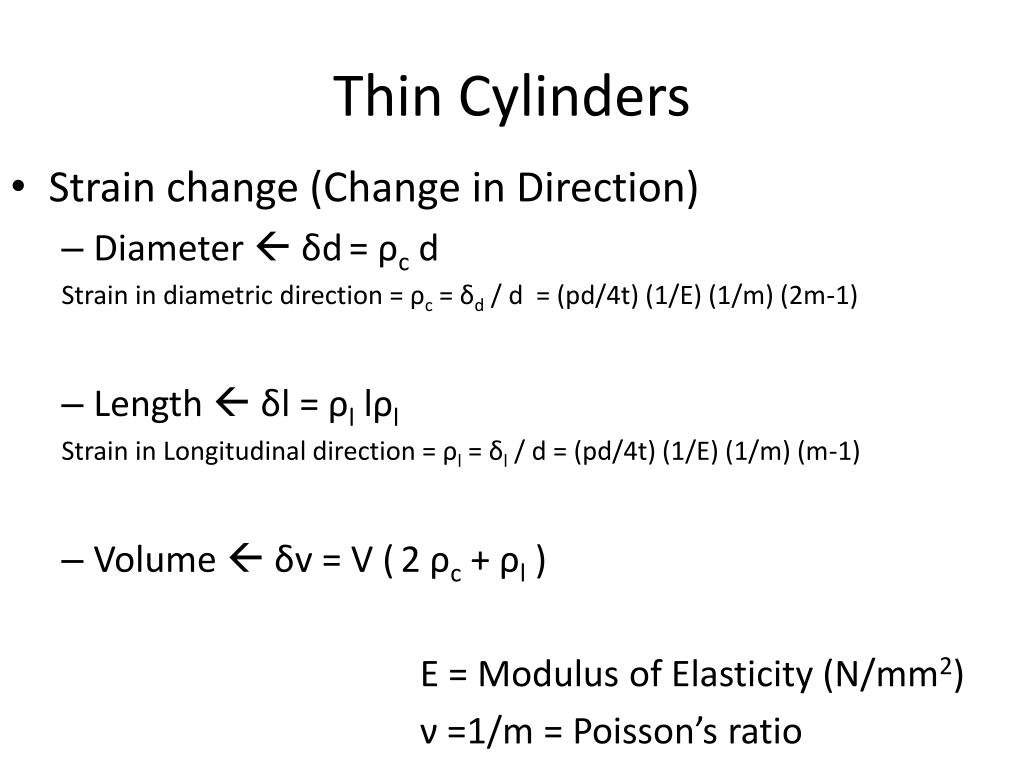

  5. Thin Cylinders • Strain change (Change in Direction) • Diameter  δd= ρc d Strain in diametric direction = ρc = δd / d = (pd/4t) (1/E) (1/m) (2m-1) • Length  δl = ρl lρl Strain in Longitudinal direction = ρl = δl / d = (pd/4t) (1/E) (1/m) (m-1) • Volume  δv = V (2 ρc + ρl ) E = Modulus of Elasticity (N/mm2) ν =1/m = Poisson’s ratio

  6. Spherical Shells Failure Bursting Load = Pressure x Area = p x ∏ d2/4 Hoop Resistance = Hoop Stress X Area = σc x 2 t l For Hoop Resistance = Bursting Load σ x ∏d t = p x ∏ d2/4 σ= pd /4t  Stress (N/mm2) Efficiency of Joints ‘η’ σ= (pd /4t) (1/ η) Another Failure is Shear Failure Shear stress, τ= (σc – σl ) / 2 = [(pd /2t) - (pd /4t)] /2 = pd /8t

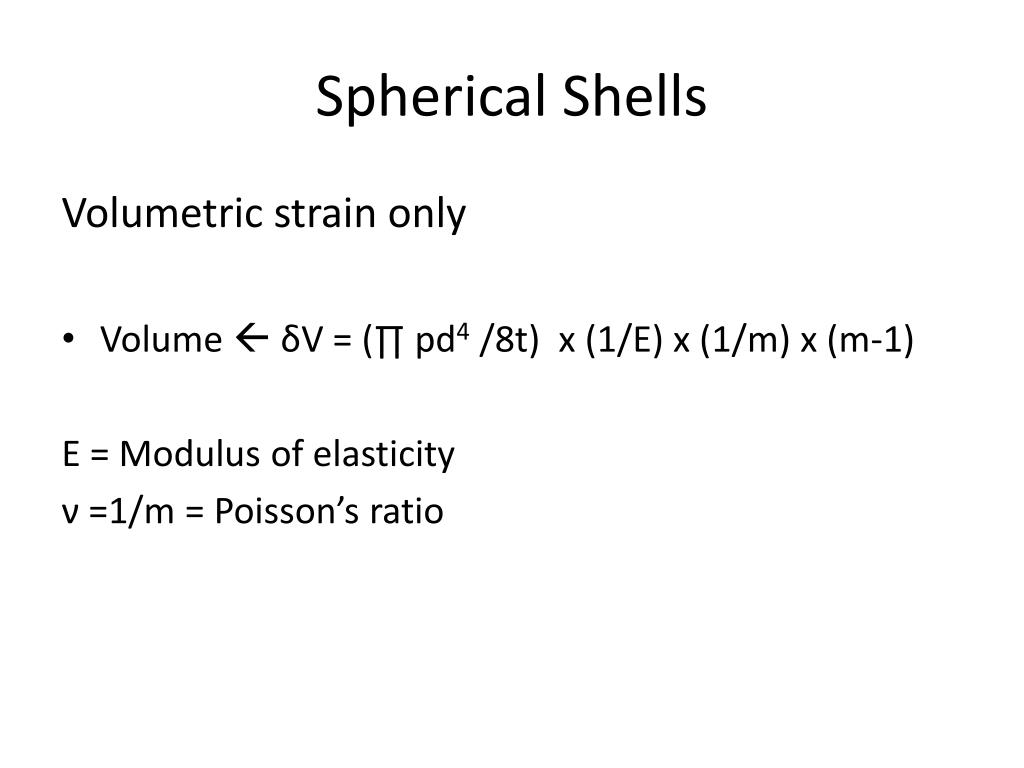

  7. Spherical Shells Volumetric strain only • Volume  δV = (∏ pd4 /8t) x (1/E) x (1/m) x (m-1) E = Modulus of elasticity ν =1/m = Poisson’s ratio

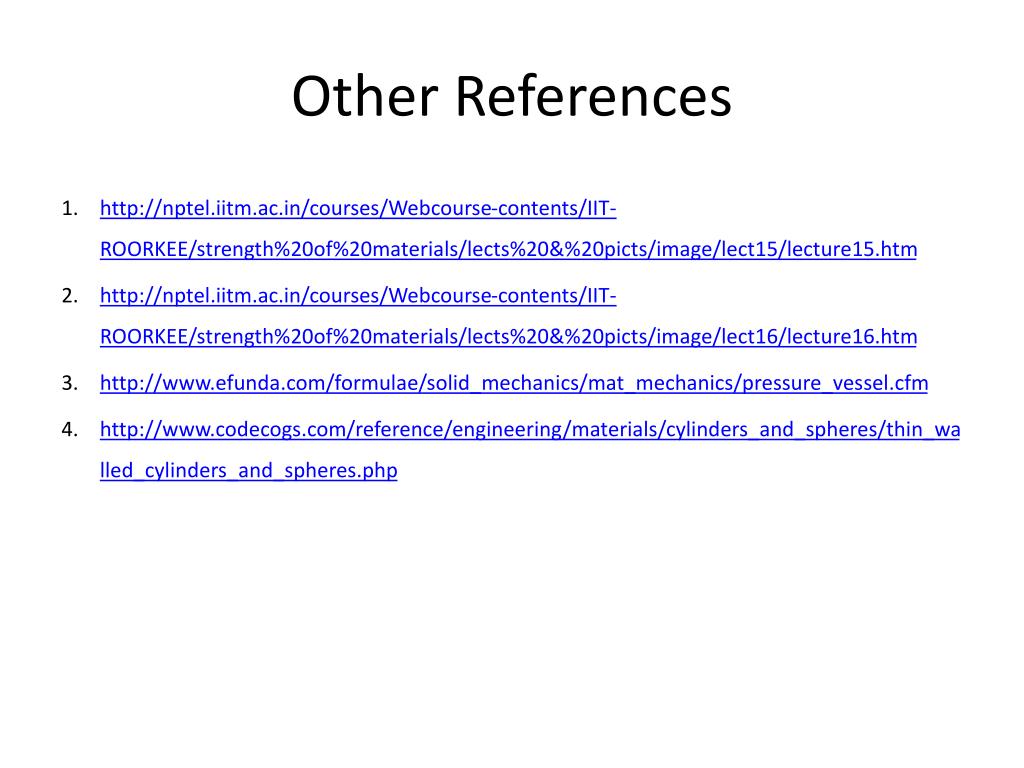

  8. Other References • http://nptel.iitm.ac.in/courses/Webcourse-contents/IIT-ROORKEE/strength%20of%20materials/lects%20&%20picts/image/lect15/lecture15.htm • http://nptel.iitm.ac.in/courses/Webcourse-contents/IIT-ROORKEE/strength%20of%20materials/lects%20&%20picts/image/lect16/lecture16.htm • http://www.efunda.com/formulae/solid_mechanics/mat_mechanics/pressure_vessel.cfm • http://www.codecogs.com/reference/engineering/materials/cylinders_and_spheres/thin_walled_cylinders_and_spheres.php

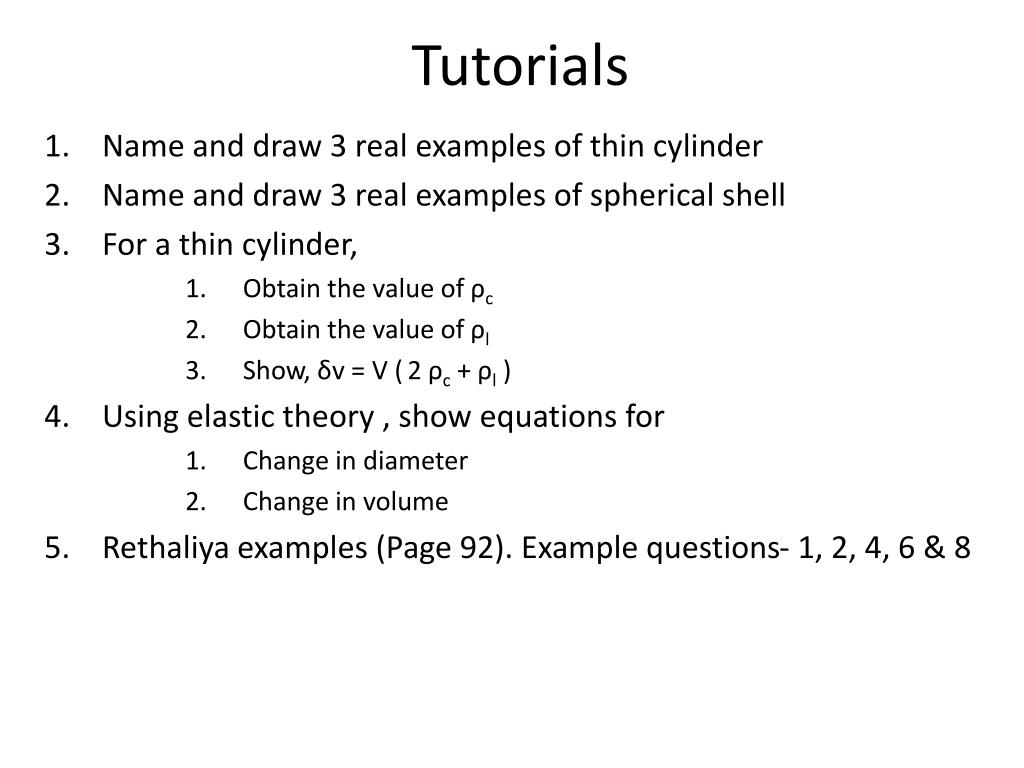

  9. Tutorials • Name and draw 3 real examples of thin cylinder • Name and draw 3 real examples of spherical shell • For a thin cylinder, • Obtain the value of ρc • Obtain the value of ρl • Show, δv = V (2 ρc + ρl ) • Using elastic theory , show equations for • Change in diameter • Change in volume • Rethaliya examples (Page 92). Example questions- 1, 2, 4, 6 & 8
