  1. Any Questions?

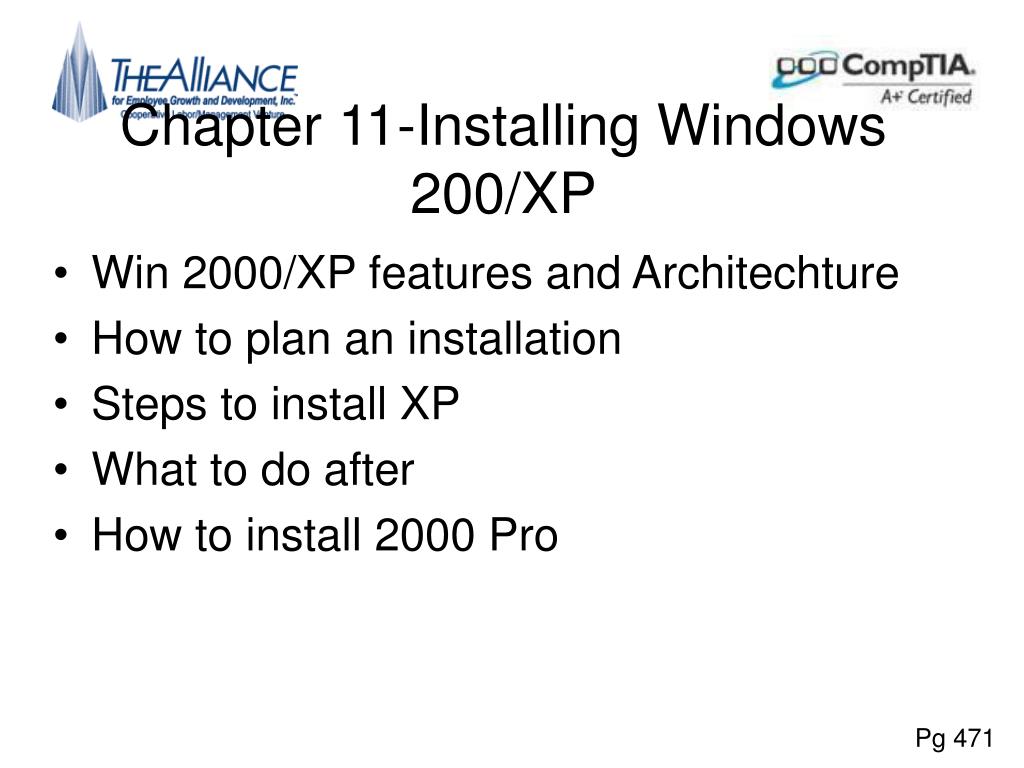

  2. Chapter 11-Installing Windows 200/XP • Win 2000/XP features and Architechture • How to plan an installation • Steps to install XP • What to do after • How to install 2000 Pro Pg 471

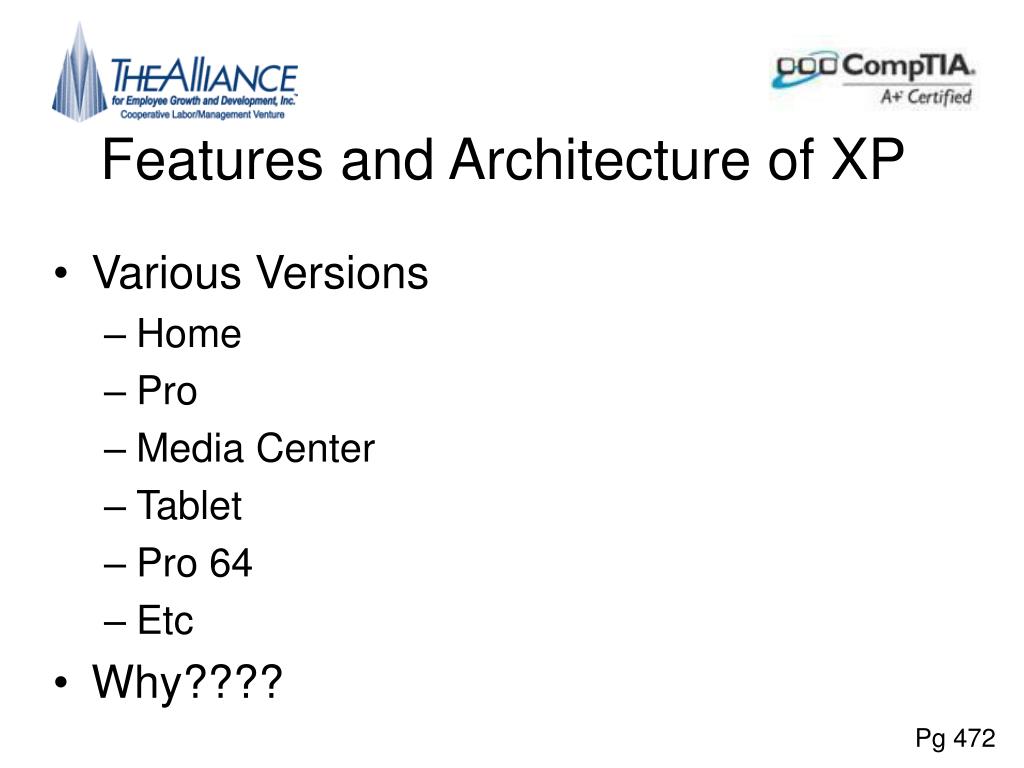

  3. Features and Architecture of XP • Various Versions • Home • Pro • Media Center • Tablet • Pro 64 • Etc • Why???? Pg 472

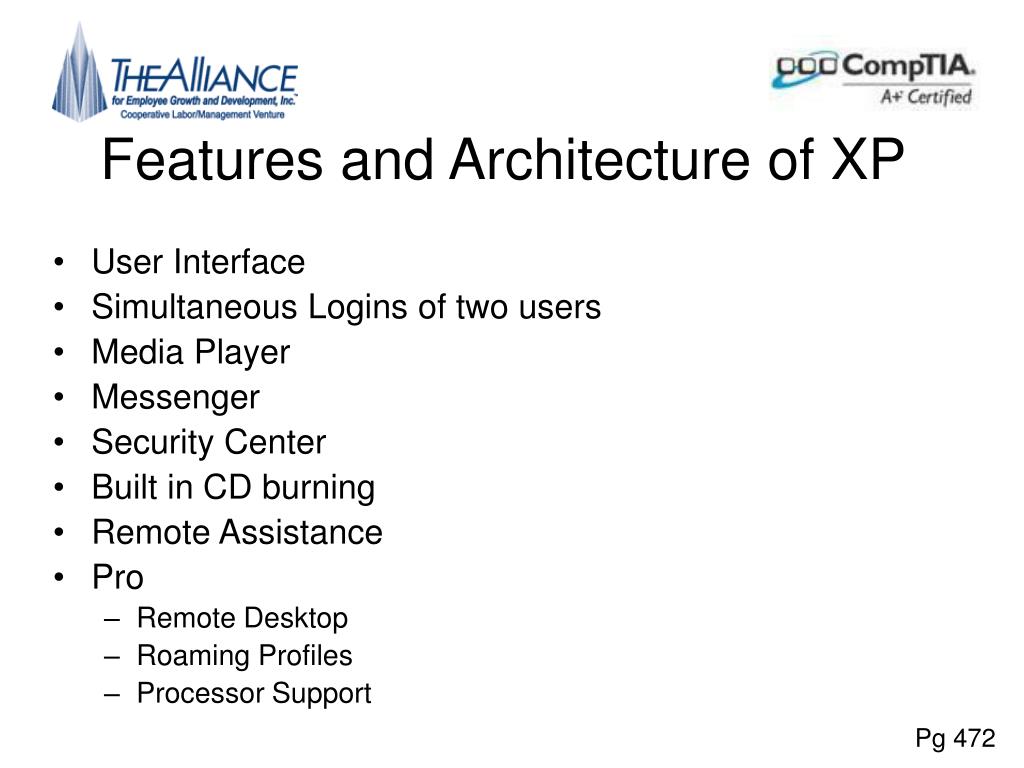

  4. Features and Architecture of XP • User Interface • Simultaneous Logins of two users • Media Player • Messenger • Security Center • Built in CD burning • Remote Assistance • Pro • Remote Desktop • Roaming Profiles • Processor Support Pg 472

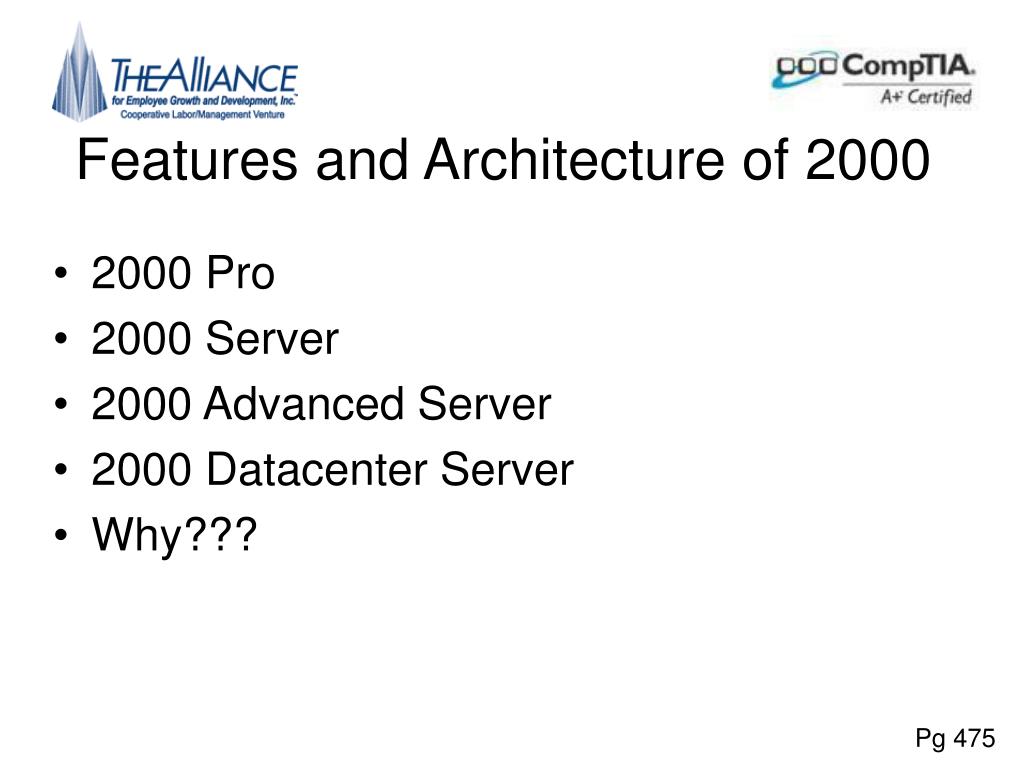

  5. Features and Architecture of 2000 • 2000 Pro • 2000 Server • 2000 Advanced Server • 2000 Datacenter Server • Why??? Pg 475

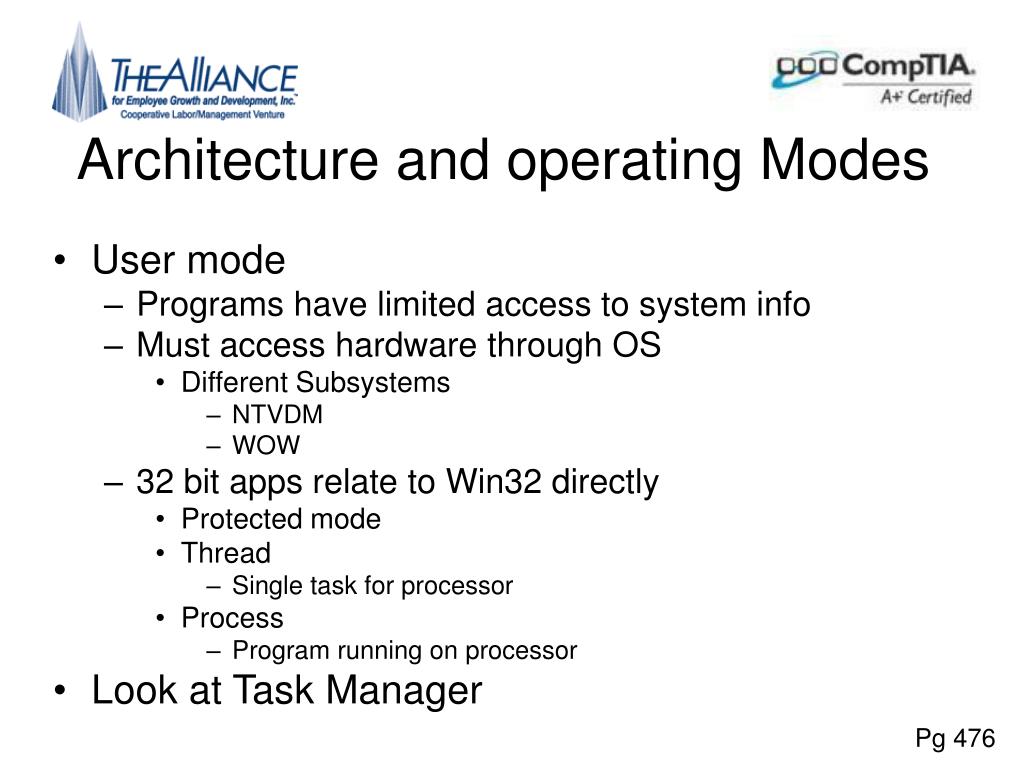

  6. Architecture and operating Modes • User mode • Programs have limited access to system info • Must access hardware through OS • Different Subsystems • NTVDM • WOW • 32 bit apps relate to Win32 directly • Protected mode • Thread • Single task for processor • Process • Program running on processor • Look at Task Manager Pg 476

  7. Architecture and operating Modes • Kernel mode • Programs get more access to system and hardware • Hardware abstraction Layer • Different Versions for different hardware platforms • Easily ports to other Chips, etc • Executive Services Pg 477

  8. Networking • Workgroup • Group of computers that share resources • Resources managed on machine, not centrally • Peer to Peer • Domain • Group of computers that share centralized database of resources and rights • Client/Server Pg 478

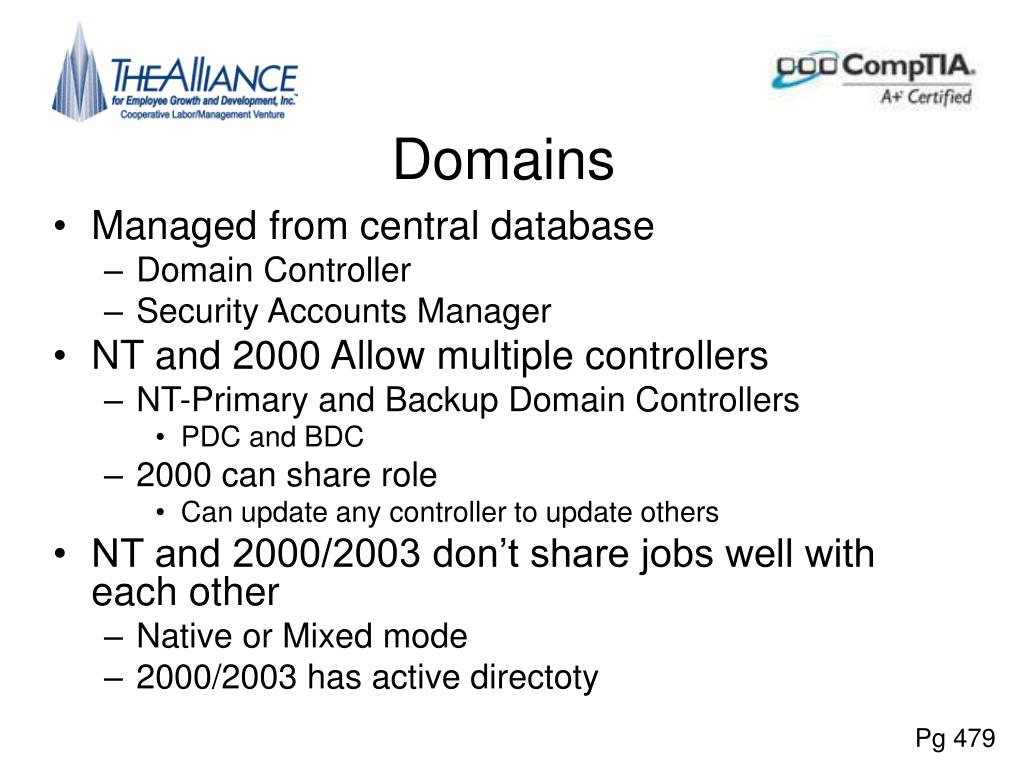

  9. Domains • Managed from central database • Domain Controller • Security Accounts Manager • NT and 2000 Allow multiple controllers • NT-Primary and Backup Domain Controllers • PDC and BDC • 2000 can share role • Can update any controller to update others • NT and 2000/2003 don’t share jobs well with each other • Native or Mixed mode • 2000/2003 has active directoty Pg 479

  10. 2000/XP logon • All systems have administrator account • Use this to create others • In domain, accounts are created for domain • Local users have different role if domain setup • Logon • Username and password • XP allows multiple logons • Switch users Pg 480

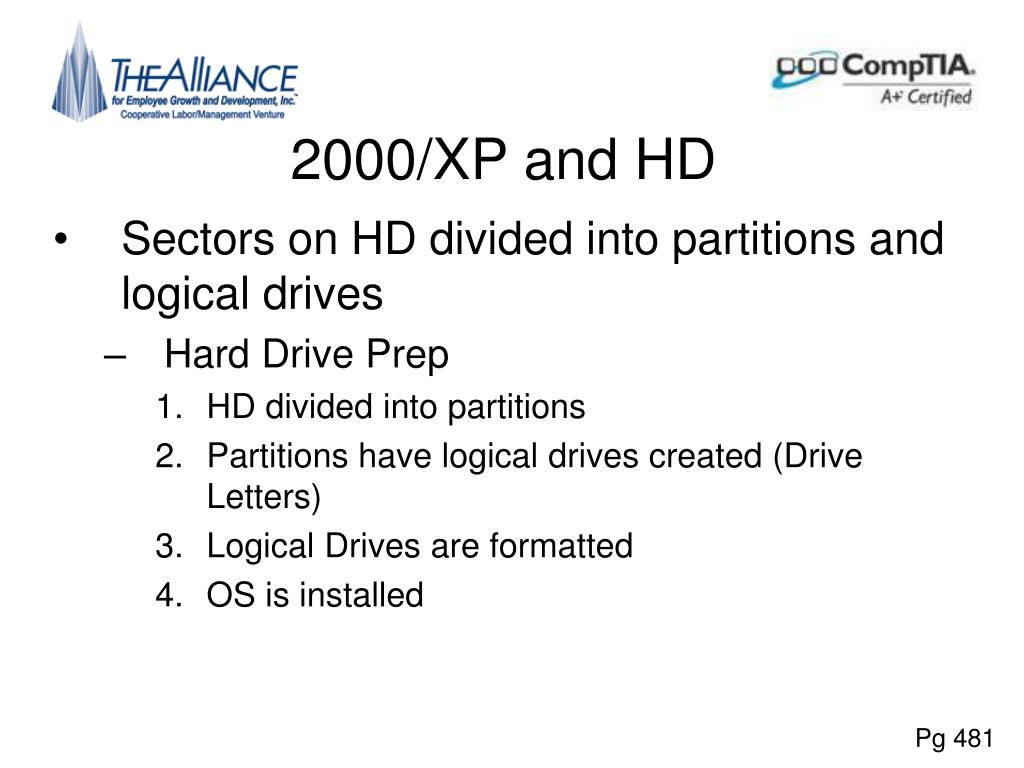

  11. 2000/XP and HD • Sectors on HD divided into partitions and logical drives • Hard Drive Prep • HD divided into partitions • Partitions have logical drives created (Drive Letters) • Logical Drives are formatted • OS is installed Pg 481

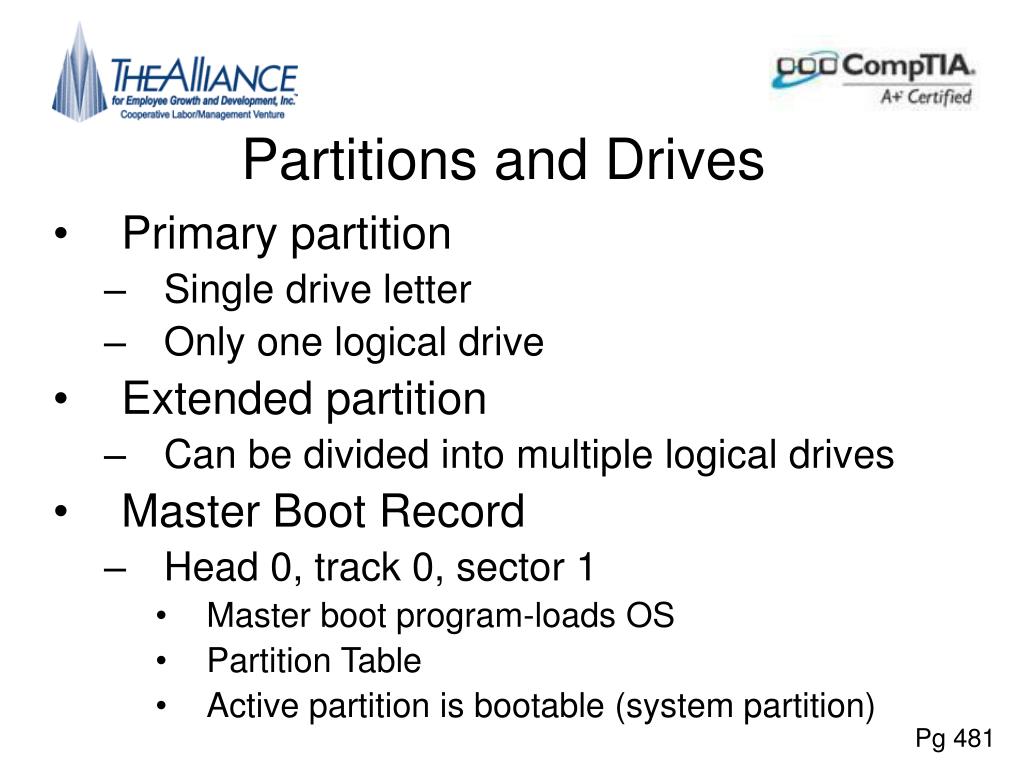

  12. Partitions and Drives • Primary partition • Single drive letter • Only one logical drive • Extended partition • Can be divided into multiple logical drives • Master Boot Record • Head 0, track 0, sector 1 • Master boot program-loads OS • Partition Table • Active partition is bootable (system partition) Pg 481

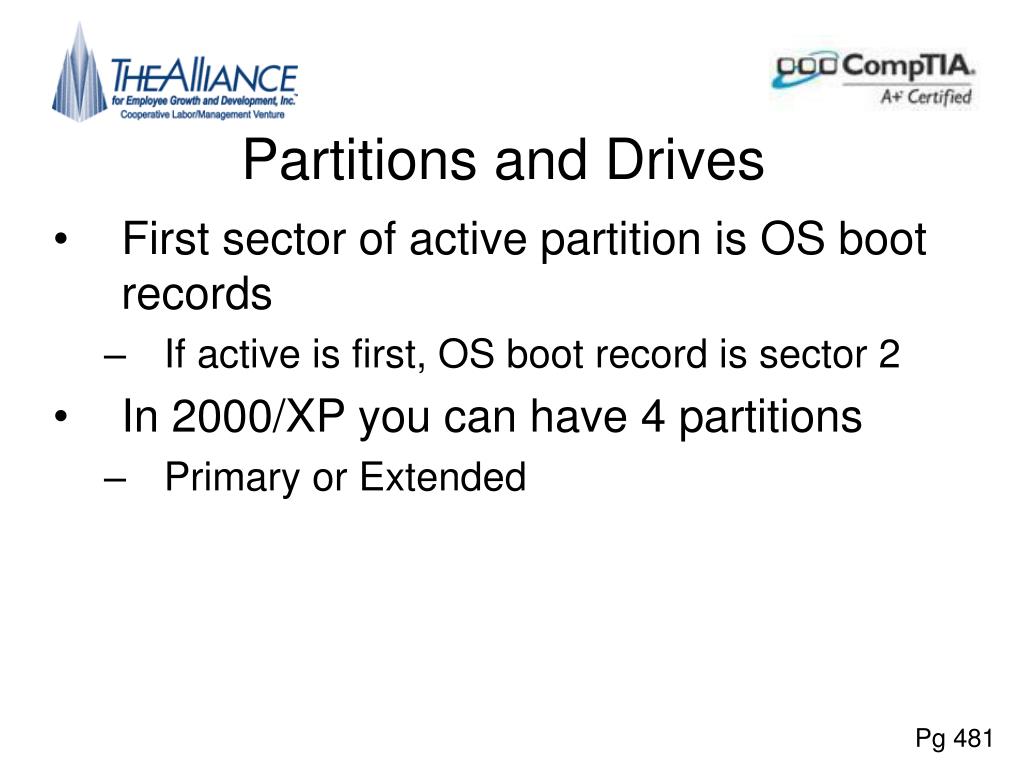

  13. Partitions and Drives • First sector of active partition is OS boot records • If active is first, OS boot record is sector 2 • In 2000/XP you can have 4 partitions • Primary or Extended Pg 481

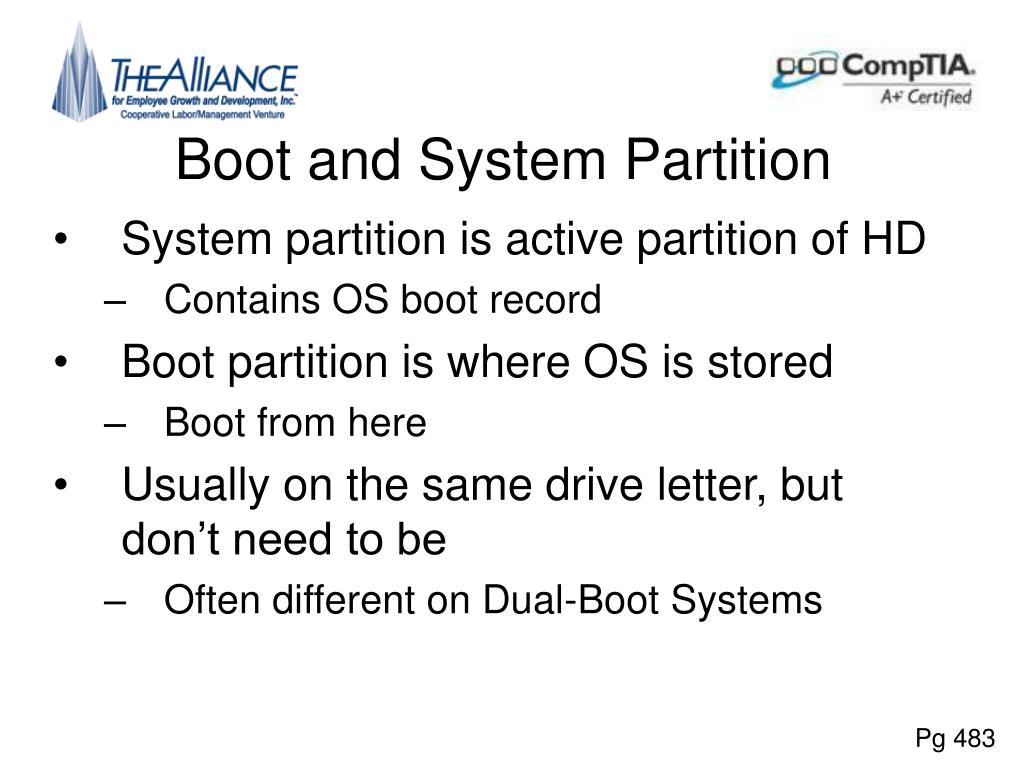

  14. Boot and System Partition • System partition is active partition of HD • Contains OS boot record • Boot partition is where OS is stored • Boot from here • Usually on the same drive letter, but don’t need to be • Often different on Dual-Boot Systems Pg 483

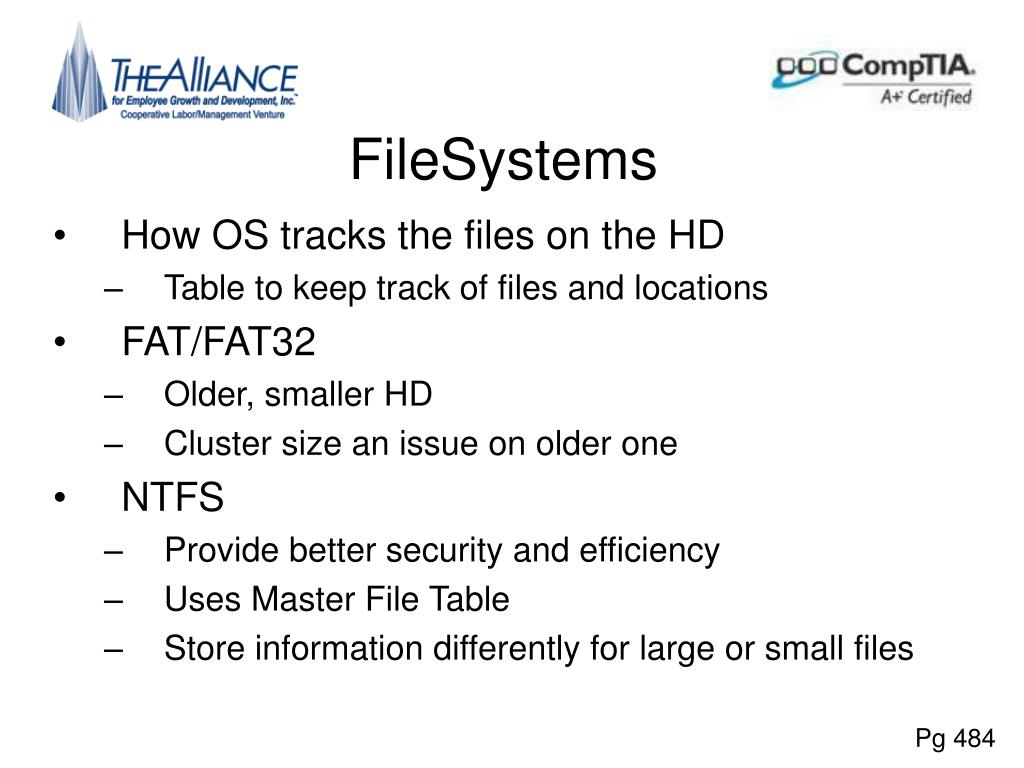

  15. FileSystems • How OS tracks the files on the HD • Table to keep track of files and locations • FAT/FAT32 • Older, smaller HD • Cluster size an issue on older one • NTFS • Provide better security and efficiency • Uses Master File Table • Store information differently for large or small files Pg 484

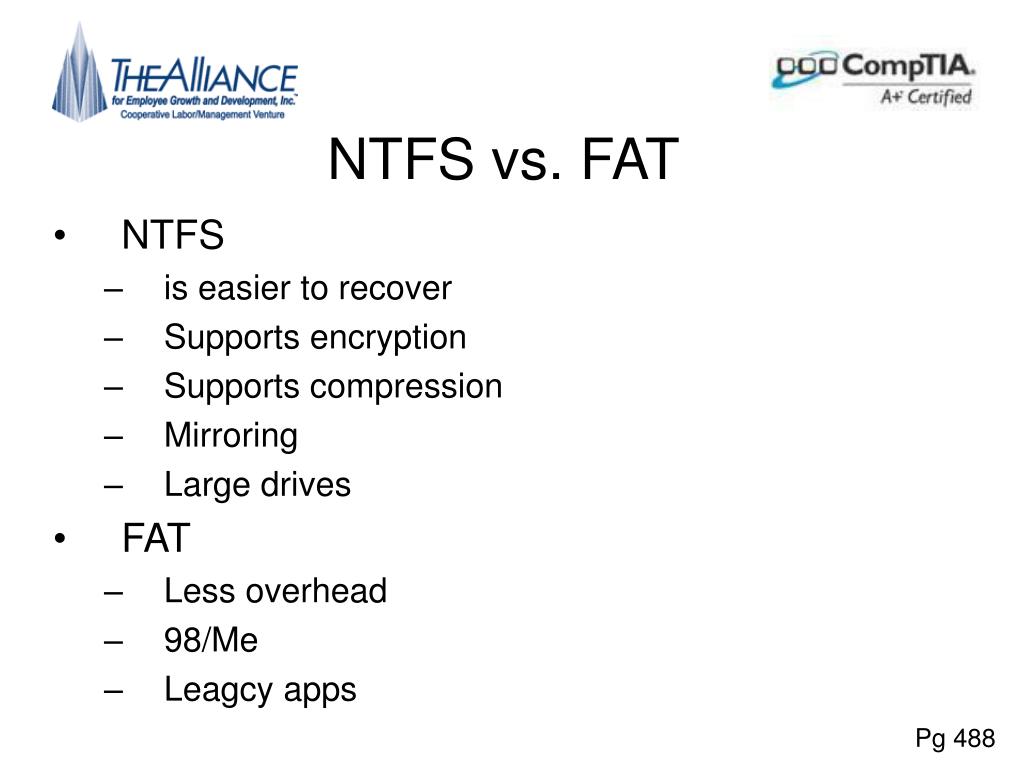

  16. NTFS vs. FAT • NTFS • is easier to recover • Supports encryption • Supports compression • Mirroring • Large drives • FAT • Less overhead • 98/Me • Leagcy apps Pg 488

  17. NTFS vs. FAT • NTFS • is easier to recover • Supports encryption • Supports compression • Mirroring • Large drives • FAT • Less overhead • 98/Me • Legacy apps Pg 488

  18. How many partitions do you need? • When setting up a HD, you have to plan the partitioning • Can leave blank space for later • Reasons for multiple partitions • Multi OS System • Organization • Larger drive, large cluster, more waste Pg 489

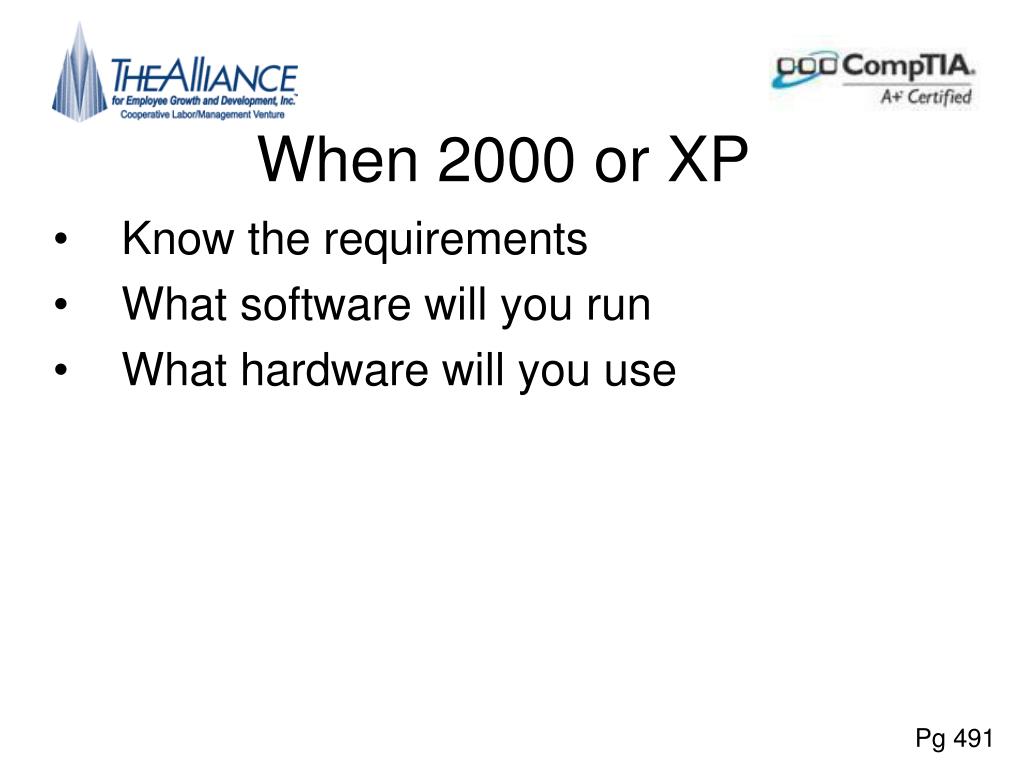

  19. When 2000 or XP • Know the requirements • What software will you run • What hardware will you use Pg 491

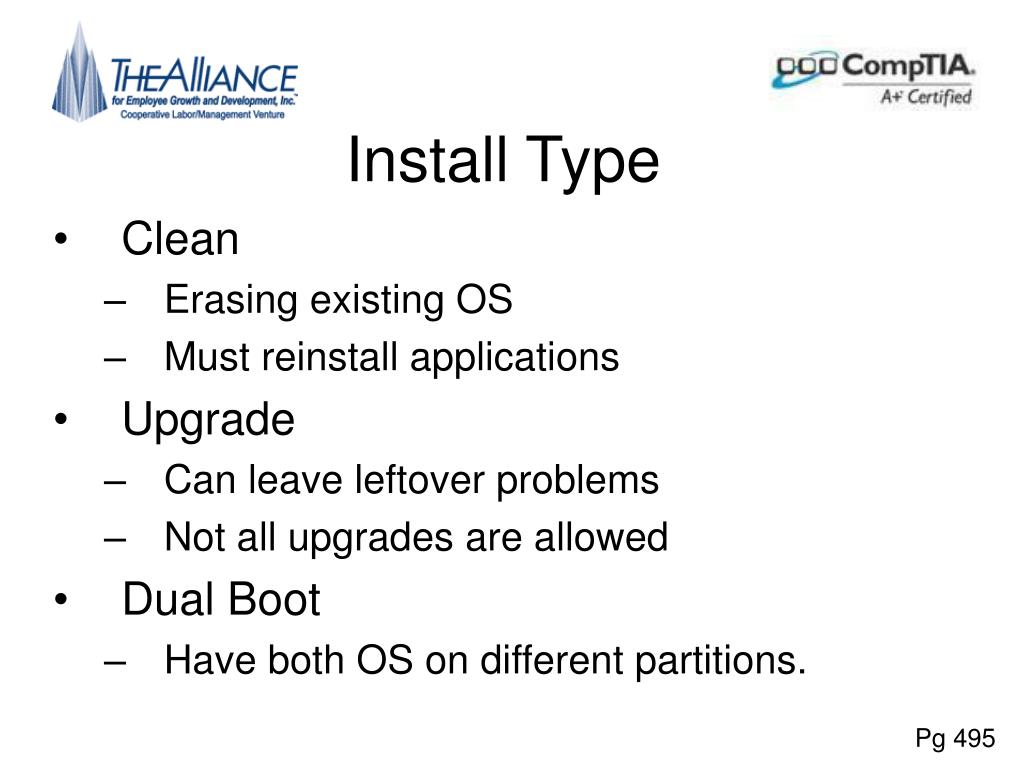

  20. Install Type • Clean • Erasing existing OS • Must reinstall applications • Upgrade • Can leave leftover problems • Not all upgrades are allowed • Dual Boot • Have both OS on different partitions. Pg 495

  21. HD partitions and File Systems • Which Filesystem • NTFS for security • FAT for backward compatibility Pg 497

  22. Workgroup or Domain • Fewer than 10 • Workgroup • More than 10 • Domain • XP home wont work on a domain • Before install • Computer and workgroup or domain name • Username and password if domain • How is TCP/IP configured • Static or Dynamic Pg 498

  23. How installs work • Non-Networked PC • From CD/DVD • Networked PC • From File server • Copy /i386 directory to server • Can also do for standalone for updates/upgrades • Share the folder Pg 498

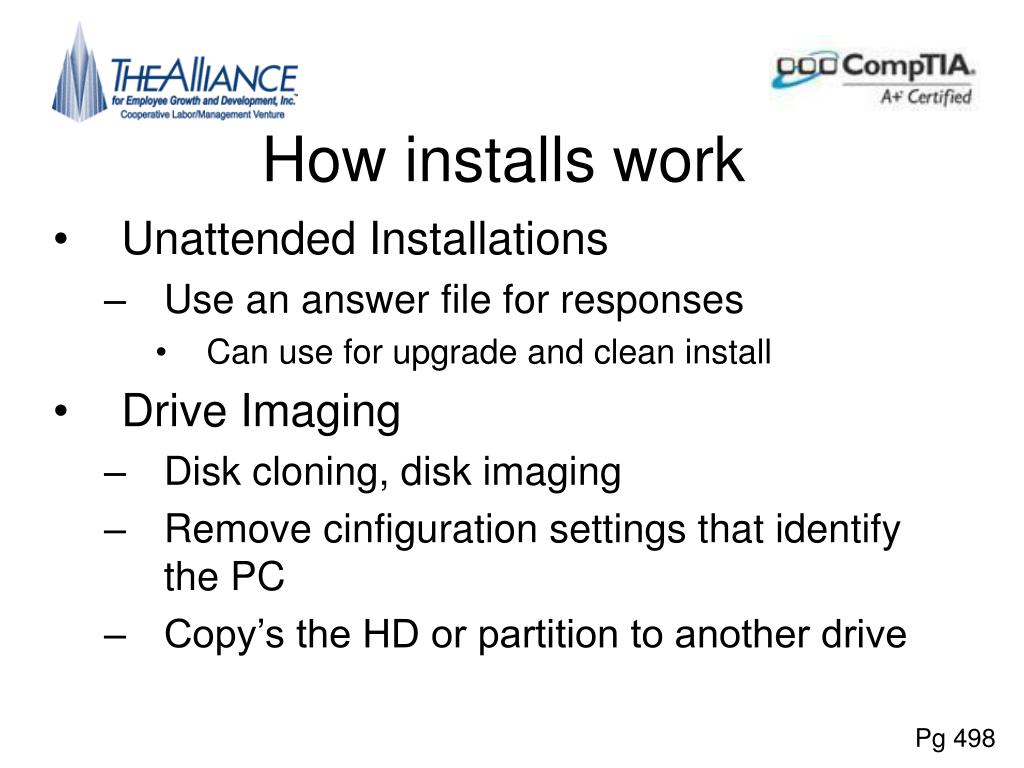

  24. How installs work • Unattended Installations • Use an answer file for responses • Can use for upgrade and clean install • Drive Imaging • Disk cloning, disk imaging • Remove cinfiguration settings that identify the PC • Copy’s the HD or partition to another drive Pg 498

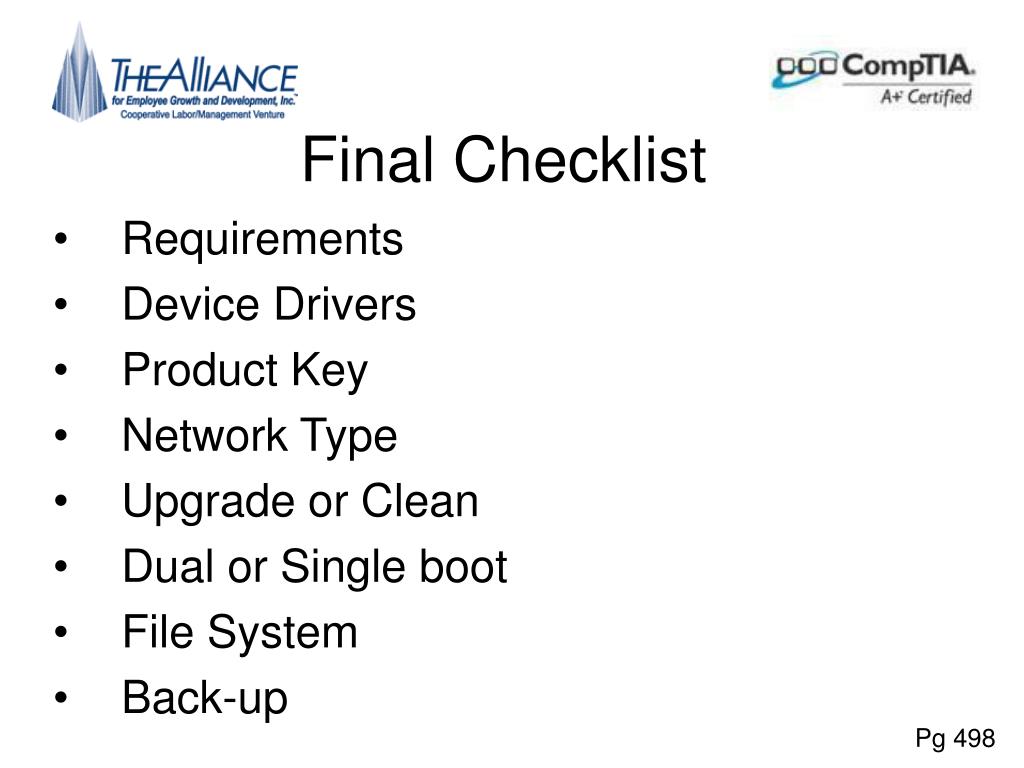

  25. Final Checklist • Requirements • Device Drivers • Product Key • Network Type • Upgrade or Clean • Dual or Single boot • File System • Back-up Pg 498

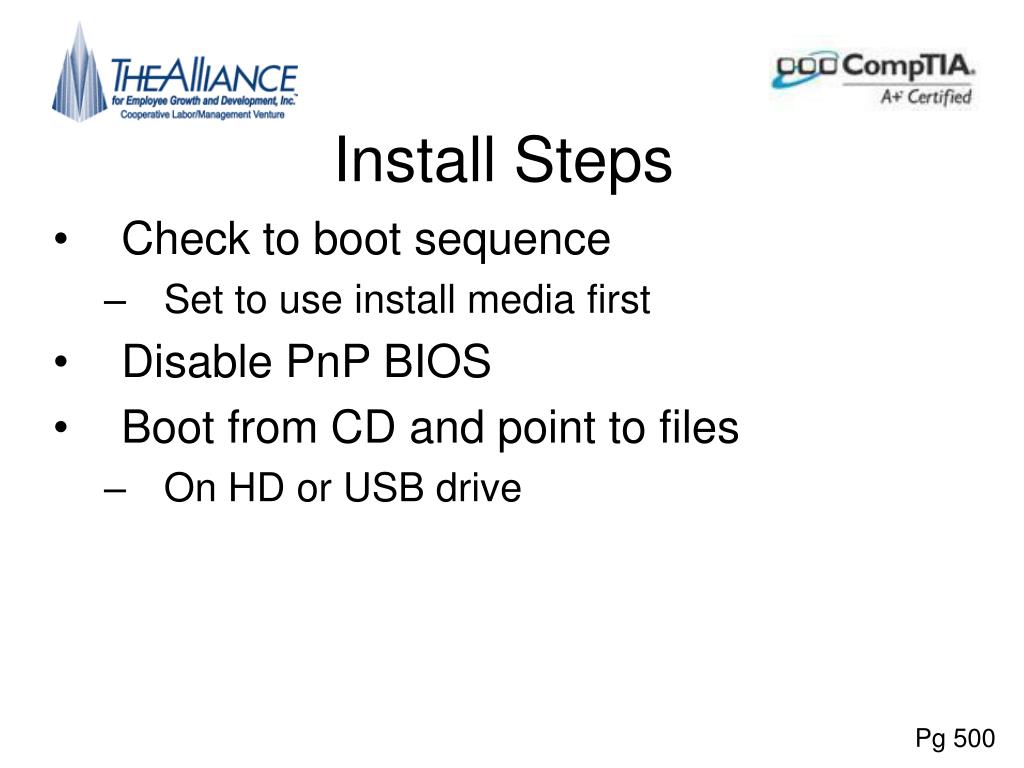

  26. Install Steps • Check to boot sequence • Set to use install media first • Disable PnP BIOS • Boot from CD and point to files • On HD or USB drive Pg 500

  27. Clean install with No OS • Boot from CD • Find partition • Create others now if you want • Choose boot partition • Choose Filesystem-format • Select region • Name, org, product key • Computer Name • Admin Password • Time zone • Network • Workgroup or domain Pg 503

  28. Clean install with OS • Must be an OS that supports the Upgrade • BACK UP FILES • Uninstall programs that are not compatible • Choose install program • Express or Custom • Convert if you want Pg 505

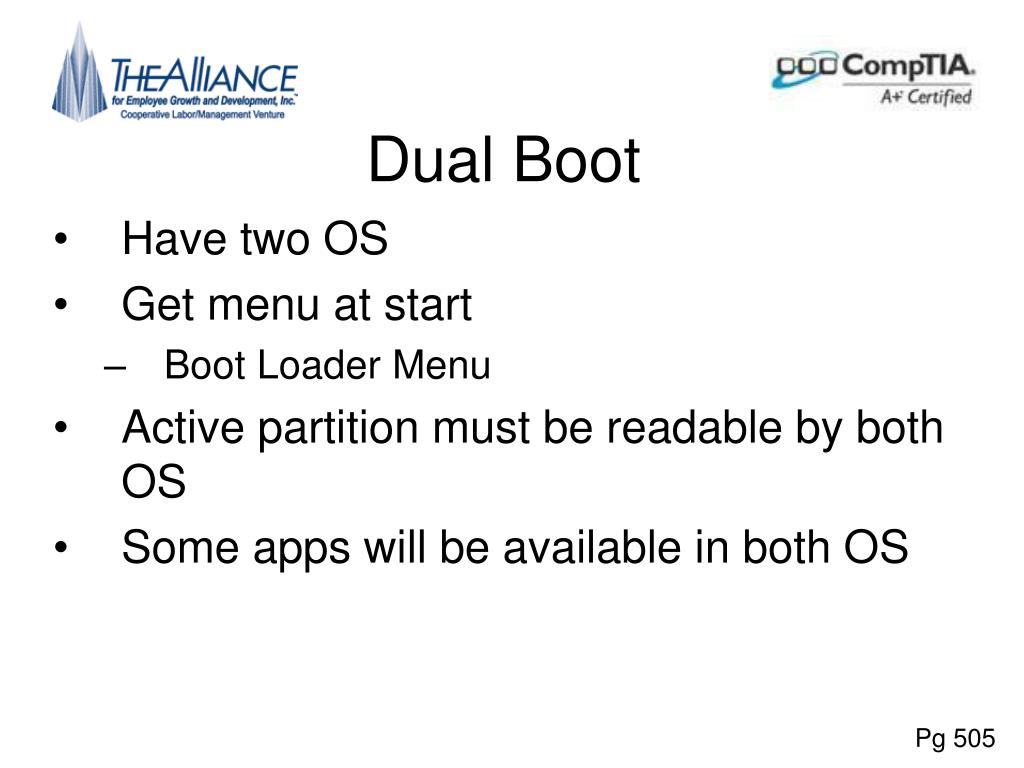

  29. Dual Boot • Have two OS • Get menu at start • Boot Loader Menu • Active partition must be readable by both OS • Some apps will be available in both OS Pg 505

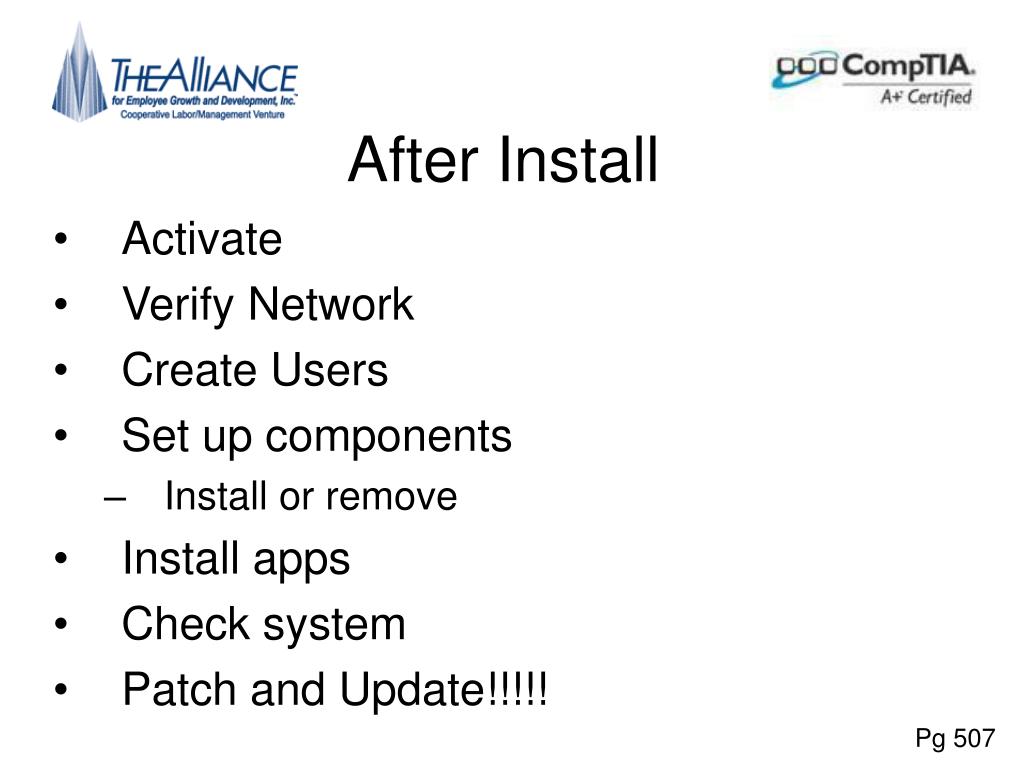

  30. After Install • Activate • Verify Network • Create Users • Set up components • Install or remove • Install apps • Check system • Patch and Update!!!!! Pg 507

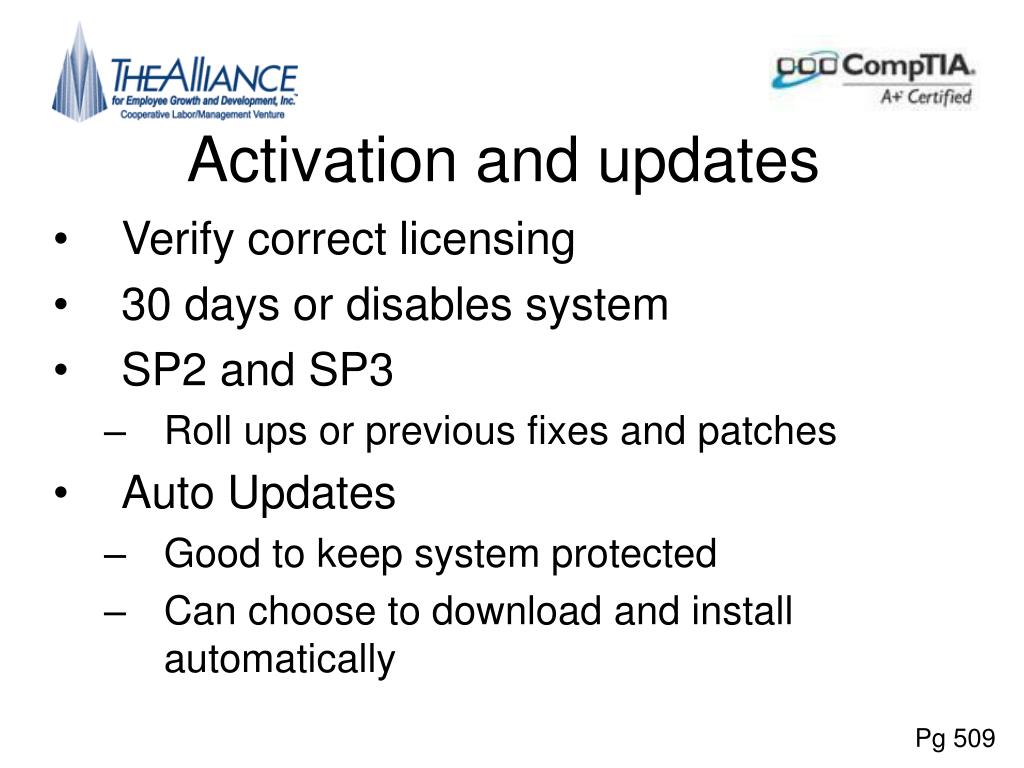

  31. Activation and updates • Verify correct licensing • 30 days or disables system • SP2 and SP3 • Roll ups or previous fixes and patches • Auto Updates • Good to keep system protected • Can choose to download and install automatically Pg 509

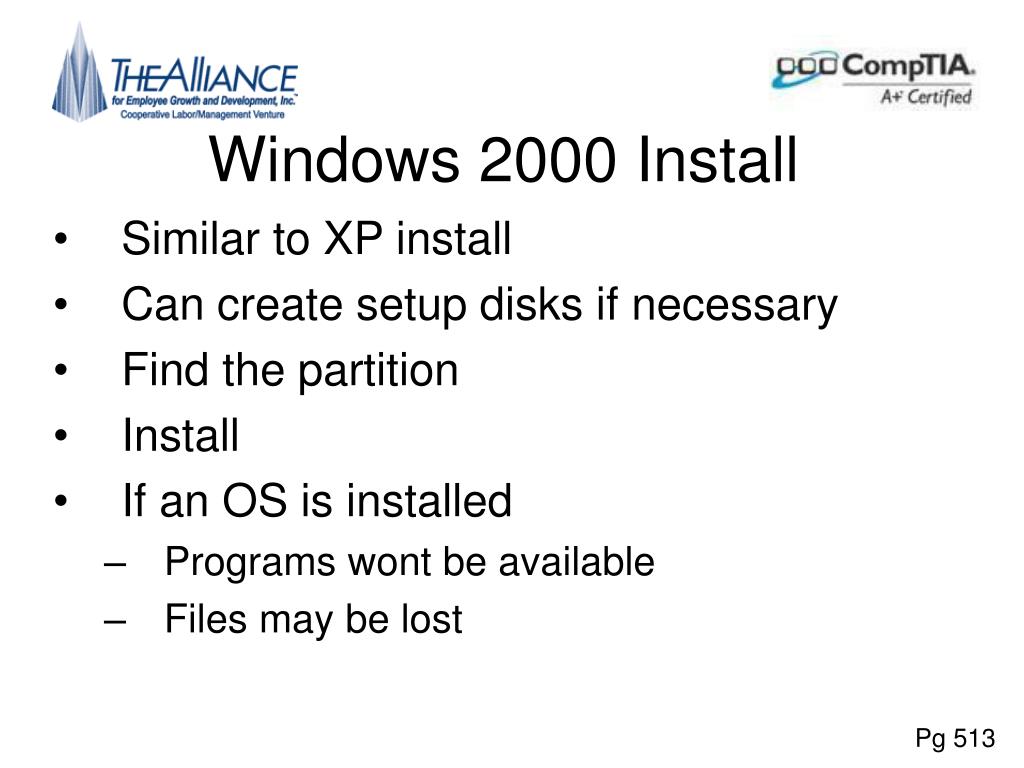

  32. Windows 2000 Install • Similar to XP install • Can create setup disks if necessary • Find the partition • Install • If an OS is installed • Programs wont be available • Files may be lost Pg 513
