  1. Compaq CustomSystems Your bridge from standard products to complete solutions Len Amadeo

  2. Proprietary Non-Disclosure Reminder • The information contained in this presentation is proprietary to Compaq Computer Corporation and is offered in confidence, subject to the terms and conditions of a Non-Disclosure Agreement. • Compaq makes no warranties regarding the accuracy of this information. Compaq does not warrant or represent that it will introduce any product to which the information relates. It is presented for evaluation by the recipient and to assist Compaq on defining product direction.

  3. What’s New with Compaq AlphaServers? • Compaq AlphaServer DS10 Compact design brings the availability of the high performing Alpha 21264 at volume level prices • Price/Performance leadership brings Alpha power to any business • Easy and affordable scalability to meet demands of unpredictable growth • Small foot print and flexible packaging maximize precious real-estate Announced May 10th

  4. Introducing the new Compaq 1U AlphaServer Entry-level AlphaServer Enables Versatility and Incremental Scaling! • Unique uni processor design in a 1U formfactor • Fastest Memory Access with the Highest Bandwidth memory in its class • High speed I/O with 64 bit PCI • Sleek, compact and powerful package • Dual Purpose Solutions Support • Rack and desktop-ready for space constrained environments 1U AlphaServer

  5. Compaq 1U AlphaServer Entry AlphaServer Delivers Power In A Small Footprint Fast Memory Access • Large total RAM - 64MB up to 1GB • High bandwidth access - 1.3 GB/s Flexible Internal Storage • Internal dual channel IDE • Optional SCSI adapter supported • 2 disk bays Special Features • 1 PCI I/O slot (64-bit) • 175 watt power supply • 1U (1.75”) Small footprint - Rack or Desktop • Dual embedded 10/100b Ethernet ports Performance and Management Features • Remote access management 1U AlphaServer

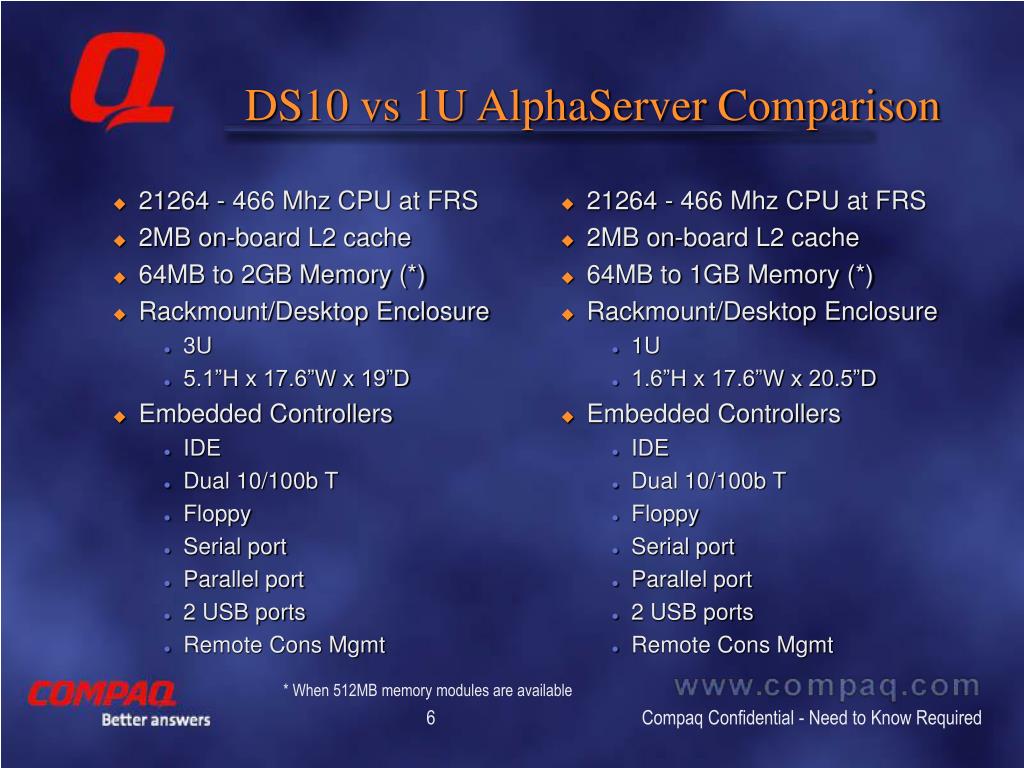

  6. 21264 - 466 Mhz CPU at FRS 2MB on-board L2 cache 64MB to 2GB Memory (*) Rackmount/Desktop Enclosure 3U 5.1”H x 17.6”W x 19”D Embedded Controllers IDE Dual 10/100b T Floppy Serial port Parallel port 2 USB ports Remote Cons Mgmt 21264 - 466 Mhz CPU at FRS 2MB on-board L2 cache 64MB to 1GB Memory (*) Rackmount/Desktop Enclosure 1U 1.6”H x 17.6”W x 20.5”D Embedded Controllers IDE Dual 10/100b T Floppy Serial port Parallel port 2 USB ports Remote Cons Mgmt DS10 vs 1U AlphaServer Comparison * When 512MB memory modules are available

  7. 4 PCI Slots (3-64b/1- 32b) Storage Floppy CDROM 5.25” Removable 3 - 3.5” HDDs 300 Watt Power Supply Migration to EV67, EV68 1 PCI Slot (64b) Storage Floppy/CDROM Combo 1 - 3.5” HDDs 175 Watt Power Supply Migration to EV67, EV68 DS10 vs 1U AlphaServer Comparison

  8. 2MB Flash TIG ADDR SROM 256Kb Diag LED Register 8 bits GPO GPI TIG CTRL LOGIC Interrupt Posting P Chip 2 USB ports EV6 21264 Acer M1543C Kybd/Mouse Two Ultra IDE Two DChips Parallel, 2 com/UARTS, FDD Clocks DIMM DIMM DC-DC Converters; 5=>2v, 1.5v Block Diagram SROM Serial Port TIG Data 8 bits SROM CLK SROM OE SROM DATA System Interrupts TIG CTL CAP Bus C-Chip SysAddOut SysAddIn PCI - 64bit 32 bit 12nS PAD Bus SysData 72 bits 3nS Disk(s) 1 slot riser RTC Battery ISA 128 + ECC BC Addr 22 BCtag 18 BCData 144 Enet 21143 Enet 21143 To COM1 XBUS Bcache 2MB 5 parts 128Kx36 6698 PHY 6698 PHY Remote Server Mgmt 100 BaseT 100 BaseT LEDs

  9. 1U AlphaServer Box Layout Top View • PCI Riser Connector • PCI Board (64-bit) • Power Supply (175W 120/240VAC) EV6 CPU • CDROM/Floppy Combo or 2nd HDD • 3.5” HDD 1.6” H x 17.5” W x 20.5” D Front • Memory Slots

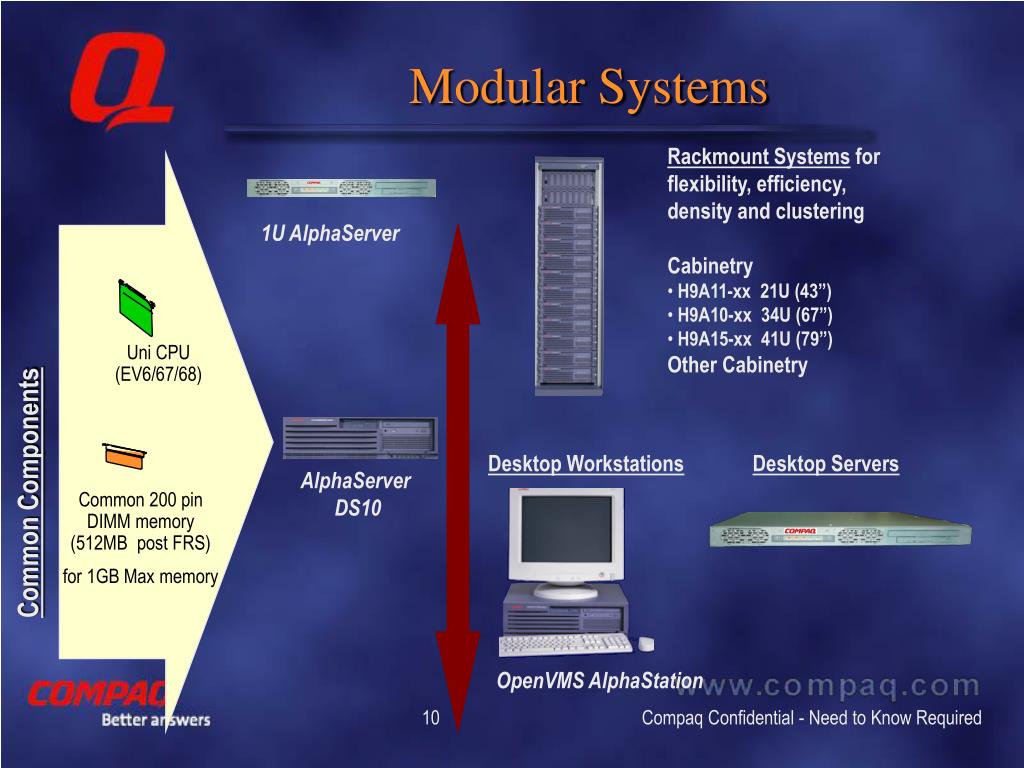

  10. Desktop Workstations OpenVMS AlphaStation Modular Systems • Rackmount Systems for • flexibility, efficiency, • density and clustering • Cabinetry • H9A11-xx 21U (43”) • H9A10-xx 34U (67”) • H9A15-xx 41U (79”) • Other Cabinetry 1U AlphaServer Uni CPU (EV6/67/68) Desktop Servers Common Components AlphaServer DS10 Common 200 pin DIMM memory (512MB post FRS) for 1GB Max memory

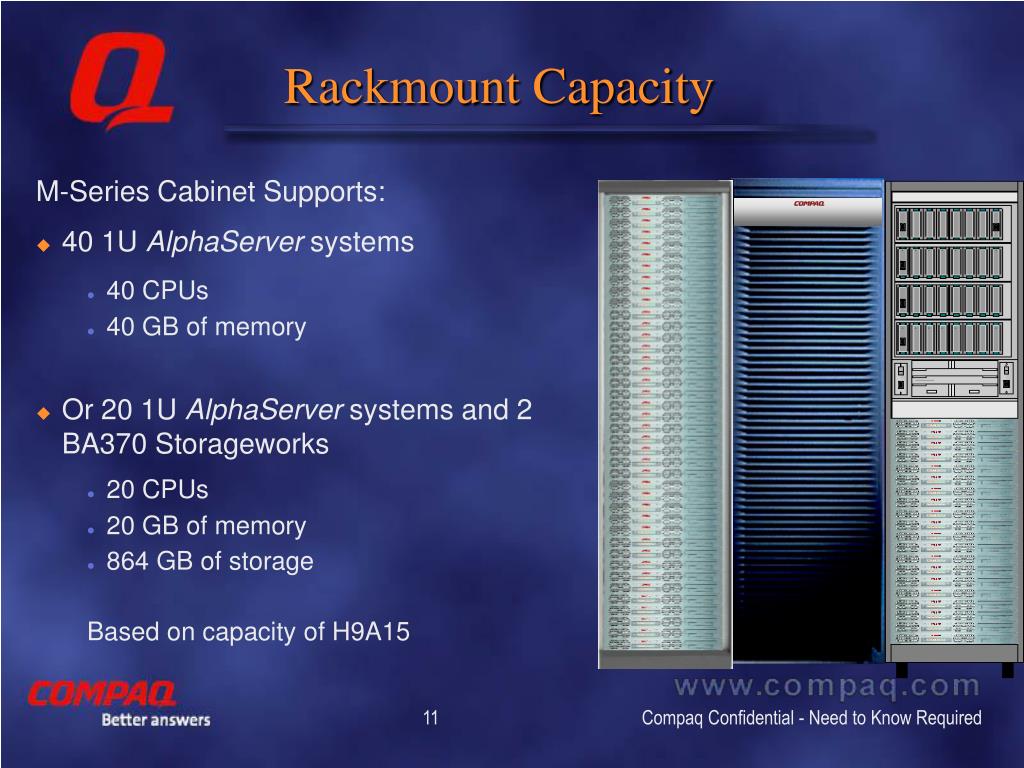

  11. Rackmount Capacity M-Series Cabinet Supports: • 40 1U AlphaServer systems • 40 CPUs • 40 GB of memory • Or 20 1U AlphaServer systems and 2 BA370 Storageworks • 20 CPUs • 20 GB of memory • 864 GB of storage Based on capacity of H9A15

  12. #1 Compaq 1U AlphaServer Most Powerful Single Processor System • Greatest integer compute power - over one and a half times faster than the Sun Ultra 10 • Better real world application performance with shorter time-to solution • Fastest uni CPU system for demanding transaction processing applications • Leadership performance for mission-critical business application SPECint95 24.6 12.9 15.2 12.3 Compaq 1U AlphaServer Sun Ultra 10 IBM 43P HP 380

  13. Compaq 1U AlphaServer #1 The Fastest Single-CPU SPECfp95 Result Ever! • Greatest floating point compute power - over twice as fast as the Sun uni processor system • Higher than any HP, IBM, and SUN • Leadership performance for compute-intensive technical applications • More power in an affordable, 1U package SPECfp95 47.9 30.1 19.9 17.4 Compaq 1U AlphaServer Sun Ultra 10 HP D380 IBM 43P-260

  14. #1 Compaq 1U AlphaServer Fastest Memory access for even more performance • Fastest memory access of all top rated single CPU systems! • Memory bandwidth is important in a variety of applications, for example: • financial modeling • fleet schedules • car crash simulation • fluid dynamics • acoustics • Faster memory bandwidth unleashes the power of faster CPU’s by removing potential bottlenecks Memory Bandwidth in MB/Sec McCalpin Streams TRIAD* 1323 Compaq 1U AlphaServer IBM RS6000 SGI Origin 2000 Sun E 6001 HP C180 * A memory bandwidth statistic describes the amount of traffic, measured in megabytes per second, that a computer system can move from one level of memory to another

  15. Leadership Low End Solutions 1U AlphaServer EV6 AlphaServer 800 EV56 • OS Support • OVMS 6.2 and above • UNIX 4.0B and above • Linux • Full suite of tested applications • EV56-500MHz • 4 Hot Plug Disks • Easy Hard disk access • Easy reconfiguration • 2 EISA Slots • Supporting Hardware Compatibility • Software device support • 5U Rack or Pedestal • Order specific variant • Switch-based memory access • OS Support • OVMS 7.1-2 • UNIX 4.0F • Linux • EV6-466MHz • IDE Channels • Supports standard IDE Disks • 64 Bit PCI • Faster 64 bit peripheral support • 1U Rack or Desktop • Rack hardware included

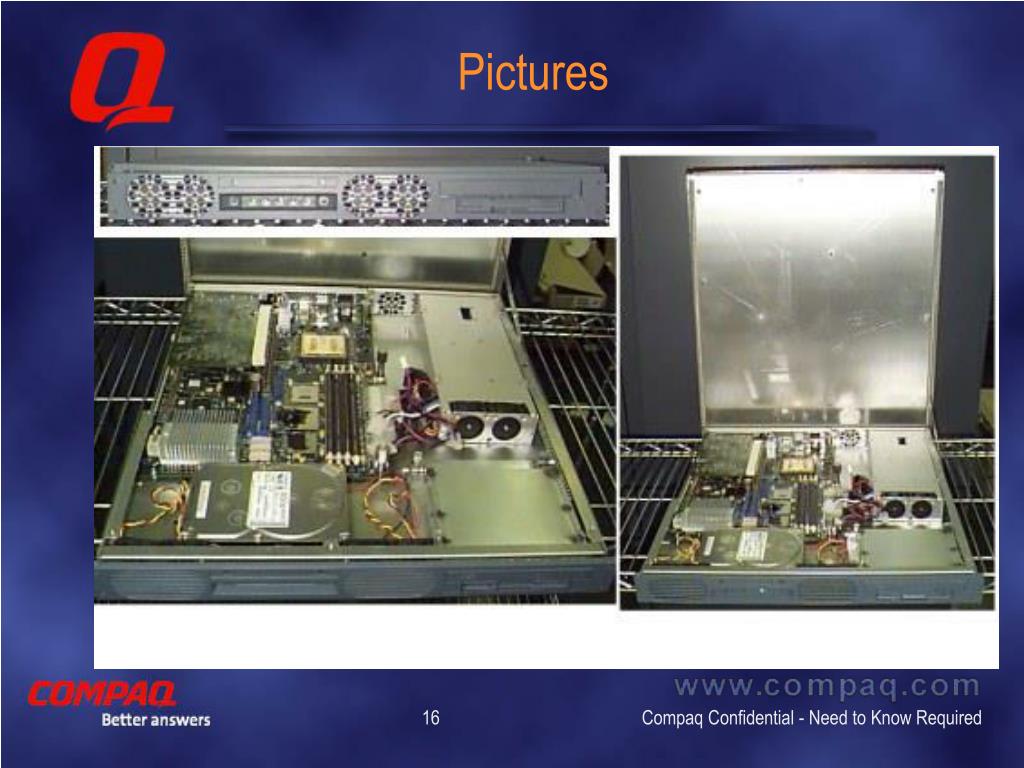

  16. Pictures

  17. Backup Slides

  18. 4 - BA370’s (1.7TB) in a cab

  19. Customizable network device Application specific solutions Mail servers Proxy servers Host based routing Reconfigurable and redeployable Scale as needed simply by adding another compact AS1 Versatility combined with Alpha speed and processing power Designed To The Voice Of The Customer Growth

  20. New Alpha 21264 processor Full 64-Bit system with 64-Bit PCI Scale performance simply by adding low-cost AS1 systems New cross-bar switch memory access for more balanced system performance Designed To The Voice Of The Customer Performance

  21. Integrates into existing infrastructure-Rack or Desktop ready Industry-standard 19” rackmount form-factor Best price/performance New system design with years of future enhancement possibilities EV6, EV67, EV68… Designed To The Voice Of The Customer Investment Protection

  22. Choice of four different operating systems Ability do redeploy with different operating systems Desktop or Rack-ready Custom Network Device Designed To The Voice Of The Customer Flexibility
