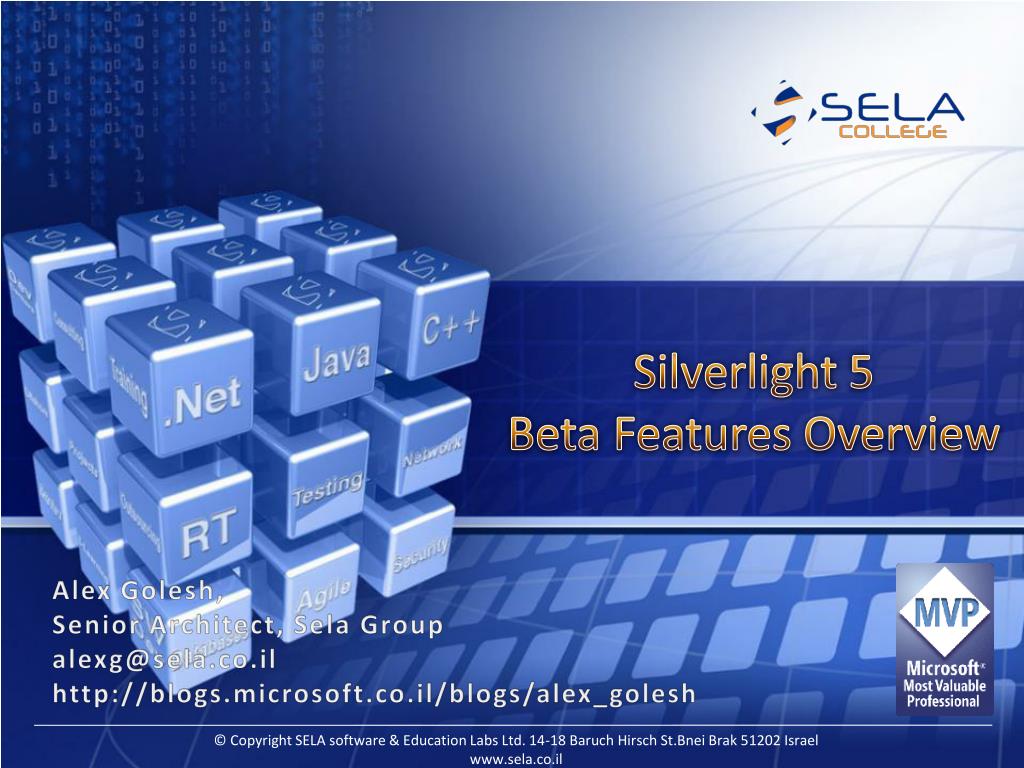

  1. Silverlight 5Beta Features Overview Alex Golesh, Senior Architect, Sela Group alexg@sela.co.il http://blogs.microsoft.co.il/blogs/alex_golesh

  2. Agenda • Introduction • What is Silverlight? • Tooling • New Features • Line of Business (LOB) • Out of Browser (OOB) • General Improvements • Q&A • Summary

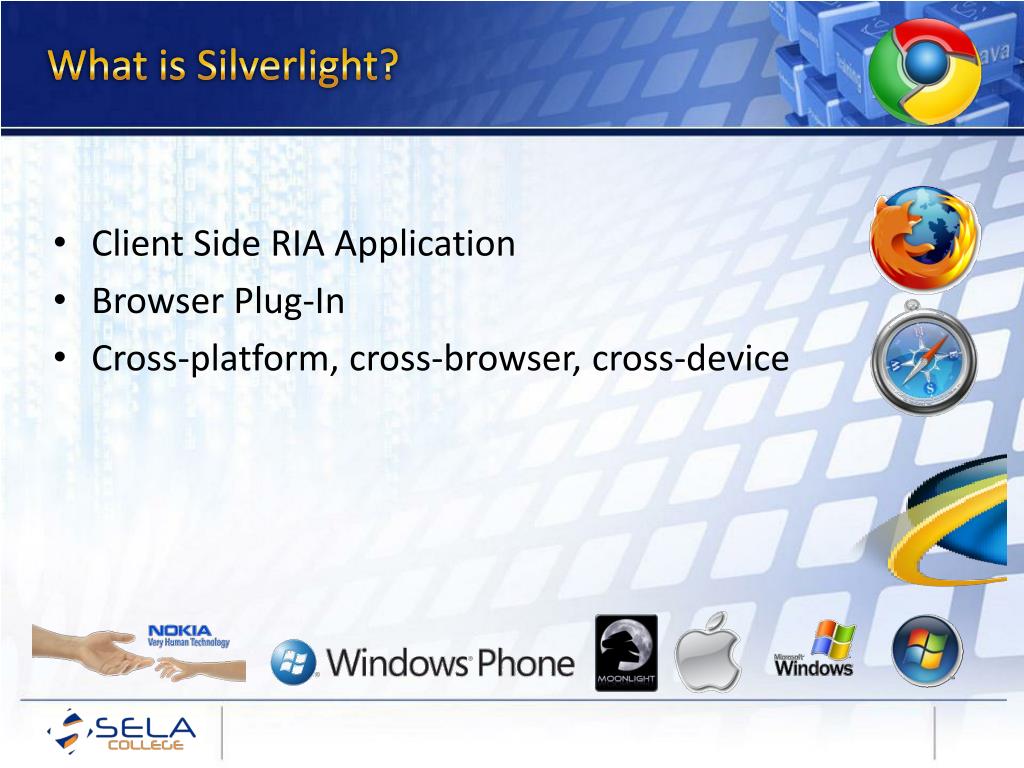

  3. What is Silverlight? • Client Side RIA Application • Browser Plug-In • Cross-platform, cross-browser, cross-device

  4. What is Silverlight? • Browser Plug-In: Silverlight Runtime • .NET programming model • Vector UI: Text, Graphics, Animation • Doesn’t requires .NET on client machine • .NET development platform • ASP.NET Integration

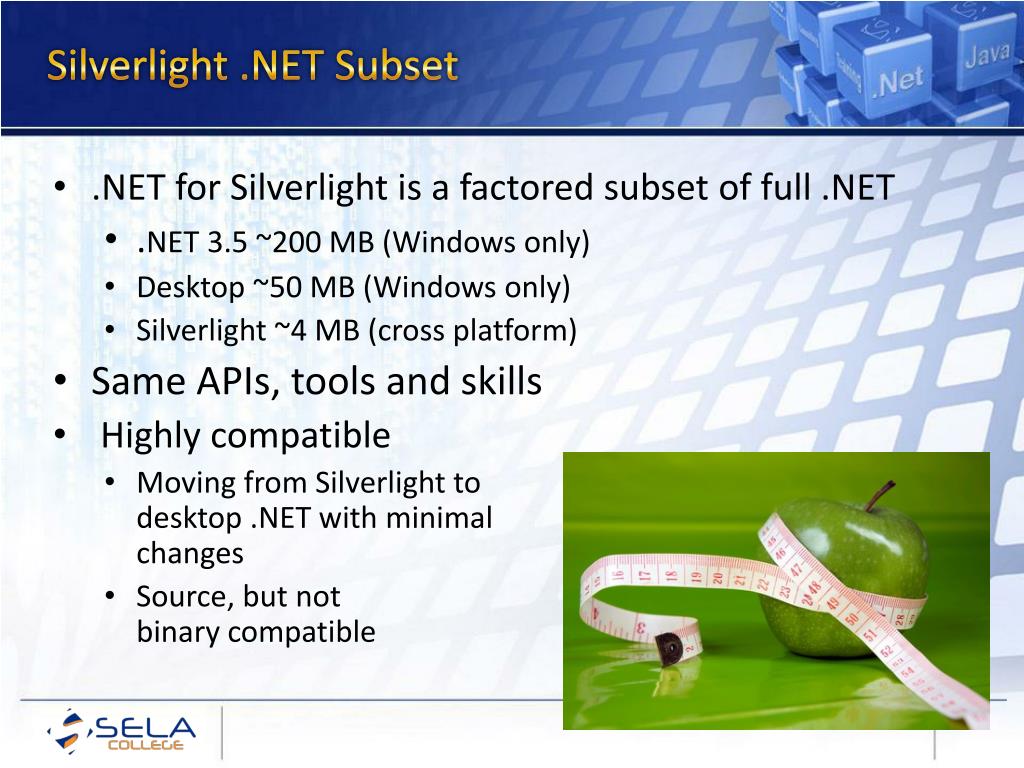

  5. Silverlight .NET Subset • .NET for Silverlight is a factored subset of full .NET • .NET 3.5 ~200 MB (Windows only) • Desktop ~50 MB (Windows only) • Silverlight ~4 MB (cross platform) • Same APIs, tools and skills • Highly compatible • Moving from Silverlight to desktop .NET with minimal changes • Source, but not binary compatible

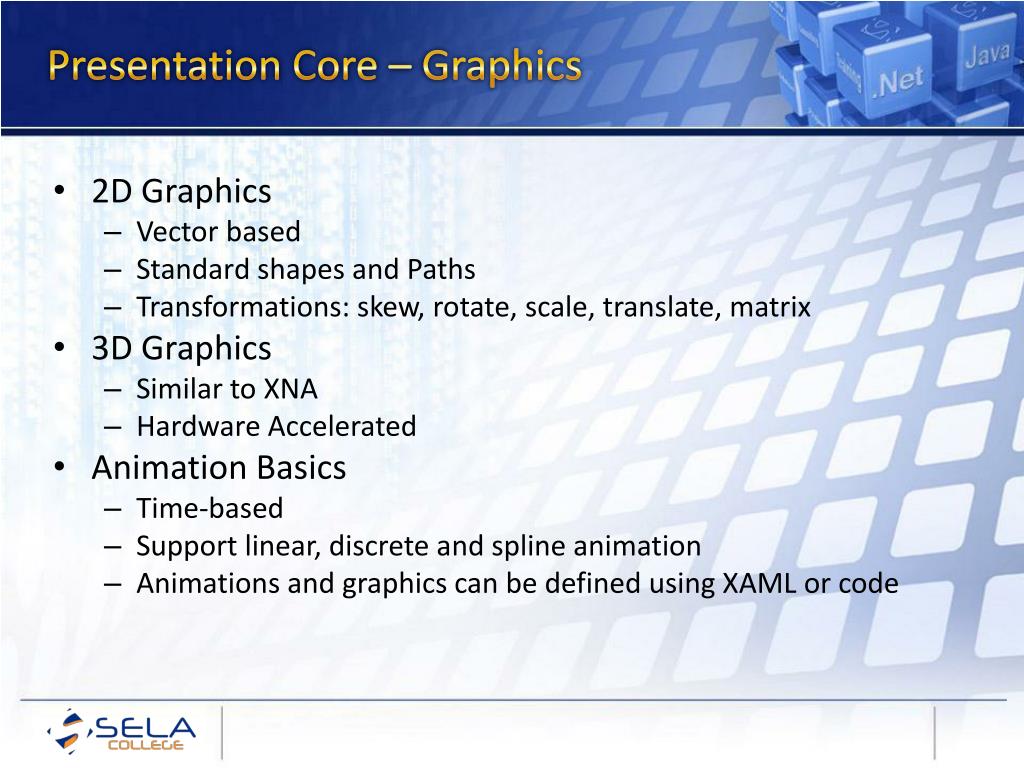

  6. Presentation Core – Graphics • 2D Graphics • Vector based • Standard shapes and Paths • Transformations: skew, rotate, scale, translate, matrix • 3D Graphics • Similar to XNA • Hardware Accelerated • Animation Basics • Time-based • Support linear, discrete and spline animation • Animations and graphics can be defined using XAML or code

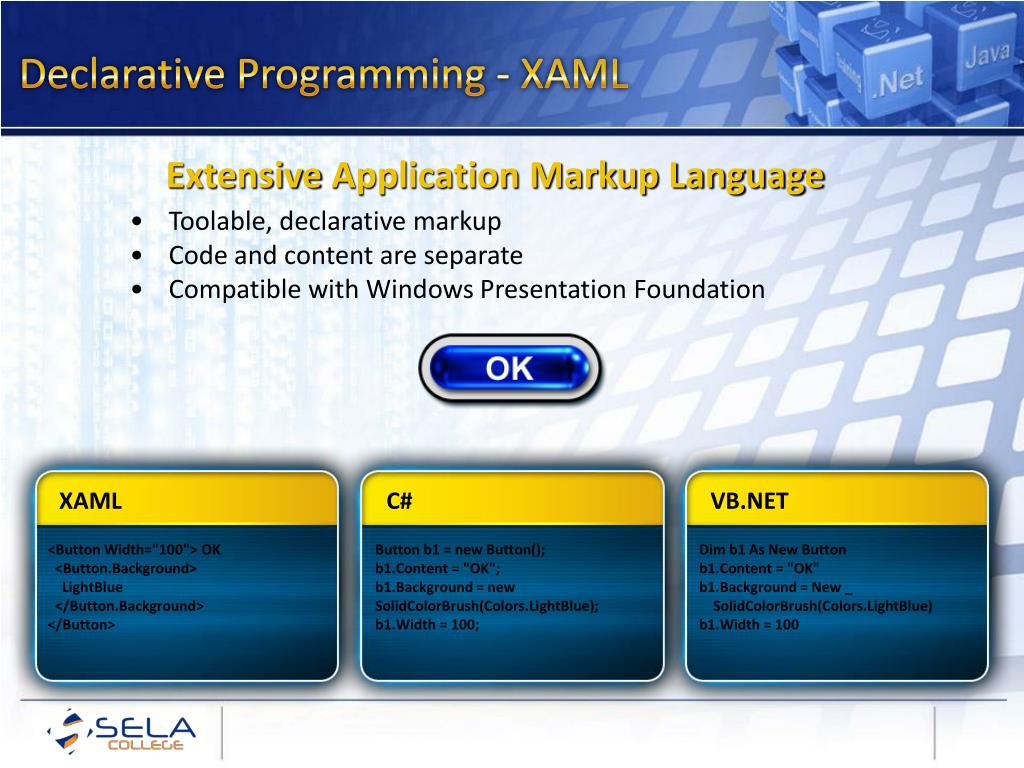

  7. Extensive Application Markup Language Declarative Programming - XAML XAML C# VB.NET <Button Width="100"> OK <Button.Background> LightBlue </Button.Background> </Button> Button b1 = new Button(); b1.Content = "OK"; b1.Background = new SolidColorBrush(Colors.LightBlue); b1.Width = 100; Dim b1 As New Button b1.Content = "OK" b1.Background = New _ SolidColorBrush(Colors.LightBlue) b1.Width = 100 • Toolable, declarative markup • Code and content are separate • Compatible with Windows Presentation Foundation

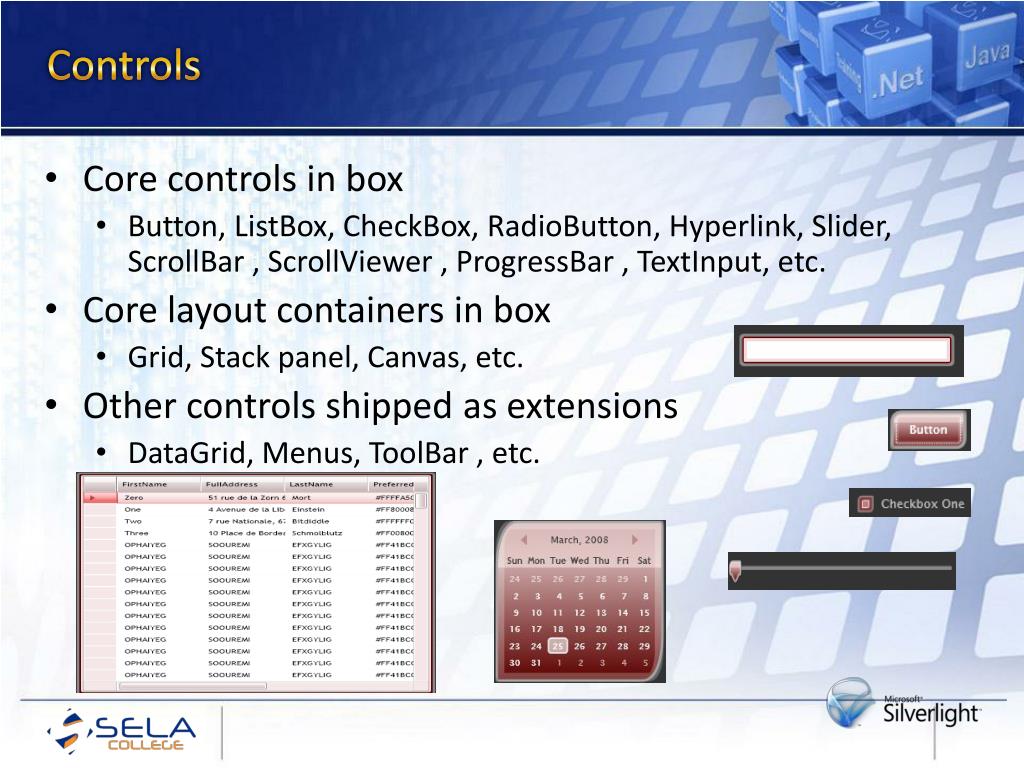

  8. Controls • Core controls in box • Button, ListBox, CheckBox, RadioButton, Hyperlink, Slider, ScrollBar , ScrollViewer , ProgressBar , TextInput, etc. • Core layout containers in box • Grid, Stack panel, Canvas, etc. • Other controls shipped as extensions • DataGrid, Menus, ToolBar , etc.

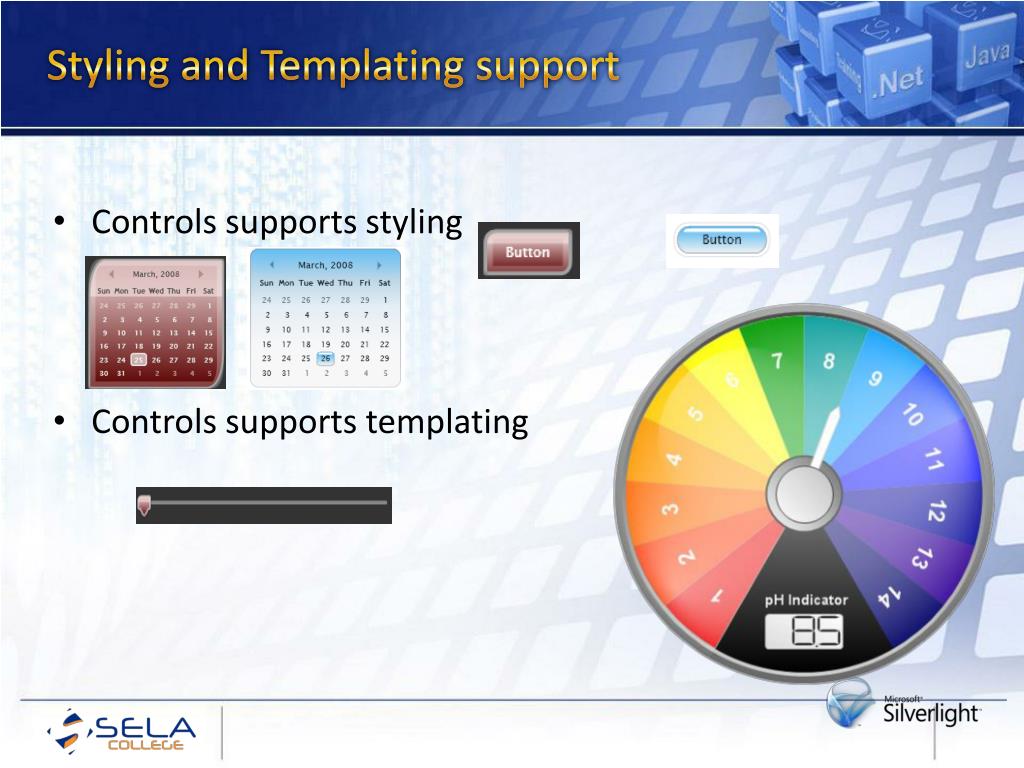

  9. Styling and Templating support • Controls supports styling • Controls supports templating

  10. Silverlight Applications

  11. Introduction • Introduced at MIX11 • Tooling – Visual Studio 2010 SP1 & Blend 4 (special build) • XAML Debugging • Target LOB • Postscript Printing • Implicit Data Templates & Relative Binding Source • Trick Play • Improves OOB/IB model • Elevated trust IB model • Developer only release

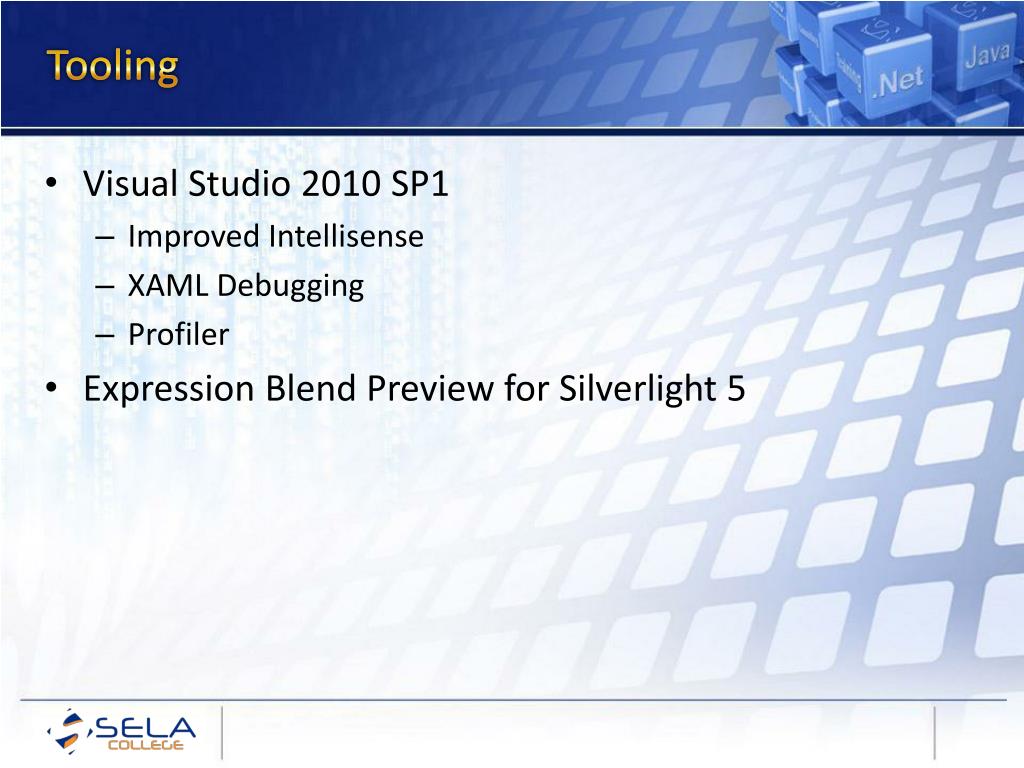

  12. Tooling • Visual Studio 2010 SP1 • Improved Intellisense • XAML Debugging • Profiler • Expression Blend Preview for Silverlight 5

  13. Tooling

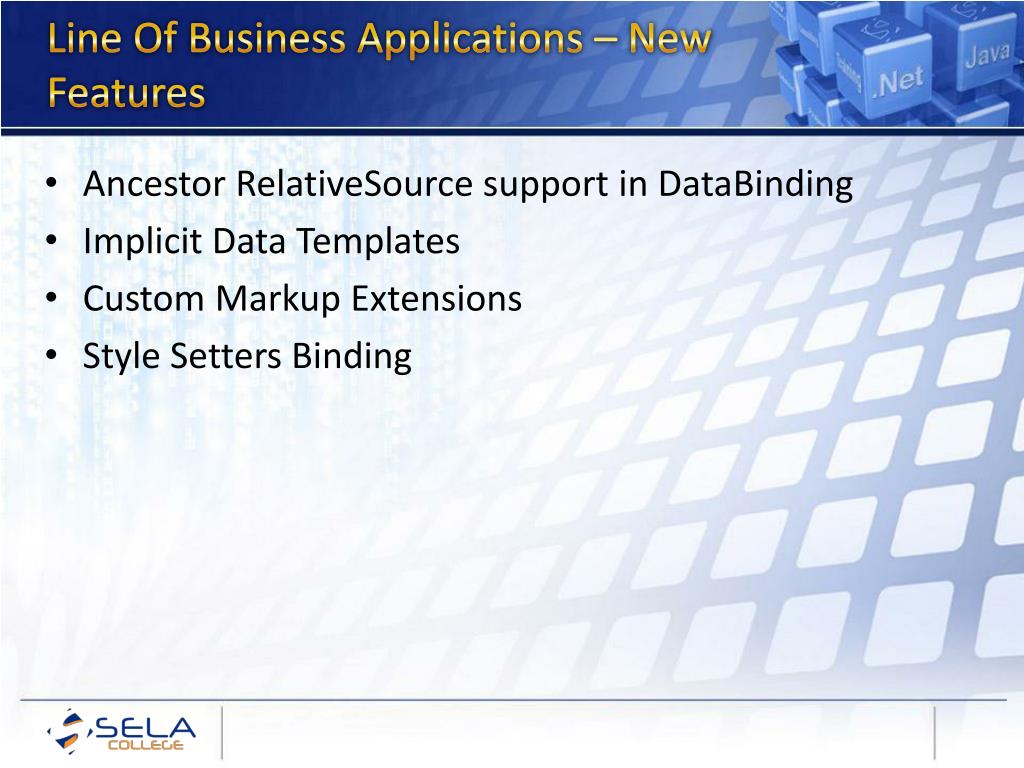

  14. Line Of Business Applications – New Features • Ancestor RelativeSource support in DataBinding • Implicit Data Templates • Custom Markup Extensions • Style Setters Binding

  15. Ancestor Binding • Bind to ancestor control • Ancestor definition by • Type • Level • Mode

  16. Relative DataBinding

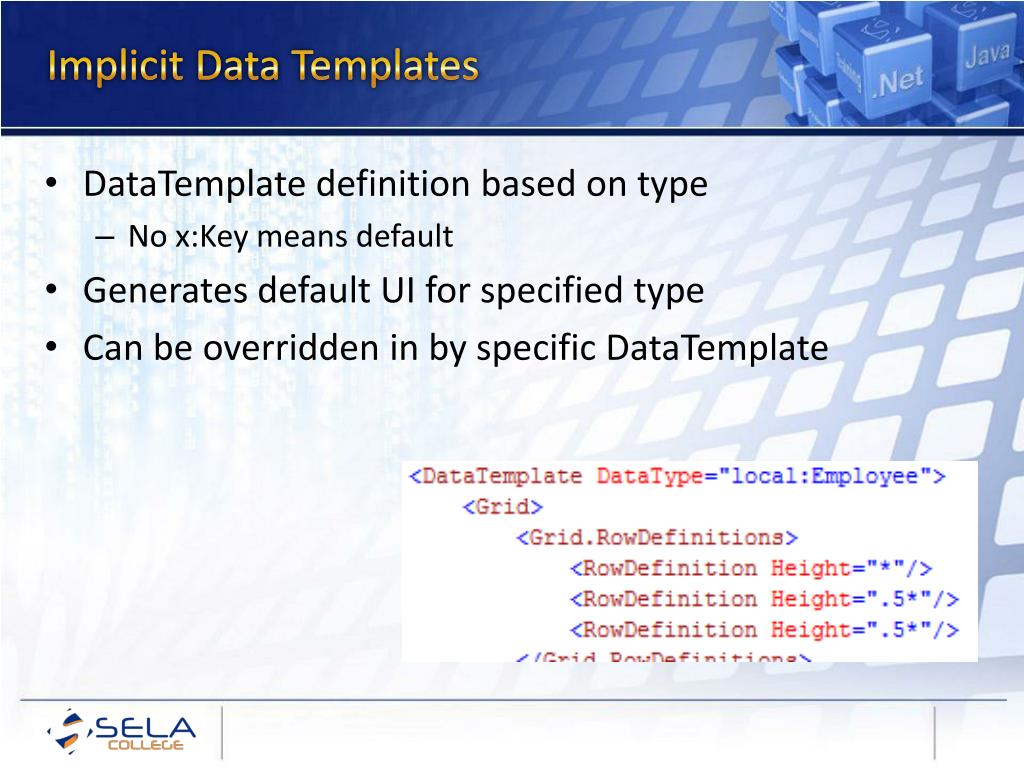

  17. Implicit Data Templates • DataTemplate definition based on type • No x:Key means default • Generates default UI for specified type • Can be overridden in by specific DataTemplate

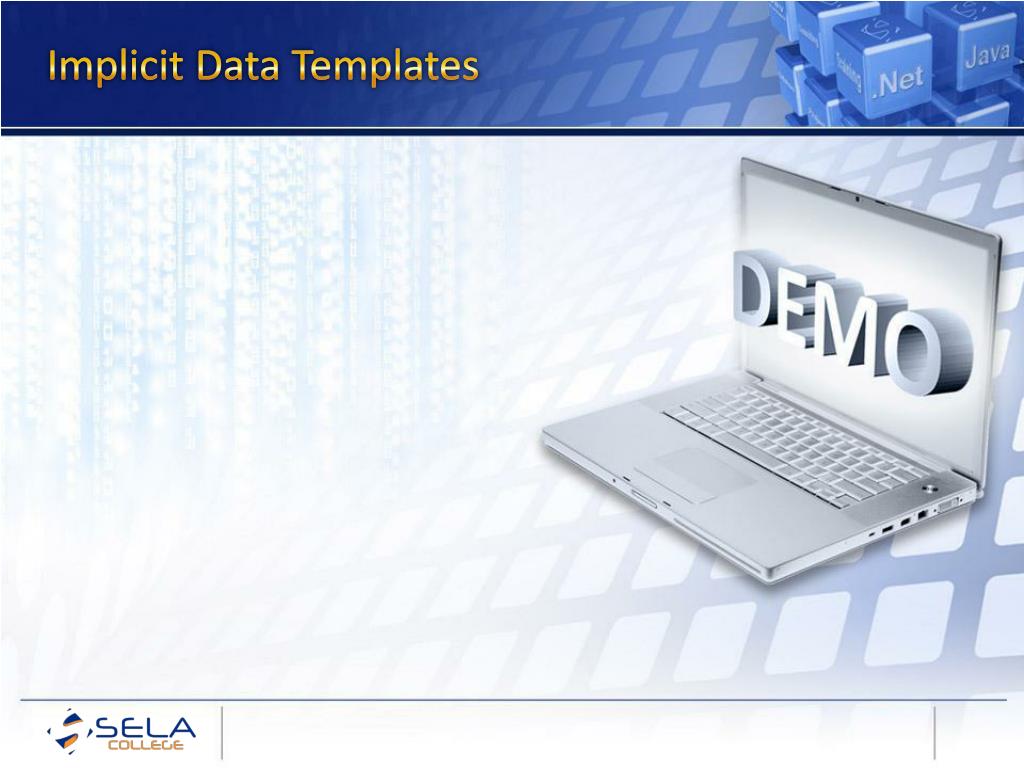

  18. Implicit Data Templates

  19. Custom Markup Extensions • Class derived from System.Windows.Markup.MarkupExtension • Override one function • ProvideValue • Only parameterless constructor is supported • Positional parameters are not supported (unlike in WPF) • Built-in • x:Null

  20. Custom Markup Extensions

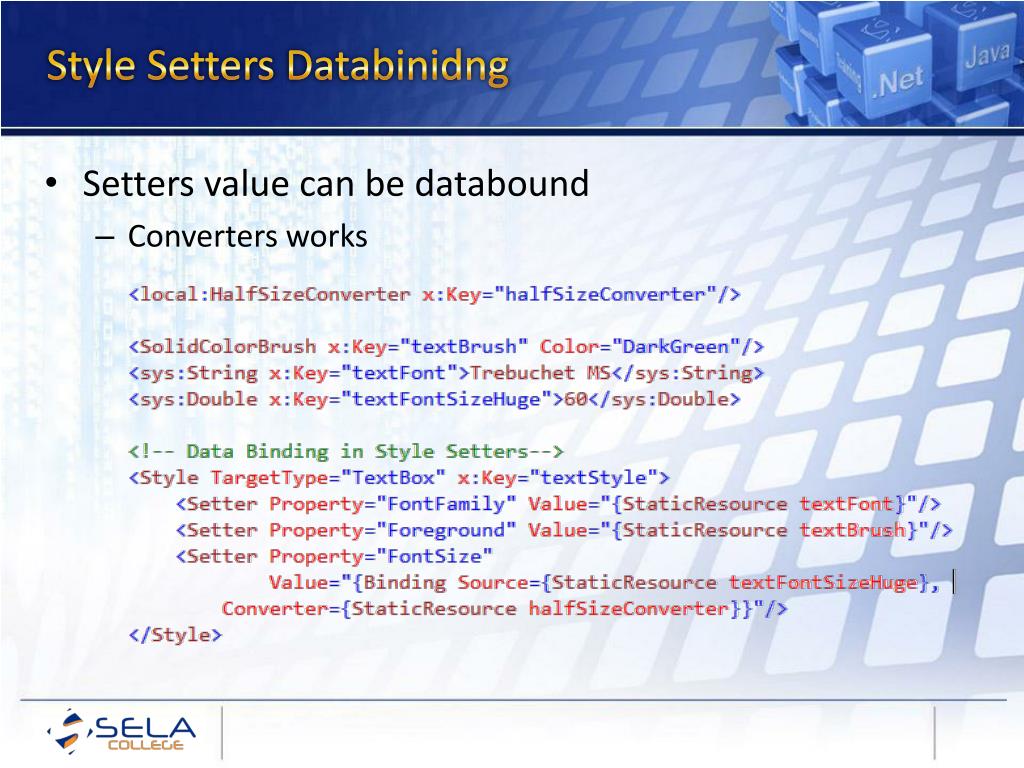

  21. Style Setters Databinidng • Setters value can be databound • Converters works

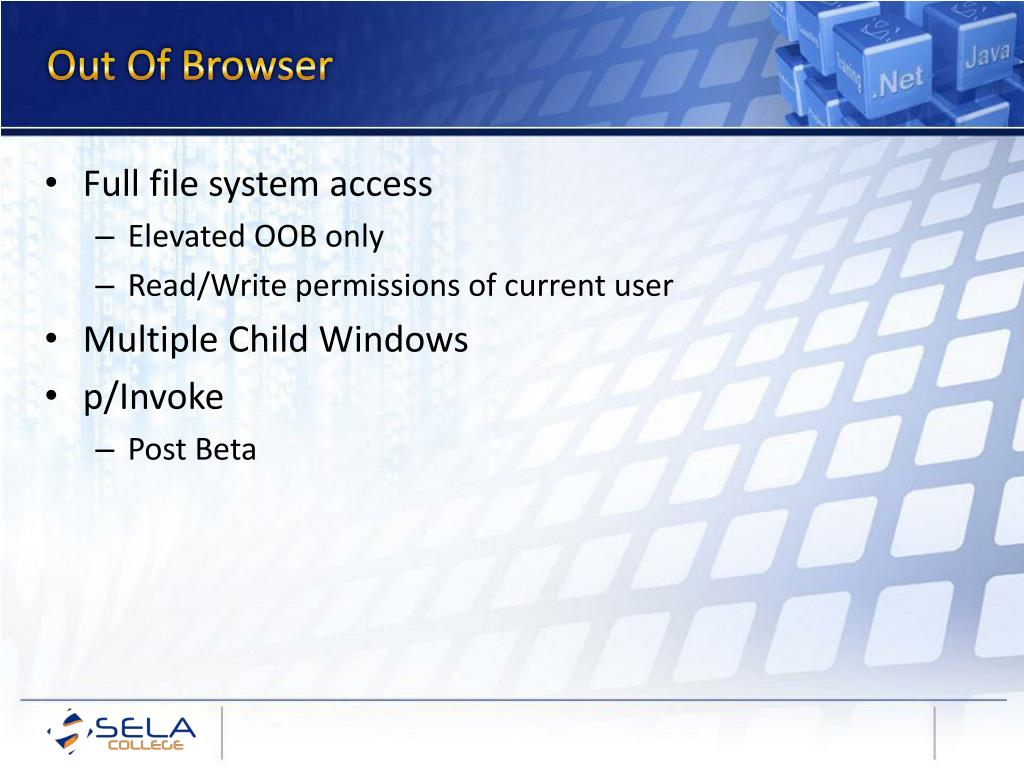

  22. Out Of Browser • Full file system access • Elevated OOB only • Read/Write permissions of current user • Multiple Child Windows • p/Invoke • Post Beta

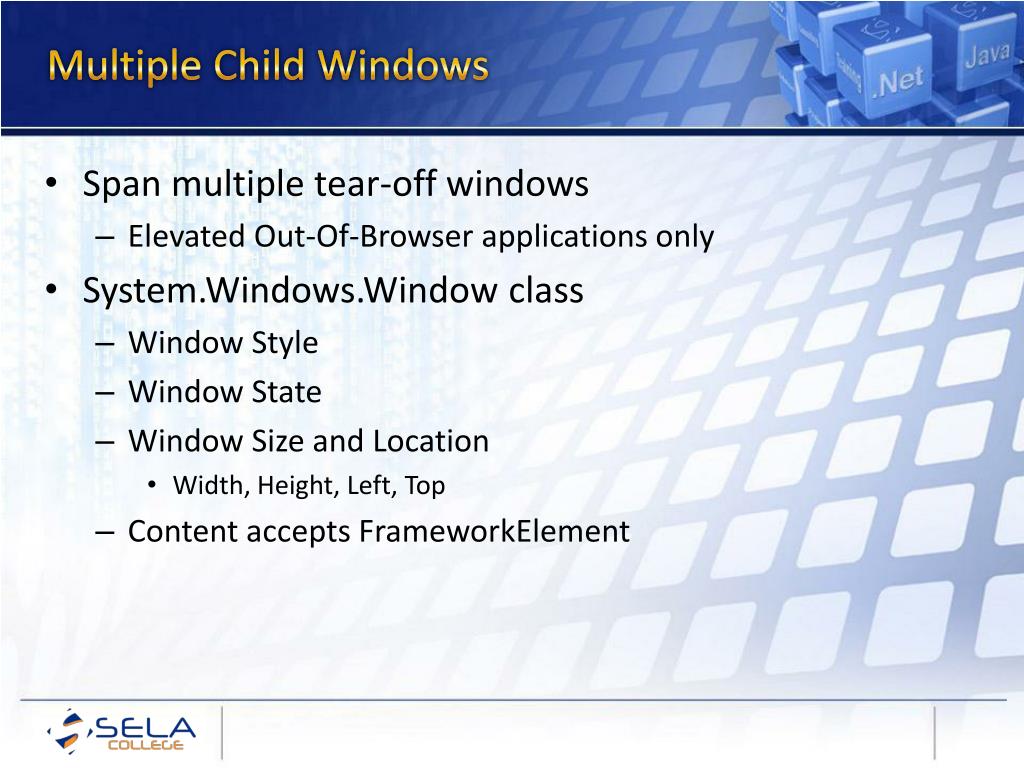

  23. Multiple Child Windows • Span multiple tear-off windows • Elevated Out-Of-Browser applications only • System.Windows.Window class • Window Style • Window State • Window Size and Location • Width, Height, Left, Top • Content accepts FrameworkElement

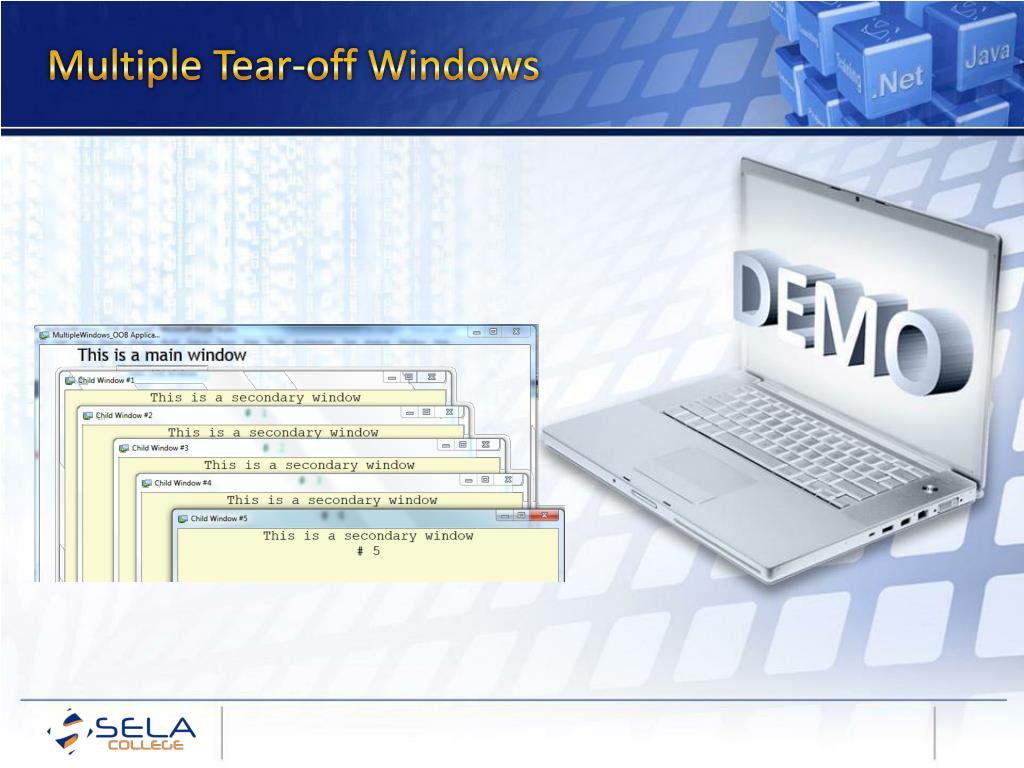

  24. Multiple Tear-off Windows

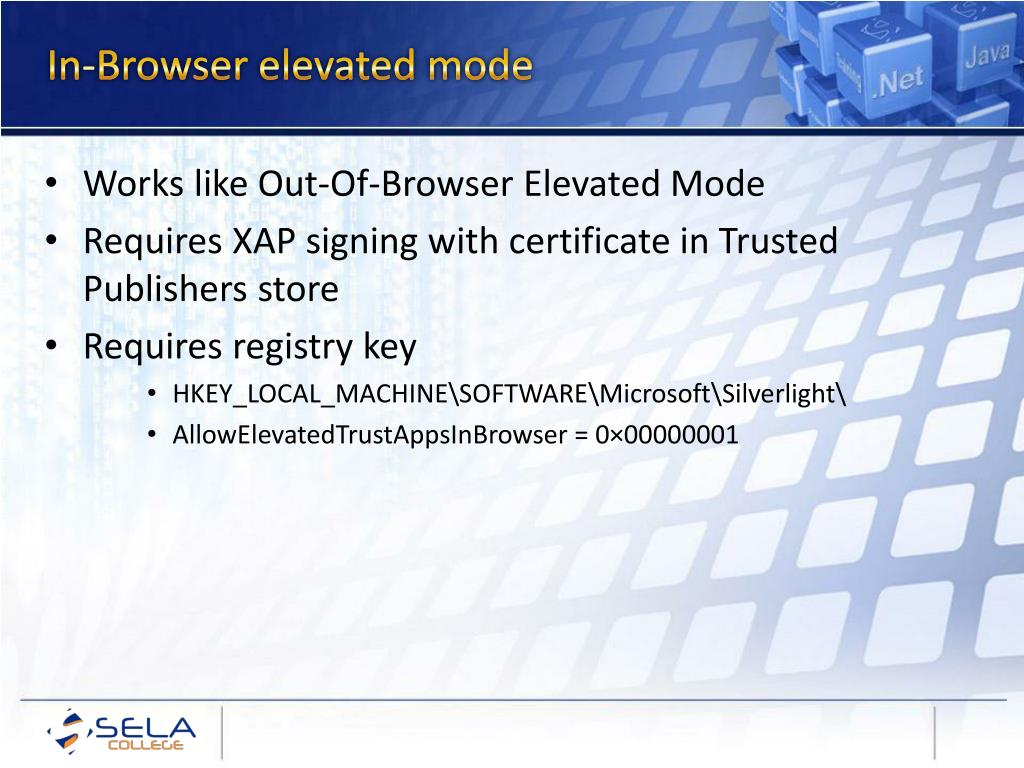

  25. In-Browser elevated mode • Works like Out-Of-Browser Elevated Mode • Requires XAP signing with certificate in Trusted Publishers store • Requires registry key • HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Silverlight\ • AllowElevatedTrustAppsInBrowser = 0×00000001

  26. Additional Features • ClickCount • Part of MouseButtonEventArgs • Realtime Sound • Uses XNA’s SoundEffect • Linked Text Containers • TrickPlay • Text Tracking and Leading • CharacterSpacing property • ComboBox type ahead Searching

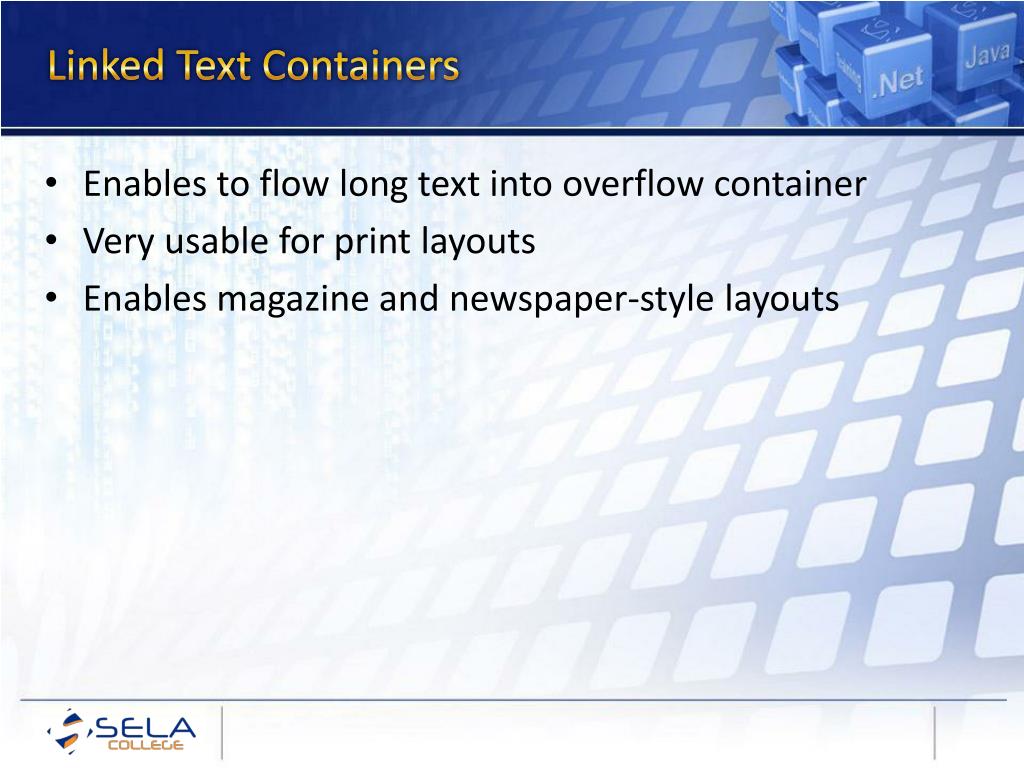

  27. Linked Text Containers • Enables to flow long text into overflow container • Very usable for print layouts • Enables magazine and newspaper-style layouts

  28. Trick Play • Enable speed up/slow down video speed • Pitch correction (after Beta) • Controlled by PlaybackRate property of MediaElement

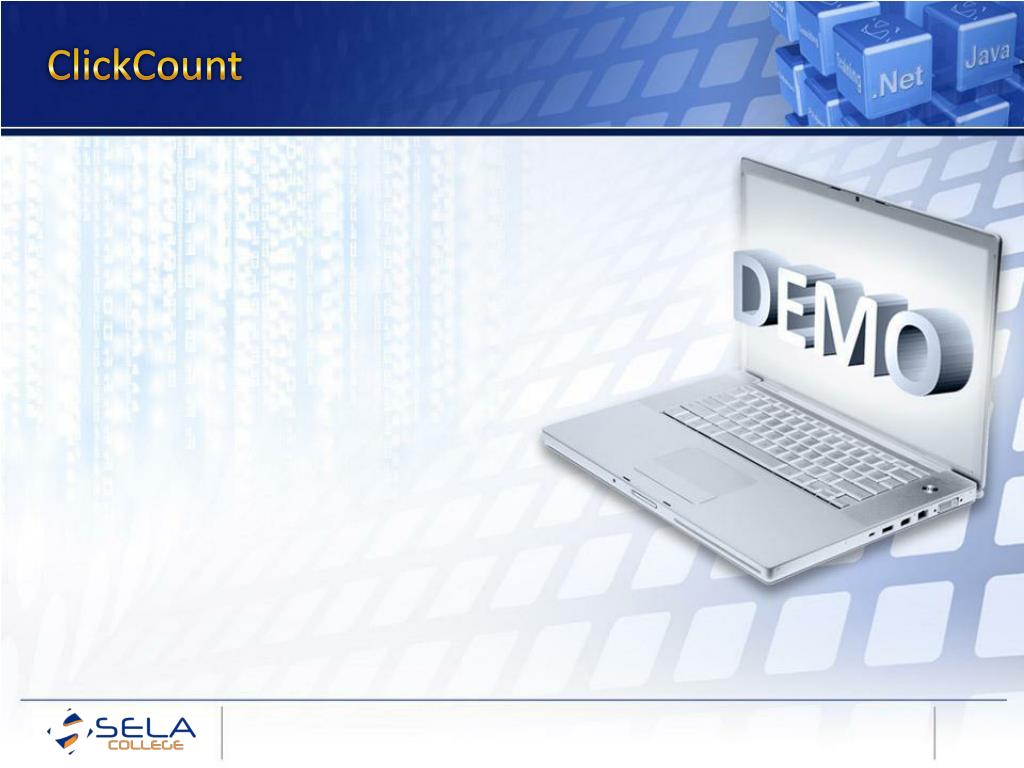

  29. ClickCount

  30. TrickPlay

  31. Linked Text Containers & Text Tracking/Leading

  32. Summary • Available starting April 2011 • Beta Developer release, without “Go-Live” • LOB Ready • Many Improvements
