  1. Collaborative Web Caching Based on Proxy Affinities Jiong Yang, Wei Wang in T. J.Watson Research Center Richard Muntz in Computer Science Department of UCLA Proceedings of the international conference on International Conference on Measurements and modeling of computer systems, 2000, Pages 78 - 89

  2. Outline • 1. Introduction • 2. Related Work • 3. Objective Model • 4.Page Cluster • 5.Information Group Maintenance • 6.Web Page Retrieval • 7.Experience Result • 8.Estimation of Information Group Size

  3. 1. Introduction • Recent research to improving internet performance into three categories --server load balancing --intra-net collaborative caching (summary cache) --inter-net collaborative caching 1. Nearby proxy faster than distant server 2. A proxy with up-to-date page could serve as a server Drawback: Burst network traffic

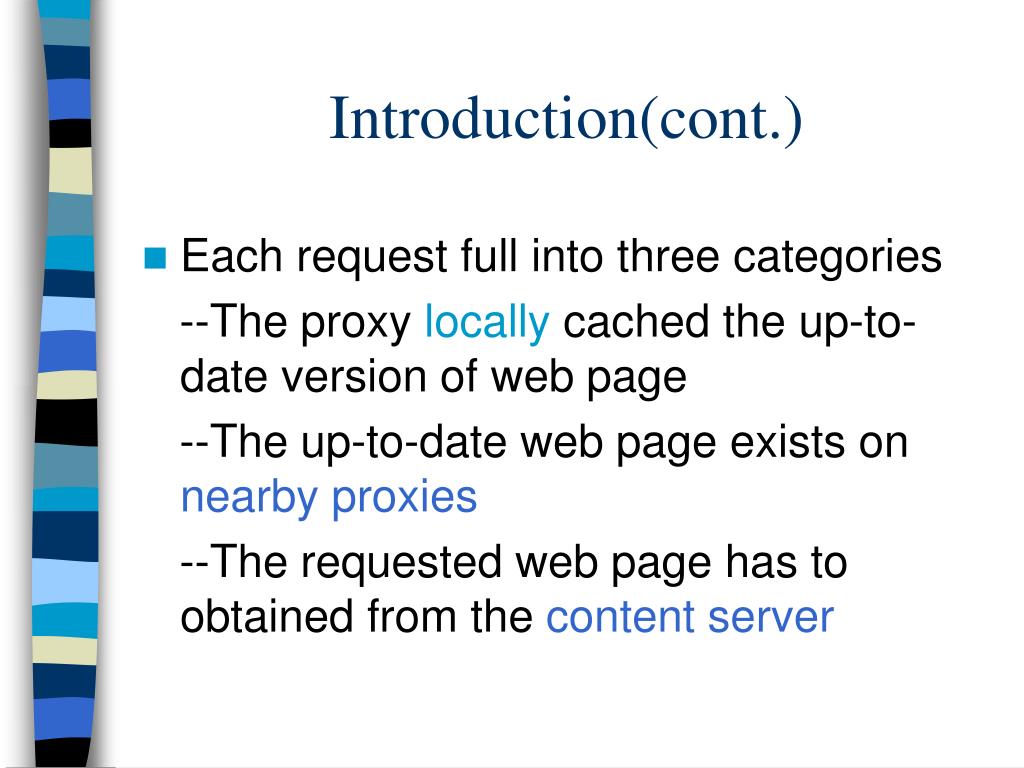

  4. Introduction(cont.) • Each request full into three categories --The proxy locally cached the up-to-date version of web page --The up-to-date web page exists on nearby proxies --The requested web page has to obtained from the content server

  5. Introduction(cont.) • How to discovery which proxy has cached web page? --pull (more response time) --push (more communicating messages) • In this paper --dynamic distributed collaborative caching infrastructure --information group ( web page clusters ) & proxy profile( list of URLs ) --GOAL:messges (among proxies & update) maintain cache hit rate & latency

  6. 2. Related Work • Caching in Harvest --caches organized in a hierarchy • Adaptive Web Caching --self-organizing to form a tight mesh • Summary Cache --Each proxy keep a summary (using cache sharing protocol)

  7. Related Work(cont.) • Web Caching Based on Dynamic Access Patterns --A local caching algorithm flexibly adapts its parameters • Server Volumes and Proxy Filters --piggyback

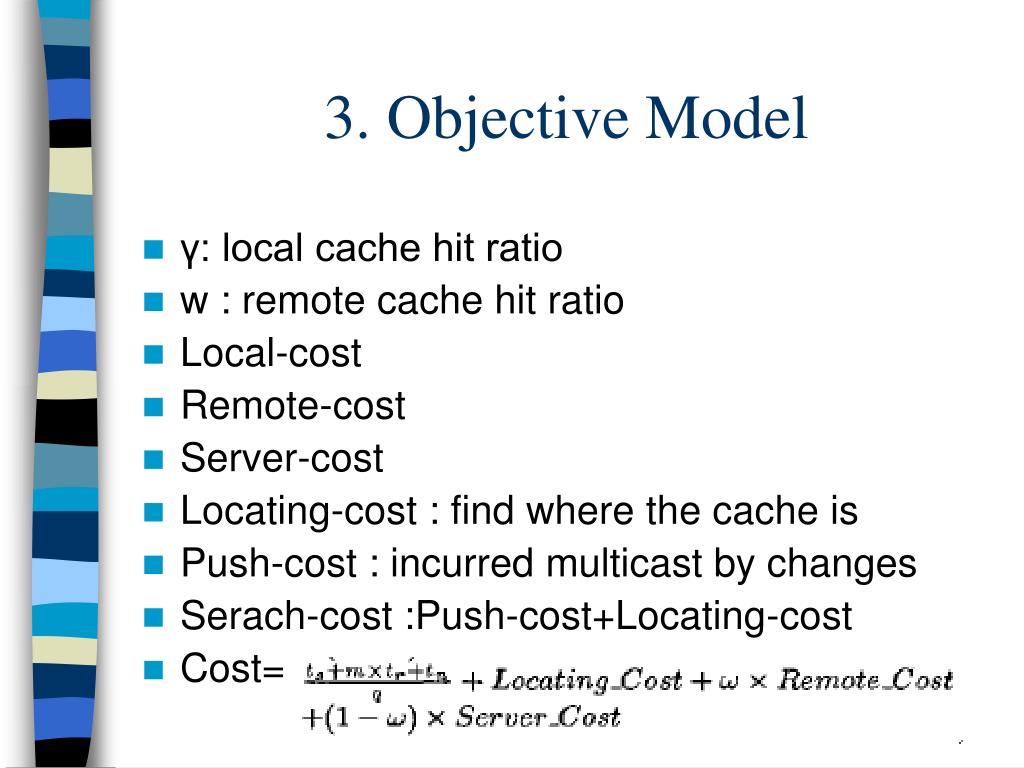

  8. 3. Objective Model • γ: local cache hit ratio • w : remote cache hit ratio • Local-cost • Remote-cost • Server-cost • Locating-cost : find where the cache is • Push-cost : incurred multicast by changes • Serach-cost :Push-cost+Locating-cost • Cost=

  9. Objective Model(cont.) • [Imax , I min ] : the number of proxies in a collaboration • m : cache hit ratio> search cost

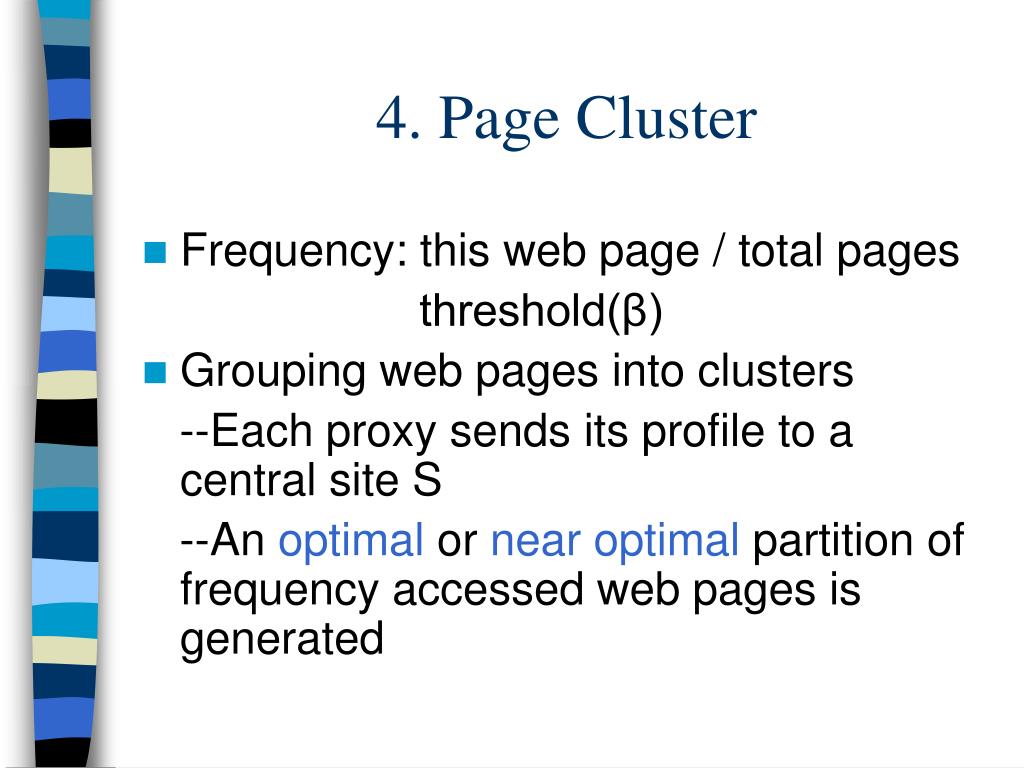

  10. 4. Page Cluster • Frequency: this web page / total pages threshold(β) • Grouping web pages into clusters --Each proxy sends its profile to a central site S --An optimal or near optimal partition of frequency accessed web pages is generated

  11. Page Cluster(cont.)

  12. Page Cluster(cont.)

  13. Page Cluster(cont.) The number of cluster We need additional data structure:

  14. Page Cluster(cont.) • The action on a page: --move to another cluster --replicate in another cluster --remove replica from this cluster

  15. Page Cluster(cont.)

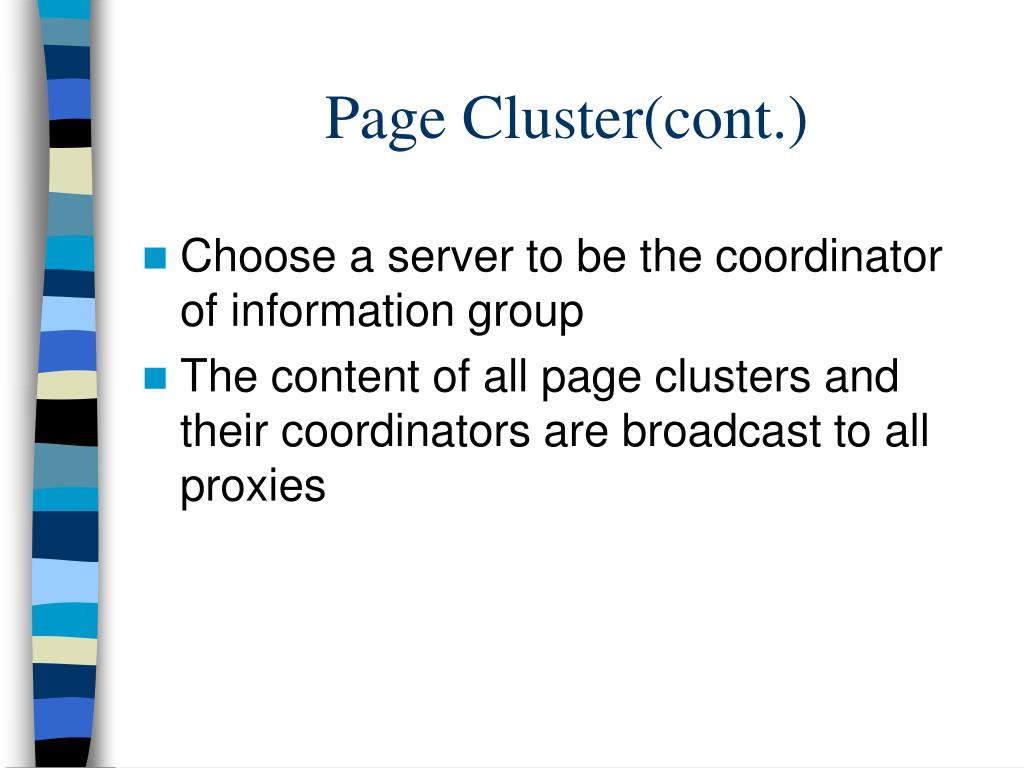

  16. Page Cluster(cont.) • Choose a server to be the coordinator of information group • The content of all page clusters and their coordinators are broadcast to all proxies

  17. 5. Information Group Maintenance • Each information group is associated with one page cluster. • A proxy join a information group which has maximum pages in it.Find another ……..until the proxy joins the information groups for all web pages on its profile. • Local reorganization

  18. Information Group Maintenance(cont.) • A proxy wants to join an information group --send a message to coordinator of information group --send back the list of the members --the new proxy send the intersection of its cache content to all member in this information group • A proxy wants to withdraw from a information group --multicast to all member • If a proxy’s cache for a page cluster changes by more than 10% as the threshold ,multicast to all member( the lowest priority )

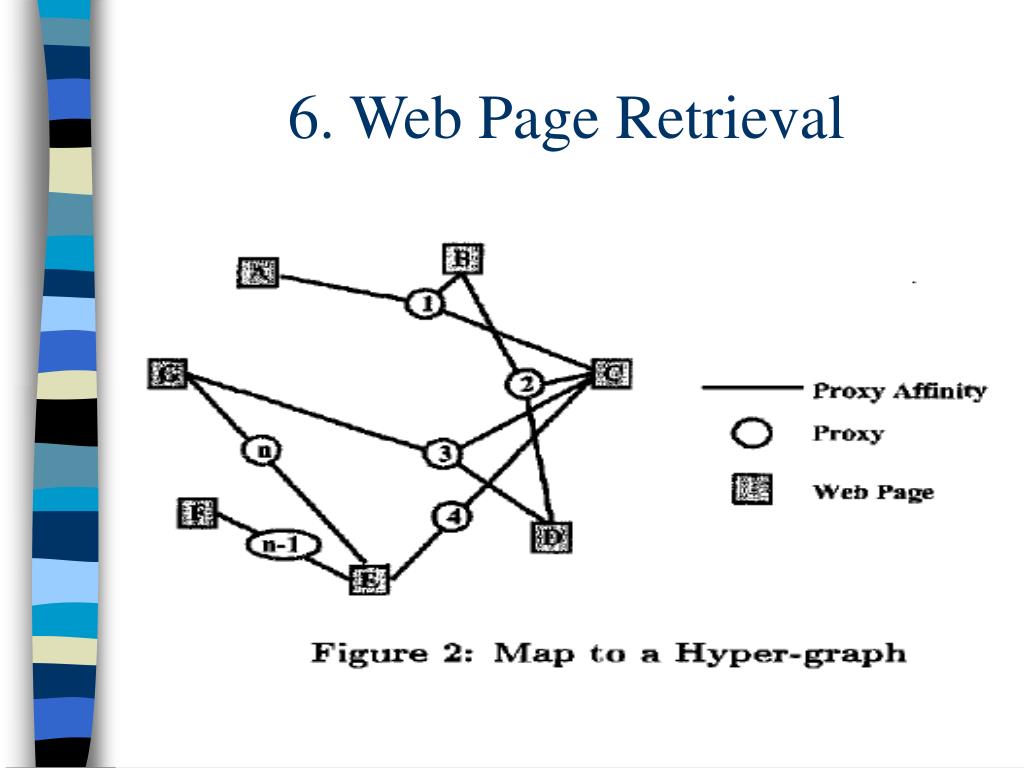

  19. 6. Web Page Retrieval

  20. 7. Experience Result

  21. Experience Result(cont.)

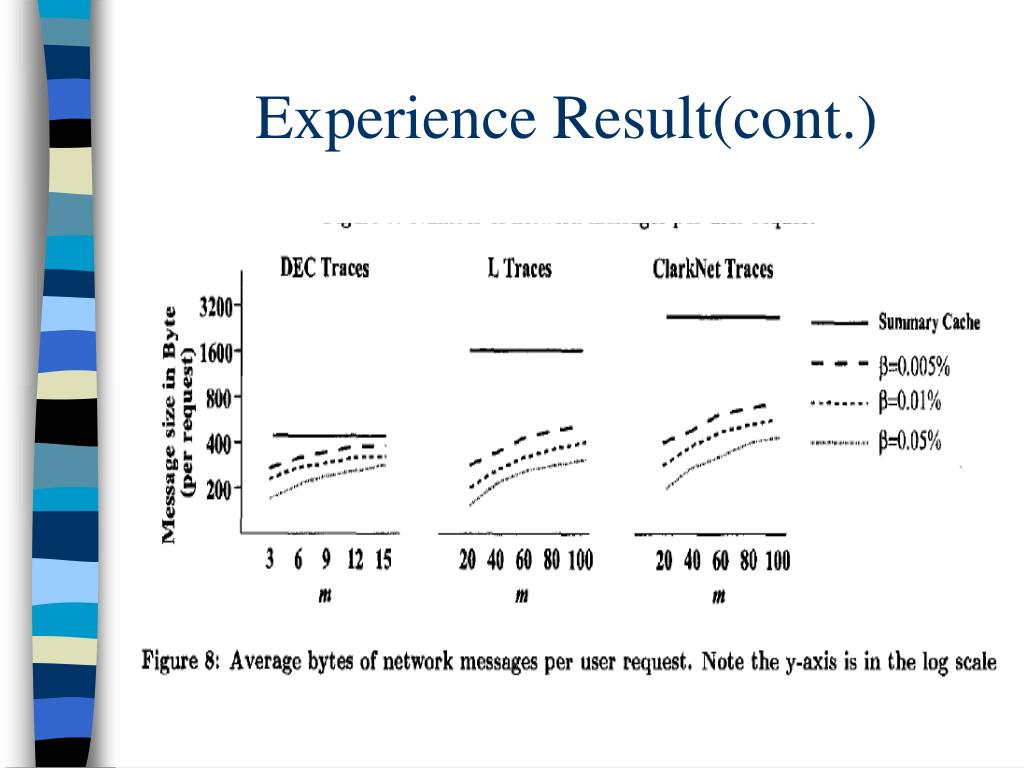

  22. Experience Result(cont.)

  23. Experience Result(cont.)

  24. Experience Result(cont.)

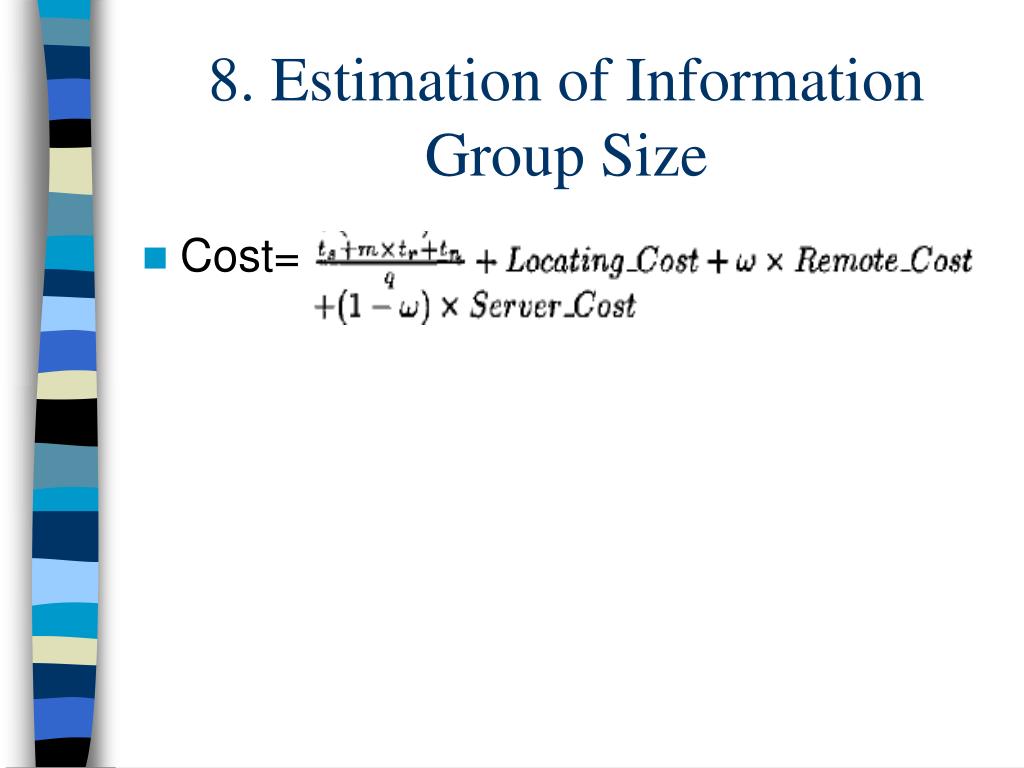

  25. 8. Estimation of Information Group Size • Cost=

  26. 9. Conclusion • Dynamic adaptable structure • Good scalability • Maintain a high hit ratio and less latency and less message
