Start expert move 1mm

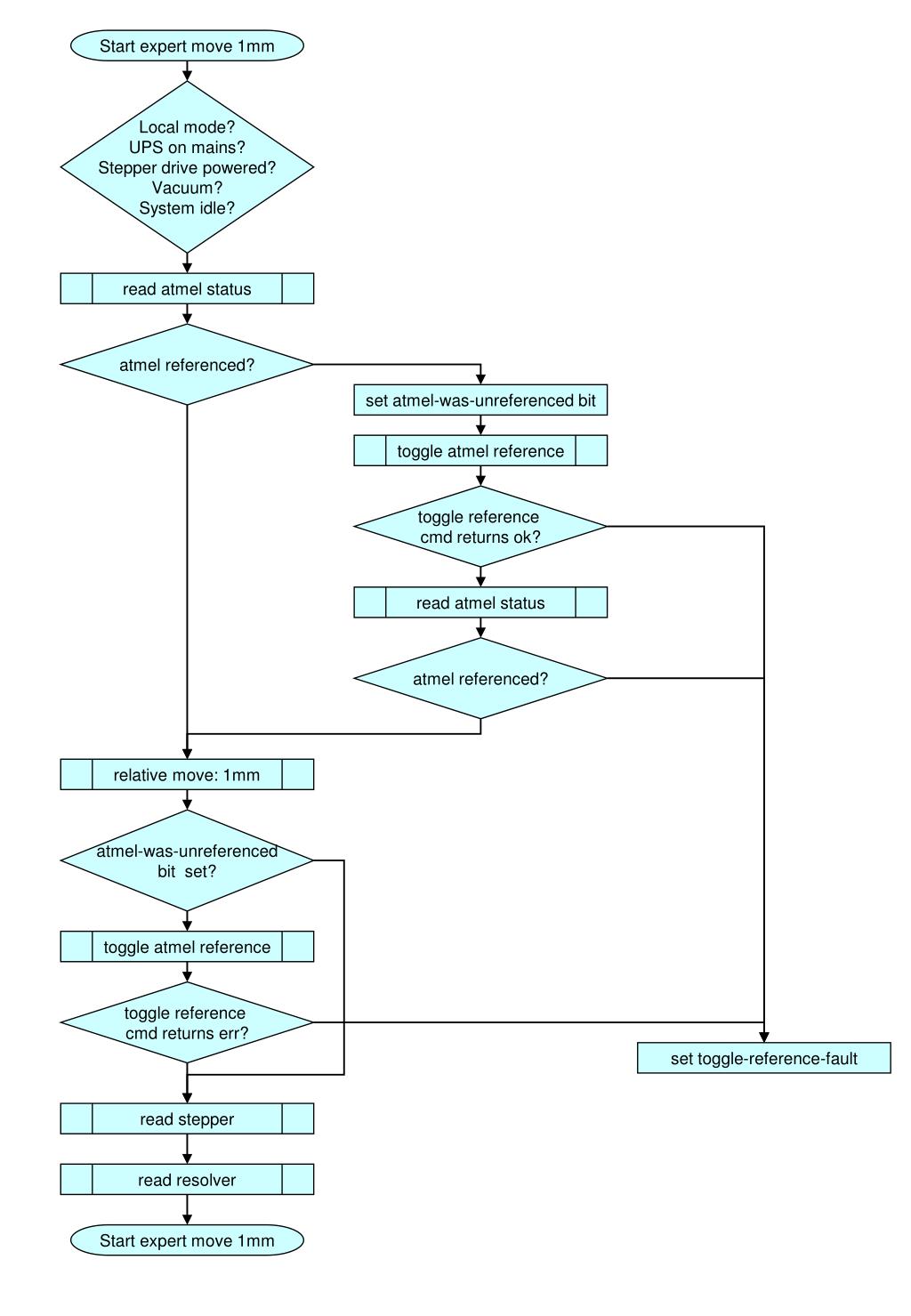

Start expert move 1mm. Local mode? UPS on mains? Stepper drive powered? Vacuum? System idle?. read atmel status. atmel referenced?. set atmel-was-unreferenced bit. toggle atmel reference. toggle reference cmd returns ok?. read atmel status. atmel referenced?. relative move: 1mm.

teo
Télécharger la présentation

Start expert move 1mm

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Start expert move 1mm Local mode? UPS on mains? Stepper drive powered? Vacuum? System idle? read atmel status atmel referenced? set atmel-was-unreferenced bit toggle atmel reference toggle reference cmd returns ok? read atmel status atmel referenced? relative move: 1mm atmel-was-unreferenced bit set? toggle atmel reference toggle reference cmd returns err? set toggle-reference-fault read stepper read resolver Start expert move 1mm

  2. Begin of read atmel status send ‘s’ command start 2 second timer received reply? timeout? stop timer return value == ‘?’ (=unknown cmd) Not implemented set atmel status read error return value == “<status>!” or “<status>?” convert <status> string to hex End of read atmel status

  3. Begin of read stepper send ‘p’ command start 2 second timer received reply? timeout? stop timer return == <value>‘?’ Change to Set error if string contains ‘?’ return == “<value>!” set atmel stepper read error convert <value> string to decimal End of read stepper
