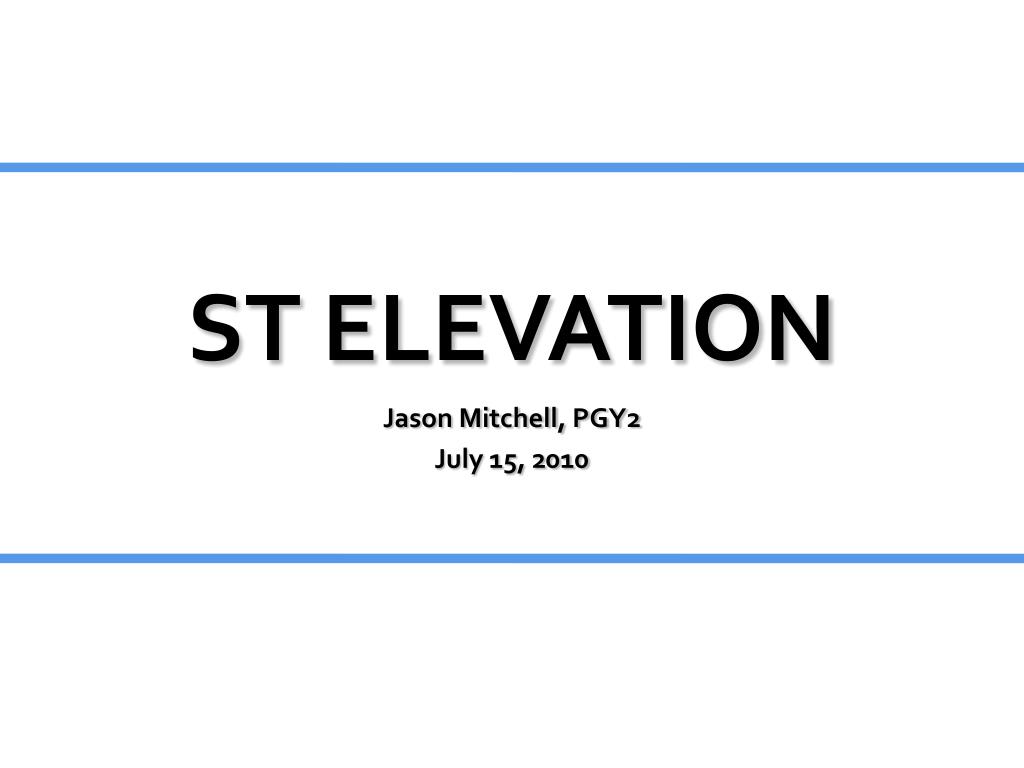

  1. ST ELEVATION Jason Mitchell, PGY2 July 15, 2010

  2. Context • CP and ST Elevation common ED presentation • Correct ECG interpretation impacts management decisions and patient outcome • Certain patients with CP and ST elevation require rapid intervention via thombolysis or PCI • Misdiagnosis potentially harmful

  3. Context • 1996 ACC/AHA Class I Recommendation for Thrombolysis • “ST elevation greater than 0.1 mV in two or more contiguous leads.”1 1 Ryan TJ, Anderson JL, Antman EM, et al. ACC/AHA guidelines for the management of patients with acute myocardial infarction. A report of the American College of Cardiology/American Heart Association Task Force on Practice Guidelines (Committee on Management of Acute Myocardial Infarction). .J Am CollCardiol. 1996 Nov 1;28(5):1328-428

  4. Context • Disorders with ST Elevation Meeting ACC/AHA Thrombolysis Guideline

  5. Context • 2000 ACEP Qualifier • “ST-segment elevations greater than 0.1 mV in 2 or more contiguous leads that are not characteristic of early repolarizationor pericarditis, nor of a repolarization abnormality from LVH or BBB in patients with clinical presentation suggestive of AMI.”2 2 Critical issues in the evaluation and management of adult patients presenting with suspected acute myocardial infarction or unstable angina. Ann Emerg Med 2000;35:521-525

  6. ST Morphology

  7. ST Morphology • Concave Up vs. Concave Down

  8. ST Morphology • Concave Up vs. Concave Down

  9. ST Segment Elevation • Differentiating STEMI from other ST Elevation Syndromes • Dynamic ECG changes • Reciprocal Changes

  10. ST Morphology

  11. STEMI Territories • Localizations

  12. STEMI

  13. STEMI

  14. STEMI

  15. STEMI

  16. Context • 2000 ACEP Qualifier • “ST-segment elevations greater than 0.1 mV in 2 or more contiguous leads that are not characteristic of early repolarizationor pericarditis, nor of a repolarization abnormality from LVH or BBB in patients with clinical presentation suggestive of AMI.”2 2 Critical issues in the evaluation and management of adult patients presenting with suspected acute myocardial infarction or unstable angina. Ann Emerg Med 2000;35:521-525

  17. Early Repolarization

  18. Early Repolarization • Normal variant • Males > Females • ECG Findings: • Diffuse, Concave up ST Elevation 2-5mm (Usually precordial) • Notched J-Point • Prominent T-Waves • Temporal stability

  19. Early Repolarization • “Benign” Early Repolarization • Increased prevalence of early repolarization in idiopathic VF • Most pronounced with inferior J-Point elevation • Increased risk of cardiac death (ie – sudden arrythmia) • J-Point 1mm: RR 1.28, 95% CI 1.05 – 1.59 • J-Point 2mm: RR 2.98, 95% CI 1.85 – 4.923 • Isolated BER in limbs leads should prompt ACS investigations 3Tikkanen JT, Anttonen O, Junttila MJ, et al. Long-term outcome associated with early repolarization on electrocardiography. N Engl J Med. 2009 Dec 24;361(26):2529-37.

  20. Pericarditis

  21. Pericarditis • Diffuse ST Elevation • Diffuse PR Depression • Caveat: aVR • ST Depression, PR Elevation

  22. Pericarditis • Stages – All 4 Present in ~50% of patients • I – ST Elevation, concordant T-Waves, PR Depression • II – ST segments return to baseline, T-Waves flatten • III – T-Wave inversion • IV – T-Wave resolution

  23. Pericarditis • Differentiation from STEMI • Concave Up ST segments • ST elevation beyond contiguous leads • No simultaneous T-Wave inversion • Reciprocal changes absent • Serial ECGs not consistent with STEMI patterns • No Q-Wave development

  24. Pericarditis vs. BER • Differentiation of Pericarditis from BER • V6 ST/T Ratio • Pericarditis > 0.25 • BER < 0.25

  25. LVH

  26. LVH • Tall R waves lateral leads • Deep S waves anterior precordial leads • Concave Up ST elevation, typically V1-V3 • LAD

  27. LBBB

  28. LBBB • Wide QRS • Large, positive R wave without q or s waves in I, aVL, V6 • Notched ‘M Shaped’ R wave V5, V6 • Normal or leftward axis • ST depression and T wave inversion in leftward leads • ST elevation and upright T waves in right precordial leads

  29. LBBB • 7% of MI4 • Significantly less likely to receive ASA • Increased in-hospital mortality 4 Go AS, Barron HV, Rundle AC, et al. Bundle-branch block and in-hospital mortality in acute myocardial infarction. National Registry of Myocardial Infarction. Ann Intern Med 1998 Nov 1;129(9):690-7.

  30. LBBB • Sgarbossa Criteria5 • Score ≥ 3 • 98% specific • 20% sensitive6 5Sgarbossa EB, Pinski SL, Barbagelata A, et al. Electrocardiographic diagnosis of evolving acute myocardial infarction in the presence of left bundle-branch block. GUSTO-1 (Global Utilization of Streptokinase and Tissue Plasminogen Activator for Occluded Coronary Arteries) Investigators. N Engl J Med 1996 Feb 22;334(8):481-7. 6Tabas JA, Rodriguez RM, Seligman HK, et al. Electrocardiographic criteria for detecting acute myocardial infarction in patients with left bundle branch block: a meta-analysis. Ann Emerg Med. 2008 Oct;52(4):329-336.e1.

  31. LBBB

  32. LBBB • ECG Evolution • Anterolateral MI • New S Waves in Leftward Leads • I, aVL, V6 • Anteroseptal MI • Lateral q waves • I, aVL, V5-V6

  33. RBBB? • Can present with ST elevation • No impact on initial QRS vector • Q waves are not changed

  34. Conclusion • Evaluate ECG in relation to clinical presentation • ST morphology • Dynamic ECG changes, serial ECGs • Look for reciprocal changes

  35. Practice

  36. Practice • Inferior MI • V1 Elevation: RV Infarct • ST Elevation III > ST Elevation II: RCA Occlusion

  37. Practice

  38. Practice • Hyperacute Anterior MI • Note Mobitz II Conduction Block • Malfunctioning His-Pukinje system • Suggests anterior occlusion • Ie - LAD occlusion • Mobitz I Conduction Block • Malfunctioning AV node • Suggests ‘dominant’ coronary occlusion • RCA or Circumflex

  39. Practice

  40. Practice • PosteriorMI • Note ‘q’ waves in anterior leads

  41. Practice

  42. Practice • WPW

  43. Practice

  44. Practice • LBBB Concerning for MI

  45. Practice

  46. Practice • Anterior MI
