1 / 17

Research Presentations

Research Presentations. Introduction “sell” your research Methods Very brief/relatively extensive: depends on your topic Judicious use of detail here: what do we need/want to know Results How can they best be presented? Table of data or some sort of bar graph?

terrel
Télécharger la présentation

Research Presentations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

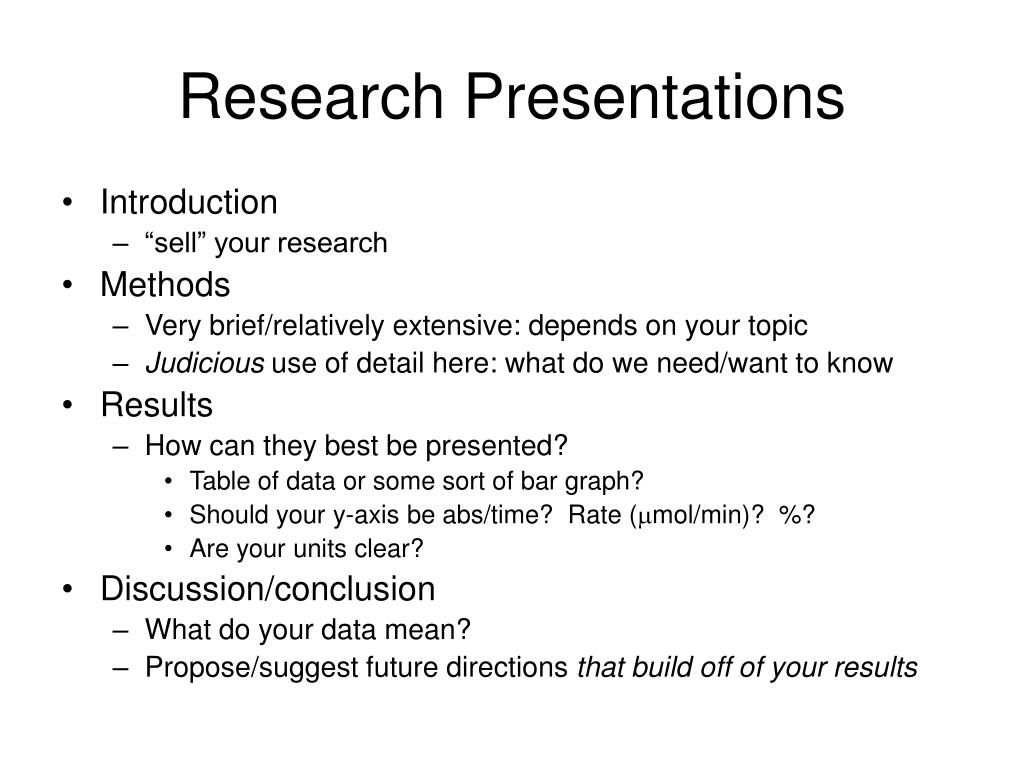

  1. Research Presentations • Introduction • “sell” your research • Methods • Very brief/relatively extensive: depends on your topic • Judicious use of detail here: what do we need/want to know • Results • How can they best be presented? • Table of data or some sort of bar graph? • Should your y-axis be abs/time? Rate (mmol/min)? %? • Are your units clear? • Discussion/conclusion • What do your data mean? • Propose/suggest future directions that build off of your results

  2. Research Presentations • Graded (by me, with audience input) on: • Information, depth • How well the info comes across • Presentation style • All members get same grade • Audience participation component • 10 points “Laboratory Participation”

  3. Research Presentations • Suggestions: • Use pictures as much as possible • Text to support your pictures • Effective use of slide titles

  4. Viagra is a competitive inhibitor of fumarase

  5. Research Presentations • Suggestions: • Use pictures as much as possible • Text to support your pictures • Effective use of slide titles • Effective presentation of your data • ORGANIZATION • Practice • Excitement/interest/(reasonable) creativity

  6. Chapter 13 (etc): Bioenergetics • Metabolism: • Chemical reactions within a cell/organism • Often requires energy OR generates (harvests) energy • “Catabolism” • Degradative phase: breakdown of complex molecules into simpler products • Typically accompanied by energy release • “Anabolism” • Synthetic phase: creation of complex molecules from simpler precursors • Typically requires energy input

  7. Cells require a source of free energy to fight the second law of thermodynamics • Total entropy increases • Entropy is bad for cells • Free energy required to put things in order (macromolecules, genetic info, etc) • Photosynthetic organisms • Energy from solar radiation • Heterotrophic • Energy from nutrient molecules (reduced hydrocarbons, for example) • Solar/chemical energy transformed into chemical energy (esp. ATP) for bioavailability (biological work: coupling DG>0 to DG<0)

  8. DG vs. Keq • Standard free energy change for a reaction (DG’°) is constant • Actual free energy change depends on standard DG and temp/pressure, but more importantly reactant/product concentrations

  9. DG vs. Keq • Spontaneity: determined by DG, NOT DG’° • The DG for a typical reaction will decrease as it proceeds: • DG = 0 when the reaction reaches equilibrium • “Non-spontaneous” (DG’°>0) reactions can be made spontaneous by: • “Mass action”: (sometimes unreasonable) increase in substrate concentrations • Coupling to spontaneous reactions (DG’° is additive) • Remember: we’re talking energetically spontaneous: there may still be a kinetic barrier

  10. Chemical energy: making reactions spontaneous • ATP hydrolysis: DG’° ~ -30.5 kJ/mol • Destabilized reactant (ATP) • Stabilized products (PO43-+ADP+H+) • Also important: kinetic stabilization of an inherently unstable compound: good storage molecule

  11. ATP hydrolysis • DG’° ~ -30.5 kJ/mol not the whole story • DGp can be much higher (-60 kJ/mol)

  12. Other energy storage molecules

  13. Use of high energy phosphate compounds • Not simply direct hydrolysis: phosphoryl transfer to intermediate or to protein • Two step process: • Phosphoryl transfer: ‘activated’ compound • Phosphate displacement:lower energy product

  14. Tomorrow: more basics of phosphorylation • Another source of chemical energy: oxidation-reduction
