WinTool - CATIA V5 - Interface

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. WinTool - CATIA V5 - Interface …

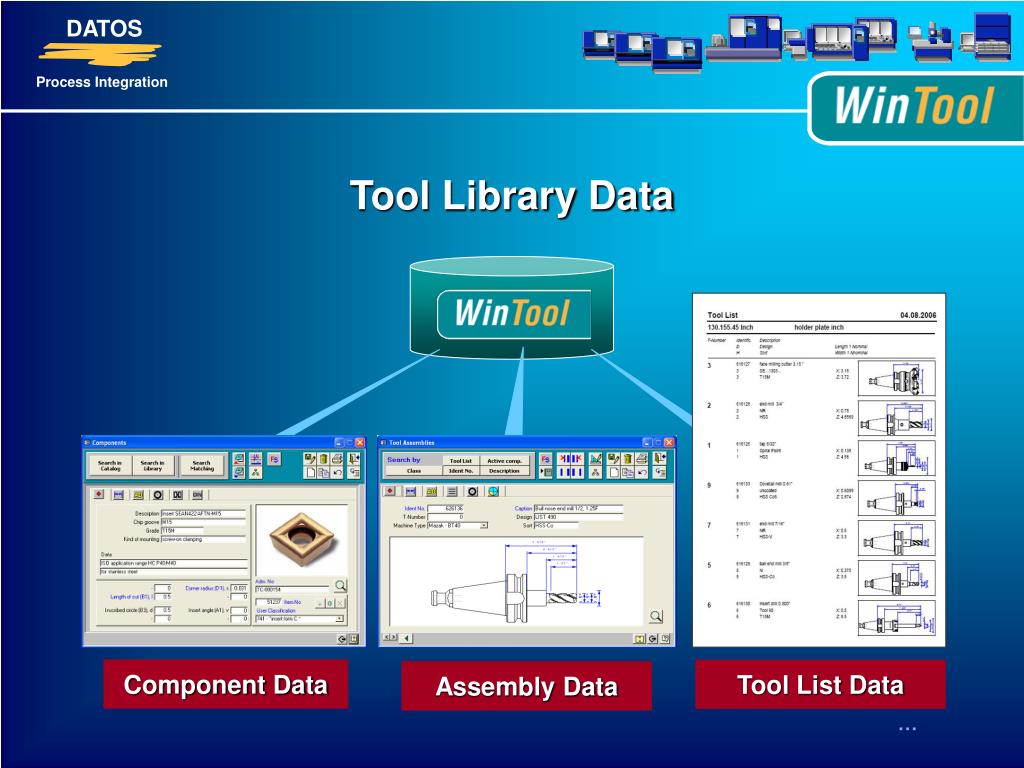

  2. Tool Library Data Component Data Tool List Data Assembly Data …

  3. One Tool Library for All Users Job Preparation Purchasing NC-Programming ERP Setup Sheets DNC Manufacturing Tool Crib Presetting ...

  4. Concept of WT-CATIA-Interface Geometry Parameter Cutting Values 3D Tools CATALOG CATParts Component Data Assembly Data Tool List Data NC-Program Info Used Tools T-Numbers, D/H-Memory …

  5. Using the WT-CATIA-Interface New Menu Buttons for WinTool GET and PUT GET activates the WinTool-Interface for Tool Import Menu Bar to import 1 Tool at the time … or Tool Lists “Tool Assembly” opens the Tool Search Window ...

  6. Using the WT-CATIA-Interface Search by Tool Classification Select Tool in WinToolTool Library Check Geometry and Collision Points Select Tool for Transfer to CATIA ...

  7. Using the WT-CATIA-Interface Select work material for cutting condition ...

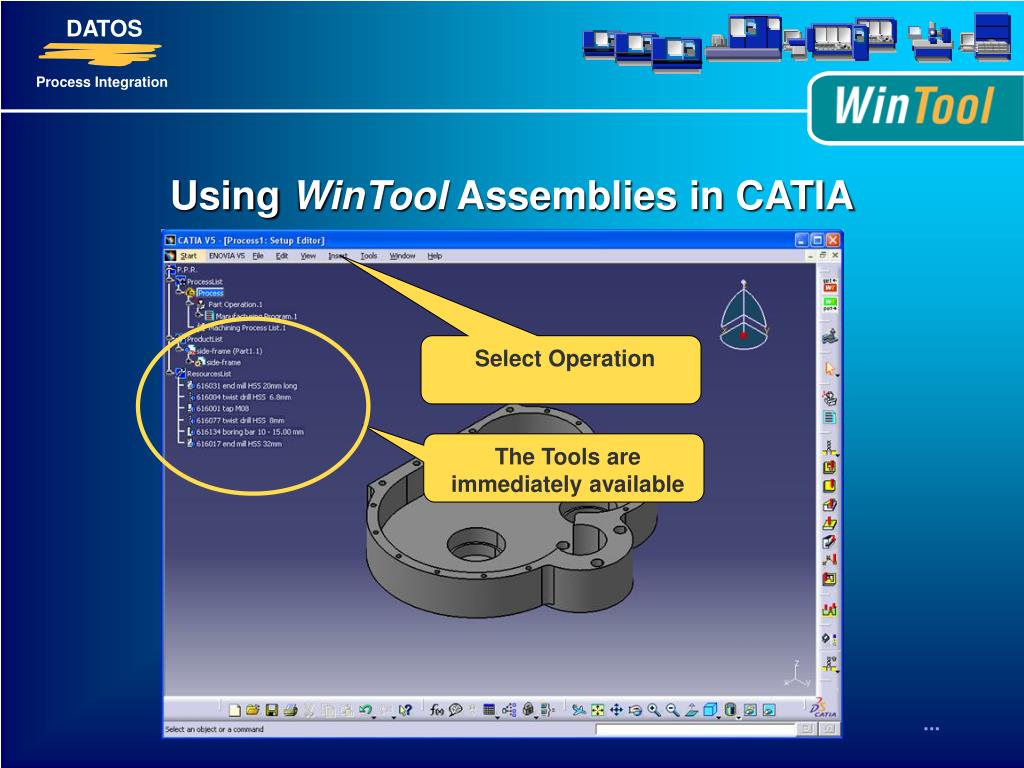

  8. Using WinTool Assemblies in CATIA The Tools are immediately available Select Operation ...

  9. Using WinTool Assemblies in CATIA Select Operation Example: “Pocketing” ...

  10. Using WinTool Assemblies in CATIA Select one of the transferred Tools ... ...

  11. Using WinTool Assemblies in CATIA Retrieve Geometry … … and cutting values for selected material ... ...

  12. Using WinTool Assemblies in CATIA Verify Operation … with realistic 3D tool representation, cutting and non-cutting layers ...

  13. Using WinTool Assemblies in CATIA Enjoy easy NC-programming ...

  14. Automatic Tool Documentation Save the Tools used in project … with the PUT to WinTool" function ...

  15. Automatic Tool Documentation Default Data in Header can be changed ...

  16. Saving the Tool List Documentation for Tooling is done. ...

  17. The Tool Crib Manager ...

  18. Automatic Tool Documentation New Tool List is directly available on Shop Floor ...

  19. Automatic Tool Documentation ... as Tool List, Set up List, Pick list etc. Cutomize your own Print Reports!! ...

  20. Features for 2D/3D Rotating Tools Components Assembly DXF-Contour 3D Model Shape-Generator DXF-Generator Search Matching WinTool-CATIA-Interface WinTool Professional Automatic Calculation of Contourand Generation as a DXF Quick Graphic Assembly with available Components in Tool Crib Tool-Drawing-Generator forRotating Cutters and Holders Automatic Rotation to get 3D Model with Cut/Non-Cut Layers You can even customize the DXF-File for Special Tools (e.g. Form Tools)!! ...

  21. User Statements … Craig Green, NC-Programmer at Belvac Machinery, VA (USA) • “I can pop a new tool assembly together in a skinny minute…” • “NowI can verify my program exactly.” • “With concise setup instructions, misinterpretation in presetting is no longer a problem.” ...

  22. User Statements … Marc Bissel, NC-programmer at Cla-Val, CA (USA) • “Significant higher throughput in Programming and Tool Crib” • “30% more machining time due to less machine standstill” ...

  23. User Statements … Arno Dobler, NC-Programmer at Kempten Maschinenfabrik, Germany • “Now our tool organization is online and totally transparent. ” • “I reduced my work time per NC-program significantly.” • “The restructuring has been welcomed by all co-workers.” ...

  24. The easy way of Process Integration Questions ? End
