  1. 07 E U R O G R A P H I C S Depth-of-Field Renderingby Pyramidal Image Processing Martin Kraus (TU München) and Magnus Strengert (Universität Stuttgart)

  2. 00 Outline of this Talk 01Introduction 02Relatedwork 03Proposedmethod 04 Experiments 05 Future work

  3. 01 I N T R O D U C T I O N What Is Depth of Field? • The depth in front and beyond the focus plane where objects appear to be in focus • A property of all real optical systems • only virtual pin-hole cameras have infinite depth of field • Used for important photographic and cinematographic techniques

  4. photo by Jon Sullivan (http://pdphoto.org/PictureDetail.php?mat=pdef&pg=8202)

  5. photo by "che" (http://commons.wikimedia.org/wiki/Image:Dandelion_clock_detail.jpg)

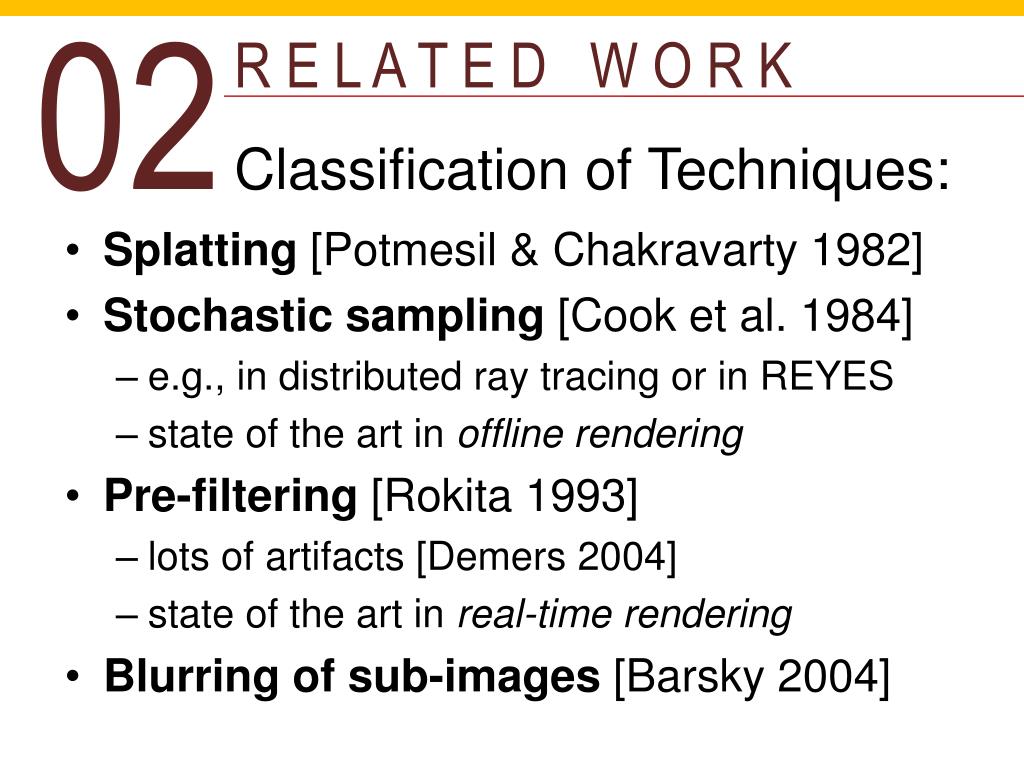

  6. 02 R E L A T E D W O R K Classification of Techniques: • Splatting [Potmesil & Chakravarty 1982] • Stochastic sampling [Cook et al. 1984] • e.g., in distributed ray tracing or in REYES • state of the art in offline rendering • Pre-filtering [Rokita 1993] • lots of artifacts [Demers 2004] • state of the art in real-time rendering • Blurring of sub-images [Barsky 2004]

  7. 02 R E L A T E D W O R K High Quality in Real Time? • Real-time performance requires: • independence of scene complexity • excludes stochastic sampling • thus: image post-processing of a pin-hole color image and depth map • independence of image synthesis for free • convolution filtering is too expensive • even with FFTs on GPUs • thus: blurring using pyramid algorithms

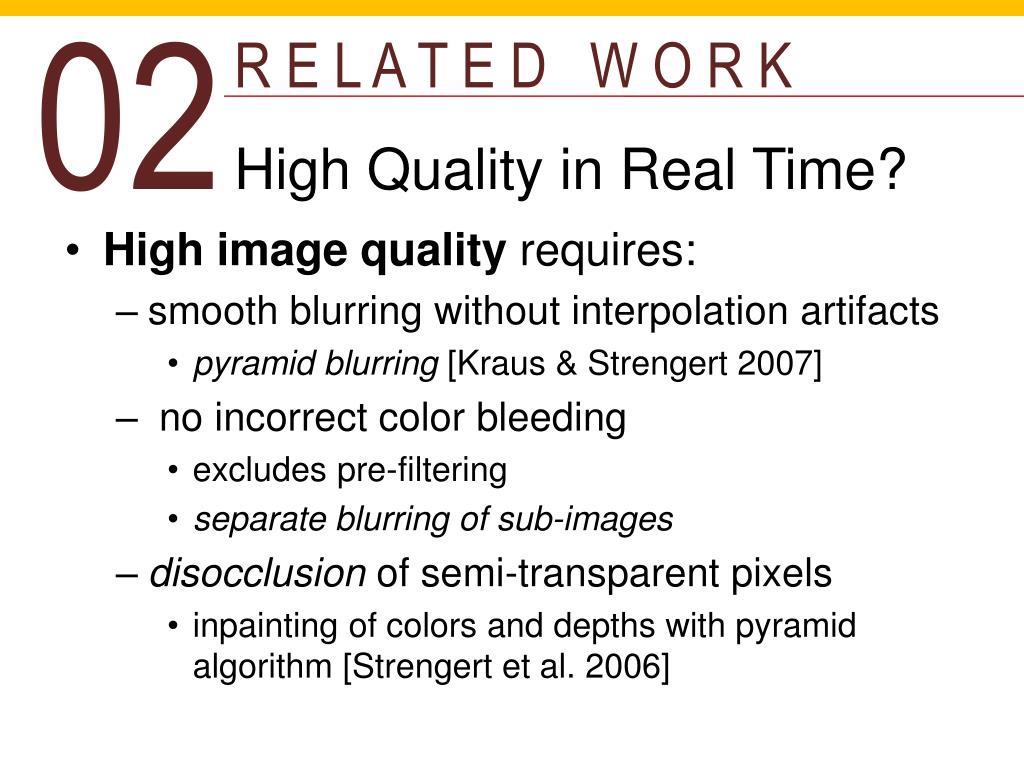

  8. 02 R E L A T E D W O R K High Quality in Real Time? • High image quality requires: • smooth blurring without interpolation artifacts • pyramid blurring [Kraus & Strengert 2007] • no incorrect color bleeding • excludes pre-filtering • separate blurring of sub-images • disocclusion of semi-transparent pixels • inpainting of colors and depths with pyramid algorithm [Strengert et al. 2006]

  9. 03 P R O P O S E D M E T H O D Overview pin-hole image & depth map decomposition into sub-images 3 1 4 disocclusion matting blurring 2 blending of sub-images 5 resulting image

  10. 03 P R O P O S E D M E T H O D Decomposition • decompose into sub-images and cull foreground pixels according to depth map 1

  11. 03 P R O P O S E D M E T H O D Disocclusion • for each sub-image: disocclude culled foreground (using pyramidal inpainting) 2

  12. 03 P R O P O S E D M E T H O D Matting • for each sub-image: compute alpha-matting according to each pixel's depth 3

  13. 03 P R O P O S E D M E T H O D Blurring • for each sub-image: blur color and alpha (using pyramidal blurring) 4

  14. 03 P R O P O S E D M E T H O D Blending • back-to-front blending of all sub-images result computed in 70.4 ms (12 sub-images, hardware: NVIDIA GeForce 7900 GTX) 5

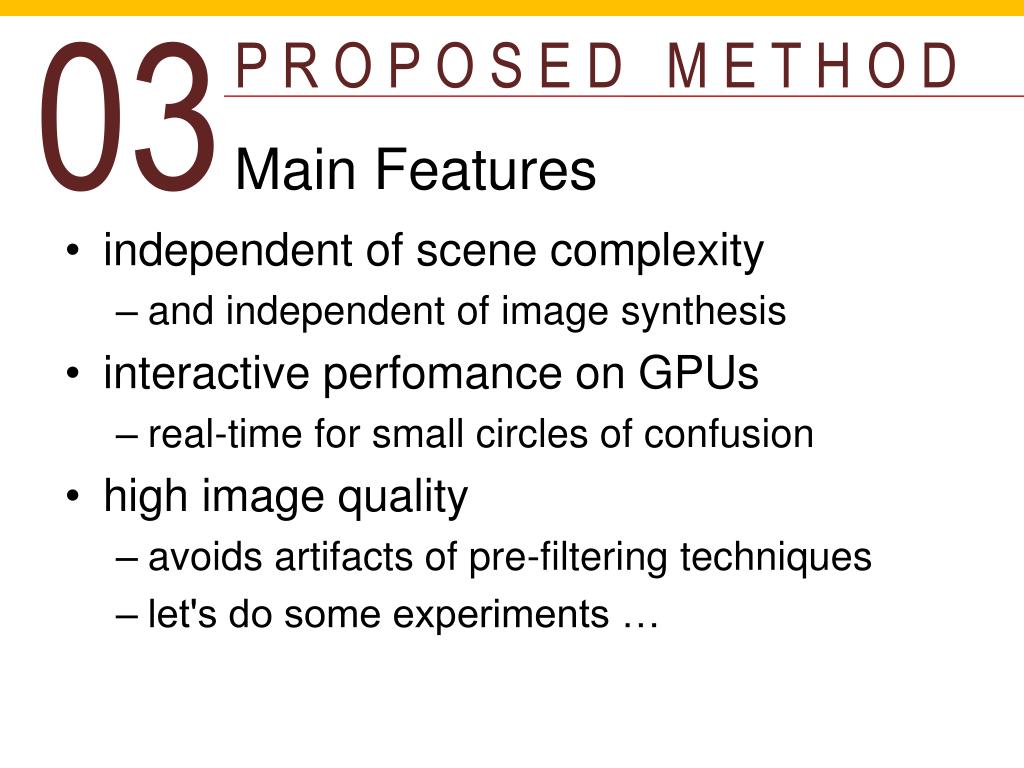

  15. 03 P R O P O S E D M E T H O D Main Features • independent of scene complexity • and independent of image synthesis • interactive perfomance on GPUs • real-time for small circles of confusion • high image quality • avoids artifacts of pre-filtering techniques • let's do some experiments …

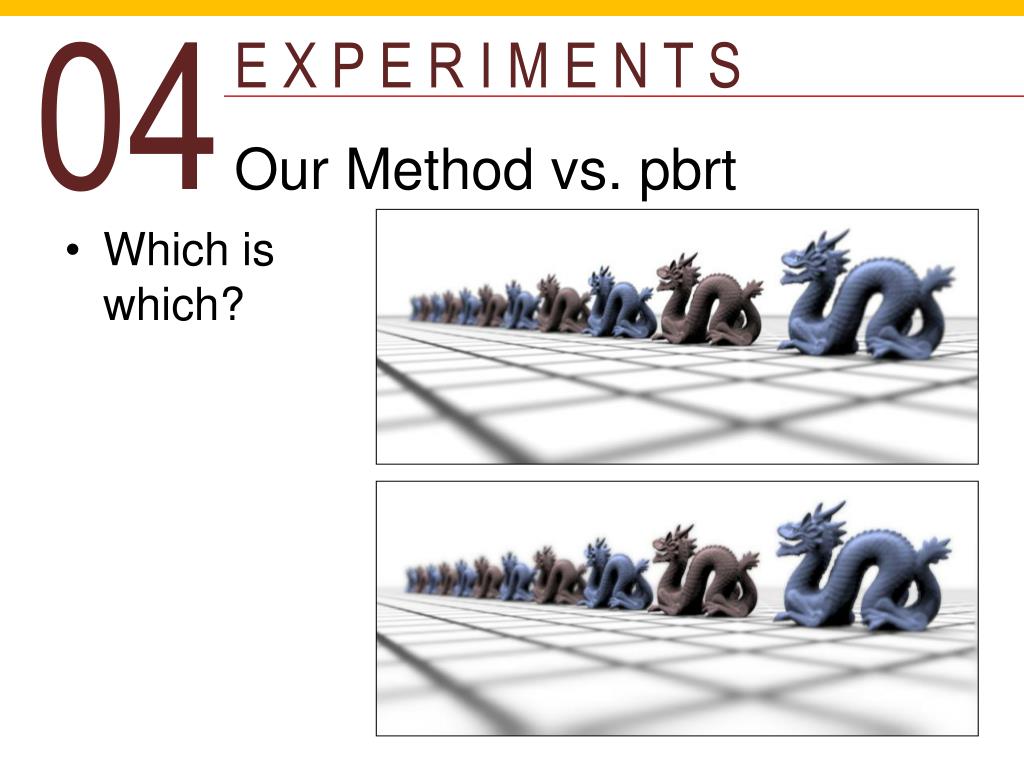

  16. 04 E X P E R I M E N T S Our Method vs. pbrt • pbrt uses stochasticsampling • Which iswhich?

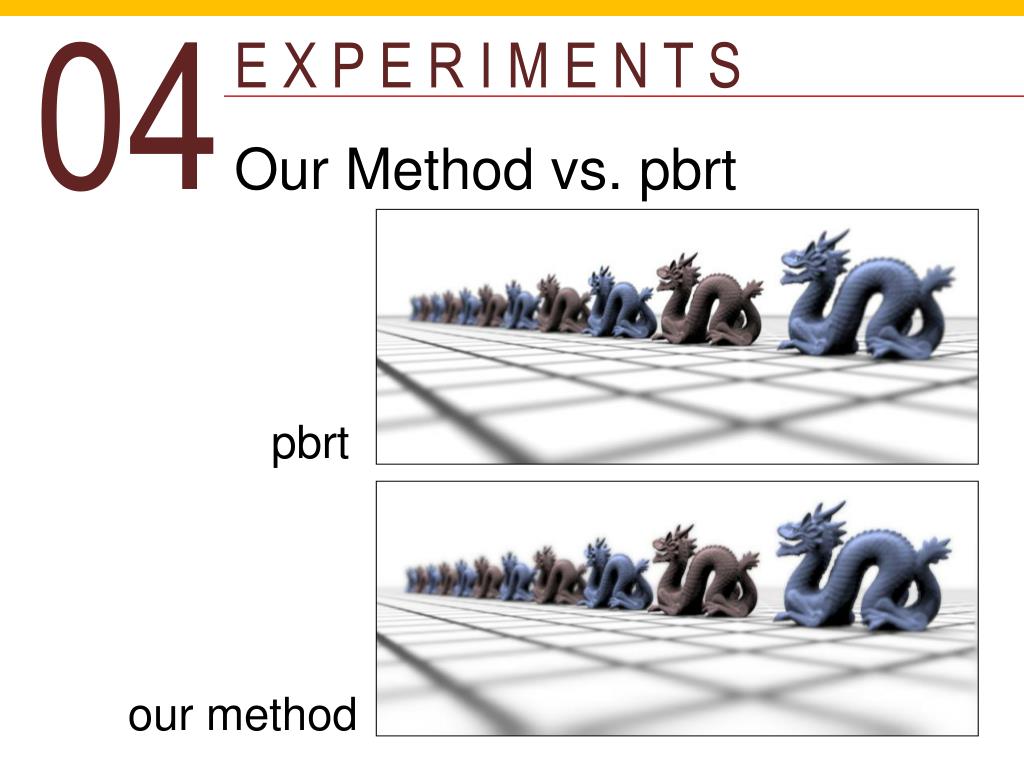

  17. 04 E X P E R I M E N T S Our Method vs. pbrt pbrt our method

  18. 04 E X P E R I M E N T S Our Method vs. pbrt • Which is which?

  19. 04 E X P E R I M E N T S Our Method vs. pbrt pbrt our method

  20. 04 E X P E R I M E N T S Can We Break Our Method? • Yes, with a very largelens radius. pbrt bleeding gray too opaque our method

  21. 04 E X P E R I M E N T S Can We Break Our Method? • Video with very large lens radii:eg07.mov • also available at: http://wwwcg.in.tum.de/Research/Publications/DepthOfField

  22. 05 F U T U R E W O R K Are We there yet? • No, but we avoid typical rendering artifacts of real-time techniques • Specialized variants for better performance and image quality • Alternative blur filters • High-potential application: • gaze-directed focus

  23. 06 A C K N O W L E D G M E N T S • The photos appear courtesy of "che" and Jon Sullivan. • The dragon model appears courtesy of the Stanford University Scanning Repository. • The pbrt scene appears courtesy of Gregory Humphreys and Matt Pharr.

  24. 07 E U R O G R A P H I C S Thank you! And have a safe trip home! Questions?
