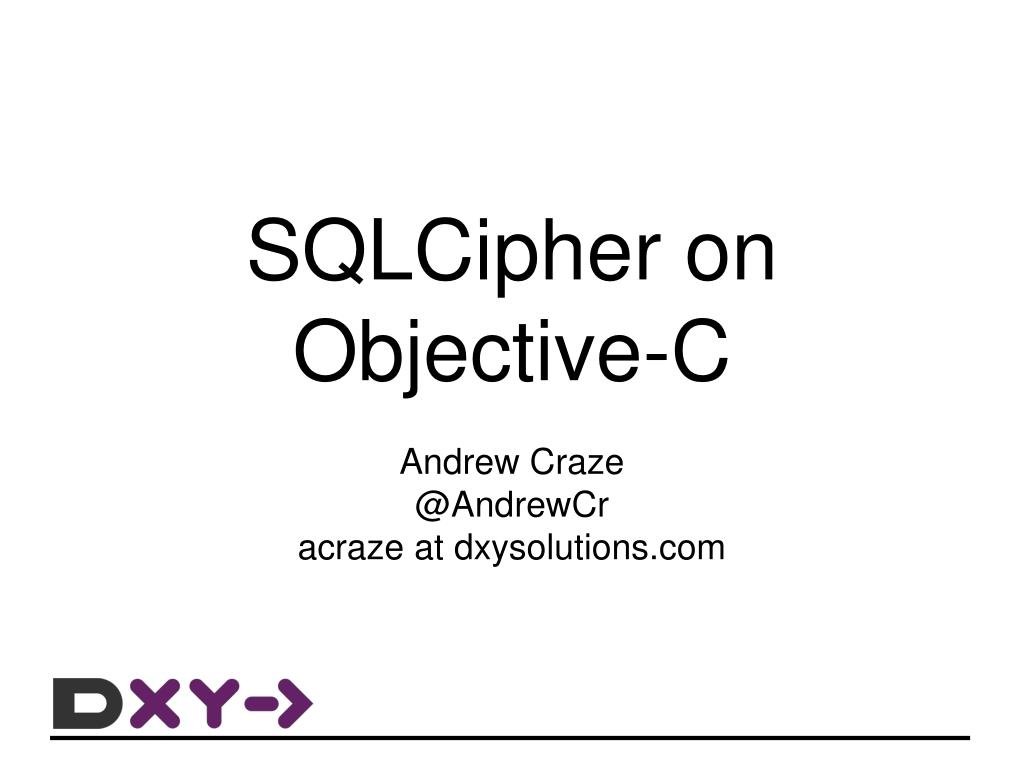

  1. SQLCipher on Objective-C Andrew Craze @AndrewCr acraze at dxysolutions.com

  2. Agenda What are SQLite and SQLCipher? Why not just use Core Data? How do I set up and use SQLCipher? What other concerns are there?

  3. What is SQLite? • Portable (C) implementation of SQL • Open-source • Available on/for: • Mobile: iOS, Android, .NET • Desktop: OSX, Win/.NET, Linux • Web: Ruby, PHP, Python, Java, .NET • Underpins CoreData on iOS

  4. What is SQLCipher? • SQLite extension for encryption • 256-bit secure encryption using OpenSSL • Open source (BSD License) • Pay-support option, binaries, too

  5. SQLite/SQLCipher vs. CoreData CoreData has: Great built-in support Update mechanism Abstraction But, encryption only when entire device is locked

  6. SQLite/SQLCipher vs. CoreData SQLite has: Better data-aggregation & searching Transactions Cross-platform compatibility Strong encryption But, poor object support

  7. Setting up SQLCipher 2 options: buy or build Buy: Cough up $150 Add lib to project (includes OpenSSL) Add header paths Add c flag: SQLITE_HAS_CODEC

  8. Setting up SQLCipher Build: Download or clone sqlcipher Download OpenSSL Download or clone OpenSSL-Xcode Add source path in XCode: OPENSSL_SRC Add the subprojects Add header paths Add c flag: SQLITE_HAS_CODEC

  9. Getting the tools

  10. Setting the Source Path

  11. Setting the Search Path

  12. Setting the C Flags

  13. Using SQLCipher After opening the DB, set the key constchar* key = [@”MyKey123" UTF8String];sqlite3_key(db, key, strlen(key)); or execute this SQL statement PRAGMA key = 'MyKey123'; or with FMDB database.key = @"MyKey123"; (That’s it.)

  14. Unencrypted hexdump

  15. Encrypted hexdump

  16. Using SQLite with FMDB FMDatabase* db = [FMDatabasedatabaseWithPath:path];BOOL fOpened = [db open]; NSString* sql= @"SELECT id, friendlyName FROM Device WHERE serialNumber= ?;”;NSArray* args = [NSArrayarrayWithObjects:serialNumber, nil];FMResultSet* rs = [dbexecuteQuery:sqlwithArgumentsInArray:args]; if ([rs next]) {NSString* friendlyName = [rsstringForColumn:@"friendlyName"]; // …} BOOL fClosed = [db close];

  17. Other issues Distributing the key with the database Performance cost Not compatible with CoreData Pragma for Android compatibility Export restrictions

  18. Compatibility with Android After setting the key, execute NSString* pragmaSql = @"PRAGMA cipher_use_hmac= OFF;”;BOOL fPragmaSucceeded = [ret executeUpdate:pragmaSql];

  19. Export Restrictions You’ll have to answer “Yes” to Crypto App must be reviewed by the Department of Commerce App is a “Mass-market encryption item” Walkthroughs of the process online Not rocket surgery, but it takes time

  20. Handy Reference Links SQLite API (c/c++)http://sqlite.org/c3ref/intro.html FMDB (Obj-C wrapper for SQLite)https://github.com/ccgus/fmdb SQLCipher main pagehttp://sqlcipher.net OpenSSL sourcehttp://www.openssl.org/source/ Nice SQLCipher tutorialhttp://www.mobileorchard.com/tutorial-iphone-sqlite-encryption-with-sqlcipher/ Comparison of CoreData and “Traditional” Databaseshttp://www.cocoawithlove.com/2010/02/differences-between-core-data-and.html Walk-through of export-license processhttp://zetetic.net/blog/2009/08/03/mass-market-encryption-commodity-classification-for-iphone-applications-in-8-easy-steps/and an updatehttp://tigelane.blogspot.com/2011/01/apple-itunes-export-restrictions-on.html

  21. Questions, Maybe Answers Andrew Craze @AndrewCr http://blog.andrewcraze.com acrazeat dxysolutions.com

  22. A Quick Pitch for Speakers You learn something new at least once every week-or-two anyway It’s not that painful 8) It’s the best way I know to get ahead
