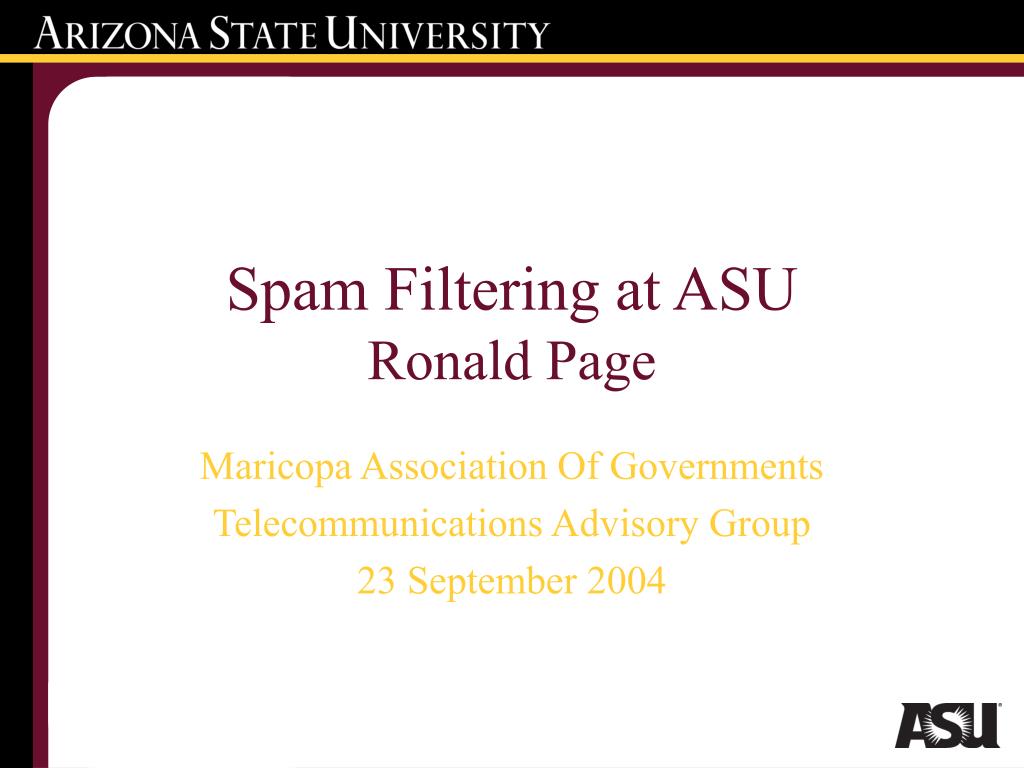

  1. Spam Filtering at ASURonald Page Maricopa Association Of Governments Telecommunications Advisory Group 23 September 2004

  2. Agenda • Requirements List • Product Selected • Server Architecture • Infrastructure Integration • Usage Statistics • Questions

  3. Requirements • Server-based solution • Work for all e-mail systems (e.g. Exchange, IMAP) • Standalone appliance • Integrate with existing infrastructure • Authentication, Mail Delivery, Aliases • Individual User “Opt In” • Quarantine rather than delete (2-week rollover) • Individually configurable “white/black lists”

  4. Product Selected Active SMTP (ASMTP) from ESCOM (http://www.escom.com) ESCOM's patented technology dynamically identifies techniques used by spammers -- including SMTP direct clients, open relays, and forged e-mail addresses it has never seen before -- and quarantines or rejects junk mail sent using these and other techniques • ASU does not use spam “content filtering” in ASMTP • The anti-virus utility is not used either, although viruses are typically caught as spam • E-mail is not stored (even temporarily) on the ASMTP device (thus expensive disk is not required) • We can easily remove spam filtering from the infrastructure

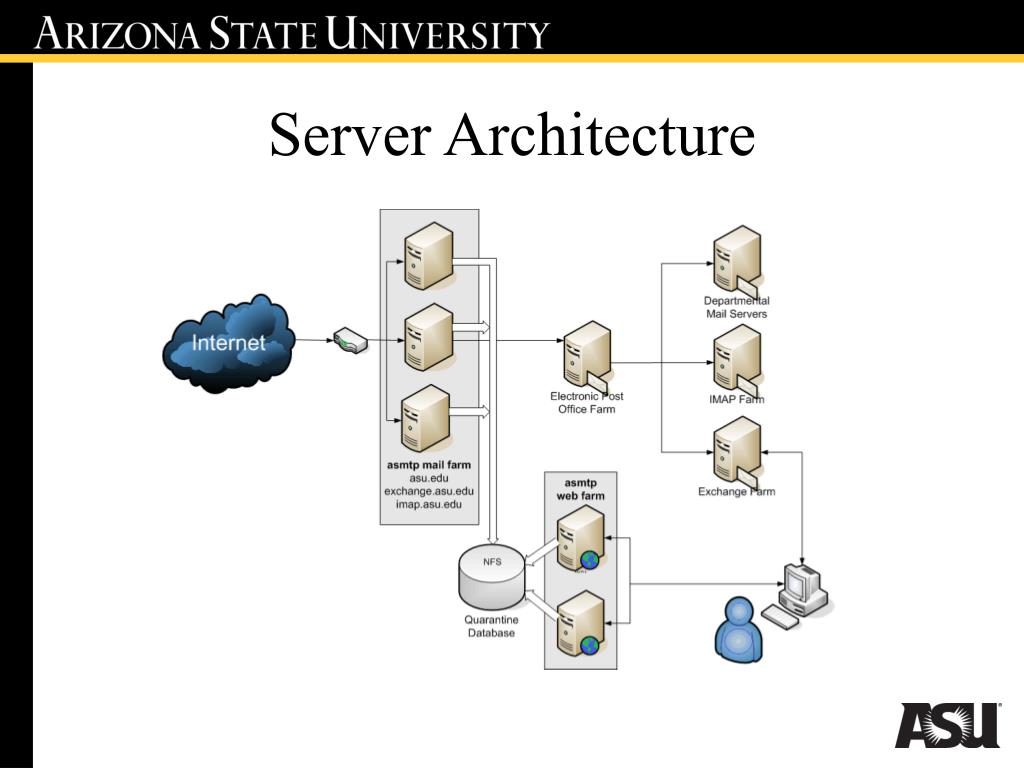

  5. Server Architecture

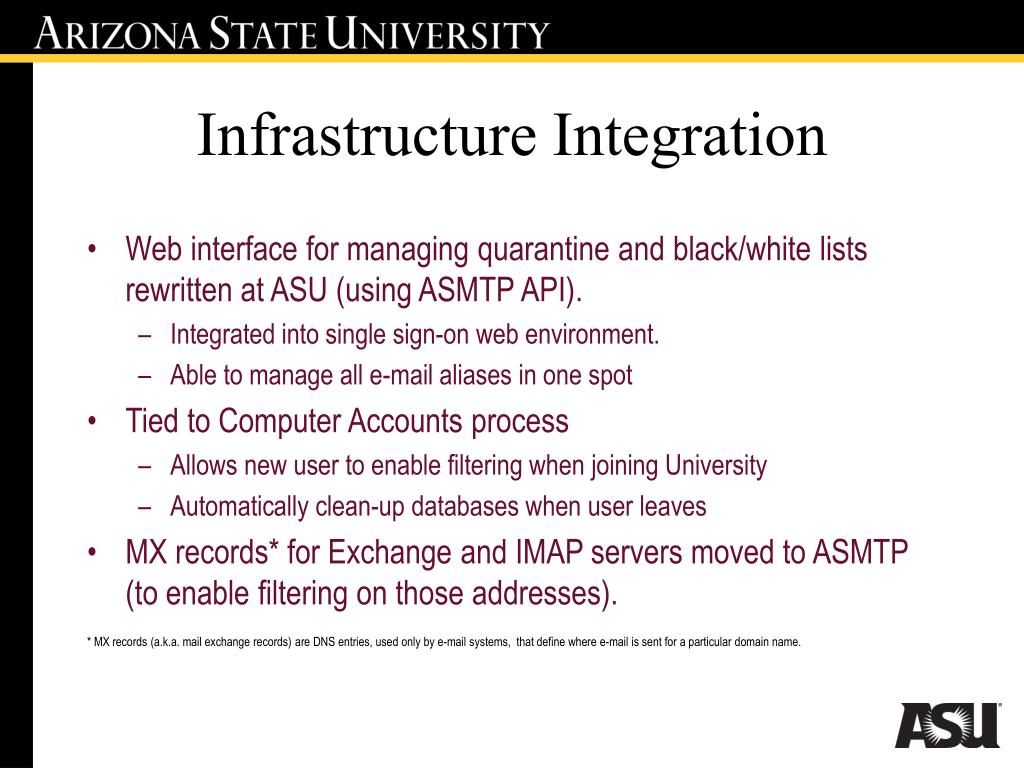

  6. Infrastructure Integration • Web interface for managing quarantine and black/white lists rewritten at ASU (using ASMTP API). • Integrated into single sign-on web environment. • Able to manage all e-mail aliases in one spot • Tied to Computer Accounts process • Allows new user to enable filtering when joining University • Automatically clean-up databases when user leaves • MX records* for Exchange and IMAP servers moved to ASMTP (to enable filtering on those addresses). * MX records (a.k.a. mail exchange records) are DNS entries, used only by e-mail systems, that define where e-mail is sent for a particular domain name.

  7. Spam Filter Statistics • 40,000 Active IMAP Accounts, 9,000 Exchange Accounts • 15,000 aliases have opted in • 575,000 avg. messages processed per day • 425,000 delivered / 150,000 quarantined • Quarantined messages are kept for up to 2 weeks. There is 25G of quarantined e-mail.

  8. Questions? Ronald Page Ron.Page@asu.edu 480-965-2986
