  1. Oxyfuel Gas Welding & Cutting Equipment

  2. Oxyfuel Gas Welding & Cutting Regulators

  3. Flow Chart

  4. Harris Calorific - Single Stage Regulators Model 2500 Model 25 Model 3500

  5. Harris Calorific - Single Stage Regulators Model 301 Model 425 Model 601

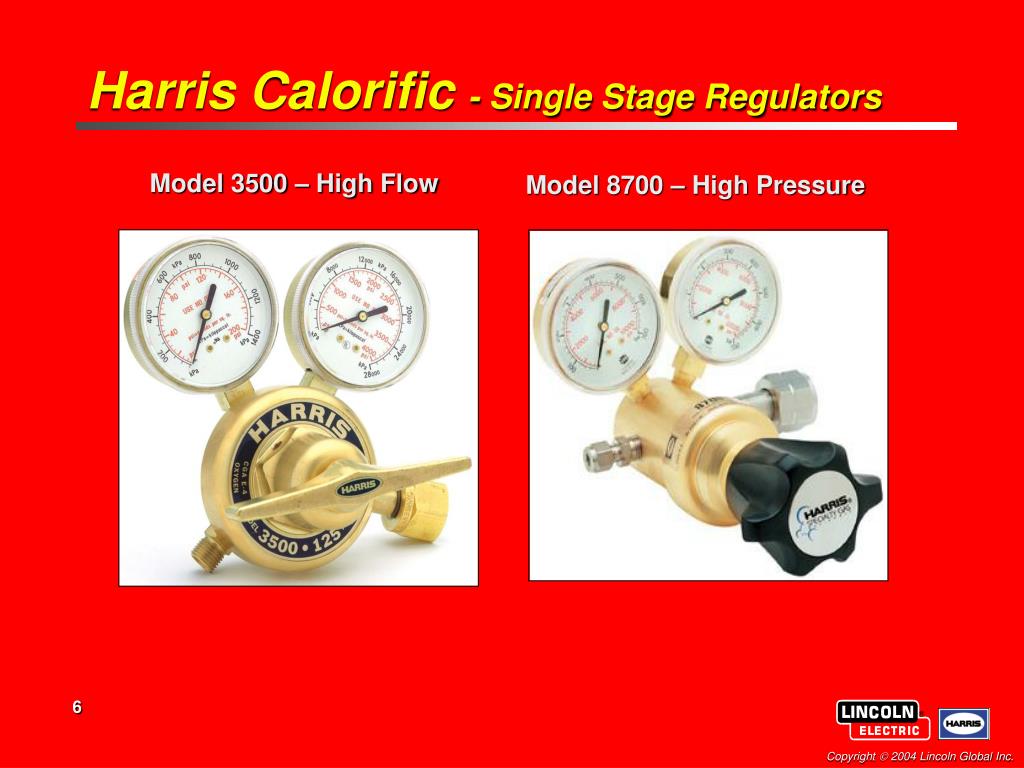

  6. Harris Calorific - Single Stage Regulators Model 3500 – High Flow Model 8700 – High Pressure

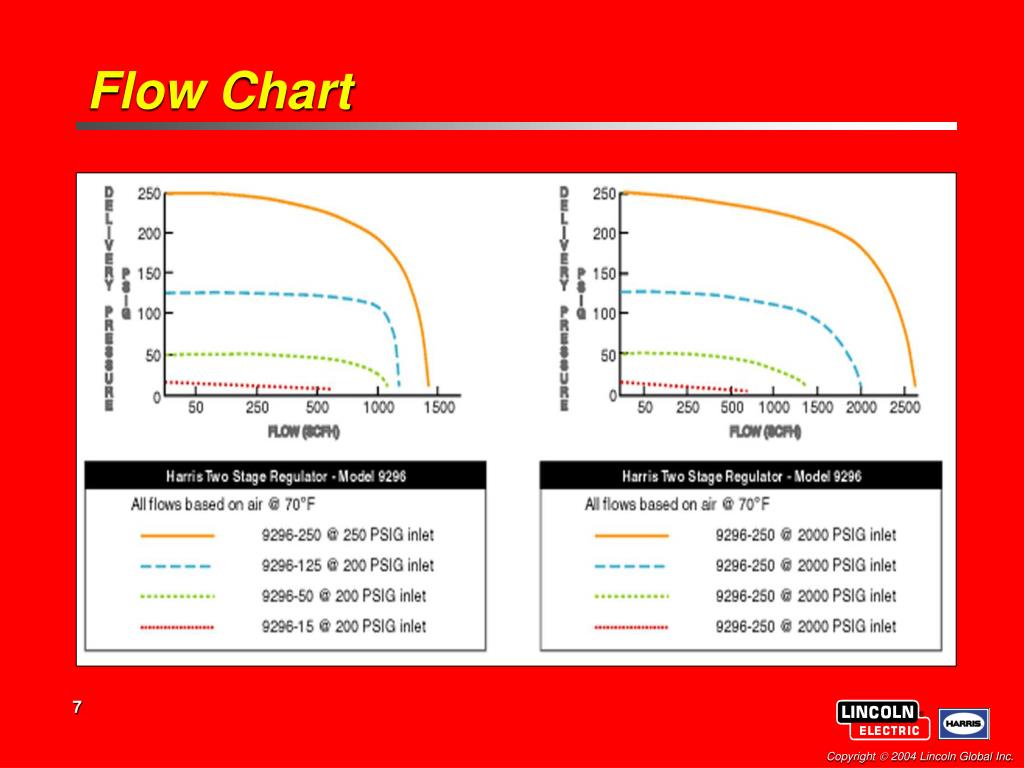

  7. Flow Chart

  8. Harris Calorific - Two Stage Regulators Model 9200 Model 9235 Model 9296

  9. Harris Calorific - Pipeline & Station Regulators Model 2548 Model 447 Model 547

  10. Oxyfuel Gas Welding Torch Handles, Mixers, Tubes & Tips

  11. Harris Calorific - Torch Handles 43-2 Torch Handle 63-2 Torch Handle Harris 2000 Torch Handle

  12. Harris Calorific - Torch Handles 18-5 Torch Handle 50 Torch Handle

  13. Harris Calorific - Torch Handles 85 Torch Handle 16 Torch Handle

  14. Harris Calorific - Torch Handles 19-6 Torch Handle 15 Torch Handle

  15. Harris Calorific - Torch Mixers E-43 Mixer D-85 Mixer 23/64” - 26 23/64” - 26 H-16-2E Mixer B-15-3 Mixer 5/16” - 27 5/16” - 27

  16. Harris Calorific - Torch Mixers H - 2030 Mixer W - 2030 Mixer 23/64” - 26 1/2” - 25

  17. Harris Calorific - Torch Mixers F-43 Mixer B-85-N Mixer 1/2” - 25 1/2” - 25 H-16-S Mixer B-15-3S Mixer 5/16” - 27 1/4” - 32

  18. Harris Calorific - Welding (Brazing) Tips 23A90 Welding Tip 5090 Welding Tip 5/16” - 27 23/64” - 26

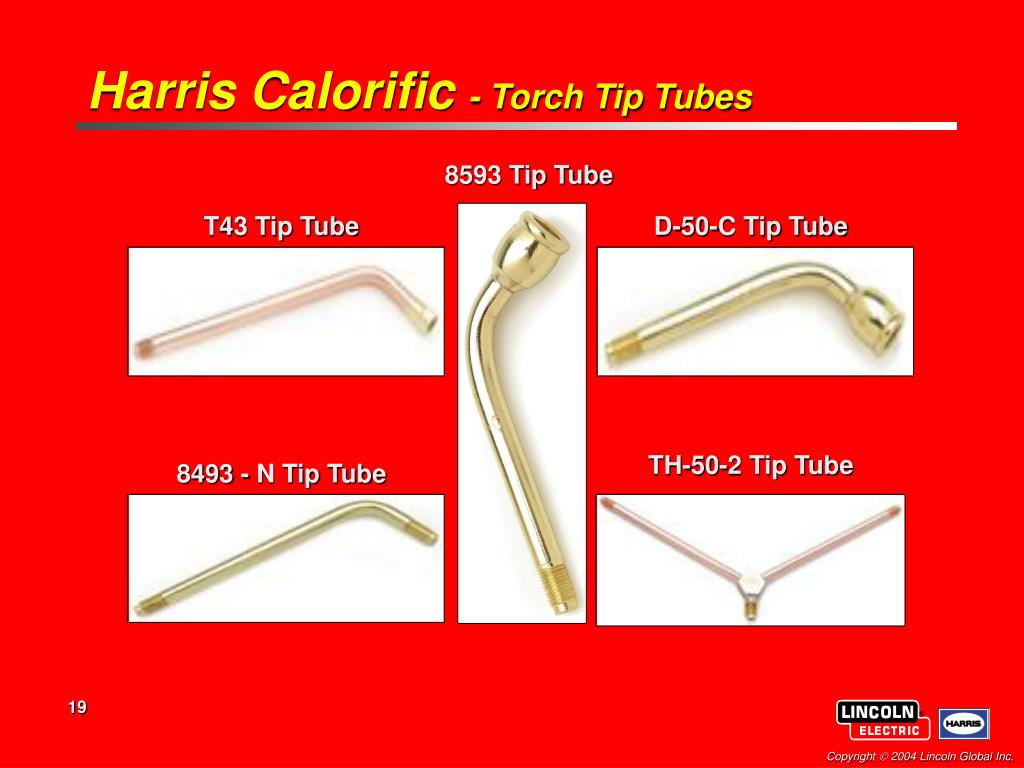

  19. Harris Calorific - Torch Tip Tubes 8593 Tip Tube T43 Tip Tube D-50-C Tip Tube TH-50-2 Tip Tube 8493 - N Tip Tube

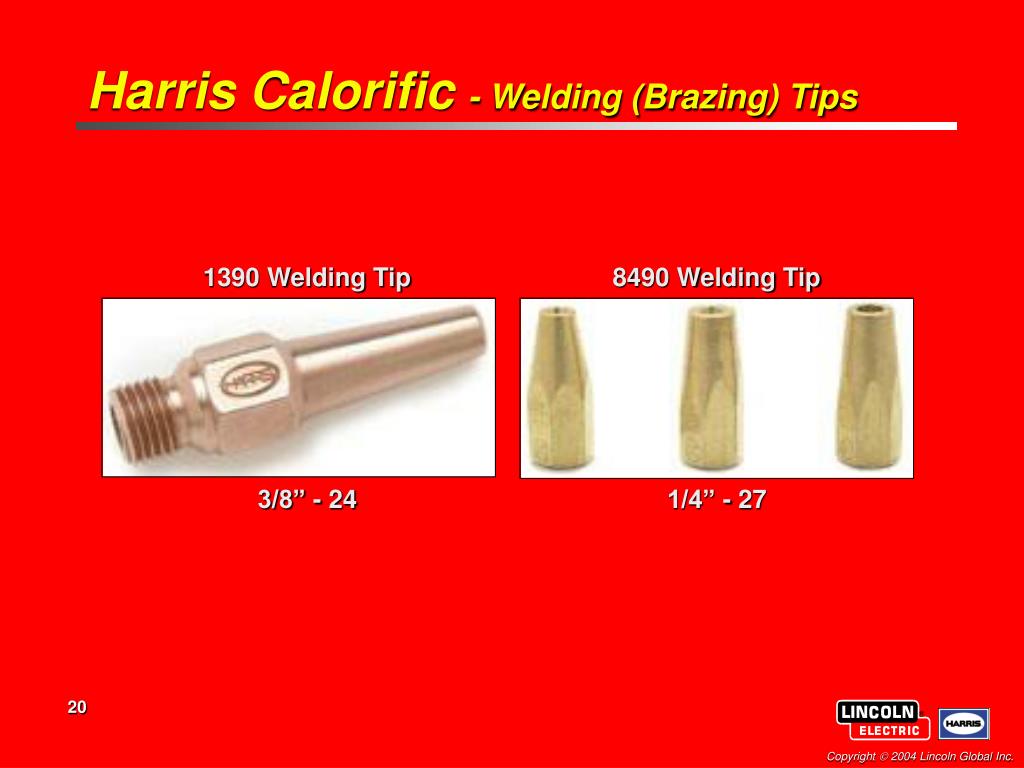

  20. Harris Calorific - Welding (Brazing) Tips 1390 Welding Tip 8490 Welding Tip 3/8” - 24 1/4” - 27

  21. Harris Calorific - Alternate Fuel Brazing Tips 1390-N Brazing Tip 8490-N Brazing Tip 3/8” - 24 1/4” - 27

  22. Oxyfuel Gas Cutting Cutting Attachments, Cutting Torches, & Tips

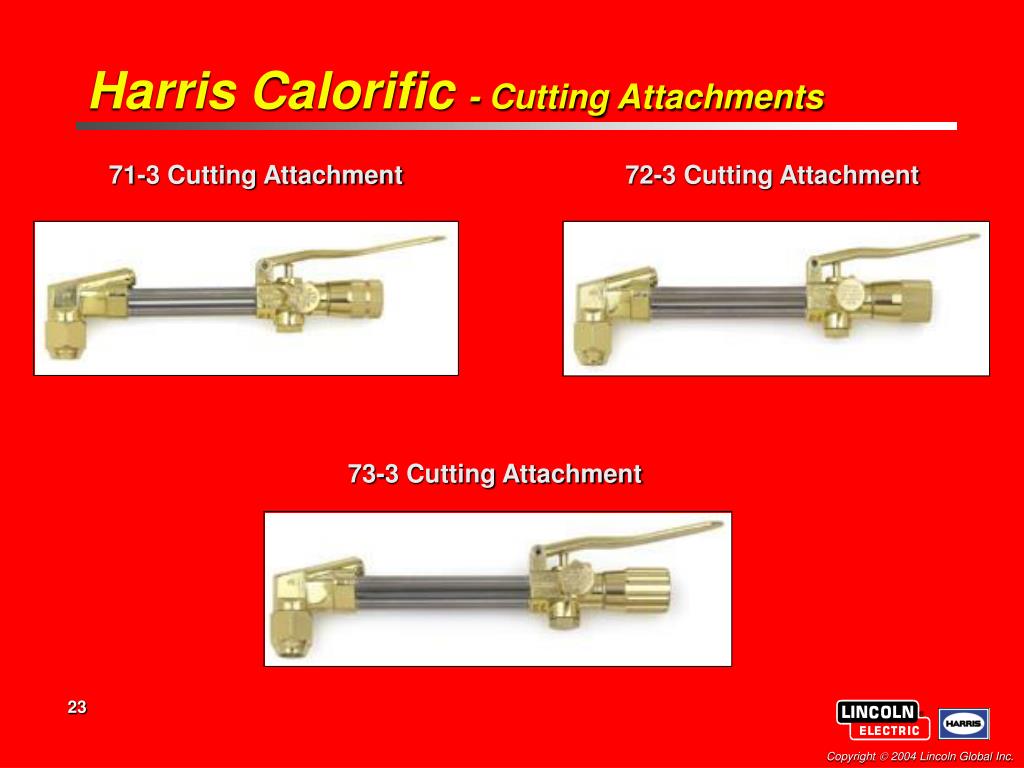

  23. Harris Calorific - Cutting Attachments 71-3 Cutting Attachment 72-3 Cutting Attachment 73-3 Cutting Attachment

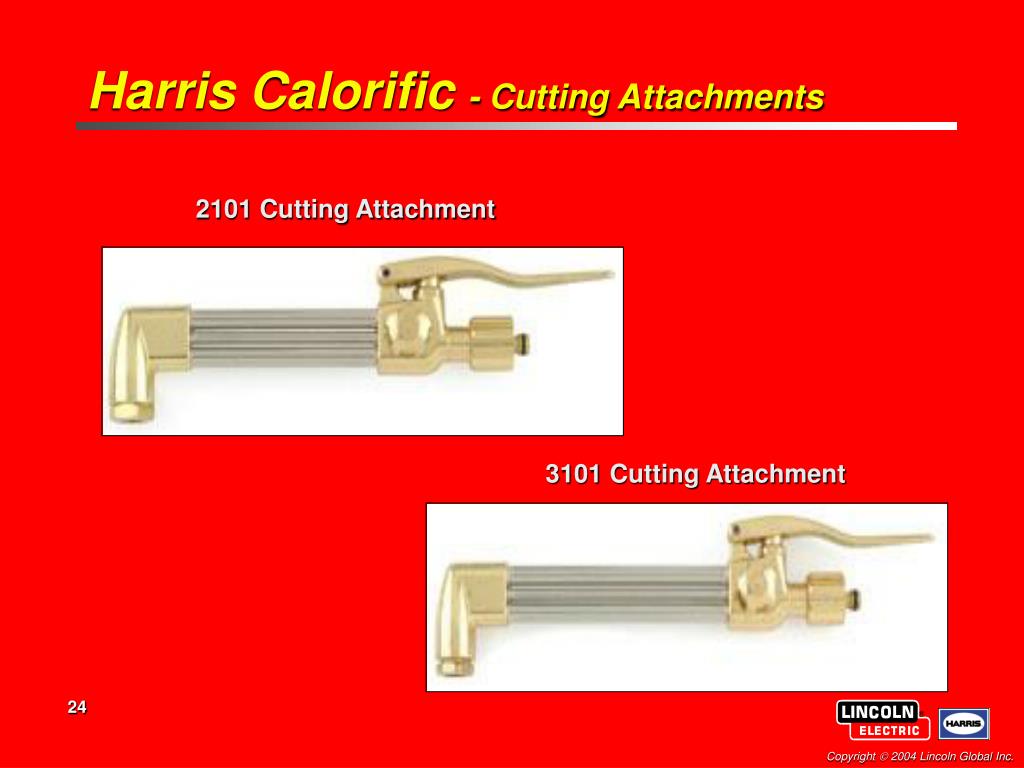

  24. Harris Calorific - Cutting Attachments 2101 Cutting Attachment 3101 Cutting Attachment

  25. Harris Calorific - Cutting Attachments 49-3F Cutting Attachment 36-2 or 36-3 Cutting Attachment 39-3F Cutting Attachment

  26. Harris Calorific - Hand Cutting Torches 42-4 Hand Cutting Torch 62-4 Hand Cutting Torch 136 Hand Cutting Torch 880 Hand Cutting Torch

  27. Harris Calorific - Cutting Tips 3690 Cutting Tip 3690-P Cutting Tip

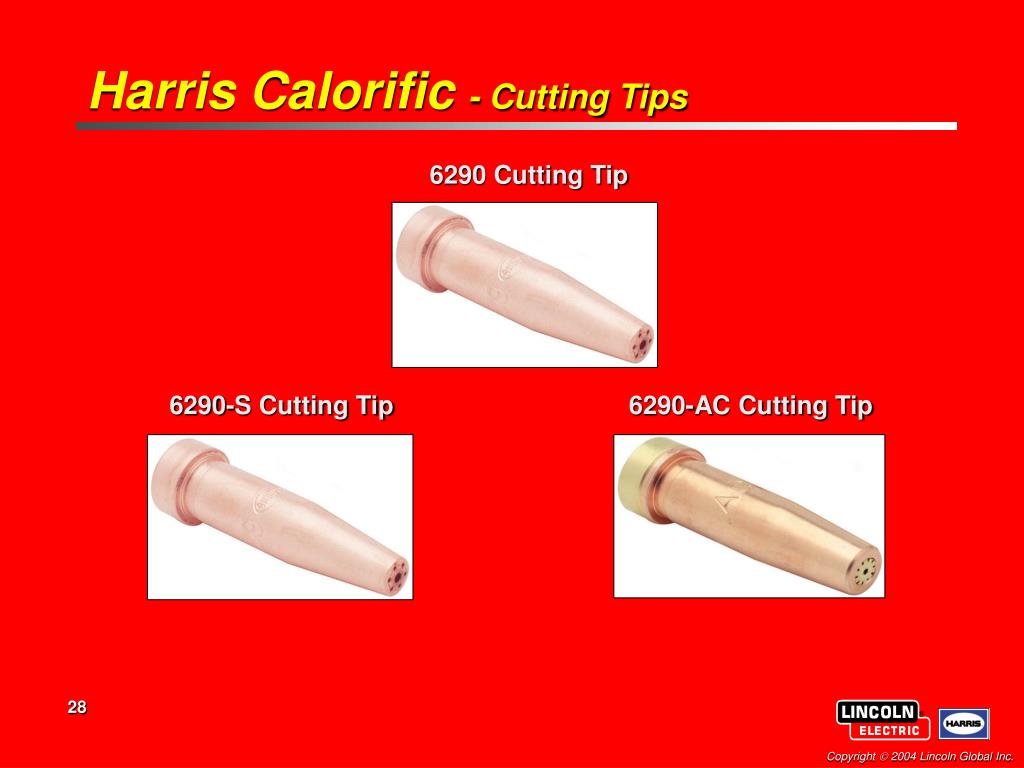

  28. Harris Calorific - Cutting Tips 6290 Cutting Tip 6290-S Cutting Tip 6290-AC Cutting Tip

  29. Harris Calorific - Cutting Tips 6290-N or 6290-NX Cutting Tip 6290 NFF Cutting Tip 6290-NXM or 6290-NXP Cutting Tip

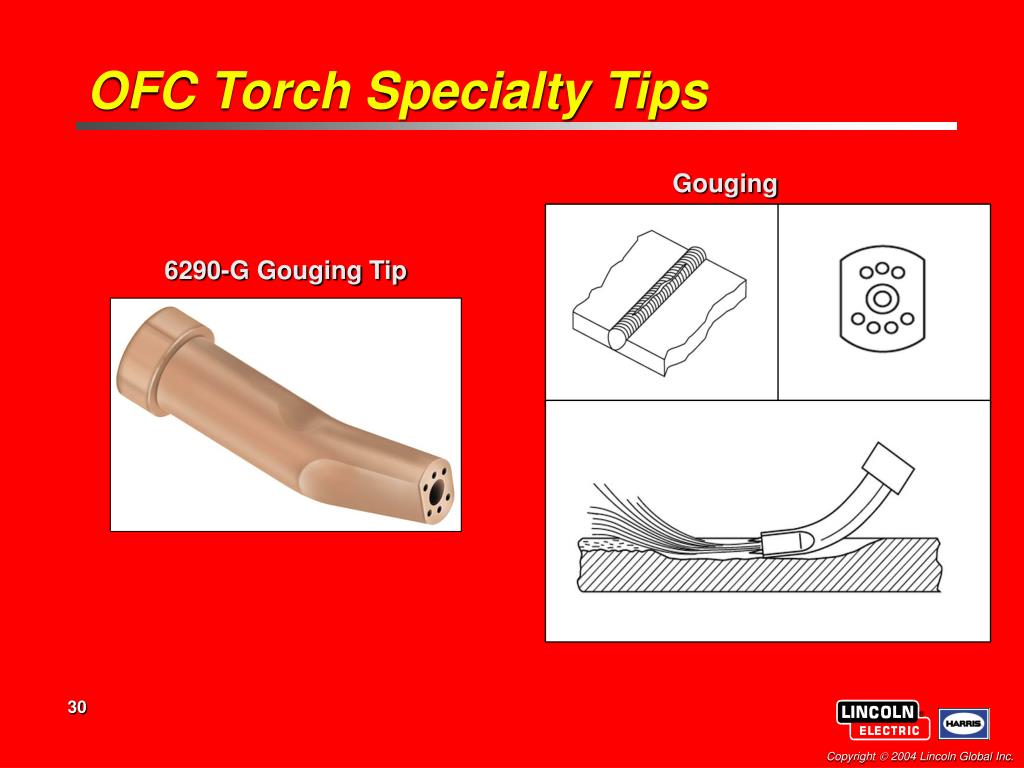

  30. OFC Torch Specialty Tips Gouging 6290-G Gouging Tip

  31. OFC Torch Specialty Tips Rivet Cutting 6290-R Rivet Cutting Tip Tie Down Cutting

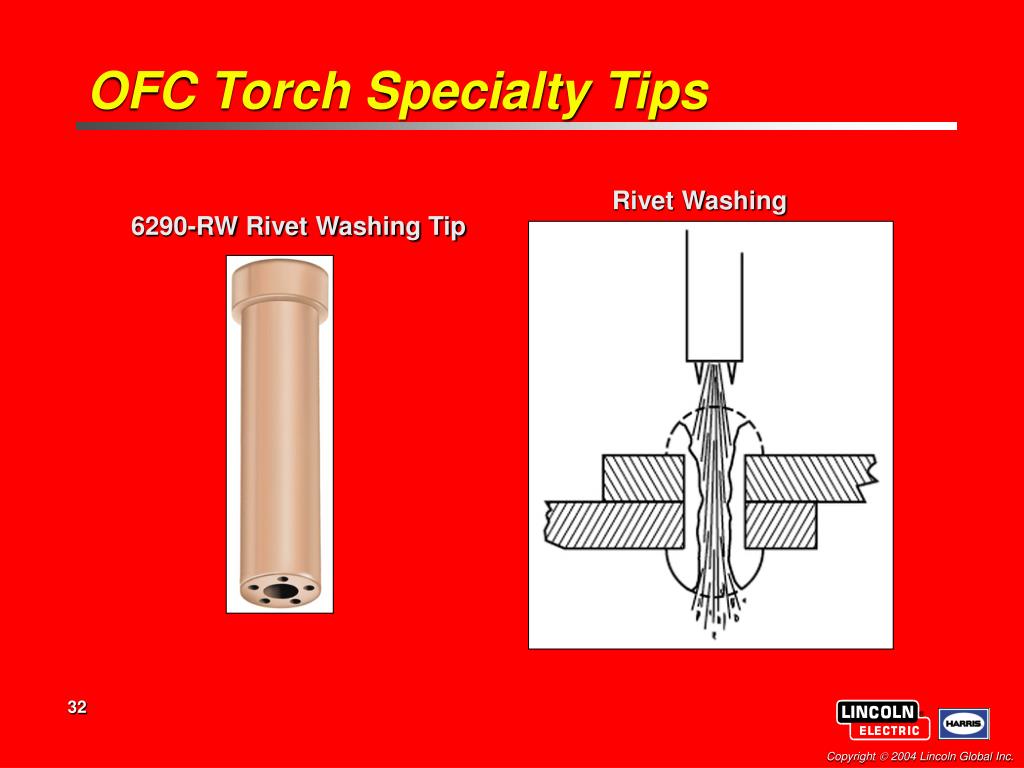

  32. OFC Torch Specialty Tips Rivet Washing 6290-RW Rivet Washing Tip

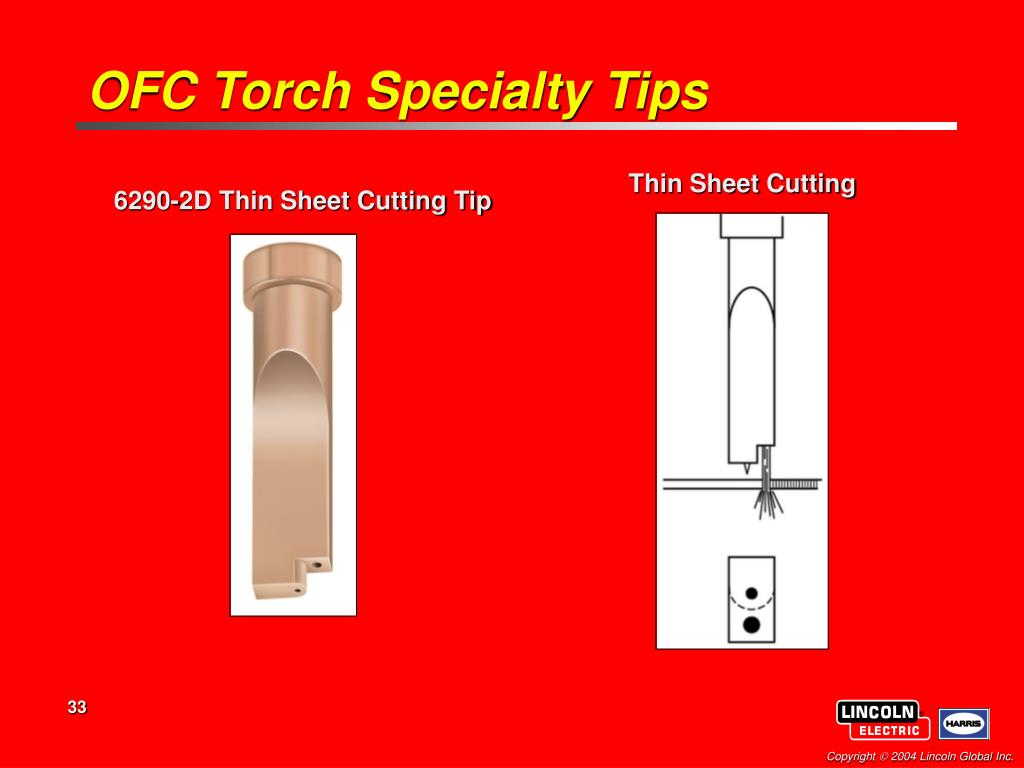

  33. OFC Torch Specialty Tips Thin Sheet Cutting 6290-2D Thin Sheet Cutting Tip

  34. Oxyfuel Gas Heating Heating Assemblies, Tubes & Tips

  35. Harris Calorific - Heating Tip Heating Tip Assemblies for Acetylene

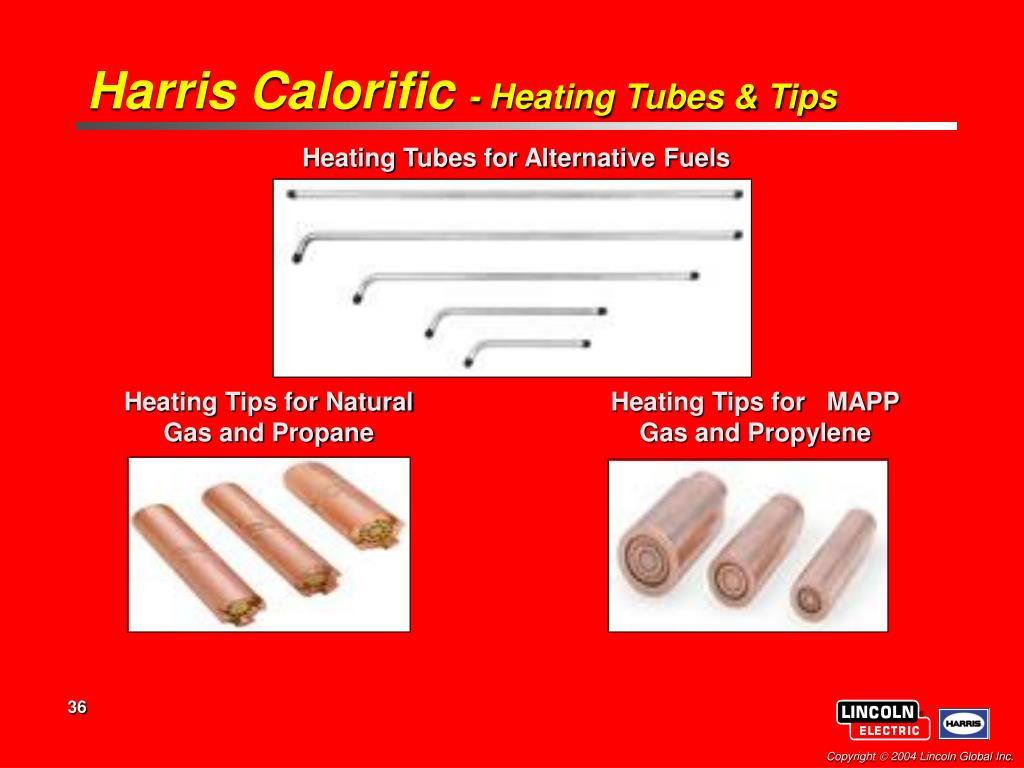

  36. Harris Calorific - Heating Tubes & Tips Heating Tubes for Alternative Fuels Heating Tips for Natural Gas and Propane Heating Tips for MAPP Gas and Propylene

  37. Oxyfuel Gas Welding & Cutting Peripheral Equipment

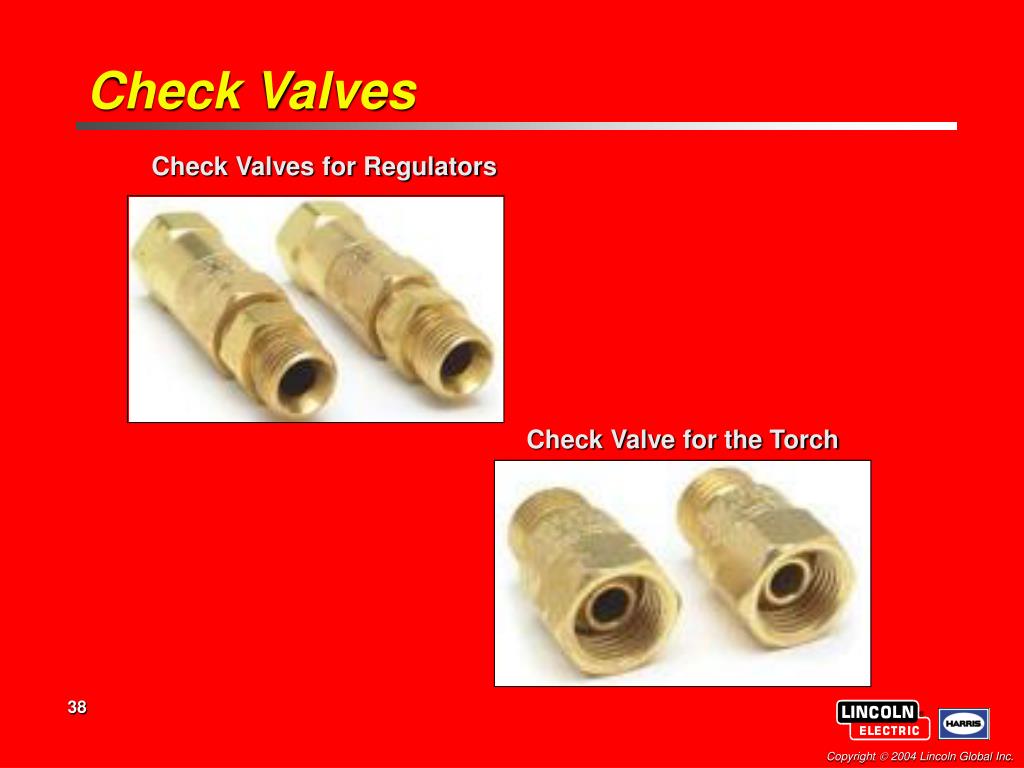

  38. Check Valves Check Valves for Regulators Check Valve for the Torch

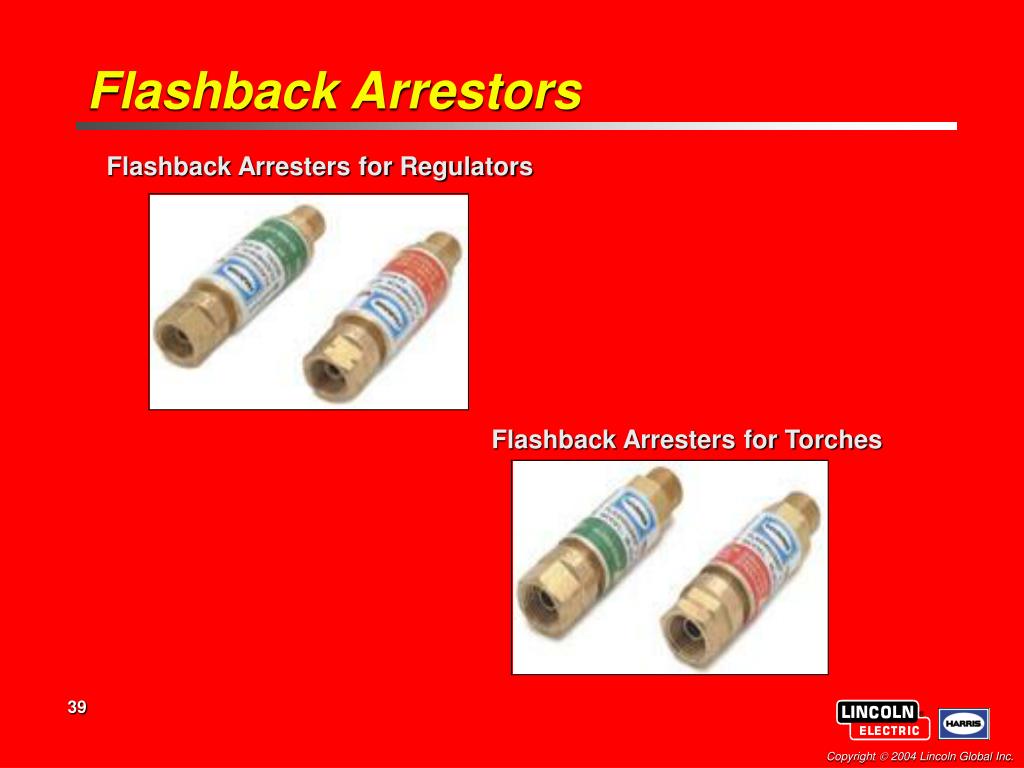

  39. Flashback Arrestors Flashback Arresters for Regulators Flashback Arresters for Torches

  40. Quick Connectors Quick Connectors for Regulators Quick Connectors for Torches
