High-Precision Humidity Chamber for Accurate Environmental Testing

The Presto Humidity Chamber is a state-of-the-art testing solution designed to simulate real environmental conditions by accurately controlling temperature and humidity levels. This humidity chamber is ideal for assessing the durability and performance of materials, complying with ASTM and BS standards. Equipped with a PT-100 sensor, SSR-based heaters, digital controls, and a German fan for uniform air circulation, it ensures reliable and consistent test results. <br>Read more - https://www.testing-instruments.com/humidity-test-chambers/<br>

testing10
Télécharger la présentation

High-Precision Humidity Chamber for Accurate Environmental Testing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

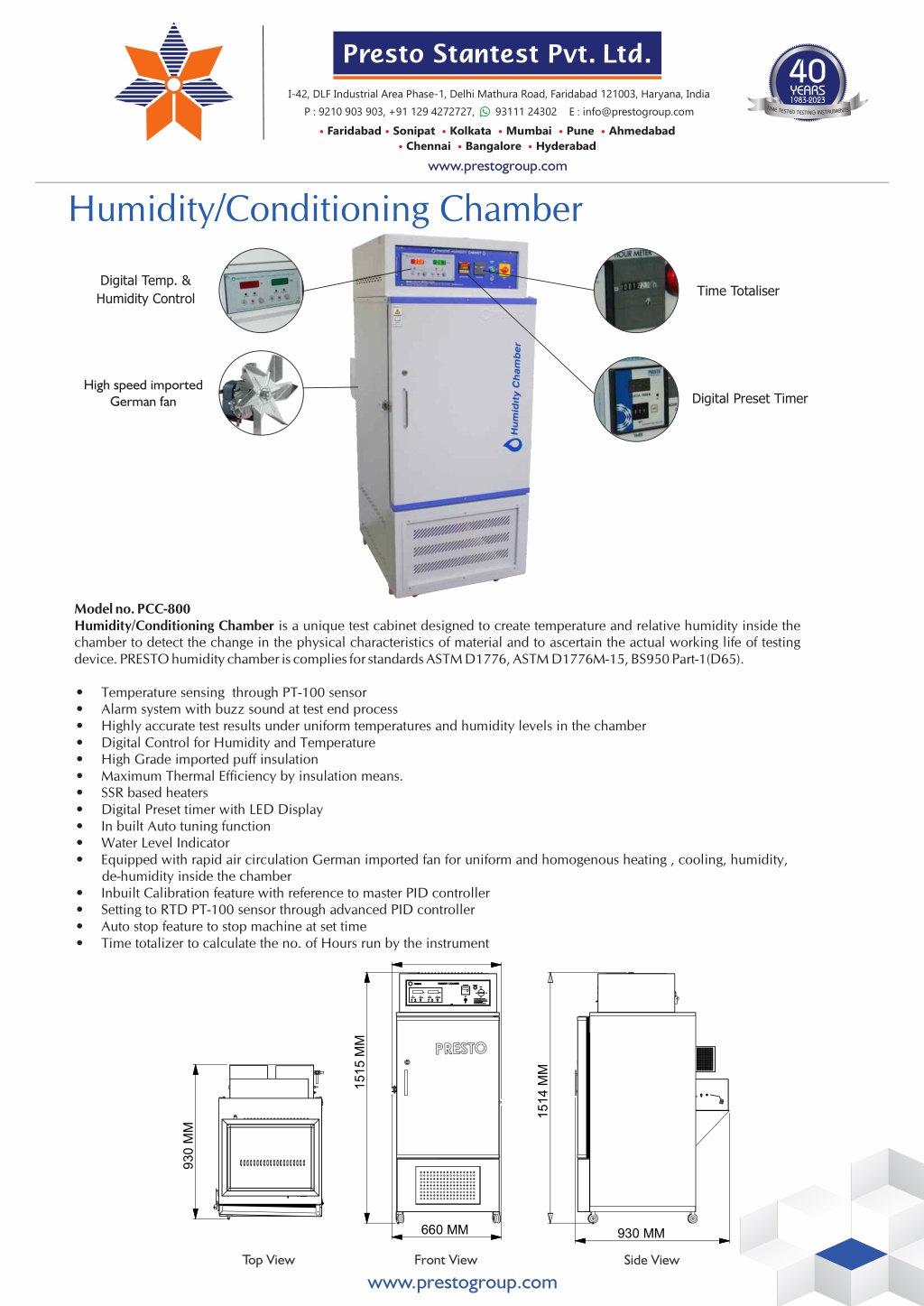

  1. Presto Stantest Pvt. Ltd. I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com 40 YEARS 1983-2023 TIME S T T EN ES UM TE STR D T ESTING IN • Faridabad Sonipat • Kolkata Mumbai Pune Ahmedabad • • Chennai Bangalore Hyderabad www.prestogroup.com • • • • • Humidity/Conditioning Chamber Digital Temp. & Humidity Control Time Totaliser High speed imported German fan Digital Preset Timer Model no. PCC-800 Humidity/Conditioning Chamber is a unique test cabinet designed to create temperature and relative humidity inside the chamber to detect the change in the physical characteristics of material and to ascertain the actual working life of testing device. PRESTO humidity chamber is complies for standards ASTM D1776, ASTM D1776M-15, BS950 Part-1(D65). • • • • • • • • • • • Temperature sensing through PT-100 sensor Alarm system with buzz sound at test end process Highly accurate test results under uniform temperatures and humidity levels in the chamber Digital Control for Humidity and Temperature High Grade imported puff insulation Maximum Thermal Efficiency by insulation means. SSR based heaters Digital Preset timer with LED Display In built Auto tuning function Water Level Indicator Equipped with rapid air circulation German imported fan for uniform and homogenous heating , cooling, humidity, de-humidity inside the chamber Inbuilt Calibration feature with reference to master PID controller Setting to RTD PT-100 sensor through advanced PID controller Auto stop feature to stop machine at set time Time totalizer to calculate the no. of Hours run by the instrument • • • • 1515 MM 1514 MM 930 MM 660 MM 930 MM Top View Front View Side View www.prestogroup.com

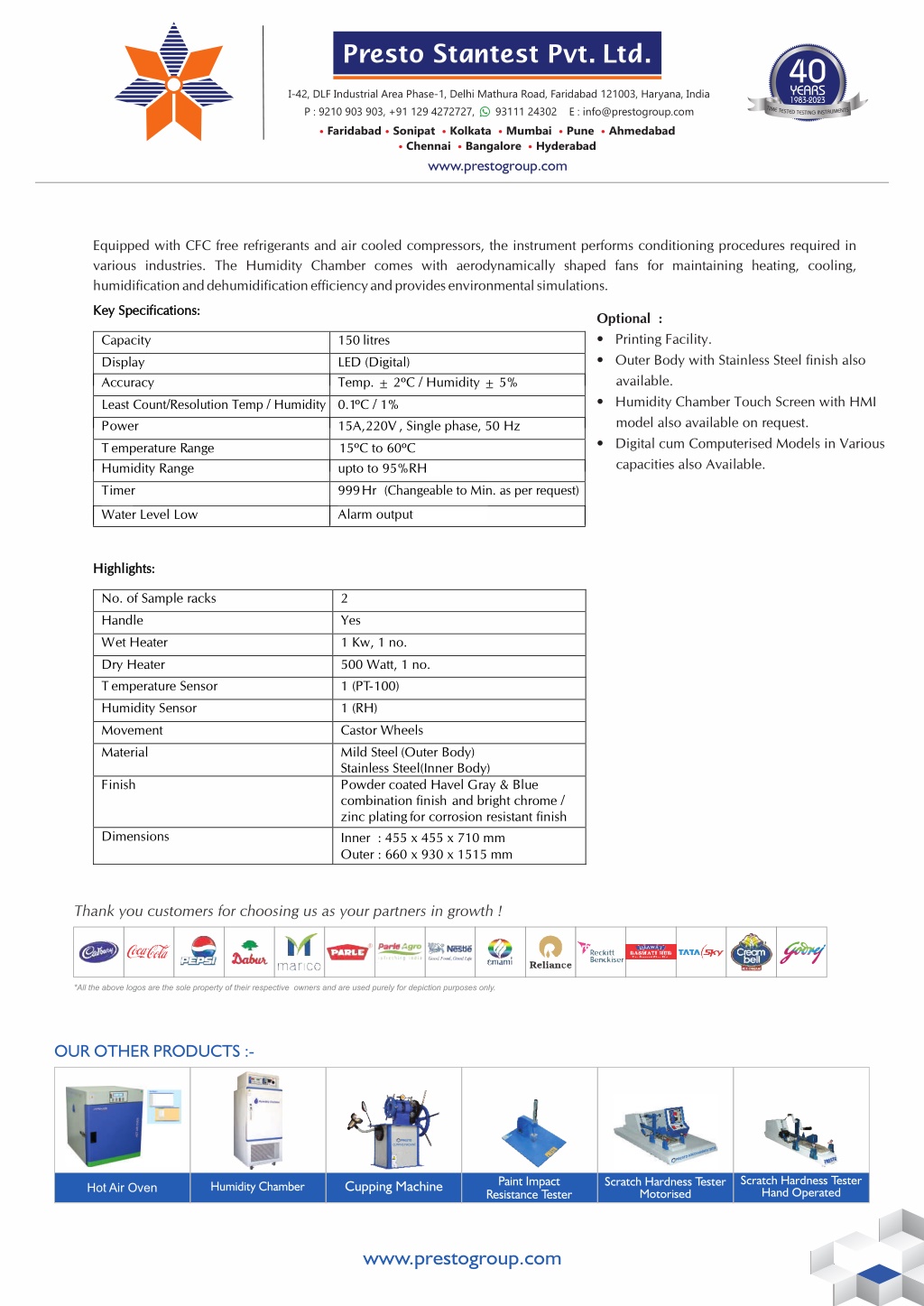

  2. Presto Stantest Pvt. Ltd. I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com 40 YEARS 1983-2023 TIME S T T EN ES UM TE STR D T ESTING IN • Faridabad Sonipat • Kolkata Mumbai Pune Ahmedabad • • Chennai Bangalore Hyderabad www.prestogroup.com • • • • • Equipped with CFC free refrigerants and air cooled compressors, the instrument performs conditioning procedures required in various industries. The Humidity Chamber comes with aerodynamically shaped fans for maintaining heating, cooling, humidification and dehumidification efficiency and provides environmental simulations. Key Specifications: Key Specifications: Optional : • Printing Facility. • Outer Body with Stainless Steel finish also available. • Humidity Chamber Touch Screen with HMI model also available on request. • Digital cum Computerised Models in Various capacities also Available. Capacity Display Accuracy Least Count/Resolution Temp / Humidity Power Temperature Range Humidity Range Timer Water Level Low 150litres LED (Digital) Temp. ± 2ºC / Humidity ± 5% 0.1ºC / 1% 15A, 220V, Single phase, 50 Hz upto to 95%RH 999Hr (Changeable to Min. as per request) Alarm output 15ºC to 60ºC Highlights: Highlights: No. of Sample racks Handle Wet Heater Dry Heater Temperature Sensor Humidity Sensor Movement Material Finish 2 Yes 1 Kw, 1 no. 500 Watt, 1 no. 1 (PT-100) 1 (RH) Castor Wheels Mild Steel (Outer Body) Stainless Steel(Inner Body) Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish Inner : 455 x 455 x 710 mm Outer : 660 x 930 x 1515 mm Dimensions OUR OTHER PRODUCTS :- SCRATCH HARDNESS TESTER CUPPING MACHINE SCRATCH HARDNESS TESTER Scratch Hardness Tester Hand Operated Scratch Hardness Tester Motorised Cupping Machine Hot Air Oven www.prestogroup.com
