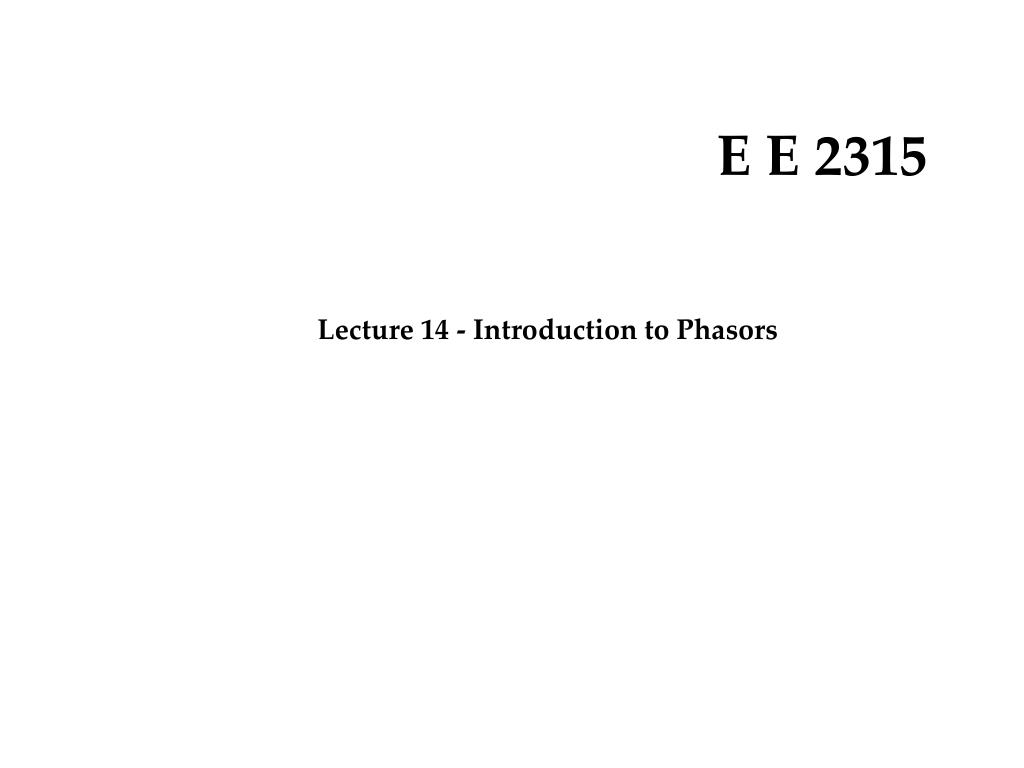

  1. E E 2315 Lecture 14 - Introduction to Phasors

  2. The Sinusoidal Function f

  3. Sinusoid to Phasor Exponential form: Separate exponents: Phasor transform: Also:

  4. Impedance of an Inductor

  5. Phasor Diagram of Inductor V-I Relationship Voltage leads current by 90°

  6. Impedance of a Capacitor

  7. Phasor Diagram of Capacitor V-I Relationship Current leads Voltage by 90°

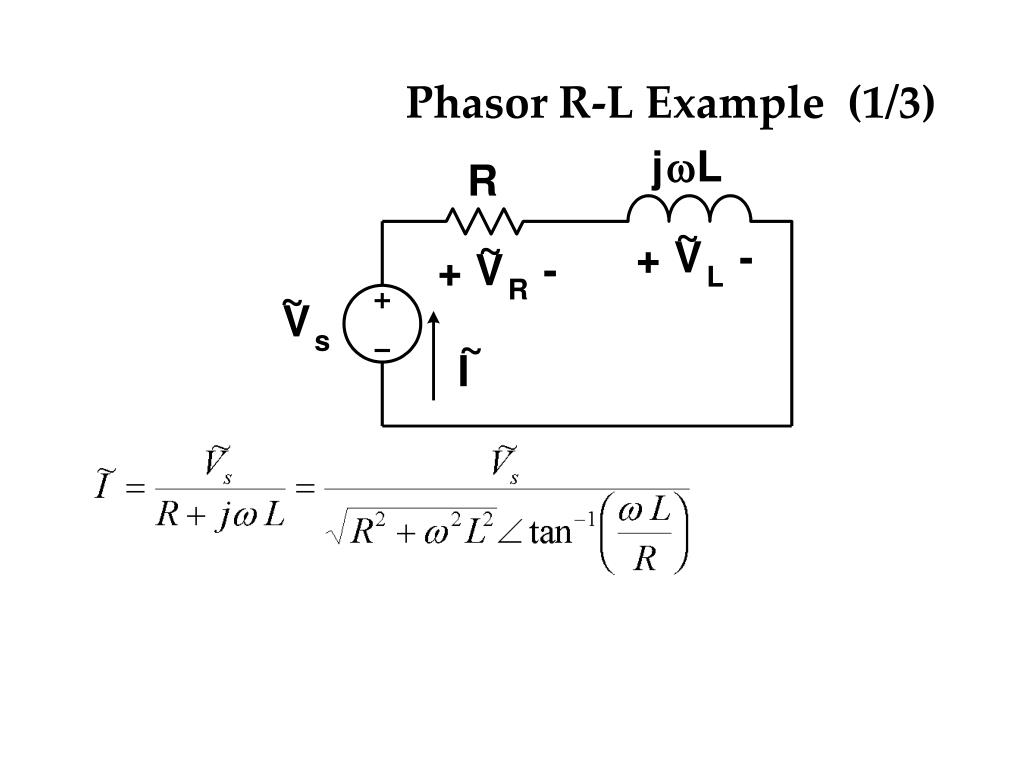

  8. Phasor R-L Example (1/3)

  9. Phasor R-L Example (2/3)

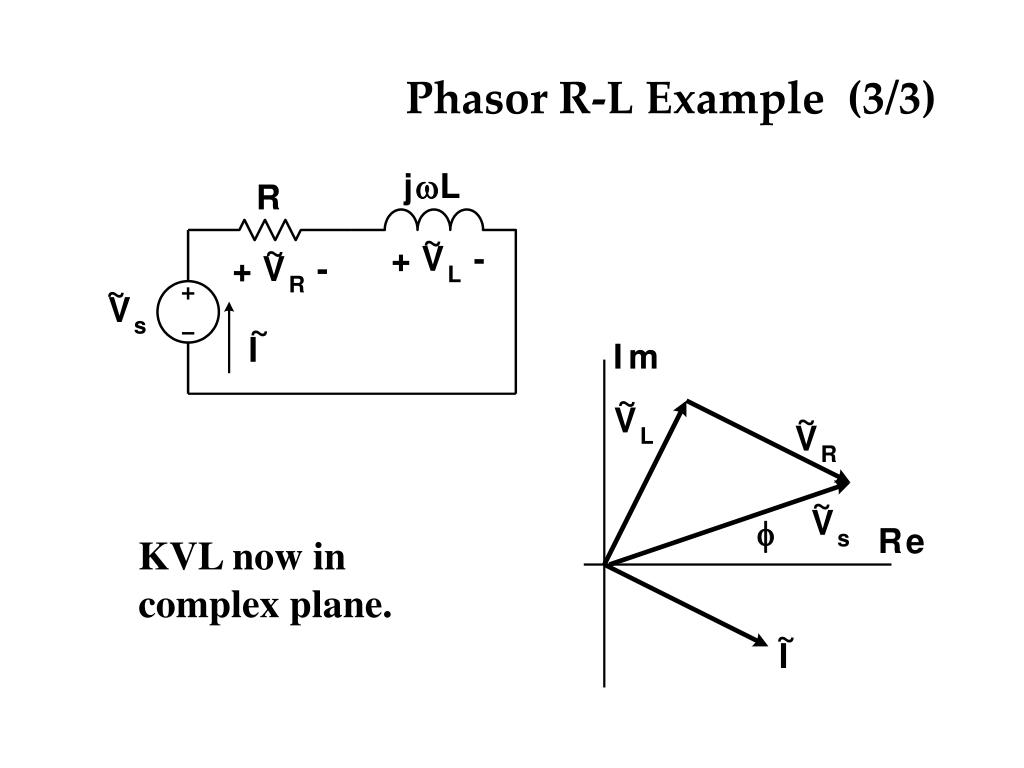

  10. Phasor R-L Example (3/3) KVL now in complex plane.
