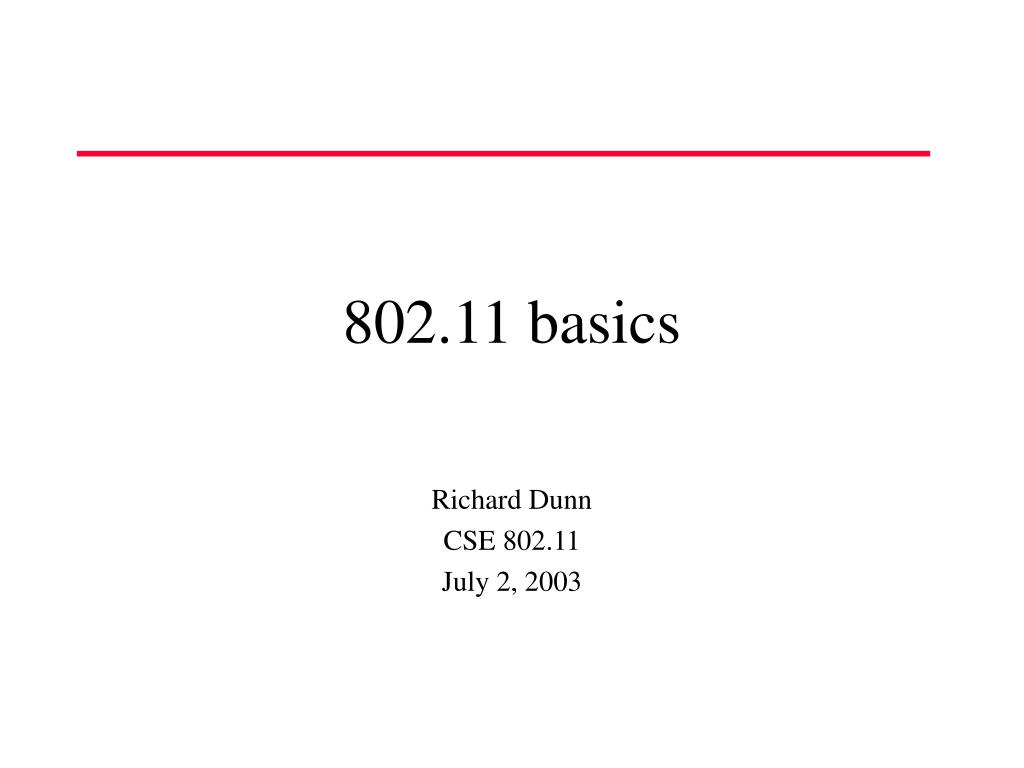

  1. 802.11 basics Richard Dunn CSE 802.11 July 2, 2003

  2. What is 802.11? • Series of standards from IEEE • MAC layer standard plus physical layer standards using different technologies (a, b, g) • Plus enhancements for security, QoS, interoperability

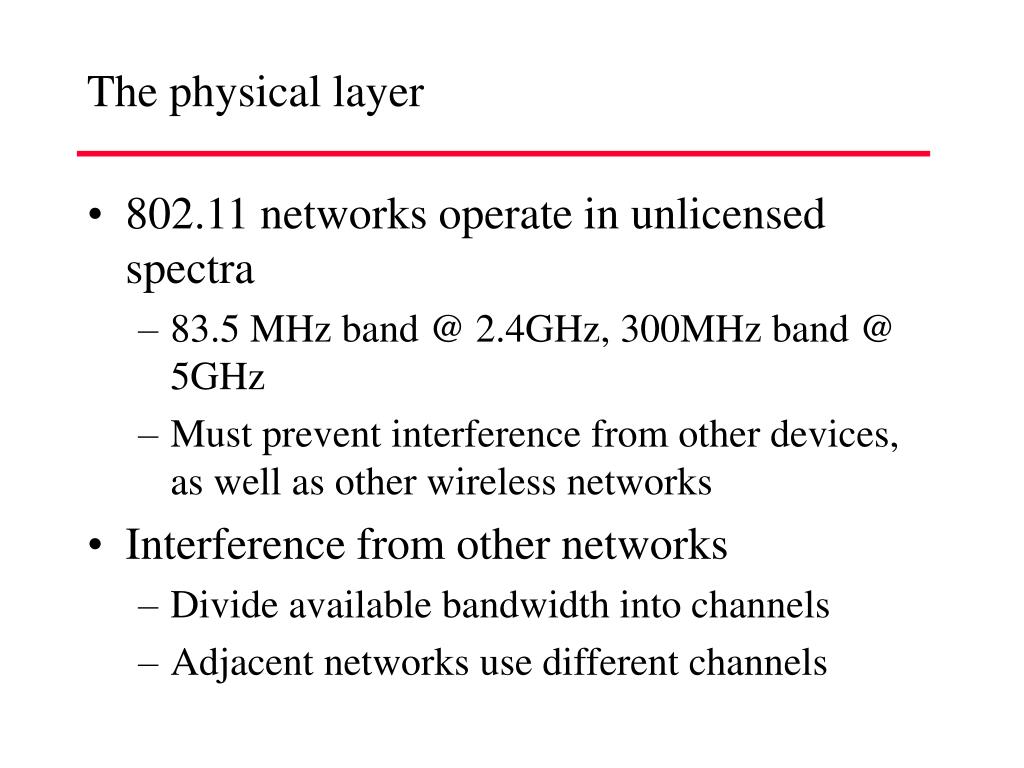

  3. The physical layer • 802.11 networks operate in unlicensed spectra • 83.5 MHz band @ 2.4GHz, 300MHz band @ 5GHz • Must prevent interference from other devices, as well as other wireless networks • Interference from other networks • Divide available bandwidth into channels • Adjacent networks use different channels

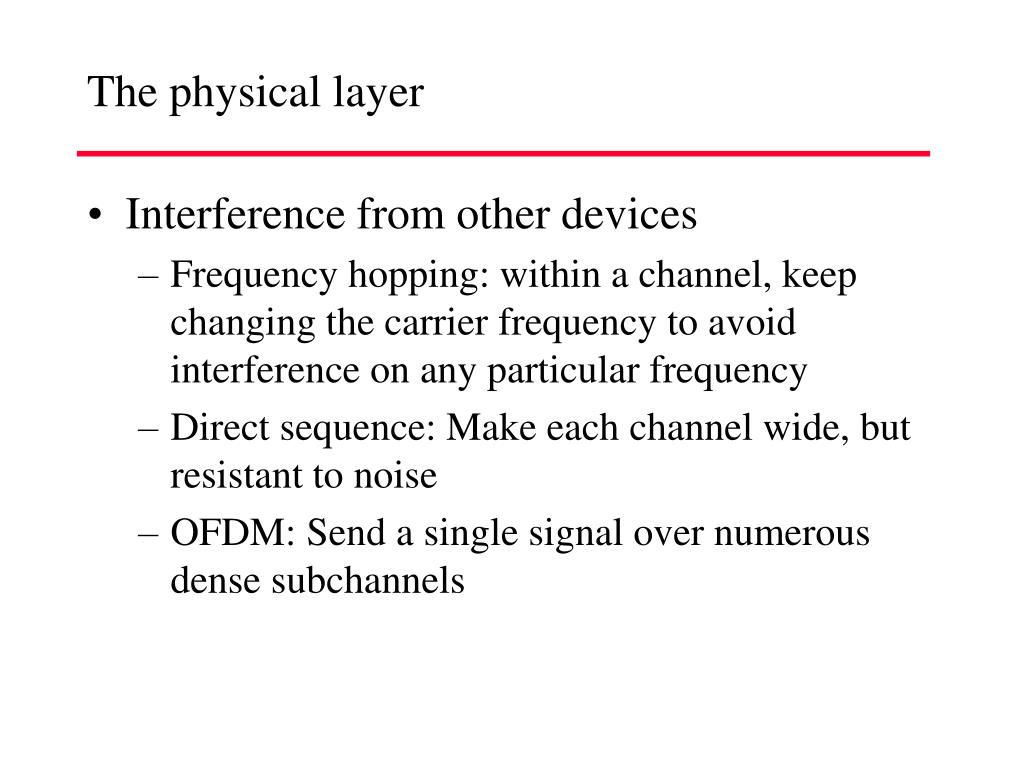

  4. The physical layer • Interference from other devices • Frequency hopping: within a channel, keep changing the carrier frequency to avoid interference on any particular frequency • Direct sequence: Make each channel wide, but resistant to noise • OFDM: Send a single signal over numerous dense subchannels

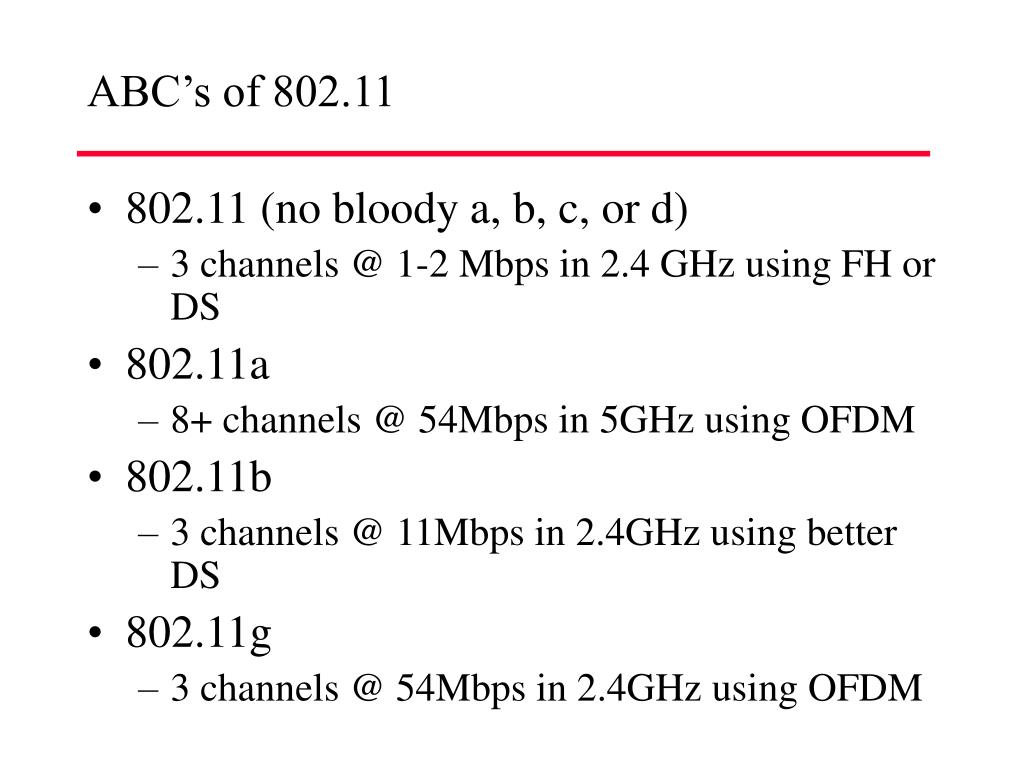

  5. ABC’s of 802.11 • 802.11 (no bloody a, b, c, or d) • 3 channels @ 1-2 Mbps in 2.4 GHz using FH or DS • 802.11a • 8+ channels @ 54Mbps in 5GHz using OFDM • 802.11b • 3 channels @ 11Mbps in 2.4GHz using better DS • 802.11g • 3 channels @ 54Mbps in 2.4GHz using OFDM

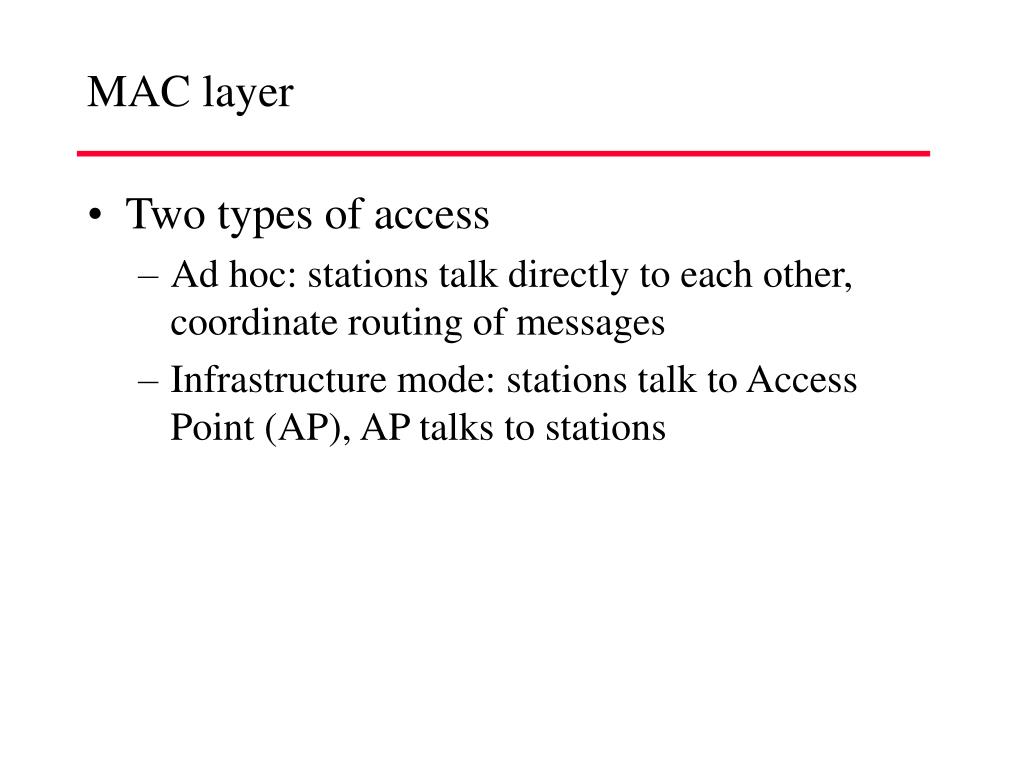

  6. MAC layer • Two types of access • Ad hoc: stations talk directly to each other, coordinate routing of messages • Infrastructure mode: stations talk to Access Point (AP), AP talks to stations

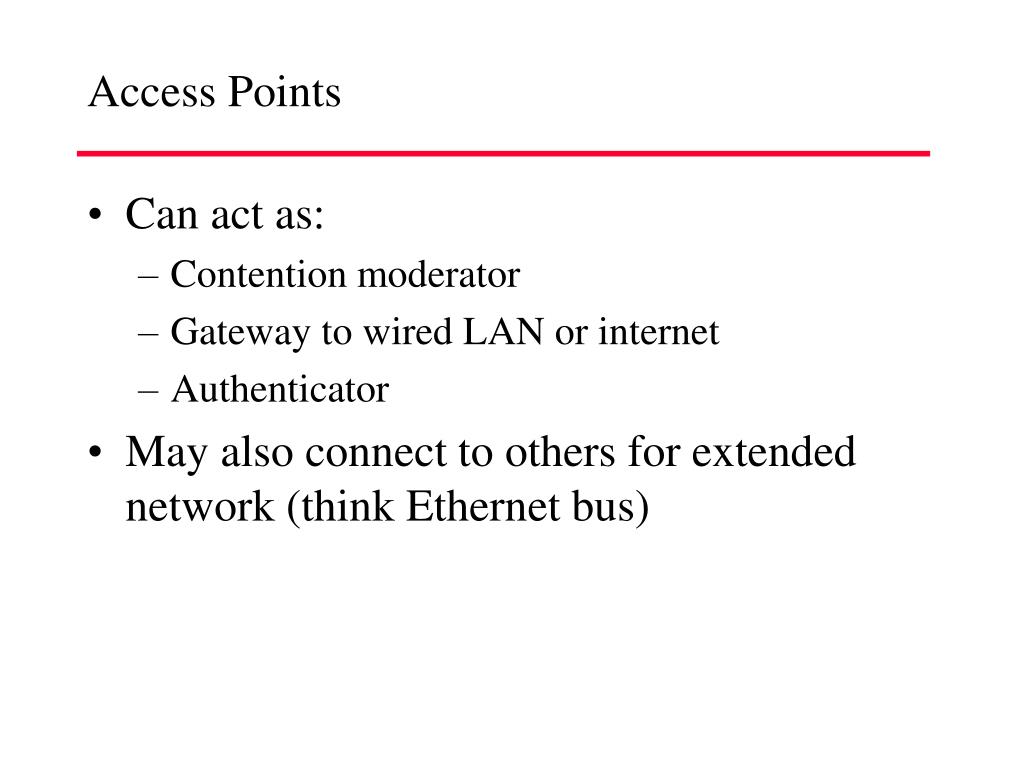

  7. Access Points • Can act as: • Contention moderator • Gateway to wired LAN or internet • Authenticator • May also connect to others for extended network (think Ethernet bus)

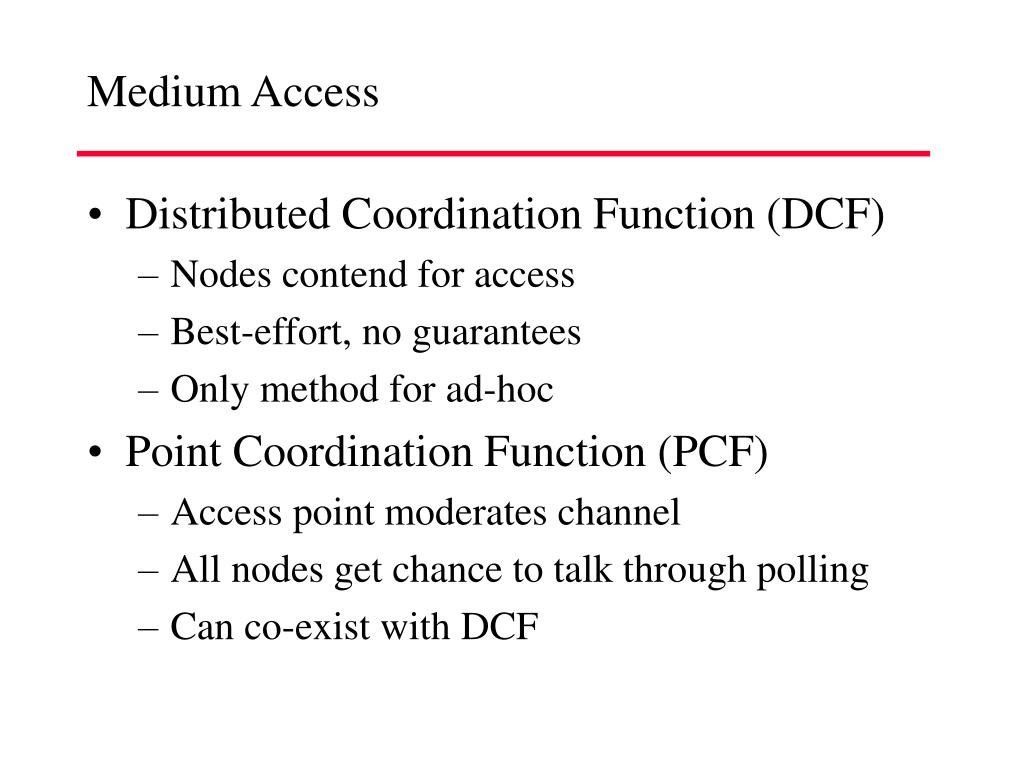

  8. Medium Access • Distributed Coordination Function (DCF) • Nodes contend for access • Best-effort, no guarantees • Only method for ad-hoc • Point Coordination Function (PCF) • Access point moderates channel • All nodes get chance to talk through polling • Can co-exist with DCF

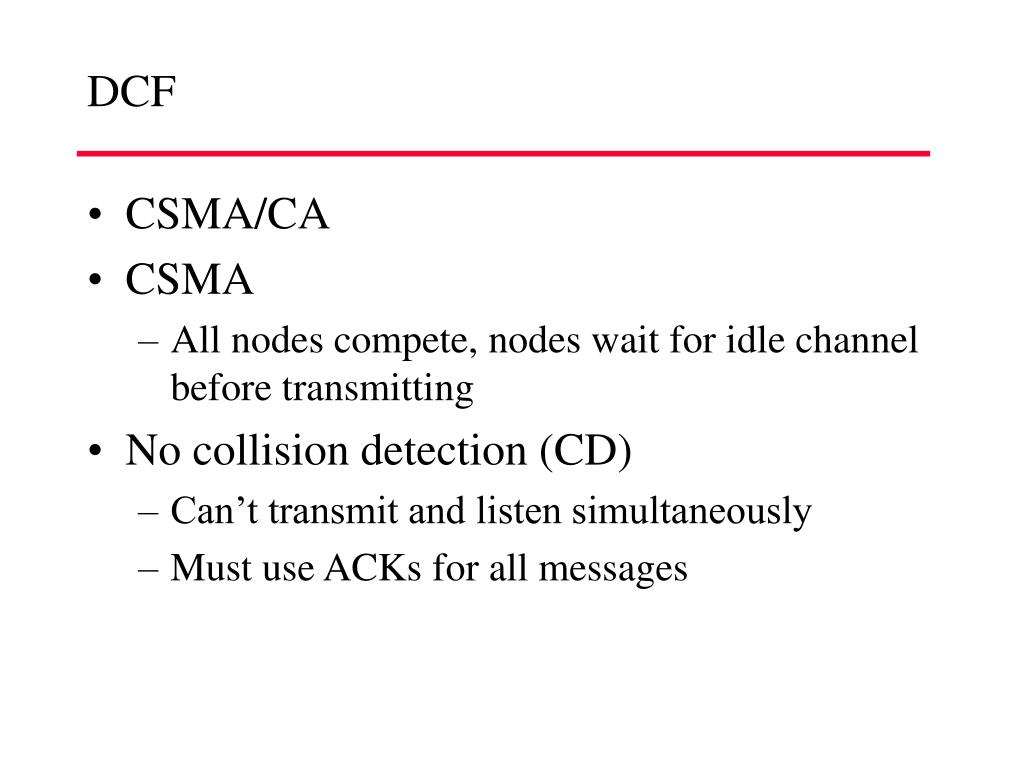

  9. DCF • CSMA/CA • CSMA • All nodes compete, nodes wait for idle channel before transmitting • No collision detection (CD) • Can’t transmit and listen simultaneously • Must use ACKs for all messages

  10. DCF – Collision Avoidance • Don’t want to waste time/energy on full packets • Can send short RTS frames instead, wait for CTS • All frames have duration field to reserve channel for time of reply • Normal backoff if no CTS

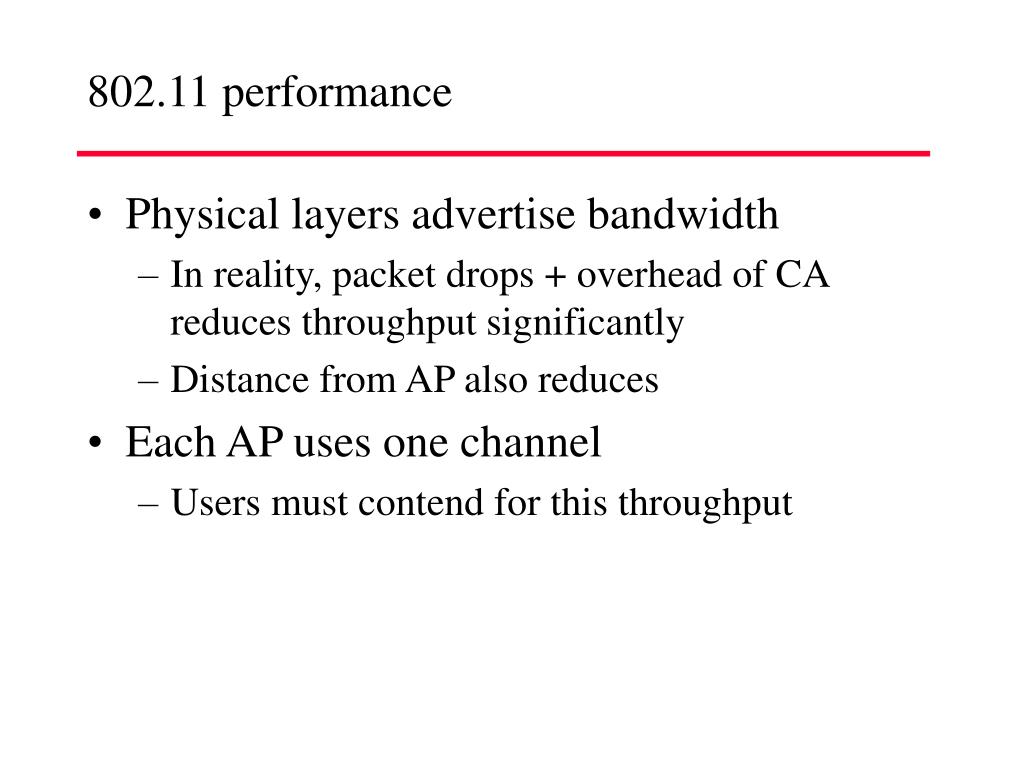

  11. 802.11 performance • Physical layers advertise bandwidth • In reality, packet drops + overhead of CA reduces throughput significantly • Distance from AP also reduces • Each AP uses one channel • Users must contend for this throughput

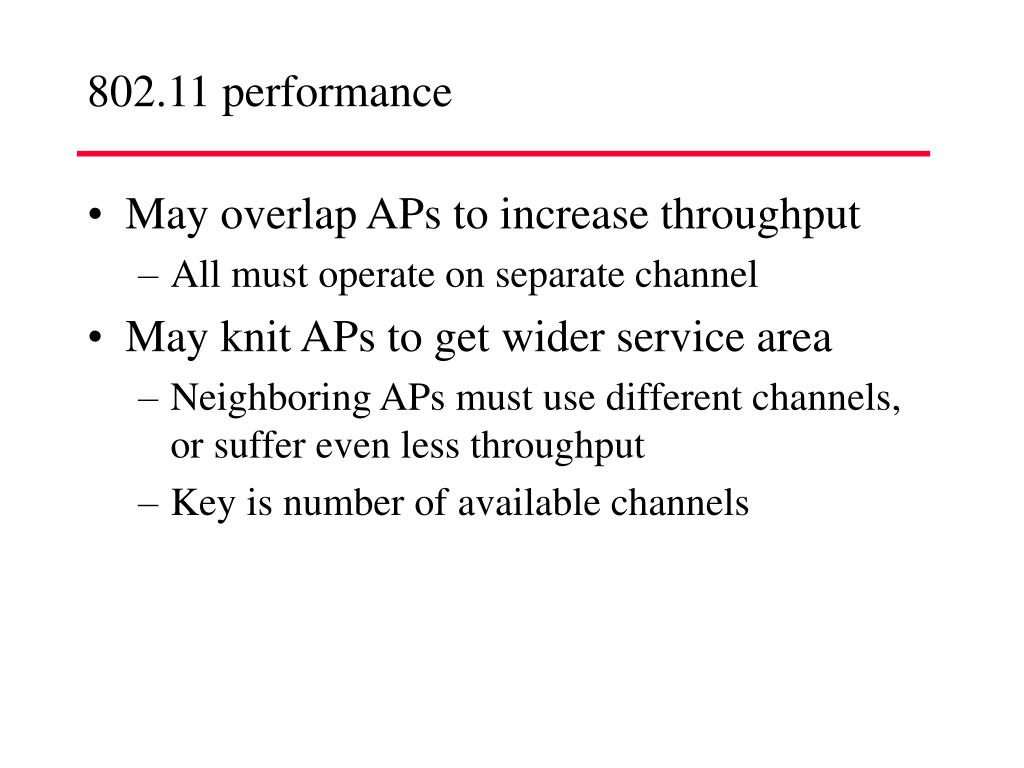

  12. 802.11 performance • May overlap APs to increase throughput • All must operate on separate channel • May knit APs to get wider service area • Neighboring APs must use different channels, or suffer even less throughput • Key is number of available channels

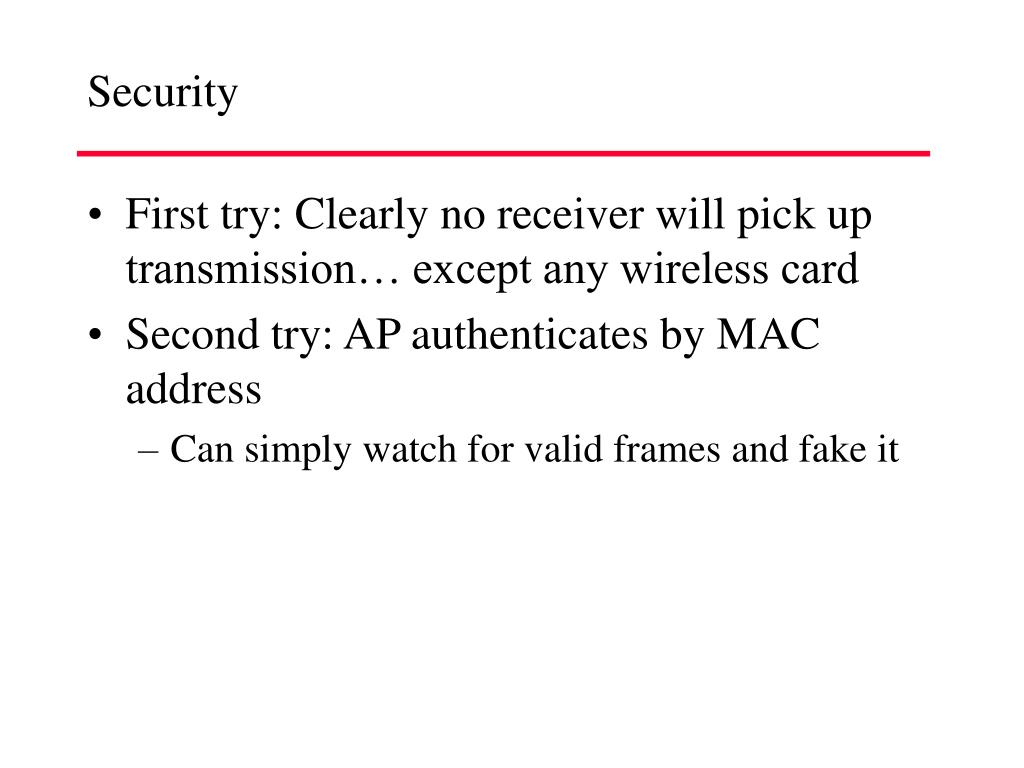

  13. Security • First try: Clearly no receiver will pick up transmission… except any wireless card • Second try: AP authenticates by MAC address • Can simply watch for valid frames and fake it

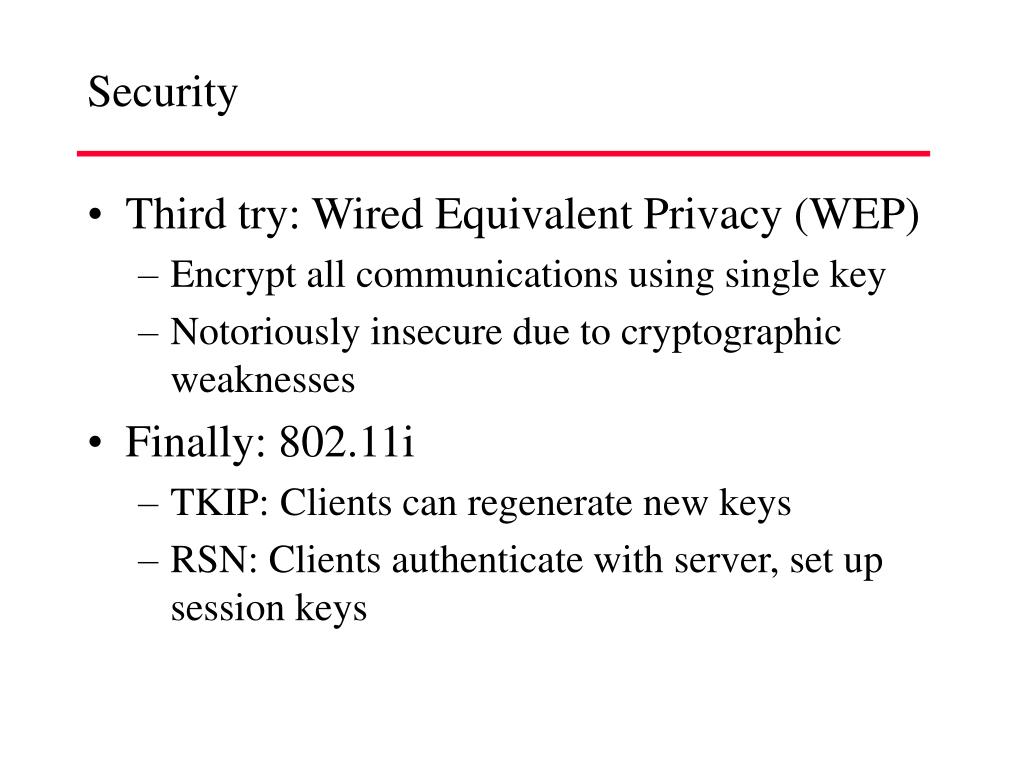

  14. Security • Third try: Wired Equivalent Privacy (WEP) • Encrypt all communications using single key • Notoriously insecure due to cryptographic weaknesses • Finally: 802.11i • TKIP: Clients can regenerate new keys • RSN: Clients authenticate with server, set up session keys
