  1. Approximability Results for Induced Matchings in Graphs David Manlove University of Glasgow Joint work with Billy Duckworth Michele Zito Macquarie University University of Liverpool Supported by EPSRC grant GR/R84597/01,Nuffield Foundation award NUF-NAL-02, and RSE / SEETLLD Personal Research Fellowship

  2. What is a matching? • Let G=(V,E) be a graph • A matchingM is a set of edges in E, such that no pair of edges of M are adjacent in G u1 w1 u2 w2 u3 w3 u4 w4 • A matching of size 3

  3. What is a matching? • Let G=(V,E) be a graph • A matchingM is a set of edges in E, such that no pair of edges of M are adjacent in G u1 w1 u2 w2 u3 w3 u4 w4 • A matching of size 4 – a maximum matching

  4. What is an induced matching? • An induced matchingM is a matching such that no pair of edges of M are joined by an edge in G u1 w1 u2 w2 u3 w3 u4 w4 • Not an induced matching

  5. What is an induced matching? • An induced matchingM is a matching such that no pair of edges of M are joined by an edge in G u1 w1 u2 w2 u3 w3 u4 w4 • An induced matching of size 2

  6. What is an induced matching? • An induced matchingM is a matching such that no pair of edges of M are joined by an edge in G u1 w1 u2 w2 u3 w3 u4 w4 • An induced matching of size 3 – a maximum induced matching

  7. Maximum induced matchings • Let MIM denote the problem of finding a maximum induced matching in a given graph • MIM has applications in: • VLSI design • Channel assignment problems • Network flow • MIM is NP-hard (Stockmeyer and Vazirani, 1982) • No polynomial-time algorithm exists unless P=NP • Consider restricted classes of graphs • Some cases might be polynomial-time solvable • Many cases remain NP-hard!

  8. Restrictions on vertex degrees • The degree of a vertex v is the number of edges incident to v • A graph has maximum degreed if every vertex has degree ≤d • A graph is d-regular if each vertex has degree d • A 3-regular graph is also called a cubic graph

  9. Complexity results • MIM is NP-hard even for: • planar bipartite graphs of maximum degree 3 (Ko and Shepherd, 1994) • 4k-regular graphs for each k ≥ 1 (Zito, 1999) • r-regular graphs for each r ≥ 5 (Kobler and Rotics, 2003) • MIM is solvable in polynomial time for: • chordal graphs (Cameron, 1989) • trees (Fricke and Laskar, 1992; Zito, 1999) • and many other classes of graphs

  10. Maximisation problems • A maximisation problem consists of: • a set of instances • each instance has a (finite) set of feasible solutions • each feasible solution has a value • for an instance I, denote by OPT(I)the value of a maximum feasible solution • An optimisingalgorithm determines the value of OPT(I)for every instance I • For many problems, the only available optimising algorithms may be of exponential time complexity • Anapproximation algorithm is a polynomial-time algorithm that returns a feasible solution for a given instance

  11. Approximation algorithms • Let P be a maximisation problem and let A be an approximation algorithm for P • For an instance Iof P, suppose A returns a feasible solution with value A(I) • A has a performance guaranteec 1 if A(I)  (1/c)  OPT(I)for all instancesI • We say that A is a c-approximationalgorithm • A has asymptotic performance guaranteec if there is some N such that, for any instance I of P where OPT(I)N, A(I)  1/c  OPT(I)

  12. Polynomial-time approximation schemes • Let P be a maximisation problem • Suppose that, for any instance I of P and for any  > 0 there exists a (1+ )-approximation algorithm A for P • Complexity of A must be polynomial in |I| • The family of algorithms {A :  > 0 } is called a polynomial-time approximation scheme (PTAS)

  13. Our results For any d-regular graph, where d 3: • MIM admits an approximation algorithm with asymptotic performance guarantee d - 1 • MIM is APX-complete • i.e. MIM does not admit a polynomial-time approximation scheme unless P=NP Duckworth, Manlove, Zito, to appear in Journal of Discrete Algorithms, 2004

  14. Approximation algorithm for MIM let M be the empty matching; select an edge {u,v} from E; add {u,v} to M; delete each edge at distance ≤ 2 from {u,v}; delete each vertex adjacent to u or v; while there is some edge in G loop choose a vertex u of minimum degree; choose a vertex v of minimum degree adjacent to u; add {u,v} to M; delete each edge at distance ≤ 2 from {u,v}; delete each vertex adjacent to u or v; end loop

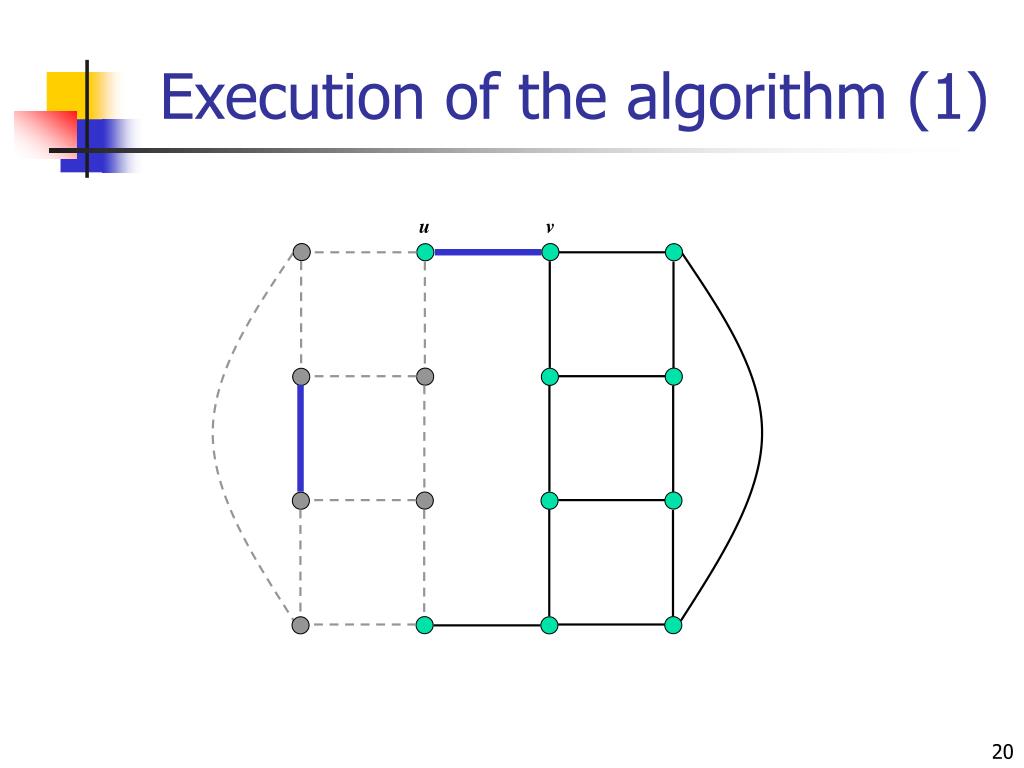

  15. Execution of the algorithm (1)

  16. Execution of the algorithm (1) u v

  17. Execution of the algorithm (1) u v

  18. Execution of the algorithm (1) u v

  19. Execution of the algorithm (1) 1 3 3 3 3 3 3 1 3 3

  20. Execution of the algorithm (1) u v

  21. Execution of the algorithm (1) u v

  22. Execution of the algorithm (1) u v

  23. Execution of the algorithm (1) 1 3 2 3 1 2

  24. Execution of the algorithm (1) u v

  25. Execution of the algorithm (1) u v

  26. Execution of the algorithm (1) u v

  27. Execution of the algorithm (1)

  28. Execution of the algorithm (1) u v

  29. Execution of the algorithm (1) u v

  30. Execution of the algorithm (1)

  31. Execution of the algorithm (1) • Algorithm produces optimal solution (size 4)

  32. Execution of the algorithm (2)

  33. Execution of the algorithm (2) u v

  34. Execution of the algorithm (2) u v

  35. Execution of the algorithm (2) u v

  36. Execution of the algorithm (2) 3 2 3 3 3

  37. Execution of the algorithm (2) v u

  38. Execution of the algorithm (2) v u

  39. Execution of the algorithm (2) v u

  40. Execution of the algorithm (2)

  41. Execution of the algorithm (2) • Algorithm produces induced matching of size 2

  42. A maximum induced matching • Maximum induced matching has size 3

  43. Bounds for induced matchings • Let G=(V,E) be a d-regular graph, where n=|V| • Theorem The algorithm produces an induced matching M where • Theorem (Zito ’99) Any induced matching M* satisfies

  44. Bounds for induced matchings • Corollary The algorithm has asymptotic performance guarantee d-1. • Proof let M be an induced matching returned by A Let M* be a maximum induced matching in G

  45. APX-completeness (1) Theorem MIM is APX-complete for cubic graphs ProofBy reduction from MIS in cubic graphs • MIS is the problem of finding a maximum independent set in a given graph G • A set of vertices S isindependent if no two vertices in S are adjacent in G • MIS is APX-complete in cubic graphs (Alimonti and Kann, 2000)

  46. APX-completeness (1) Theorem MIM is APX-complete for cubic graphs ProofBy reduction from MIS in cubic graphs • MIS is the problem of finding a maximum independent set in a given graph G • A set of vertices S isindependent if no two vertices in S are adjacent in G • MIS is APX-complete in cubic graphs (Alimonti and Kann, 2000)

  47. APX-completeness (2) Theorem MIM is APX-complete for 4-regular graphs ProofBy reduction from MIM in cubic graphs (which is APX-complete by the previous theorem) Theorem MIM is APX-complete for d-regular graphs, for d 5 ProofBy reduction from MIS in (d-2)-regular graphs (Kobler and Rotics, 2003) MIS is APX-complete for (d-2)-regular graphs (Chlebík and Chlebíková, 2003)

  48. Open problems • Constant factor approximation algorithm for general graphs? • Improved approximation algorithms for d-regular graphs • Improved lower bounds for d-regular graphs • Is there a PTAS for planar graphs?
