  1. Composability and Schedulability of Real-TimeApplications in Open Environments Nathan Fisher Department of Computer Science Wayne State University

  2. Outline • Background: • Real-Time Systems. • Scheduling Algorithms. • Open Environments. • Prior Work. • Our Results: • Framework for real-time applications in an open environments. • Validation Tests: Composability & Schedulability • Open Questions & Summary. • “Shameless” Plugs.

  3. What is a Real-Time System? • System Correctness: • Logical. • Temporal. • Predictability is more important than performance. Do all system computations satisfy associated temporal constraints? Background– Prior Work– Our Results– Open Questions

  4. Examples of Real-Time Systems • Real-Time System Examples: • Safety Critical: • Avionic control, power plants, automotive, medical devices, robotics … • Consumer Electronics: • Cellular phones, MP3 players, digital video devices,… • Networking: • Multimedia streams, QoS constraints, network processing,… • … Background– Prior Work– Our Results– Open Questions

  5. Example: Air Traffic-Flight Control sampling rates may be minutes or even hours commands responses operator-system interface  state estimator air traffic control from sensors • Control Subsystem/Application: • set timer to interrupt periodically with period T; • at each timer interrupt do • do analog-to-digital conversion to get input sample y; • compute control outputu; • output u and do digital-to-analog conversion; • od virtual plant navigation  flight management state estimator virtual plant  flight control state estimator sampling rates may be secs. or msecs. air data physical plant Background– Prior Work– Our Results– Open Questions

  6. Modeling a Real-Time System • Processing platform. • Uniprocessor. • Unit speed: • (one unit of execution) per (one unit of time). Background– Prior Work– Our Results– Open Questions

  7. time Modeling a Real-Time System • Processing platform. • Real-Time workload: • Job: basic unit of work. • Characterized by: • Arrival-time. • Deadline. • Worst-case execution time. • Preemptable. Background– Prior Work– Our Results– Open Questions

  8. time Modeling a Real-Time System • Processing platform. • Real-Time workload: • Job: basic unit of work. • Characterized by: • Arrival-time. • Deadline. • Worst-case execution time. • Preemptable. • Tasks: Recurrent set of jobs. Background– Prior Work– Our Results– Open Questions

  9. Period: invocation interval. Job: control invocation. time 40 10 20 30 0 Task A Tasks: Recurrent Jobs Task A • Control-Subsystem Process A: • set timer to interrupt periodically with period pA; • at each timer interrupt do • do analog-to-digital conversion to get input sample y; • compute control outputu; • output u and do digital-to-analog conversion; • od Period = 15 Background– Prior Work– Our Results– Open Questions

  10. time time 40 40 10 10 20 20 30 30 0 0 Task A Task B Tasks: Recurrent Jobs Task A Task B • Control-Subsystem Process A: • set timer to interrupt periodically with period pA; • at each timer interrupt do • do analog-to-digital conversion to get input sample y; • compute control outputu; • output u and do digital-to-analog conversion; • od • Control-Subsystem Process B: • set timer ….period pb • at each timer interrupt do • ….. • od Period = 30 Period = 15 Background– Prior Work– Our Results– Open Questions

  11. (ei) (ei) (ei) (ei) (ei) 0 2pi 4pi pi 3pi A Formal Model: Sporadic Task Model Worst case Execution Requirement Period Relative Deadline i = (ei,di,pi) time Task Systems of n tasks:  = {1,…, n} Background– Prior Work– Our Results– Open Questions

  12. Modeling a Real-Time System • Processing platform. • Real-time workload. • Scheduling algorithm: • Earliest-Deadline-First (EDF): schedule the job with the nearest absolute deadline. • Rate-Monotonic (RM): assign each task i priority equal to 1/pi (greater number  greater priority); schedule the job with greatest priority. Background– Prior Work– Our Results– Open Questions

  13. 2 2 Scheduling Algorithms i = (ei,di,pi) 1= (2, 4, 4) =  2= (3, 7, 7) = 1 1 EDF 7 8 6 0 1 2 3 4 5 time RM 7 8 6 0 1 2 3 4 5 Background– Prior Work– Our Results– Open Questions time

  14. Y,  is schedulable by A on P. N,  is not schedulable by A on P. Verification of a Real-Time System • Given a real-time system specified by: • Processing platform: P. • Real-time workload: . • Scheduling Algorithm: A. • Schedulability Analysis: determine whether all jobs generated by task system  meet all deadlines on P when scheduled according to A. Schedulability Test <P,,A> Background– Prior Work– Our Results– Open Questions

  15. Known Verification Techniques i = (ei,di,pi) For EDF-scheduled systems: For RM-scheduled systems: Theorem: Task system  will always meet all deadlines on a uniprocessor platform when scheduled by EDF, if and only if for all t > 0, Theorem: Task system  will always meet all deadlines on a uniprocessor platform when scheduled by RM, if and only if for all i and integers k>0, Background– Prior Work– Our Results– Open Questions

  16. Traditional Real-Time System Design Approach: • Determine, for every process of every system application, temporal requirements (i.e., period, execution time, etc.). • Specify each process in a task model (e.g., sporadic task model). • Verify temporal correctness of all tasks using schedulability analysis techniques. Assumption: All processes of all real-time applications have been developed together and are known by the system designer. Background– Prior Work– Our Results– Open Questions

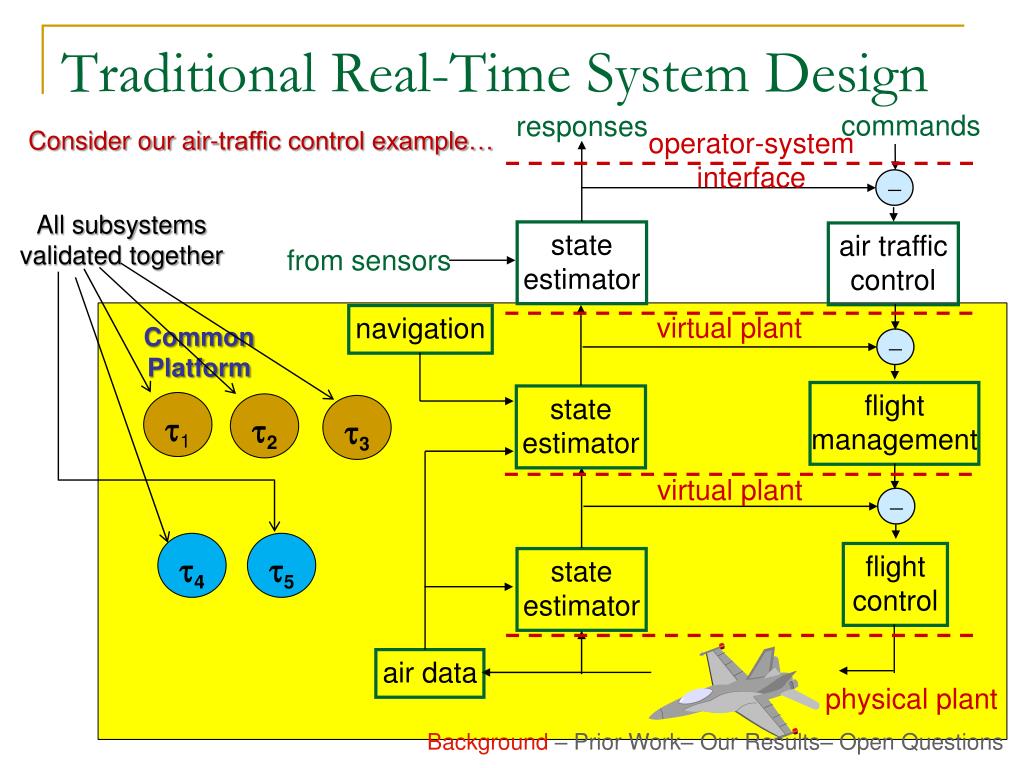

  17. Traditional Real-Time System Design commands responses Consider our air-traffic control example… operator-system interface  All subsystems validated together state estimator air traffic control from sensors virtual plant navigation Common Platform  flight management state estimator 1 2 3 virtual plant  4 5 flight control state estimator air data physical plant Background– Prior Work– Our Results– Open Questions

  18. Traditional Real-Time System Design • Violation of System Design Principles: • Encapsulation, Abstraction, & Dynamic Extensibility. • Modularity & Hierarchical Design. • Fault-containment. Drawbacks: • All tasks in the system need to be validated together and known to system designer, a priori. • Monolithic system design. • Each application on shared platform must use same scheduling algorithm. • Temporally-bad behavior of one task may affect other tasks. Solution? Background– Prior Work– Our Results– Open Questions

  19. Real-Time Open Environments • Framework for composing real-time applications: • Each application may be independently developed and verified. • Each application runs inside a server which has local scheduler. • Single interface expresses temporal requirements of application’s server which is scheduled by global scheduler. • System uses composability test to determine whether applications can be co-executed on same platform. Background– Prior Work– Our Results– Open Questions

  20. Real-Time Open Environments A1’s server Multiple independently-developed, real-time applications co-execute upon shared platform: I1 A1: 1 global scheduler Local Scheduler 2 CPU A2: 1 I2 3 Local Scheduler 2 … Iq Aq: 1 Local Scheduler Roughly speaking, A1, A2, …, Aq are composable if 2 Background– Prior Work– Our Results– Open Questions

  21. Traditional Real-Time System Design commands responses operator-system interface  state estimator air traffic control from sensors virtual plant navigation Common Platform  flight management state estimator 1 2 3 A1 virtual plant  4 5 A2 flight control state estimator air data physical plant Background– Prior Work– Our Results– Open Questions

  22. Real-Time Open Environment Design Approach (for an application): • Determine, for every process of application, temporal requirements. • Specify each process in a task model (e.g., sporadic task model). • Define server interface for application. • Verify temporal correctness of all tasks in application server using schedulability analysis techniques. Approach (system-wide): • Verify temporal correctness of all applications via composability test. Background– Prior Work– Our Results– Open Questions

  23. Traditional Real-Time System Design • Adherence to System Design Principles: • Encapsulation, Abstraction, & Dynamic Extensibility. • Modularity & Hierarchical Design. • Fault-containment. Advantages: • Application’s temporal constraints may be validated independently and need not be known a priori. • Component-based design. • Service-oriented design. • Each application on shared platform may use different scheduling algorithm. • Application servers isolate temporally-bad behavior of an application. Background– Prior Work– Our Results– Open Questions

  24. Real-Time Open Environment Design Focus of Remainder of talk Approach (for an application): • Determine, for every process of application, temporal requirements. • Specify each process in a task model (e.g., sporadic task model). • Define server interface for application. • Verify temporal correctness of all tasks in application server using schedulability analysis techniques. Approach (system-wide): • Verify temporal correctness of all applications via composability test. Background– Prior Work– Our Results– Open Questions

  25. Prior Work • [Deng & Liu, 1997] introduced real-time open environments. • Two-level hierarchy. • EDF Global Scheduler. • Global resources. R1 Executed non-preemptively I1 R1 A1: 1 RM global scheduler Local Scheduler R2 2 CPU … R1 R2 Rm A2: 1 R1 I2 3 Local Scheduler EDF 2 EDF … Iq Aq: 1 R2 Each resource could be device or global data structure. Local Scheduler 2 Static Background – Prior Work– Our Results– Open Questions

  26. Prior Work • [Deng & Liu, 1997] introduced real-time open environments. • Two-level hierarchy. • EDF Global Scheduler. • Global resources. R1 I1 R1 A1: 1 RM Interface Ii for each Application Server Ai: • i: “speed” of server. • i: maximum delay tolerable. • i: maximum non-preemptive resource lock. • i: length of shortest relative deadline in Ai. Local Scheduler R2 2 A2: 1 R1 I2 3 Local Scheduler 2 EDF … Iq Aq: 1 R2 Local Scheduler 2 Ii < i, i, i, i> Static Background – Prior Work– Our Results– Open Questions

  27. Prior Work Ii < i, i, i, i> • [Deng & Liu, 1997] introduced real-time open environments. • Two-level hierarchy. • EDF Global Scheduler. • Global resources. Theorem: Applications A1, A2, …, Aq are composable if, Drawbacks: • Only two levels possible. • Composability test provably non-optimal in the presence of global resources. Background – Prior Work– Our Results– Open Questions

  28. Prior Work • [Feng & Mok, 2002] Bounded-Delay Resource Partition. • Unlimited hierarchal levels. • EDF or RM Global Scheduler. • Global resources. R1 Executed non-preemptively I1 R1 A1: 1 global scheduler Local Scheduler R2 2 CPU … R1 R2 Rm A2: 1 R1 I2 3 Local Scheduler 2 … Iq Aq: 1 R2 Local Scheduler 2 Background – Prior Work– Our Results– Open Questions

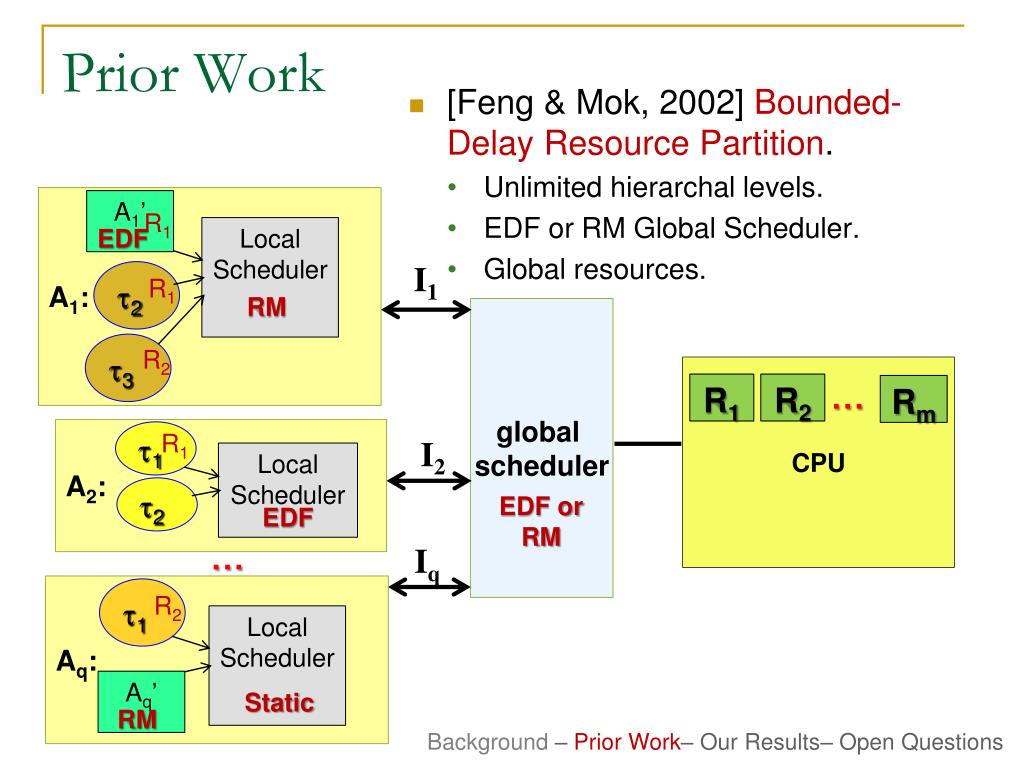

  29. Prior Work • [Feng & Mok, 2002] Bounded-Delay Resource Partition. • Unlimited hierarchal levels. • EDF or RM Global Scheduler. • Global resources. A1’ R1 EDF I1 R1 A1: RM global scheduler Local Scheduler R2 2 CPU … R1 R2 Rm A2: 1 R1 I2 3 Local Scheduler EDF or RM 2 EDF … Iq Aq: 1 R2 Local Scheduler Aq’ Static RM Background – Prior Work– Our Results– Open Questions

  30. Prior Work • [Feng & Mok, 2002] Bounded-Delay Resource Partition. • Unlimited hierarchal levels. • EDF or RM Global Scheduler. • Global resources. A1’ R1 EDF I1 R1 A1: RM Interface Ii for each Application Server Ai: • i: “speed” of server. • i: maximum delay tolerable. • i: maximum non-preemptive resource lock. • i: length of shortest relative deadline in Ai. Local Scheduler R2 2 A2: 1 R1 I2 3 Local Scheduler 2 EDF … Iq Aq: 1 R2 Local Scheduler Ii < i, i, i > Aq’ Static RM Background – Prior Work– Our Results– Open Questions

  31. Prior Work Ii < i, i, i > • [Feng & Mok, 2002] Bounded-Delay Resource Partition. • Unlimited hierarchal levels. • EDF or RM Global Scheduler. • Global resources. Theorem: Applications A1, A2, …, Aq are composable (without resources) if, Drawbacks: • Composability test provably non-optimal in the presence of global resources. Background – Prior Work– Our Results– Open Questions

  32. Prior Work Drawback: Resource-Sharing Composability test provably non-optimal in the presence of global resources. Resource unlocked. Resource locked. Deadline miss! Non-optimality at application level. Ai 1 EDF 2 7 8 9 6 0 1 2 3 4 5 time 1= (2, 3, 3) =  i = (ei,di,pi) 2= (3, 9, 9) = R1 Background – Prior Work– Our Results– Open Questions

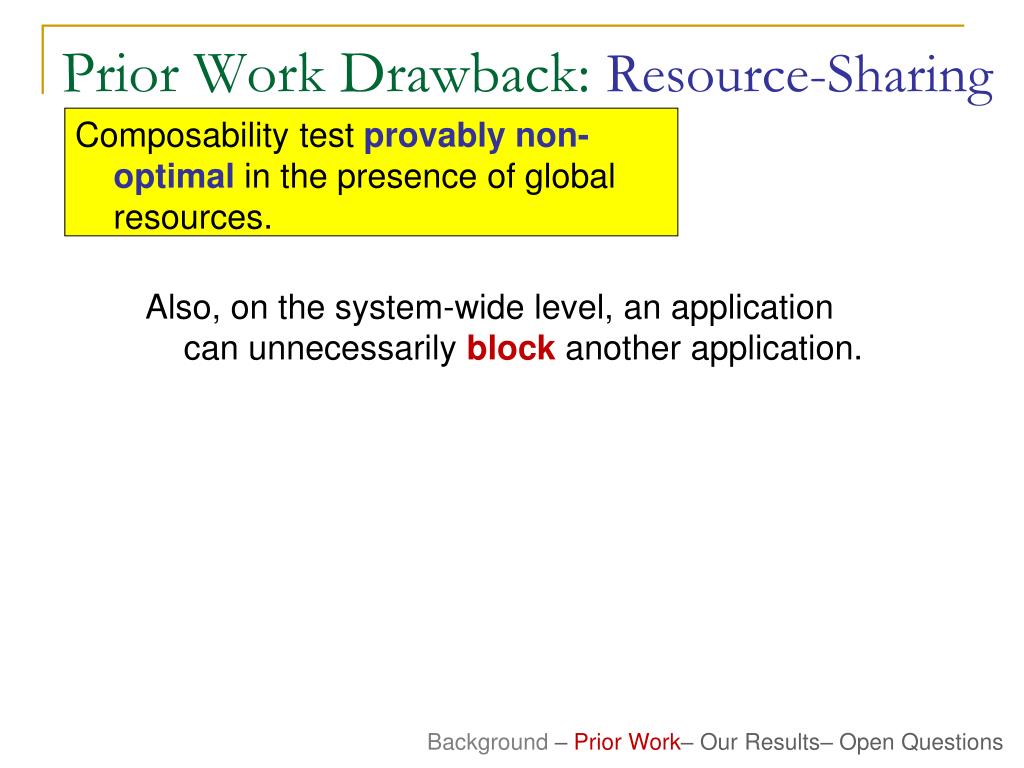

  33. Prior Work Drawback: Resource-Sharing Composability test provably non-optimal in the presence of global resources. Also, on the system-wide level, an application can unnecessarily block another application. Background – Prior Work– Our Results– Open Questions

  34. Our results: Goals Design an open environment server framework to: • Obtain optimal behavior in the presence of global resources. • Derive effective composability test. • Derive effective schedulability test for applications. Background – Prior Work– Our Results– Open Questions

  35. Our Results: Bounded-Delay Resource Open Environment (BROE) Server • [Fisher, Bertogna, & Baruah, 2007] • Unlimited hierarchal levels. • EDF Global Scheduler. • Global resources. A1: A1’ R1 EDF Local Scheduler 2 R1 RM Allow for preemptive execution, if needed. I1 3 R2 global scheduler A2: 1 R1 CPU Local Scheduler … R1 R2 Rm 2 EDF I2 … EDF Aq: 1 R2 Local Scheduler Iq Aq’ Static RM Background – Prior Work– Our Results– Open Questions

  36. Our Results: Bounded-Delay Resource Open Environment (BROE) Server • [Fisher, Bertogna, & Baruah, 2007] • Unlimited hierarchal levels. • EDF Global Scheduler. • Global resources. A1: A1’ R1 EDF Local Scheduler 2 R1 RM I1 3 R2 Interface Ii for each Application Server Ai: • i: “speed” of server. • i: maximum delay tolerable. • Hi: maximum preemptive resource-holding time. A2: 1 R1 Local Scheduler 2 EDF I2 … Aq: 1 R2 Local Scheduler Iq Ii  < i, i, Hi > Aq’ Static RM Background – Prior Work– Our Results– Open Questions

  37. Our Results: Bounded-Delay Resource Open Environment (BROE) Server Server Rules: • Each server maintains budget, replenishmentperiod, and current deadline. • Similar to sporadic task. • “Normal” replenishment period: • Maximum Budget: Ii  < i, i, Hi > i For all intervals of size t > i, execution over interval should be at least (t-i ) i Background – Prior Work– Our Results– Open Questions

  38. Our Results: Bounded-Delay Resource Open Environment (BROE) Server Server Rules: • Each server maintains budget, replenishmentperiod, and current deadline. • If server is executing budget is decremented at rate 1/i. Ii  < i, i, Hi > Budget 0 time Background – Prior Work– Our Results– Open Questions

  39. Our Results: Bounded-Delay Resource Open Environment (BROE) Server Server Rules: • Each server maintains budget, replenishmentperiod, and current deadline. • If server is executing budget is decremented at rate 1/i. • If task of Ai requests resource when Ei < Hi, then defer execution and update replenishment time & next deadline: Ii  < i, i, Hi > i Task requests Rj, but Ei < Hi Access to Rj is granted here Execution over interval > (t- i)i Background – Prior Work– Our Results– Open Questions

  40. Our results: Goals Design an open environment server framework to: • Obtain optimal behavior in the presence of global resources. • Derive effective composability test. • Derive effective schedulability test for applications. Background – Prior Work– Our Results– Open Questions

  41. Our results: Goals Design an open environment server framework to: • Obtain optimal behavior in the presence of global resources. • BROE-Server Properties: • Executing resources preemptively reduces deadline misses within an application. • Deferring an application’s execution of resources prevents blocking between applications. Theorem: If application Ai has been validated independently on processor of speed i and each job completes i prior to its deadline, then it will meet all deadlines on BROE server with interface Ii  < i, i, Hi > executing on a unit-speed processor. Background – Prior Work– Our Results– Open Questions

  42. Our results: Goals Design an open environment server framework to: • Obtain optimal behavior in the presence of global resources. • Derive effective composability test. Theorem: Applications A1, A2, …, Aq under BROE servers are composable on a unit-speed processor if, Background – Prior Work– Our Results– Open Questions

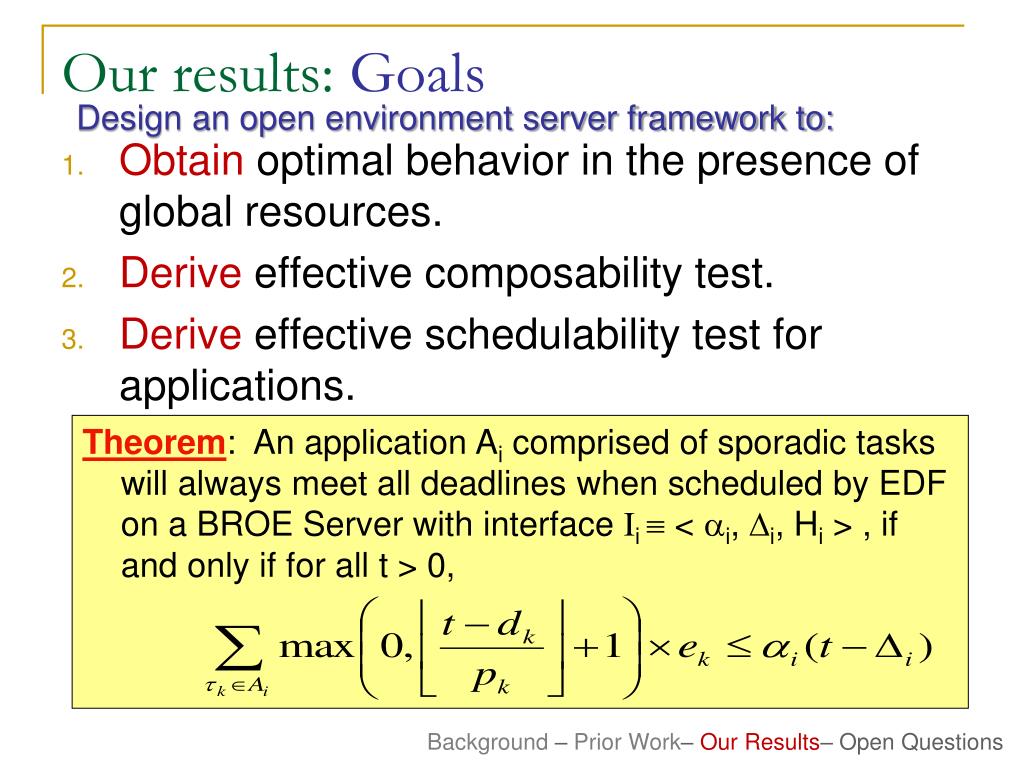

  43. Our results: Goals Design an open environment server framework to: • Obtain optimal behavior in the presence of global resources. • Derive effective composability test. • Derive effective schedulability test for applications. Theorem: An application Ai comprised of sporadic tasks will always meet all deadlines when scheduled by EDF on a BROE Server with interface Ii  < i, i, Hi > , if and only if for all t > 0, Background – Prior Work– Our Results– Open Questions

  44. Interesting Open Questionss • Interface Selection: • What is optimal selection of interface for an application? • What if system designer can lie about interfaces? Can we design mechanisms to induce truthful interfaces? • Multiprocessor/Multicore Open Evironments? • Implementation: • Operating system integration. • AUTOSAR: Automotive Open System Architecture. Optimization Theory Game Theory Parallel & Distributed Systems Background – Prior Work– Our Results– Open Questions

  45. Summary • Traditional real-time analysis violates many software engineering principles. • Real-time Open Environments: • Composability of real-time applications. • Encapsulation, modularity, & fault containment. • Our contribution: • BROE Server. • Optimal under shared resources. • Effective composability & schedulability tests. • PhD thesis topics abound!

  46. “Shameless” Plugs • Winter 2008: Real-Time Systems (CSC 7991) • Topics: • Schedulability analysis, • Resource-sharing, • OS issues, • and much more! • Workload: • 4 Assignments. • Semester-long Project.

  47. “Shameless” Plugs • Open GRA positions for Ph.D. Students: • Theoretical & Implementation problems. • Lots of interesting/relevant open problems. • Travel the world: • Upcoming Real-Time & Distributed Systems Conferences: • Guadeloupe, French West Indies. • Kolkata, India. • Prague, Czech Republic. • Dublin, Ireland. • …

  48. Thank You! Questions?
