  1. Blocks • Resolved Signals • Signal GUARDs • Tri-State Buses

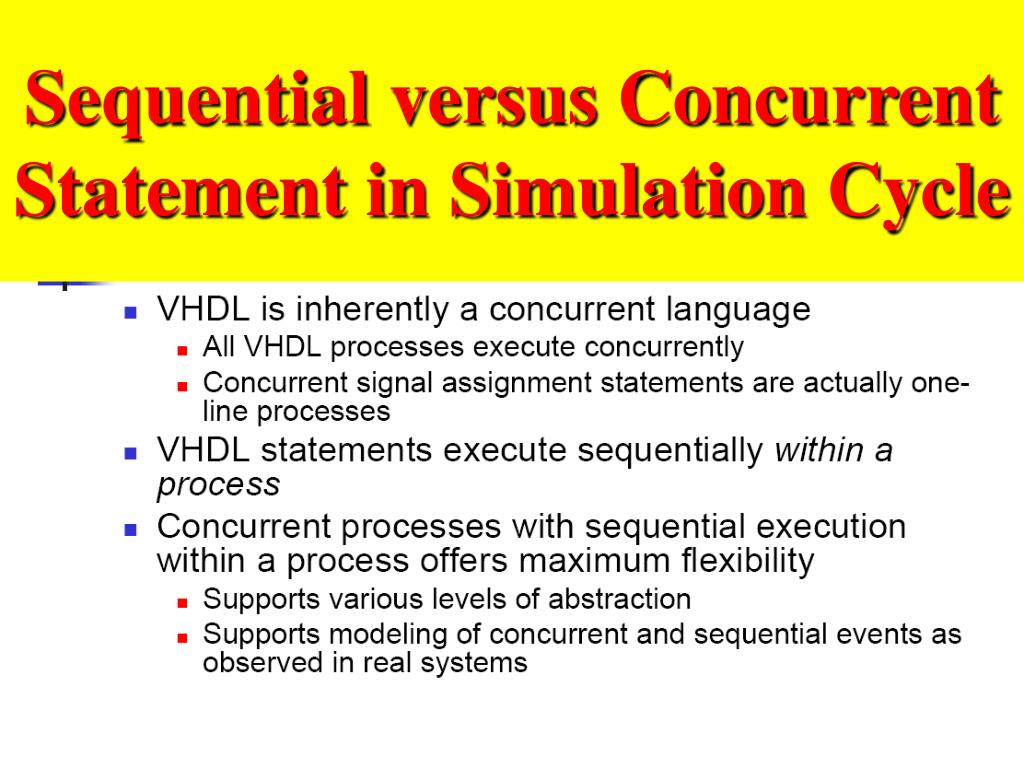

  2. Sequential versus Concurrent Statement in Simulation Cycle

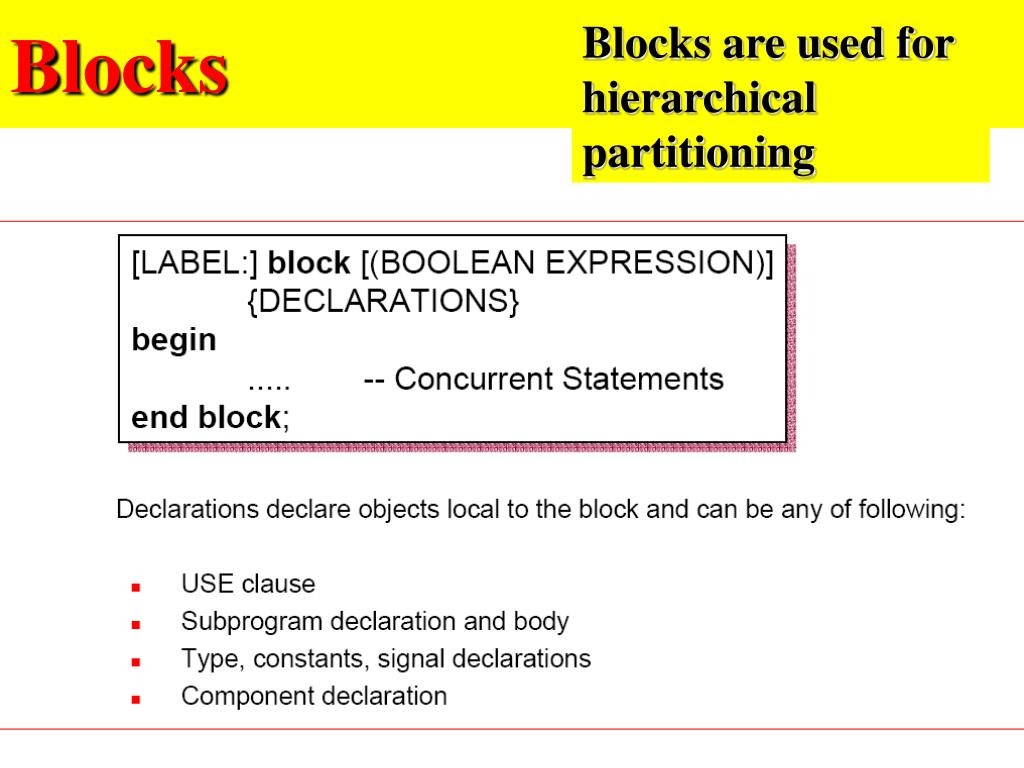

  3. Blocks Blocks are used for hierarchical partitioning

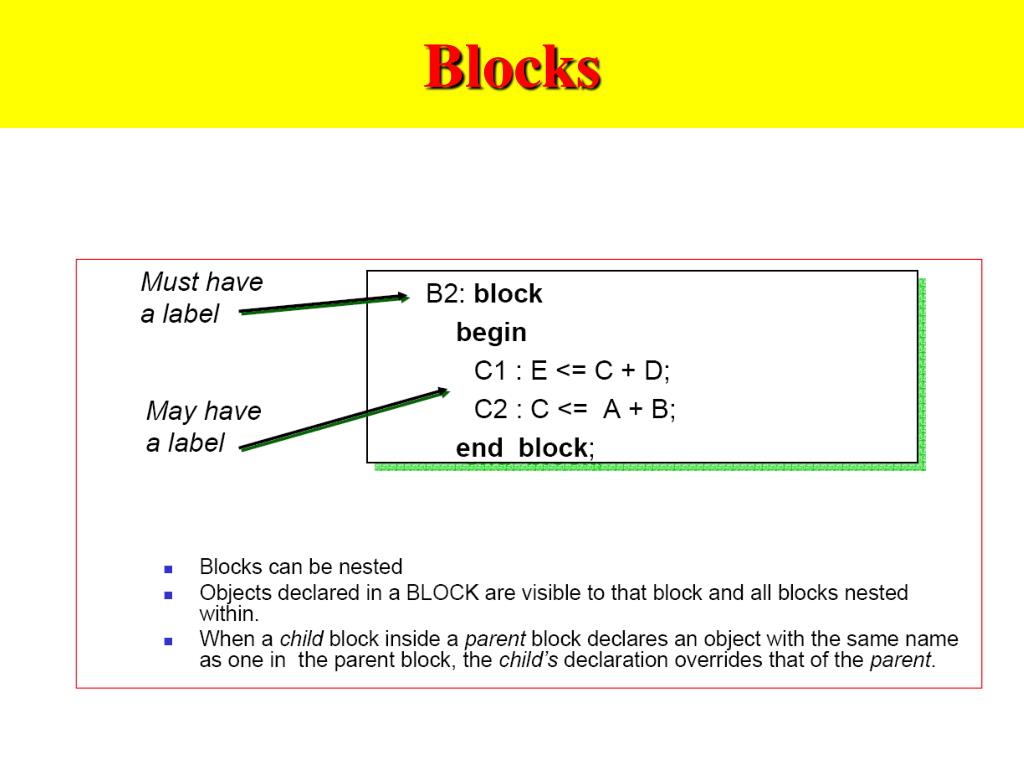

  4. Blocks

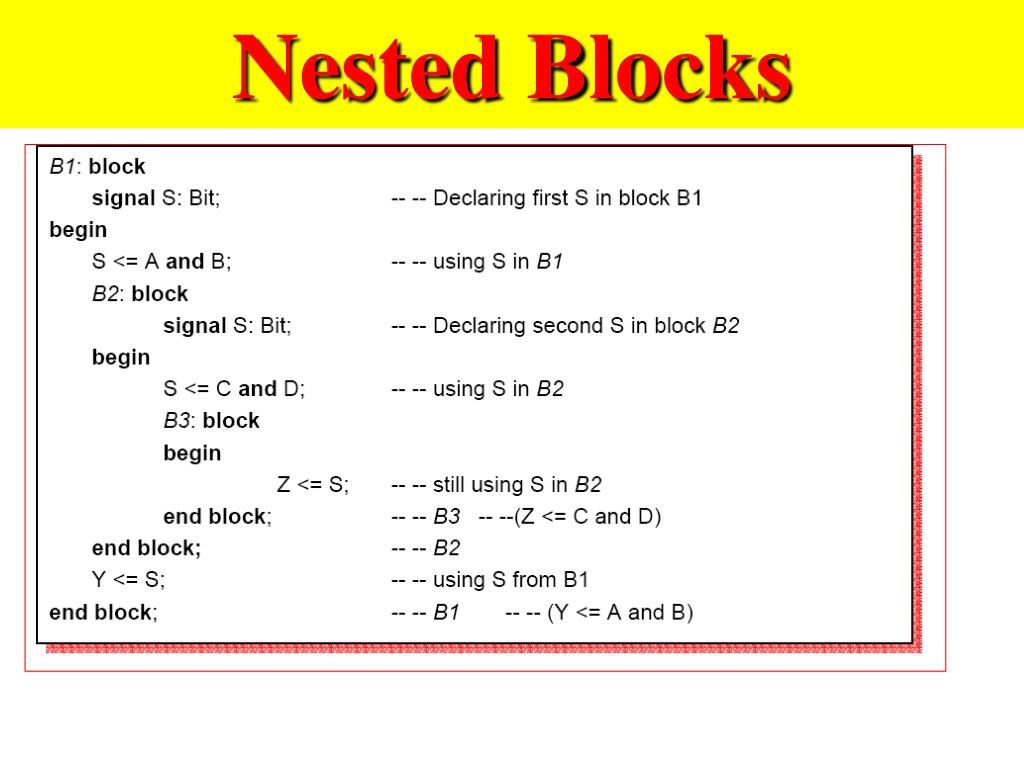

  5. Nested Blocks

  6. Blocks

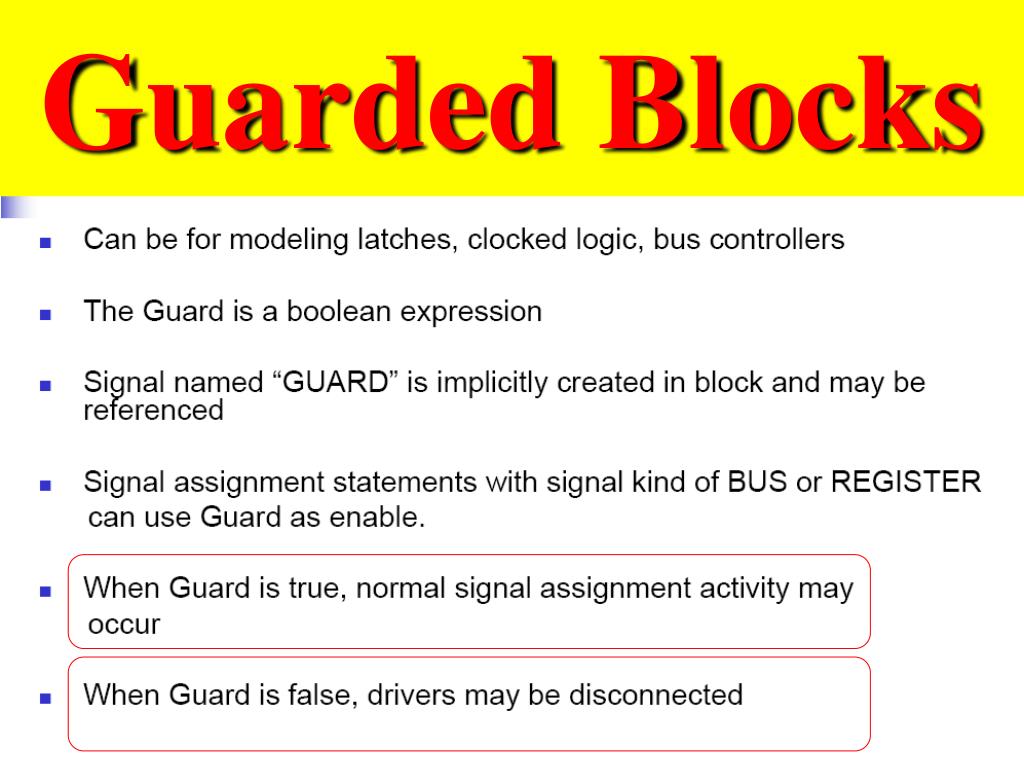

  7. Guarded Blocks

  8. Guard

  9. Signal GUARD • A block statement may have a guard expression. Latch: block(CK'EVENT and CK='1') begin Q <= guarded Dafter 10ns; end block latch;

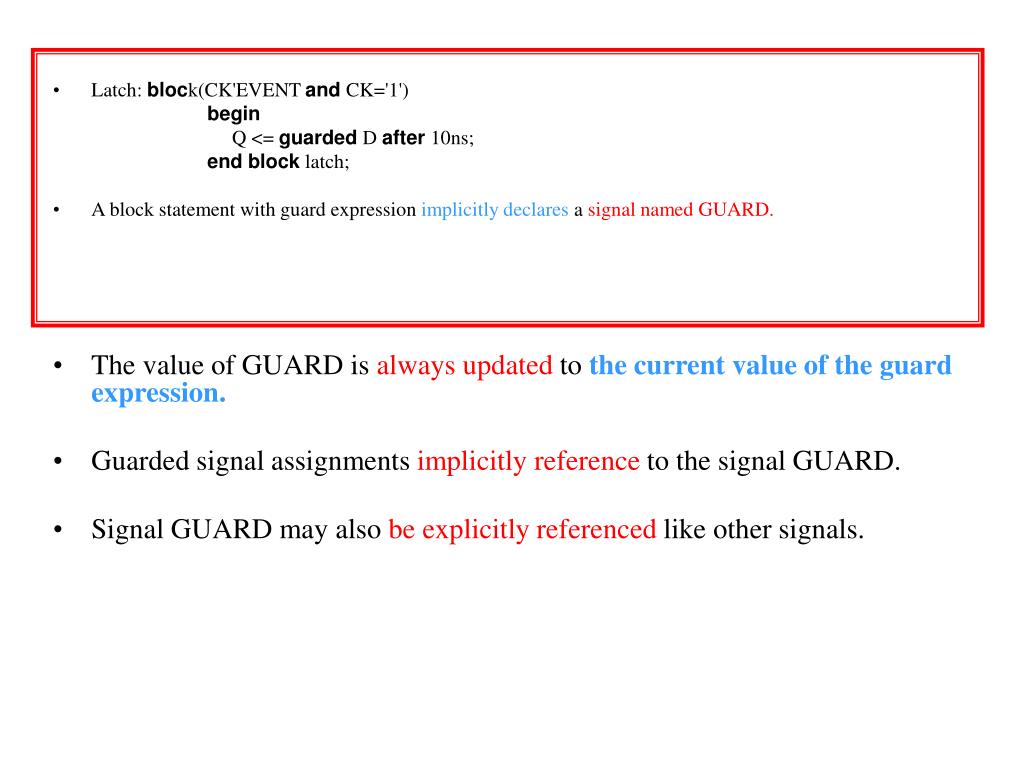

  10. Latch: block(CK'EVENT and CK='1') begin Q <= guarded D after 10ns; end block latch; • A block statement with guard expression implicitly declares a signal named GUARD. • The value of GUARD is always updated to the current value of the guard expression. • Guarded signal assignments implicitly reference to the signal GUARD. • Signal GUARD may also be explicitly referenced like other signals.

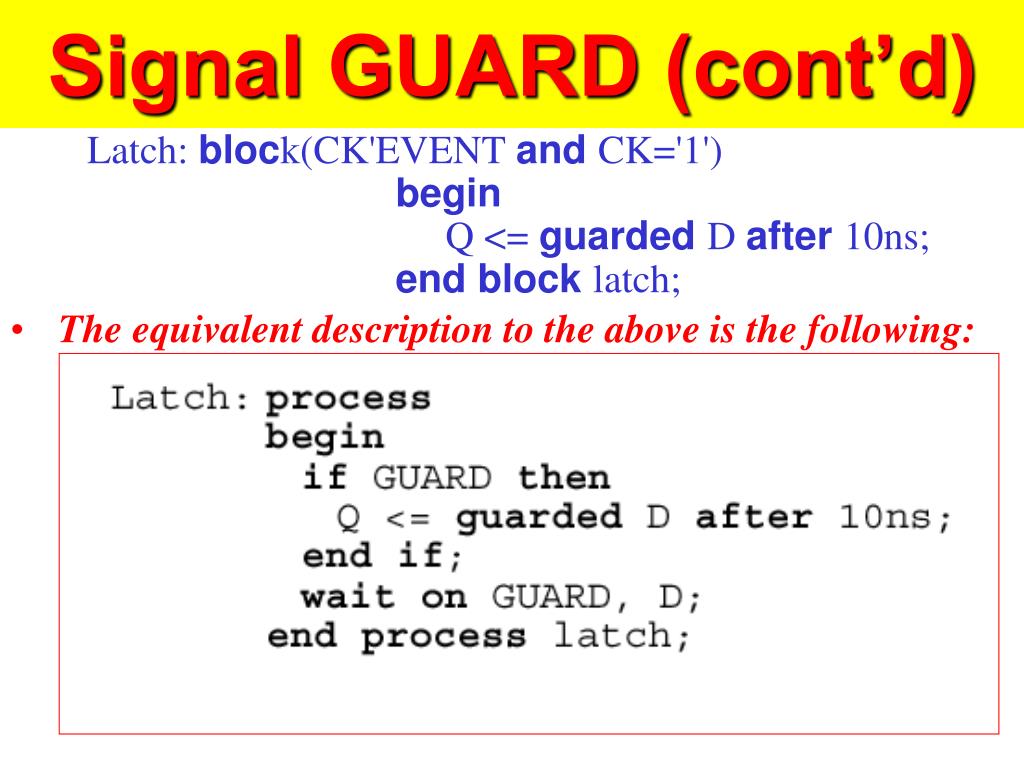

  11. Signal GUARD (cont’d) Latch: block(CK'EVENT and CK='1') begin Q <= guarded D after 10ns; end block latch; • The equivalent description to the above is the following:

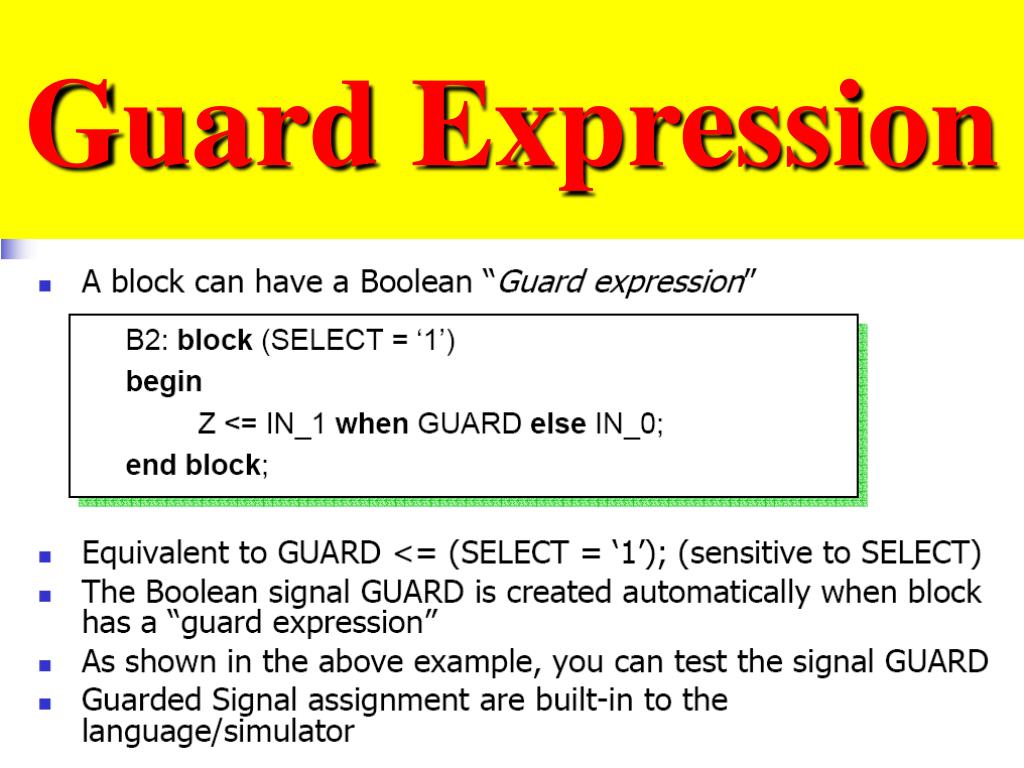

  12. Guard Expression

  13. Guarded Signal Assignments

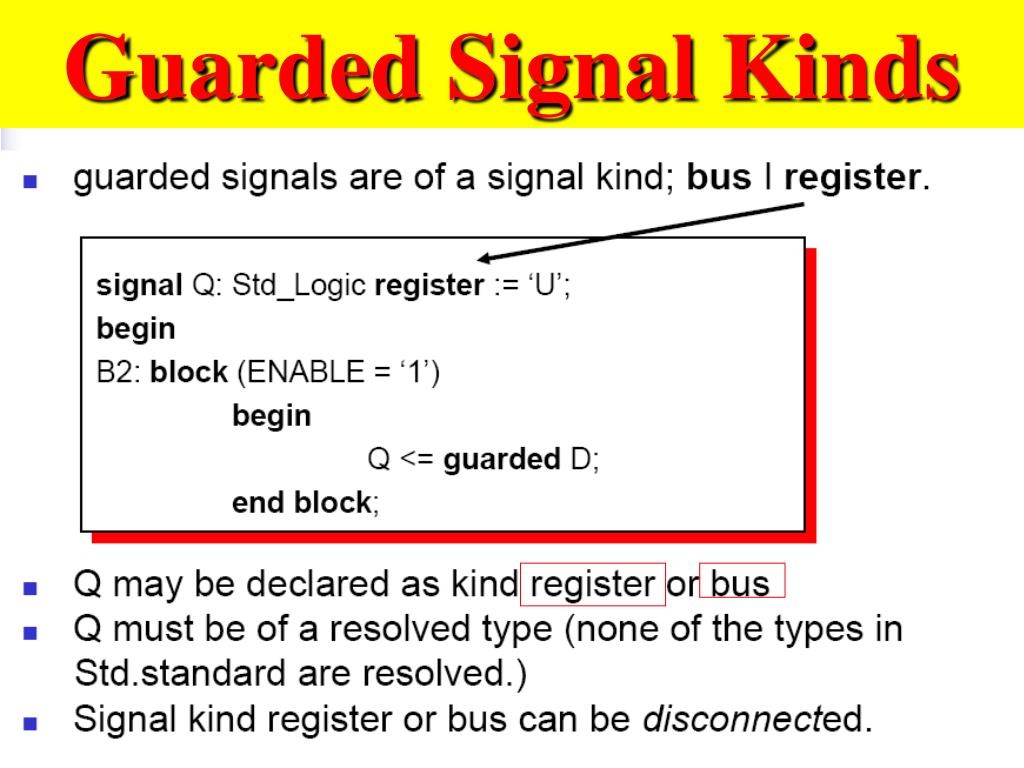

  14. Guarded Signal Kinds

  15. Disconnects

  16. Drivers

  17. Resolved Signals

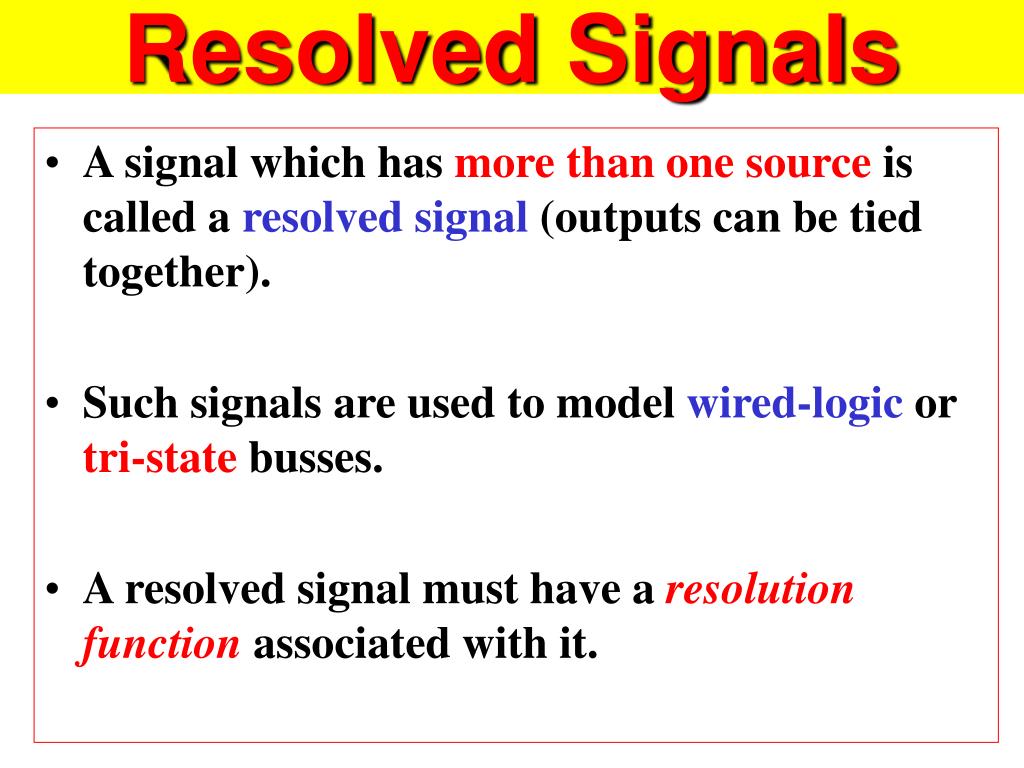

  18. Resolved Signals • A signal which has more than one source is called a resolved signal (outputs can be tied together). • Such signals are used to model wired-logic or tri-state busses. • A resolved signal must have a resolution function associated with it.

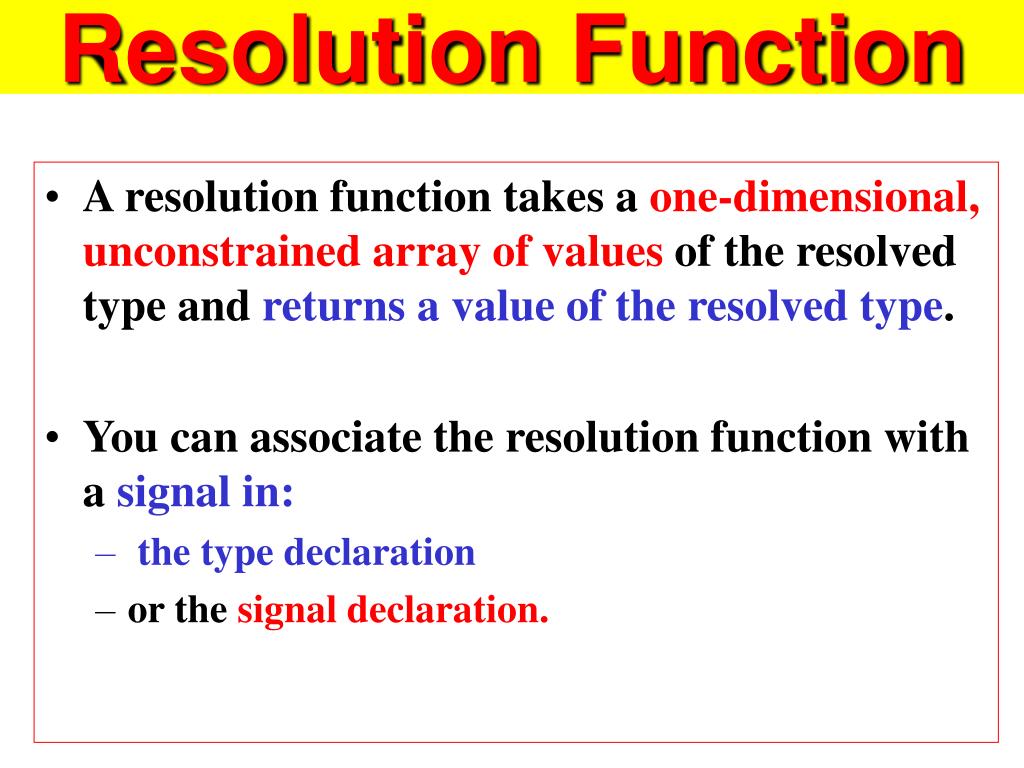

  19. Resolution Function • A resolution function takes a one-dimensional, unconstrained array of values of the resolved type and returns a value of the resolved type. • You can associate the resolution function with a signal in: • the type declaration • or the signal declaration.

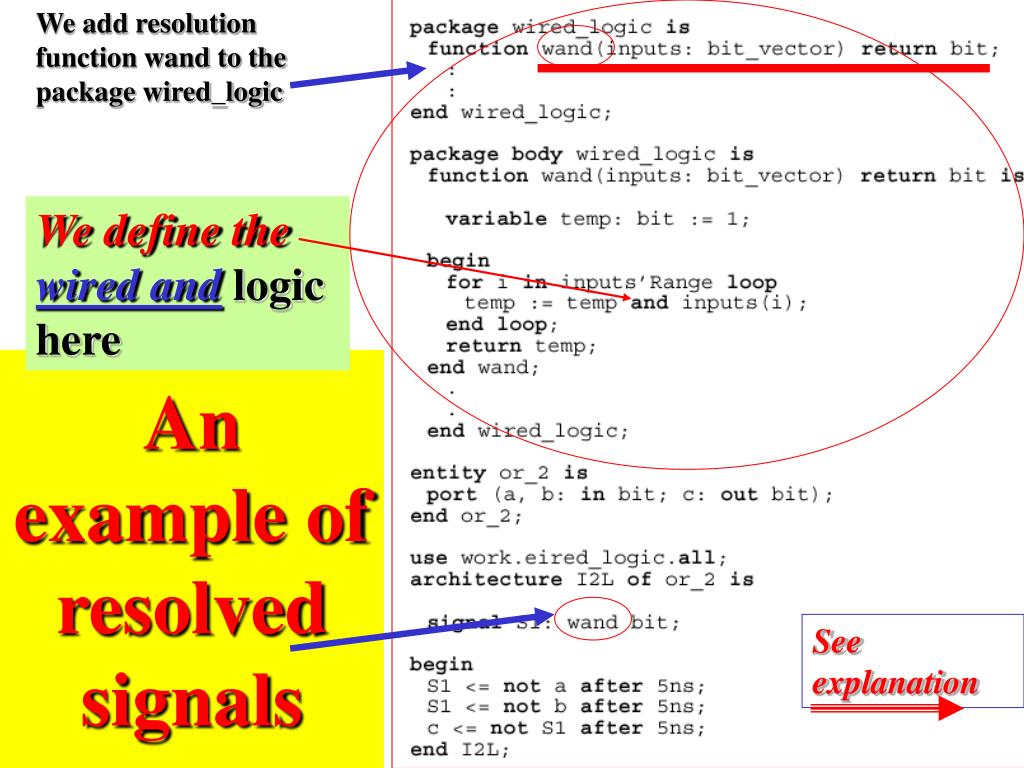

  20. An example of resolved signals We add resolution function wand to the package wired_logic We define the wired and logic here See explanation

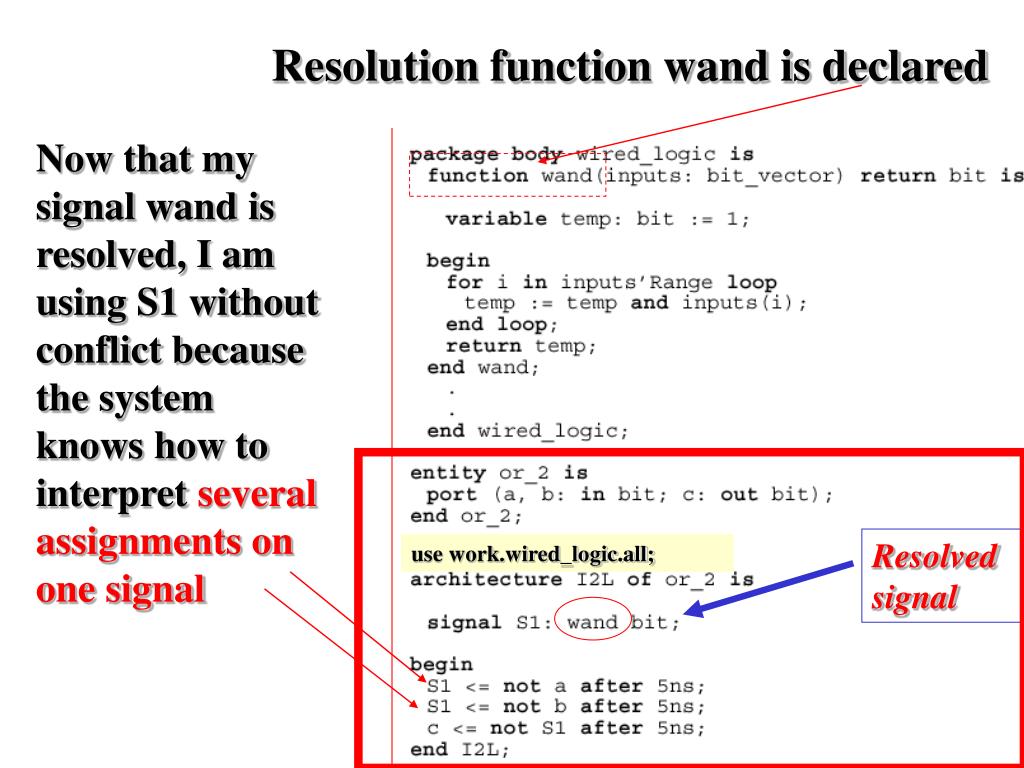

  21. Resolution function wand is declared Now that my signal wand is resolved, I am using S1 without conflict because the system knows how to interpret several assignments on one signal Resolved signal use work.wired_logic.all;

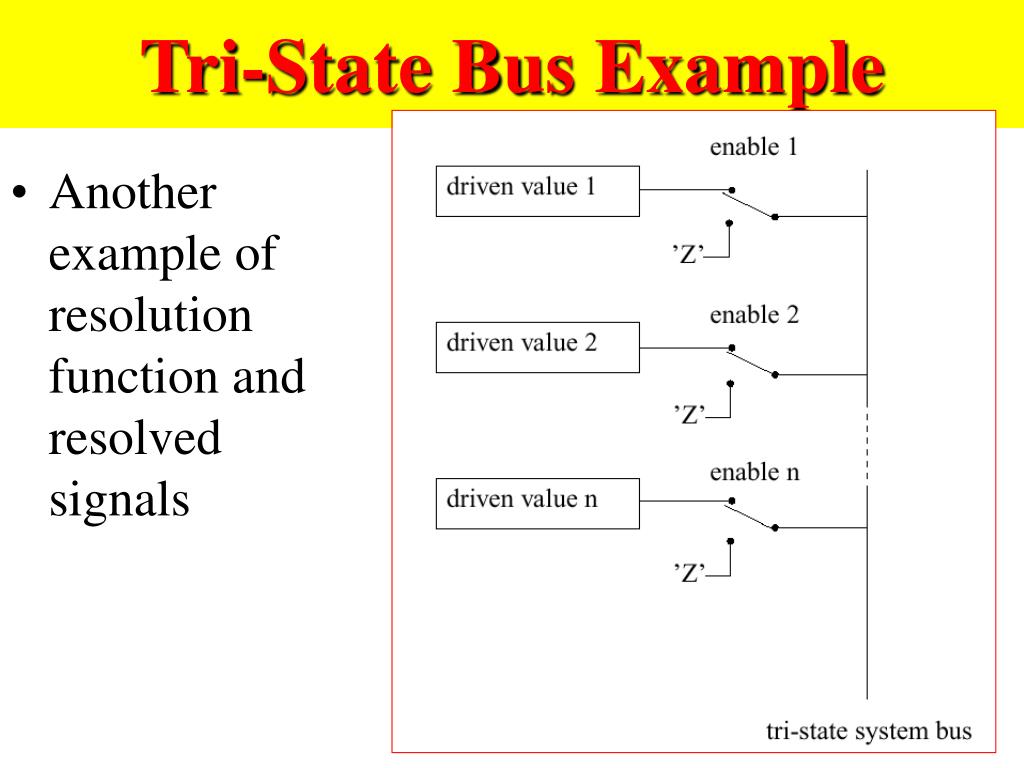

  22. Tri-State Bus Example • Another example of resolution function and resolved signals

  23. Tri-State Function Definition Resolution function Resolved variable This slide shows how to define resolution function tri_state in package four_valued_logic

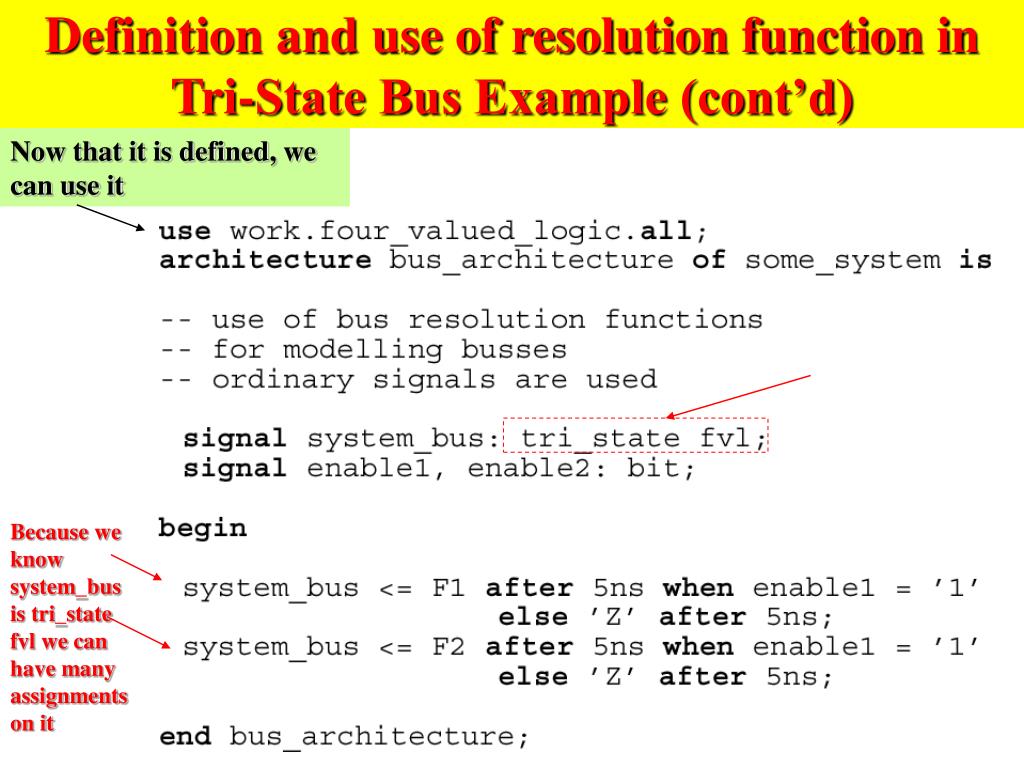

  24. Definition and use of resolution function in Tri-State Bus Example (cont’d) Now that it is defined, we can use it Because we know system_bus is tri_state fvl we can have many assignments on it

  25. Resolution Function

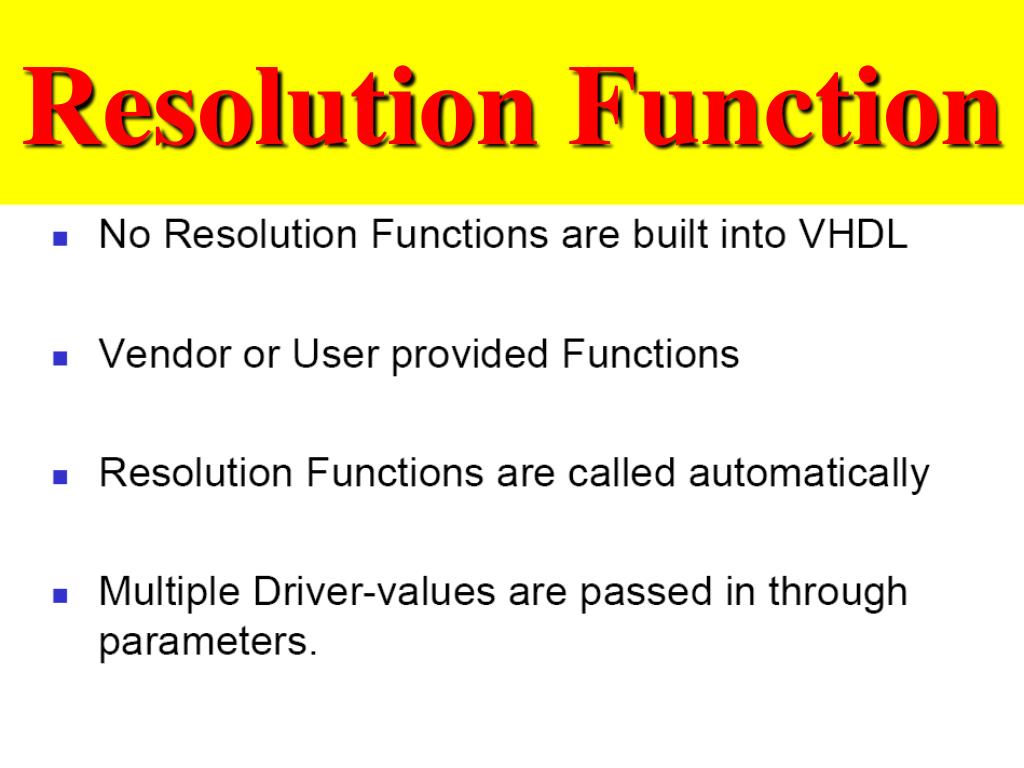

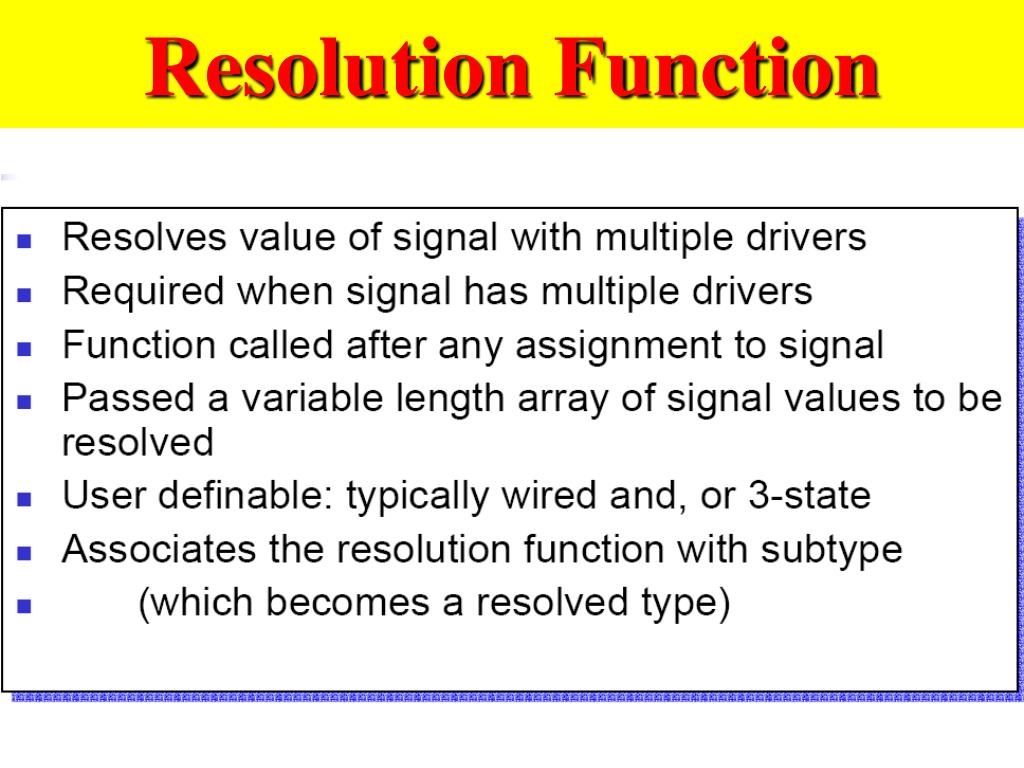

  26. Resolution Function

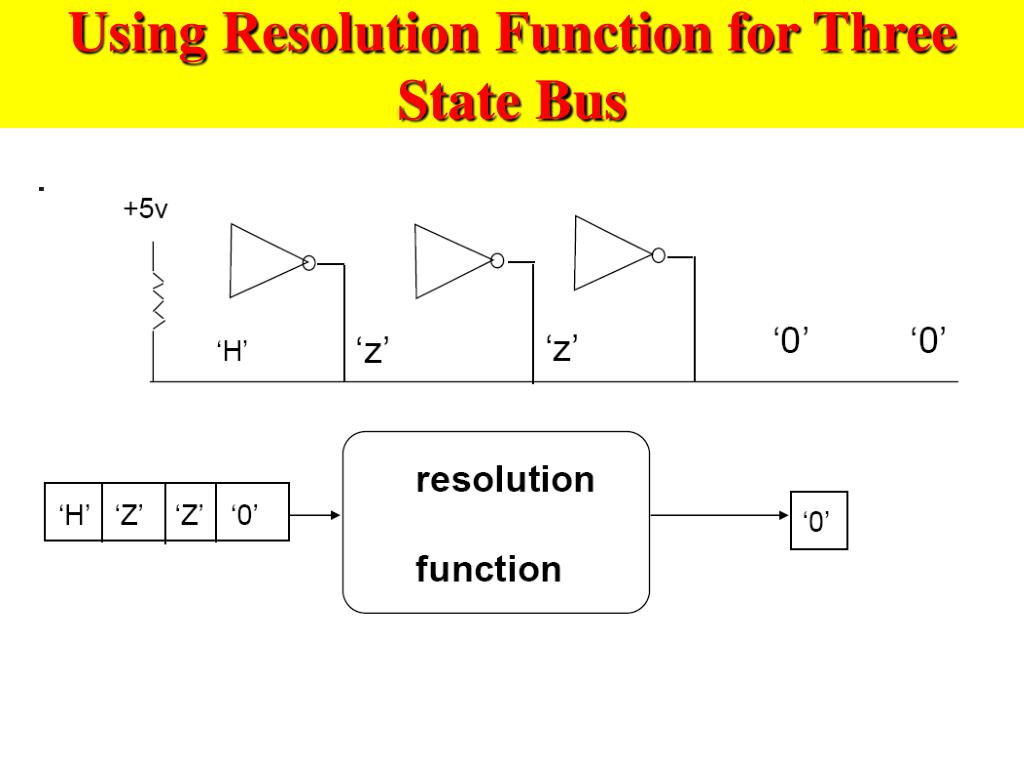

  27. Using Resolution Function for Three State Bus

  28. Driver Resolution

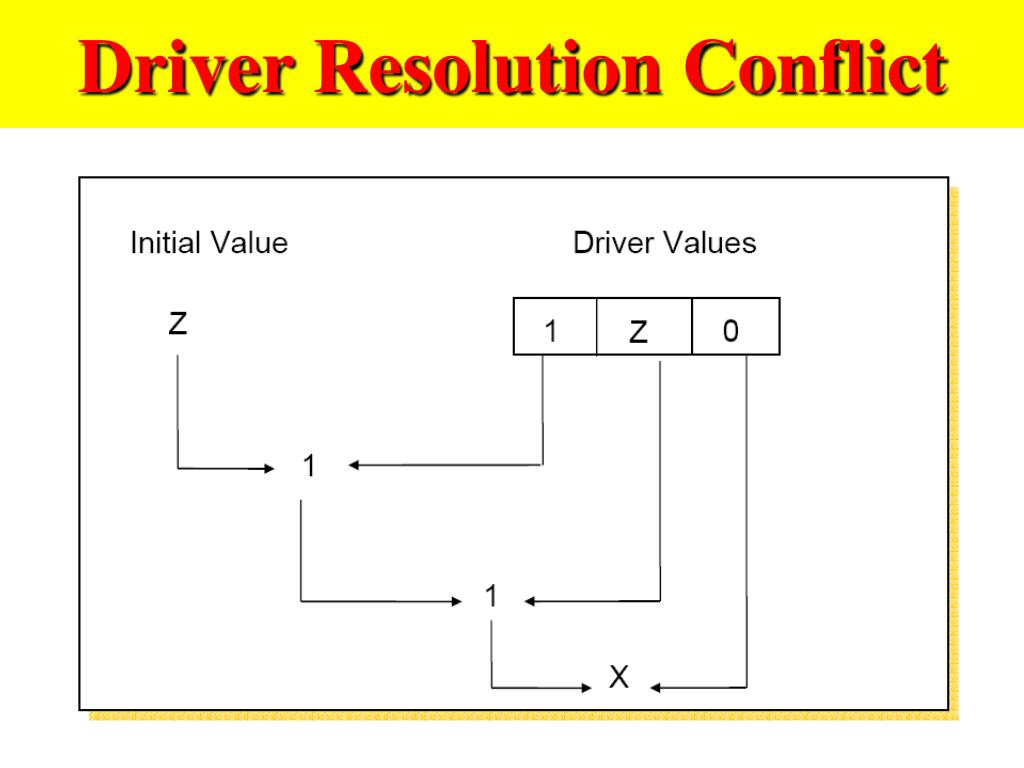

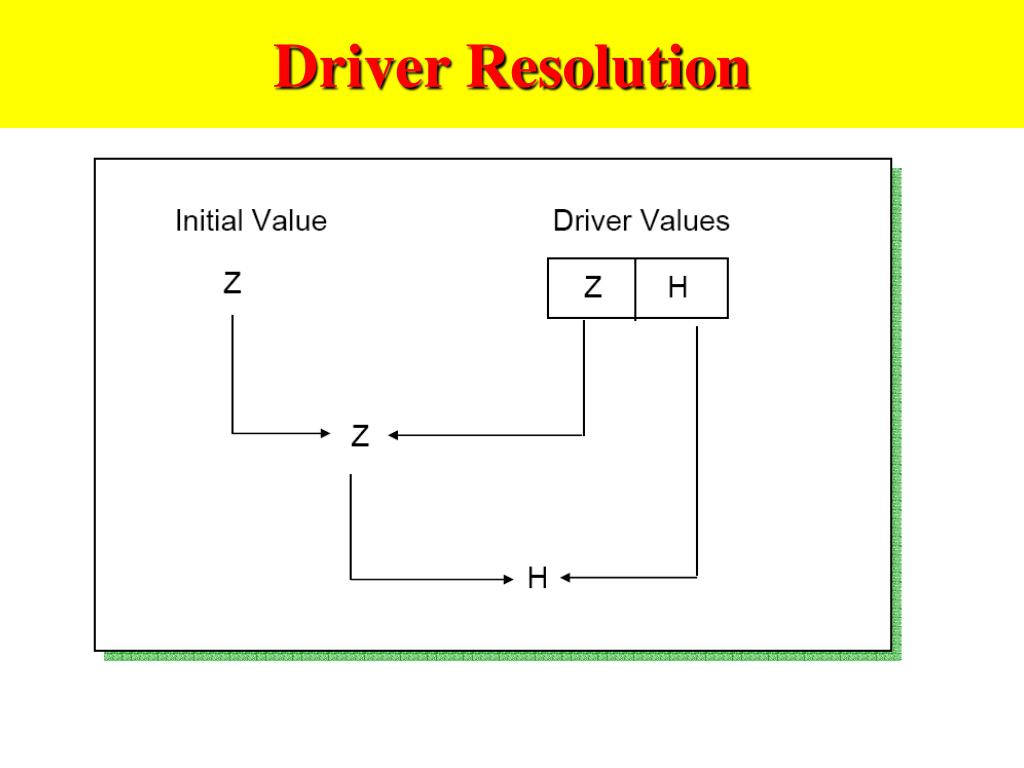

  29. Driver Resolution Conflict

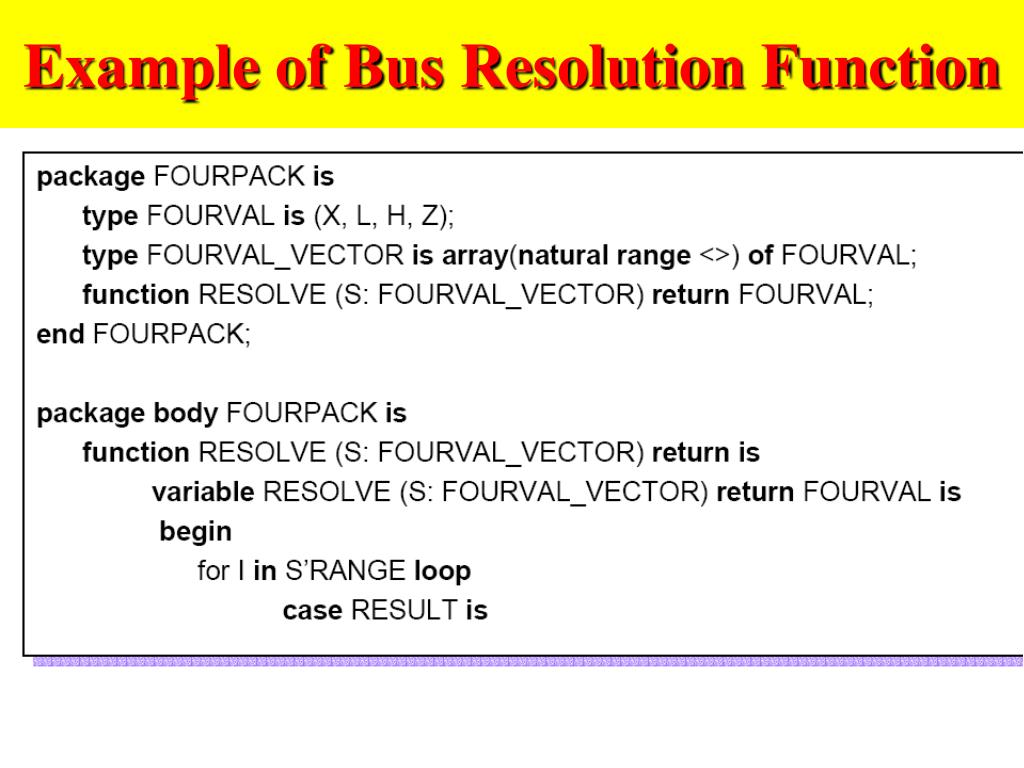

  30. Example of Bus Resolution Function

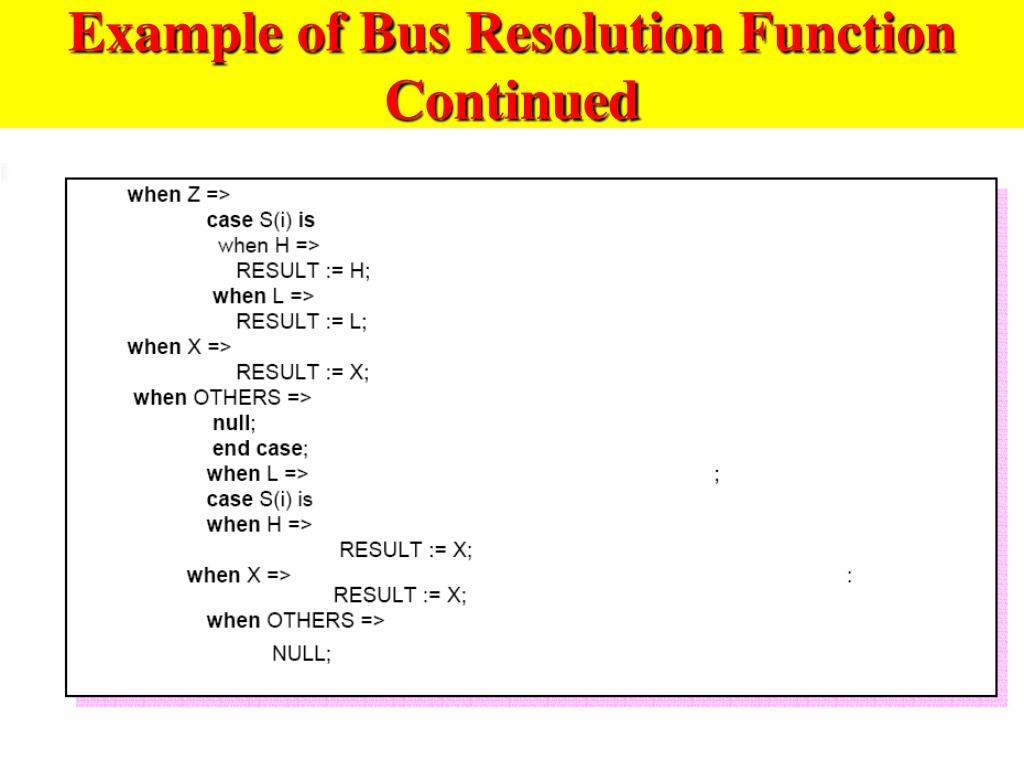

  31. Example of Bus Resolution Function Continued

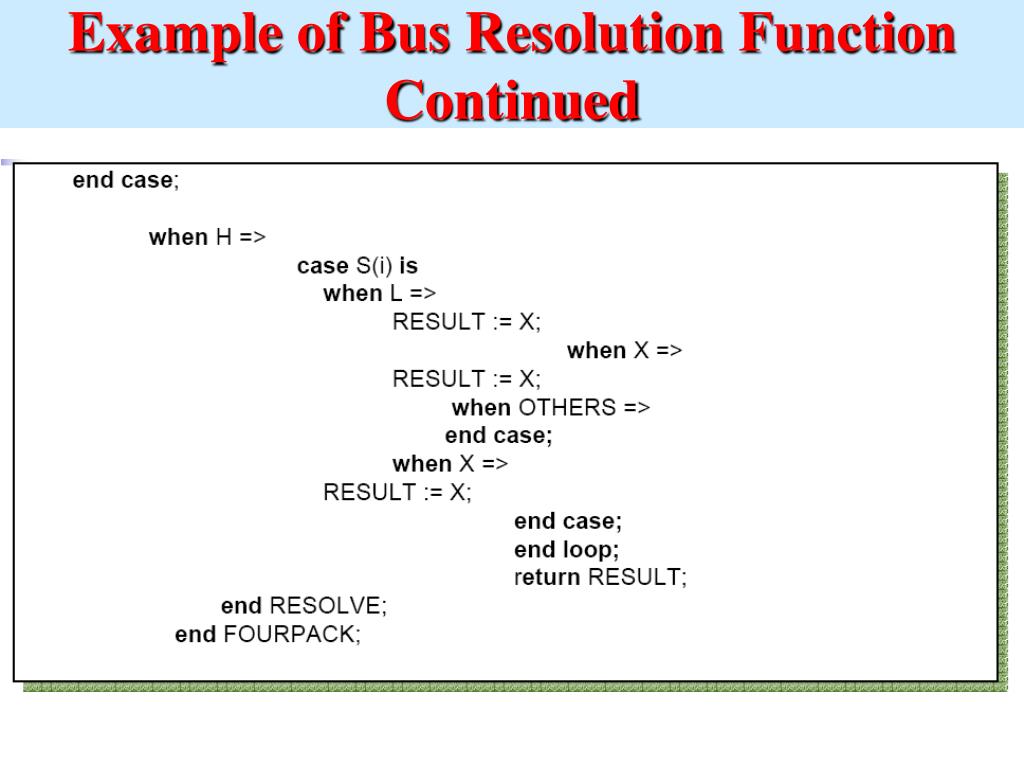

  32. Example of Bus Resolution Function Continued

  33. Resolution Function for Subtype

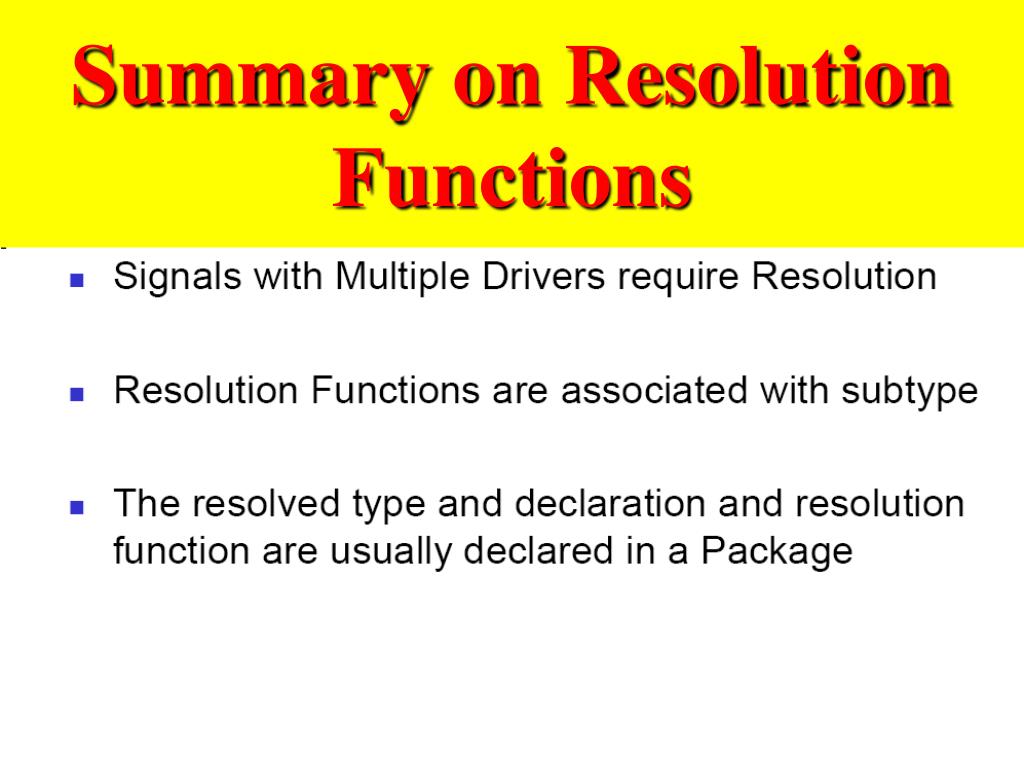

  34. Summary on Resolution Functions

  35. Sources • Krzysztof Kuchcinski • California State University Northridge
