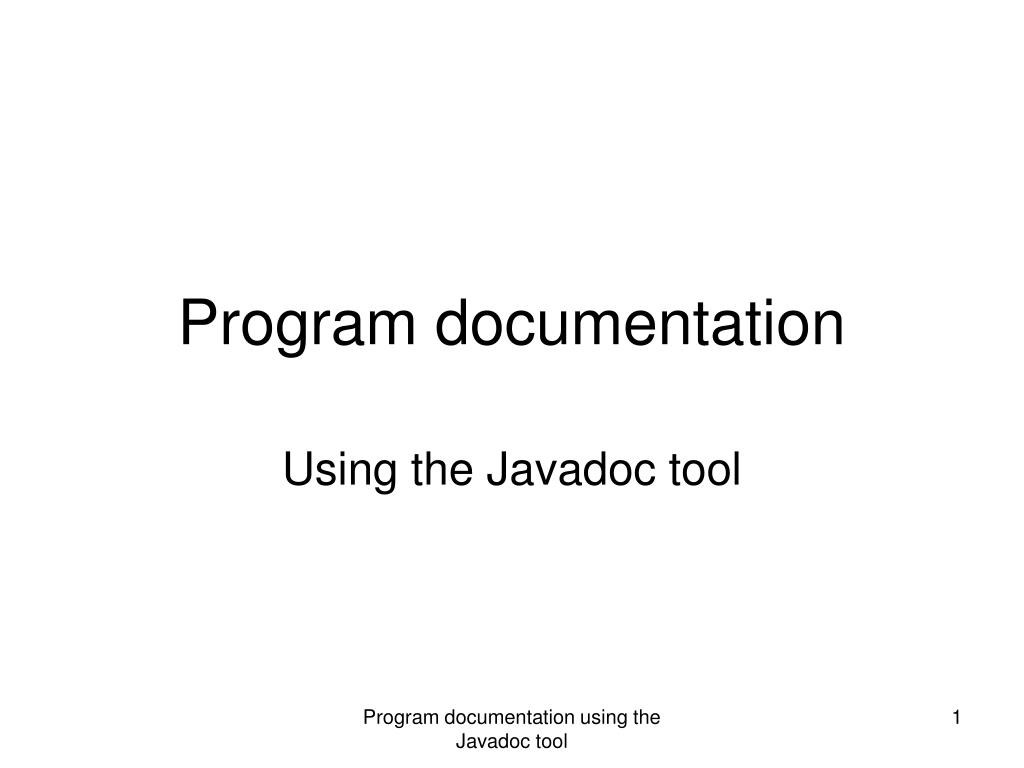

  1. Program documentation Using the Javadoc tool Program documentation using the Javadoc tool

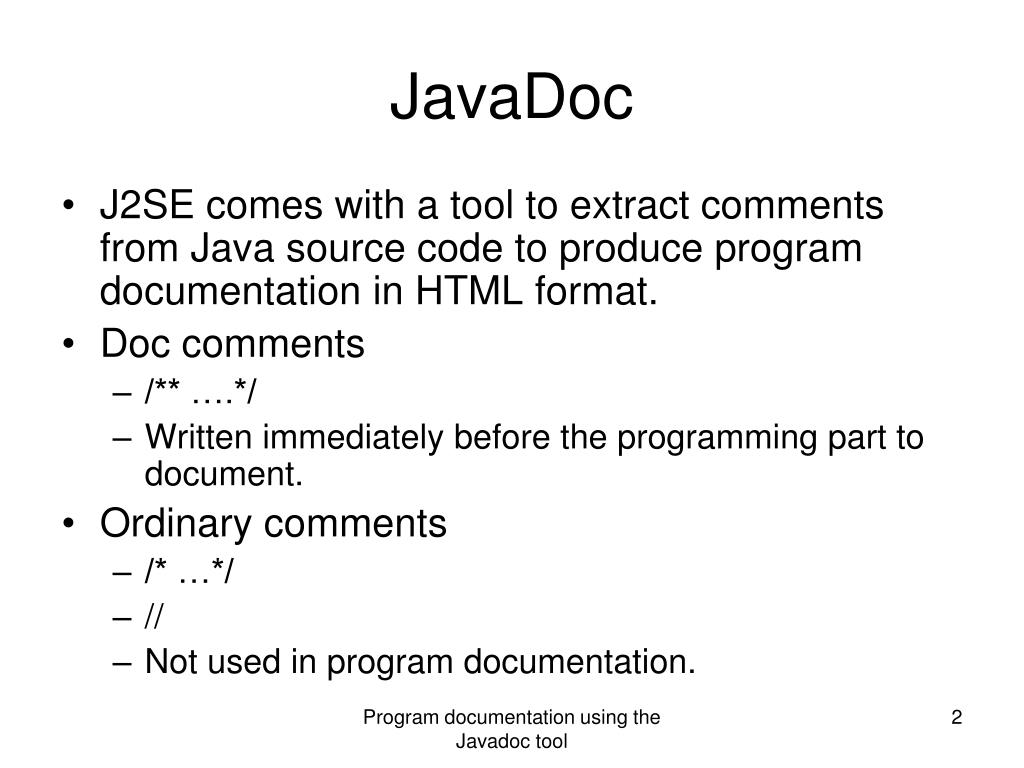

  2. JavaDoc • J2SE comes with a tool to extract comments from Java source code to produce program documentation in HTML format. • Doc comments • /** ….*/ • Written immediately before the programming part to document. • Ordinary comments • /* …*/ • // • Not used in program documentation. Program documentation using the Javadoc tool

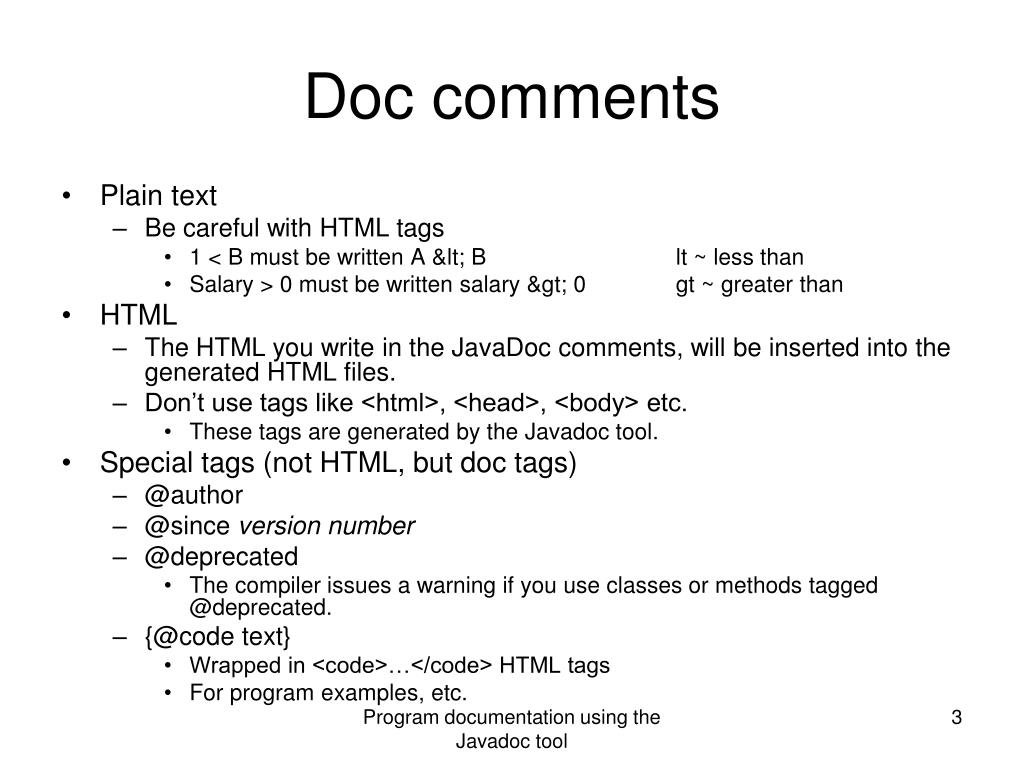

  3. Doc comments • Plain text • Be careful with HTML tags • 1 < B must be written A &lt; B lt ~ less than • Salary > 0 must be written salary &gt; 0 gt ~ greater than • HTML • The HTML you write in the JavaDoc comments, will be inserted into the generated HTML files. • Don’t use tags like <html>, <head>, <body> etc. • These tags are generated by the Javadoc tool. • Special tags (not HTML, but doc tags) • @author • @since version number • @deprecated • The compiler issues a warning if you use classes or methods tagged @deprecated. • {@code text} • Wrapped in <code>…</code> HTML tags • For program examples, etc. Program documentation using the Javadoc tool

  4. What to document? • All public and protected parts of a program should be documented using JavaDoc comments • Package-protected and private parts are not that important to document since they are only for internal use. • Classes • Write JavaDoc comments in front of the class declaration. • Methods • Parameters to the method • @param • Return values • @return • Exceptions thrown from the method • @throws • Checked exceptions • Runtime exceptions that the caller might reasonably want to catch. Program documentation using the Javadoc tool

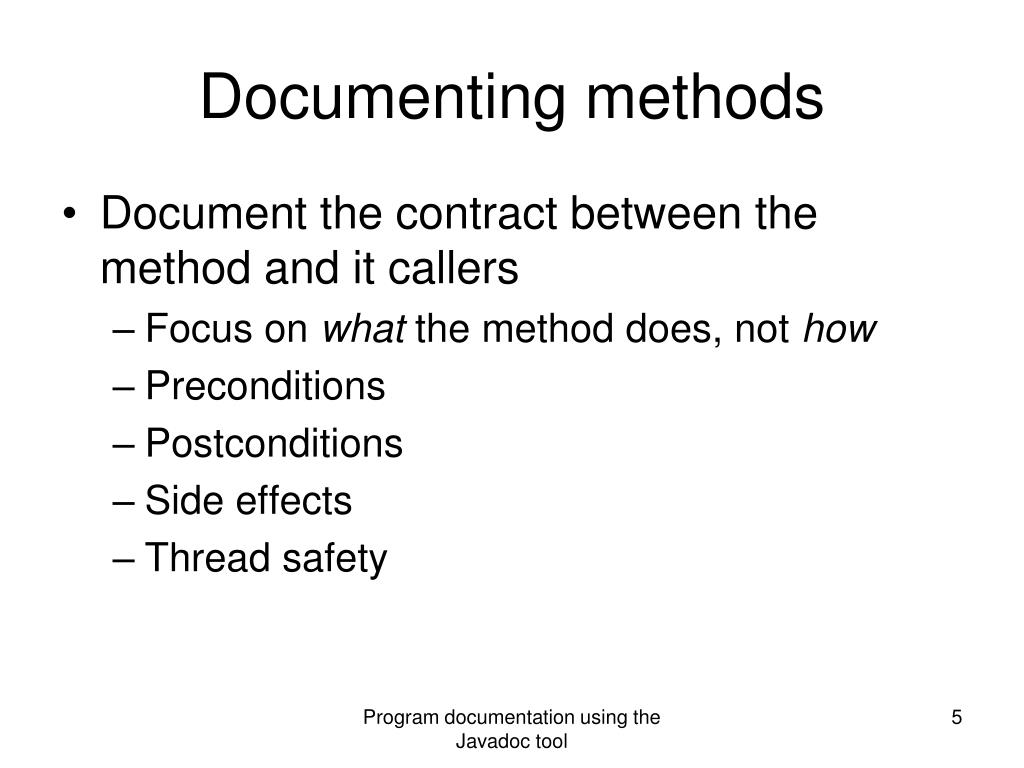

  5. Documenting methods • Document the contract between the method and it callers • Focus on what the method does, not how • Preconditions • Postconditions • Side effects • Thread safety Program documentation using the Javadoc tool

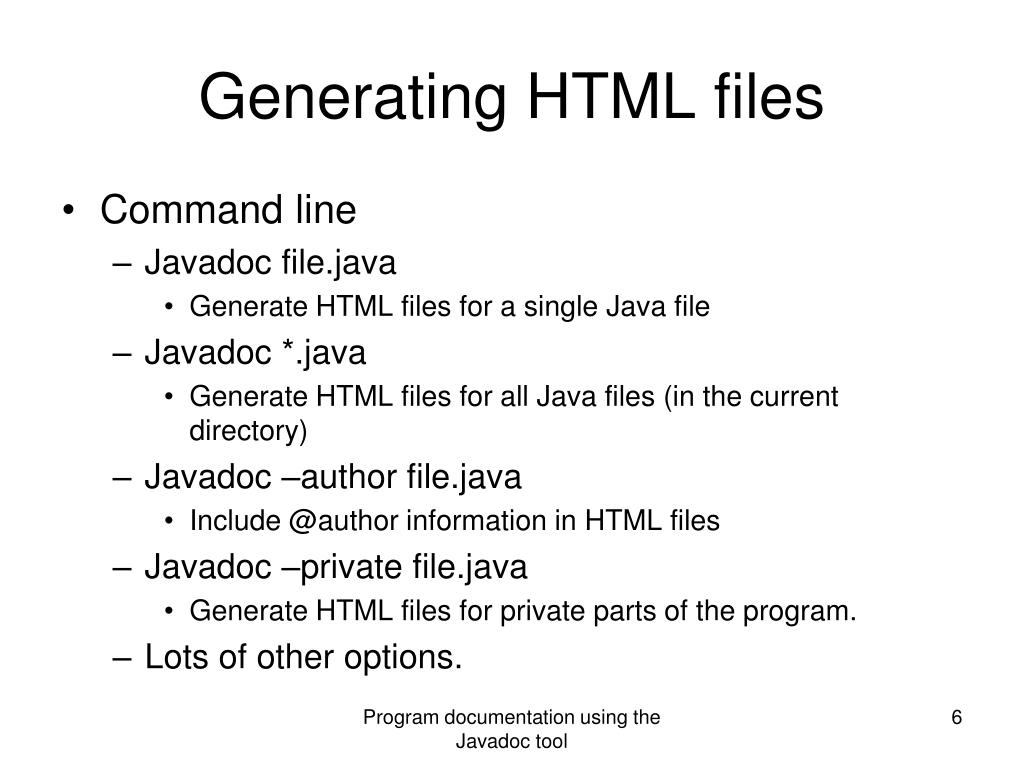

  6. Generating HTML files • Command line • Javadoc file.java • Generate HTML files for a single Java file • Javadoc *.java • Generate HTML files for all Java files (in the current directory) • Javadoc –author file.java • Include @author information in HTML files • Javadoc –private file.java • Generate HTML files for private parts of the program. • Lots of other options. Program documentation using the Javadoc tool

  7. Style • Look at the HTML files of the existing class library in J2SE. • Use the JavaDoc tag {@code parameter} for code examples, keywords, class names, methods names, etc. • Use 3rd person, not 2nd person • Gets the label (right) • Get the label (wrong) Program documentation using the Javadoc tool

  8. NetBeans assistance • NetBeans can help you write JavaDoc comments in your Java files • NetBeans can activate the JavaDoc program to generate the HTML pages. Program documentation using the Javadoc tool

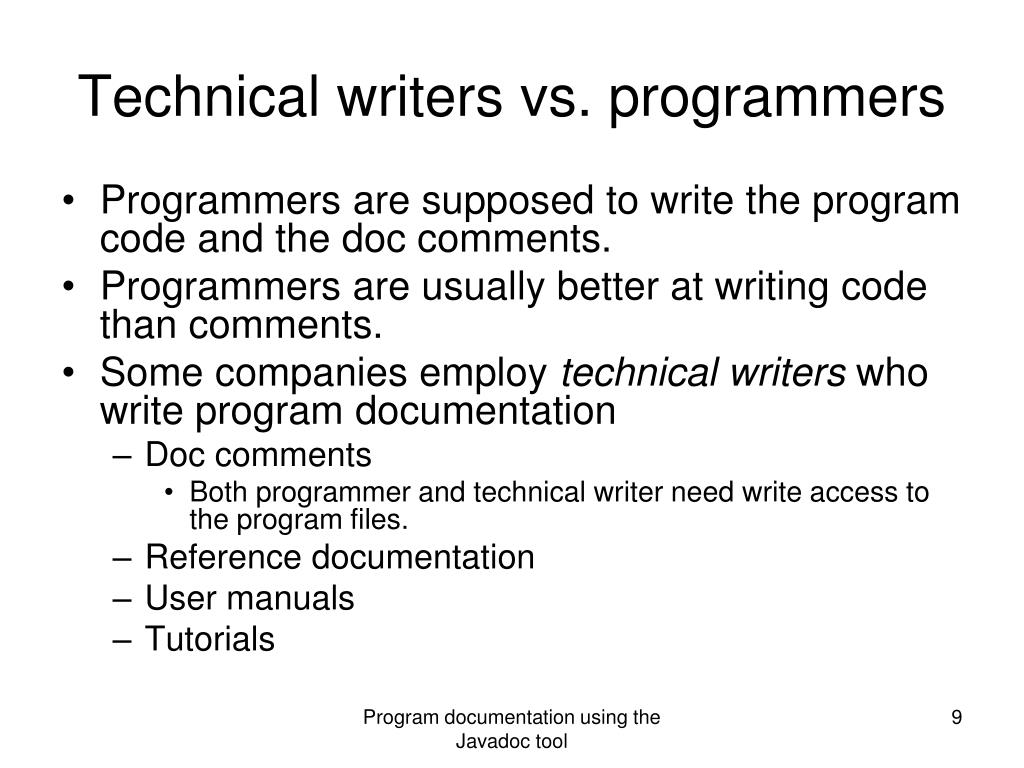

  9. Technical writers vs. programmers • Programmers are supposed to write the program code and the doc comments. • Programmers are usually better at writing code than comments. • Some companies employ technical writers who write program documentation • Doc comments • Both programmer and technical writer need write access to the program files. • Reference documentation • User manuals • Tutorials Program documentation using the Javadoc tool

  10. References • Sun Microsystems Java Doc Tool Homepage • http://java.sun.com/j2se/javadoc/index.jsp • Sun Microsystems How to Write Doc Comments for the Javadoc Tool • http://java.sun.com/j2se/javadoc/writingdoccomments/index.html • Sun’s internal standards for writing doc comments. • Arnold et al.The Java Programming Language 4th edition, Addison Wesley 2006 • Chapter 19 Documentation Comments, page 481-498 • Introduction with emphasis on JavaDoc tags. • Joshua BlochEffective Java, Addison Wesley 2001 • Item 28: Write doc comments for all exposed API elements, page 136-139 Program documentation using the Javadoc tool
