21. 21. 22. 22. Typical ABS installations showing directly controlled wheels using a minimum number of sensors. 21. 21. 21. 22. 2. 22. 22. 1. 1. 2 3. 2 3. 1. 2. 3 4. 5. 4 5. 4 5 6. 1 2 3.

thom
Télécharger la présentation

1 2 3

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

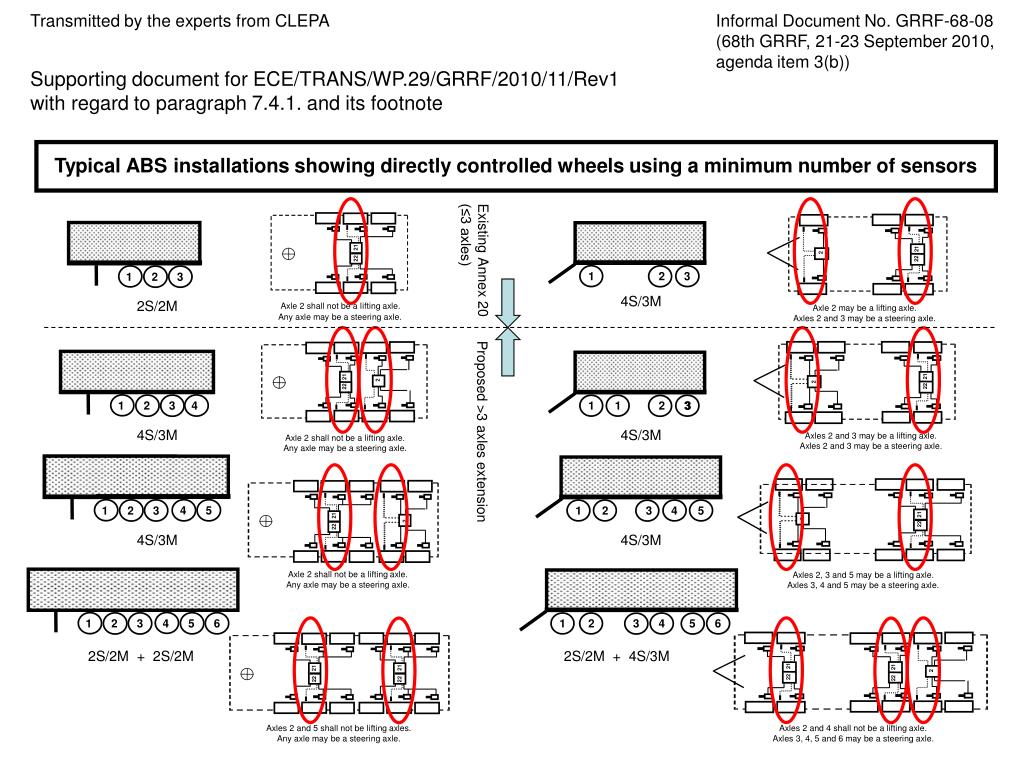

  1. 21 21 22 22 Typical ABS installations showing directly controlled wheels using a minimum number of sensors 21 21 21 22 2 22 22 1 1 2 3 2 3 1 2 3 4 5 4 5 4 5 6 1 2 3 Axle 2 shall not be a lifting axle. Axle 2 may be a lifting axle.Axles 2 and 3 may be a steering axle. Any axle may be a steering axle. 1 2 3 4 2 22 21 21 2 22 21 22 2 2 2 Axles 2 and 3 may be a lifting axle.Axles 2 and 3 may be a steering axle. Axle 2 shall not be a lifting axle.Any axle may be a steering axle. 1 2 3 1 2 3 1 2 3 4 5 6 1 3 Axle 2 shall not be a lifting axle.Any axle may be a steering axle. Axles 2, 3 and 5 may be a lifting axle.Axles 3, 4 and 5 may be a steering axle. 21 21 22 22 Axles 2 and 5 shall not be lifting axles.Any axle may be a steering axle. Axles 2 and 4 shall not be a lifting axle.Axles 3, 4, 5 and 6 may be a steering axle. Transmitted by the experts from CLEPA Informal Document No. GRRF-68-08 (68th GRRF, 21-23 September 2010, agenda item 3(b)) Supporting document for ECE/TRANS/WP.29/GRRF/2010/11/Rev1with regard to paragraph 7.4.1. and its footnote Existing Annex 20(≤3 axles) 4S/3M 2S/2M Proposed >3 axles extension 4S/3M 4S/3M 4S/3M 4S/3M 2S/2M + 2S/2M 2S/2M + 4S/3M
